Batching & Blending Plant

Batching & Blending Plant. From design concept to layouts in our full in house Cad drafting facilities to Project management, commissioning & operator training. Compact square or rectangular design to maximise capacity & minimise foot print. 35 tonne Bulk Sugar storage.

justus
Télécharger la présentation

Batching & Blending Plant

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Batching & Blending Plant

  2. From design concept to layouts in our full in house Cad drafting facilities to Project management, commissioning & operator training.

  3. Compact square or rectangular design to maximise capacity & minimise foot print 35 tonne Bulk Sugar storage

  4. Vibrating bin activator for discharging of difficult products Manual slide gate Rotary valve for controlled feed rate Two vacuum blowers located under Sugar silo. One blower per blending line.

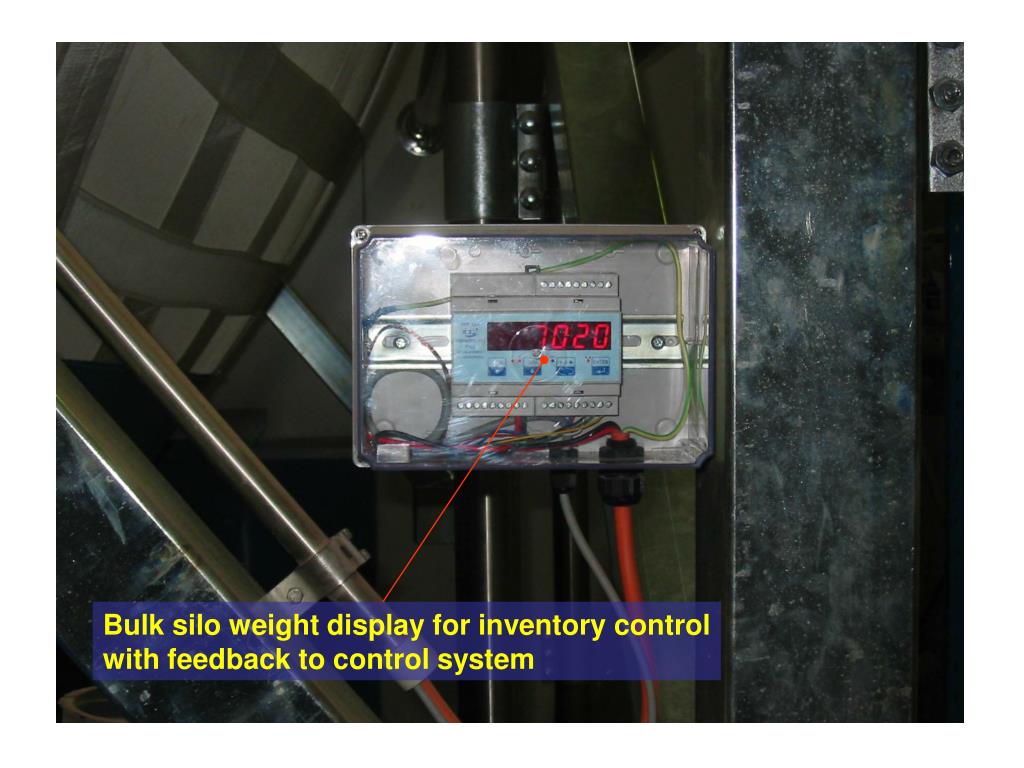

  5. Bulk silo weight display for inventory control with feedback to control system

  6. Two sack tipping units, one for dark & one for light ingredients Three Bulk bag Dischargers for automatic batching to weigh hoppers Central dust collection to reduce dust at bag tipping points. Macro & Micro ingredient addition via bulk bags & sack tipping

  7. Separate conveying lines to avoid cross-contamination. Pneumatic Plug Diverters for automatic line selection. Vacuum conveying lines

  8. Two weigh hoppers. One each for dark & light products Sifters mounted direct to mixer Ingredients are vacuum conveyed from three sources, Bulk sugar, Bulk bags and hand additives into the weigh hoppers. Once batch is complete it is dumped into the centrifugal sifter then direct to the ribbon blender.

  9. Full sized hinged lid on mixer supported on gas struts for quick easy clean out. Micro addition port for Colour pigments to eliminate contamination of conveying lines.

  10. Weigh controllers Fortress key isolation of equipment for Category 4 protection Motor Control Centre with PC/PLC interface. Full turn key project.

  11. Operator is shown next ingredient to tip & quantity of bags Gives actual weight received in weigh hopper for quality control Shows bulk ingredient name, target weight & actual weight Total weight of batch in weigh hopper shown Batch number in mixer & mix time remaining IBC number to be entered before batch will dump for full tracking HMI (Human Machine Interface)

  12. IBC (Intermediate Bulk Container) loading for transport of finished product to packing room.

  13. Pneumatic hand valve for raise & lower of Fill Head Fill Head in raised position Pneumatic Fill Head for dust free filling Fill Head in lowered position

  14. IBC’s in packing room above filling machines
