2. Database analysis, decision support, and automation Market and Sales Analysis Fraud Detection Manufacturing Process Analysis Risk Analysis and Management Experimental Results Analysis Scientific Data Analysis Text Document Analysis Why Data Mining? -- Potential Applications

3. Database Systems, Data Warehouses, and OLAP Machine Learning Statistics Mathematical Programming Visualization High Performance Computing Data Mining: Confluence of Multiple Disciplines

4. Relational Databases Data Warehouses Transactional Databases Advanced Database Systems Object-Relational Spatial Temporal Text Heterogeneous, Legacy, and Distributed WWW Data Mining: On What Kind of Data?

5. Why Do We Need Data Mining? • Leverage organization’s data assets • Only a small portion (typically - 5%-10%) of the collected data is ever analyzed • Data that may never be analyzed continues to be collected, at a great expense, out of fear that something which may prove important in the future is missed • Growth rates of data precludes traditional “manual intensive” approach

6. Why Do We Need Data Mining? • As databases grow, the ability to support the decision support process using traditional query languages become infeasible • Many queries of interest are difficult to state in a query language ( Query formulation problem) • “find all cases of fraud” • “find all individuals likely to buy a FORD Expedition” • “find all documents that are similar to this customers problem”

7. Knowledge Discovery Process • Data Mining: is a step in the knowledge discovery process consisting of particular algorithms (methods) that under some acceptable objective, produces a particular enumeration of patterns (models) over the data. • Knowledge Discovery Process: is the process of using data mining methods (algorithms) to extract (identify) what is deemed knowledge according to the specifications of measures and thresholds, using a database along with any necessary preprocessing or transformations.

8. Data Mining: A KDD Process

9. Knowledge Discovery Process Application Domain • First and foremost you must understand your data and your business. • It may be that you wish to increase the response from a direct mail campaign. So do you want to build a model to: • increase the response rate • increase the value of the response • Depending on your specific goal, the model you choose may be different.

10. Knowledge Discovery - Selecting Data • The task of selecting data begins with deciding what data is needed to solve the problem. • Issues: • Database incompatibility • Data may be in an obscure form • Data is incomplete

11. Knowledge Discovery - Preparing The Data • Data may have to be loaded from legacy systems or external sources, stored, cleaned, and validated. • Issues: • Data may be in a format incompatible for its end use • Data may have many missing, incomplete, or erroneous values • Field descriptions may be unclear, confusing, or have different meanings depending on the source • Data may be stale

12. Knowledge Discovery - Transforming Data Considerable planning and knowledge of your data should go into the transformation decision. Data transformation are at the heart of developing a sound model.

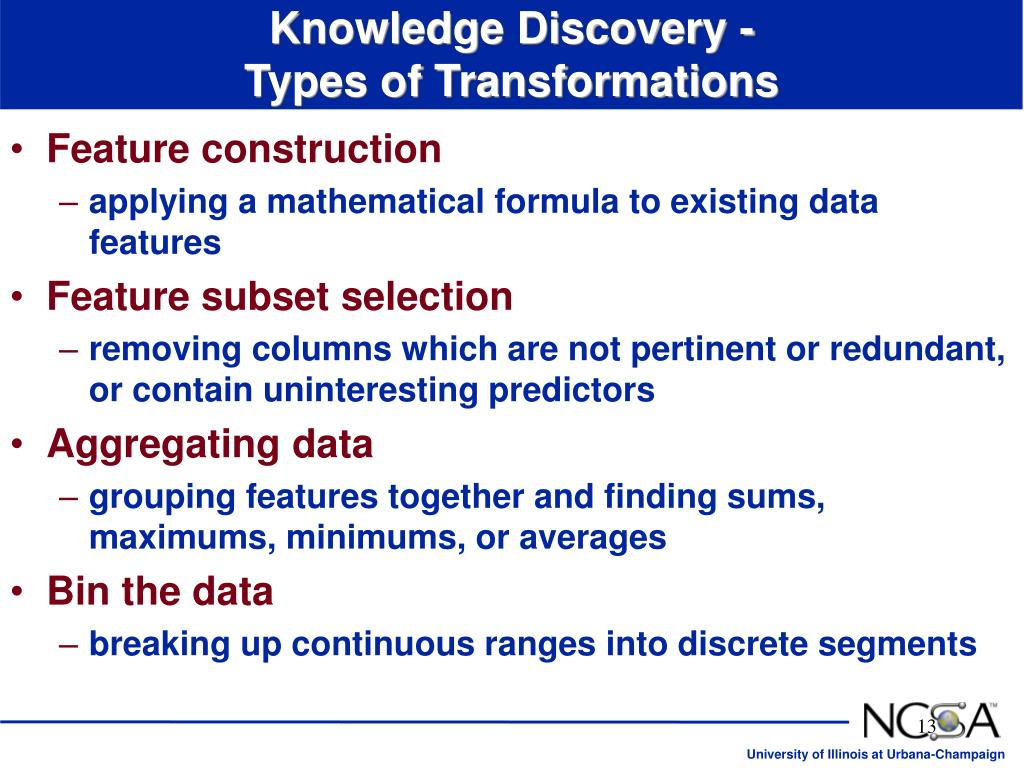

13. Knowledge Discovery - Types of Transformations • Feature construction • applying a mathematical formula to existing data features • Feature subset selection • removing columns which are not pertinent or redundant, or contain uninteresting predictors • Aggregating data • grouping features together and finding sums, maximums, minimums, or averages • Bin the data • breaking up continuous ranges into discrete segments

14. Knowledge Discovery - Data Mining • The process of building models differ among: • Supervised learning (classification, regression, • time series problems) • Unsupervised learning (database segmentation) • Pattern identification and description (link analysis) • Once you have decided on the model type, you • must choose an method for building the model • (decision tree, neural net, K-nearest neighbor ), • then the algorithm (backpropagation)

15. Knowledge Discovery - Analyze and Deploy Once the model is built, its implications must be understood. Graphical representations of relationships between independent and dependent variables may be necessary. Also, attention should be focused on important aspects of the model such as outliers or value. Model deployment may mean writing a new application, embedding into an existing system, or applying it to an existing data set. Model monitoring should be established.

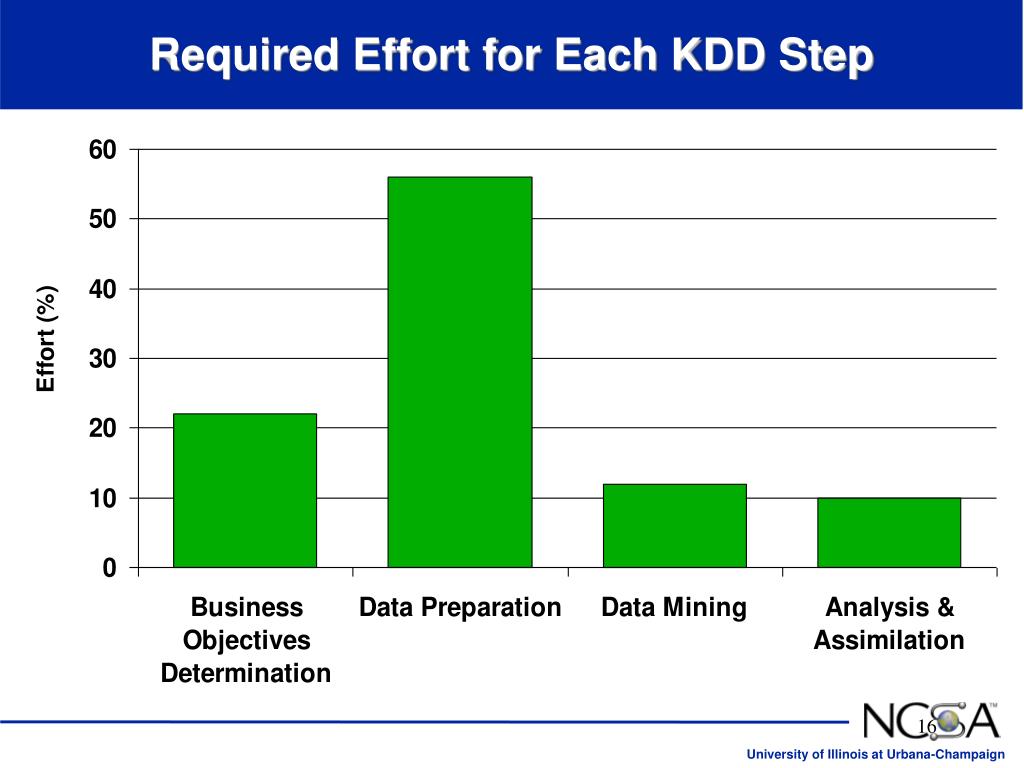

16. Required Effort for Each KDD Step

17. What Data Mining Will Not Do • Automatically find answers to questions you do not ask • Constantly monitor your database for new and interesting relationships • Eliminate the need to understand your business and your data • Remove the need for good data analysis skills

18. Data Mining Models and Methods

19. Deviation Detection • identify outliers in a dataset • typical techniques - probability distribution contrasts, supervised/unsupervised learning • hypothetical example: Point-of-sale fraud detection

20. Background: Through regular review, HR has developed a collaborative relationship with its Sales Associates (SAs). Semi-annual meetings allow review of the SAs practices with similar SAs across the country. Goal: The approach is aimed at modifying SAs behavior to promote better service rather than at investigating and prosecuting SAs, although both strategies are employed. Fraud and Inappropriate Practice Prevention

21. Business Objective: The focus of this project was on the recent and steady 12% annual rise in overrides. The overall business objective of the project was to find a way to ensure that the overrides were appropriate with out negatively affecting service provided by the SAs. Fraud and Inappropriate Practice Prevention

22. Approach: To identify potential fraudulent overrides or overrides arising from inappropriate practices. To develop general profiles of the SAs practices in order to compare practice behavior of individual SAs. Fraud and Inappropriate Practice Prevention

23. Fraud and Inappropriate Practice Prevention

24. Database Segmentation • regroup datasets into clusters that share common characteristics • typical technique - unsupervised leaning (SOMs, K-Means) • hypothetical example: Cluster all similar regimes (financial, free form text)

25. Self Organizing Maps Example - Text Clustering This data is considered to be confidential and proprietary to Caterpillar and may only be used with prior written consent from Caterpillar.

26. Predictive Modeling • past data predicts future response • typical technique - supervised learning (Artificial Neural Networks, Decision Trees, Naïve Bayesian) • hypothetical example (classification): Who is most likely to respond to a direct mailing • hypothetical example (predication): How will the German Stock Price Index perform in the next 3, 5, 7, days

27. Predictive Modeling - Prior Probabilities

28. Predictive Modeling - Posterior Probabilities

29. Link Analysis • relationships between records/attributes in datasets • typical techniques - rule association, sequence discovery • hypothetical example (rule association): When people buy a hammer they also buy nails 50% of the time • hypothetical example ( sequence discovery): When people buy a hammer they also buy nails within the next 3 months 18% of the time, and within the subsequent 3 months 12% of the time

30. Link Analysis (Rule Association) • Given a database, find all associations of the form: IF < LHS > THEN <RHS > Prevalence = frequency of the LHS and RHS occurring together Predictability = fraction of the RHS out of all items with the LHS

31. Rule Association - Basket Analysis

32. Association Rules - Basket Analysis • <Dairy-Milk-Refrigerated> implies <Soft Drinks Carbonated> • prevalence = 4.99%, predictability = 22.89% • <Dry Dinners - Pasta> implies <Soup-Canned> • prevalence = 0.94%, predictability = 28.14% • <Paper Towels - Jumbo> implies <Toilet Tissue> • prevalence = 2.11%, predictability = 38.22% • <Dry Dinners - Pasta> implies <Cereal - Ready to Eat> • prevalence = 1.36%, predictability = 41.02% • <Cheese-Processed Slices - American> implies <Cereal - Ready to Eat> • prevalence = 1.16%, predictability = 38.01%

33. There is a sponsor for the application. The business case for the application is clearly understood and measurable, and the objectives are likely to be achievable given the resources being applied. The application has a high likelihood of having a significant impact on the business. Business domain knowledge is available. Good quality, relevant data in sufficient quantities is available. Requirements For Successful Data Mining

34. The right people – business domain, data management, and data mining experts. People who have “been there and done that” For a first time project the following criteria could be added: The scope of the application is limited. Try to show results within 3-6 months. The data source should be limited to those that are well know, relatively clean and freely accessible. Requirements For Successful Data Mining

35. Rapid KD Development Environment

36. Rapid KDD Development Environment

37. Why Information Visualization Gain insight into the contents and complexity of the database being analyzed Vast amounts of under utilized data Time-critical decisions hampered Key information difficult to find Results presentation Reduced perceptual, interpretative, cognitive burden

38. Typical Data Abstract corporate data Mostly discrete not continuous Often multi-dimensional Quantitative Text Historical or real-time

39. Typical Applications Historical Data Analysis Marketing Data Mining Analysis Portfolio Performance Attribution Fraud/Surveillance Analysis Decision Support Financial Risk Management Operations Planning Military Strategic PlanningTypical Applications

40. Typical Applications (cont) Monitoring Real-Time Status Industrial Process Control Capital Markets Trading Management Network Monitoring Management Reporting Financial Reporting Sales and Marketing Reporting

41. Marketing Data Mining Analysis Click on me.. I am an animation

42. Risk Management

43. Capital Markets Trading Management

44. Network Monitoring

45. Industrial Process Control

46. Ground (Student) View Aerial/Oracular (Instructor) View Color code for compartment status Normal Engulfed Extinguished Flooding Ignited Destroyed Fire Alarm Crisis Monitoring

47. 3D Financial Reporting

48. Statistics Visualizer

49. Scatter Visualizer

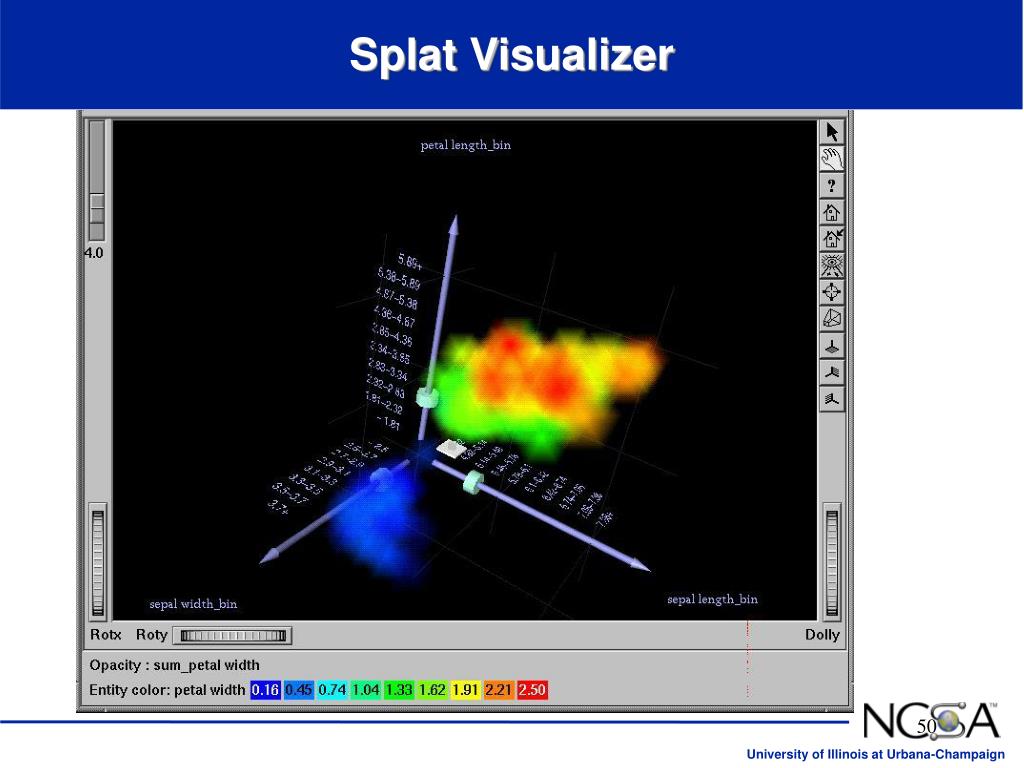

50. Splat Visualizer
