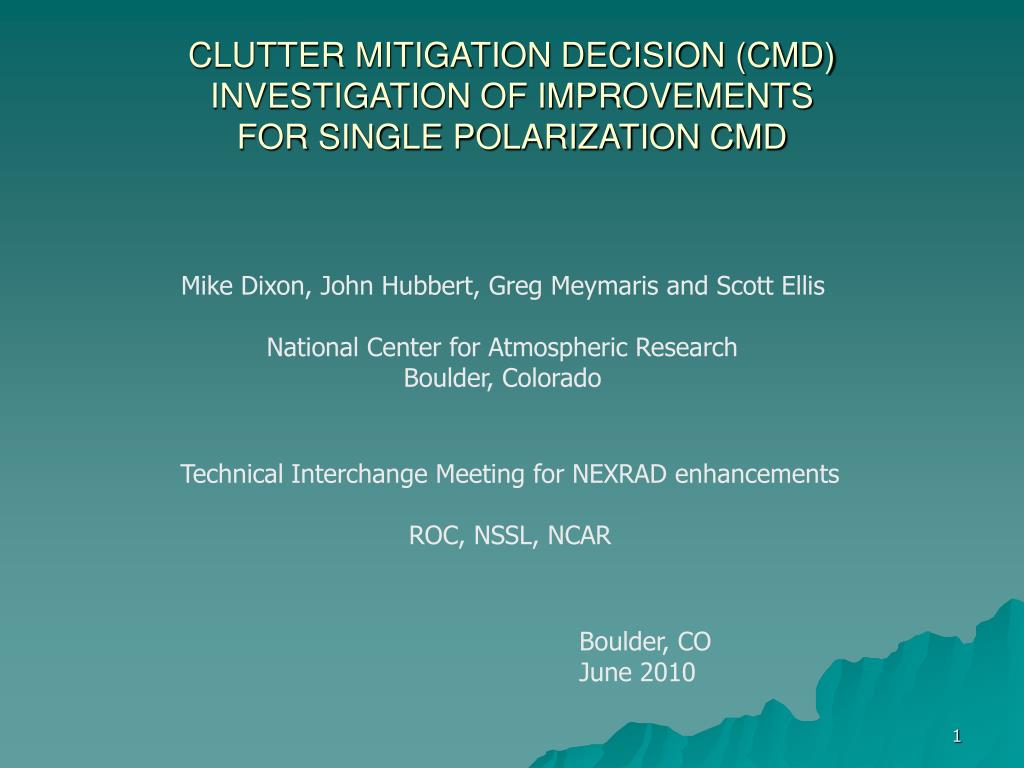

  1. CLUTTER MITIGATION DECISION (CMD)INVESTIGATION OF IMPROVEMENTSFOR SINGLE POLARIZATION CMD Mike Dixon, John Hubbert, Greg Meymaris and Scott EllisNational Center for Atmospheric ResearchBoulder, Colorado Technical Interchange Meeting for NEXRAD enhancementsROC, NSSL, NCAR Boulder, CO June 2010

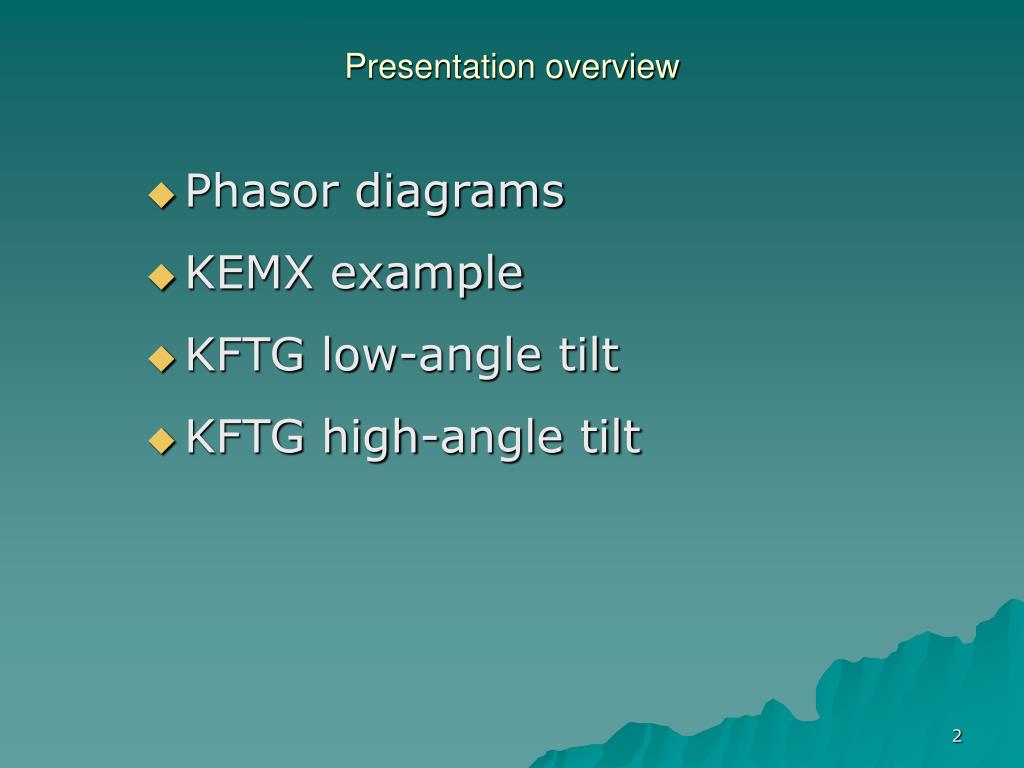

  2. Presentation overview • Phasor diagrams • KEMX example • KFTG low-angle tilt • KFTG high-angle tilt

  3. PHASOR DIAGRAMS - KEMX

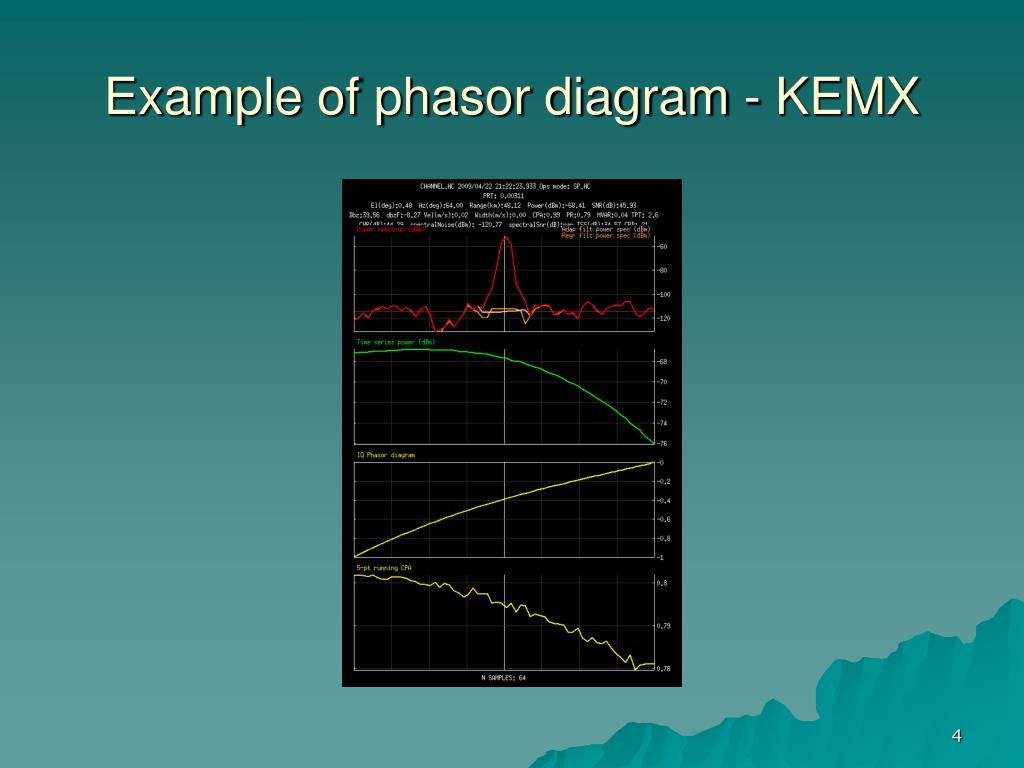

  4. Example of phasor diagram - KEMX

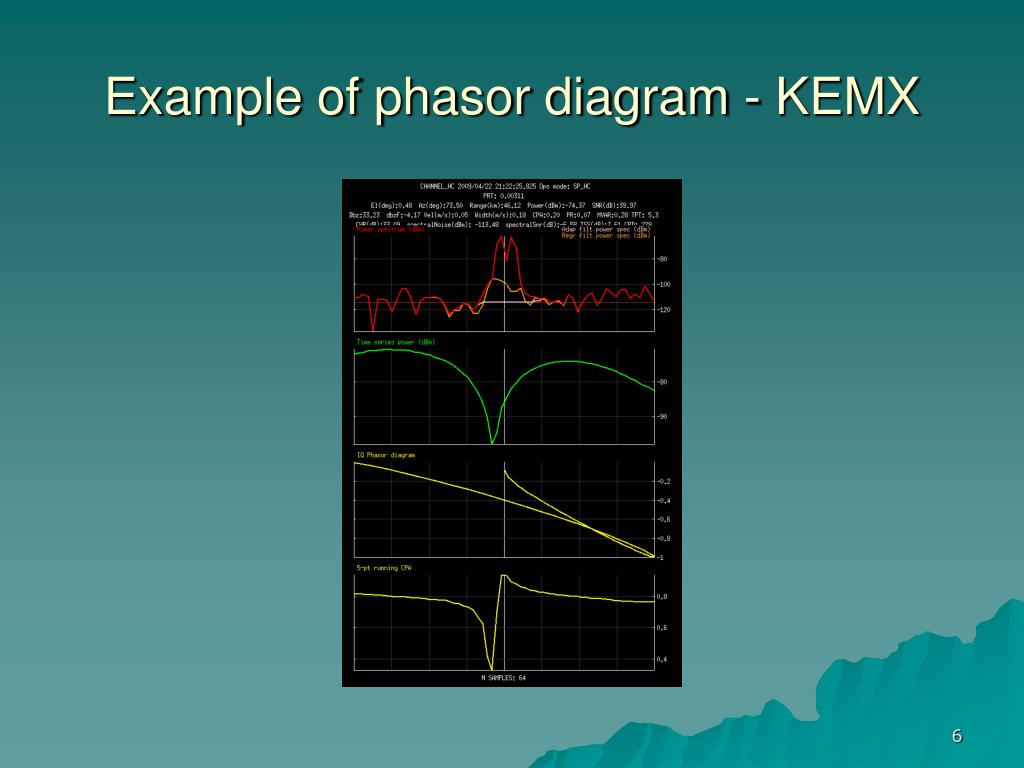

  5. Example of phasor diagram - KEMX

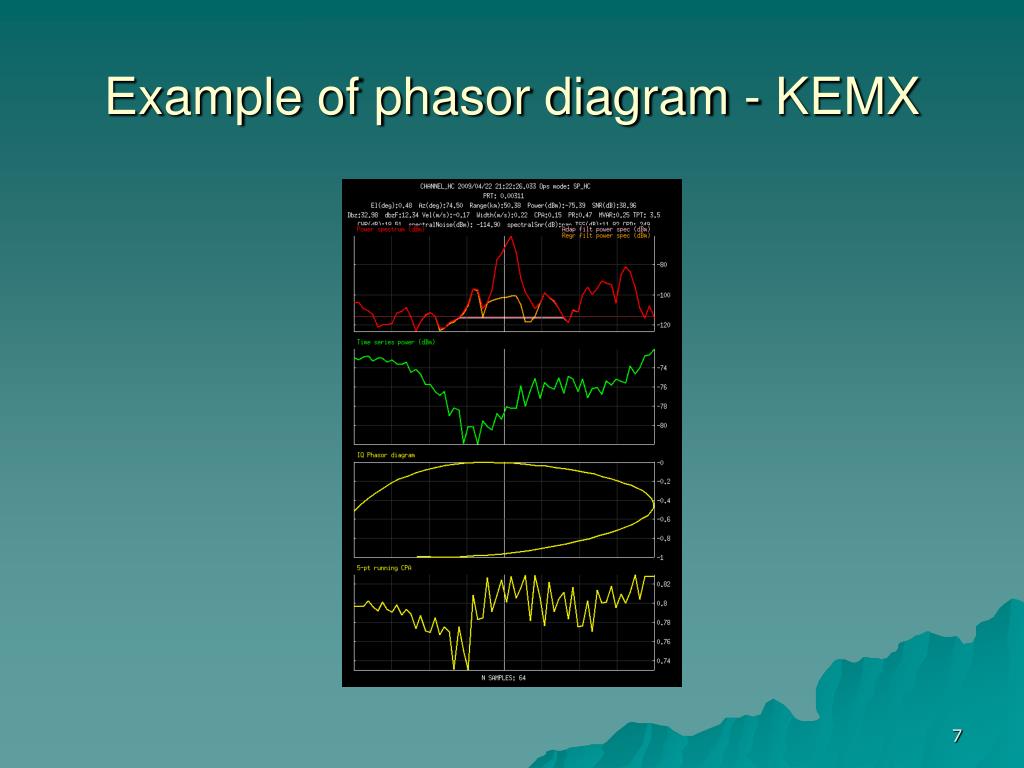

  6. Example of phasor diagram - KEMX

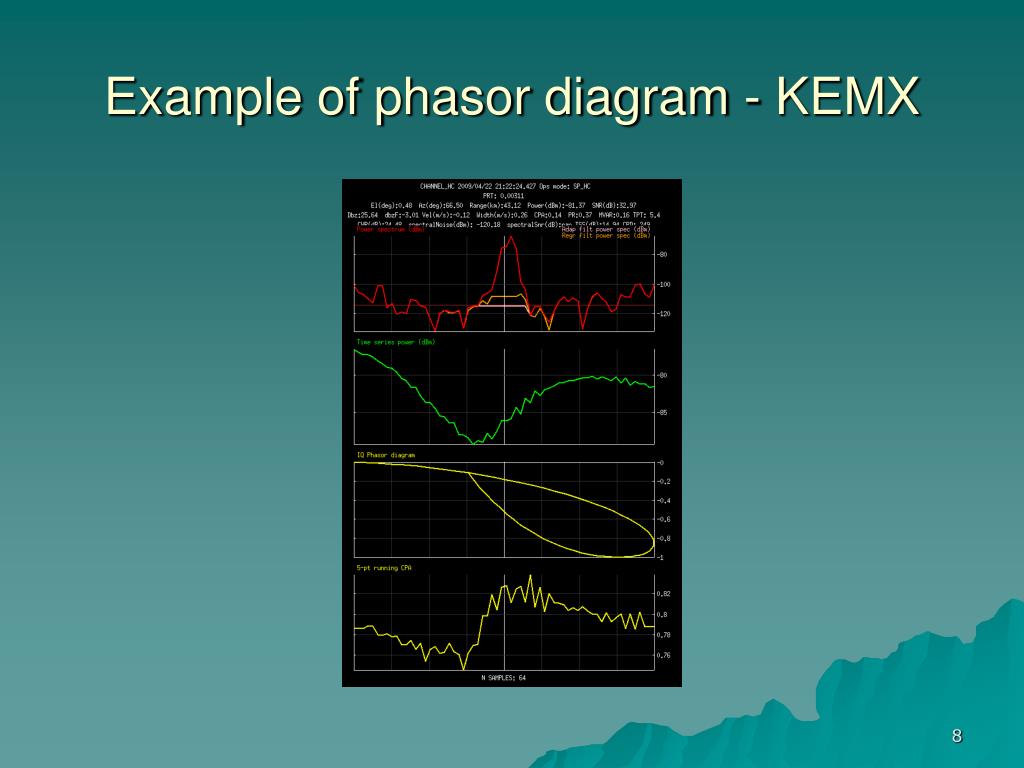

  7. Example of phasor diagram - KEMX

  8. Example of phasor diagram - KEMX

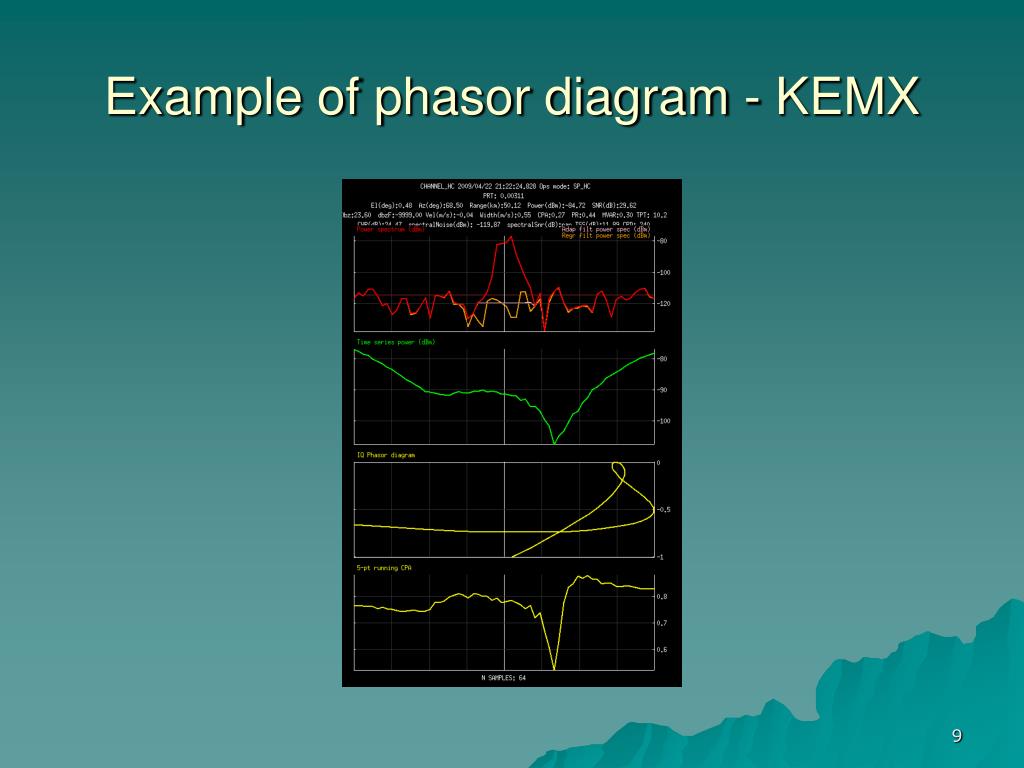

  9. Example of phasor diagram - KEMX

  10. PHASOR DIAGRAMS - KFTG

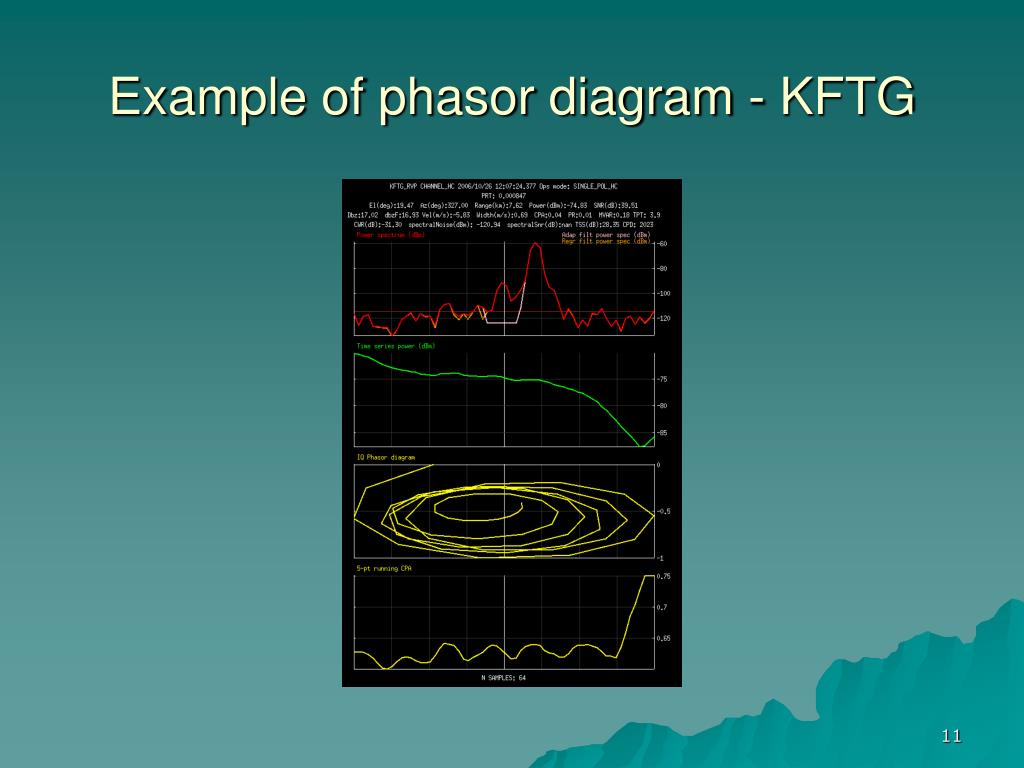

  11. Example of phasor diagram - KFTG

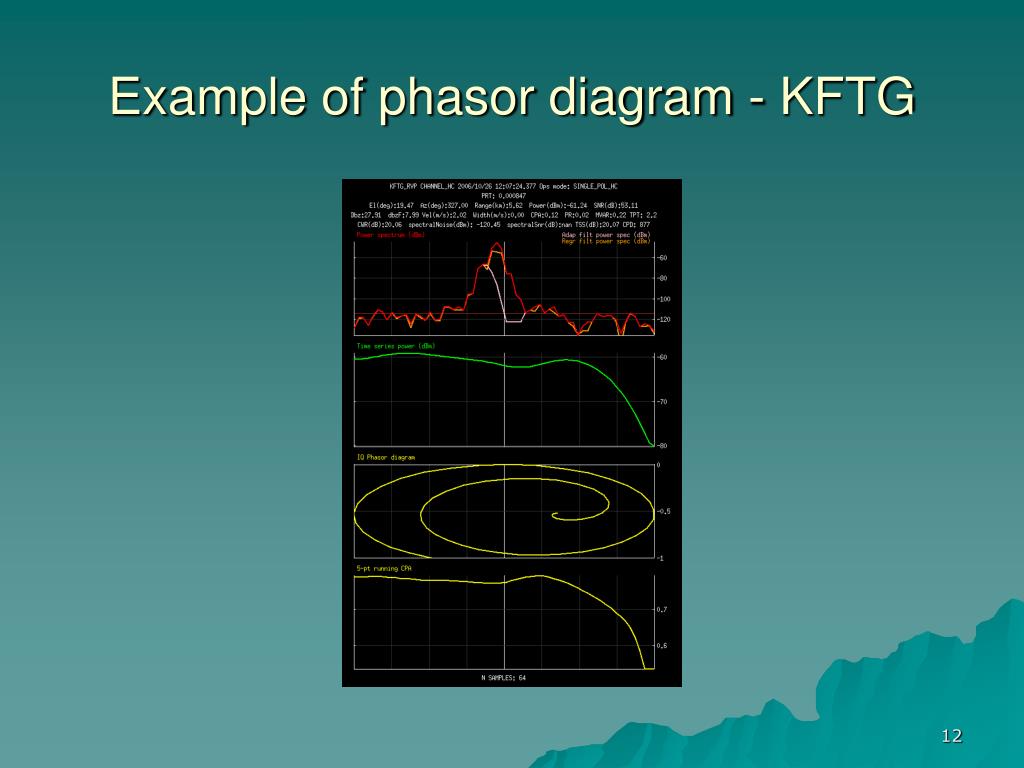

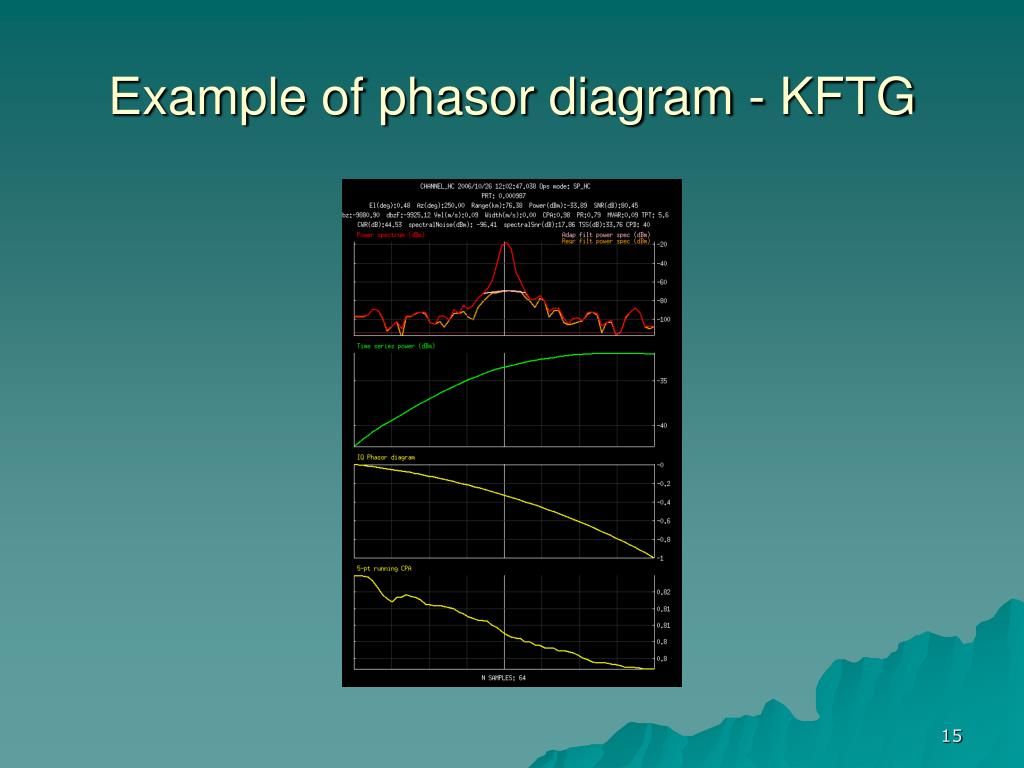

  12. Example of phasor diagram - KFTG

  13. Example of phasor diagram - KFTG

  14. Example of phasor diagram - KFTG

  15. Example of phasor diagram - KFTG

  16. Example of phasor diagram - KFTG

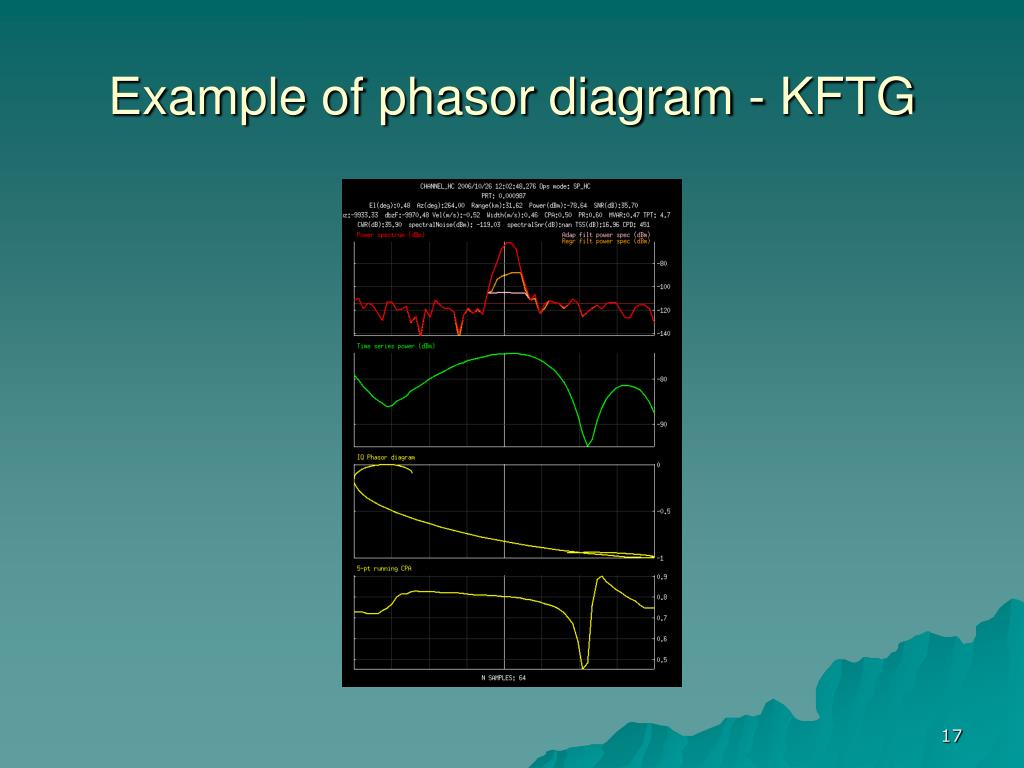

  17. Example of phasor diagram - KFTG

  18. KEMX with new CPA

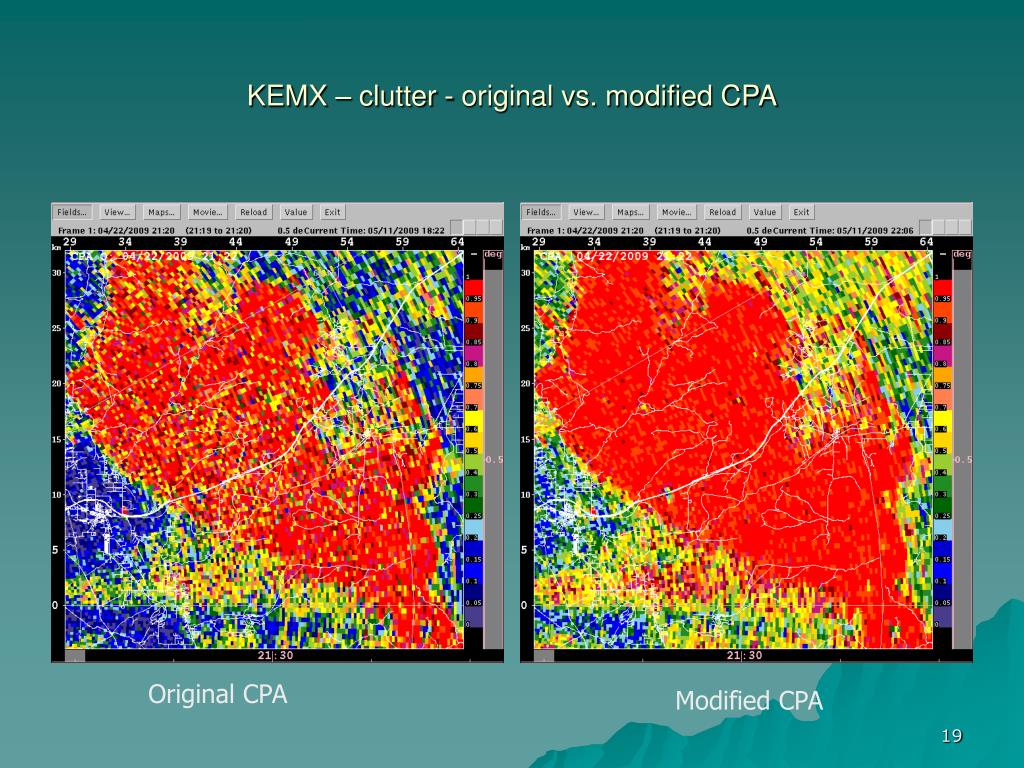

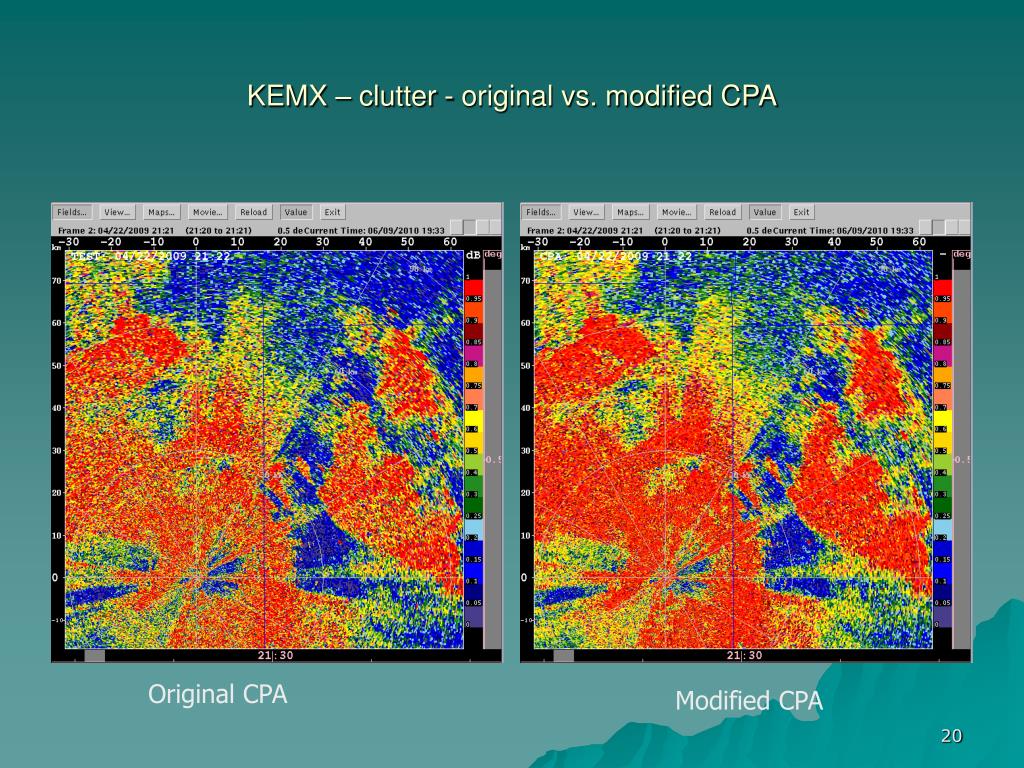

  19. KEMX – clutter - original vs. modified CPA Original CPA Modified CPA

  20. KEMX – clutter - original vs. modified CPA Original CPA Modified CPA

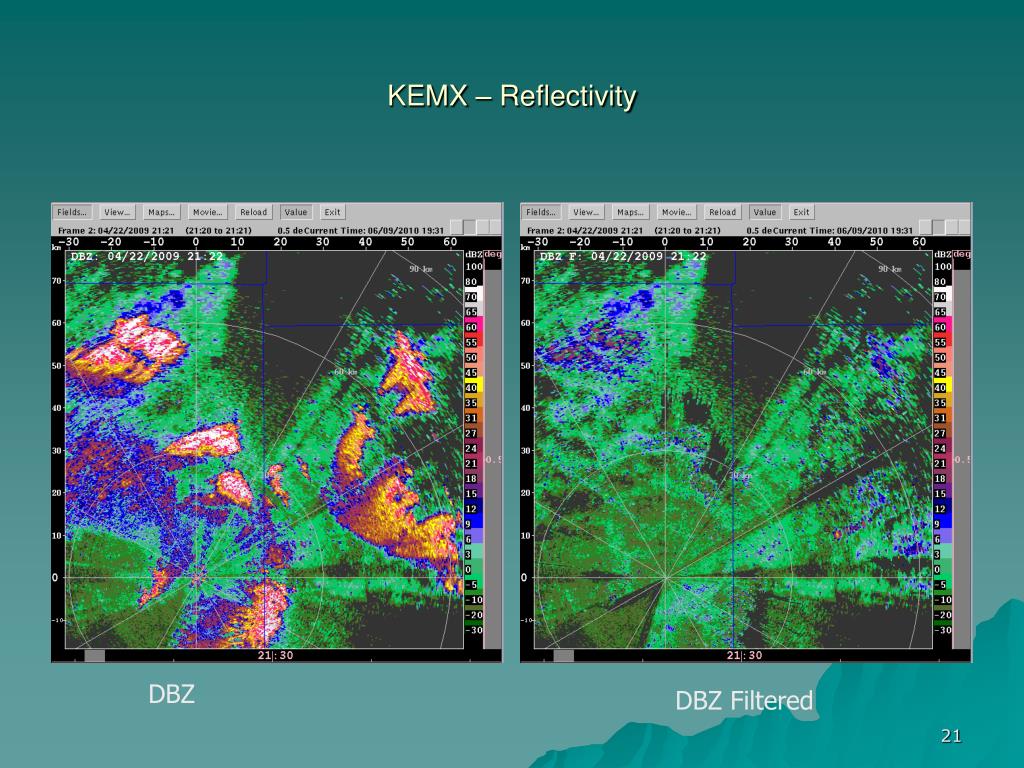

  21. KEMX – Reflectivity DBZ DBZ Filtered

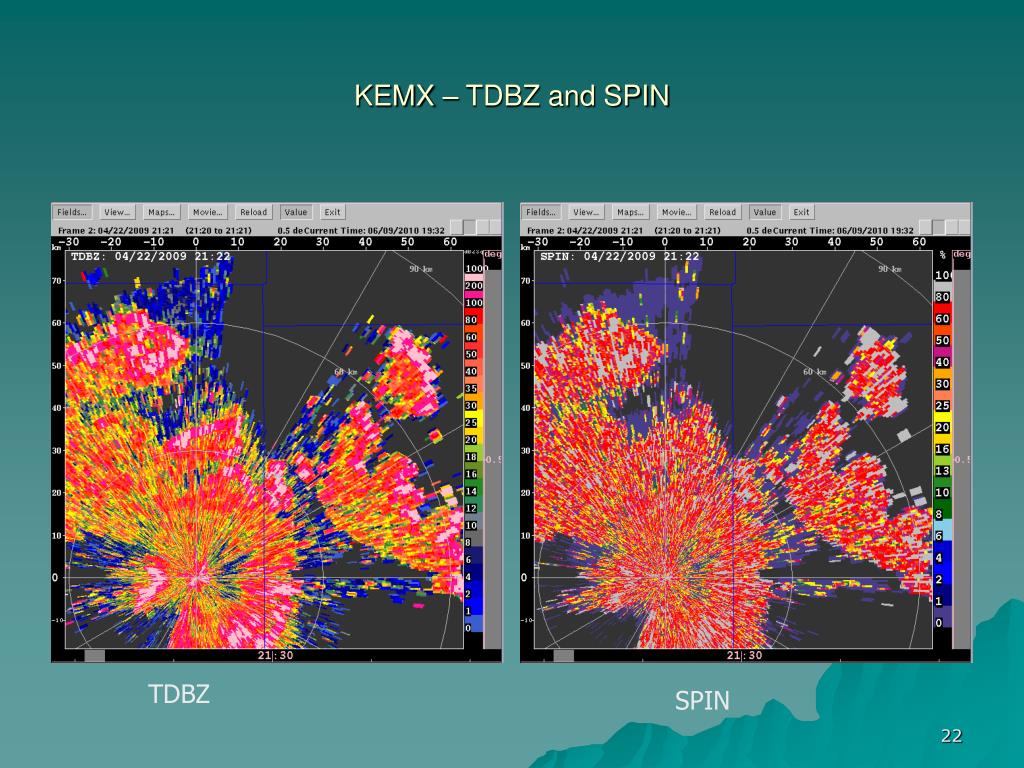

  22. KEMX – TDBZ and SPIN TDBZ SPIN

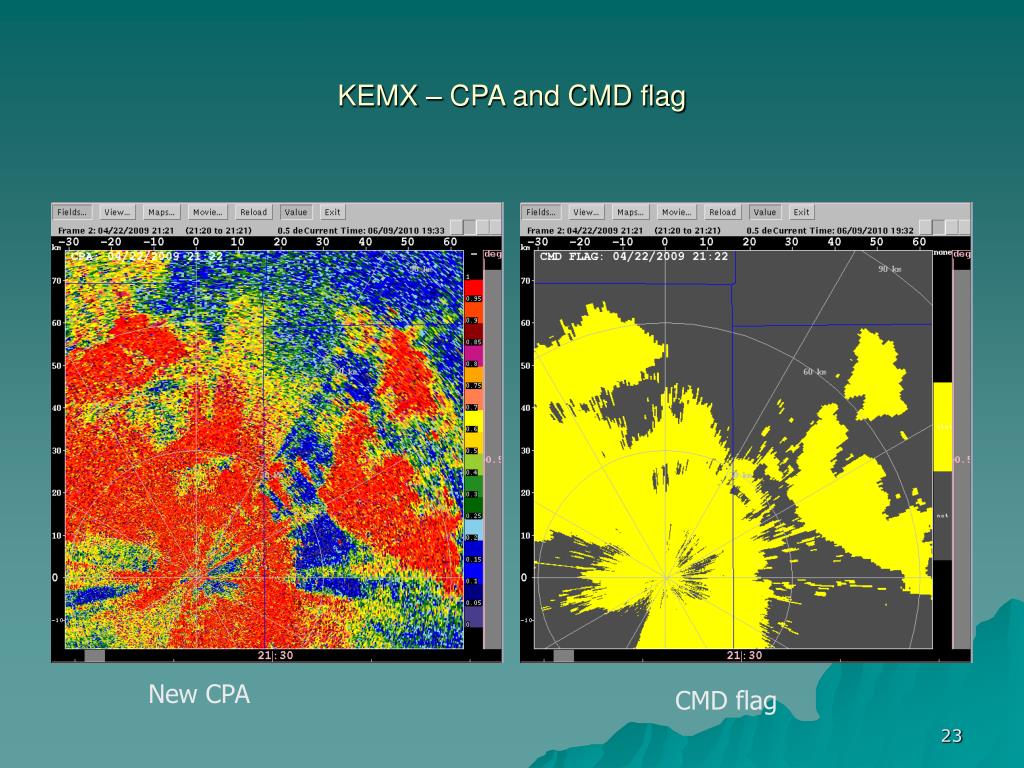

  23. KEMX – CPA and CMD flag New CPA CMD flag

  24. KFTG low-level tilt

  25. Usual test case, 2006/10/26 KFTG, DBZ / VEL

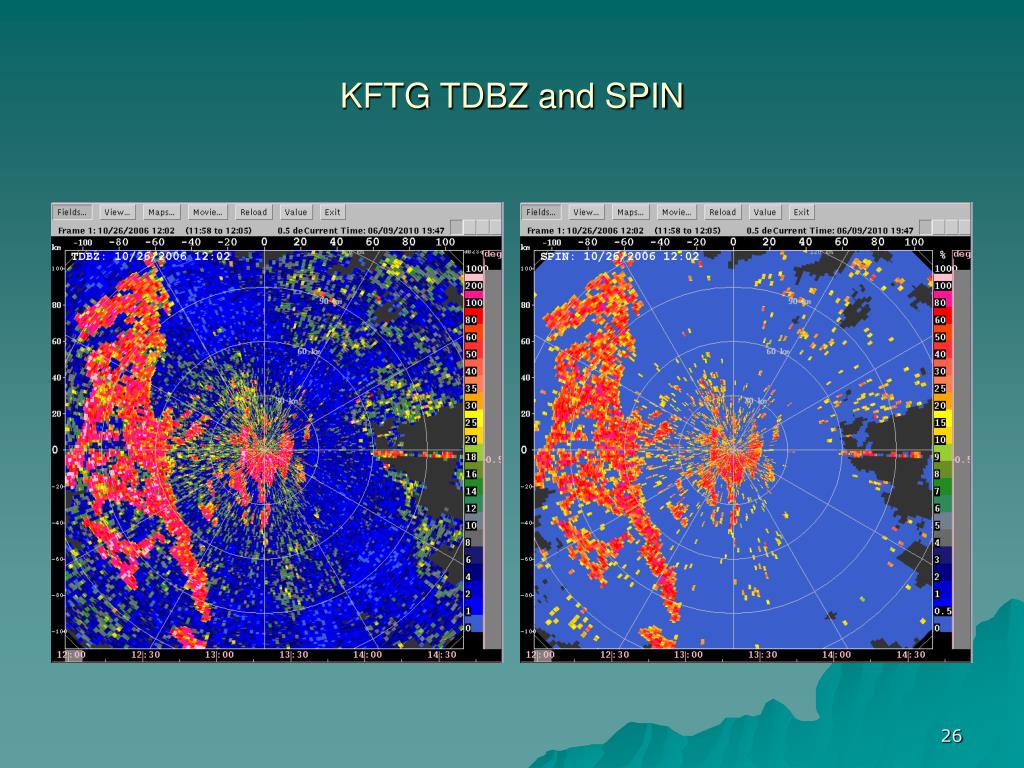

  26. KFTG TDBZ and SPIN

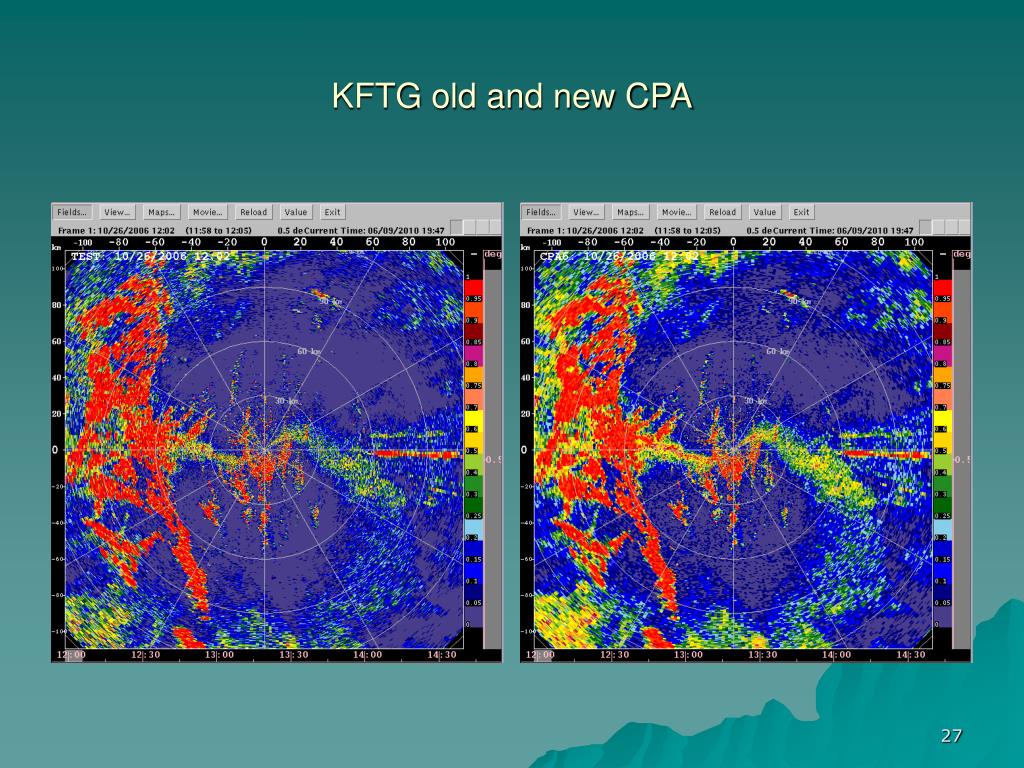

  27. KFTG old and new CPA

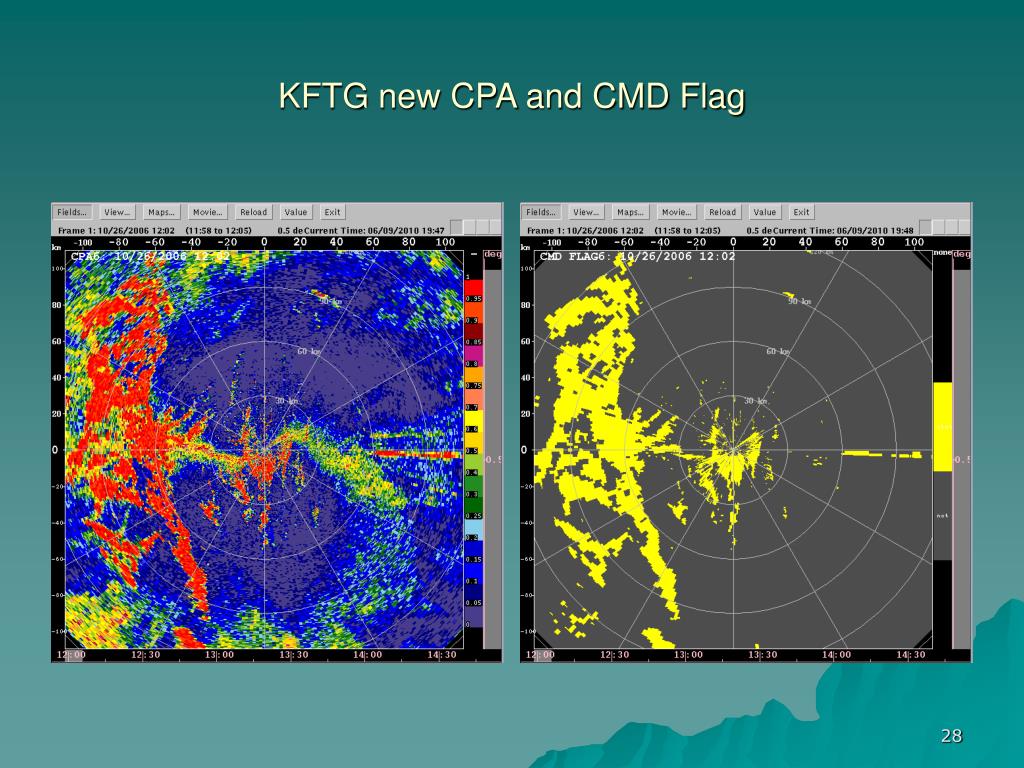

  28. KFTG new CPA and CMD Flag

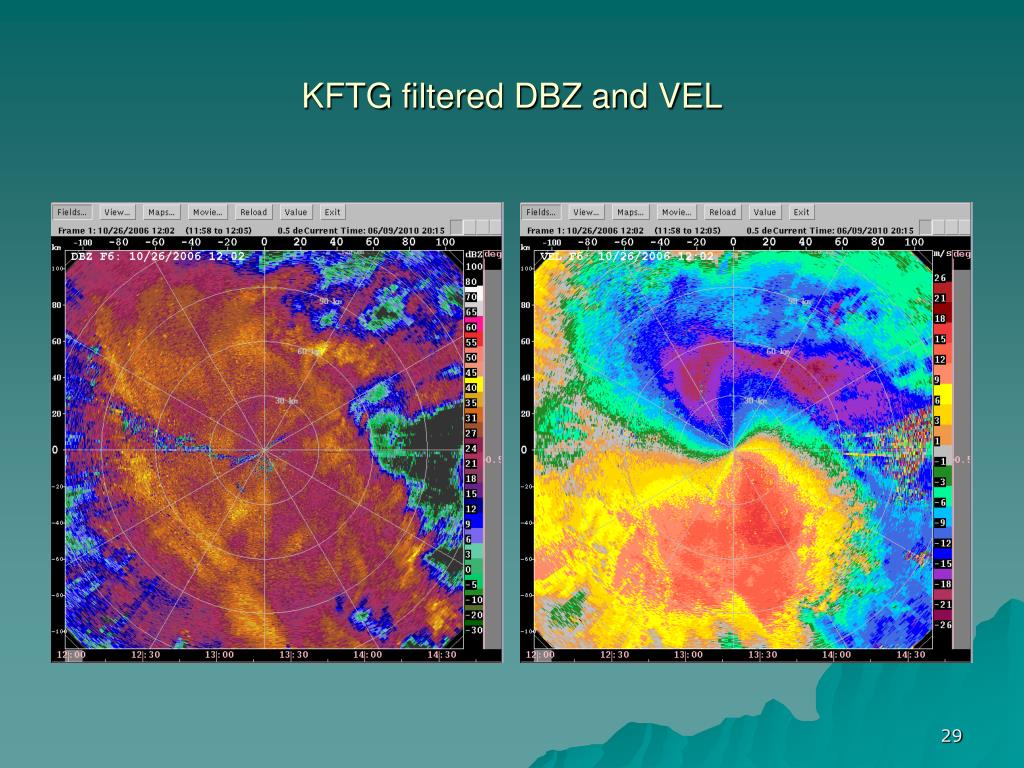

  29. KFTG filtered DBZ and VEL

  30. KFTG – unfiltered DBZ and VEL

  31. KFTG high-level weather tilt

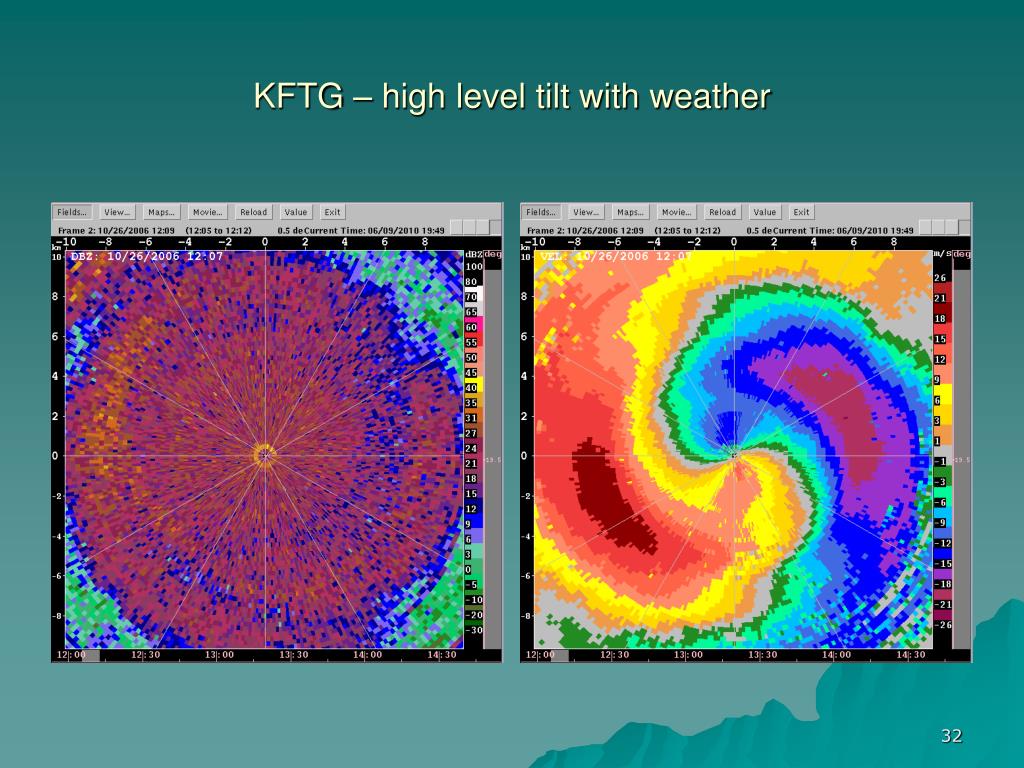

  32. KFTG – high level tilt with weather

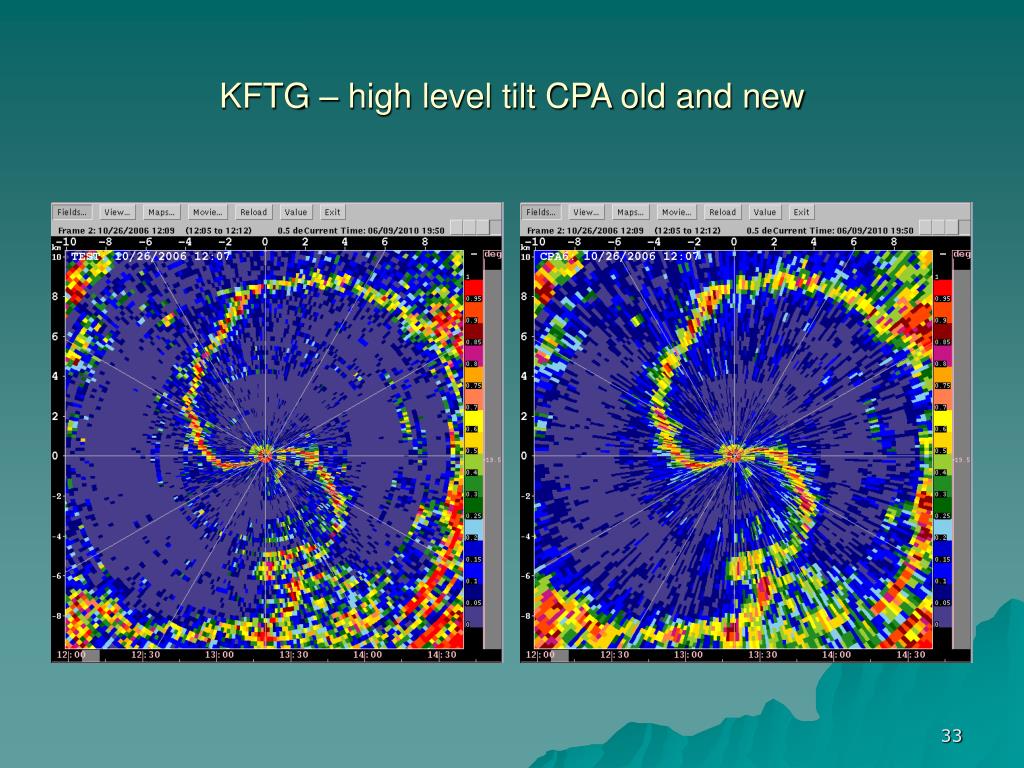

  33. KFTG – high level tilt CPA old and new

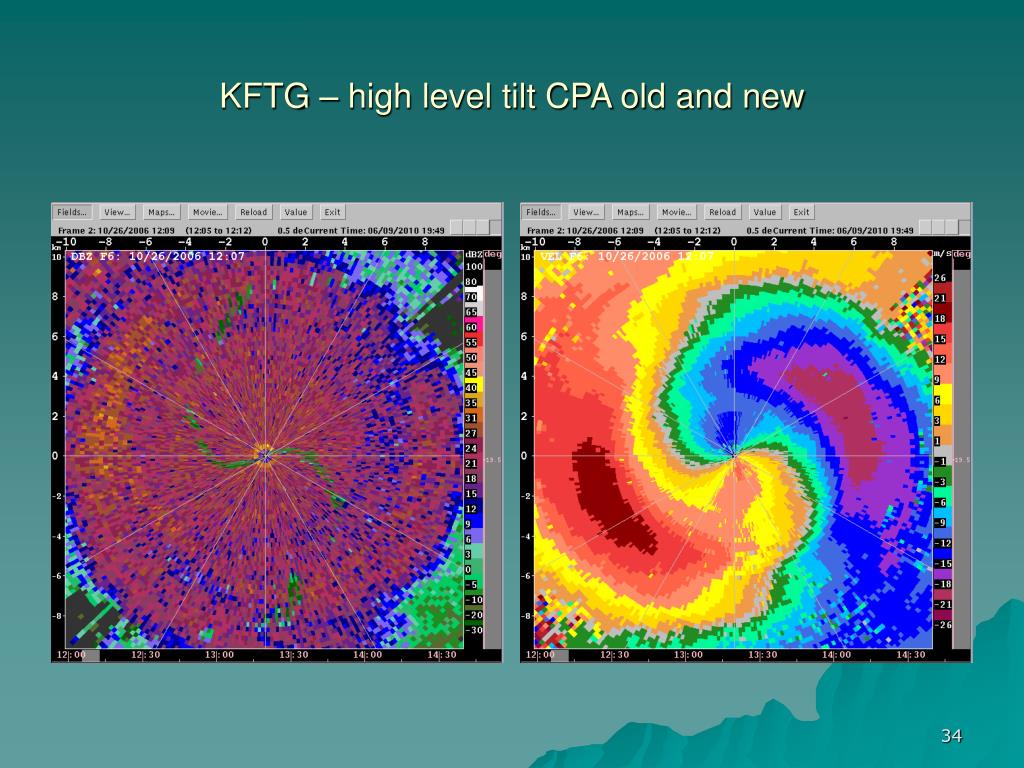

  34. KFTG – high level tilt CPA old and new

  35. KFTG – high level tilt with weather

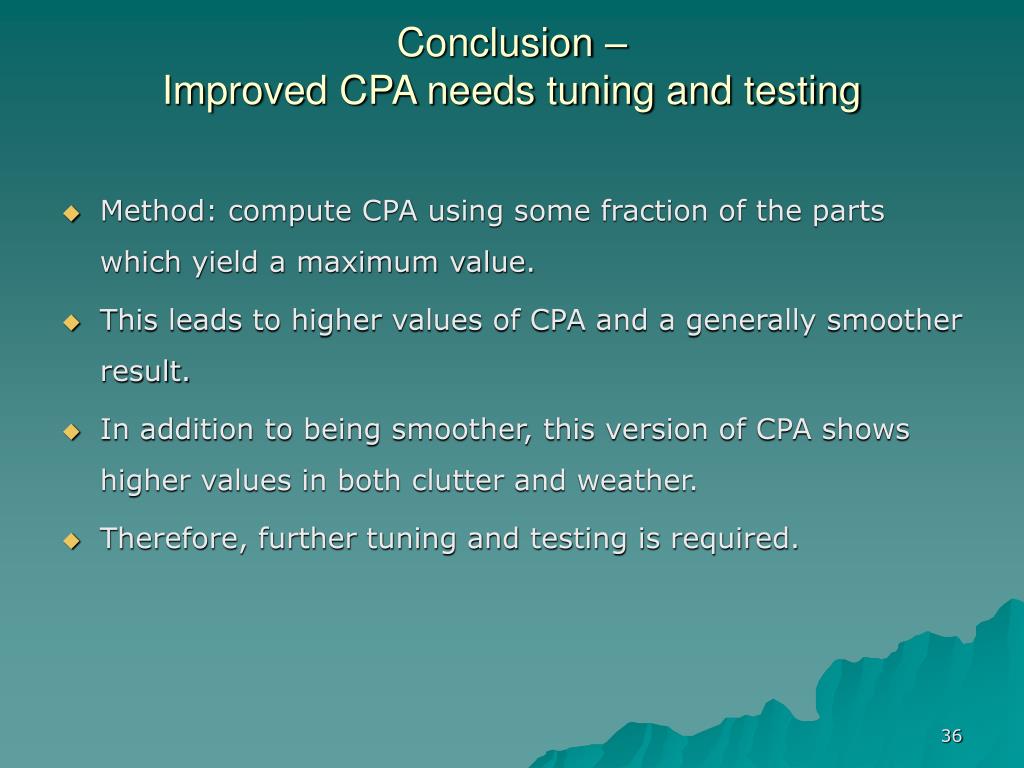

  36. Conclusion – Improved CPA needs tuning and testing • Method: compute CPA using some fraction of the parts which yield a maximum value. • This leads to higher values of CPA and a generally smoother result. • In addition to being smoother, this version of CPA shows higher values in both clutter and weather. • Therefore, further tuning and testing is required.
