  1. Rapid40iXL Modifications to accept 40 pin DIP DSPics By Wilmer Arellano

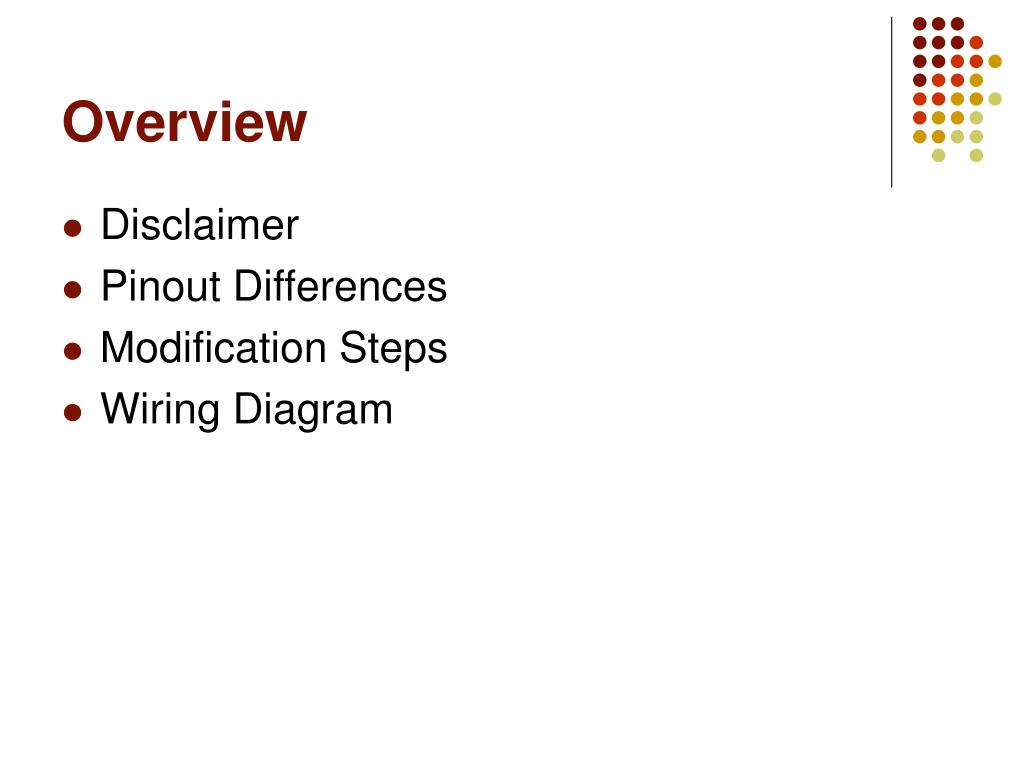

  2. Overview • Disclaimer • Pinout Differences • Modification Steps • Wiring Diagram

  3. Disclaimer • The following indications are guidelines only. • Students should check that indicated pin numbers correspond to actual pin numbers. • Students should verify that the new indicated connections correspond to the descriptions in next slides and that those are correct. • Damage to any component in this process is students solely responsibility. • The indicated concepts could be used in different model board or with different dsPICS.

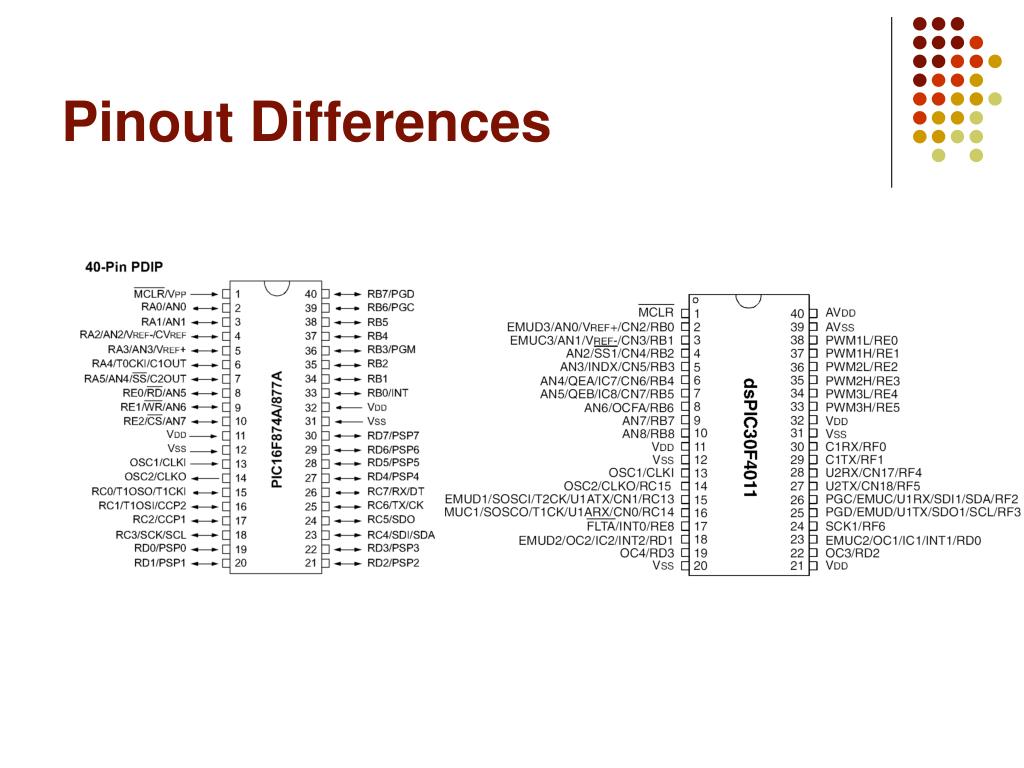

  4. Pinout Differences

  5. Modification Steps dsPIC30F4011 • Programming lines PGC & PGD have to be relocated from original location to satisfy 40 pin DIP DSPics requirements. • Original PGC line should be broken and reconnected to pin 26 • Original PGD line should be broken and reconnected to pin 25 • Pin 21 should be connected to VDD • Pin 20 should be connected to VSS

  6. x x 22 Valid for dsPIC4011 25 26 25 26 26 25 24 23 18 17 16 15 10 7 6 5 4 3 2 9 8 19 20 21 22 27 28 29 30 33 34 35 36 37 38 39 40 1 Component Side view

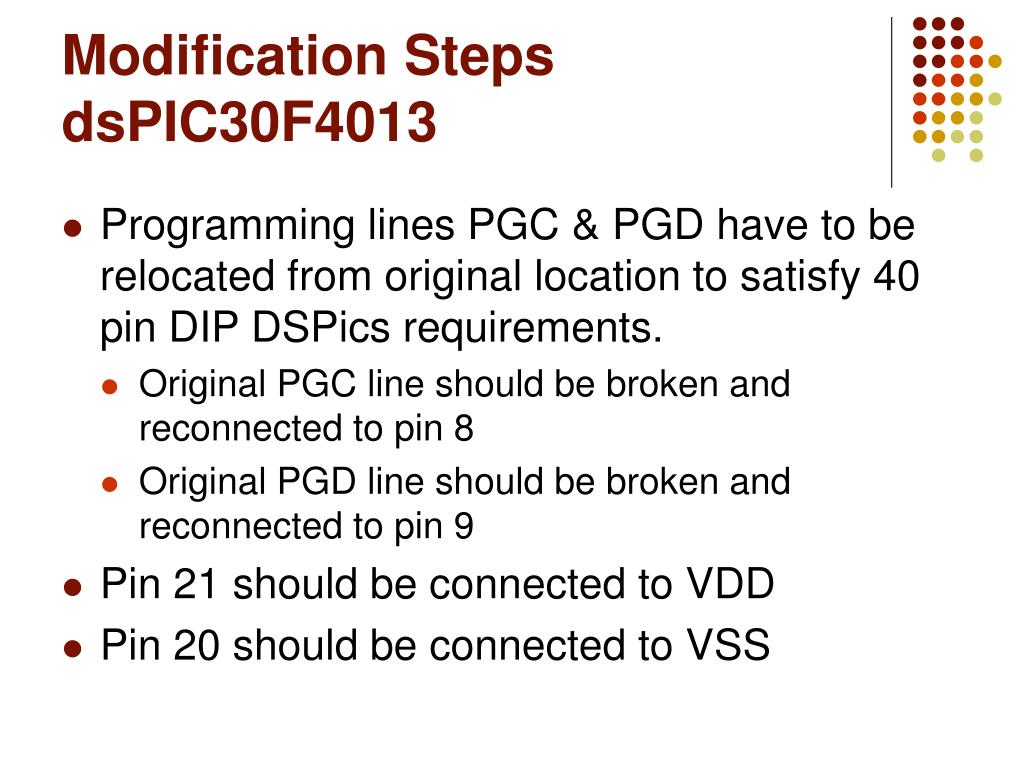

  7. Modification Steps dsPIC30F4013 • Programming lines PGC & PGD have to be relocated from original location to satisfy 40 pin DIP DSPics requirements. • Original PGC line should be broken and reconnected to pin 8 • Original PGD line should be broken and reconnected to pin 9 • Pin 21 should be connected to VDD • Pin 20 should be connected to VSS

  8. x x 9 8 25 26 26 25 24 23 18 17 16 15 10 7 6 5 4 3 2 9 8 19 20 21 22 27 28 29 30 33 34 35 36 37 38 39 40 1 Component Side view Valid for dsPIC4013

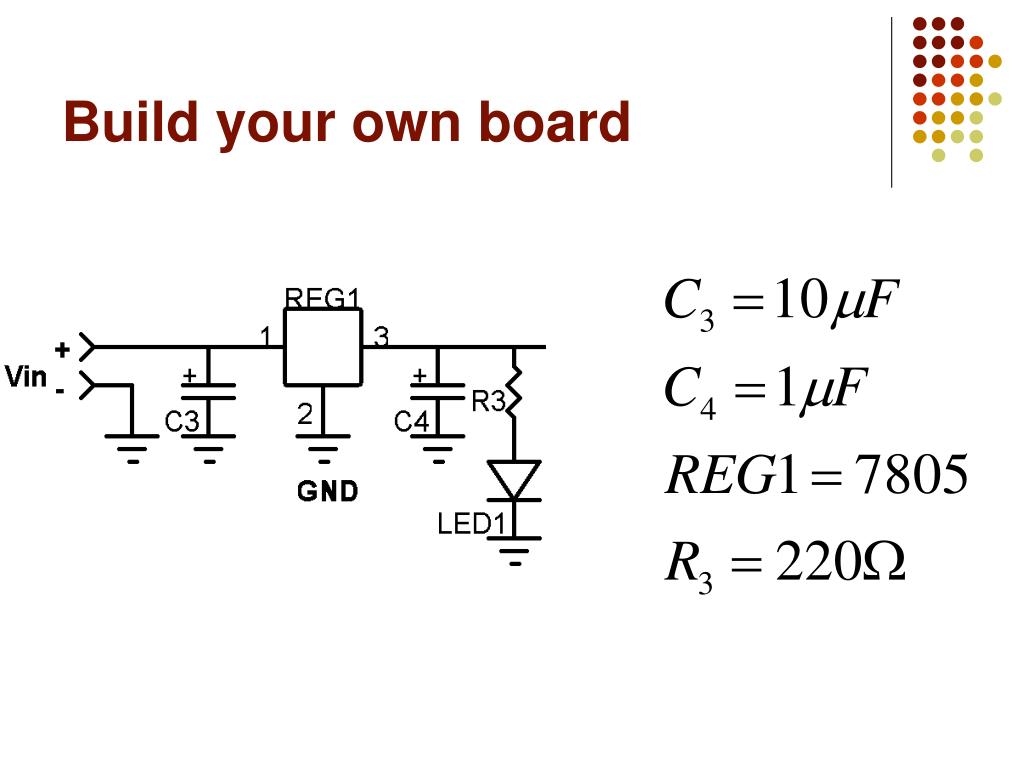

  9. Build your own board

  10. Connect 5V and Ground to the PIC Grnd Vdd

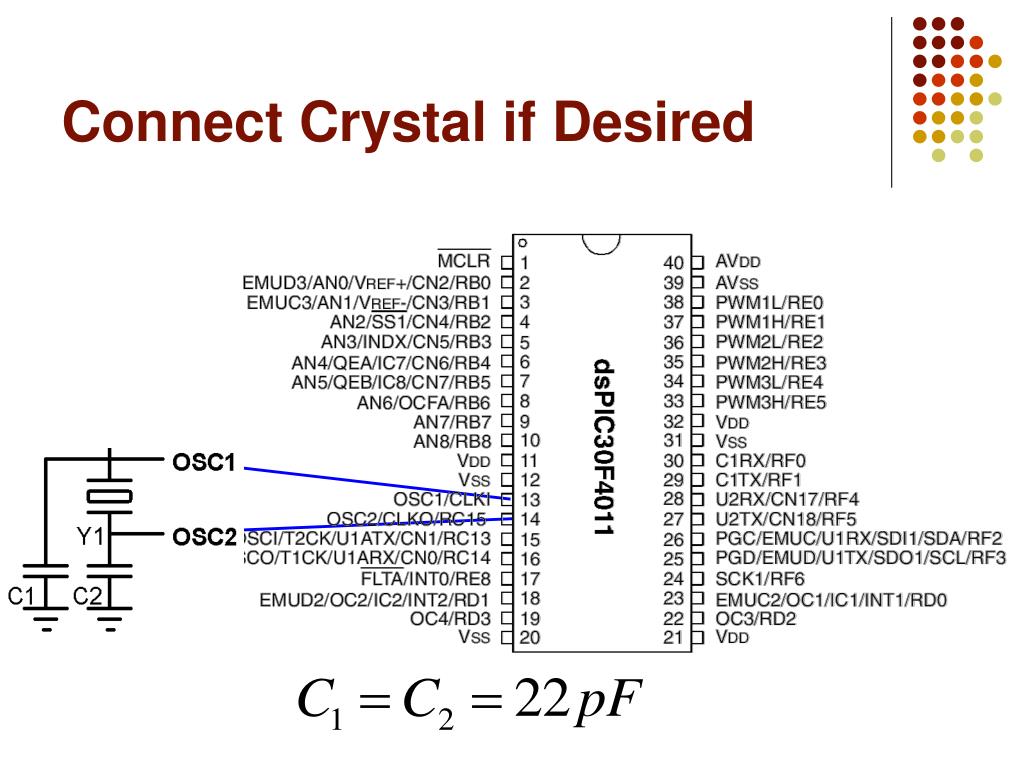

  11. Connect Crystal if Desired

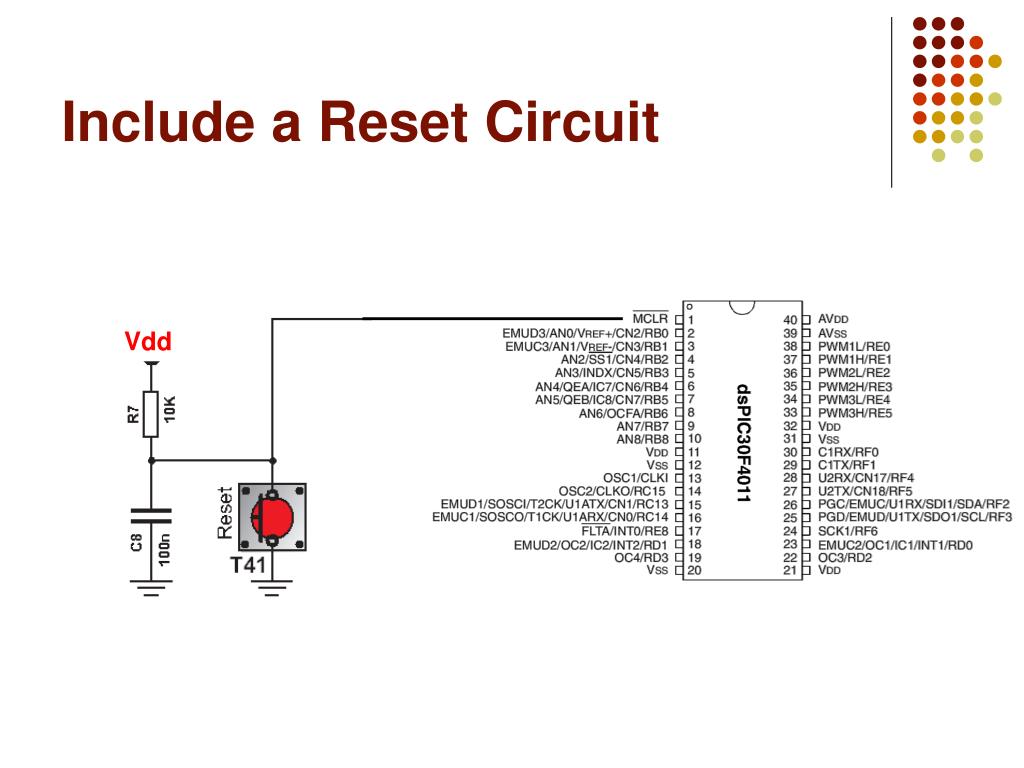

  12. Include a Reset Circuit Vdd

  13. It is a good Idea to have to have an LED to make easy program check

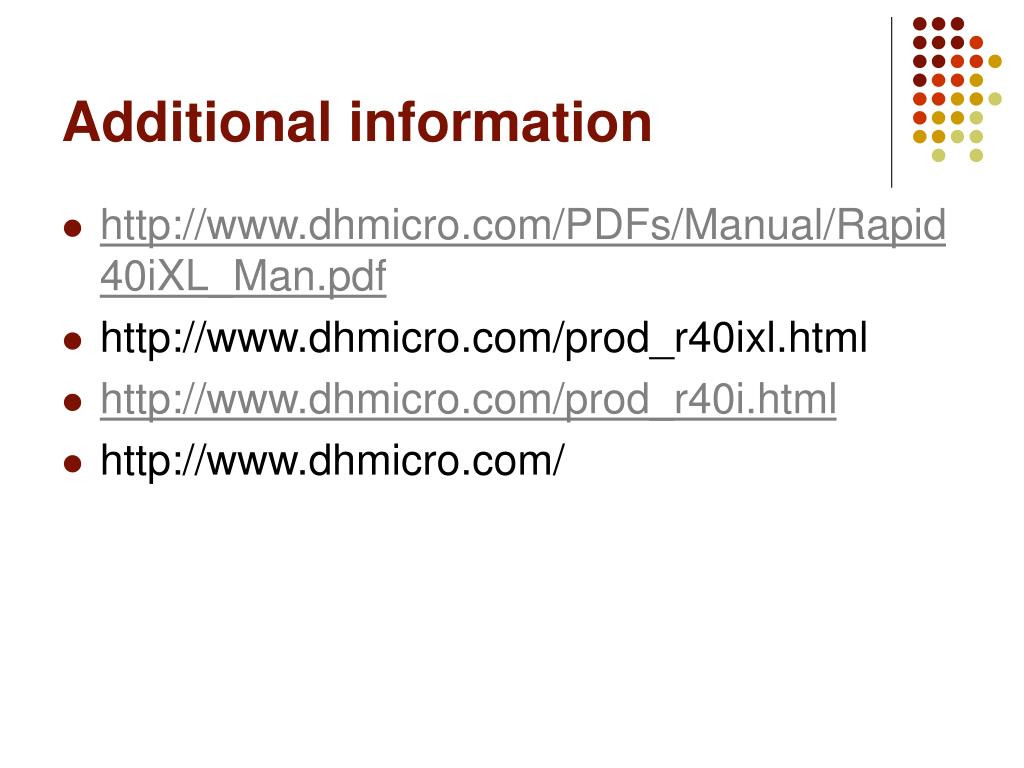

  14. Additional information • http://www.dhmicro.com/PDFs/Manual/Rapid40iXL_Man.pdf • http://www.dhmicro.com/prod_r40ixl.html • http://www.dhmicro.com/prod_r40i.html • http://www.dhmicro.com/
