  1. Perceptual Evaluation of Colour Gamut Mapping Algorithms Fabienne Dugay The Norwegian Color Research Laboratory Faculty of Computer Science and Media Technology Gjøvik University College, Gjøvik, Norway fabiennedugay@wanadoo.frhttp://www.colorlab.no Master’s thesis presentation, 7th June 2007

  2. Outline • Introduction • Colour Gamuts • Goal • Gamut mapping algorithms • Gamut mapping algorithms (GMAs) • Experimental setup • Psychophysical evaluation • Images, Media, Viewing conditions • Results & Analysis • Conclusion and perspectives

  3. Introduction • Gamut = range of reproducible colours of a device or range of colours in a image • Printers have smaller gamut than monitor • How to reproduce those out-of-gamut colours ? • Gamut mapping algorithms (GMAs):ensure a good correspondence of overall colour appearance between the original and the reproduction

  4. Goal • Evaluate the performance of selected GMAs on real images • Influence of the test images • Influence of the observers • Influence of the experiments

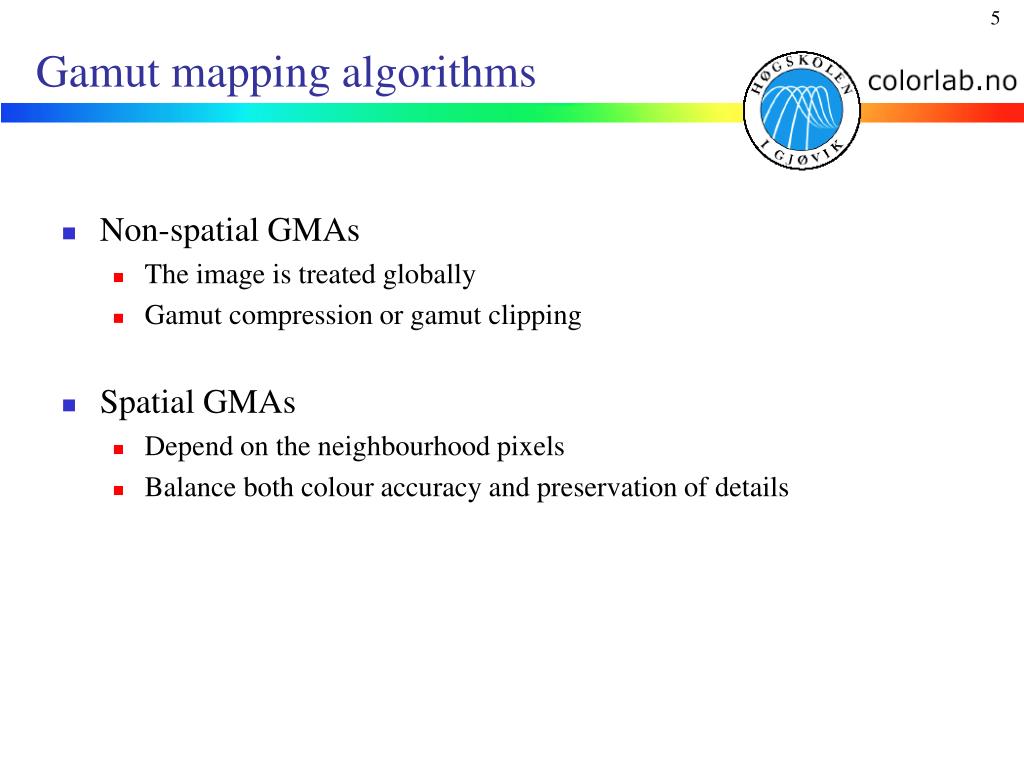

  5. Gamut mapping algorithms • Non-spatial GMAs • The image is treated globally • Gamut compression or gamut clipping • Spatial GMAs • Depend on the neighbourhood pixels • Balance both colour accuracy and preservation of details

  6. Experimental methods • No metrics have been proved to be efficient for evaluating the performance of GMAs • Psychophysical tests with a panel of observers • 20 observers (11 “experts” & 9 “non-experts”) • Asked about the accuracy of the reproductions • The raw data from the experiments are treated statistically to obtain z-scores

  7. Experimental methods • 20 test images with various characteristics • Original: sRGB image on calibrated monitor

  8. Experimental methods • Reproductions on a inkjet printer with plain paper

  9. Experimental methods • 5 GMAs: • HPminDE: Hue preserving minimum delta E clipping • SGCK: lightness and chroma compression, hue preserving • Zolliker: recovers local contrast, preserves lightness and saturation • Kolås: hue and edge preserving spatial GMA • Gatta: preserves hue and local relationships

  10. Experimental methods • Viewingconditions follow the CIE guidelines: • Simulated D50 lights for the prints • D65 white point for the monitor • Viewed in a neutral grey room with lights at their minimum intensity • Original and reproduction images have the same size and a white border • Neutral grey background

  11. Experimental methods • Two psychophysical experiments • With printed reproductions • Ranking (rank the 5 reproductions from the most to the least accurate to the original displayed on the monitor) • With simulated printed reproductions on screen • Pair comparison(choose the most accurate reproduction in a pair)

  12. Results • Results from the ranking experiment

  13. Analysis • HPminDE: not an accurate GMA • Kolås, SGCK and Gatta not significantly different • A spatial and non-spatial GMAs seen as accurate

  14. Results • Results from the ranking experiment, for each image and GMA

  15. Analysis • Dependant on the test images

  16. Analysis • But strong correlation between the % of out-of-gamut colours and the number of distinguishable GMAs • Strong correlation between the % of out-of-gamut colours and the perceived difficulty to rank the reproductions • Gamut mapping especially important when dealing with small gamut devices

  17. Results • Dependant on the observers

  18. Analysis • Different results between the two groups • Stronger consensus among the experts • All GMAs have tight scores for the non-experts • Experts look at the best rendering of details • Non-experts look more at the saturation

  19. Results • Dependant on the experiments

  20. Analysis • Globally comparable results • Some other parameters: • Random of the scenes • Accuracy or preference? • Other media/printers • LCD/CRT monitors

  21. Conclusion and perspectives • None GMA is significantly better than all the others • HPminDE (clipping) is not perceived as an accurate GMA • The choice of a efficient GMA may depend on the image, the media, the target customer and an universal GMA seems inexistent • Meta-analysis to join the results of the different GMA evaluations?

  22. Thank you for you attention Any questions?
