  1. Reverse Engineering of Blade Sandip Patel

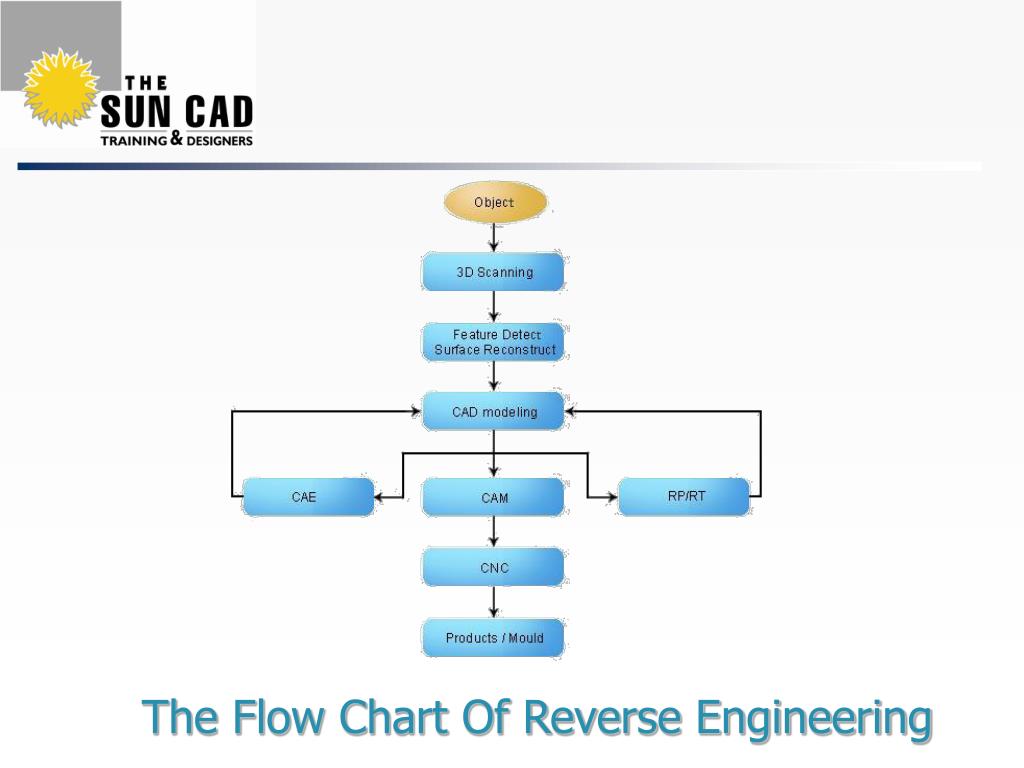

  2. The Flow Chart Of Reverse Engineering

  3. 3D SCANNER • WHITE LIGHT TECHNOLOGY • MACHINE-3DSS-STD-II • SOFTWARE FOR DATA CAPTURING • AND PROCESSING. • OUTPUT- *asc & *wrl.

  4. Working Theory • White light Fringe projection • Structured light • Auto merge of different view points clouds • High accuracy (20 microns) • Regular measurement point grid

  5. How we work? Surface Treating(Spray) and adhere ref. points Calibration if necessary Fringe projecting 3D Points cloud export to Rapidform XOR

  6. RAPIDFORM XORTM Re-design Application

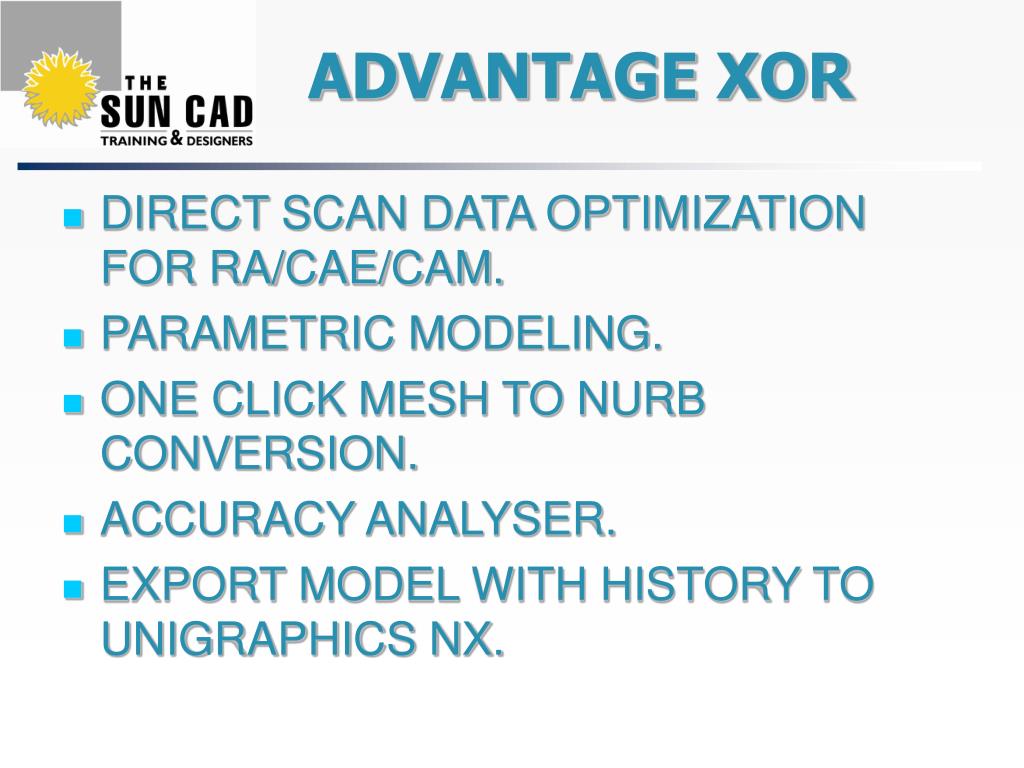

  7. DIRECT SCAN DATA OPTIMIZATION FOR RA/CAE/CAM. PARAMETRIC MODELING. ONE CLICK MESH TO NURB CONVERSION. ACCURACY ANALYSER. EXPORT MODEL WITH HISTORY TO UNIGRAPHICS NX. ADVANTAGE XOR

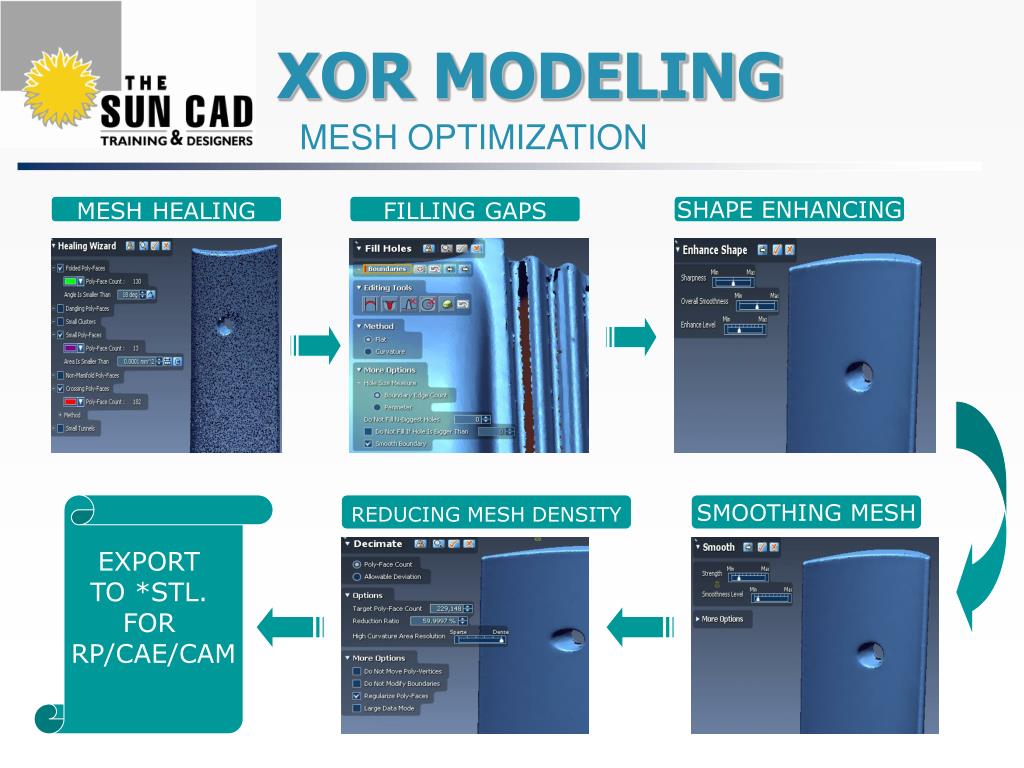

  8. XOR MODELING MESH OPTIMIZATION MESHHEALING FILLINGGAPS SHAPE ENHANCING EXPORT TO *STL. FOR RP/CAE/CAM REDUCING MESH DENSITY SMOOTHING MESH

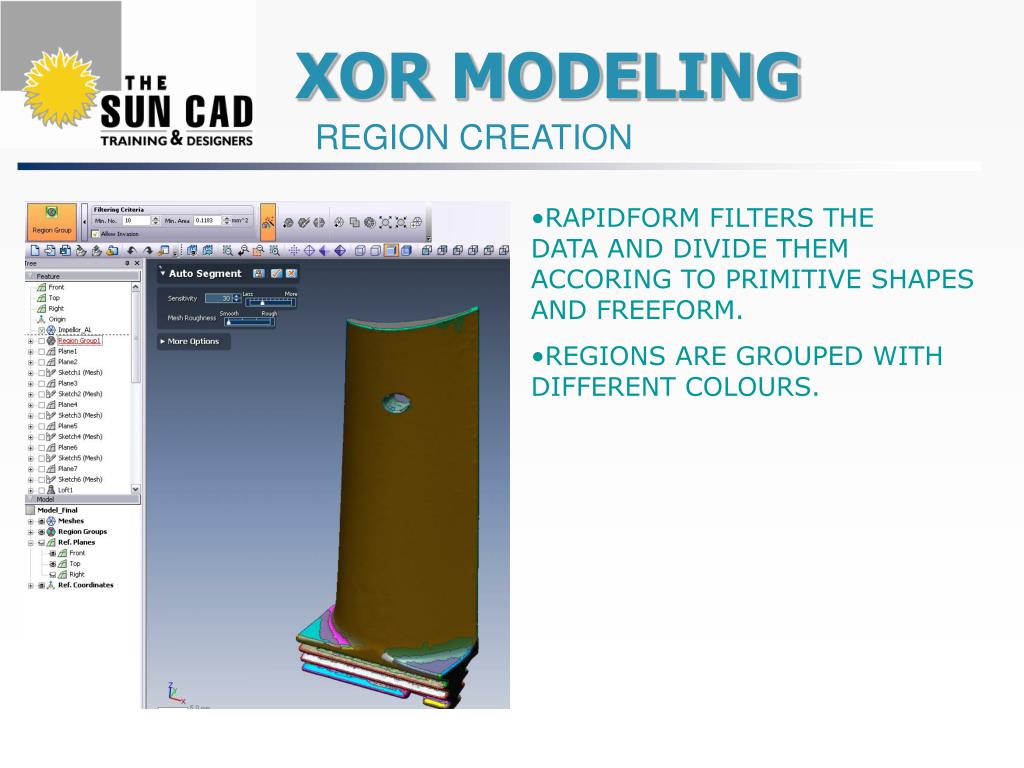

  9. XOR MODELING REGION CREATION • RAPIDFORM FILTERS THE DATA AND DIVIDE THEM ACCORING TO PRIMITIVE SHAPES AND FREEFORM. • REGIONS ARE GROUPED WITH DIFFERENT COLOURS.

  10. XOR MODELING DATA ALIGMENT WITH AXIS. • QUICK DATA ALIGMENT USING ALIGMENT WIZARD OR INTERACTIVE ALIGMENT.

  11. XOR MODELING PLANES & SKETCH CREATION.

  12. XOR MODELING LOFT CREATION. • CREATING LOFT AND CHECKING SURFACE ACCURACY.

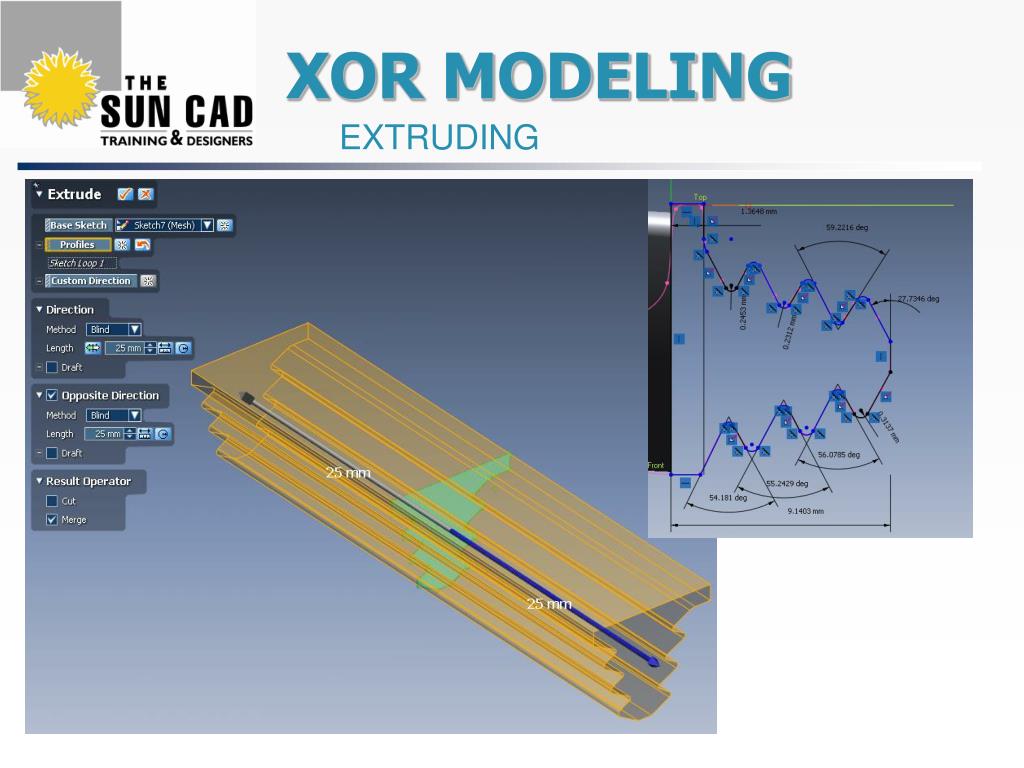

  13. XOR MODELING EXTRUDING

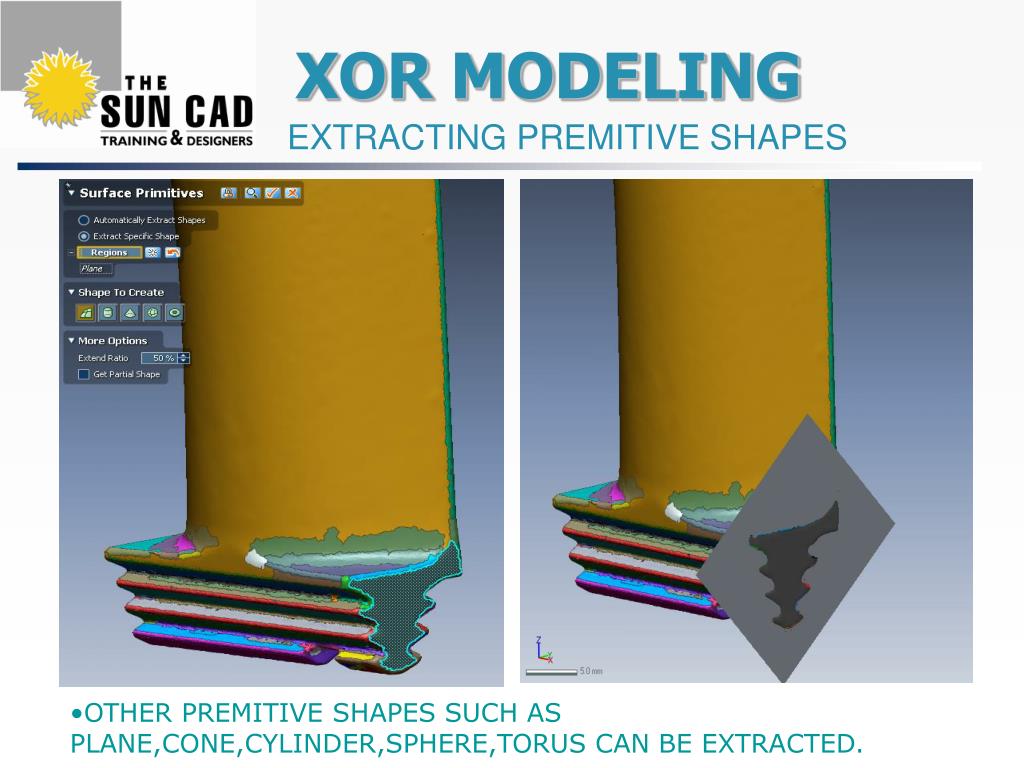

  14. XOR MODELING EXTRACTING PREMITIVE SHAPES • OTHER PREMITIVE SHAPES SUCH AS PLANE,CONE,CYLINDER,SPHERE,TORUS CAN BE EXTRACTED.

  15. XOR MODELING TRIMING OPERATION

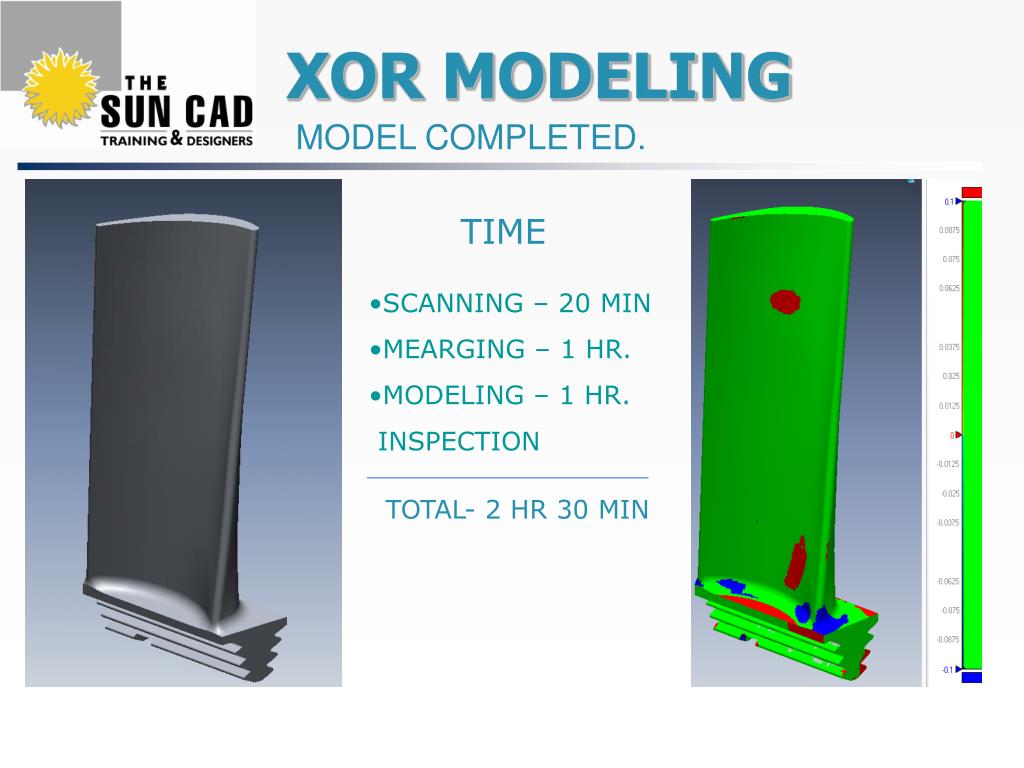

  16. XOR MODELING MODEL COMPLETED. TIME • SCANNING – 20 MIN • MEARGING – 1 HR. • MODELING – 1 HR. • INSPECTION TOTAL- 2 HR 30 MIN

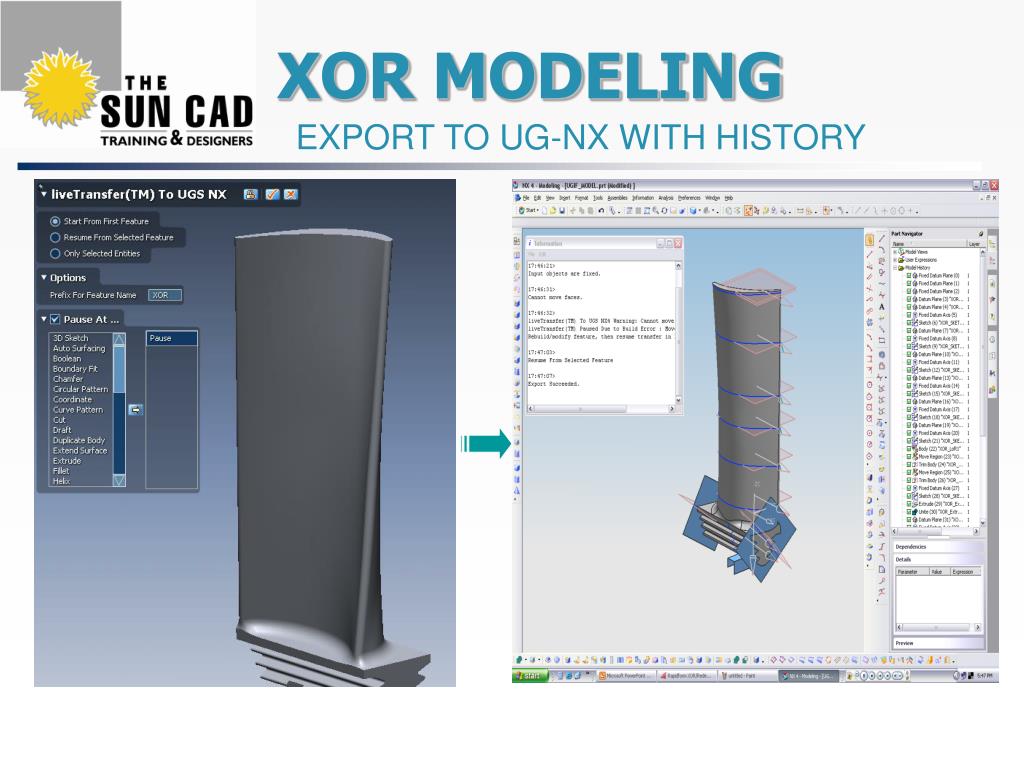

  17. XOR MODELING EXPORT TO UG-NX WITH HISTORY

  18. Thanks!
