  1. Combining Functions Lesson 5.1

  2. Functions to Combine • Enter these functions into your calculator

  3. Combining Functions • Consider the following expressions • Predict what will be the result if you graph

  4. Combining Functions • Turn off the two original functions (F4) • Use them in theexpression for thecombined function • How does this differ from a parabola?

  5. Application • Given two functions having to do with population • P(x) is the number of people • S(x) is the number of people who can be supplied with resources such as food, utilities, etc. • Graph these two functions • Window at 0 < x < 100 and 0 < y < 1000

  6. Population and Supply • Viewing the two functions • Population • Supply • What is the significance of S(x) – P(x) • What does it look like – graph it

  7. Population and Supply • What does it mean? • When should we be concerned?

  8. Population and Supply • Per capita food supply could be a quotient • When would we be concerned on this formula?Set window-5 < y < 5

  9. Combinations Using Tables • Determine the requested combinations

  10. Assignment A • Lesson 5.1A • Page 378 • Exercises 1 – 37 EOO

  11. Composition of Functions • Value fed to first function • Resulting value fed to second function  • End result taken from second function

  12. Composition of Functions • Notation for composition of functions: • Alternate notation:

  13. Try It Out • Given two functions: • p(x) = 2x + 1 • q(x) = x2 - 3 • Then  p ( q(x) ) = • p (x2 - 3) = • 2 (x2 - 3) + 1 = • 2x2 - 5 • Try determining  q ( p(x) )

  14. Try It Out • q ( p(x) ) = • q ( 2x + 1) = •   (2x + 1)2 – 3 = •    4x2 + 4x + 1 – 3 = •    4x2 + 4x - 2

  15. Using the Calculator • Given • Define these functions on your calculator

  16. WHY ?? Using the Calculator Now try the following compositions: • g( f(7) ) • f( g(3) ) • g( f(2) )                • f( g(t) ) • g( f(s) )

  17. Using the Calculator • Is it also possible to have a composition of the same function? • g( g(3.5) ) = ???

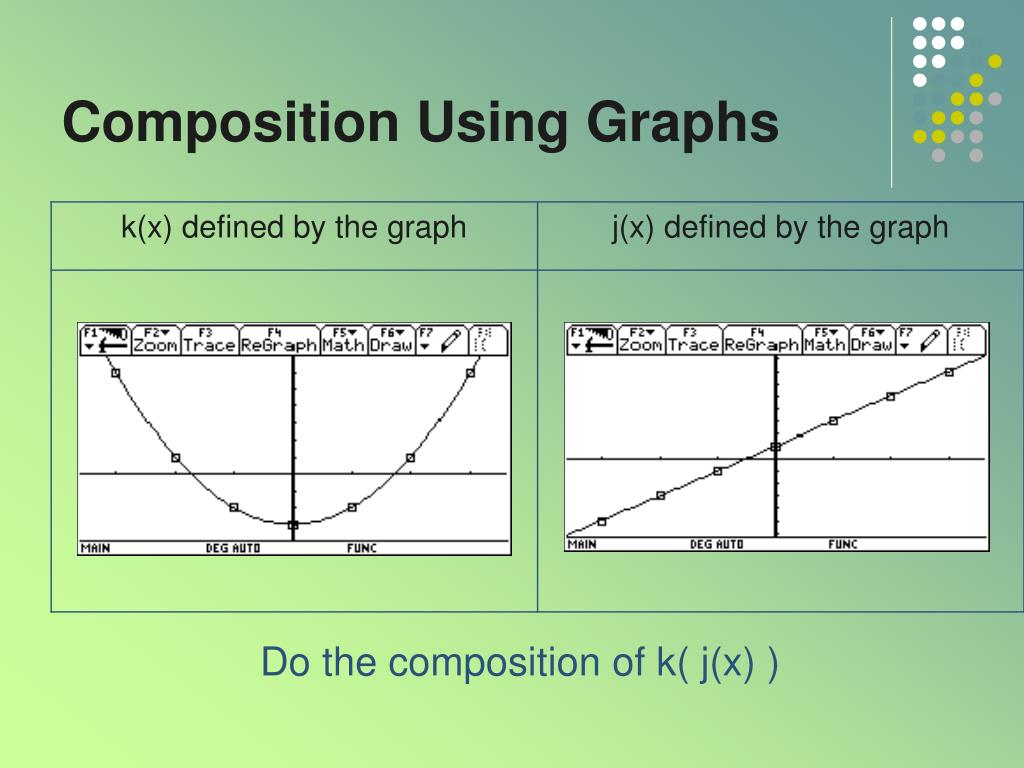

  18. Composition Using Graphs Do the composition of k( j(x) )

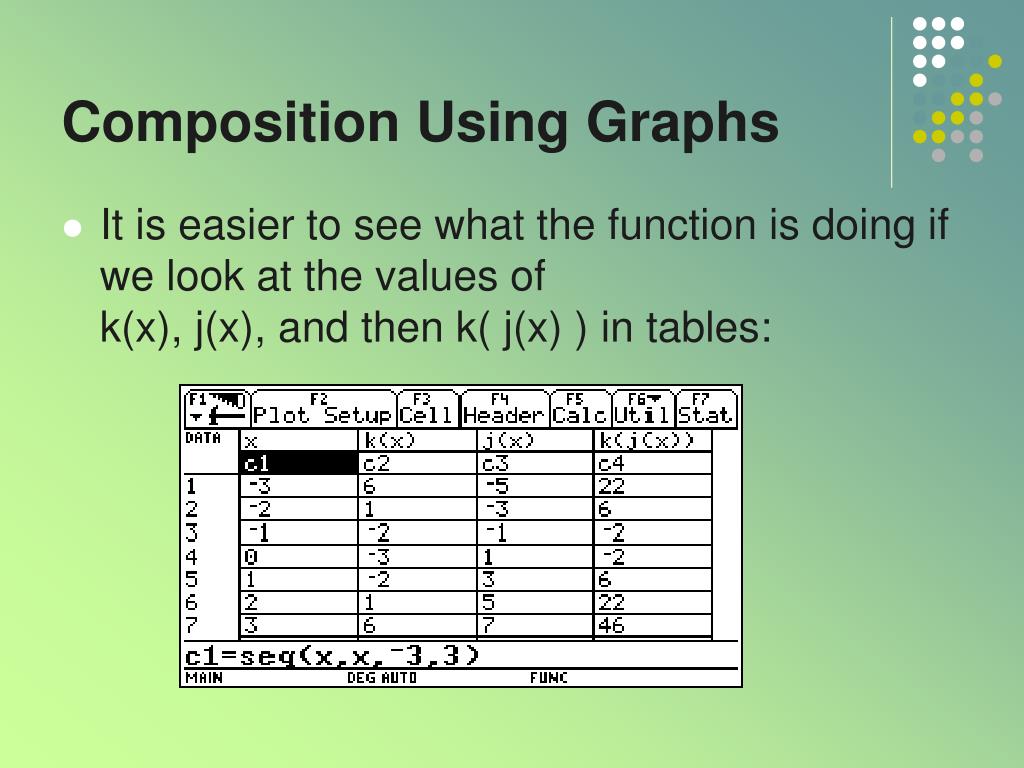

  19. Composition Using Graphs • It is easier to see what the function is doing if we look at the values ofk(x), j(x), and then k( j(x) ) in tables:

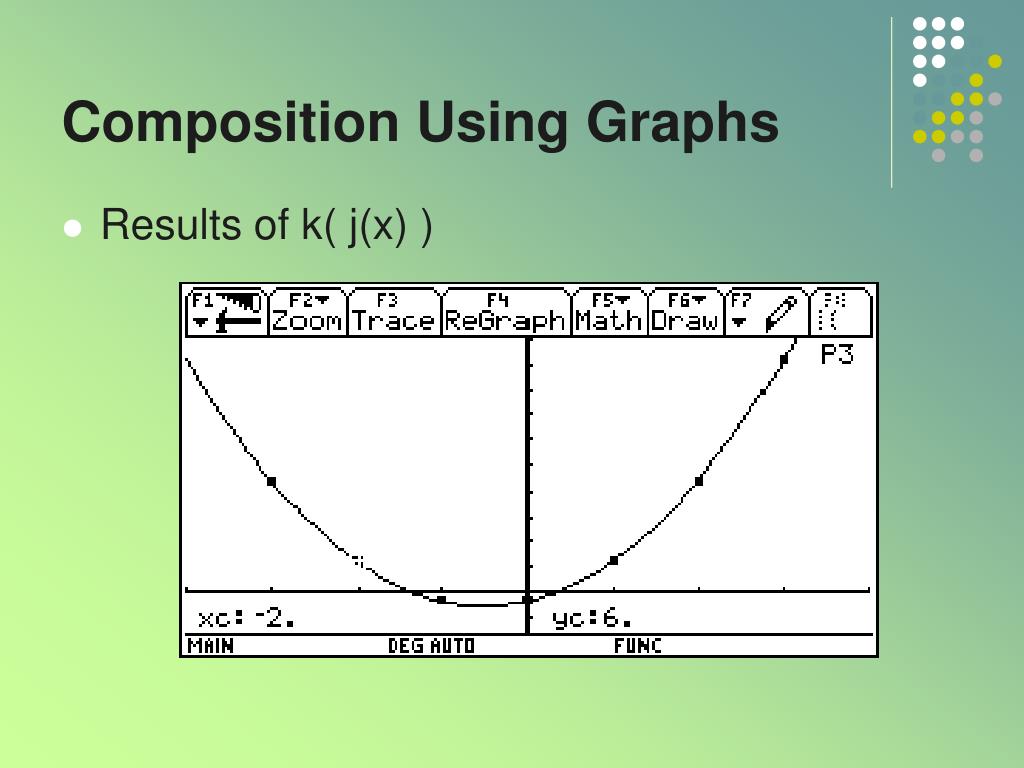

  20. Composition Using Graphs • Results of k( j(x) )

  21. Composition With Tables • Consider the following tables of values:

  22. Assignment B • Lesson 5.1B • Page 380 • Exercises 57 - 77 EOO 95, 97 • Assign the Composition of FunctionsGeogebra WorksheetDue in 1 Week
