  1. Pseudowire Control Word Negotiation Mechanism Analysis and Update PWE3 IETF79 draft-jin-pwe3-cbit-negotiation-01

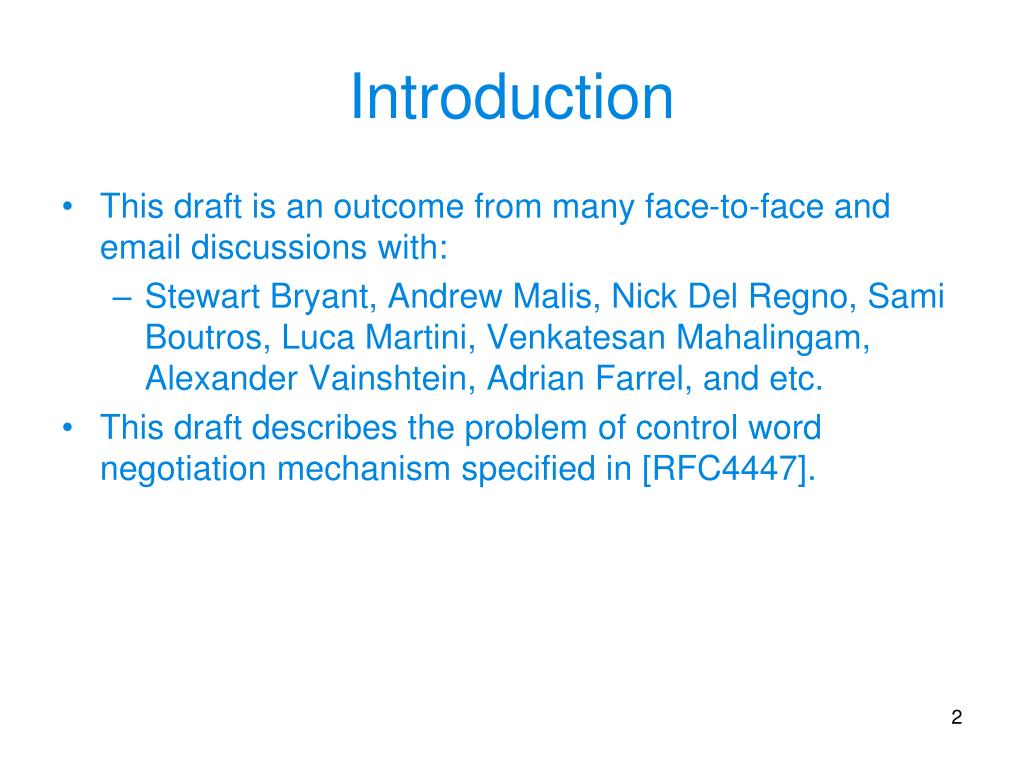

  2. Introduction • This draft is an outcome from many face-to-face and email discussions with: • Stewart Bryant, Andrew Malis, Nick Del Regno, Sami Boutros, Luca Martini, Venkatesan Mahalingam, Alexander Vainshtein, Adrian Farrel, and etc. • This draft describes the problem of control word negotiation mechanism specified in [RFC4447].

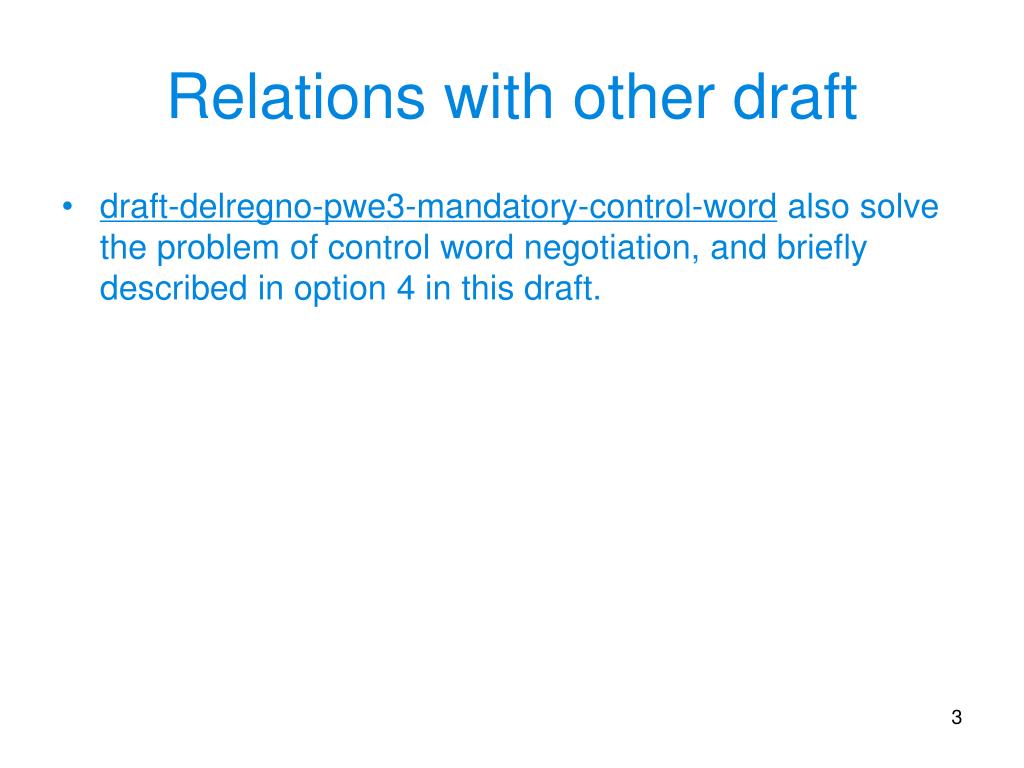

  3. Relations with other draft • draft-delregno-pwe3-mandatory-control-word also solve the problem of control word negotiation, and briefly described in option 4 in this draft.

  4. Problem Statement Label Map: Cbit=0 CW: PREFERRED CW: NOT-PREFERRED PW Negotiated Cbit=0 Label Map: Cbit=0 Configuration changed to Label Withdraw CW: PREFERRED 1 Label Map: Cbit=0 PW Negotiated Cbit=0 Wrong 1 According to the control word negotiation mechanism, the received label mapping on PE2 from PE1 indicates Cbit=0, therefore PE2 will still send label mapping with Cbit=0.

  5. Option 1: Control Word Re-Negotiation by Label Request Label Map: Cbit=0 CW: PREFERRED CW: NOT-PREFERRED PW Negotiated Cbit=0 Label Map: Cbit=0 Configuration changed to Label Withdraw CW: PREFERRED Label Request Label Map: Cbit=1 Label Map: Cbit=1 PW Negotiated Cbit=1 5

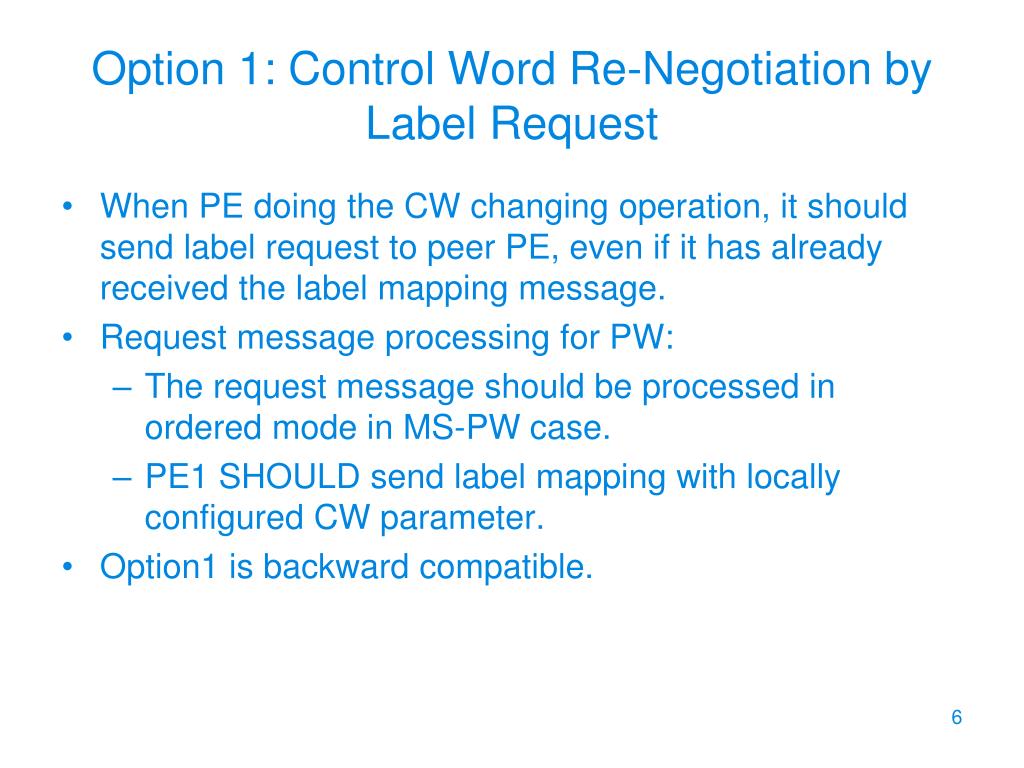

  6. Option 1: Control Word Re-Negotiation by Label Request • When PE doing the CW changing operation, it should send label request to peer PE, even if it has already received the label mapping message. • Request message processing for PW: • The request message should be processed in ordered mode in MS-PW case. • PE1 SHOULD send label mapping with locally configured CW parameter. • Option1 is backward compatible.

  7. Option 2: Make CW Non-Configurable • Option 2: Make CW Non-Configurable • Default value is PREFERRED which can be degraded to NOT PREFERRED by negotiation automatically; • But: there is explicit requirement from service providers to allow control word to be configurable.

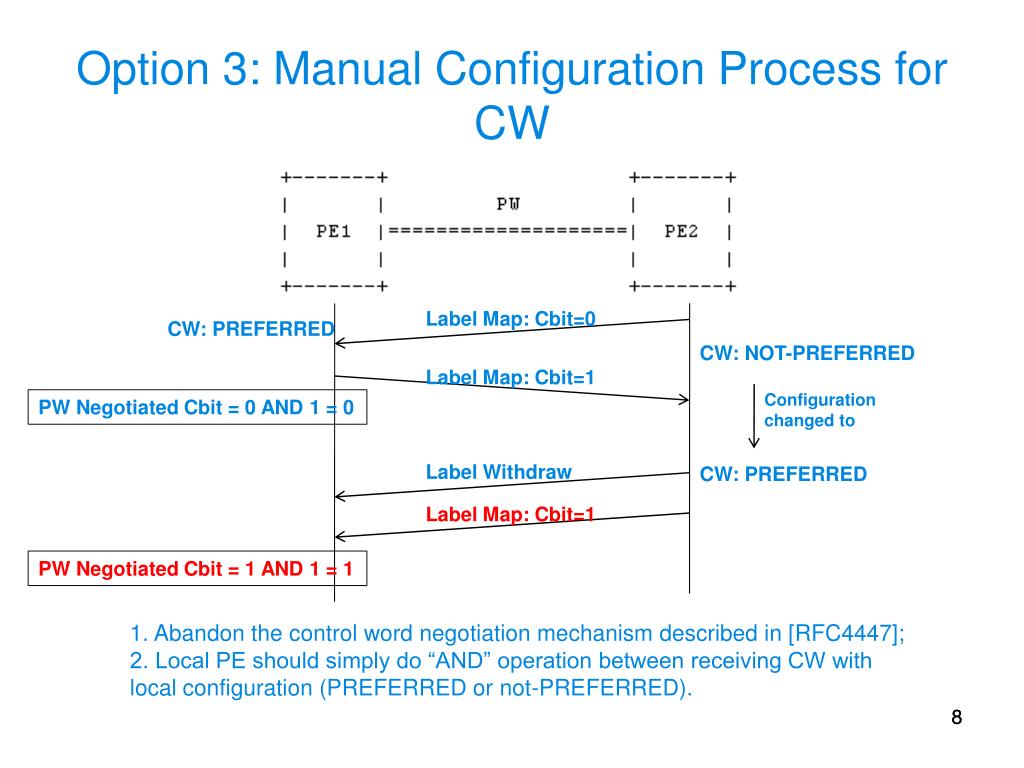

  8. Option 3: Manual Configuration Process for CW Label Map: Cbit=0 CW: PREFERRED CW: NOT-PREFERRED Label Map: Cbit=1 Configuration changed to PW Negotiated Cbit = 0 AND 1 = 0 Label Withdraw CW: PREFERRED Label Map: Cbit=1 PW Negotiated Cbit = 1 AND 1 = 1 • 1. Abandon the control word negotiation mechanism described in [RFC4447]; • 2. Local PE should simply do “AND” operation between receiving CW with local configuration (PREFERRED or not-PREFERRED). 8

  9. Option 4: Make CW Capability Mandatory • Option 4: Make CW Capability Mandatory • The PW will only be in operation UP when both PW end-points support control word capability.

  10. Next steps • Which option should be accepted? • Need comments from work group Thank you
