  1. BUILDING MARKING SYSTEM STRUCTURE / HAZARDS EVALUATION MARKING

  2. Building Marking Systems Structure Hazards Evaluation Form

  3. MAP TEAM NAME: TX-TF1 SEARCH #1 DATE/TIME OF QUAKE: SUN 23FEB92 110 HRS N CHURCH GOODMARKET FIRST STREET P.S. #1SCHOOL K-6 A STREET B STREET

  4. Building Marking Systems STRUCTURE / HAZARDS MARK • Structure and Hazmat spec make a 2’ x 2’ box on building adjacent to accessible entry. • Done after doing hazards assessment and filling out structure / hazards evaluation. • Box is spray painted with using international orange (in TF cache)

  5. Building Marking Systems STRUCTURE / HAZARDS MARK • Structure relatively safe for SAR ops. There is little chance of further collapse. • Victims could be trapped by contents • Victim could be unconscious

  6. Building Marking Systems STRUCTURE / HAZARDS MARK • Structure is significantly damaged. Some areas may be relatively safe, but others may need shoring, bracing, removal, and/or monitoring of hazards • Building could be completely pancaked

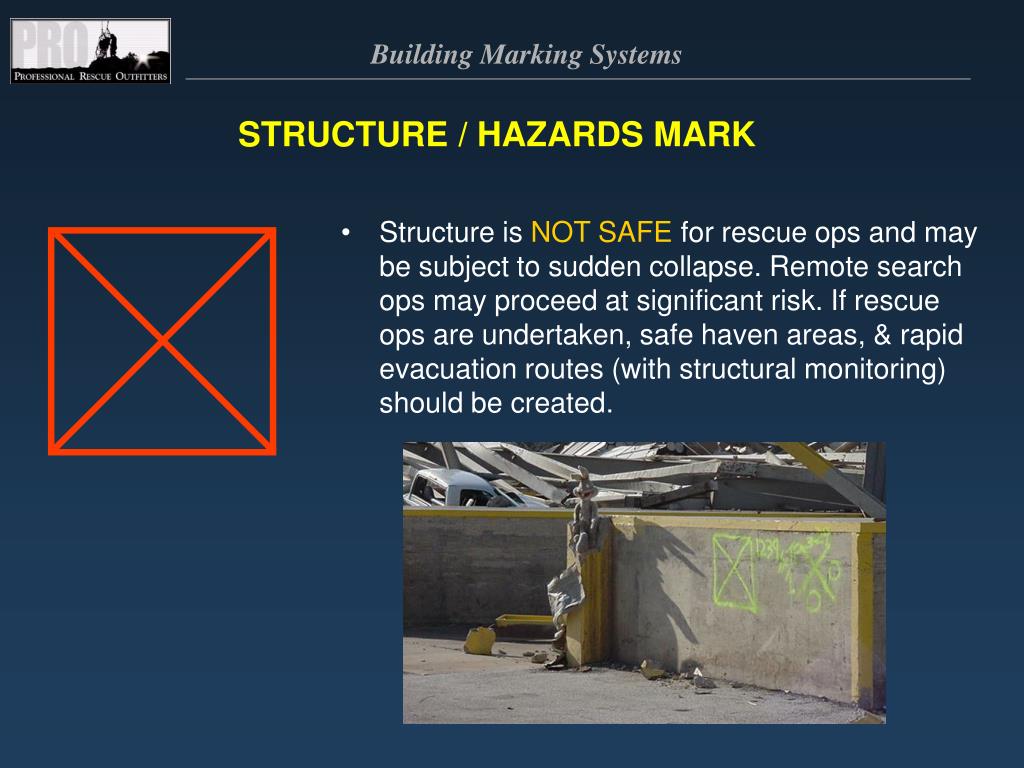

  7. Building Marking Systems STRUCTURE / HAZARDS MARK • Structure is NOT SAFE for rescue ops and may be subject to sudden collapse. Remote search ops may proceed at significant risk. If rescue ops are undertaken, safe haven areas, & rapid evacuation routes (with structural monitoring) should be created.

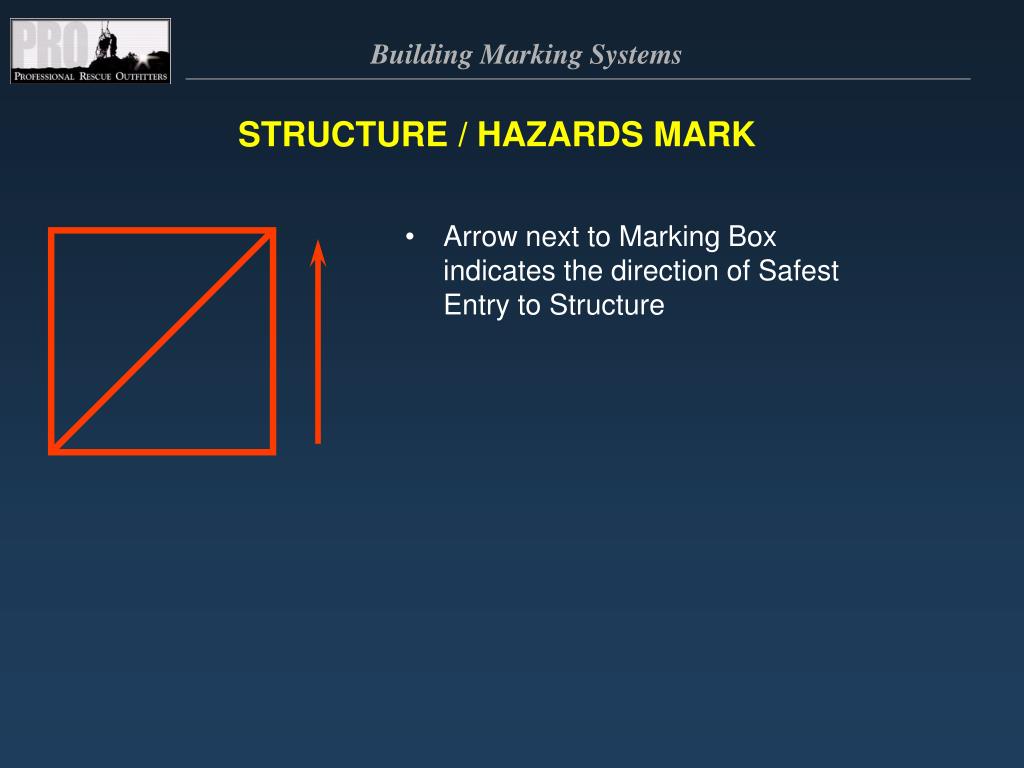

  8. Building Marking Systems STRUCTURE / HAZARDS MARK • Arrow next to Marking Box indicates the direction of Safest Entry to Structure

  9. Building Marking Systems STRUCTURE / HAZARDS MARK • HM indicates hazardous material condition in or adjacent to structure. SAR Ops normally will not be allowed until condition is better defined or eliminated. HM

  10. 15JUN92 HM NATURAL GAS OR-1 Building Marking Systems STRUCTURE / HAZARDS MARK - SUMMARY No entry until gas is turned off. When it’s mitigated, should line out the HM mark and record new date and TF

  11. BUILDING MARKING SYSTEM SEARCH ASSESSMENT MARKING

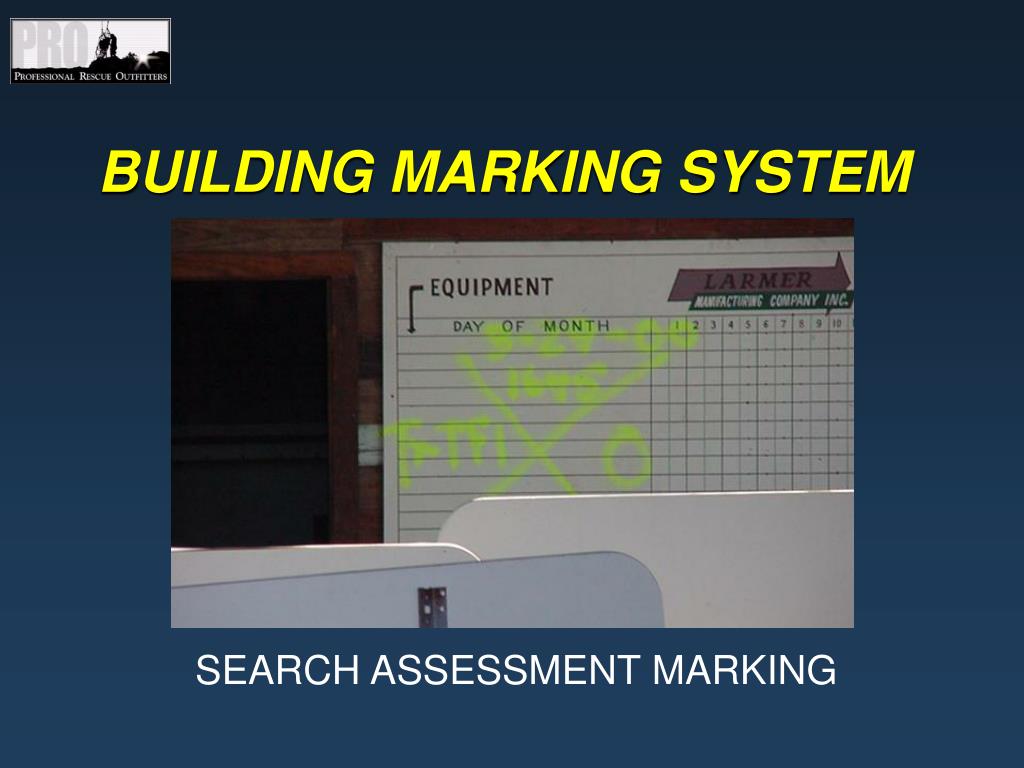

  12. Building Marking Systems SEARCH ASSESSMENT MARK 15JUL92 1400 HR 2’x2’ X near each entry OR-1 RATS First slash made when entering 3 DEAD Crossing slash made as TF exits

  13. BUILDING MARKING SYSTEM VICTIM LOCATION MARKING

  14. Building Marking Systems VICTIM LOCATION MARKING CA6 CA6 CA6 POTENTIAL VICTIM CA6 CONFIRMED LIVE VICTIM CONFIRMED DEAD VICTIM REMOVED VICTIM

  15. USAR Marking System

  16. HAZARD INFORMATION Go or No Go (G/N) Team Time/Date of Start Time/Date of End # LIVE VICTIMS REMOVED # DEAD REMOVED PERSONS UNACCOUNTED FOR LOCATION OF OTHER VICTIMS VICTIM LOCATION MARKING

  17. Open Shaft: Quad E Go UKSAR 1 17/2/04 0830 17/2/04 1147 3 0 4 2 D

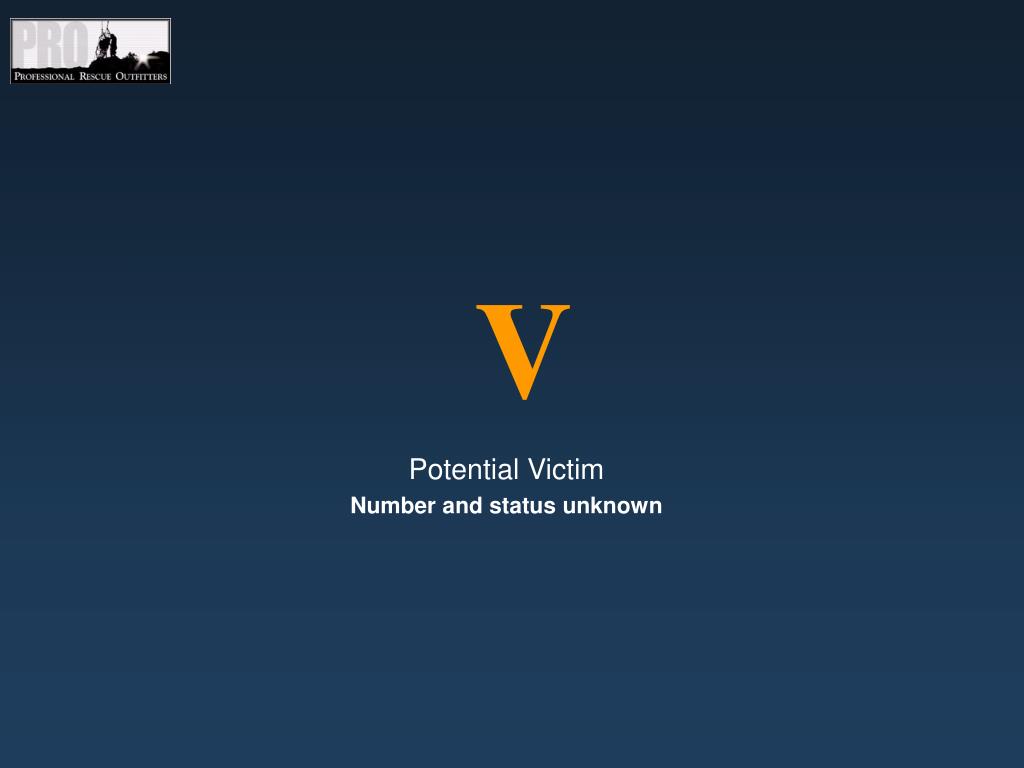

  18. V Potential Victim Number and status unknown

  19. V CONFIRMED VICTIM LOCATION Arrow denotes confirmation L or D denotes number of each L 2

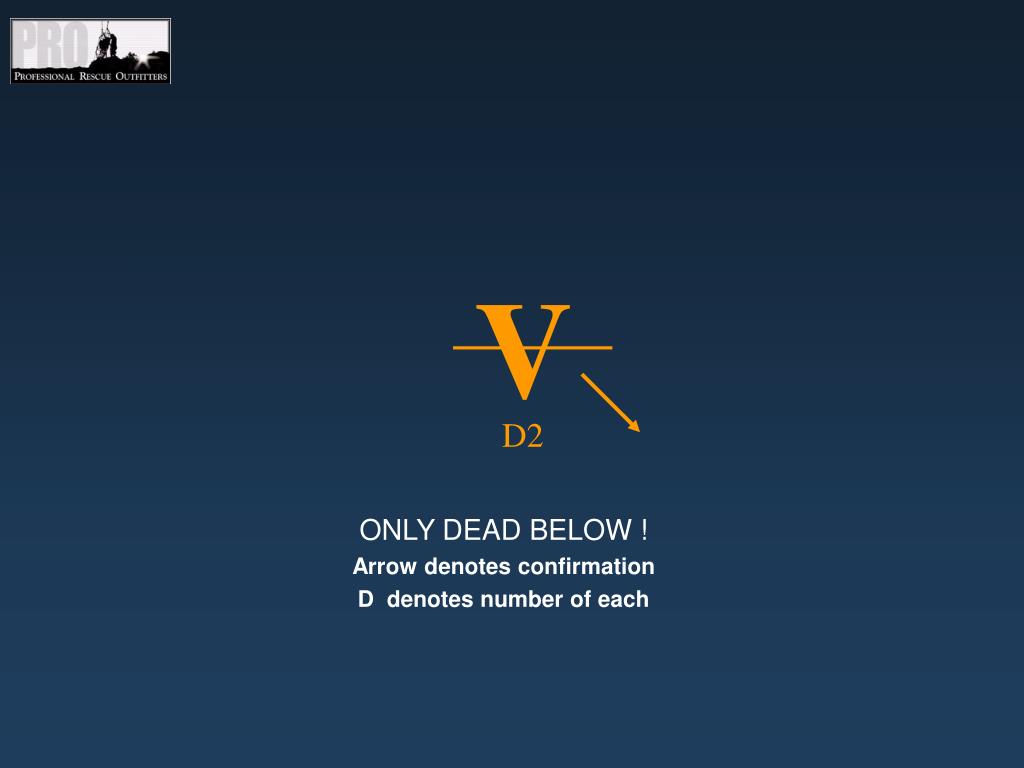

  20. V ONLY DEAD BELOW ! Arrow denotes confirmation D denotes number of each D2

  21. V L 2 D 1 VICTIMS (all) Extricated Circle indicates that all located victims have been extricated (including dead).
