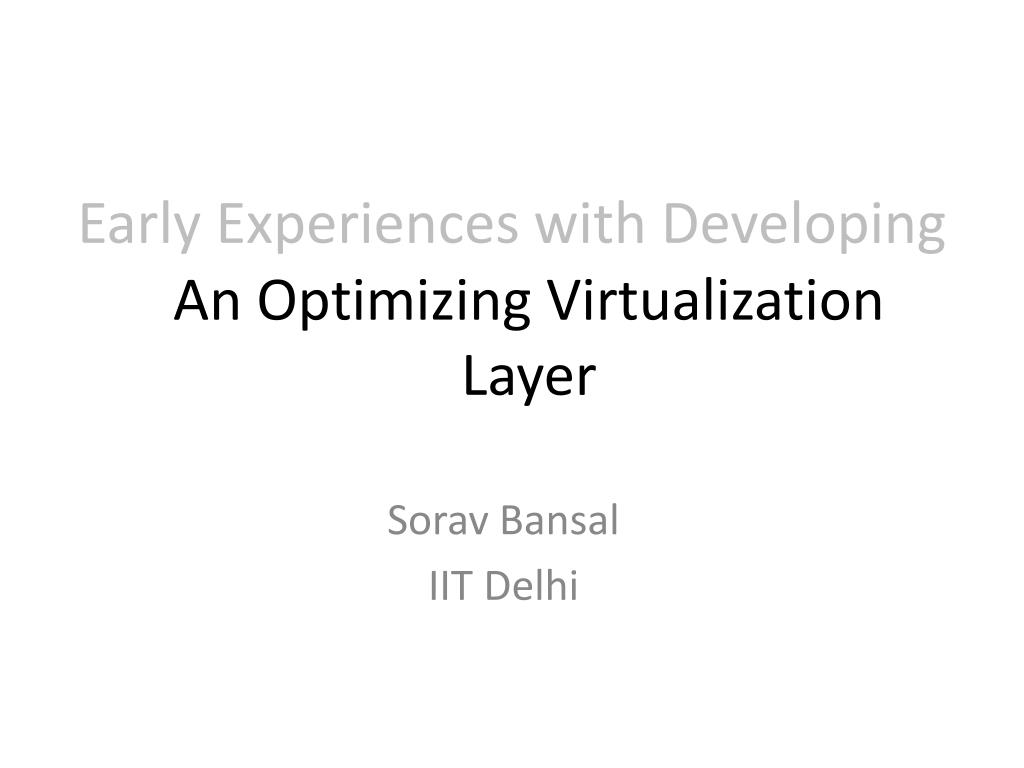

  1. An Optimizing Virtualization Layer Early Experiences with Developing SoravBansal IIT Delhi

  2. Virtualization Software • VMware Workstation/ESX Server • Citrix XenServer • Microsoft Hyper-V • Virtual Iron • Parallels Desktop • …

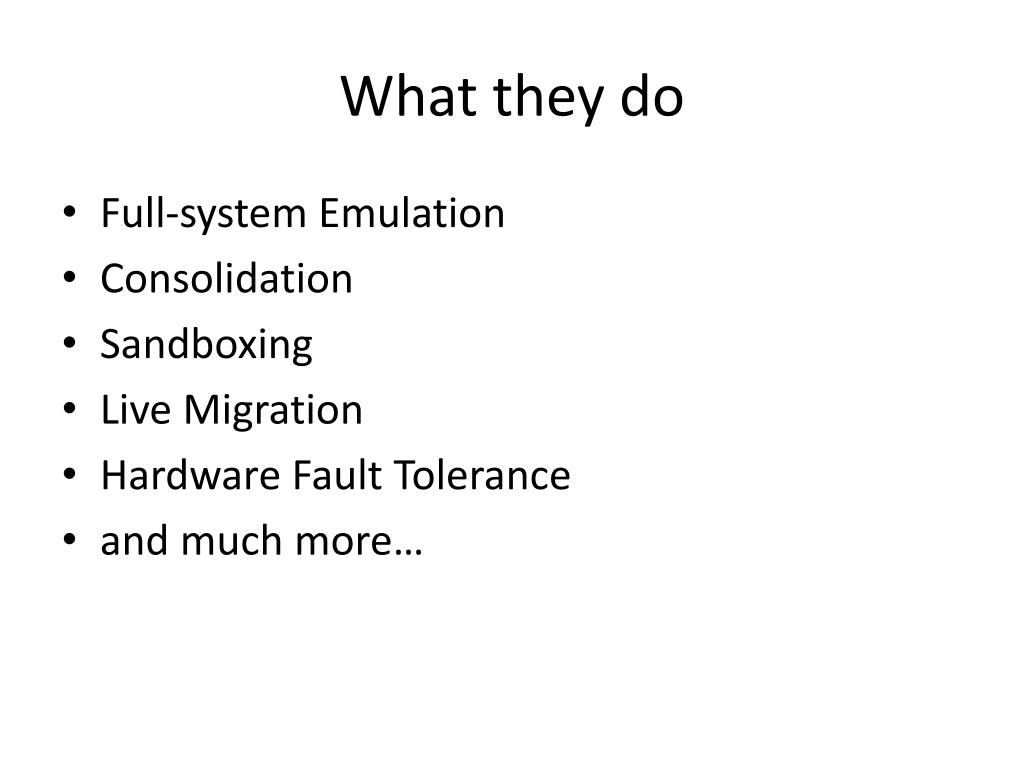

  3. What they do • Full-system Emulation • Consolidation • Sandboxing • Live Migration • Hardware Fault Tolerance • and much more…

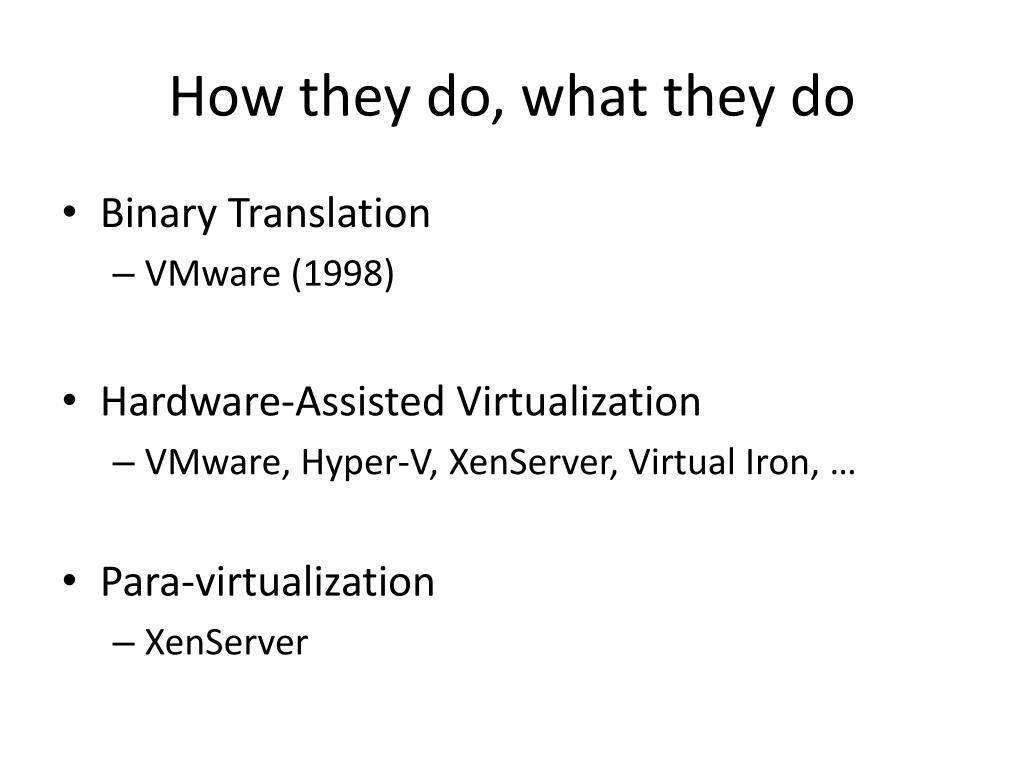

  4. How they do, what they do • Binary Translation • VMware (1998) • Hardware-Assisted Virtualization • VMware, Hyper-V, XenServer, Virtual Iron, … • Para-virtualization • XenServer

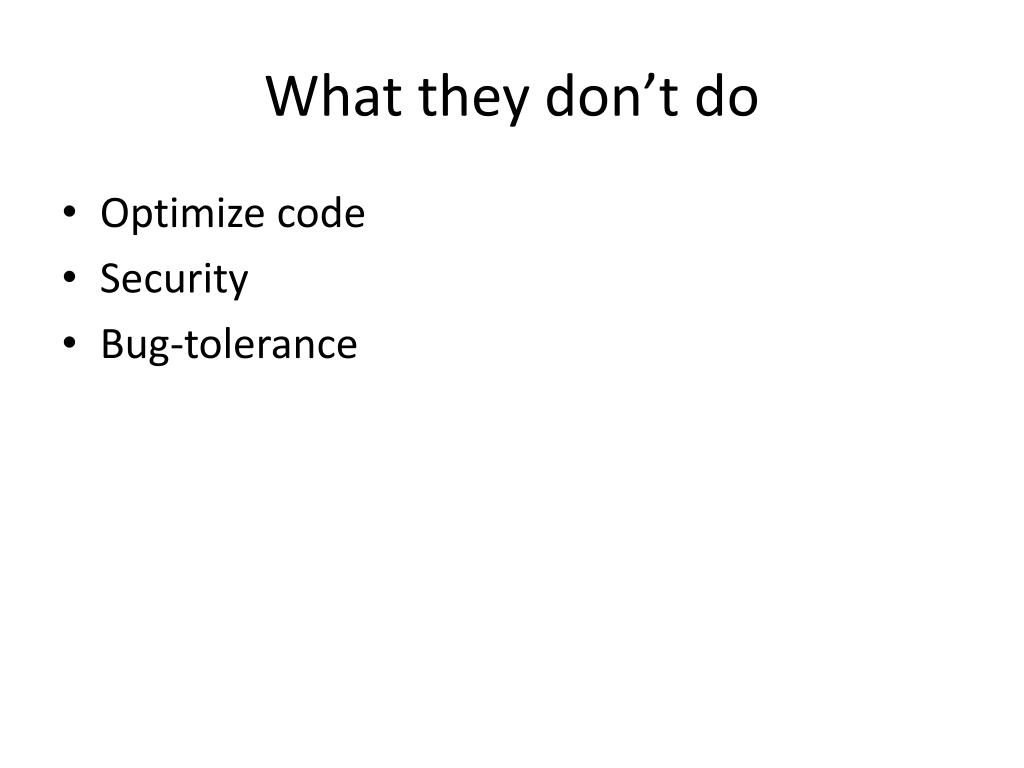

  5. What they don’t do • Optimize code • Security • Bug-tolerance

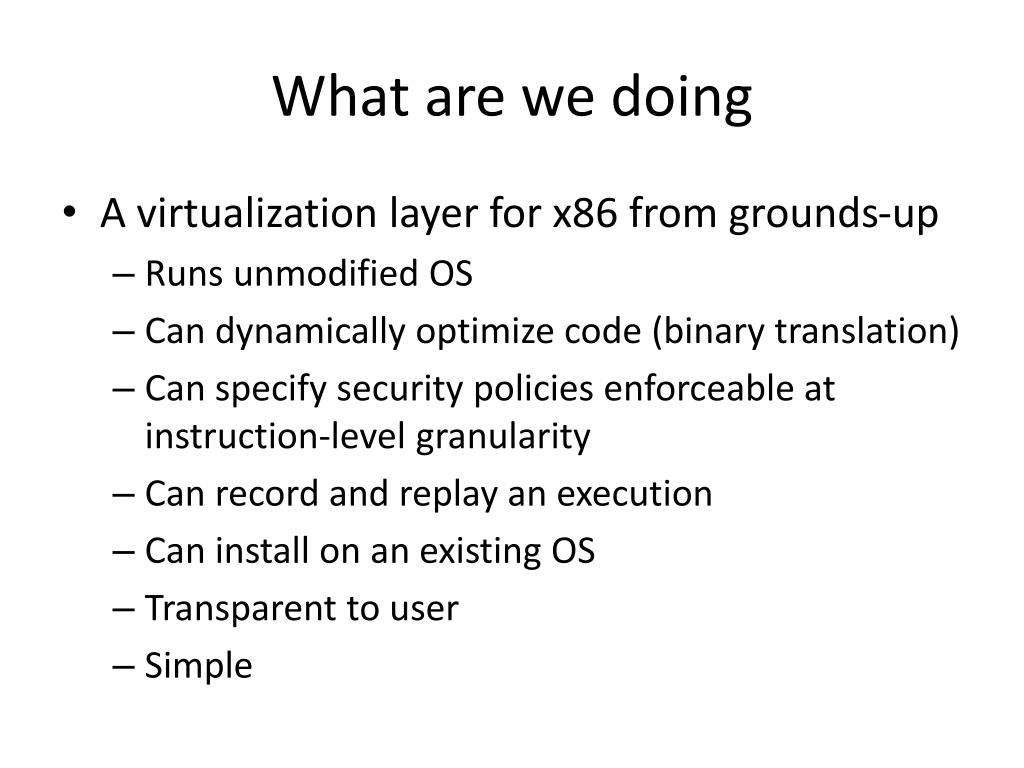

  6. What are we doing • A virtualization layer for x86 from grounds-up • Runs unmodified OS • Can dynamically optimize code (binary translation) • Can specify security policies enforceable at instruction-level granularity • Can record and replay an execution • Can install on an existing OS • Transparent to user • Simple

  7. Traditional Picture Application 1 Application 2 OS Hardware

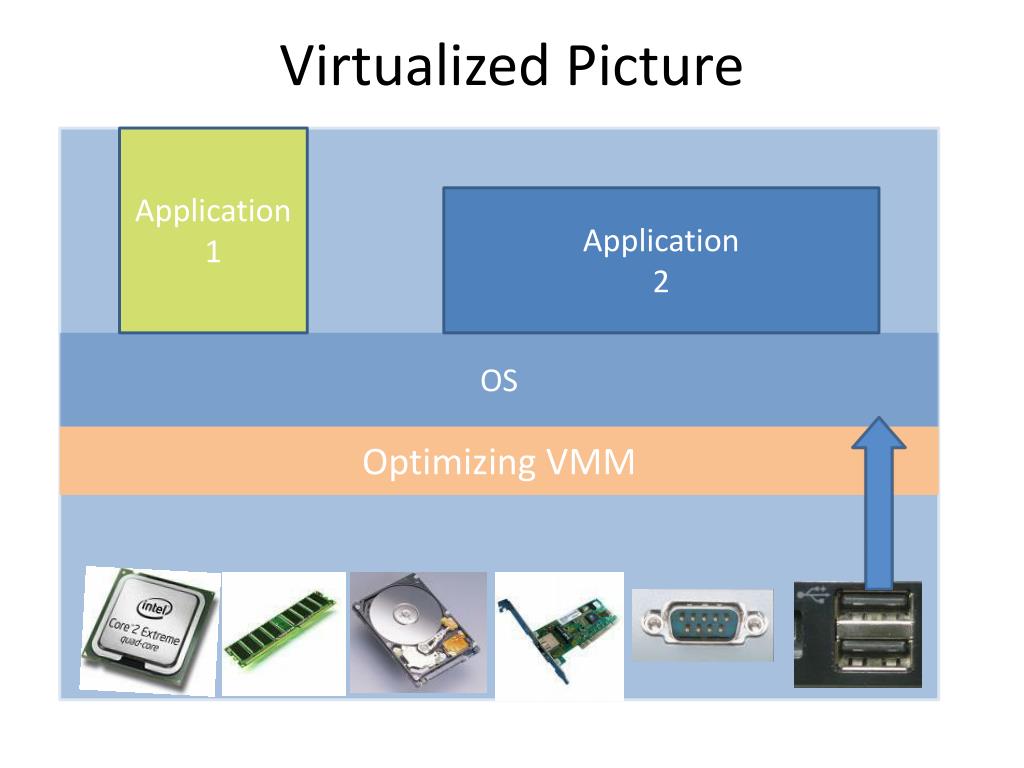

  8. Virtualized Picture Application 1 Application 2 OS Optimizing VMM

  9. Translation Blocks • Divide code into “translation blocks” • A translation block ends if • Reach a control-flow instruction • Or, MAX_INSNS instructions have been translated

  10. A Simple Scheme x: tx: Original code fragment Translated code fragment Binary Translator

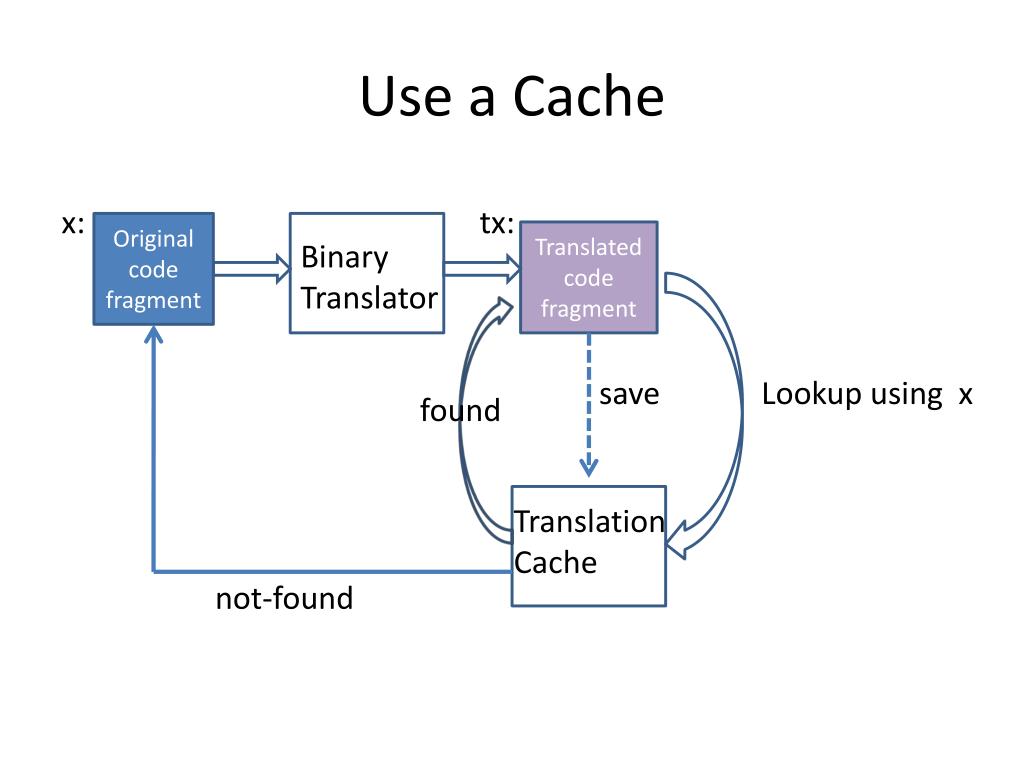

  11. Use a Cache x: tx: Original code fragment Translated code fragment Binary Translator save Lookup using x found Translation Cache not-found

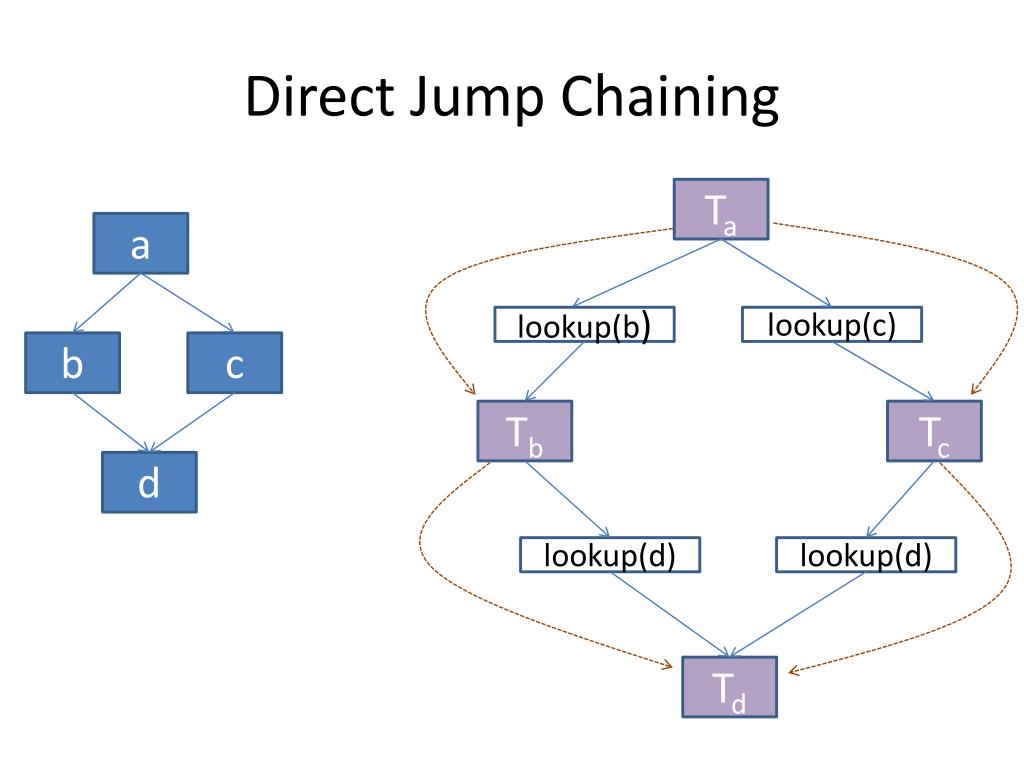

  12. Direct Jump Chaining Ta a lookup(b) lookup(c) b c Tb Tc d lookup(d) lookup(d) Td

  13. Indirect Jumps push b jmp Tf call Ta Tf f a b tmp JTABLE[retaddr & MASK] if (tmp.src == retaddr) goto tmp.dst ret pop retaddr lookup(retaddr) Tb

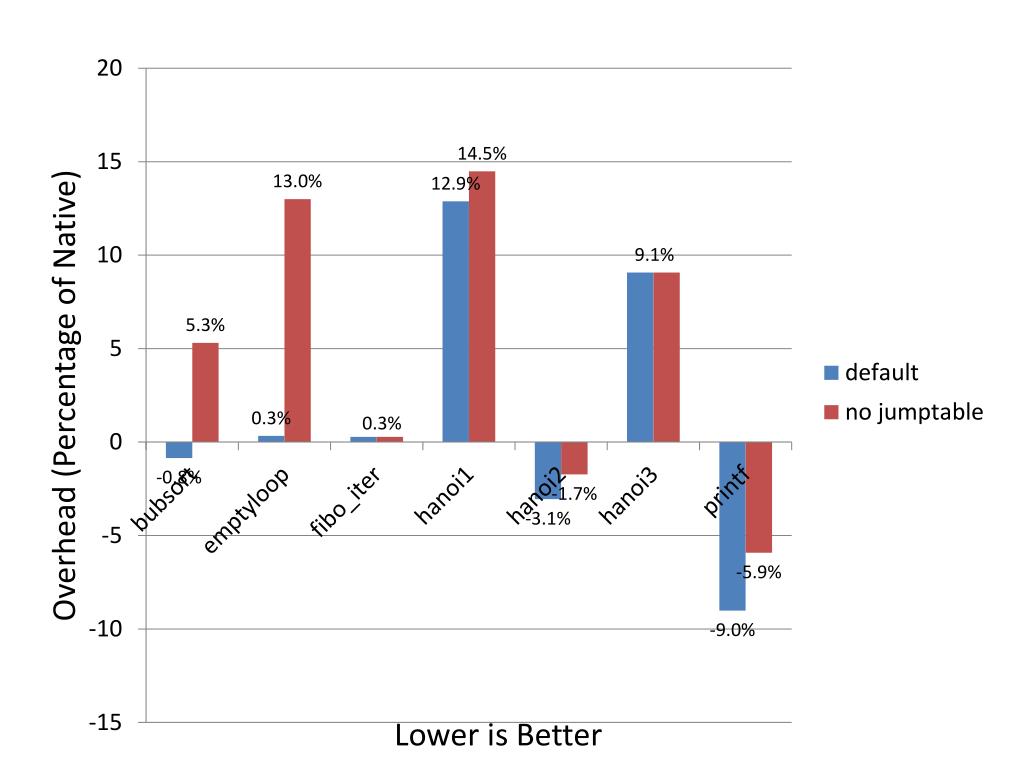

  14. Lower is Better

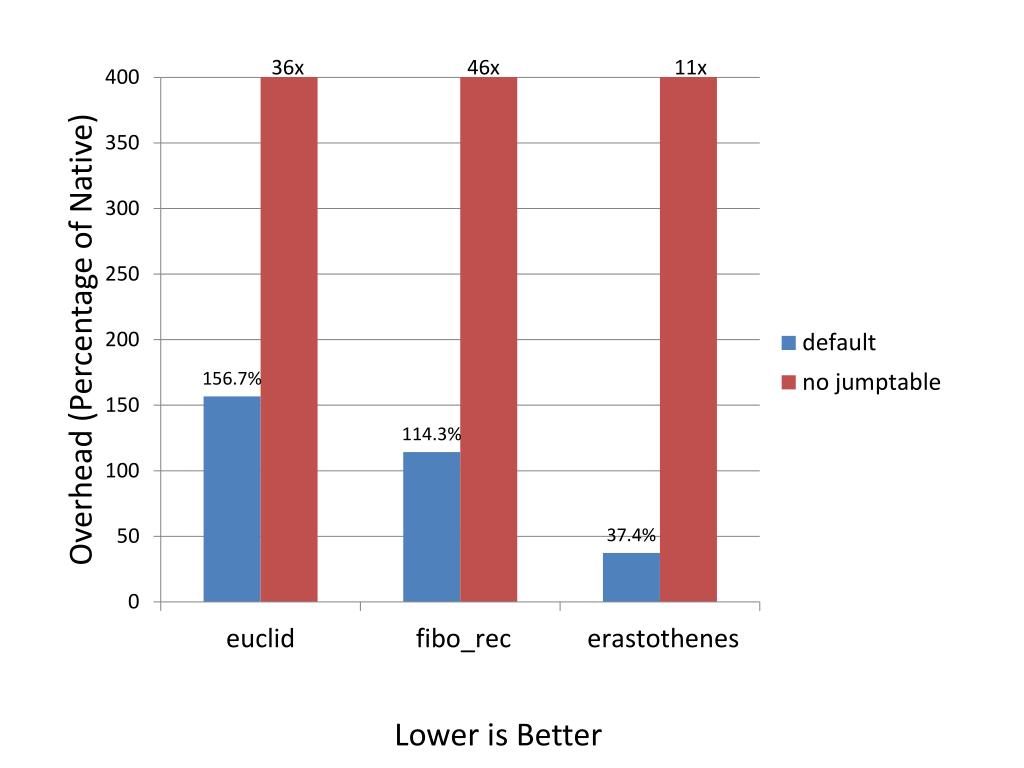

  15. Lower is Better

  16. logarithmic scale printf Overheads

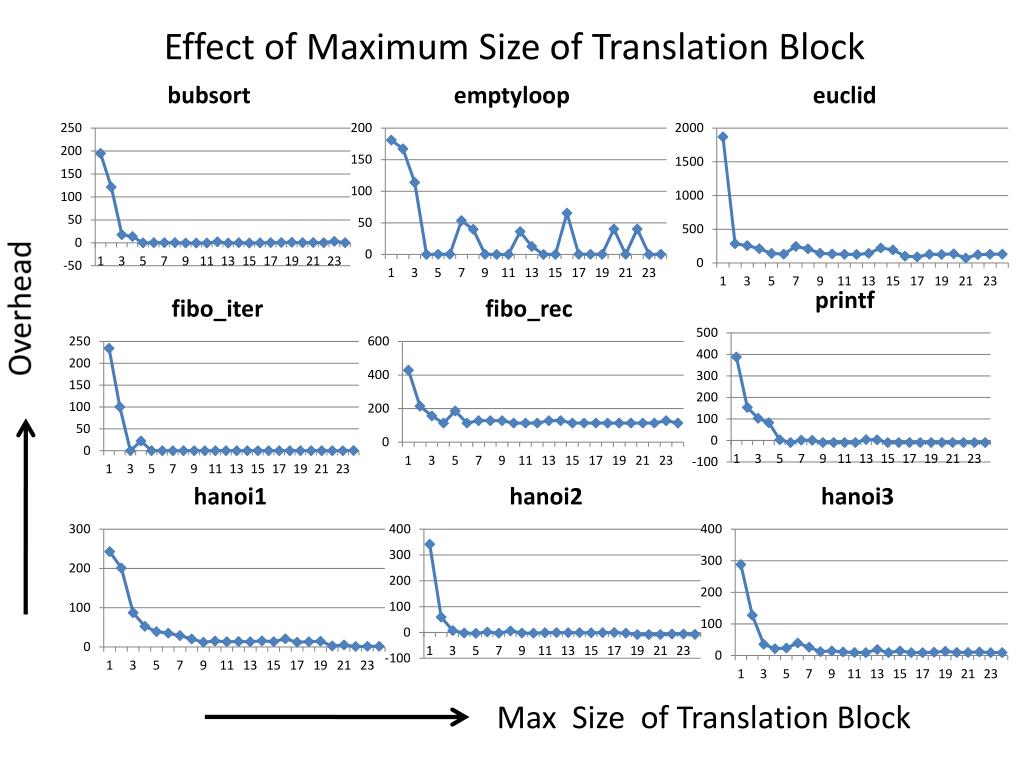

  17. Effect of Maximum Size of Translation Block Overhead Max Size of Translation Block

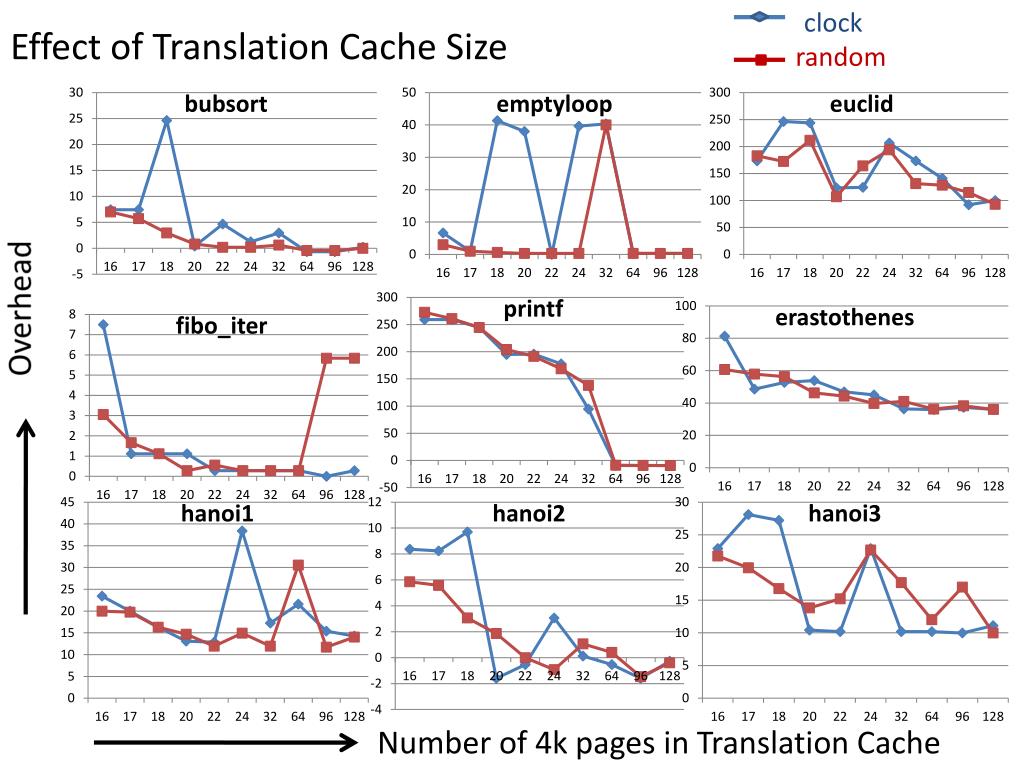

  18. clock Effect of Translation Cache Size random Overhead Number of 4k pages in Translation Cache

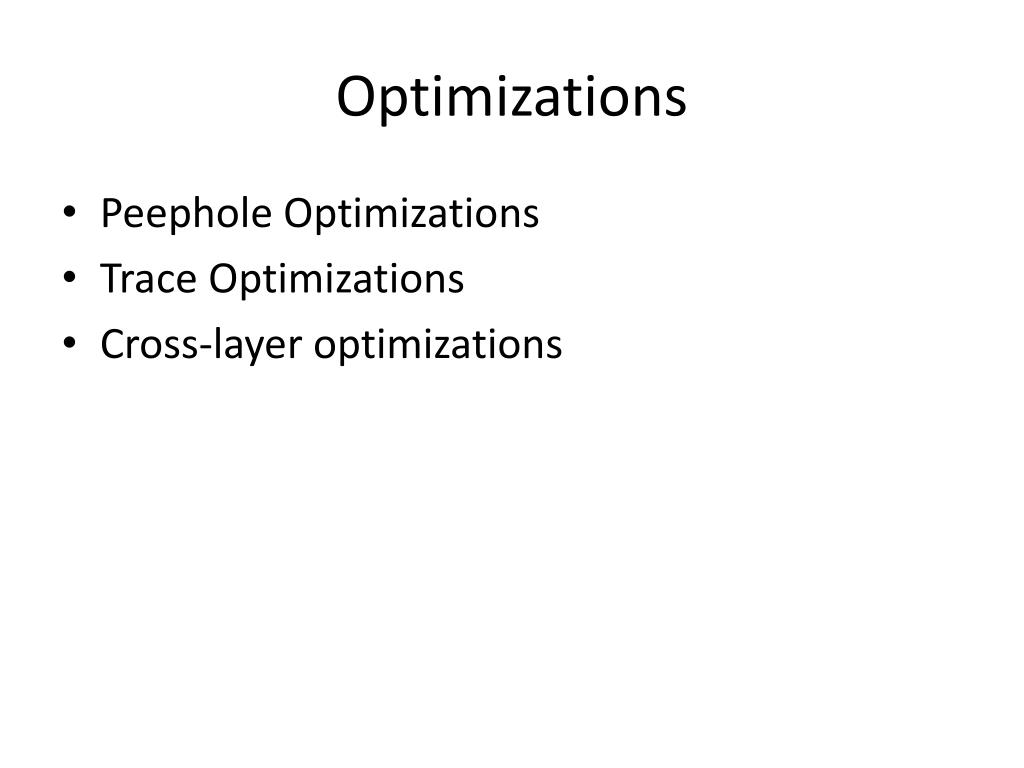

  19. Optimizations • Peephole Optimizations • Trace Optimizations • Cross-layer optimizations

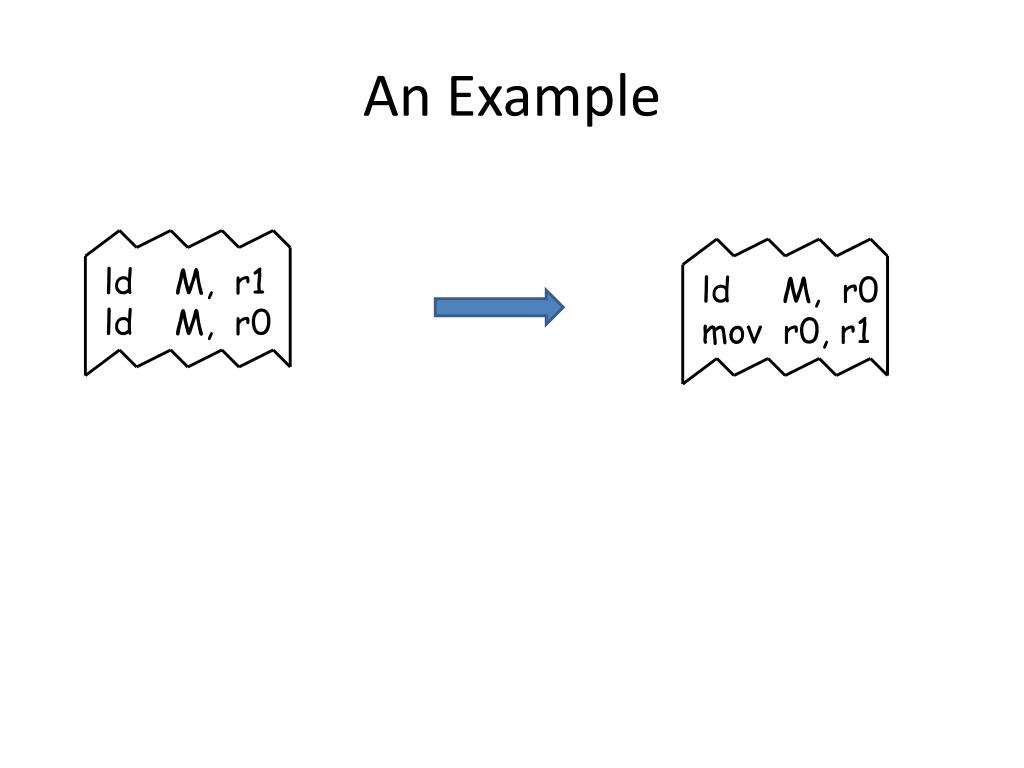

  20. An Example ld M, r1 ld M, r0 ld M, r0 mov r0, r1

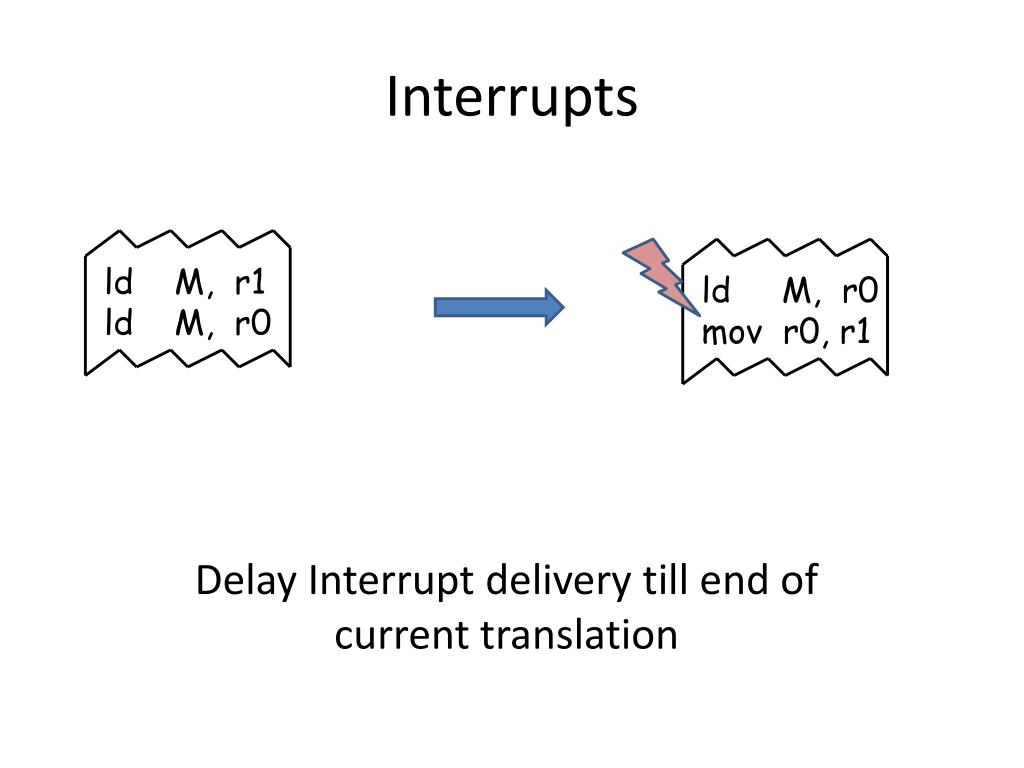

  21. Interrupts ld M, r1 ld M, r0 ld M, r0 mov r0, r1 Delay Interrupt delivery till end of current translation

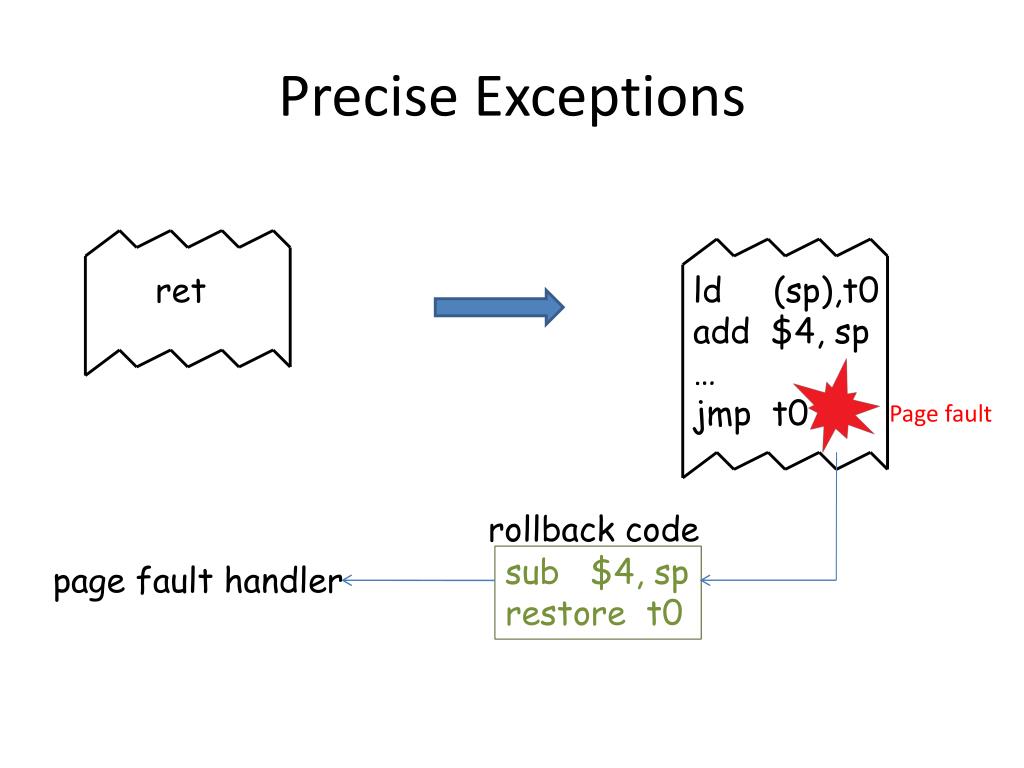

  22. Precise Exceptions ret ld (sp),t0 add $4, sp … jmp t0 Page fault rollback code sub $4, sp restore t0 page fault handler

  23. A Simple Scheme to PreventStack-Overflows … push ra, shadow … call … ra pop ra1pop shadow if (ra != ra1) error … ret

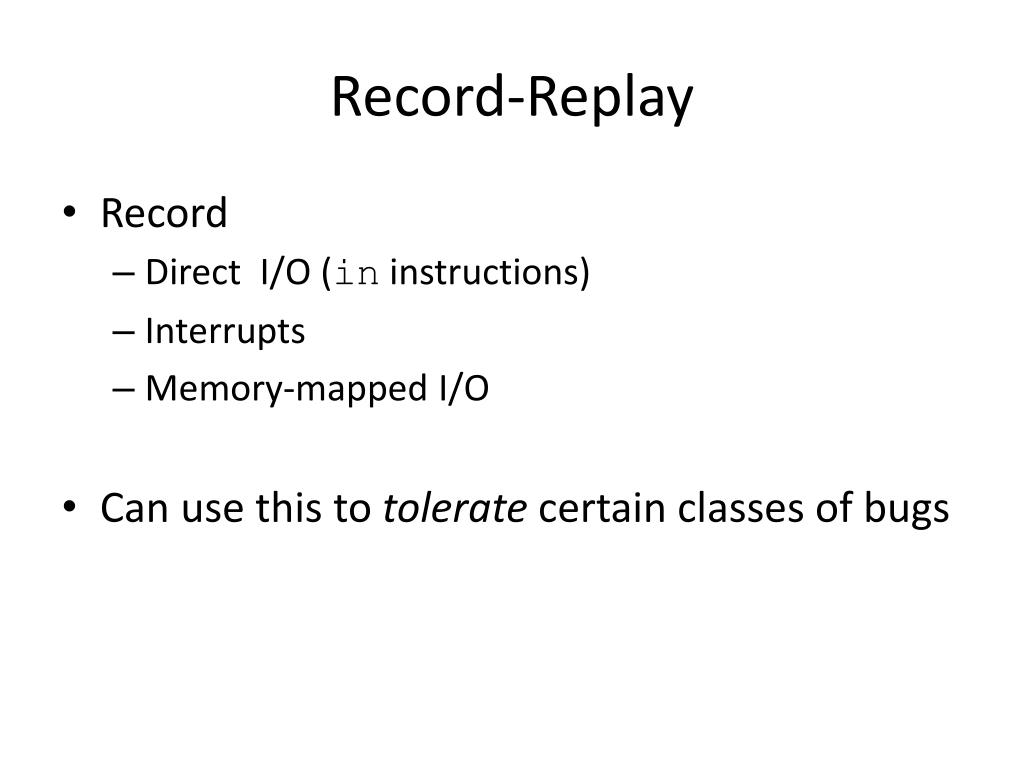

  24. Record-Replay • Record • Direct I/O (in instructions) • Interrupts • Memory-mapped I/O • Can use this to tolerate certain classes of bugs

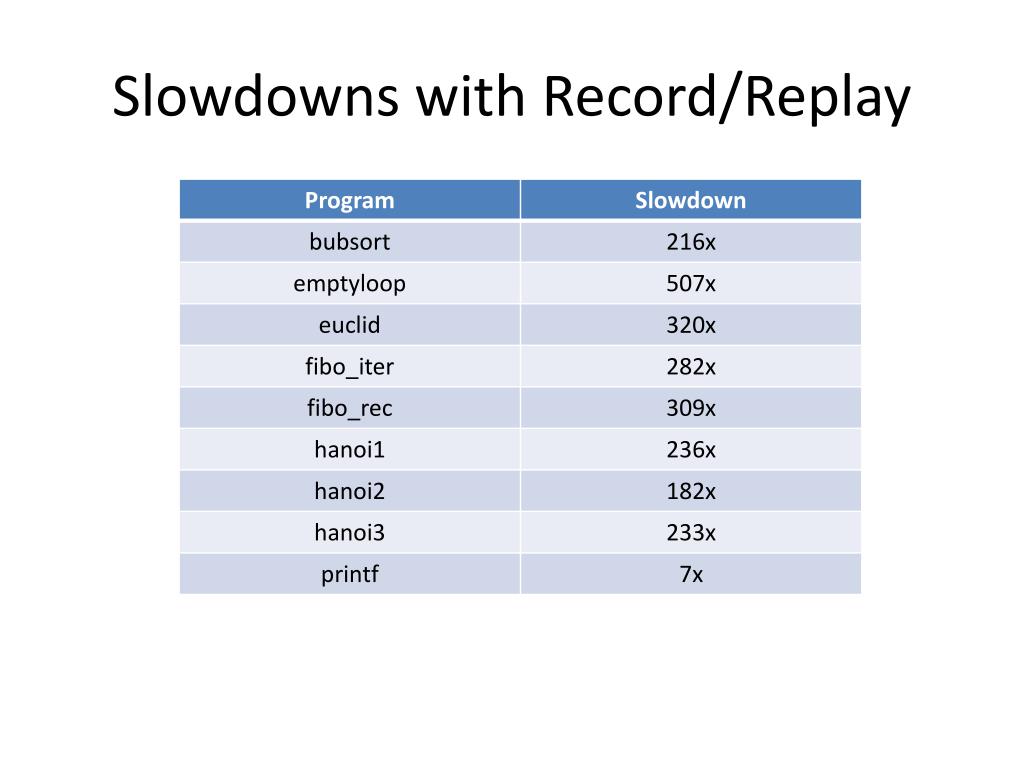

  25. Slowdowns with Record/Replay

  26. Conclusions • The virtualization layer is a good place to do many interesting things • Can we make the virtual machine appear __________________ than the real machine? faster more secure more reliable
