Advanced Plastic Injection Mold Production with Precision Engineering Excellence

Discover our state-of-the-art plastic injection molding services, specializing in medical instruments, IT products, and home appliances. Our facilities are equipped with cutting-edge technology and a dedicated team of skilled engineers committed to producing high-quality molds that meet German automotive standards. We provide comprehensive design assistance, incorporating Advanced R&D and DFM services, supported by robust CAD/CAM/CAE systems. With a diverse range of CNC and EDM machines, we ensure precision and efficiency at every stage of production.

kalb
Télécharger la présentation

Advanced Plastic Injection Mold Production with Precision Engineering Excellence

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. WHY Us? • • Accurate & Precise quality production • - Advanced facilities • - Skilled engineers • German Automotive standard • • Advanced R&D service • DFM, mold flow simulation • • Aggressive business service • - Best technical communication

  2. Plastic injection Medical Instrument

  3. Plastic injection IT

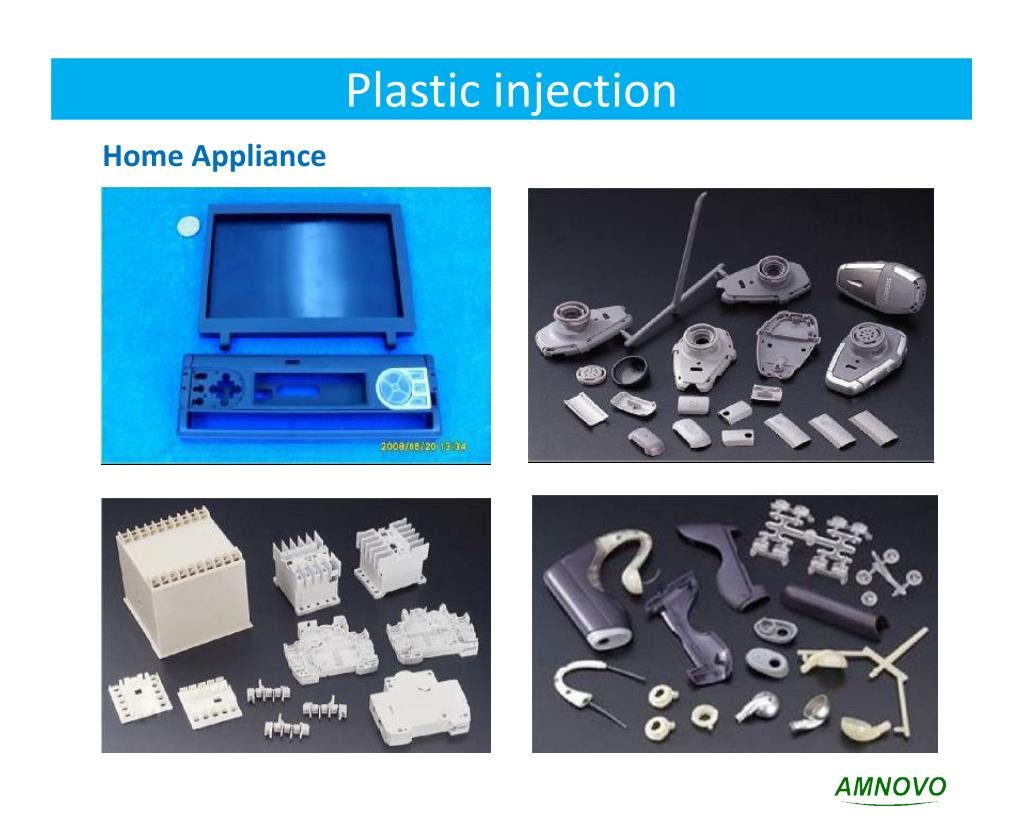

  4. Plastic injection Home Appliance

  5. Mold 2 Hydraulic hot runner system 1600 x 800 x 770 mm 16 cavity hydraulic hot runner system

  6. R&D ◆Tool Software : Pro-E, SolidWorks, AutoCAD & UG ◆CAD / CAM / CAE / MOLD-FLOW Analyzing System ◆We Offer: (DFM) Design Specification Performance Criteria Review Project Design Assistance and Recommendation

  7. Mold material list

  8. Equipment--CNC MAKINO 20,000r/min : 10 machines YCM : 2 machines

  9. Equipment--EDM Total : 33 machines CHARMILLES: 3 MAKINO : 5 NCUAR : 8 TOPEDM : 17

  10. Equipment—Wire cutting 4 Machines from Charmilles, 2 machine from Makino & Mitsubishi

  11. Quality Control Center - CMM(3D measurement) : Wenzel (Germany) - Projector : Nikon, Mitutoyo - Height Gage : Height Master SNLD Mitutoyo - Digital Verniers Calipers

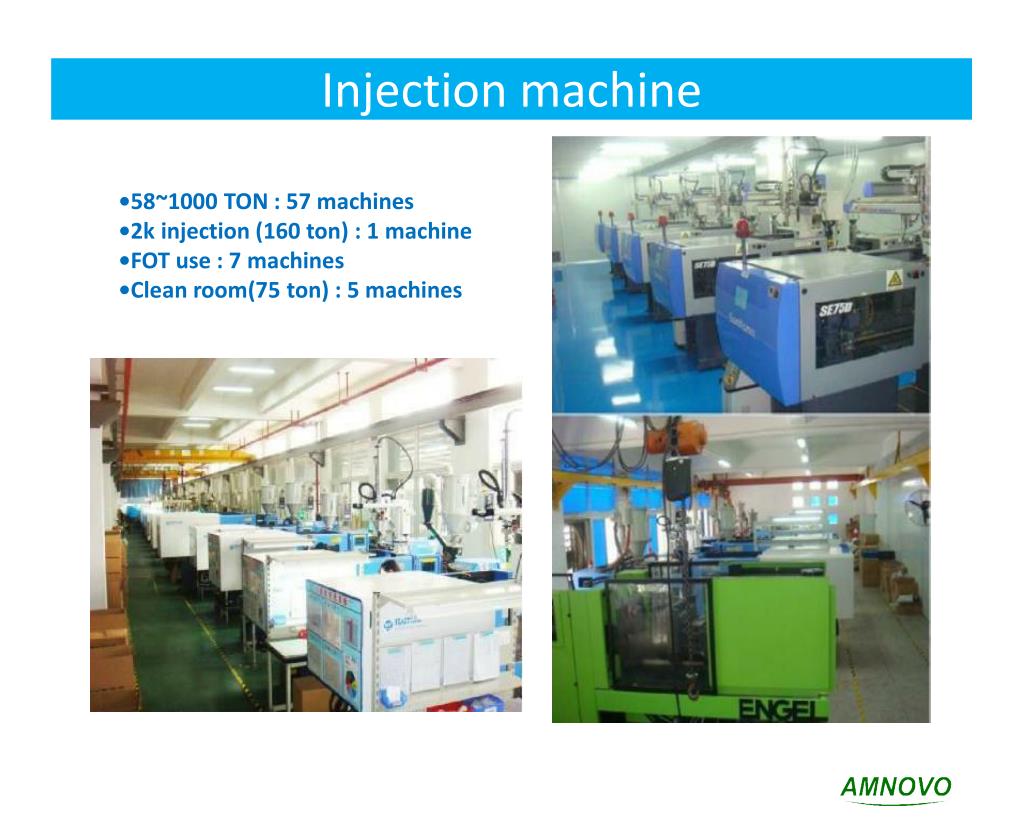

  12. Injection machine •58~1000 TON : 57 machines •2k injection (160 ton) : 1 machine •FOT use : 7 machines •Clean room(75 ton) : 5 machines

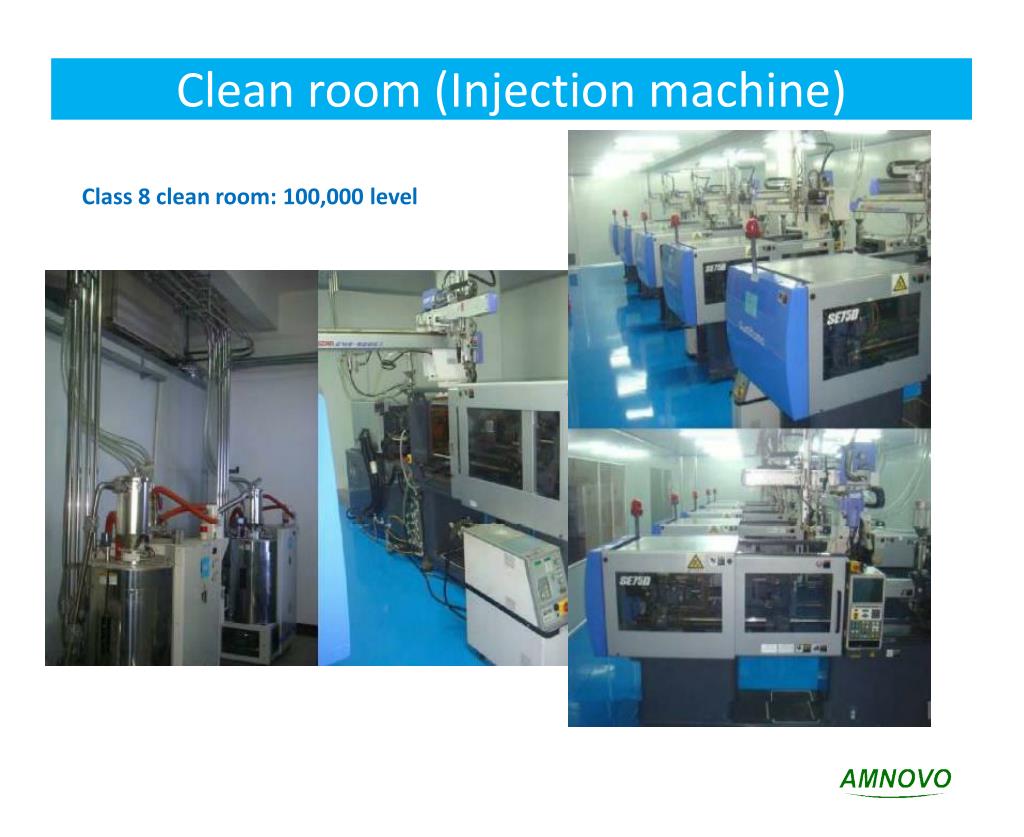

  13. Clean room (Injection machine) Class 8 clean room: 100,000 level

  14. www.amnovo.net Dankeschön! Tak! Dank u! Thank you so much ! Gracias ! Grazie! 有難う御座います。 谢谢！ 감사합니다.
