  1. Gazetteers for Temporal and Spatial Reference Extraction CS6604 Class Project

  2. Outline • Description • Motivation • Problem Statement • Objectives • Prior Work • Gazetteer Structure • Temporal Model • IR Query Method • Project Framework • Experimental Methods • Summary Gazetteers for Temporal and Spatial Reference Extraction

  3. Description • Gazetteers: Manual and digital repositories of geographic information, mainly linking names to locations. • A specific form of Spatial Database: • Point and polygonal coverage areas • Demographic information • Hierarchal information • Various Gazetteers created for different areas and purposes • This project focuses on designing a gazetteer for finding spatial and temporal references, based on both Spatial Database and Information Retrieval (IR) techniques Gazetteers for Temporal and Spatial Reference Extraction

  4. Motivation • Gazetteers are focused on location only. • Why is that Bad? • Can’t tell me location of important events • Can’t tell me locations associated with important people • Can’t tell me how locations have changed over time • Can’t tell me what locations applied to specific time periods • Gazetteers not directly helpful in getting location information within documents • Name ambiguity (50 records in the ADL Gazetteer) • Document ambiguity • SQL is not a solution • Solution set is a candidate set, compared to correct solution • SQL statements require enough understanding, and can be complicated. Gazetteers for Temporal and Spatial Reference Extraction

  5. Problem Statement • Given the following: • Name ambiguity • Document ambiguity • Focus on location reference extraction from documents • Explicit (London, England) • Implicit (Location of the Queen of England) • How can we: • Construct a Gazetteer to help in the discovery of such references • How to best query a gazetteer for that information Gazetteers for Temporal and Spatial Reference Extraction

  6. Objectives • Research the addition of temporal information within Gazetteers to enhance the capability • Look at how other information can be used to reinforce the choice of gazetteer entries to describe references. • Experiment on how IR techniques can be used to query gazetteer spatial databases, that are normally queried via SQL • Overcome ambiguity in SQL answers • Show a possible alternative to current location extract techniques. Gazetteers for Temporal and Spatial Reference Extraction

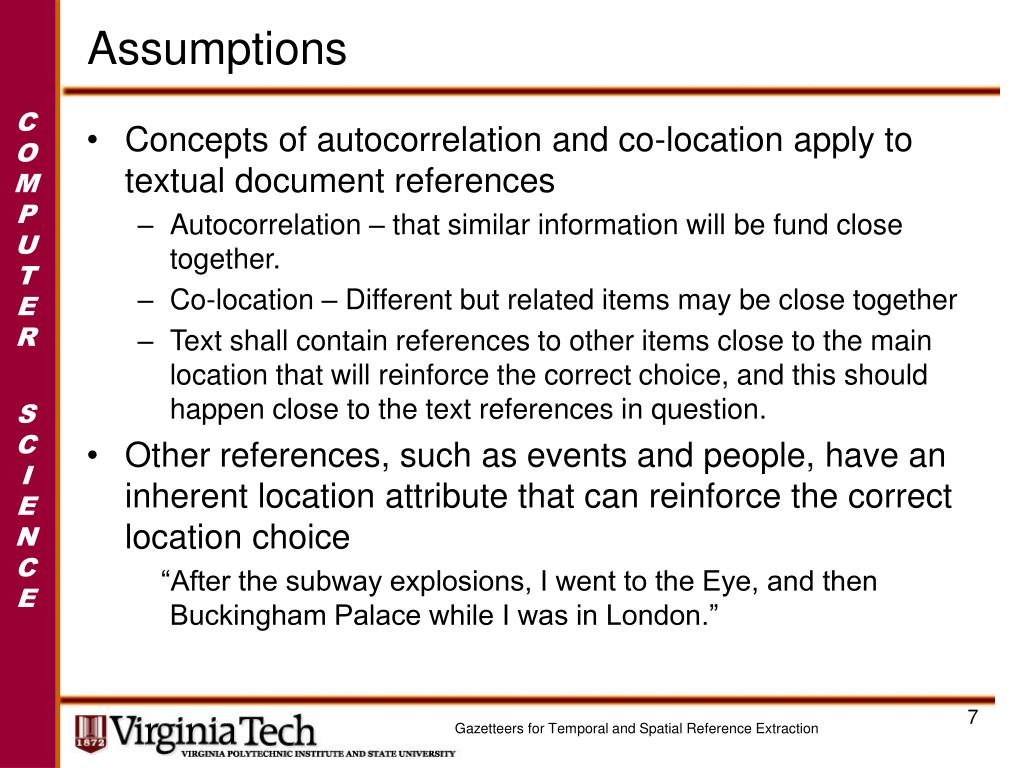

  7. Assumptions • Concepts of autocorrelation and co-location apply to textual document references • Autocorrelation – that similar information will be fund close together. • Co-location – Different but related items may be close together • Text shall contain references to other items close to the main location that will reinforce the correct choice, and this should happen close to the text references in question. • Other references, such as events and people, have an inherent location attribute that can reinforce the correct location choice “After the subway explosions, I went to the Eye, and then Buckingham Palace while I was in London.” Gazetteers for Temporal and Spatial Reference Extraction

  8. Prior Work • Alexandria Digital Library (ADL) Gazetteer • University of California, Santa Barbara effort, within the overall ADL effort. • ~6 million entries • Has tried to standardize the format, description, and distribution of gazetteer data. • Has a published, detailed schema • Incorporates some time elements, especially for naming entities, but time data is usually not populated. (Current snapshot) Gazetteers for Temporal and Spatial Reference Extraction

  9. Prior Work • Electronic Cultural Atlas Initiative • Effort of the University of California, Berkeley, to get time-varying data stored and displayed of different cultures. Gazetteers for Temporal and Spatial Reference Extraction

  10. Prior Work • TimeMap • University of Syndey display of time varying map/location data. • Originally used in the archeology Gazetteers for Temporal and Spatial Reference Extraction

  11. Prior Work • MetaCarta • Conducts geoparsing and geocoding of text documents, and sends back possible location references with relative strength values. • Uses Natural Language Techniques (NLP) to find possible location references, then straight database lookup • Contains a gazetteer of ~14 million entries. • All entries need an initial probability, in case there is not enough information in the text. Gazetteers for Temporal and Spatial Reference Extraction

  12. Gazetteer Structure • Entities (locations and people/things) have relationships with time periods and events. • All entries in each table have beginning and ending dates, and values for uncertainty. Time Period Occur during Applies to Lived during Occurs at Events Location covers Areas People/ things Part of Present at Gazetteers for Temporal and Spatial Reference Extraction

  13. Temporal Model • Used Bitemporal Conceptual Data Model (BCDM), developed for the TSQL2 query language. • Why: • General documents will cover all history – from Big Bang to NOW. • Dealing with different granularity – from seconds to eons • Need to worry about NOW • SQL does not deal with date before 1000 AD • Time values stored as text. Must be handled at the application level Gazetteers for Temporal and Spatial Reference Extraction

  14. IR Query Method • Documents with spatial and temporal references are the queries. • Broken into chunks to avoid mixing unrelated locations. • The Gazetteer’s locations, people, time period and event entries become documents • Focused on location documents • Location documents are formed for each location entry by doing a SQL spatial operation, finding what other locations are overlapping in the specific location’s MBR. • A location document should become a listing of contained locations, which in a IR methodology should make textual clues lead to a stronger relevance measure. • Location documents contain which database entry they came from. • The entire document collection is indexed. • Similarity measures are taken during initial query using td-idf, and initial results above a certain threshold are taken. Gazetteers for Temporal and Spatial Reference Extraction

  15. IR Query Method • Initial documents from the query are treated as a candidate list • Results need to be clustered by type of document – location, event, etc. • For each possible location record reflected by a returned document, assemble the relevant documents from the tables that handle events, people/things, etc. • For each collection of documents related to a location entry, combine the documents’ term frequencies, and conduct relevance feedback on the original query vector using the Ide_Regular method • Requery the system for location documents • Finally, the location names are searched for in the original query document. • If found, then a match is made and provided to the user • If the location is not found, then the system provides that name an an implied location Gazetteers for Temporal and Spatial Reference Extraction

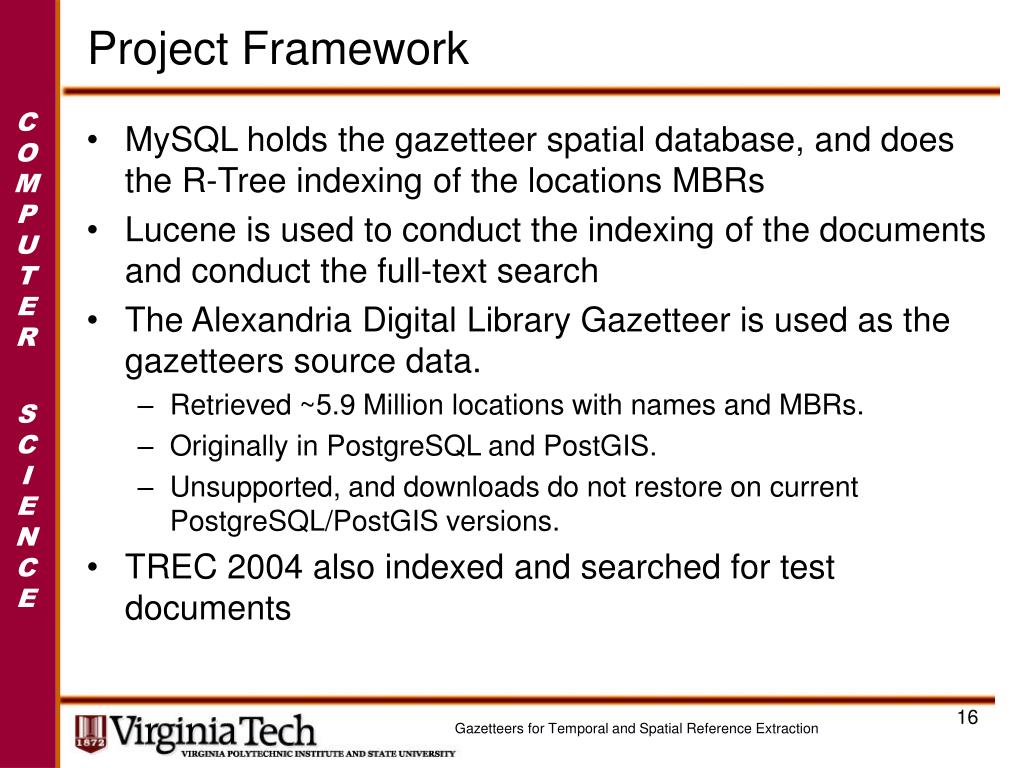

  16. Project Framework • MySQL holds the gazetteer spatial database, and does the R-Tree indexing of the locations MBRs • Lucene is used to conduct the indexing of the documents and conduct the full-text search • The Alexandria Digital Library Gazetteer is used as the gazetteers source data. • Retrieved ~5.9 Million locations with names and MBRs. • Originally in PostgreSQL and PostGIS. • Unsupported, and downloads do not restore on current PostgreSQL/PostGIS versions. • TREC 2004 also indexed and searched for test documents Gazetteers for Temporal and Spatial Reference Extraction

  17. Experimental Methods • Focused on querying documents with a specific city – London, to see the effect of IR selection without feedback. • Search TREC for 100 documents with the word “London” and identify the use of the word “London” in the text. • Make up documents that reference London and other events related to London which are in the database. • Use manually created documents to find the similarity threshold for best results. • Use the TREC documents as queries, and identify the true and false positives, and the true and false negatives. • Still conducting tests. Gazetteers for Temporal and Spatial Reference Extraction

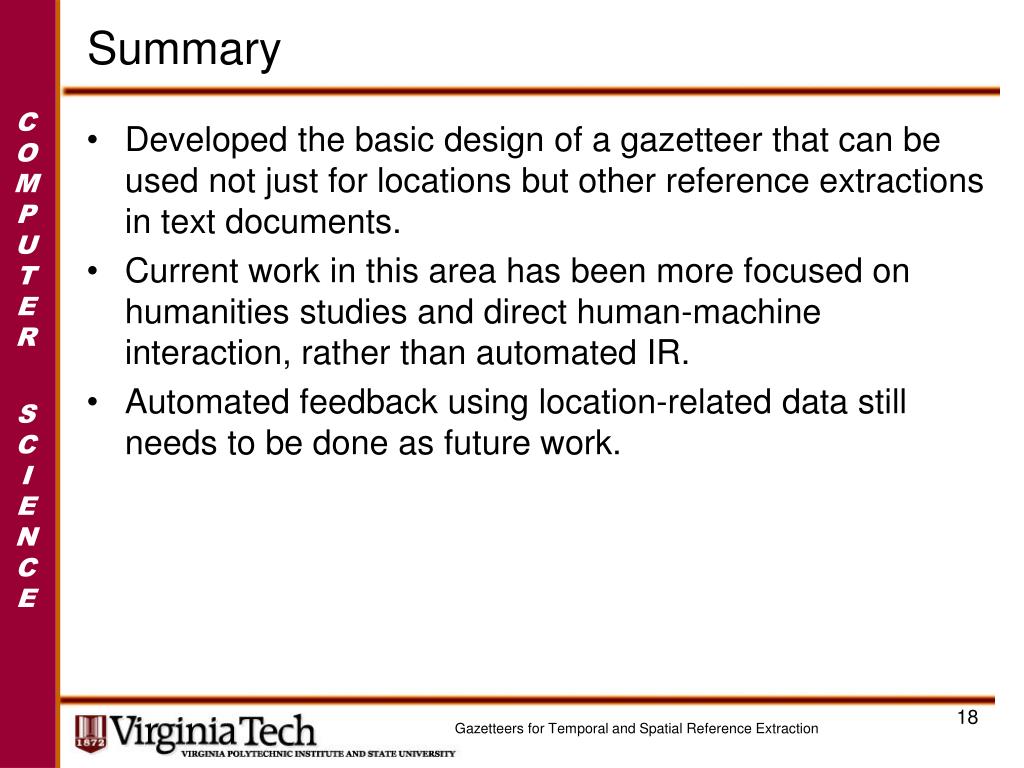

  18. Summary • Developed the basic design of a gazetteer that can be used not just for locations but other reference extractions in text documents. • Current work in this area has been more focused on humanities studies and direct human-machine interaction, rather than automated IR. • Automated feedback using location-related data still needs to be done as future work. Gazetteers for Temporal and Spatial Reference Extraction
