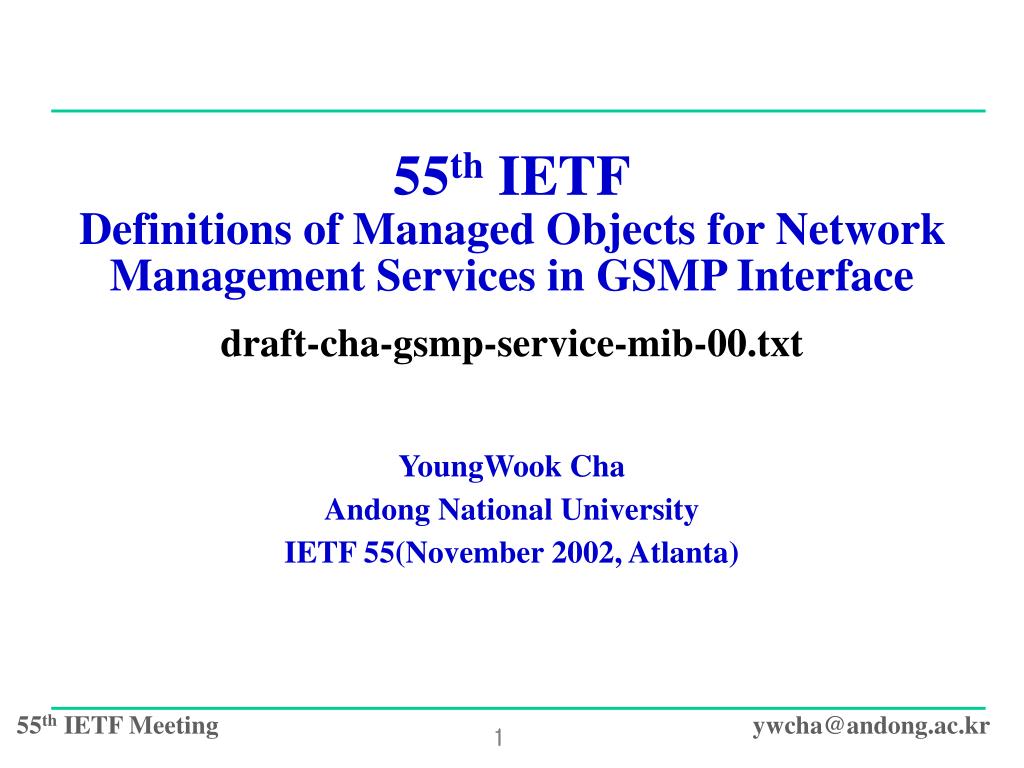

  1. 55th IETFDefinitions of Managed Objects for Network Management Services in GSMP Interface draft-cha-gsmp-service-mib-00.txt YoungWook Cha Andong National University IETF 55(November 2002, Atlanta)

  2. Tables in GSMP Service MIB

  3. InterfaceConfIndex X SID-1 CSID-1 X CSID-1 SID-1 Traffic/QoS Para One or More CSID-2 Y SID-1 CSID-2 X Traffic/QoS Para SID-1 Z X CSID-1 SID-2 CSID-1 SID-2 Traffic/QoS Para SID-1 CSID-2 Y Z CSID-1 SID-1 InterfaceConfTable Z CSID-1 SID-2 ServiceConfTable PortServiceMapTable SID : Service ID , CSID : Capability Set ID Tables for Configuration Management

  4. InterfaceConf Table IfConfIndex X Y TrafficParam Table InSegment Table OutSegment Table InSIfId OutSTrpaPtr OutSIfId OutSL InSL InSTrpaPtr XCIndex InSIfId InSL OutSL OutSIfId XC Table If : Interface, Id : Index, S : Segment, L : Label , TrpaPtr : Traffic Parameter Row Pointer, XC : Cross-Connect Tables for Connection Management • gsmpTrafficParamTable • gsmpInSegmentTable, gsmpOutSegmentTable • gsmpXCTable

  5. Tables for Performance Management

  6. Event Management

  7. Method 1: New GSMP Service MIB + GSMP MIB(RFC 3295) for Event Management or Method 2: Existing MIB for Connection and Performance Management + GSMP Service Specific MIB for Configuration and Partition Management + GSMP MIB(RFC 3295) for Event Management Next Steps Network Management Services in GSMP Interface Which Method ?
