  1. Defeasible Security Policy Composition for Web Services Adam J. Lee, Jodie P. Boyer*, Lars E. Olson, and Carl A. Gunter University of Illinois at Urbana-Champaign 3rd November 2006

  2. Motivation • Security policies • Tend to be large and difficult to understand • Do not always have a well-defined means of composition • May be governed by multiple organizations or entities • Can we provide an intuitive way to specify and compose security policies? • Approach: Defeasible security policy composition

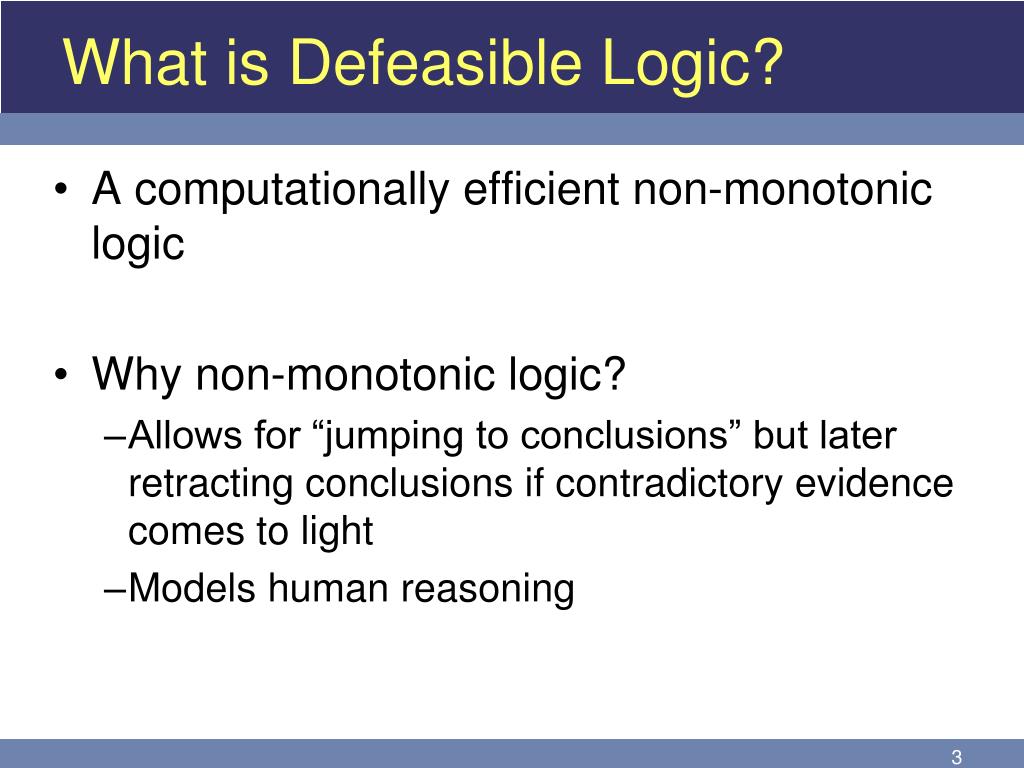

  3. What is Defeasible Logic? • A computationally efficient non-monotonic logic • Why non-monotonic logic? • Allows for “jumping to conclusions” but later retracting conclusions if contradictory evidence comes to light • Models human reasoning

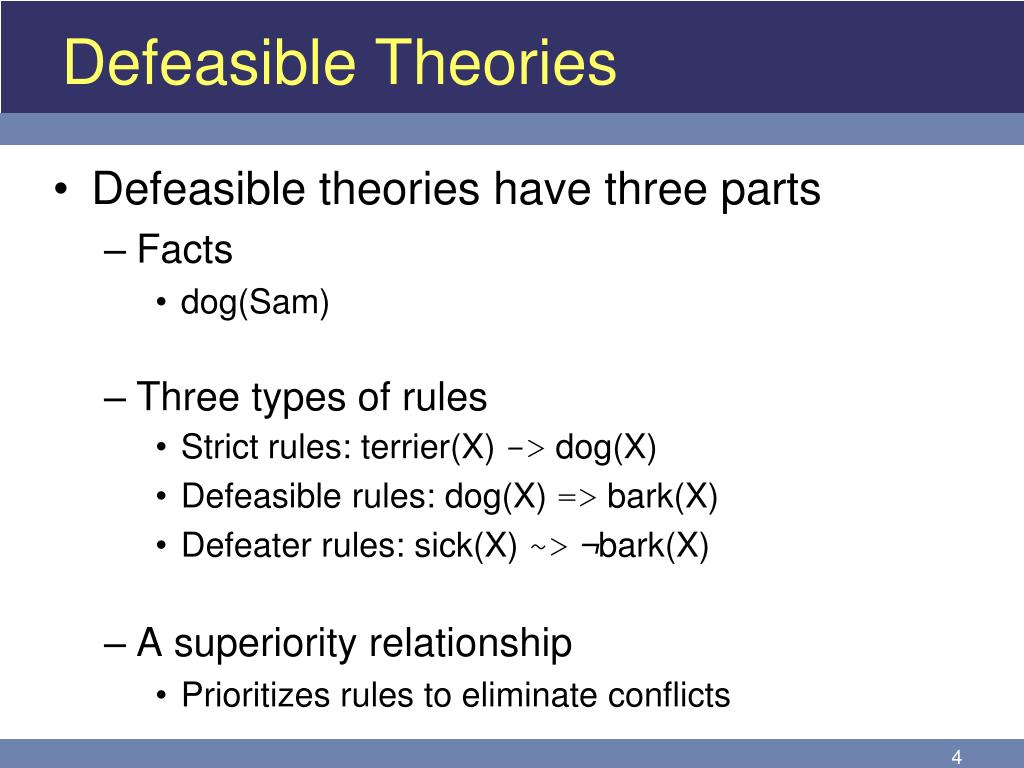

  4. Defeasible Theories • Defeasible theories have three parts • Facts • dog(Sam) • Three types of rules • Strict rules: terrier(X) -> dog(X) • Defeasible rules: dog(X) => bark(X) • Defeater rules: sick(X) ~>¬bark(X) • A superiority relationship • Prioritizes rules to eliminate conflicts

  5. Example Superiority Relationship • The logical theory:basenji(Jasmine)basenji(X) -> dog(X)r : dog(X) => bark(X)r’ : basenji(X) => ¬bark(X)r’ > r • Note: What happens without r’ > r?

  6. Solution Overview • Each entity specifies a defeasible logic “meta policy” • Group of entities determine a precedence hierarchy • Policies are merged using a composition function,  • Resultant composed policy is converted into its XML representation using a projection function, 

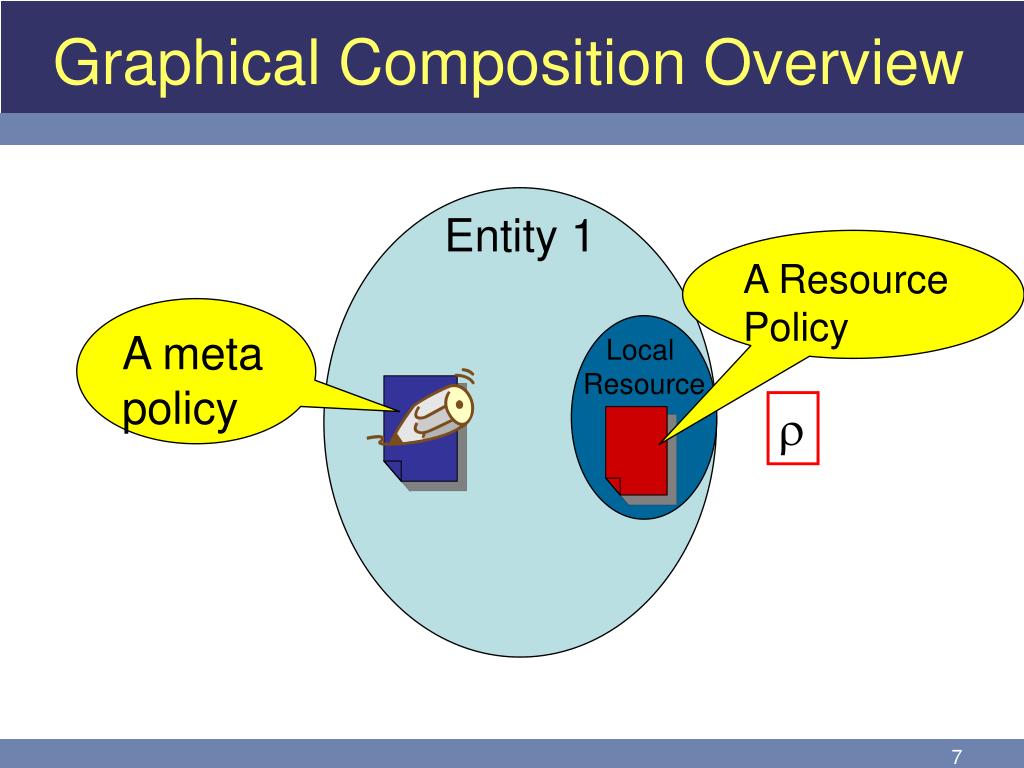

  7. Graphical Composition Overview Entity 1 A Resource Policy A meta policy Local Resource 

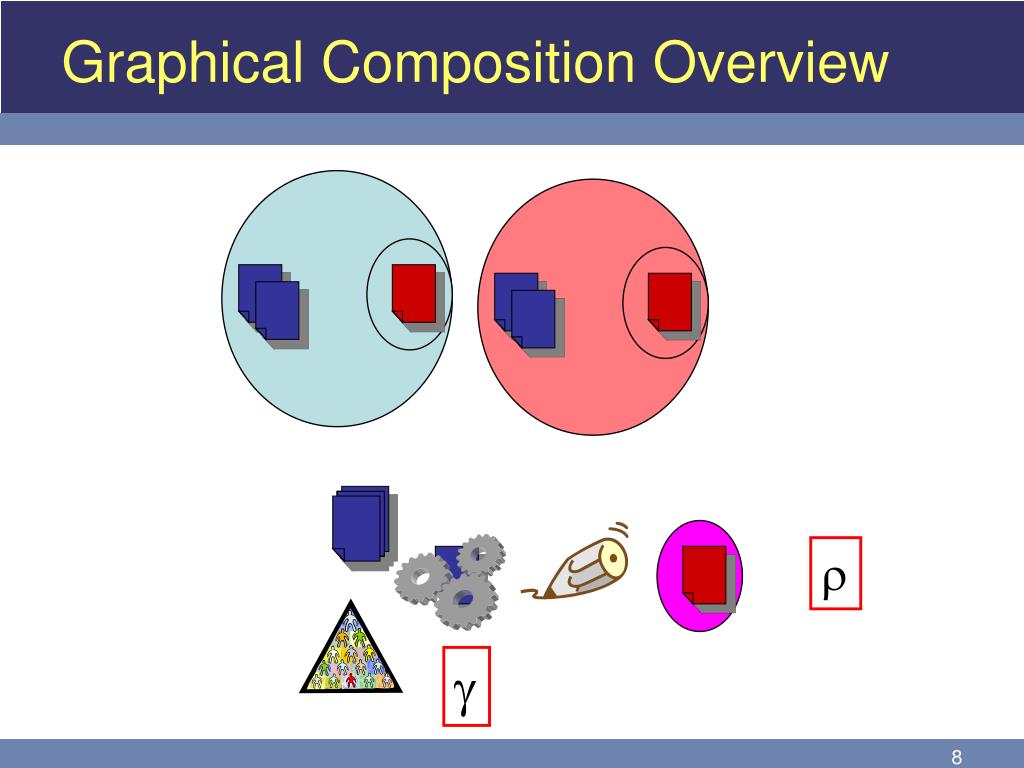

  8. Graphical Composition Overview  

  9. What Does a Meta-Policy Look Like? • A meta-policy,P, is a tuple P = (Preas, Preq) • The reasoning theory, Preas, is a theory in the defeasible logic • The requirements theory, Preq, is a propositional logic theory • Used as a “sanity check” after merging to ensure this entity’s requirements are met • If the conclusions drawn during the merge can prove the statement SATISFIED in Preq, the defining entity is, well, satisfied with the outcome

  10. Predicate Syntax • Security Token • securitytoken(Type, Issuer, {Claims}) • Integrity • integrity({Algorithms}, TokenInfo, {Claims}, {MessageParts}) • Confidentiality • confidentiality({Algorithms}, KeyInfo, {MessageParts})

  11. Examples of Predicate Syntax • securitytoken('x509','uiuc',C) Represents an X.509 certificate issued by UIUC with no restrictions on the claims. • confidentiality({algorithm('encryption','rsa')}, securitytoken(T,'uiuc',C), {messageparts('xpath',S,'/body')}) Represents RSA encryption of the <body> element using a security token issued by UIUC.

  12. Composition using  • Define  recursively in terms of a two policy composition function * • Two cases for *(p1, p2) • p1 and p2 unrelated by partial order • p1 dominates p2 • * can be used iteratively to compose any collection of partially ordered meta-policies

  13. Projection Using  • Derive C, the set of all conclusions that can be defeasibly proven from the composite reasoning theory • For each Ci 2Cthat satisfies the requirements theories, add Ci to the set of sets S • Fail if S is empty, otherwise generate XML

  14. XML Generation • Find I, the intersection of each sS • Insert the elements of I into an <All> clause in the WS-SecurityPolicy • Create an <ExactlyOne> clause • For each sS, construct an <All> clause containing each conclusion in the set (s \ I) • Add this <All> clause as an item to the new <ExactlyOne> clause

  15. Example • 2 organizations want to deploy a joint web service • Organization 1 • Wants X.509 to be used as the security token. • Allows a combination of tokens to replace X.509 when resources are constrained in mobile apps • Organization 2 • Deploys mobile apps • Requires Confidentiality • The organizations are unrelated in the partial ordering

  16. Example Policy (Part 1) Req: hassecuritytoken -> satisfied. securitytoken('x509','uiuc',C) -> hassecuritytoken. securitytoken('saml',I,C),securitytoken('unt',I,C) -> hassecuritytoken. Reas: R1: {} => securitytoken('x509','uiuc',C). R2: {} => securitytoken('saml',I,C). R3: {} => securitytoken('unt',I,C). R4: mobile ~> ~securitytoken('x509',I,C). R5: securitytoken('x509',I,C) ~> ~securitytoken('saml',I,C). R6: securitytoken('x509',I,C) ~> ~securitytoken('unt',I,C). R4 > R1. R5 > R2. R6 > R3.

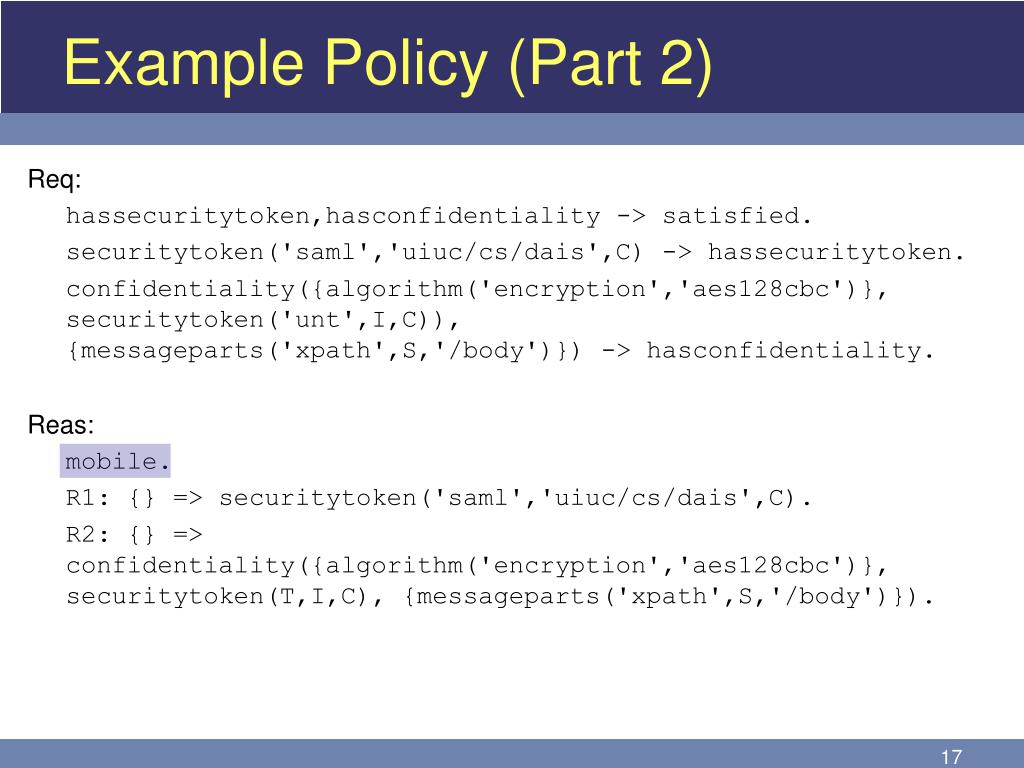

  17. Example Policy (Part 2) Req: hassecuritytoken,hasconfidentiality -> satisfied. securitytoken('saml','uiuc/cs/dais',C) -> hassecuritytoken. confidentiality({algorithm('encryption','aes128cbc')}, securitytoken('unt',I,C)), {messageparts('xpath',S,'/body')}) -> hasconfidentiality. Reas: mobile. R1: {} => securitytoken('saml','uiuc/cs/dais',C). R2: {} => confidentiality({algorithm('encryption','aes128cbc')}, securitytoken(T,I,C), {messageparts('xpath',S,'/body')}).

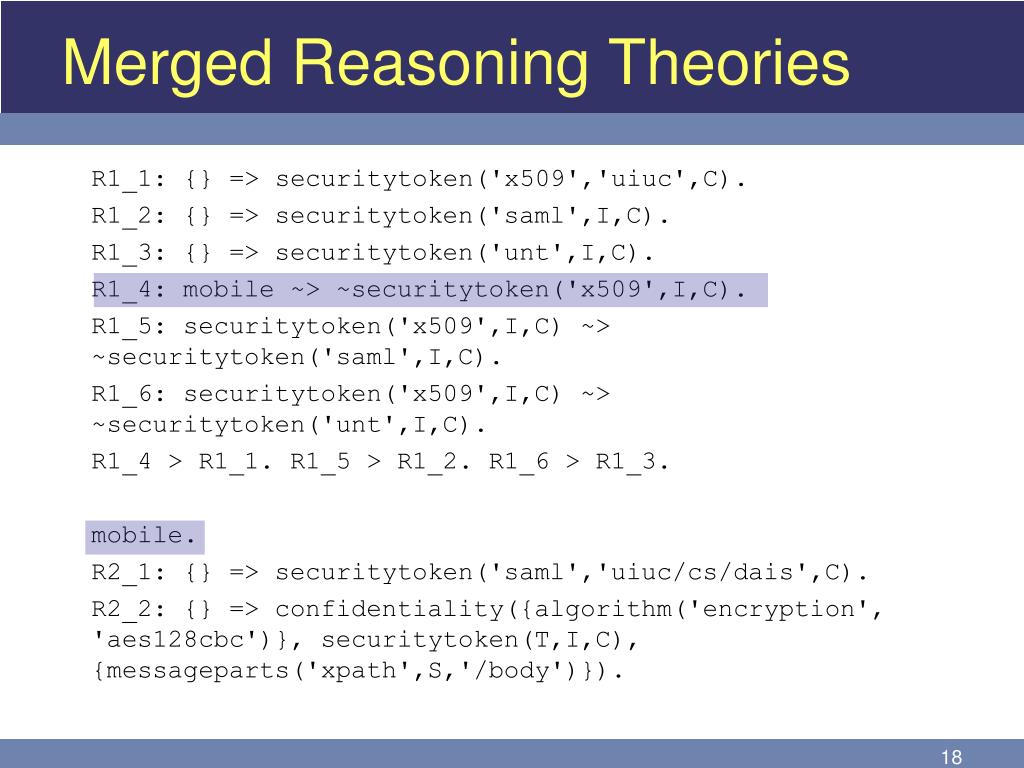

  18. Merged Reasoning Theories R1_1: {} => securitytoken('x509','uiuc',C). R1_2: {} => securitytoken('saml',I,C). R1_3: {} => securitytoken('unt',I,C). R1_4: mobile ~> ~securitytoken('x509',I,C). R1_5: securitytoken('x509',I,C) ~> ~securitytoken('saml',I,C). R1_6: securitytoken('x509',I,C) ~> ~securitytoken('unt',I,C). R1_4 > R1_1. R1_5 > R1_2. R1_6 > R1_3. mobile. R2_1: {} => securitytoken('saml','uiuc/cs/dais',C). R2_2: {} => confidentiality({algorithm('encryption', 'aes128cbc')}, securitytoken(T,I,C), {messageparts('xpath',S,'/body')}).

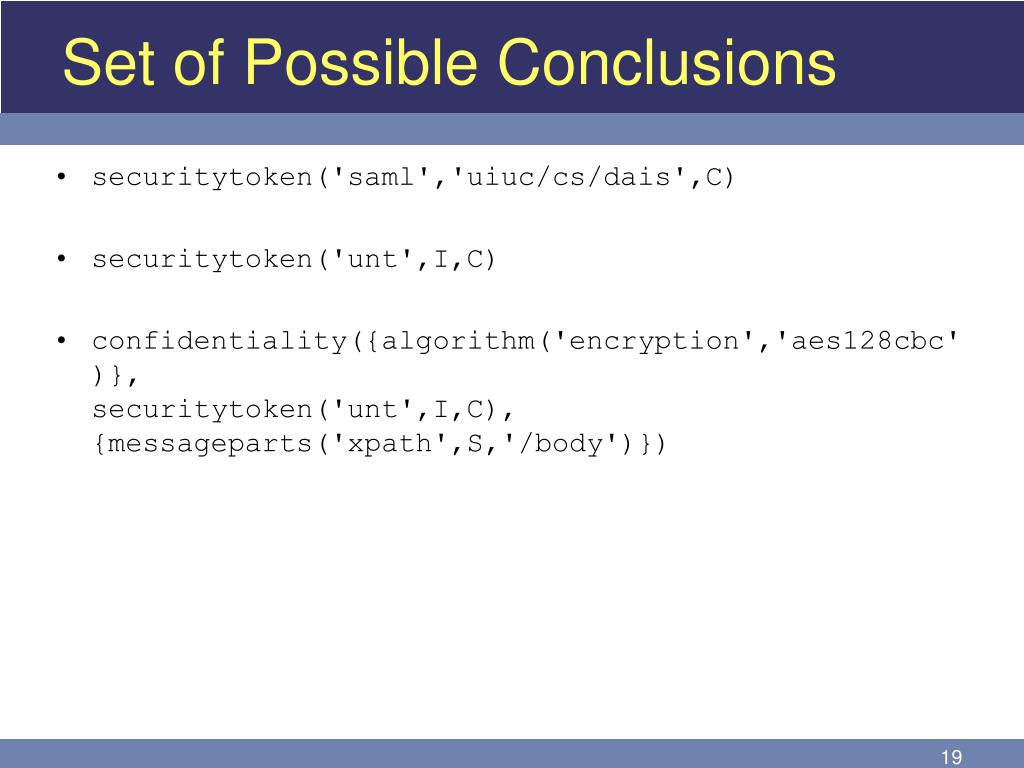

  19. Set of Possible Conclusions • securitytoken('saml','uiuc/cs/dais',C) • securitytoken('unt',I,C) • confidentiality({algorithm('encryption','aes128cbc')}, securitytoken('unt',I,C), {messageparts('xpath',S,'/body')})

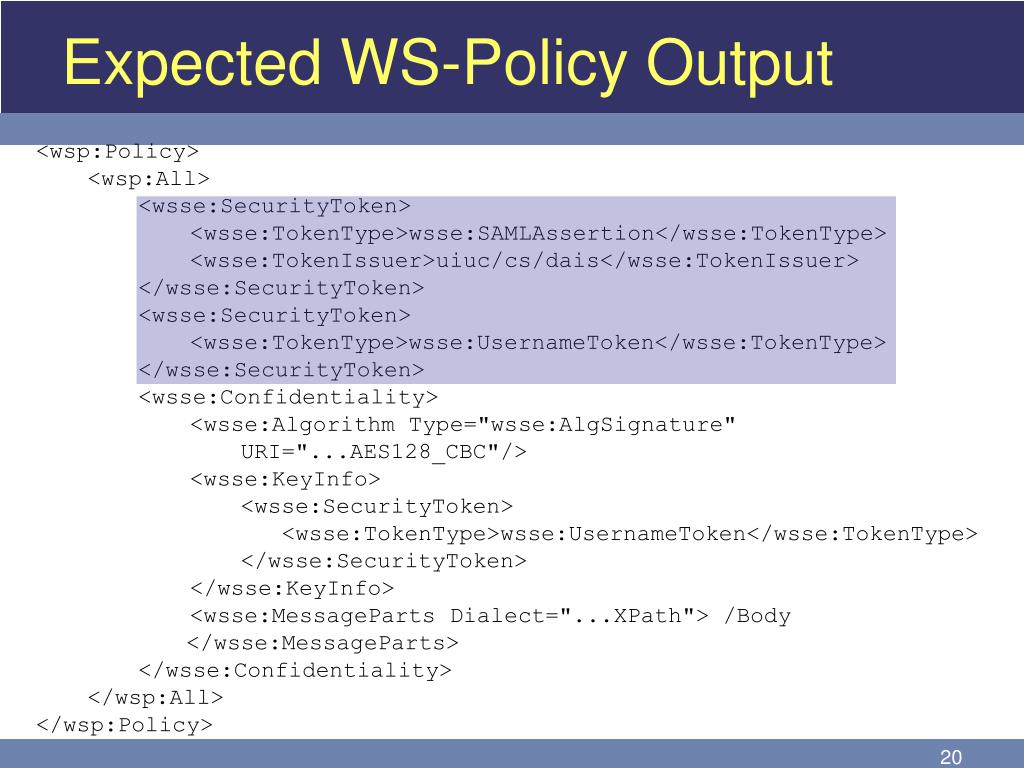

  20. Expected WS-Policy Output <wsp:Policy> <wsp:All> <wsse:SecurityToken> <wsse:TokenType>wsse:SAMLAssertion</wsse:TokenType> <wsse:TokenIssuer>uiuc/cs/dais</wsse:TokenIssuer> </wsse:SecurityToken> <wsse:SecurityToken> <wsse:TokenType>wsse:UsernameToken</wsse:TokenType> </wsse:SecurityToken> <wsse:Confidentiality> <wsse:Algorithm Type="wsse:AlgSignature" URI="...AES128_CBC"/> <wsse:KeyInfo> <wsse:SecurityToken> <wsse:TokenType>wsse:UsernameToken</wsse:TokenType> </wsse:SecurityToken> </wsse:KeyInfo> <wsse:MessageParts Dialect="...XPath"> /Body </wsse:MessageParts> </wsse:Confidentiality> </wsp:All> </wsp:Policy>

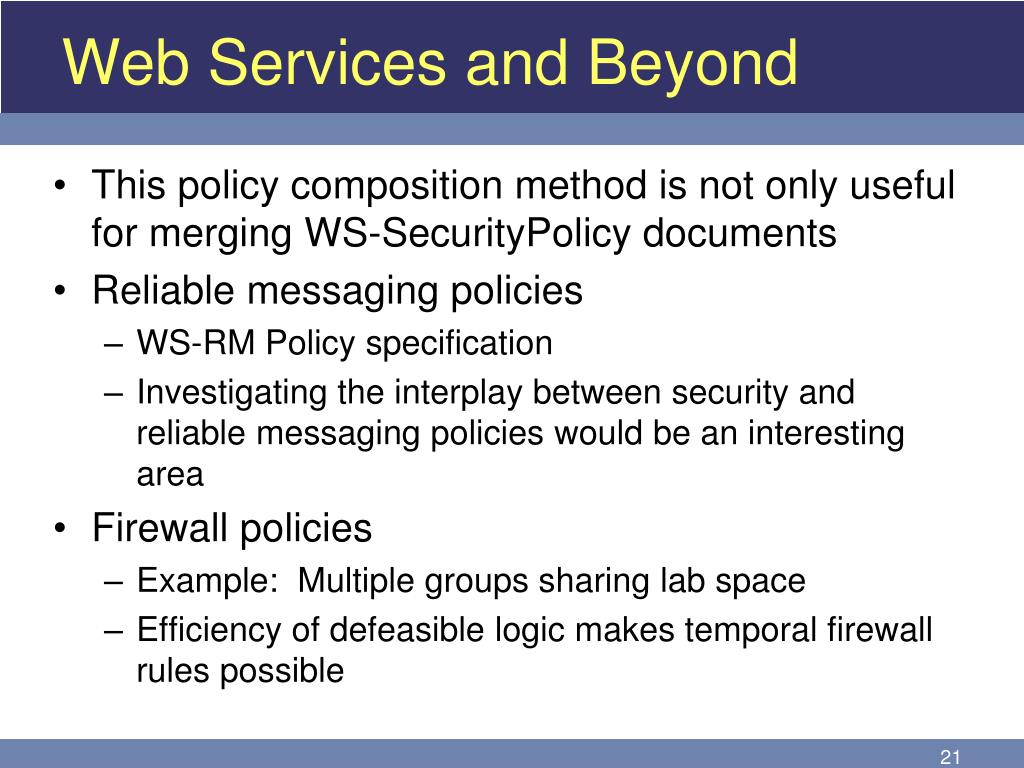

  21. Web Services and Beyond • This policy composition method is not only useful for merging WS-SecurityPolicy documents • Reliable messaging policies • WS-RM Policy specification • Investigating the interplay between security and reliable messaging policies would be an interesting area • Firewall policies • Example: Multiple groups sharing lab space • Efficiency of defeasible logic makes temporal firewall rules possible

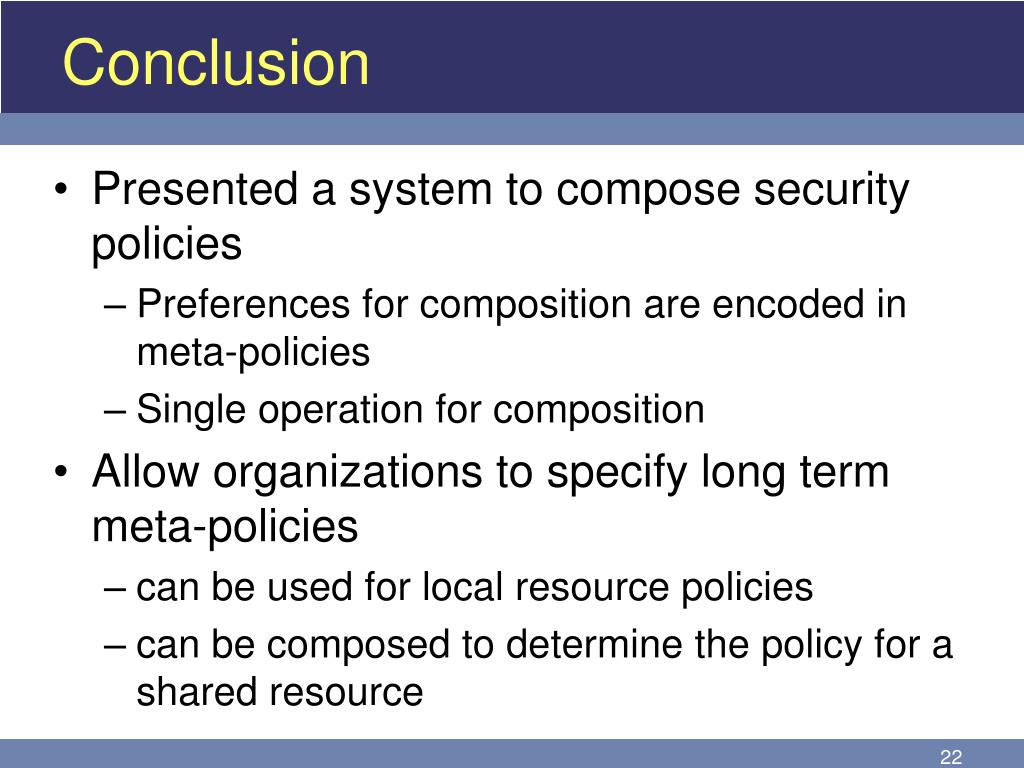

  22. Conclusion • Presented a system to compose security policies • Preferences for composition are encoded in meta-policies • Single operation for composition • Allow organizations to specify long term meta-policies • can be used for local resource policies • can be composed to determine the policy for a shared resource

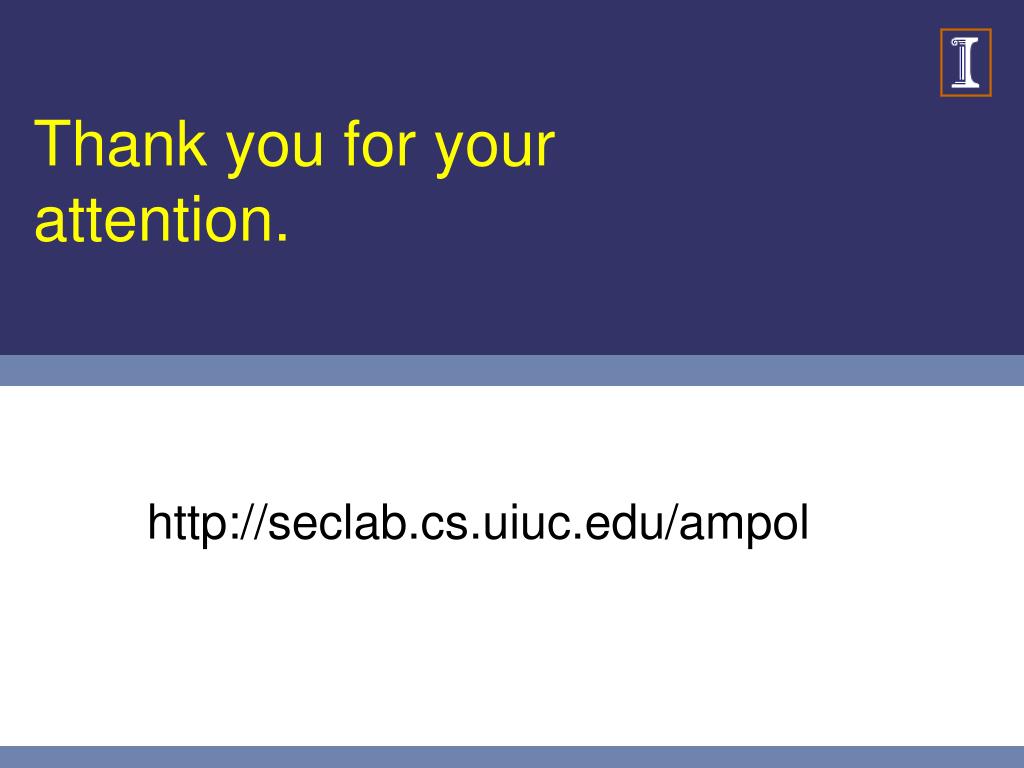

  23. Thank you for your attention. http://seclab.cs.uiuc.edu/ampol
