  1. Comparing Architecture Description Languages for Mobile Software Systems Nour Ali Politecnico di Milano ali@elet.polimi.it Carlos Solís, Isidro Ramos Universidad Politecnica de Valencia {csolis, iramos}@dsic.upv.es

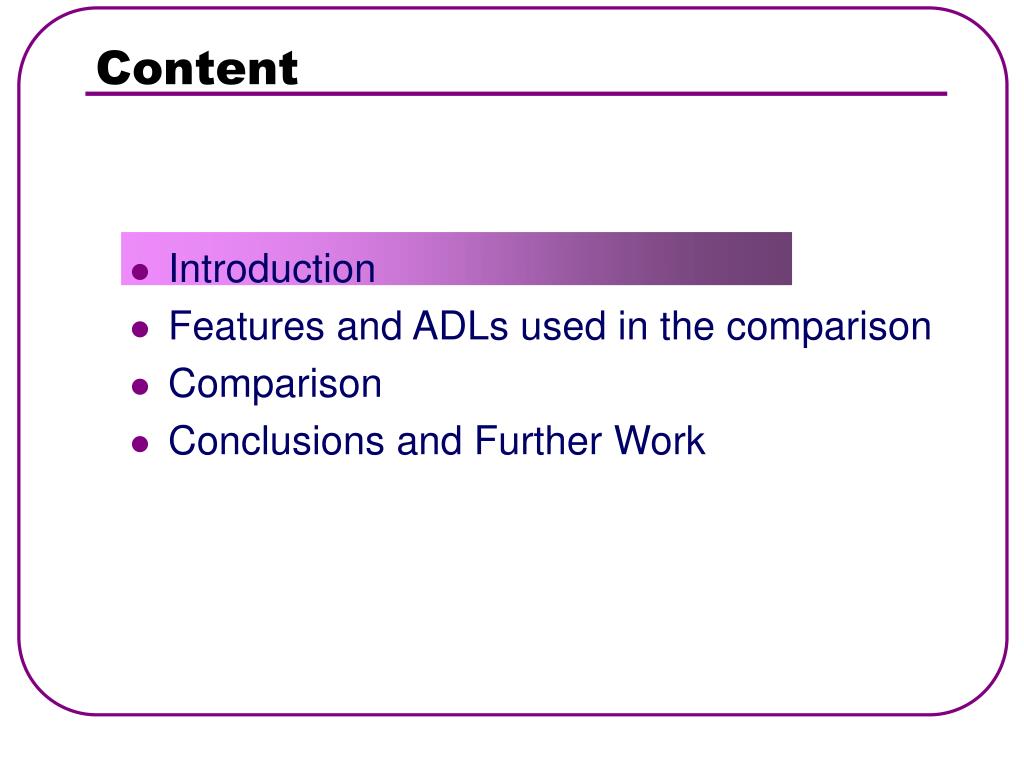

  2. Content • Introduction • Features and ADLs used in the comparison • Comparison • Conclusions and Further Work

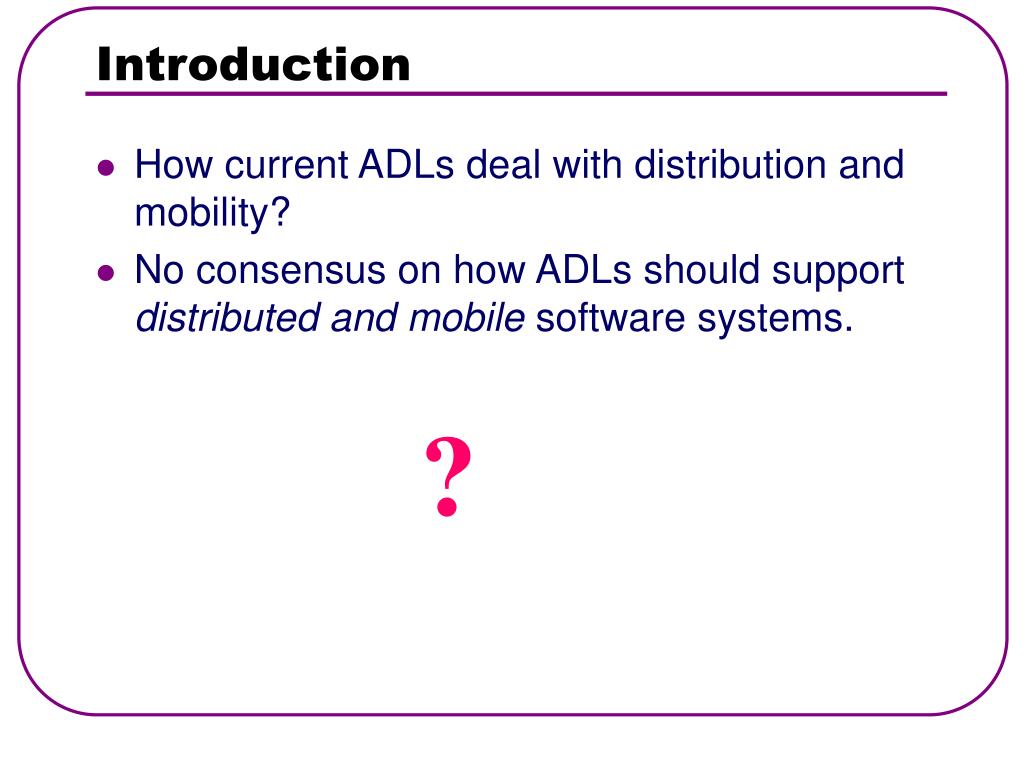

  3. Introduction • How current ADLs deal with distribution and mobility? • No consensus on how ADLs should support distributed and mobile software systems. ?

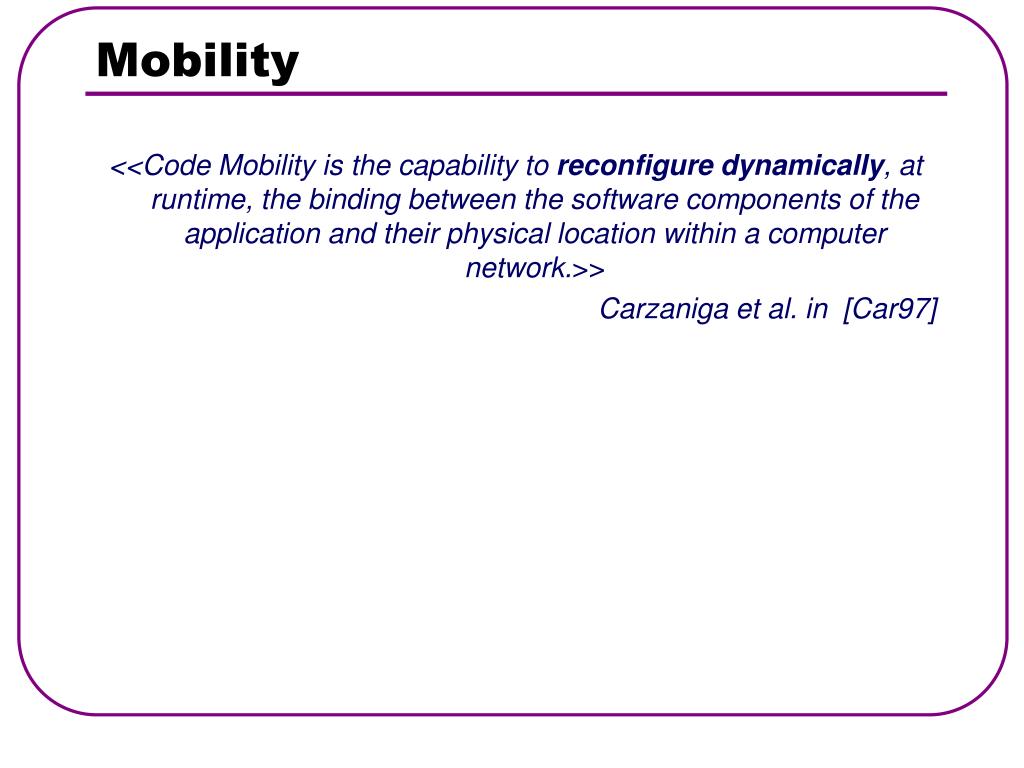

  4. Mobility <<Code Mobility is the capability to reconfigure dynamically, at runtime, the binding between the software components of the application and their physical location within a computer network.>> Carzaniga et al. in [Car97]

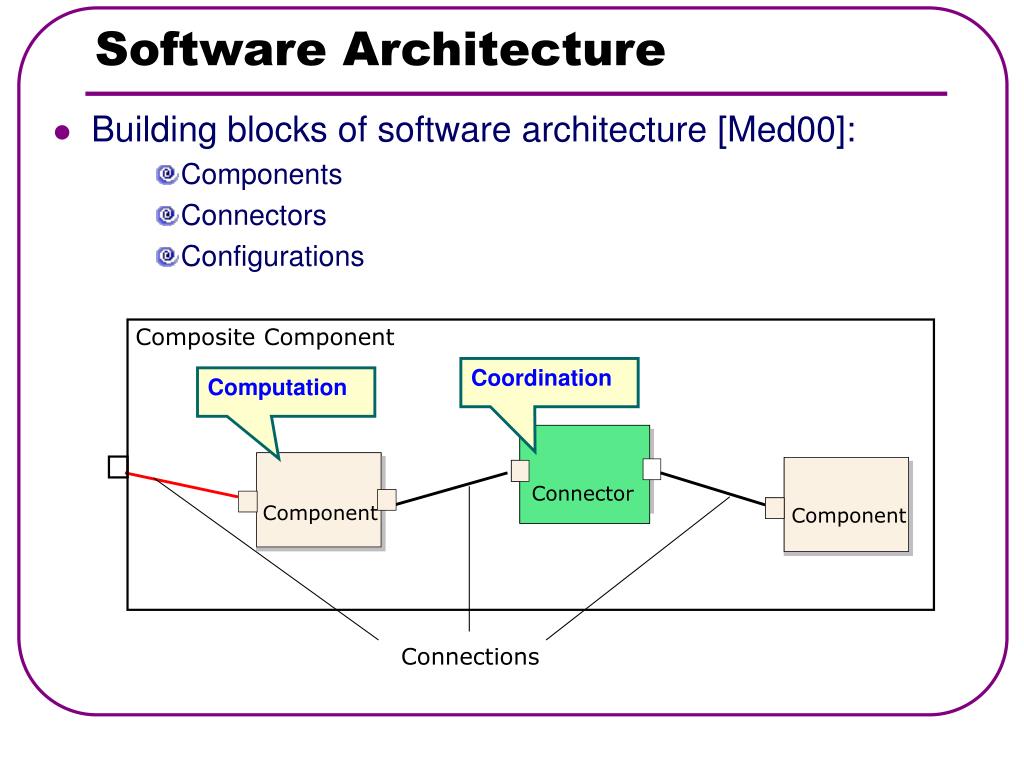

  5. Composite Component « connector Connector Connector Component Component Component Component Connections Software Architecture • Building blocks of software architecture [Med00]: • Components • Connectors • Configurations Coordination Computation

  6. Content • Introduction • Features and ADLs used in the comparison • Comparison • Conclusions and Further Work

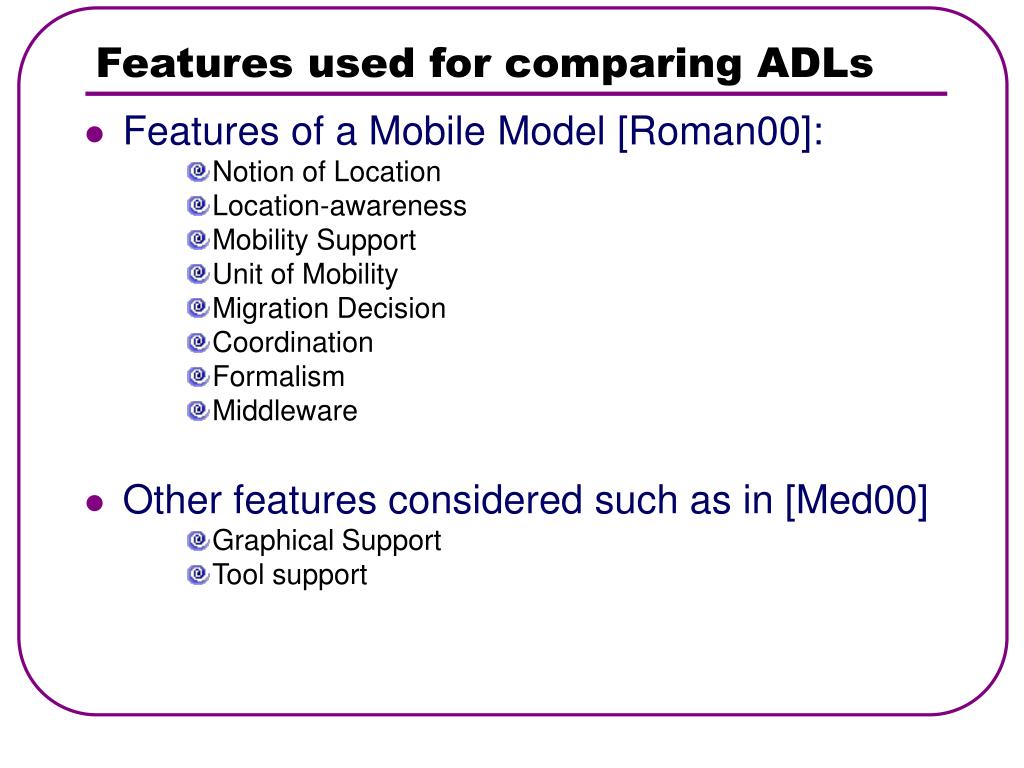

  7. Features used for comparing ADLs • Features of a Mobile Model [Roman00]: • Notion of Location • Location-awareness • Mobility Support • Unit of Mobility • Migration Decision • Coordination • Formalism • Middleware • Other features considered such as in [Med00] • Graphical Support • Tool support

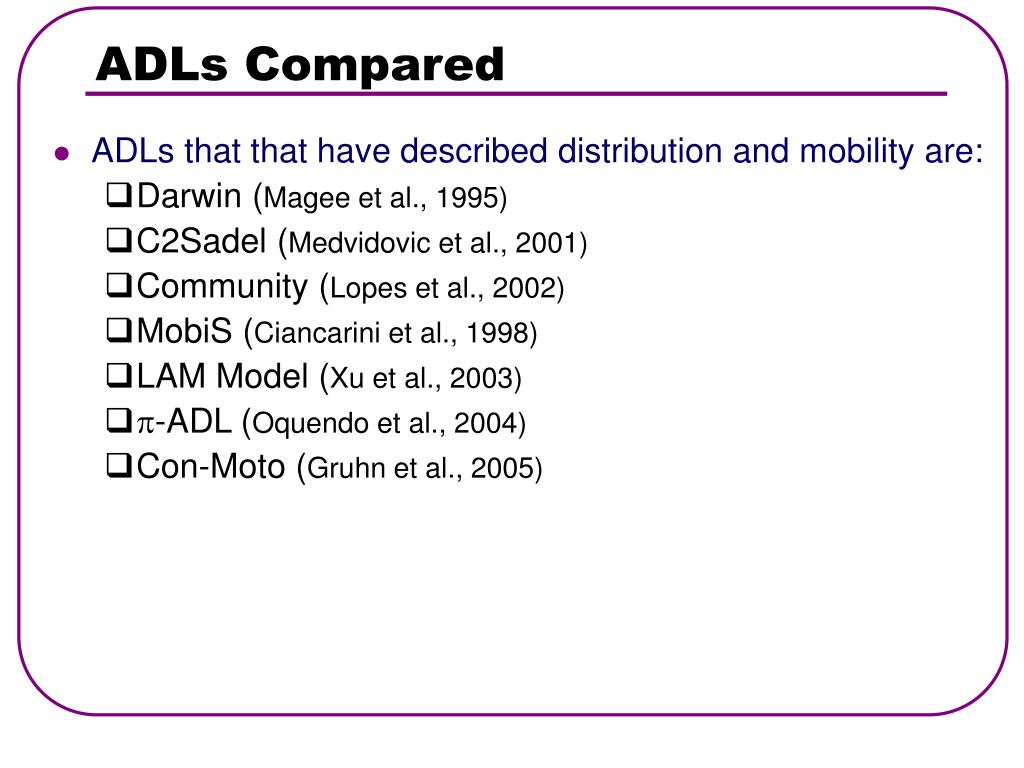

  8. ADLs Compared • ADLs that that have described distribution and mobility are: • Darwin (Magee et al., 1995) • C2Sadel (Medvidovic et al., 2001) • Community (Lopes et al., 2002) • MobiS (Ciancarini et al., 1998) • LAM Model (Xu et al., 2003) • -ADL (Oquendo et al., 2004) • Con-Moto (Gruhn et al., 2005)

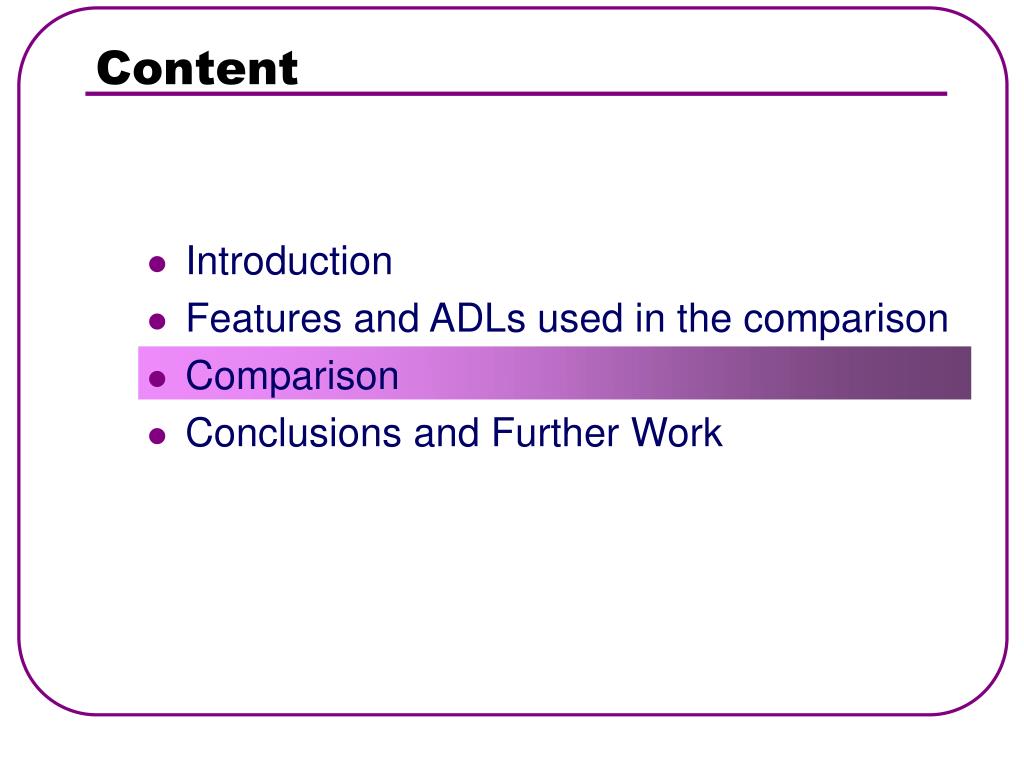

  9. Content • Introduction • Features and ADLs used in the comparison • Comparison • Conclusions and Further Work

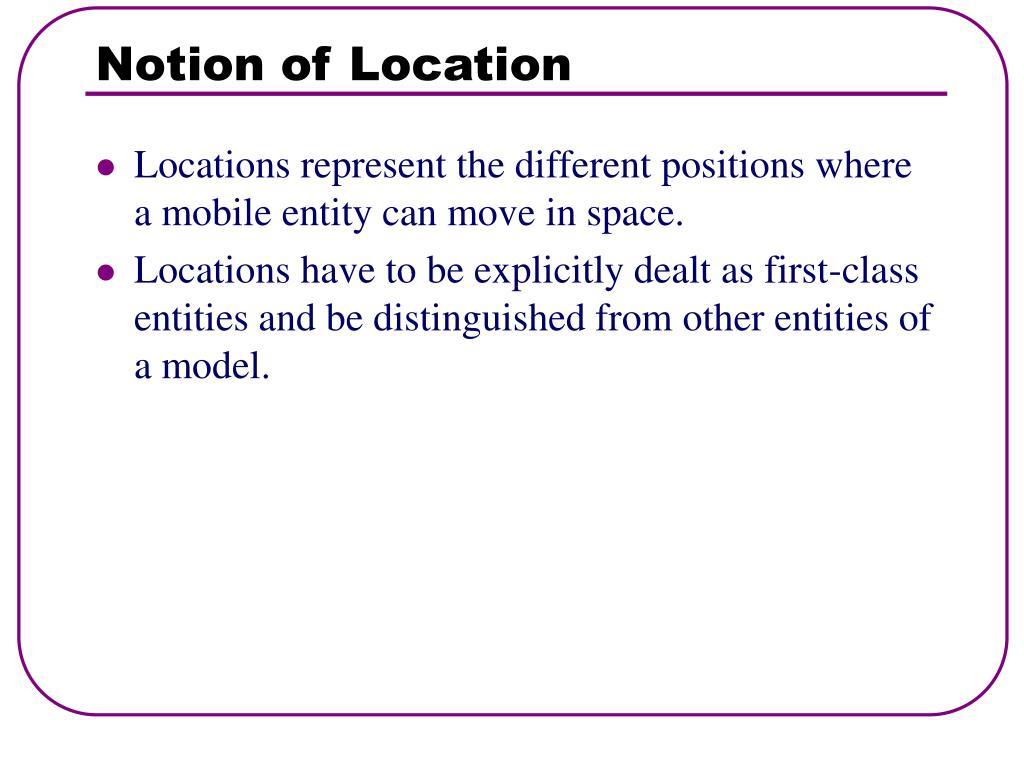

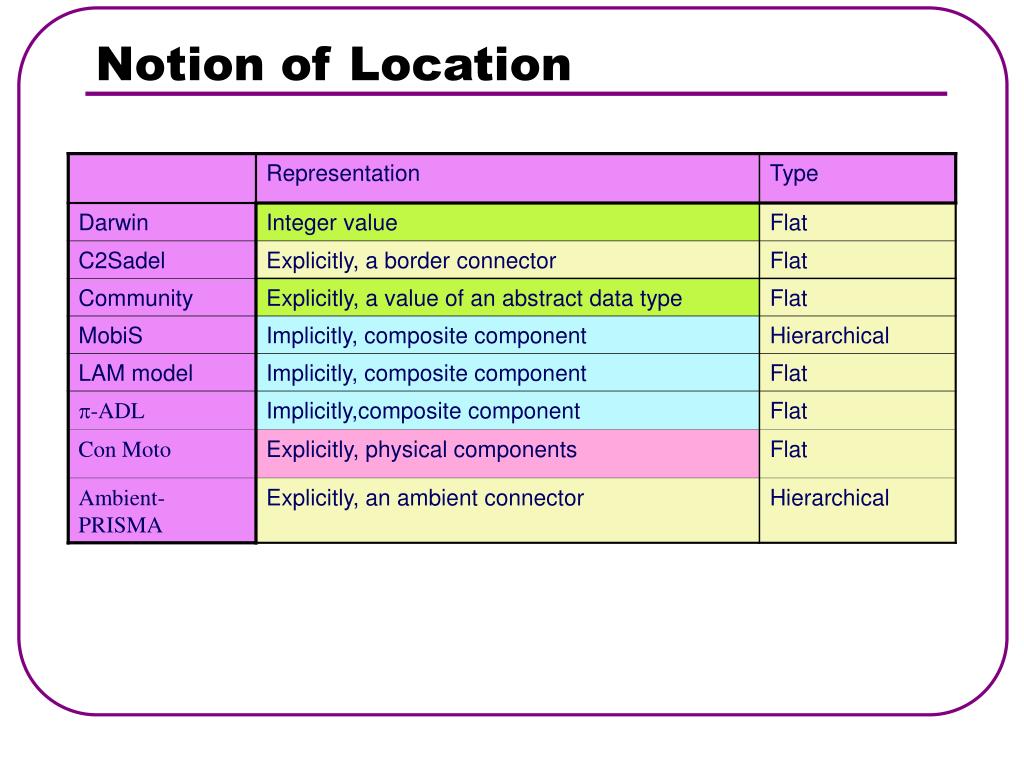

  10. Notion of Location • Locations represent the different positions where a mobile entity can move in space. • Locations have to be explicitly dealt as first-class entities and be distinguished from other entities of a model.

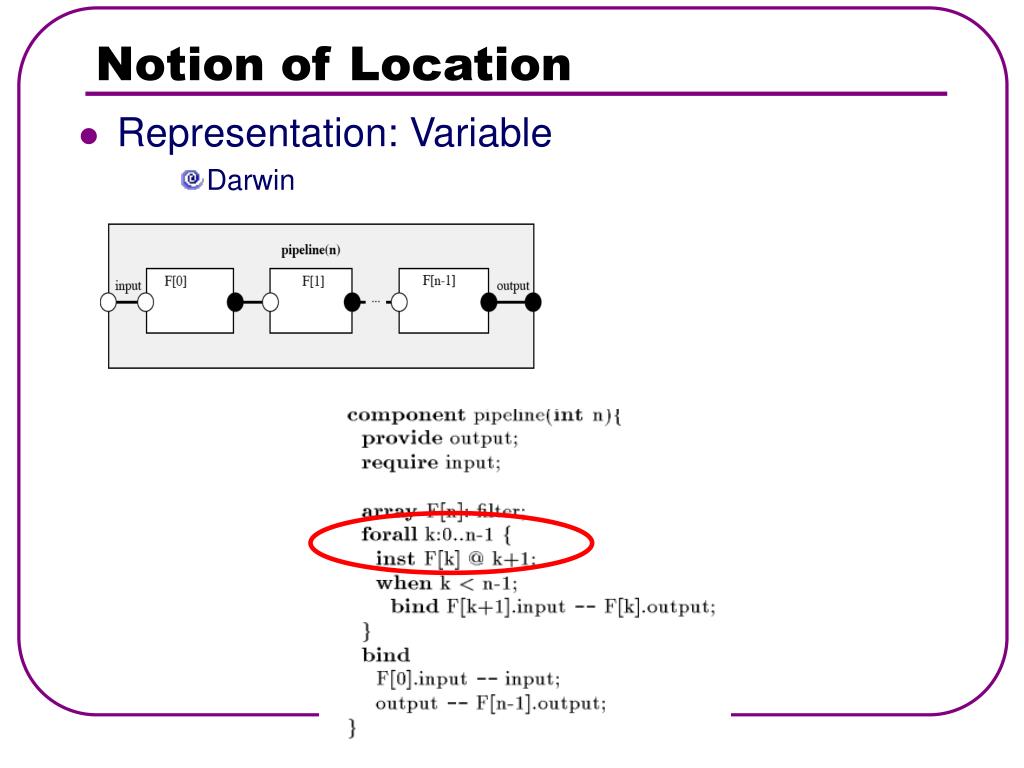

  11. Notion of Location • Representation: Variable • Darwin

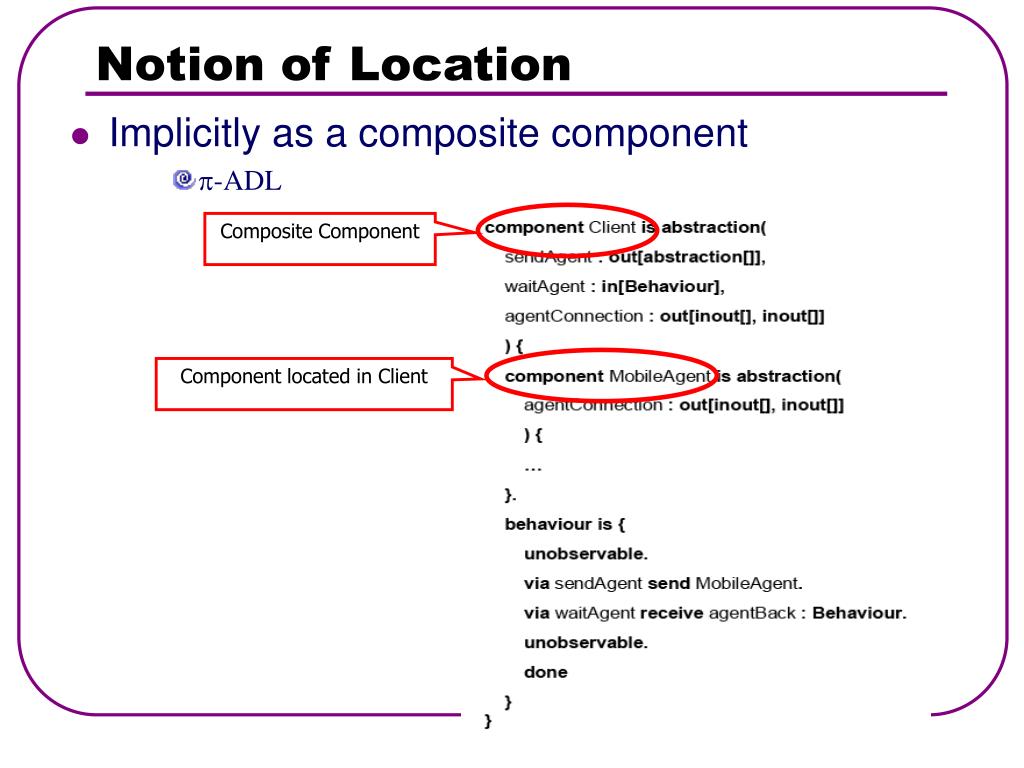

  12. Notion of Location • Implicitly as a composite component • -ADL Composite Component Component located in Client

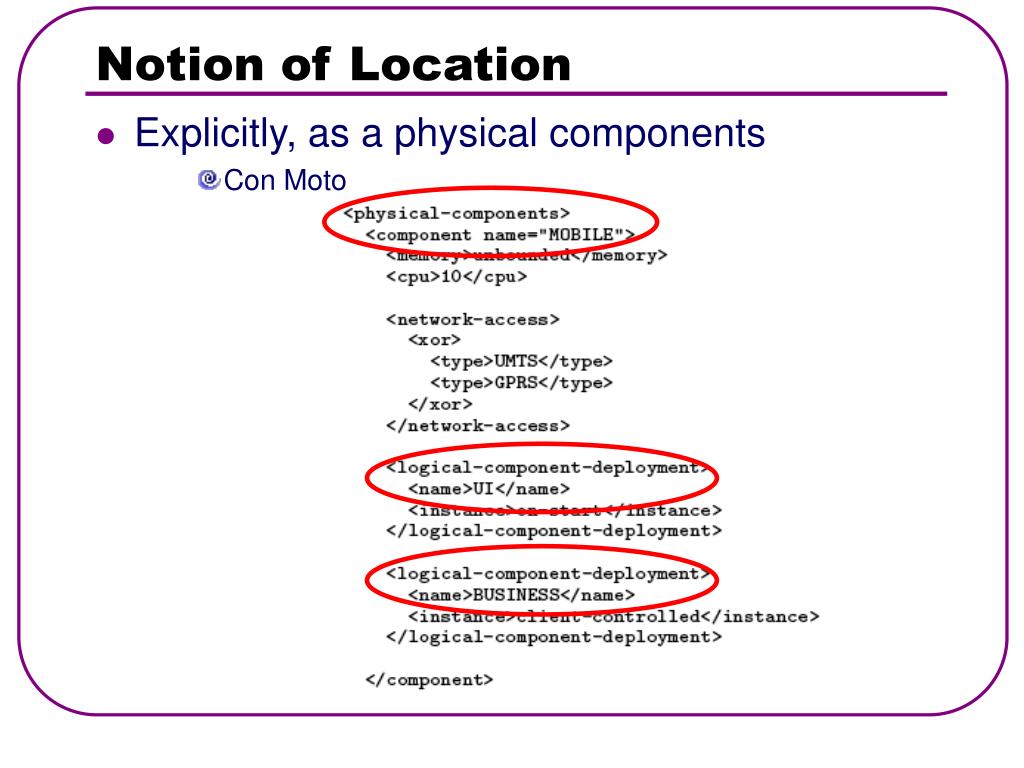

  13. Notion of Location • Explicitly, as a physical components • Con Moto

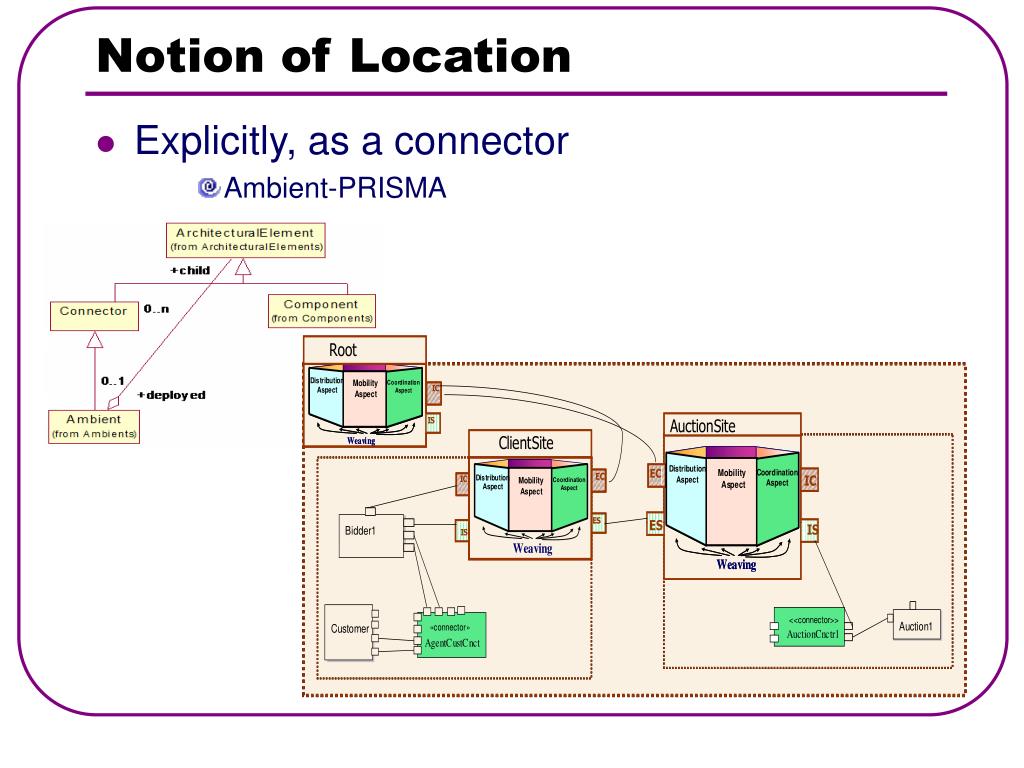

  14. Notion of Location • Explicitly, as a connector • Ambient-PRISMA

  15. Notion of Location

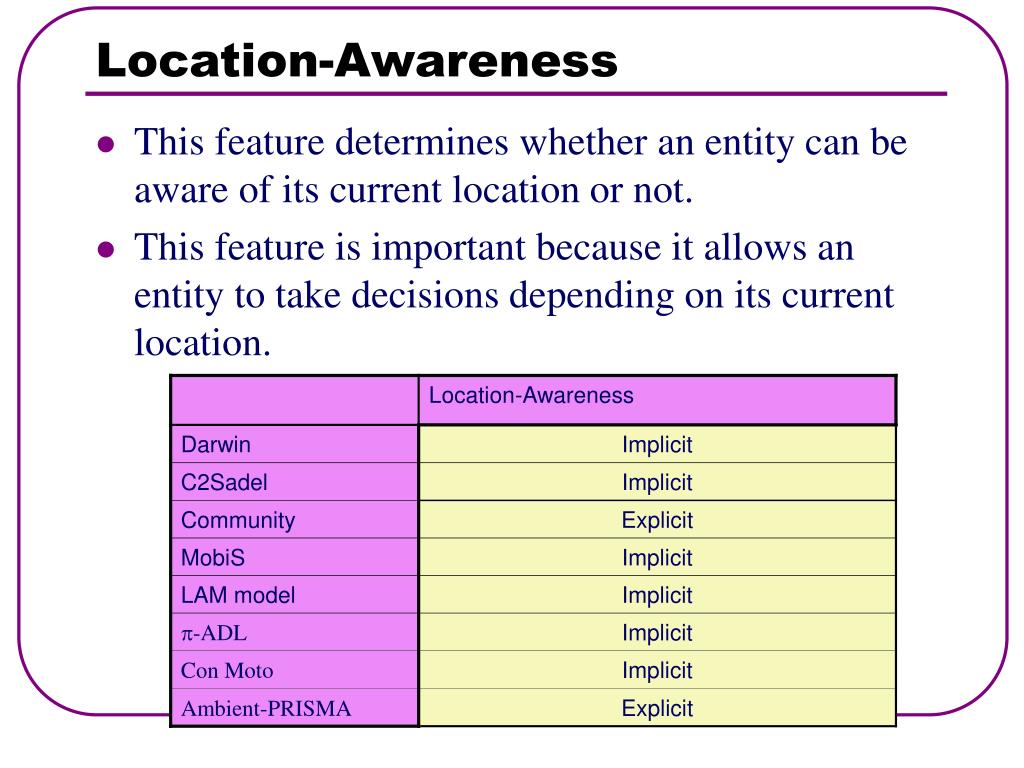

  16. Location-Awareness • This feature determines whether an entity can be aware of its current location or not. • This feature is important because it allows an entity to take decisions depending on its current location.

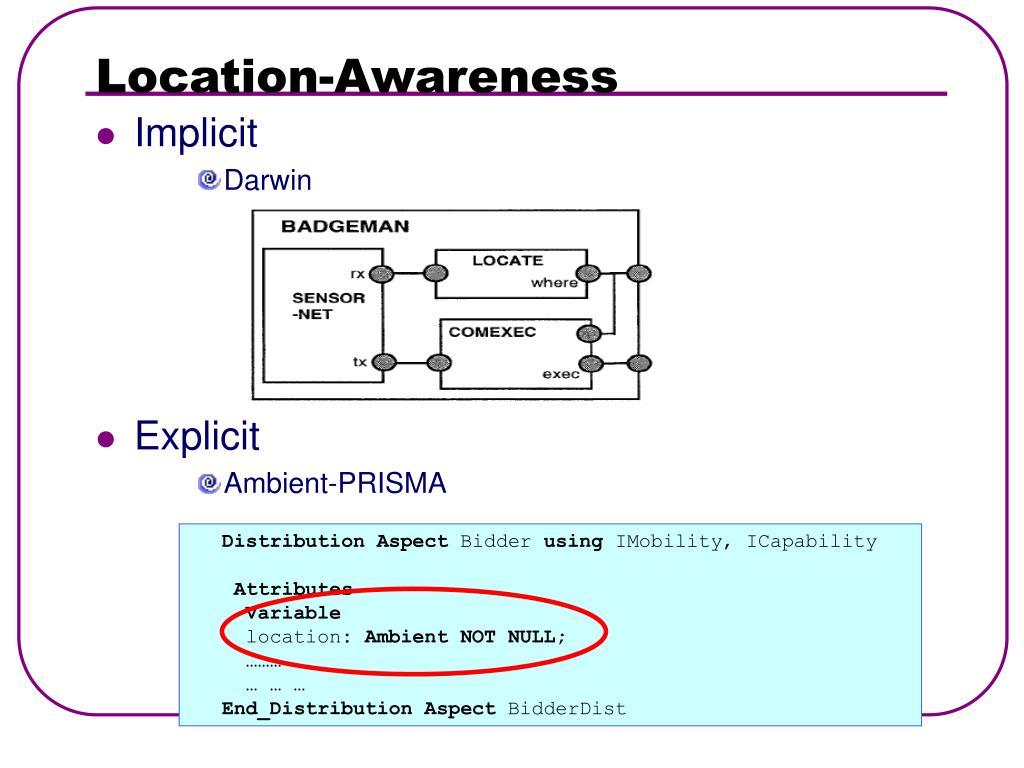

  17. Location-Awareness • Implicit • Darwin • Explicit • Ambient-PRISMA Distribution Aspect Bidder using IMobility, ICapability Attributes Variable location: Ambient NOT NULL; ……… … … … End_DistributionAspect BidderDist

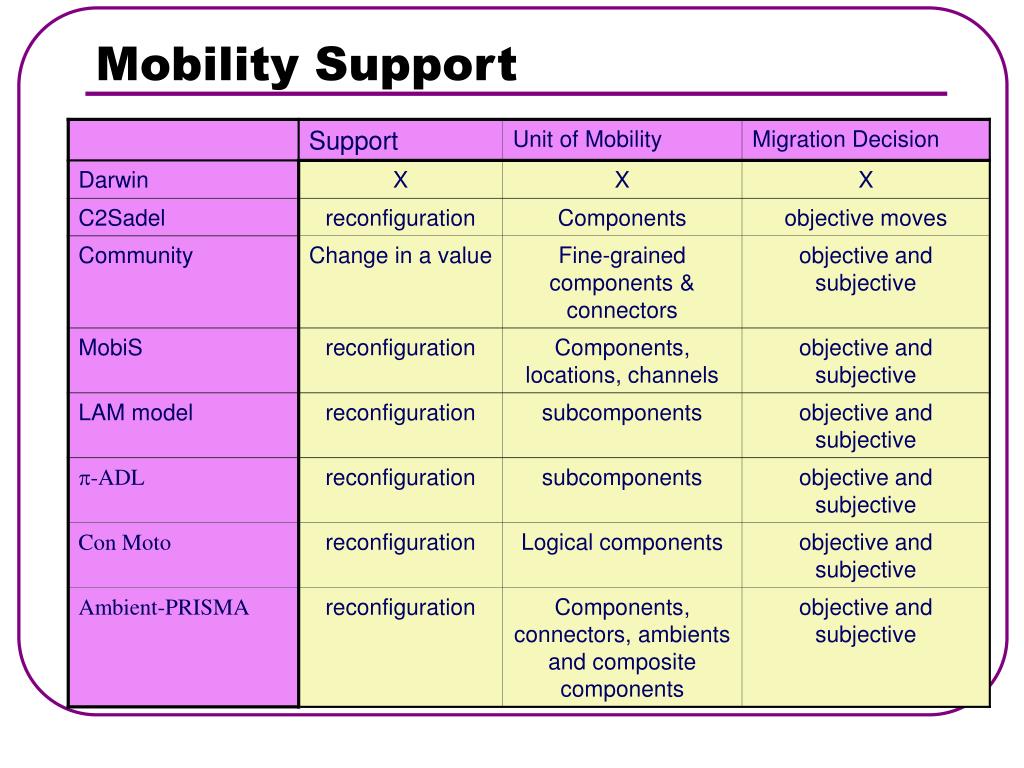

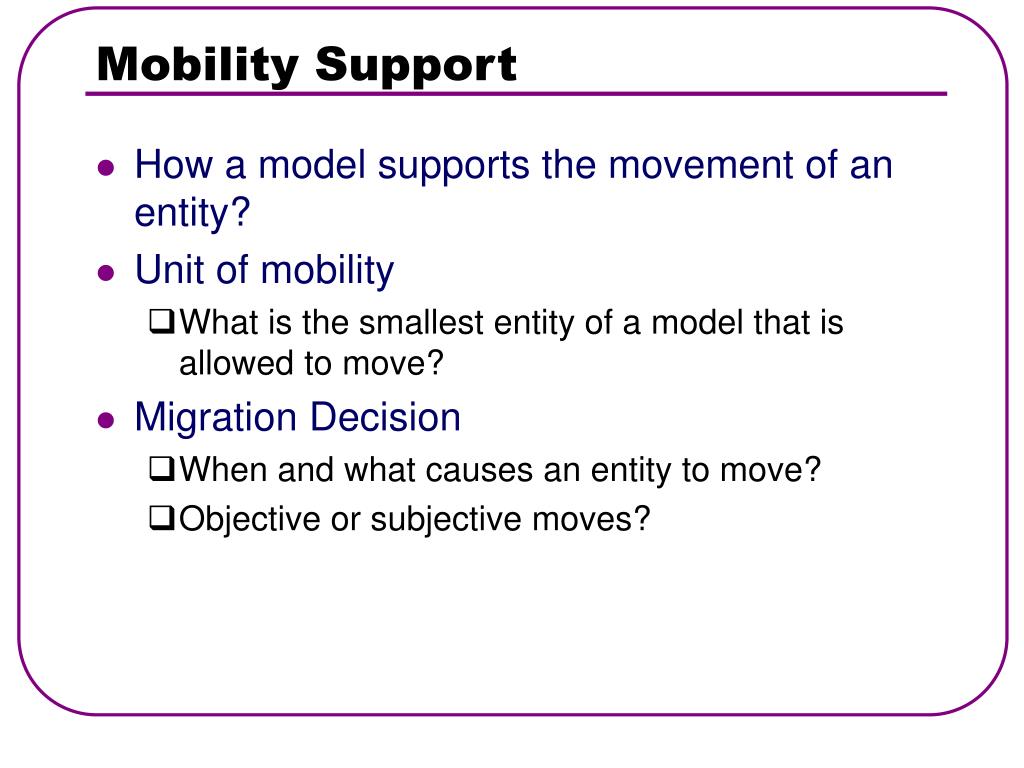

  18. Mobility Support • How a model supports the movement of an entity? • Unit of mobility • What is the smallest entity of a model that is allowed to move? • Migration Decision • When and what causes an entity to move? • Objective or subjective moves?

  19. Mobility Support

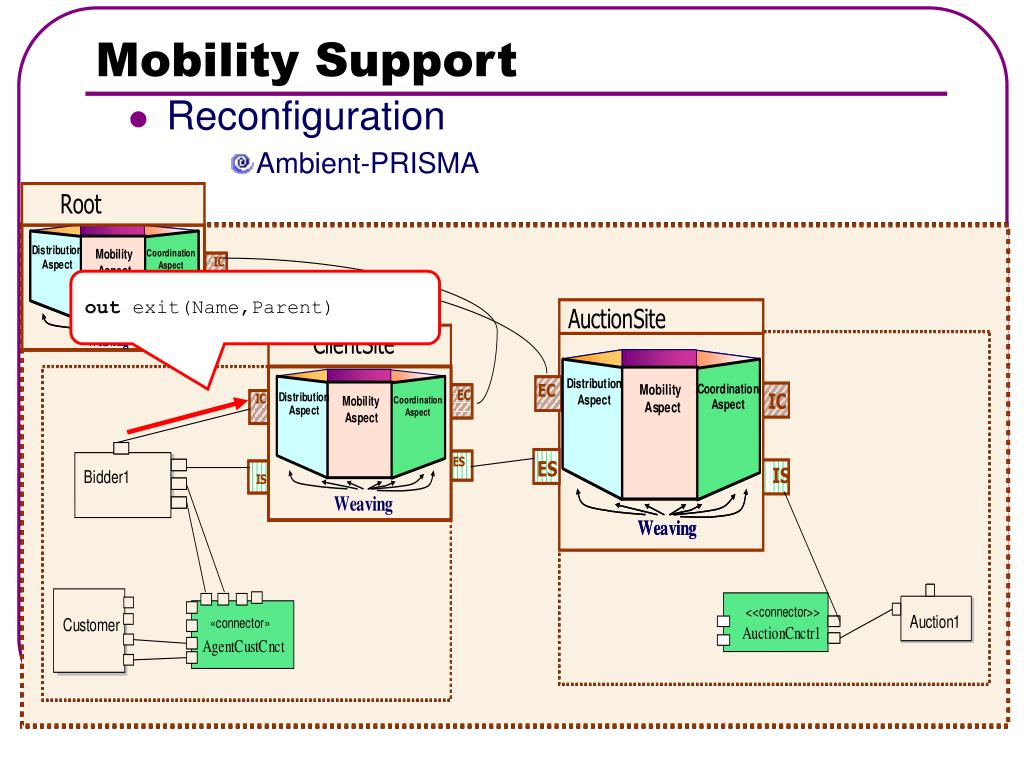

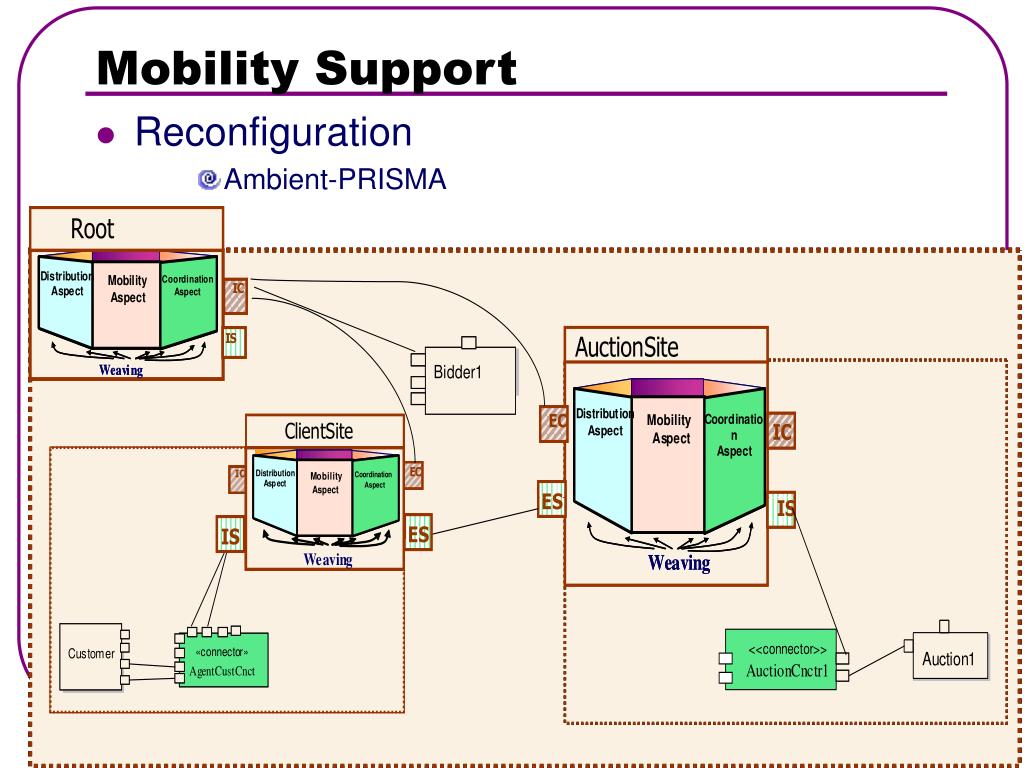

  20. out exit(Name,Parent) Mobility Support • Reconfiguration • Ambient-PRISMA

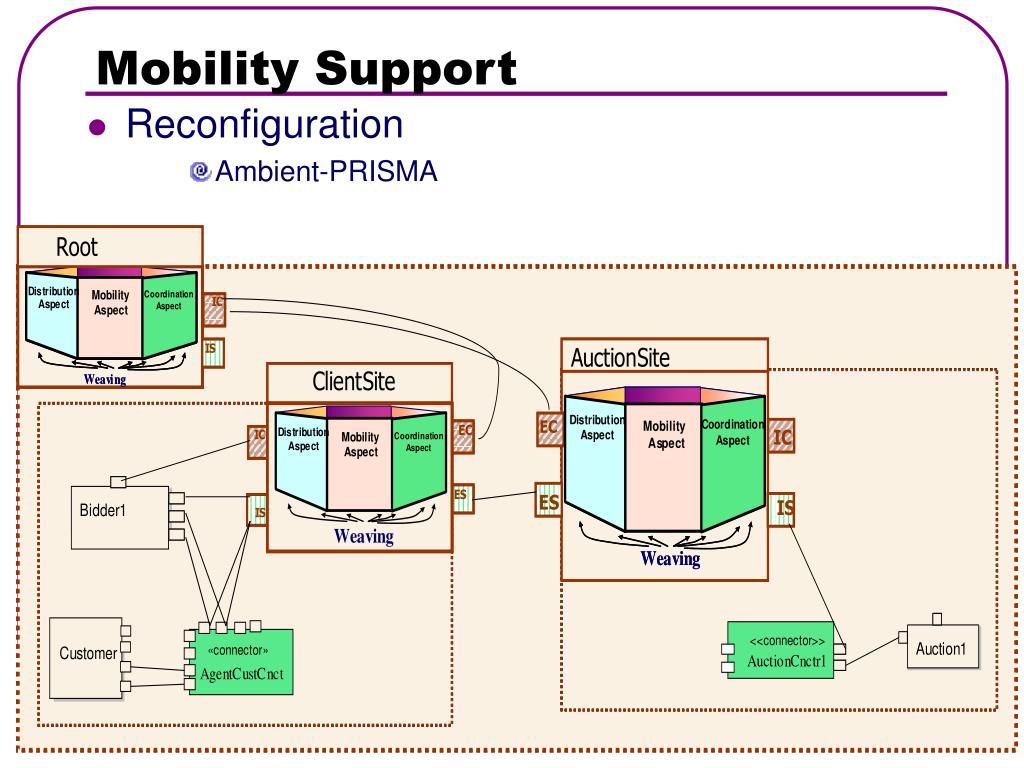

  21. Mobility Support • Reconfiguration • Ambient-PRISMA

  22. Mobility Support • Reconfiguration • Ambient-PRISMA

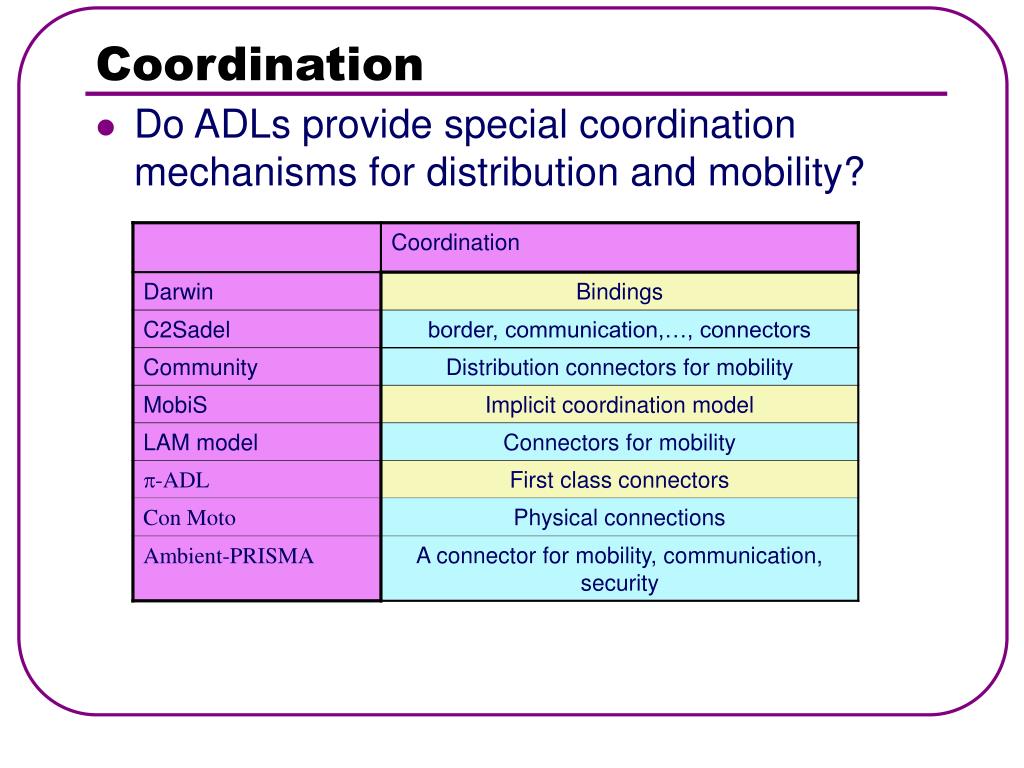

  23. Coordination • Do ADLs provide special coordination mechanisms for distribution and mobility?

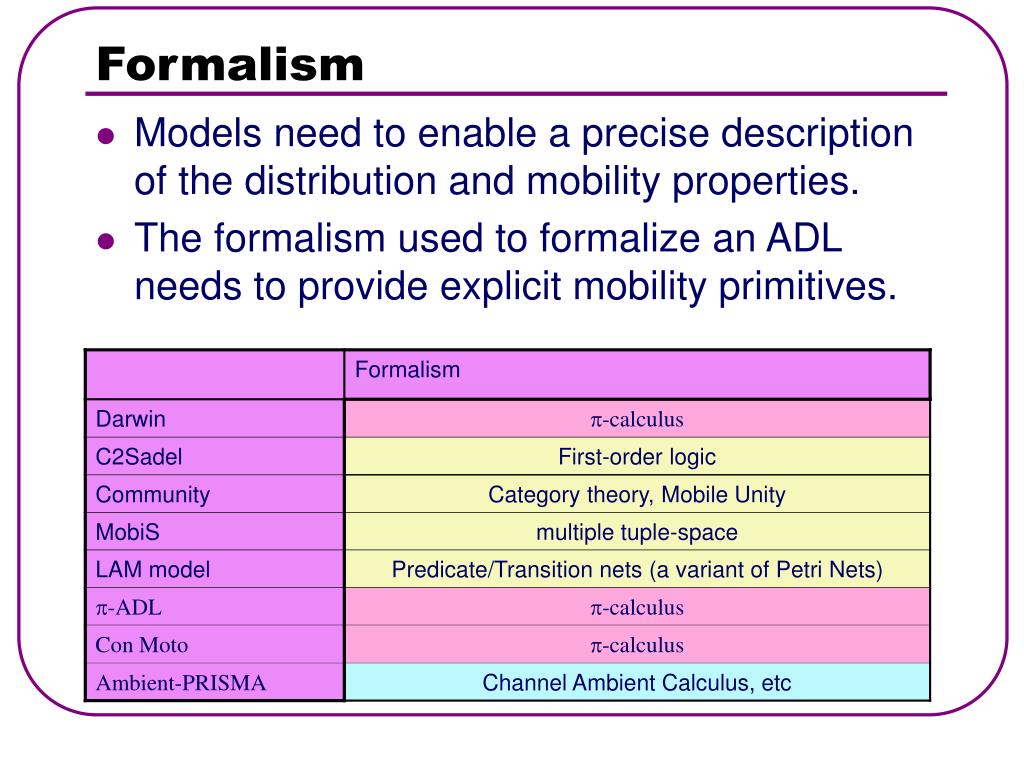

  24. Formalism • Models need to enable a precise description of the distribution and mobility properties. • The formalism used to formalize an ADL needs to provide explicit mobility primitives.

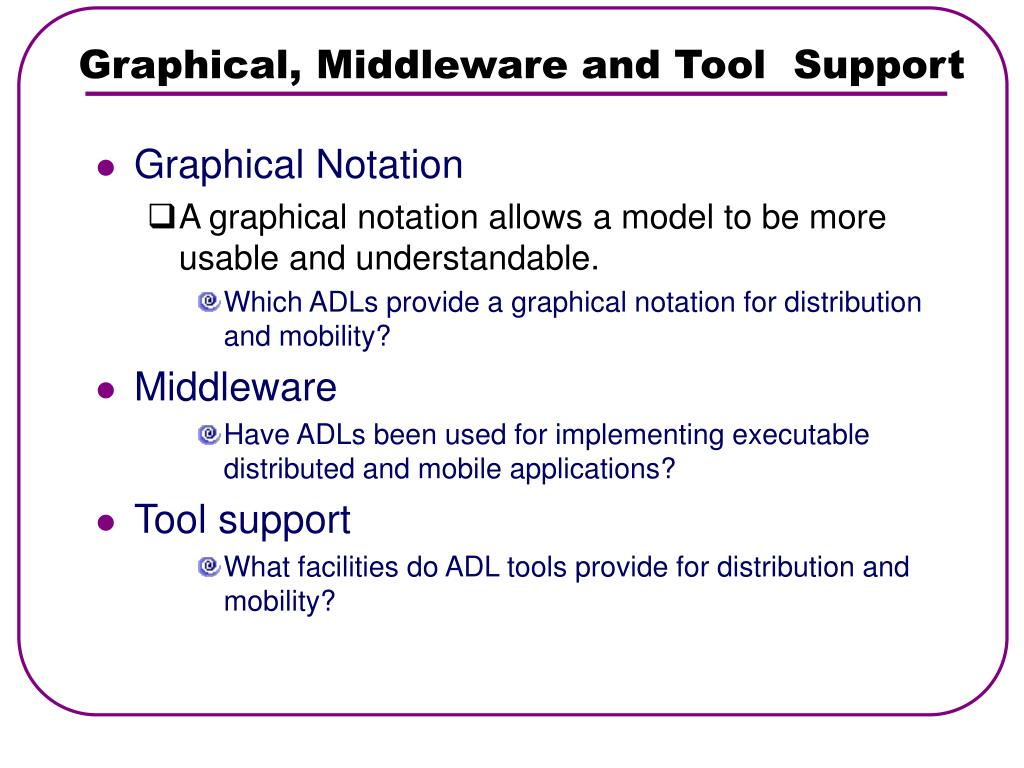

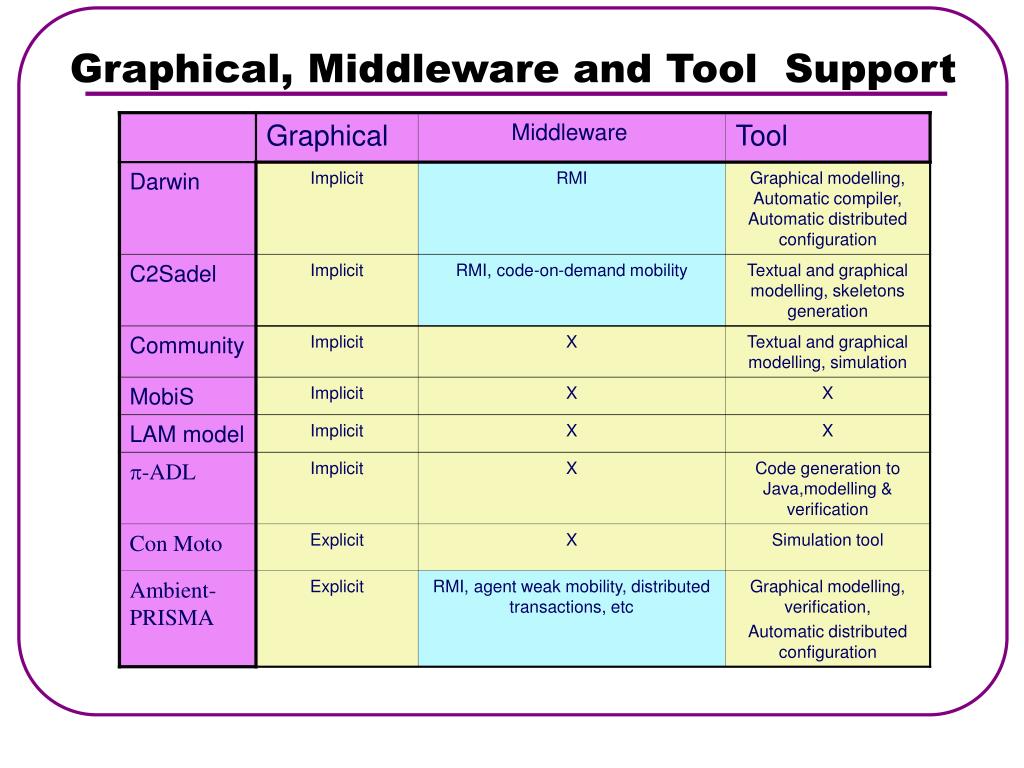

  25. Graphical, Middleware and Tool Support • Graphical Notation • A graphical notation allows a model to be more usable and understandable. • Which ADLs provide a graphical notation for distribution and mobility? • Middleware • Have ADLs been used for implementing executable distributed and mobile applications? • Tool support • What facilities do ADL tools provide for distribution and mobility?

  26. Graphical, Middleware and Tool Support

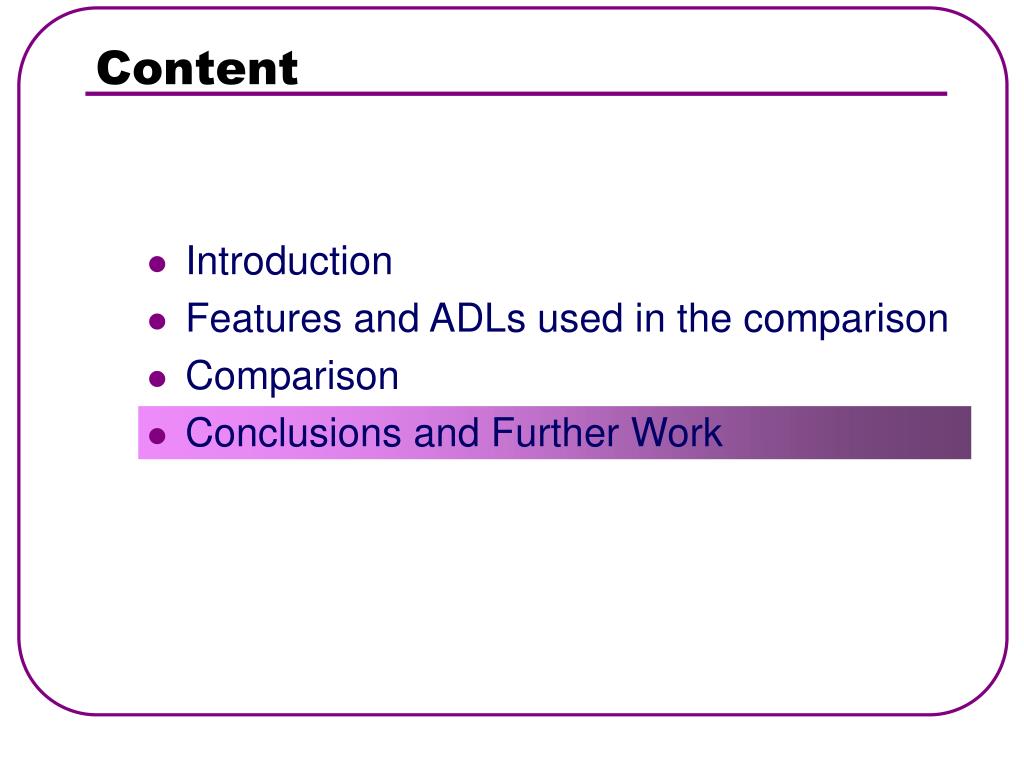

  27. Content • Introduction • Features and ADLs used in the comparison • Comparison • Conclusions and Further Work

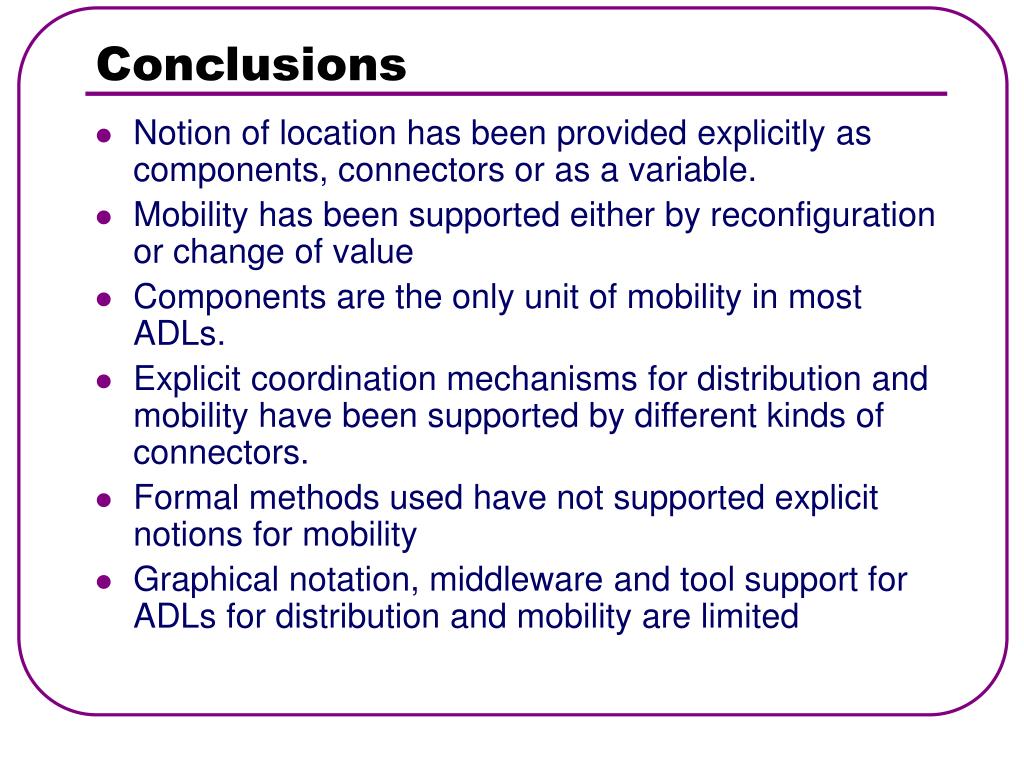

  28. Conclusions • Notion of location has been provided explicitly as components, connectors or as a variable. • Mobility has been supported either by reconfiguration or change of value • Components are the only unit of mobility in most ADLs. • Explicit coordination mechanisms for distribution and mobility have been supported by different kinds of connectors. • Formal methods used have not supported explicit notions for mobility • Graphical notation, middleware and tool support for ADLs for distribution and mobility are limited

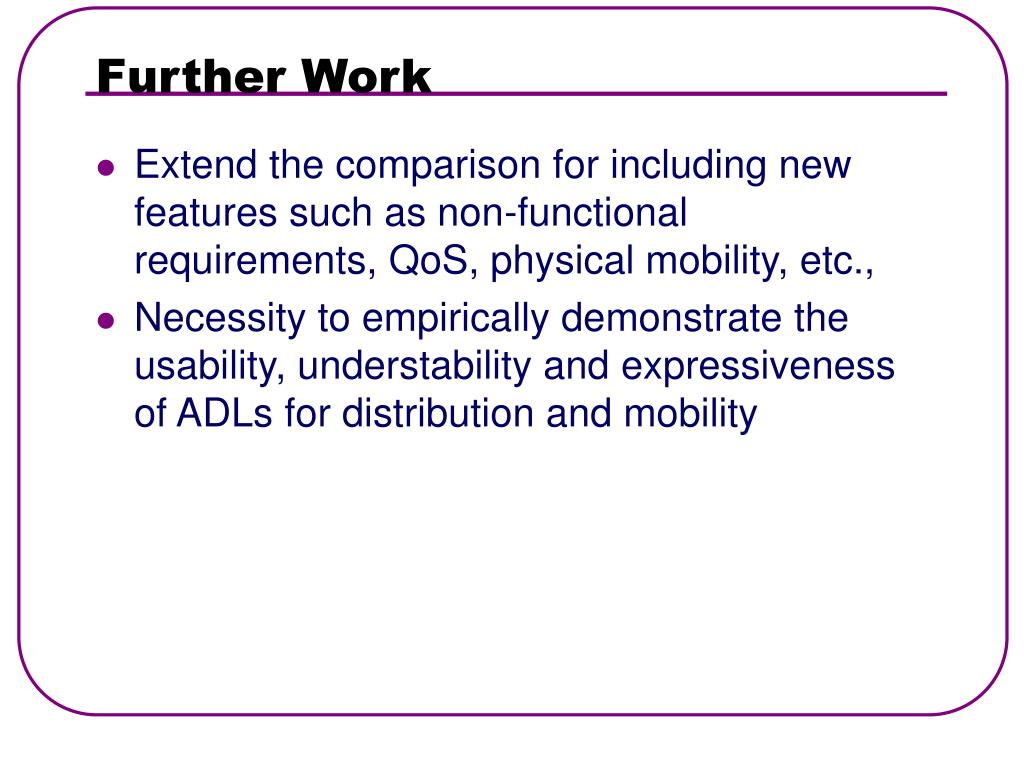

  29. Further Work • Extend the comparison for including new features such as non-functional requirements, QoS, physical mobility, etc., • Necessity to empirically demonstrate the usability, understability and expressiveness of ADLs for distribution and mobility

  30. Questions? Nour Ali Politecnico di Milano ali@elet.polimi.it Carlos Solís, Isidro Ramos Universidad Politecnica de Valencia {csolis, iramos}@dsic.upv.es
