  1. SafeNet KeySecure Appliance Module 4: Lesson 1 SafeNet StorageSecure Storage Security Course

  2. Lesson Objectives • By the end of this lesson, you should be able to: • Describe SafeNet KeySecure appliance components

  3. KeySecure

  4. KeySecure Appliance Major Components • Note: The physical location of some components might be different

  5. KeySecure k460 Logical View Smart Card KMIP Clients NAE-XML Clients Smart Card Reader KS-KMIP KS-SSKM KeySecure CentOS Xen VM SSKM CentOS Administration PC iKey SSMC PKCS#11 Client PKCS#11 Client PED TCP socket connections NTLS Proxy Service Luna HSM drivers StorageSecure Luna K6 PCI HSM Xen Hypervisor BES (OpenKey) Direct connection or RemotePED FIPS-140-2 Level 3 Legacy DataFort Legacy LKM Dell Based Next Generation KeySecure Hardware Platform

  6. KeySecure Appliance Front View • Locking Bezel • Unlock the protective bezel to access the power button. • Power Button and Power Indicator • This button is used to power up or turn off the appliance. The power-on indicator lights when the system power is on. • LCD Panel • Provides Hardware information. • Hard Disks • The appliance supports two 2.5” SATA hard disks.

  7. KeySecure Appliance Rear View • DB9 Serial Console Port • The DB9 port is used to perform first-time initialization and gain console access to the appliance. • Ethernet Interfaces • The appliance has two gigabit ethernet interfaces. • Power Supplies • The appliance has two hot-plug high-efficient Energy Smart PSUs. • PED port • The PED port is used to connect the PIN entry device (PED) to the KeySecure. Ethernet Interfaces Serial Port HSM PED Port

  8. KeySecure Appliance Hardware • Major components • Uses SafeNet LUNA K6 HSM • Two disk drives in a RAID 1 (Mirror) configuration • Certification • KeySecure provides FIPS 140-2 Level 3 using the Luna K6 card. • FIPS 140-2 Level 2 for the KeySecure Chassis is planned to be achieved. • Field Replaceable Units (FRUs) • Power supplies and Power supplies fans • Hard drives

  9. KeySecure Appliance Software • KeySecure Database • Hard disks store PostgreSQL SQL database • For StorageSecure keys - KeySecure will back up Domain Keys (DK) and Cryptainer Keys (CK) • For StorageSecure configuration • SQL has built-in data integrity checks and features • High Scalability • Up to 100 SafeNet StorageSecure appliances per KeySecure-SSKM appliance • Up to 10,000,000 keys per KeySecure-SSKM • Up to 1,000,000 keys per KeySecure-KMIP

  10. KeySecure Appliance Software – Cont. • High Availability • Is done through linking the KeySecure-SSKM together in a KeySharing Group (up to 16 appliances in a group).

  11. KeySecure Appliance Communication • Configuration databases • Certain SafeNet StorageSecure changes trigger immediate backup of StorageSecure configDB to KeySecure-SSKM • Every 120 minutes (configurable) • SafeNet StorageSecure backs up to KeySecure appliance if needed • KeySecure appliance backs up its own configuration database to peer-linked KeySecure appliances • Keys • Every 5 seconds, KeySecure-SSKM appliance queries linked SafeNet StorageSecure appliances for new keys • Incrementally new keys are evaluated and replicated • KeySecure-SSKM pulls concurrently from multiple StorageSecure appliances and peer-linked KeySecure-SSKM appliances

  12. Migration from Legacy DataFortand LKM appliances to StorageSecure and KeySecure

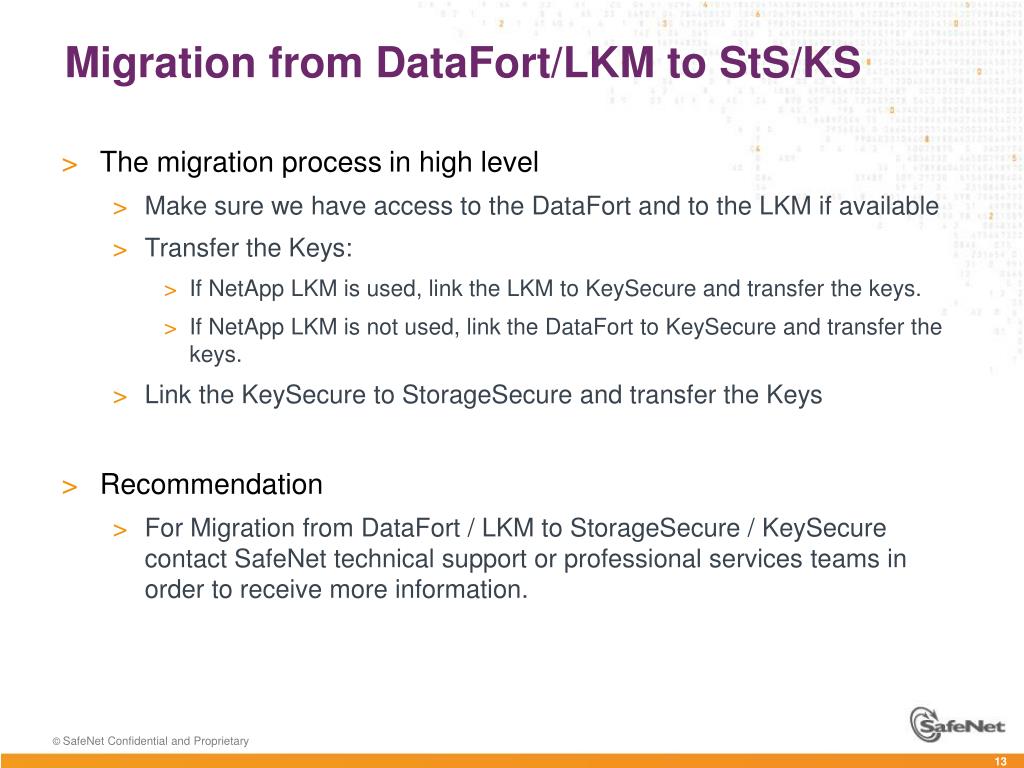

  13. Migration from DataFort/LKM to StS/KS • The migration process in high level • Make sure we have access to the DataFort and to the LKM if available • Transfer the Keys: • If NetApp LKM is used, link the LKM to KeySecure and transfer the keys. • If NetApp LKM is not used, link the DataFort to KeySecure and transfer the keys. • Link the KeySecure to StorageSecure and transfer the Keys • Recommendation • For Migration from DataFort / LKM to StorageSecure / KeySecure contact SafeNet technical support or professional services teams in order to receive more information.

  14. Questions?

  15. Thank You
