Integrated Lightweight MVD System with Global and Local Support Structures

The MVD system features a sophisticated design integrating pixel and strip detectors housed in half-barrels and half-disks. The structure includes a sandwich design with carbon and Rohacell layers, supported by rigid carbon fiber layers. The system's cooling pipes are embedded within HTC foam half-disks. The MVD attachment consists of a global frame and a sturdy central support frame connected via three-point fixation. Local support is provided through barrel modules within the MVD half support frame.

kalli
Télécharger la présentation

Integrated Lightweight MVD System with Global and Local Support Structures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

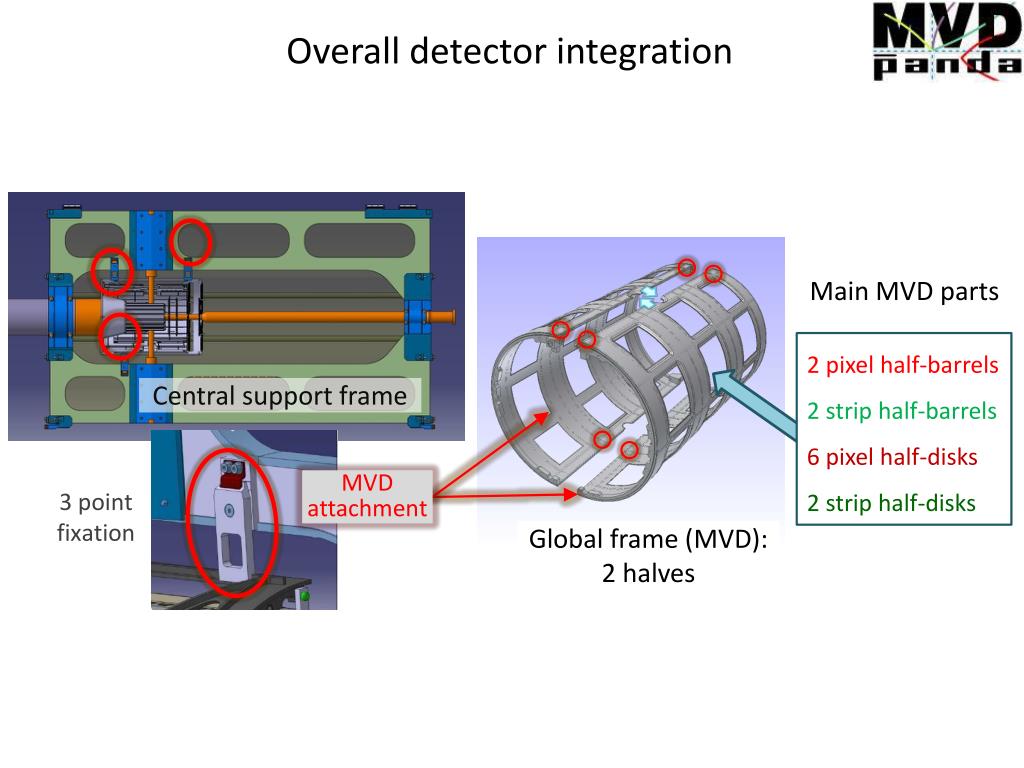

  1. Overall detector integration Main MVD parts 2 pixel half-barrels 2 strip half-barrels 6 pixel half-disks 2 strip half-disks MVD attachment Global frame (MVD): 2 halves 3 point fixation Central support frame

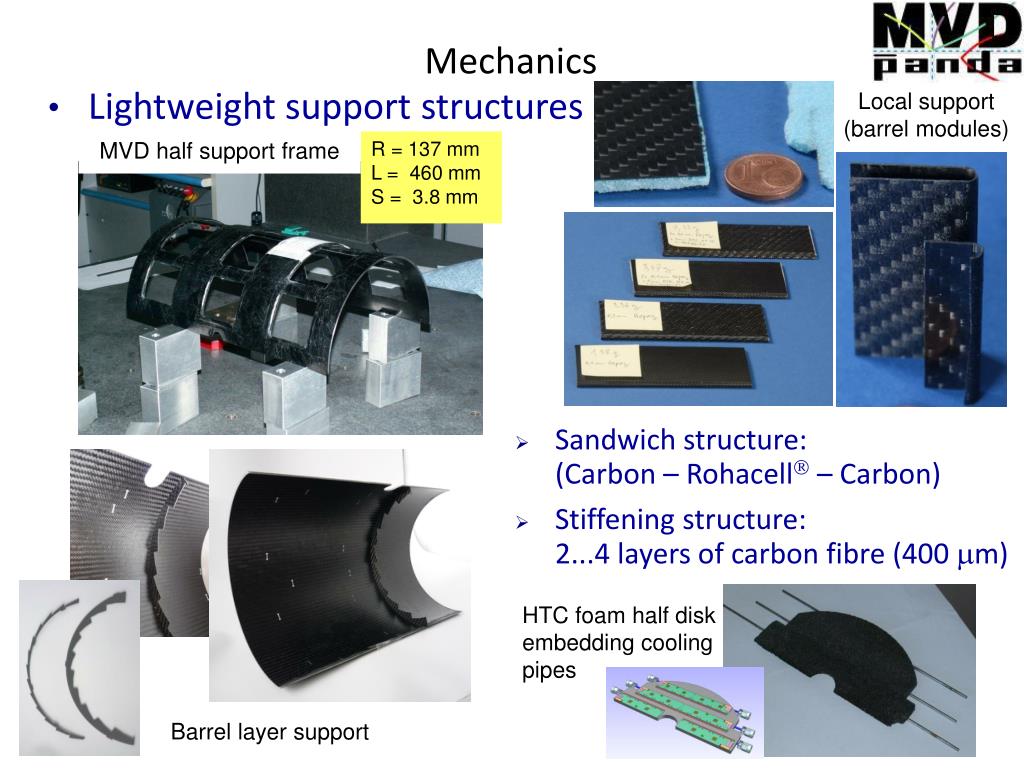

  2. Mechanics • Lightweight support structures Local support (barrel modules) MVD half support frame R = 137 mm L = 460 mm S = 3.8 mm • Sandwich structure: (Carbon – Rohacell – Carbon) • Stiffening structure:2...4 layers of carbon fibre (400 m) HTC foam half disk embedding cooling pipes Barrel layer support
