  1. Aastra BluStar portfolio November 2013 1 Aastra BluStar portfolio

  2. Our vision • Video will be at the heart of tomorrow way of communication • Democratization of use thanks to personal video • Video market will evolve from a niche market (room-centric) towards a high-volume market (user-centric) “Video as a key component of collaboration continues to place high on the list of priorities for many organizations.” PetrJirovsky, senior research analyst for IDC 2 Aastra BluStar portfolio

  3. Aastra BluStar Ecosystem Integrated solution lowers hurdles to implement video communication for all corporate users Conferencing devices Collaborate naturally with video - daily Aastra communication server one provisioning, one configuration, one administration, bandwidth management Consistent User Interface Mobile user Open standards Personal video 3 Aastra BluStar portfolio

  4. BluStar - Takes BusinessCommunications to a New Level • BluStar for Conference Room • Versatile video conferencing • solution • 4-way embedded conferencing • capabilities • HD camera with PTZ control • Wireless conference phone • Powerful and flexible solution to • meet the needs of modern • businesses • BluStar for iPad/iPhone • On the fly • Peer-to-peer video communication • Enabling natural communicaton for mobile users • BluStar 8000i Desktop Media Phone • Executive voice and video device • Always ready • Embedded conferencing capabilities • Optimized hardware to guarantee excellent HD voice and video quality for enterprise • Communication needs • BluStar for PC • Provides the user with collaborative features directly from the desktop – voice, video and Instant Messaging • Easy access from a single interface • In the office or remotely • Integrated with groupware environment HD quality, ease of access, ease of use for a unique user experience 4 Aastra BluStar portfolio

  5. NEW: Presence with BluStar ServerFrom video towards UC NEW V3.0 A5000 R5.4SP3 • Unified presence management on all BluStar ecosystem • Personal BluStar Presence and free text • Line state of user’s extension • Calendar Presence from Outlook/Exchange 5 Aastra BluStar portfolio

  6. NEW: Presence with BluStar ServerFrom video towards UC NEW V3.0 A5000 R5.4SP3 • BluStar Server is an application module running on Windows Server (2008 / 2012) • Fully virtualized (VMWare 5.1) • Software integrated on Dell server or available as soft only (downloaded from Extranet) • No license needed on server side; • BluStar Client and IP Video licenses on A5000 for soft clients • IP Video Aastra license for hard devices • BluStar Server federates: • Telephony Line state (CSTA with A5000) • BluStar presence (SIP Simple) • Calendar presence (Exchange) • Directories (LDAP)

  7. Architecture of BluStar solution BluStar for PC/iOS BluStar 8000i, BluStar for Conference Room Internet Media channel BluStar for PC / iOS BluStar 8000i, BluStar for Conference Room SIP Simple, LDAP (presence& directory access) SIP (Initiating voice, video and IM sessions) Via VPN ou Session Border Controller Directory sources CSTA SIP Aastra 6700i A5000 BluStar Server* Calendar integration *BluStar Server is optional; it is mandatory if presence services are needed BluStar for PC 7

  8. BluStar 8000i A new experience 8 Aastra BluStar portfolio

  9. Aastra BluStar 8000iThe Desktop media phone SIP H.264 • Designed to make its intended use highly intuitive – from traditional phone interface to clear unambiguous touch screen controls • An advance desktop media phone that combines desk phone, large color touch screen display, HD camera , 4 steerable array microphones, 3 high grade speakers and biometric fingerprint reader. • Fully supports true HD 720p multi-way conferencing with advance 7kHz (G.722) • Enhanced Conferencing Capabilities • Native 4-way video conferencing without the need of additional HW/SW • Full Screen or split screen options • Multi-participant views 9 Aastra BluStar portfolio

  10. 70° Field-Of-View 70° Field-Of-View 50° Field-Of-View 3rd party terminal Aastra BluStar 8000i 10 Aastra BluStar portfolio

  11. Aastra BluStar 8000i • Application Environment • Half of display allocated to user defined applications • Applications can run concurrently with live video • Will ship with basic set of built-in applications • Advanced Contact management • Global, all inclusive, “all in” Search capability • Across all structures; favorites, contacts, global address book, history • Across multiple fields, first name, last name, company name • Real time, converge as you type • Presencewith BluStar Server (from V4.3) 11 Aastra BluStar portfolio

  12. User friendly access to A5000 UM (R5.4SP1) • User accesses to its audio and video mail from a user friendly interface from BluStar 8000i • Features • Connection to UM, • Number of messages, • Access to audio, video messages, play, delete • Access to previous message, next one • Information on message(origin, date, time, type, length) • UM configuration (welcome message, audio, video, type..) • Interactivity messaging license needed on Aastra 5000 side to use this feature 12 Aastra BluStar portfolio

  13. Aastra BluStar 8000i Presence with BluStar Server NEW V4.3 A5000 R5.4SP3 • Presence information available • for your favorites in the favorites window • at all visible entries in the result list of a search (directory or contact) • in the conversation history window 13 Aastra BluStar portfolio

  14. Aastra BluStar 8000i Presence with BluStar Server NEW V3.0 A5000 R5.4SP3 • You can manually set your own personal BluStar presence • Available • Busy, • Do not Disturb • Can be completed with a free text (for instance « out to lunch ») • Immediate update of statuson all your BluStar devices 14 Aastra BluStar portfolio

  15. BluStar 8000i : novelties with V4.2Enhanced user experience A5000 R5.4SP2 • 4-way video conferencing without additional hardware • BluStar 8000i&BluStar for Conf Room • Full free-seating support with subscriber password synch (A5000 R5.4SP2) • More flexibility and security • Power saving mode enhancement: new on-off button • Footprint decreased 15 Aastra BluStar portfolio

  16. Noveltieswith V4.3Fromvideotowards UC NEW V4.3 A5000 R5.4SP3 • Enhanced presence management with BluStar Server (presence status bar and information, line state, Microsoft Exchange calendar activity) • Aspect Ratio Negotiation and Option to Change Video Stream Orientation while in a conference call • TLS/SRTP encryption, • Visual enhancement for presence display and Busy Lamp Field. This allows users that have a color vision deficiency to differentiate presence status and line states by icon rather than by color, • A new currency converter application 16 Aastra BluStar portfolio

  17. BluStar for PC BluStar experience on you PC 17 Aastra BluStar portfolio

  18. Aastra BluStar for PC Aastra 5000 R5.4 Aastra BluStar for PC – the next generation of softpone 18 • One client for HD voice, HD video, IM and directory integration • Richpresencewith BluStar Server • Simplicity • Just an A5000 SIP extension ! • New A5000 R5.4 SIP features • Consultation call, • Multiple call, • Tone playing • One number • Audio conference Aastra BluStar portfolio

  19. Intuitive and user friendly interface 19 Aastra BluStar portfolio

  20. BluStar for PC Presence with BluStar Server NEW V3.0 A5000 R5.4SP3 Be more efficient using rich presence information • Adapt the way you reach your contact with rich presence information • Set your presence status manually on your own purpose • Can be completed with a free text (for instance « work from home ») • Line state • Immediate update of statuson all your BluStar devices Line state Free Busy Forwarded Calendar presence Status not available 20 Aastra BluStar portfolio

  21. BluStar for PC4-way video conference NEW V3.0 A5000 R5.4SP3 • Possibility to be part of a 3-way or 4-way video conference • Conference initiated by BluStar 8000i or BluStar for Conference Room - No need of MCU nor specific license ! PC/mobile PC/mobile PC/mobile Desktop 21 Aastra BluStar portfolio

  22. Make a call in just seconds… • Type name or number: multi-directories search (A5000, AD, Outlook) find-as-you-type technology Input field Result from multi-directories, progressive search 22 Aastra BluStar portfolio

  23. Make a call in just seconds…Drag & Drop • Drap&drop from a web page, your Outlook contacts or from any application Drag&drop 1 2 Call made automatically 23 Aastra BluStar portfolio

  24. Make a call in just seconds…Select-to-call • Select the number and make the call automatically via pressing a key or a combination of keys of your choice Shortcut(for example CRTL+F7) 1 2 Call launched 24 Aastra BluStar portfolio

  25. Office integrationLync 2010 & 2013 plug-in • Add enterprise class voice communication to MS Lync client • Audio/Video call via right click from Lync • Enter number in Lync input field then right click • Update of own telephony status • Update of contacts telephony status 25 Aastra BluStar portfolio

  26. BluStar for iPad/iPhone BluStar for mobile users 26 Aastra BluStar portfolio

  27. BluStar for iPad/iPhone • Apple iOS • iPad2, iPad3, ipad 4, iPad mini • iPhone 4, 4S, 5, 5S, 5C • iOS 5, 5.1, 6, 7 • SIP user, connection via Wi-Fi/4G • Pear-to Pear Video, 3-way conference (as participant) • Internal and external mobility • One number • Download from Apple Store • BluStar Client License (and IP Video) Aastra BluStar for iPad/iPhone – retrieve BluStar experiencefromyourtablet/smartphone ! 27 Aastra BluStar portfolio

  28. BluStar for iPad/iPhone In communication • From V1.3 : hold, transfer, retrieve 28 Aastra BluStar portfolio

  29. BluStar for iPad/iPhone3-way conference • From V2.0: possibility to join a 3-way video conference hosted by 8000i or BluStar for Conference Room 29 Aastra BluStar portfolio

  30. BluStar for iPad/iPhone Presence with BluStar Server NEW V3.0 A5000 R5.4SP3 • Presence information on favorites • Line state, • BluStar presence and free text • Calendar presence(Exchange) • Detail when clicking on favorite 30 Aastra BluStar portfolio

  31. BluStar for iPad/iPhone Presence with BluStar Server NEW V3.0 A5000 R5.4SP3 • You can manually set your own personal BluStar presence • Available • Busy, • Do not Disturb • Can be completed with a free text (for instance « work from home ») • Immediate update of statuson all your BluStar devices 31 Aastra BluStar portfolio

  32. Ease of configuration ! A5000 R5.4SP2 • User are configured on A5000 which automatically generates configuration files • Automatic email generation to iPad/iPhone endusers by A5000 with configuration as attachement (aastra.cfg) • Users open the file and… that’s it ! Installation and update 2 1 BluStar appisready to use ! 3 Attchment is opened and automatically read by BluStar app 4 A5000 sends an email to endusers with configuration file attached Admin creates user s in AMP 32 Aastra BluStar portfolio

  33. Aastra BluStar for Conference Room The solution for you meeting rooms 33 Aastra BluStar portfolio

  34. Novelties BluStar portfolioBluStar for Conference Room • Addition to BluStar portfolio • For medium/large conference room • Main parts: • HD Video codec (rack/wall/table mounted) • HDMI for TV/Display connection • Audio Input/Output for mic/speaker • BluStar HD 610 Camera • Wireless keyboard controller • Aastra S850i wireless speaker phone • Same intuitive UI as BluStar 8000i – possible control via multitouch screen 34 Aastra BluStar portfolio

  35. BluStar for Conference RoomCodec in detail • Interfaces • VIDEO OUT – HDMI female for video out to HD TV or equivalent. • VIDEO IN - HDMI female for 1280x720p video from external camera. • COM – DB9 male connector for camera PTZ (PAN-TILT-ZOOM) control. • VIDEO IN - Component (R/G/B female) video from analog video input • LINE IN – Audio line input via 3.5mm stereo female jack. • LINE OUT – Audio line output via 3.5mm stereo female jack. • USB - 2 USB 2.0 female ports, 1 for wireless keyboard dongle, other for future use. • LAN – Single Gigabit Ethernet port (not POE). • PWR – Power jack, same adapter as 8000i. • ON/OFF rocker switch – with integrated LED. • Rack/wall/table mounted • True 720p H.264 video @ 30 fps • SIP Call Control 35 Aastra BluStar portfolio

  36. BluStar for Conference RoomWireless Audio mic & speaker Aastra S850i • Wireless mic and speaker HD G.722 audio unit - comprises • A base station connected to BluStar for Conference Room codec via stereo 3.5mm câbles • 2 wireless microphones and wireless speaker: maximum flexibility - no more wires on the conference table • Different modes of operation on Aastra 5000 • Audio unit for BluStar for Conference Room (3.5mm audio connection) • SIP conference phone (Ethernet connection) • USB option to offer audio conferencing to BluStar for PC (USB) 36 Aastra BluStar portfolio

  37. BluStar for Conference RoomTruesimplificy of BluStar UI • Based on 8000i UI to offera unique experience on the marketwithmultitouchscreen* *Or wireless keyboard thatcomeswith BluStar for Conference Room kit 37 Aastra BluStar portfolio

  38. BluStar for Conference Room Presence with BluStar Server NEW V4.3 A5000 R5.4SP3 • Presence information available • for your favorites in the favorites window • at all visible entries in the result list of a search (directory or contact) • in the conversation history window 38 Aastra BluStar portfolio

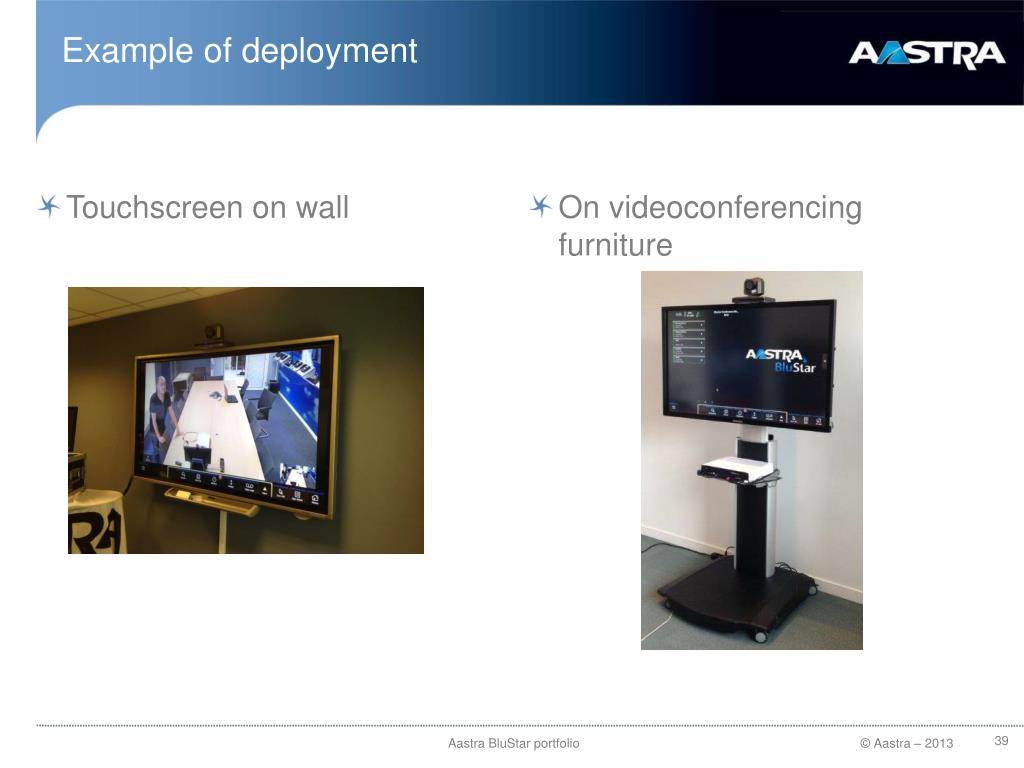

  39. Example of deployment • Touchscreen on wall • On videoconferencing furniture 39 Aastra BluStar portfolio

  40. BluStar for Conference Room 100% INTEGRATED with A5000 • User friendly UI to reach easily your contacts • Multi directories access & search :Aastra 5000 LDAP / AD, • Favorites keys, • Telephony presence • Compatible with multitouch screen • Just a subscriber of Aastra 5000 solution! • Audio and video with all devices connected to A5000 • Same numbering plan • Freeseating or dedicated number • Integration with admin and bandwidth management • Up to 4-way audio and video conferencing without extra hardware or software Smaller meeting rooms Conference room Desktop 40 Aastra BluStar portfolio

  41. Video ecosystem A unique and comprehensive solution 41 Aastra BluStar portfolio

  42. New uses !Video messaging Walter is notified on his different devices as well as on his email client 3 1 Carine calls Walter 2 Walter is not available – Carine is welcomed by Walter greeting message– she leaves a video message • More proximity • More impact • Natural and simple use 4 Video message is played from PC, BluStar 8000i, iPhone, iPad,… 42 Aastra BluStar portfolio

  43. InteroperabilityArchitecture principle « SIP Client » mode « SIP Trunk » mode Room system as a SIP endpoint of Call Manager Conferencing system connected via a SIP trunk SIP or H323 or Skype clients Room device Tests done MCU/Gateway SIP client SIP trunk A5000 A5000 SIP clients SIP clients 43 Aastra BluStar portfolio

  44. Interoperability = a project approach • Aastra provides for information versions and equipment tested as well as level of service • This does not guaranty proper operation on different versions/devices • Each project with interoperability implies • A qualification phase (services whished, protocol used by solutions, network architecture,…) • A mockup/test phase • Follow-up by partner and/or customer • Aastra professional services assistance if needed • Service offer 44 Aastra BluStar portfolio

  45. Novelties A2P2 ecosystemVideo door set : Helios IP certification • Enhancement of customer and security with video • Certified on Aastra 400 and Aastra 5000 • 2N® Helios IP door sets from 2N Telecommunications company • SIP endpoint of Aastra 5000 or Aastra 400 solution • Services • Audio communication • Audio and video with BluStar 8000i • Door opening from Aastra phone (via DTMF – RFC2833) 45 Aastra BluStar portfolio

  46. Dynamic bandwidth managementA unique solution on the market Easy roll-out Dynamic bandwidth management • Configuration via A5000 (CAC) MMI • A site (or CAC class) correspond to a subnet • Each site has a total internal and external bandwidth allocated for all video flows • Each site has a maximum video bandwidth per internal and per external call • Based on CAC configuration, A5000 choose dynamically the bandwidth for the call depending on bandwidth available at the initiation of the call • If the remaining video bandwidth is not sufficiant • Fallback to audio only call (without video) • Alarm sent via AMP/AM7450 From R5.4SP2 Possibility to have different bandwidths for voice and video Enhancement of remote users (via SBC or VPN) management 46 Aastra BluStar portfolio

  47. Democratize videoOur unique selling points from a user perspective Call me on this unique number! • One number • I use my phone number • I answer on the device of my choice • Native directory access • Audio or video call with 1 clic • I use corporate telephony directory • Only a device of the telephony solution • Call towards audio phone and ISDN With the new system you just have to search into the directory! Hum, 10.102.10.01 it is for New-York room or for Boston ? BluStar device replaces my phone! 47 Aastra BluStar portfolio

  48. Key differentiators of Aastra 5000 & BluStar • A solution that provides answers for ALL NEEDS • From basic telephony towards full video/UC collaboration via enterprise and BYOD mobility • One provider for entire solution • Ease of configuration / roll-out • No complex chain-of-custody • A unique video portfolio ENTIRELY integrated with communication solution • Unique user experience from personal to room solution • Unique bandwidth management solution 48 Aastra BluStar portfolio

  49. Unified Communications@Aastra = Thank you 49 Aastra BluStar portfolio
