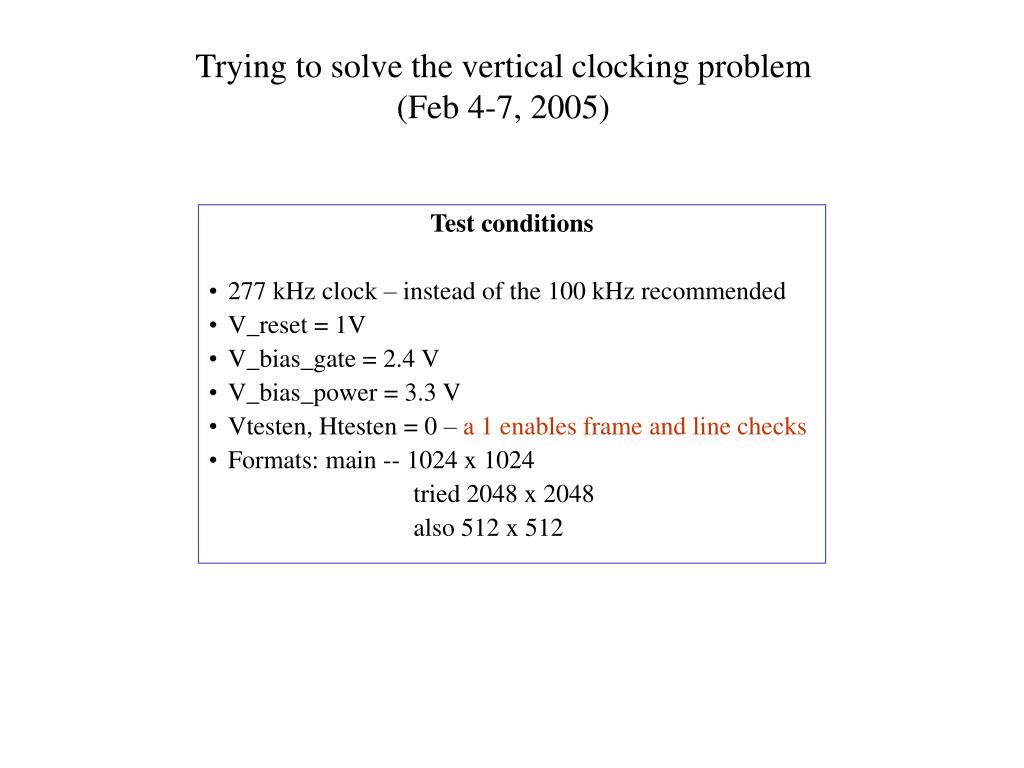

  1. Trying to solve the vertical clocking problem (Feb 4-7, 2005) Test conditions • 277 kHz clock – instead of the 100 kHz recommended • V_reset = 1V • V_bias_gate = 2.4 V • V_bias_power = 3.3 V • Vtesten, Htesten = 0 – a 1 enables frame and line checks • Formats: main -- 1024 x 1024 tried 2048 x 2048 also 512 x 512

  2. IR Single & CDS (1024 x 1024) Used hot & dead columns as well as image features to identify the quadrants sampled in each frame IR Single • 3 of 4 frames were of lower left quadrant (the one closest to origin) • 1 of 4 frames was of the upper left quadrant (1025 < y < 2048) CDS • Every fourth frame cycle also exists here, but hard to determine orientation since

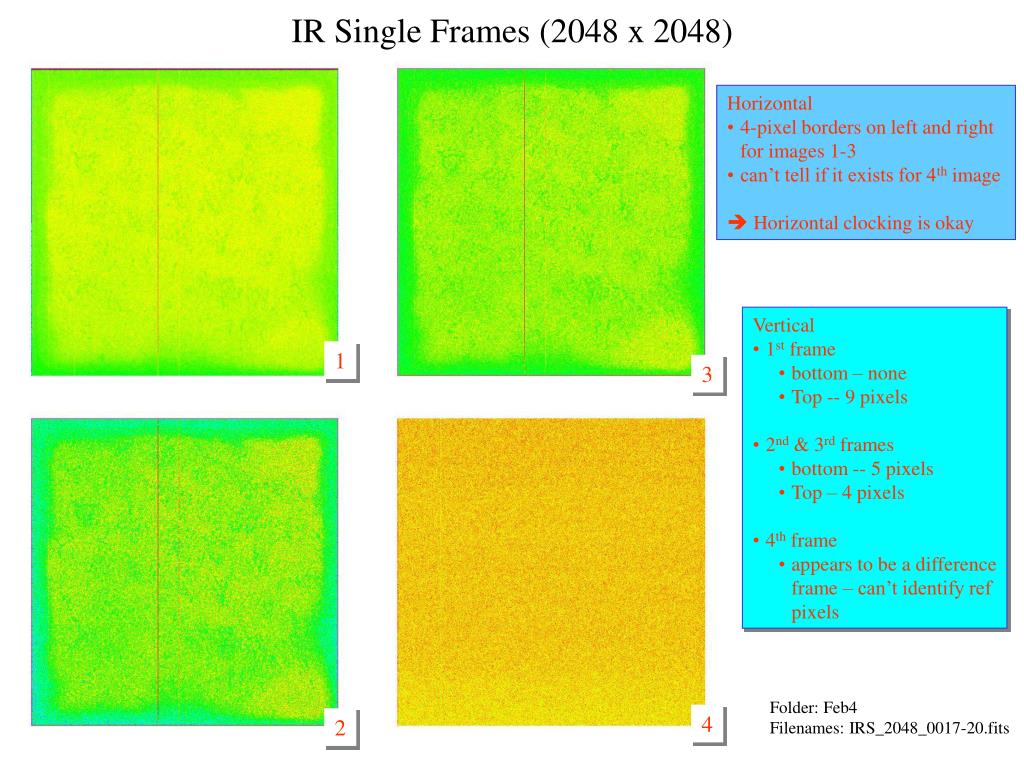

  3. IR Single Frames (2048 x 2048) • Horizontal • 4-pixel borders on left and right for images 1-3 • can’t tell if it exists for 4th image •  Horizontal clocking is okay • Vertical • 1st frame • bottom – none • Top -- 9 pixels • 2nd & 3rd frames • bottom -- 5 pixels • Top – 4 pixels • 4th frame • appears to be a difference frame – can’t identify ref pixels 1 3 Folder: Feb4 Filenames: IRS_2048_0017-20.fits 4 2

  4. IR Single Frames (2048 x 2048) • Turned on the reference pixel row to see if we can use it to distinguish start of frame • REFMODE = 0, meaning that reference pixels are reset as with other pixels (instead of reset being during the entire read cycle) • Now the frame has a streak pattern repeating every 4th column •  Don’t understand why reference row alters the readings on all other pixels Folder: Feb4 Filename: IRS_2048_0021.fits

  5. CDS Frames (2048 x 2048) 1 3 5 2 4 6 Folder: Feb4 Filenames: CDS_2048_0001-6.fits • Only frames 2 and 6 look anything like CDS differences. • Other frames might as well be IRSingle. • Note that the reference pixel row is still enabled, causing vertical streaks, and perhaps the gradients in frames 2 and 6.

  6. Adding an overclock to VCLK still doesn’t give FRAMECHK signal (change made to idle assembly routine) FSYNCB VCLK Should have been a pulse here for LINECHK & FRAMECHK, but seee NONE for either signal, even though internal & external settings for VTESTEN & HTESTEN are set high <----------------------- LINECHK (same response for FRAMECHK) HCLK Vertical clocking is problematic • Can’t seem to generate LINECHK or FRAMECHK pulses, even after adding extra overclocking pulse for VCLK in idle-mode and read array assembly subroutines

  7. Falling edge of HCLK clocks in new pix Mux_out Integ_in Integ_out HCLK conv Things are okay in the horizontal direction • Two pre-charge pulses in HCLK give rise to three integrator pulses ? Why ? • However, horizontal clocking is okay in both IRSingle & CDS images, so this is not a real problem
