Presentation Transcript

  1. Catalogue Spring 2003 V1.0 HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

  2. Barcode Scanners Wireless Technology Specifications subject to change without notice HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

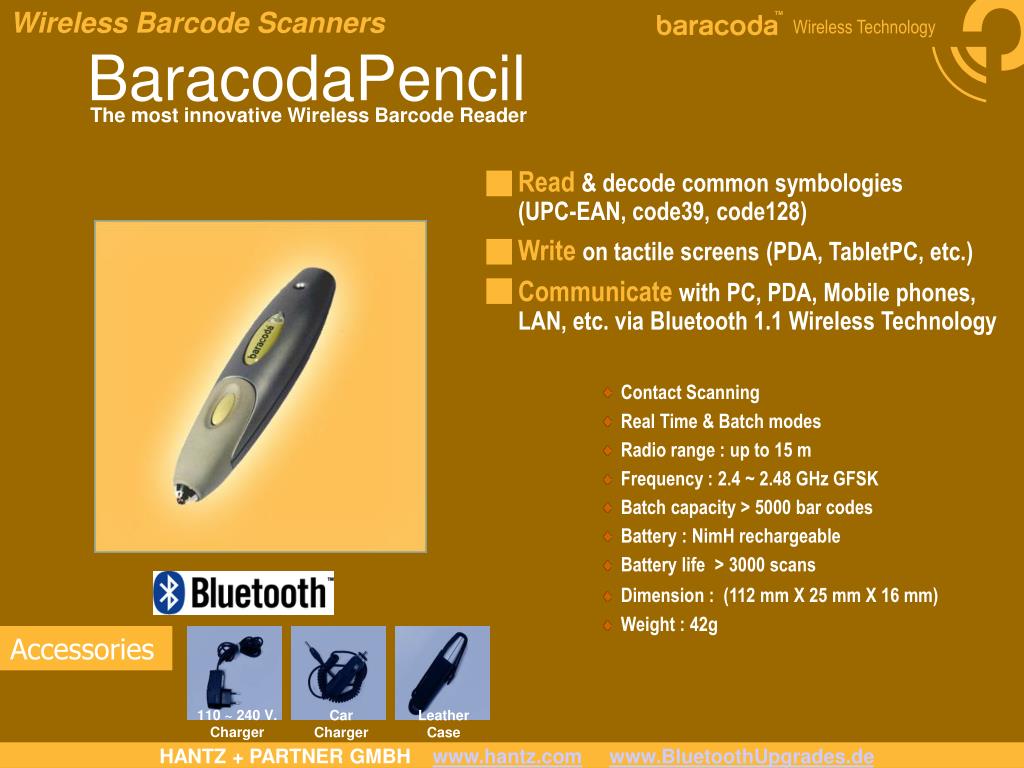

  3. BaracodaPencil Wireless Barcode Scanners TM Wireless Technology The most innovative Wireless Barcode Reader Read& decode common symbologies (UPC-EAN, code39, code128) Writeon tactile screens (PDA, TabletPC, etc.) Communicatewith PC, PDA, Mobile phones, LAN, etc. via Bluetooth 1.1 Wireless Technology • Contact Scanning • Real Time & Batch modes • Radio range : up to 15 m • Frequency : 2.4 ~ 2.48 GHz GFSK • Batch capacity > 5000 bar codes • Battery : NimH rechargeable • Battery life > 3000 scans • Dimension : (112 mm X 25 mm X 16 mm) • Weight :42g Accessories 110 ~ 240 V. Charger Car Charger LeatherCase HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

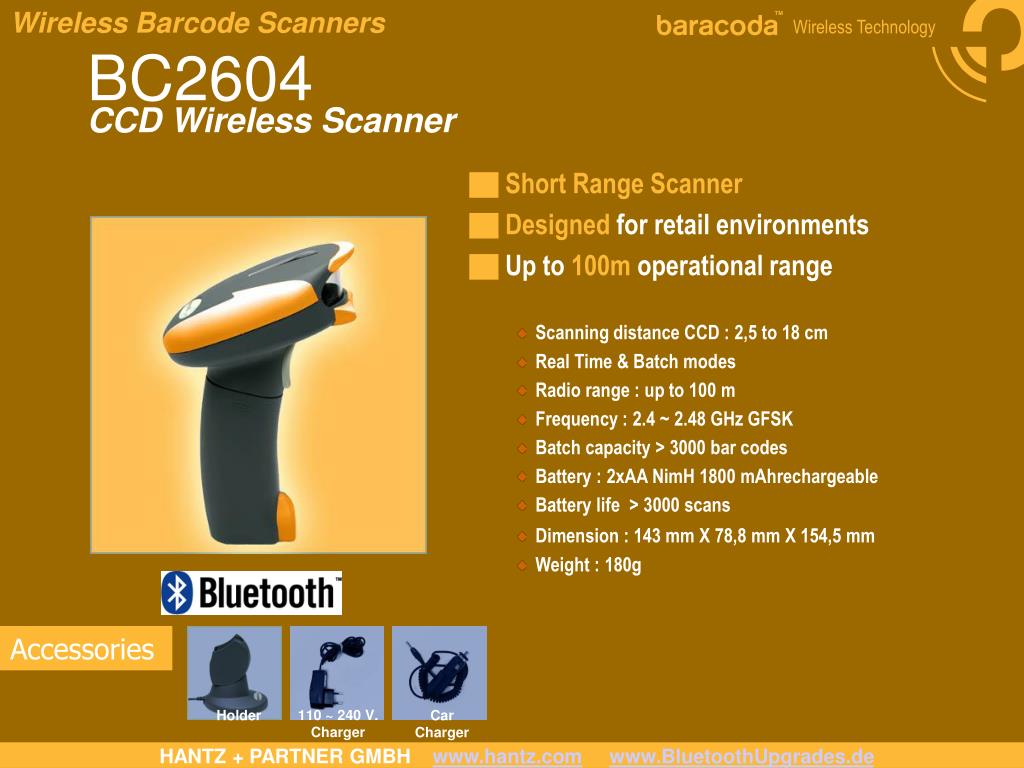

  4. BC2604 Wireless Barcode Scanners TM Wireless Technology CCD Wireless Scanner ShortRange Scanner Designed for retail environments Up to 100m operational range • Scanning distance CCD : 2,5 to 18 cm • Real Time & Batch modes • Radio range : up to 100 m • Frequency : 2.4 ~ 2.48 GHz GFSK • Batch capacity > 3000 bar codes • Battery : 2xAA NimH 1800 mAhrechargeable • Battery life > 3000 scans • Dimension : 143 mm X 78,8 mm X 154,5 mm • Weight : 180g Accessories 110 ~ 240 V. Charger Holder Car Charger HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

  5. BL2604 Wireless Barcode Scanners TM Wireless Technology Laser Wireless Scanner Long Range Scanner designed for retail environments Up to 100m operational range • Scanning distance Laser : 10 to50 cm • Real Time & Batch modes • Radio range : up to 100 m • Frequency : 2.4 ~ 2.48 GHz GFSK • Batch capacity > 3000 bar codes • Battery : 2xAA NimH 1800 mAhrechargeable • Battery life > 3000 scans • Dimension : 143 mm X 78,8 mm X 154,5 mm • Weight : 180g Accessories 110 ~ 240 V. Charger Holder Car Charger HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

  6. BL 1000 Wireless Barcode Scanners TM Wireless Technology Innovating & Ergonomic Laser Scanner Read& decode common symbologies (UPC-EAN- JAN, code39, code128) 3 interfacesavailable (RS232, USB, Bluetooth) Great Price and many accessories • Scanning distance : 5 to 15 cm • Real Time & Batch modes • Timestamp • Batch capacity ≃ 100 bar codes • Power : 3 x AAA Alkaline batteries • Audible indicator : 3 sounds (can be disabled) Accessories ProtectiveBoot DockingStation USBAdapter BluetoothAdapter Holster SerialCable HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

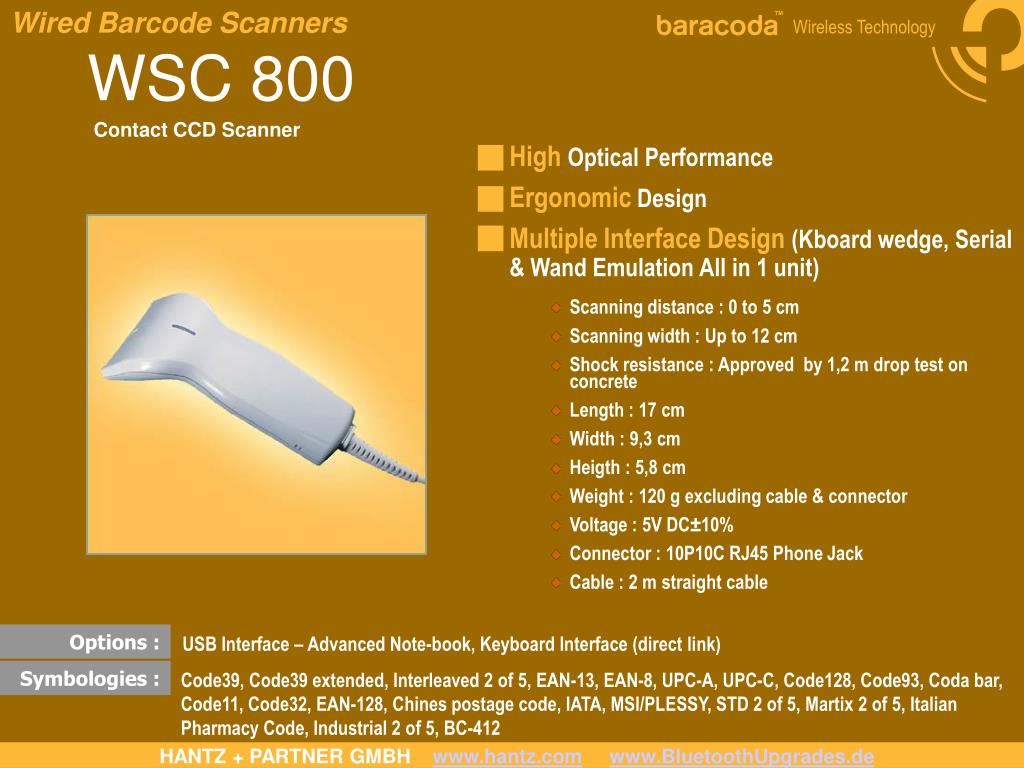

  7. WSC 800 Wired Barcode Scanners TM Wireless Technology Contact CCD Scanner HighOptical Performance Ergonomic Design Multiple Interface Design (Kboard wedge, Serial & Wand Emulation All in 1 unit) • Scanning distance : 0 to 5 cm • Scanning width : Up to 12 cm • Shock resistance : Approved by 1,2 m drop test on concrete • Length : 17 cm • Width : 9,3 cm • Heigth : 5,8 cm • Weight : 120 g excluding cable & connector • Voltage : 5V DC±10% • Connector : 10P10C RJ45 Phone Jack • Cable : 2 m straight cable Options : USB Interface – Advanced Note-book, Keyboard Interface (direct link) Symbologies : Code39, Code39 extended, Interleaved 2 of 5, EAN-13, EAN-8, UPC-A, UPC-C, Code128, Code93, Coda bar, Code11, Code32, EAN-128, Chines postage code, IATA, MSI/PLESSY, STD 2 of 5, Martix 2 of 5, Italian Pharmacy Code, Industrial 2 of 5, BC-412 HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

  8. WSC 2100 Wired Barcode Scanners TM Wireless Technology Lightweightin compact size Designed for industrial applications Multiple Interface Design (Kboard Emulation, RS232 & Wand Emulation All in 1 unit) Long Range CCD Scanner • Scanning distance : 2,5 to 20 cm • Scanning width : Up to 20 cm • Shock resistance : Approved by 1,5m drop test on concrete • Length : 9,3 cm • Width : 8 cm • Heigth : 15 cm • Weight : 165 g excluding cable & connector • Voltage : 5V DC±10% • Scan rate : 150 scans/s Options : USB Interface Accessories Symbologies : Code39, Code39 extended, Interleaved 2 of 5, EAN-13, EAN-8, UPC-A, UPC-C, Code128, Code93, Coda bar, Code11, Code32, EAN-128, Chines postage code, IATA, MSI/PLESSY, STD 2 of 5, Martix 2 of 5, Italian Pharmacy Code, Industrial 2 of 5, BC-412 HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

  9. BMC 3000 Mobile Computer TM Wireless Technology Built-in Laser Scanner • Intel strong ARM 720T 74MHZ, 32 bits RISC CPU core • OS : Windows CE 3.0 • Memory : 16/32 MB Nand Flash + 128 KB Boot ROM – 32MB SDRAM • Display: 16 gray scale mono LCD with EL backlight – 240x320 pixels • Audio : Microphone + Speaker Mono + DIA earphone jack stereo • Dimension : 13,5 x 8,2 x 1,8 cm • Weight : 190 g • Battery Type : 4.2 V, 1500 mAh Li-Polymer • Battery Life : 13~15 hours @ 1 scan every 5 seconds • Scan rate : 150 scans/s • Communication : IrDA 1.0 – USB 1.0 – Compact Flash (CF) Type II expansion slot Code39, Code39 extended, Interleaved 2 of 5, EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code93, Coda bar, Code11, EAN-128, Chines postage code, IATA, MAI/PLESSY, STD 2 of 5, Martix 2 of 5, Code32 Symbologies : HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de

  10. Wireless connectivity Wireless Technology Specifications subject to change without notice HANTZ + PARTNER GMBH www.hantz.comwww.BluetoothUpgrades.de
