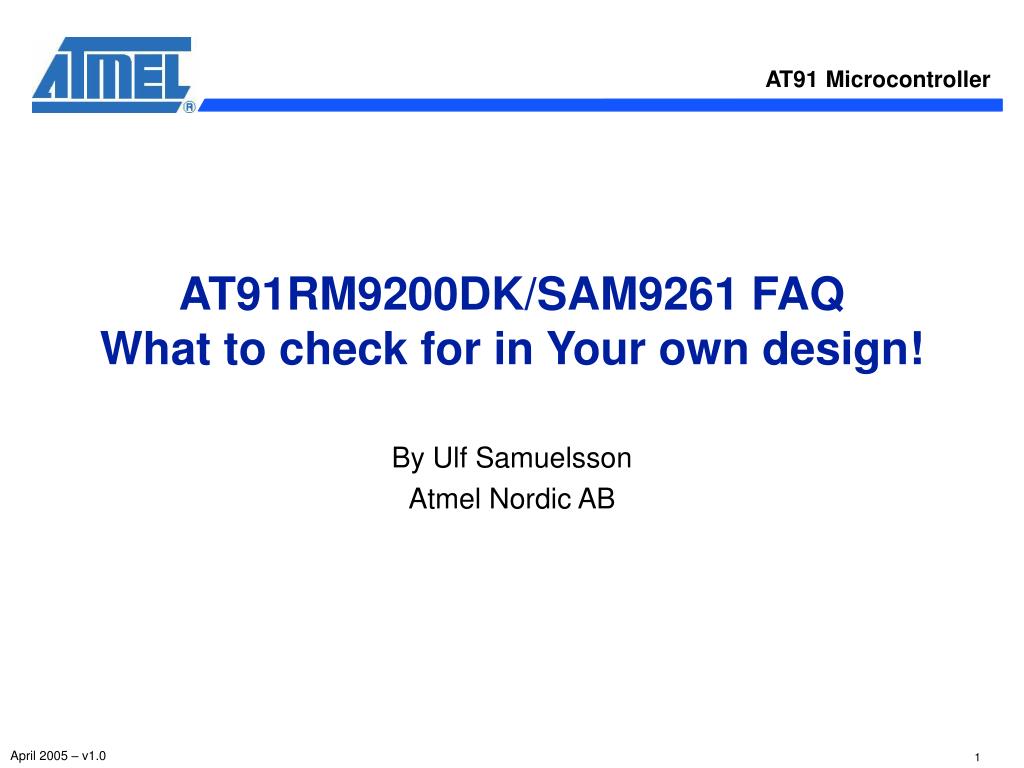

  1. AT91RM9200DK/SAM9261 FAQWhat to check for in Your own design! By Ulf Samuelsson Atmel Nordic AB

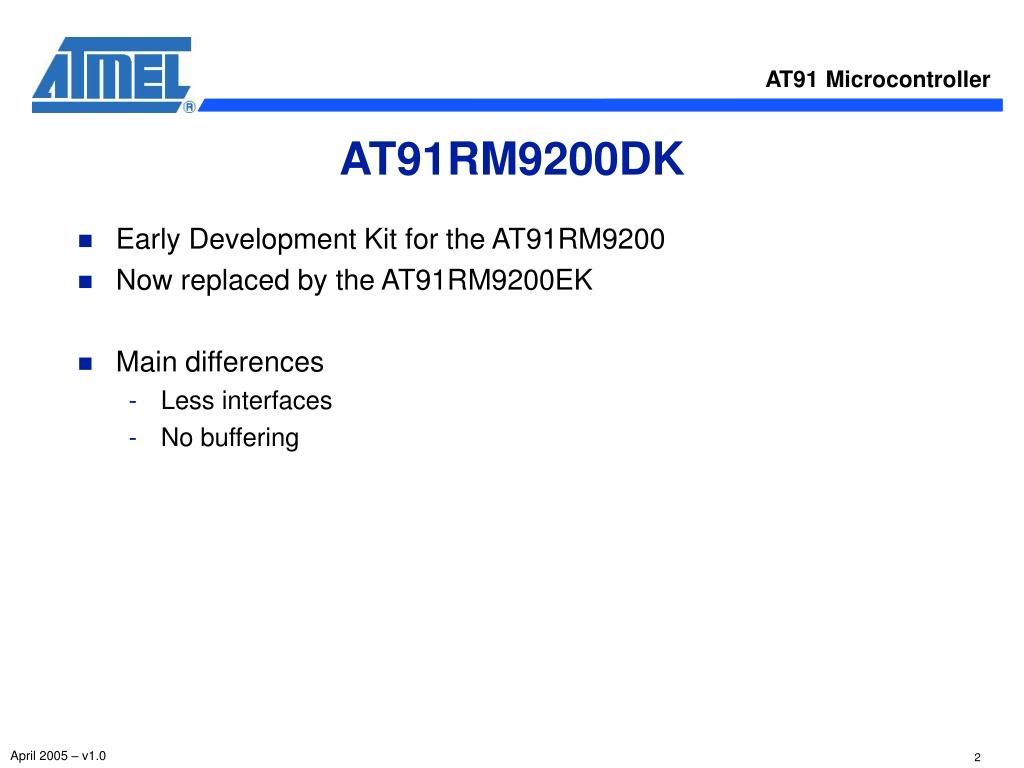

  2. AT91RM9200DK • Early Development Kit for the AT91RM9200 • Now replaced by the AT91RM9200EK • Main differences • Less interfaces • No buffering

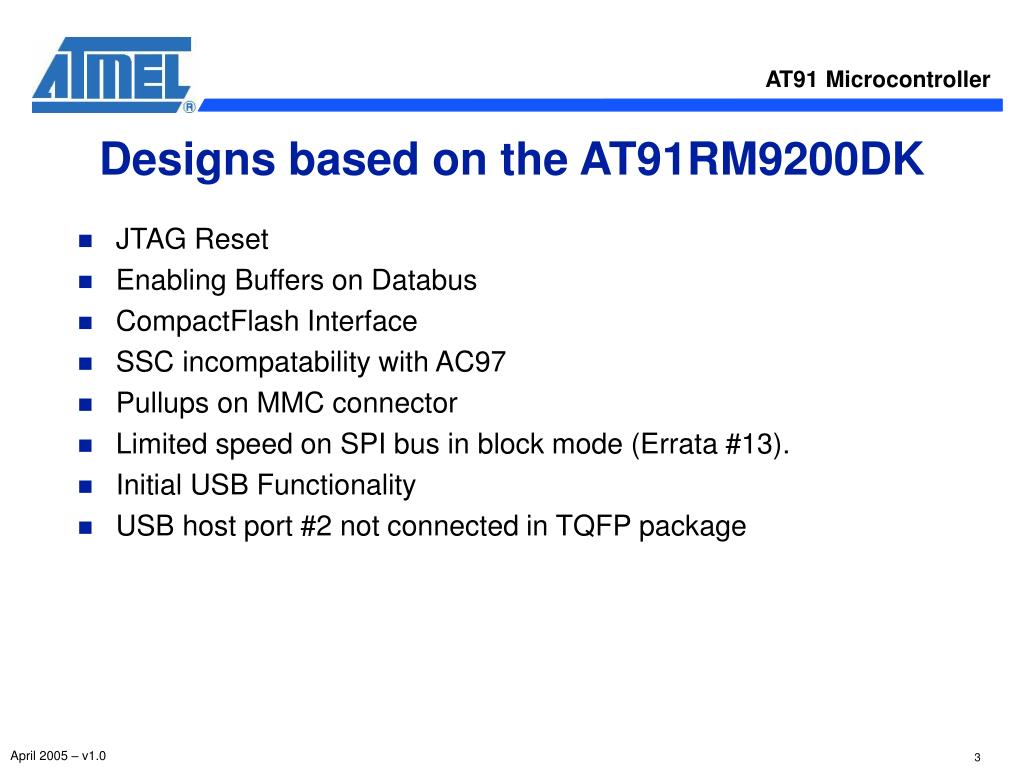

  3. Designs based on the AT91RM9200DK • JTAG Reset • Enabling Buffers on Databus • CompactFlash Interface • SSC incompatability with AC97 • Pullups on MMC connector • Limited speed on SPI bus in block mode (Errata #13). • Initial USB Functionality • USB host port #2 not connected in TQFP package

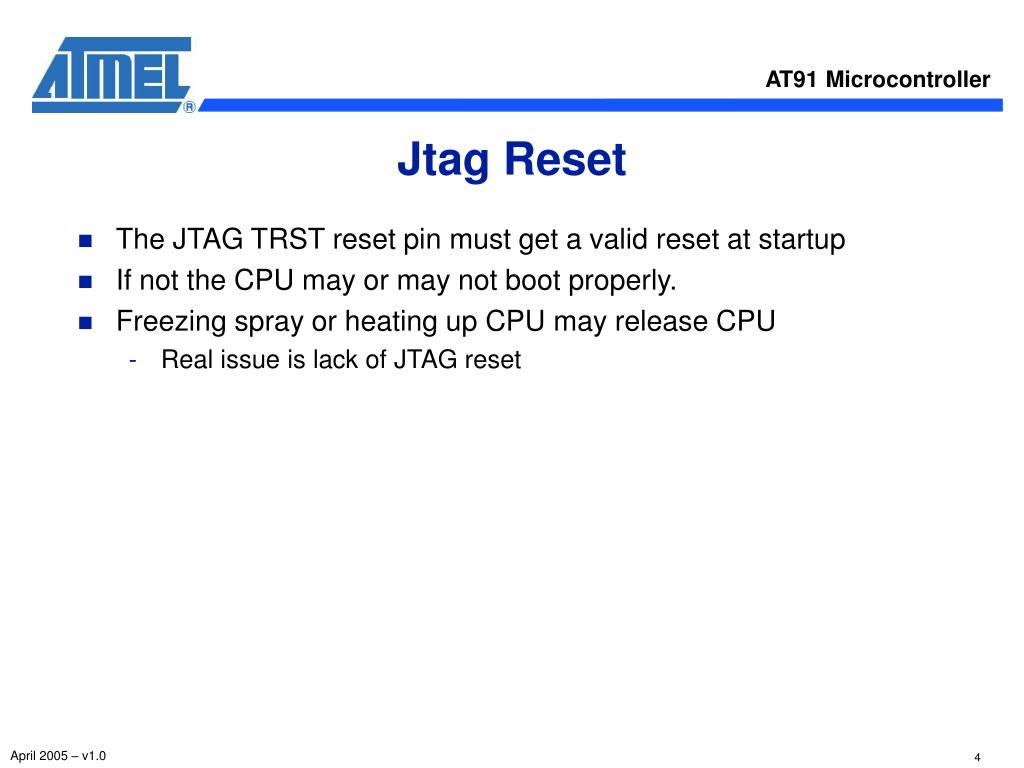

  4. Jtag Reset • The JTAG TRST reset pin must get a valid reset at startup • If not the CPU may or may not boot properly. • Freezing spray or heating up CPU may release CPU • Real issue is lack of JTAG reset

  5. JTAGSEL Signal • This signal allows to select the use of the JTAG Port: • A low level on the JTAGSEL allows to select the ARM9's ICE • A high level on the JTAGSEL allows to select the Boundary Scan function.

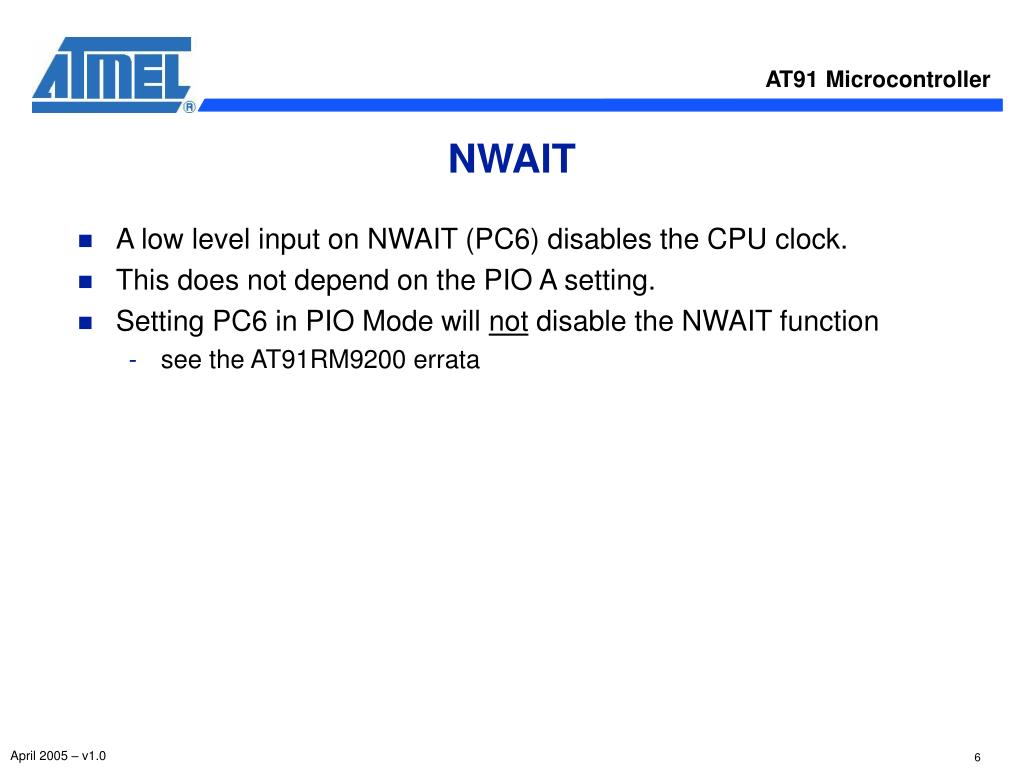

  6. NWAIT • A low level input on NWAIT (PC6) disables the CPU clock. • This does not depend on the PIO A setting. • Setting PC6 in PIO Mode will not disable the NWAIT function • see the AT91RM9200 errata

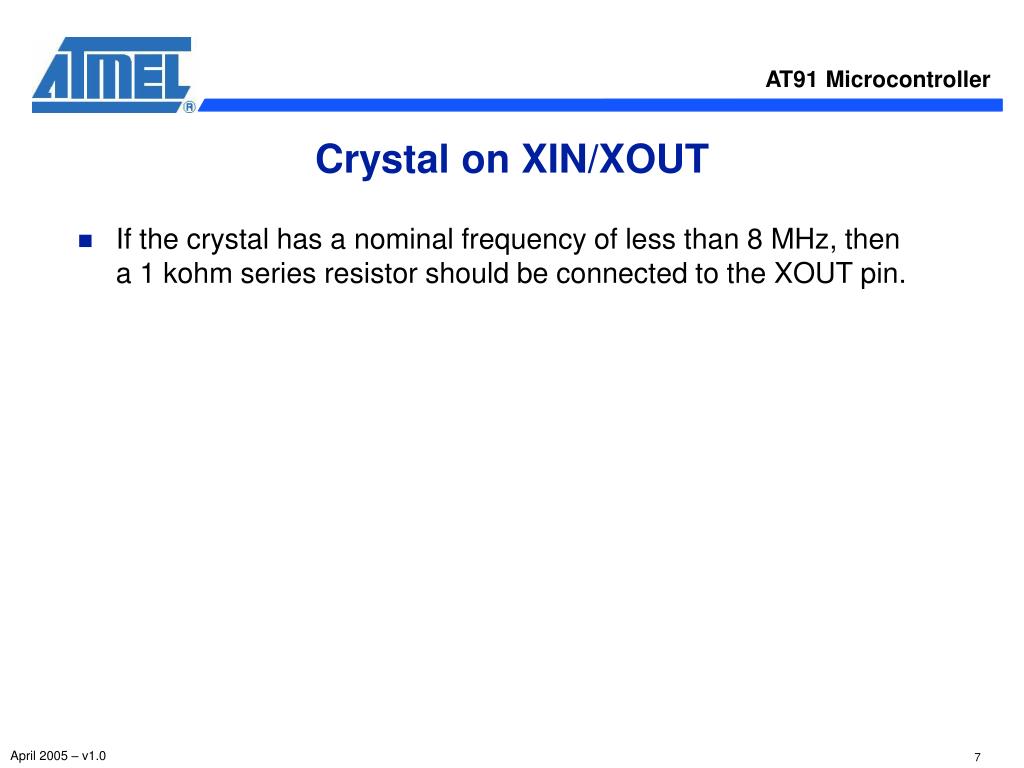

  7. Crystal on XIN/XOUT • If the crystal has a nominal frequency of less than 8 MHz, then a 1 kohm series resistor should be connected to the XOUT pin.

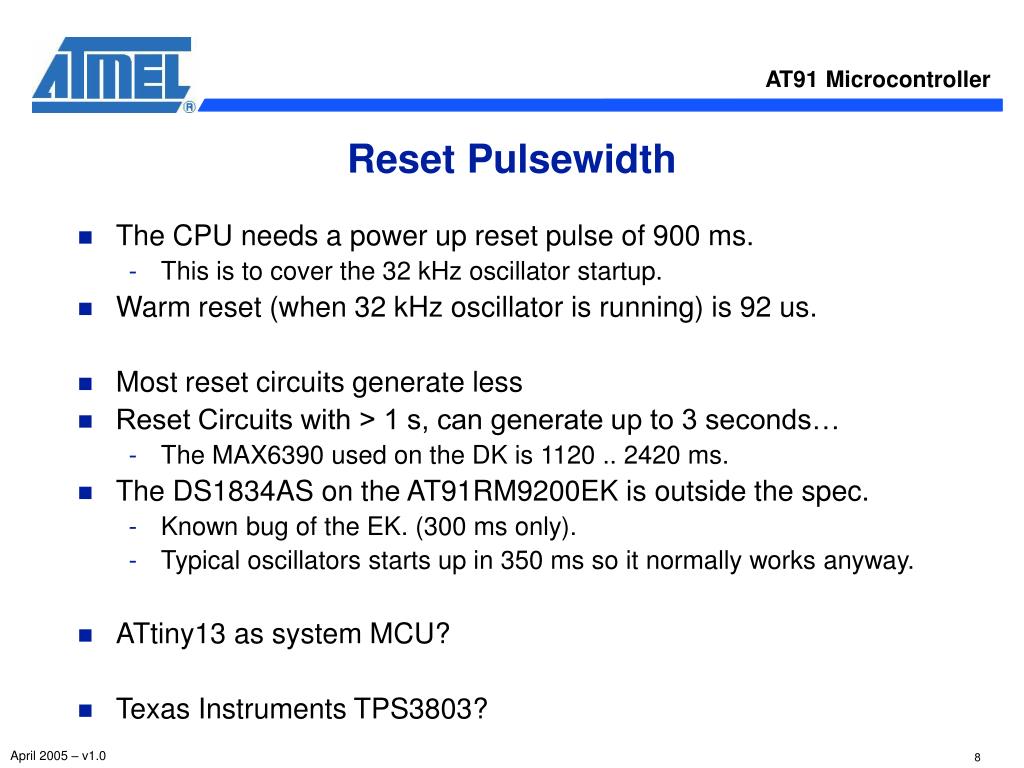

  8. Reset Pulsewidth • The CPU needs a power up reset pulse of 900 ms. • This is to cover the 32 kHz oscillator startup. • Warm reset (when 32 kHz oscillator is running) is 92 us. • Most reset circuits generate less • Reset Circuits with > 1 s, can generate up to 3 seconds… • The MAX6390 used on the DK is 1120 .. 2420 ms. • The DS1834AS on the AT91RM9200EK is outside the spec. • Known bug of the EK. (300 ms only). • Typical oscillators starts up in 350 ms so it normally works anyway. • ATtiny13 as system MCU? • Texas Instruments TPS3803?

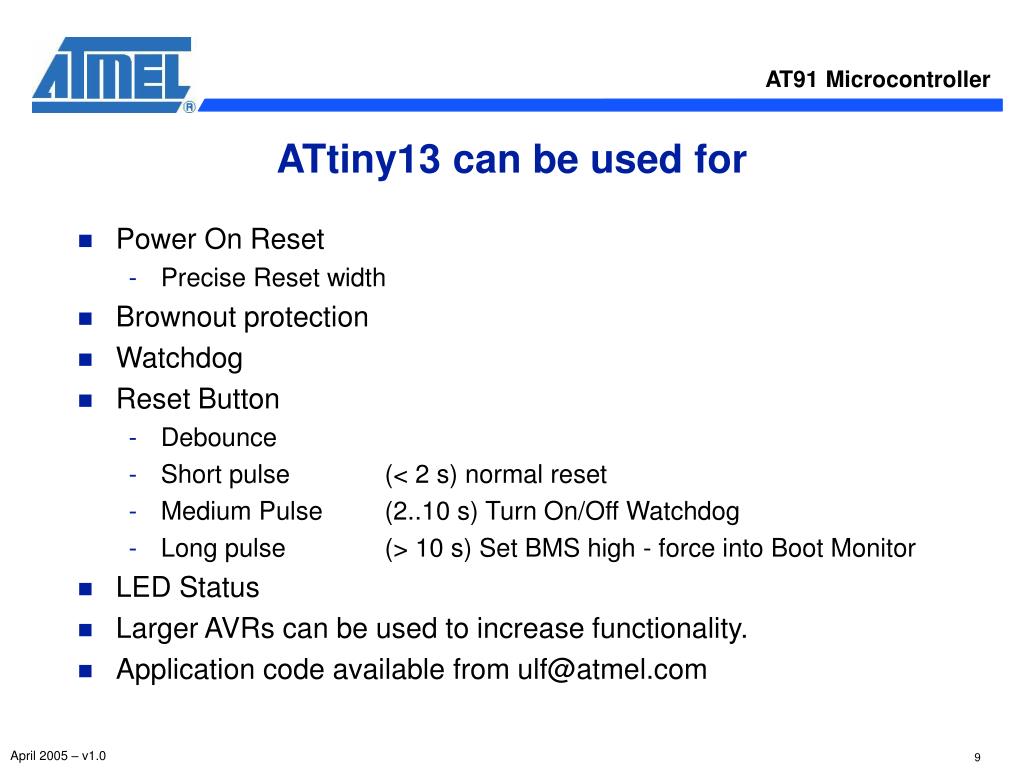

  9. ATtiny13 can be used for • Power On Reset • Precise Reset width • Brownout protection • Watchdog • Reset Button • Debounce • Short pulse (< 2 s) normal reset • Medium Pulse (2..10 s) Turn On/Off Watchdog • Long pulse (> 10 s) Set BMS high - force into Boot Monitor • LED Status • Larger AVRs can be used to increase functionality. • Application code available from ulf@atmel.com

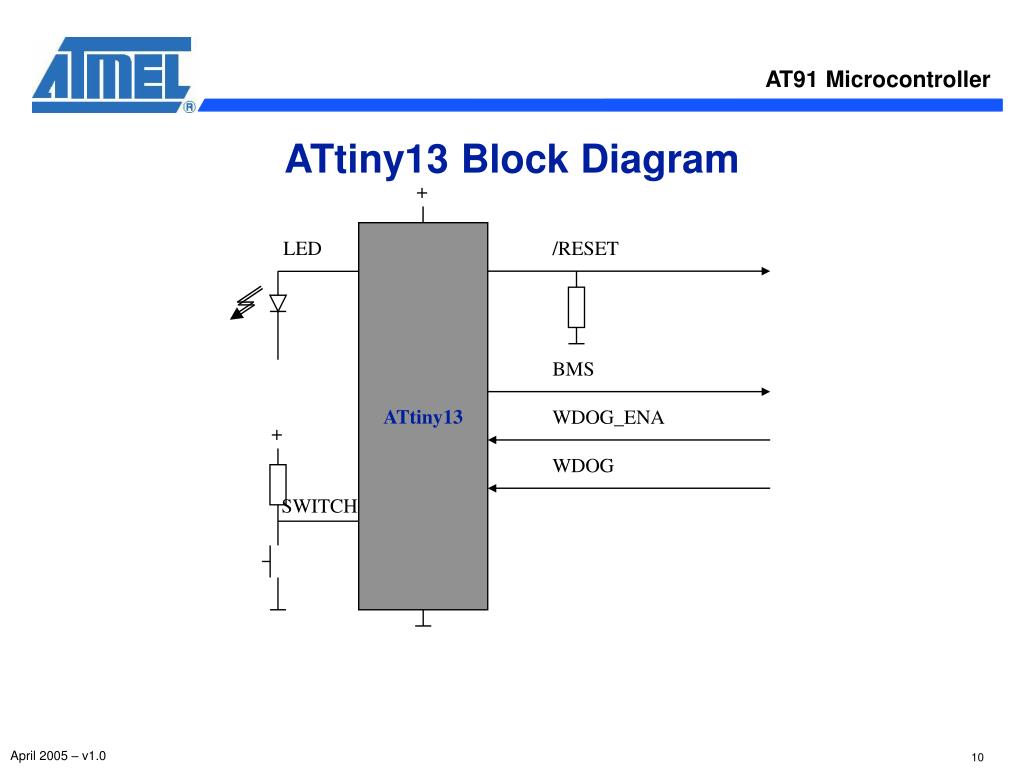

  10. ATtiny13 Block Diagram + ATtiny13 LED /RESET BMS WDOG_ENA + WDOG SWITCH

  11. Enabling Buffers on the databus • The Buffer Enable is using SDRAMCS inverted • If there is no SDRAM access, then the system accesses the rest of the system • SDRAMCS is asserted during SDRAM refresh. • Conflict if CPU is accessing something else in parallel • Workaround: Qualify with all chip selects

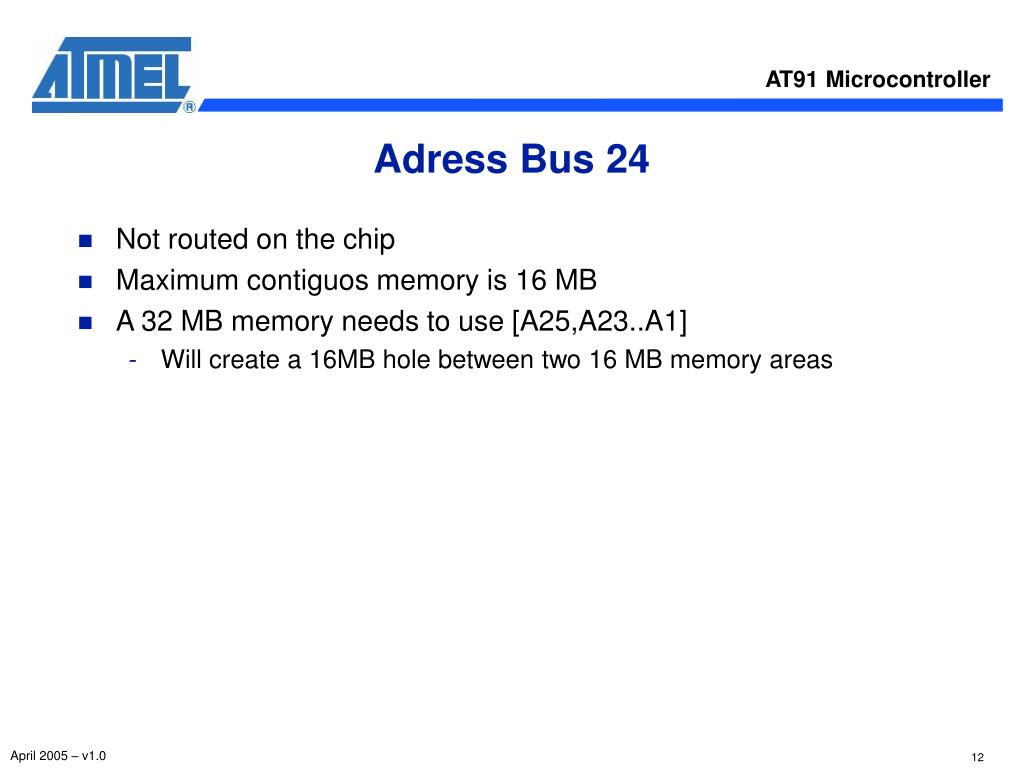

  12. Adress Bus 24 • Not routed on the chip • Maximum contiguos memory is 16 MB • A 32 MB memory needs to use [A25,A23..A1] • Will create a 16MB hole between two 16 MB memory areas

  13. BMS (Boot Mode Select) pin • BMS = 0 • The CPU boots from external 16 bit Flash memory • Can be jumpered to 1 during production/upgrade • Allows simple flash programming • BMS = 1 • CPU boots from the internal bootROM • No jumper needed for production programming

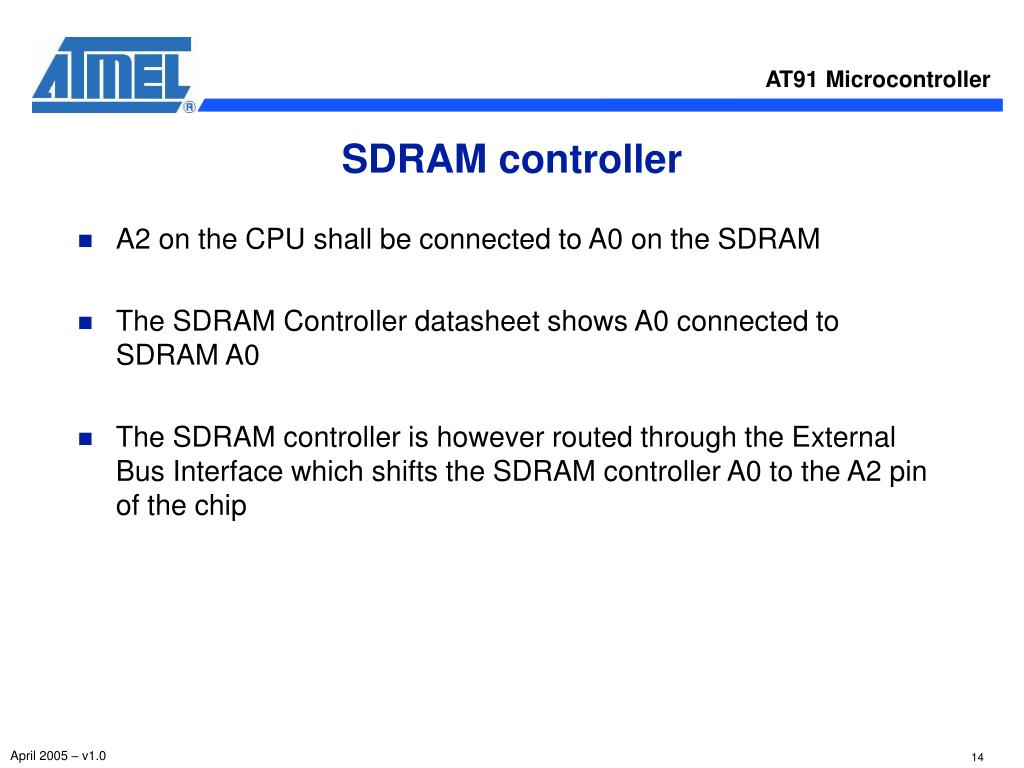

  14. SDRAM controller • A2 on the CPU shall be connected to A0 on the SDRAM • The SDRAM Controller datasheet shows A0 connected to SDRAM A0 • The SDRAM controller is however routed through the External Bus Interface which shifts the SDRAM controller A0 to the A2 pin of the chip

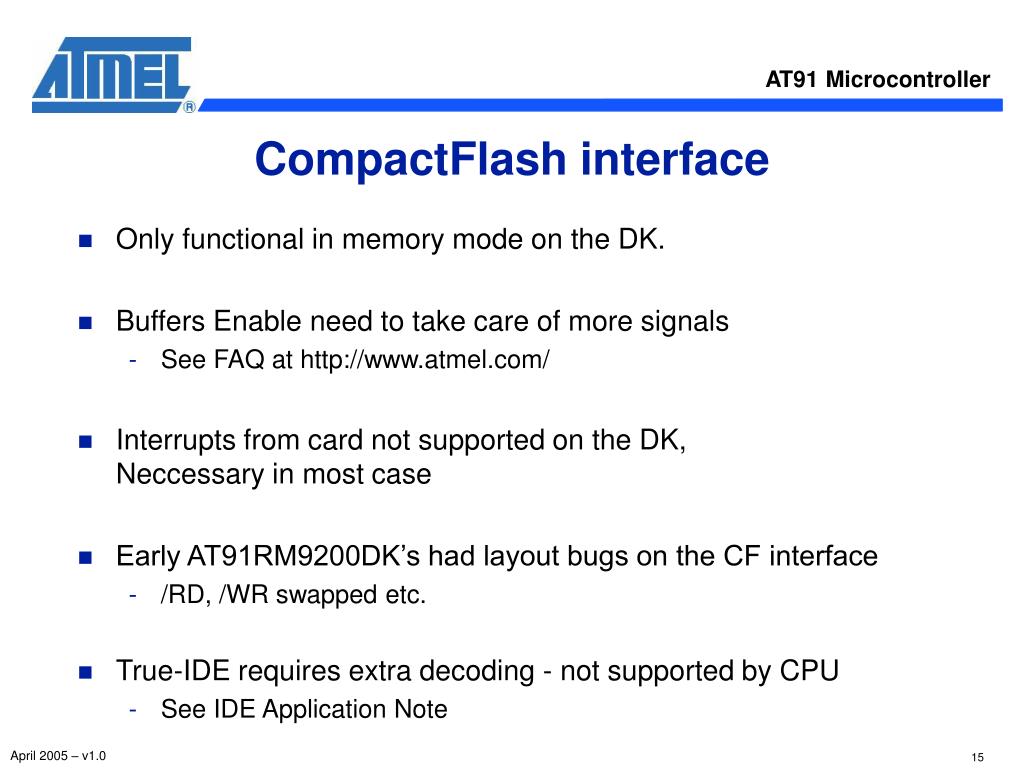

  15. CompactFlash interface • Only functional in memory mode on the DK. • Buffers Enable need to take care of more signals • See FAQ at http://www.atmel.com/ • Interrupts from card not supported on the DK, Neccessary in most case • Early AT91RM9200DK’s had layout bugs on the CF interface • /RD, /WR swapped etc. • True-IDE requires extra decoding - not supported by CPU • See IDE Application Note

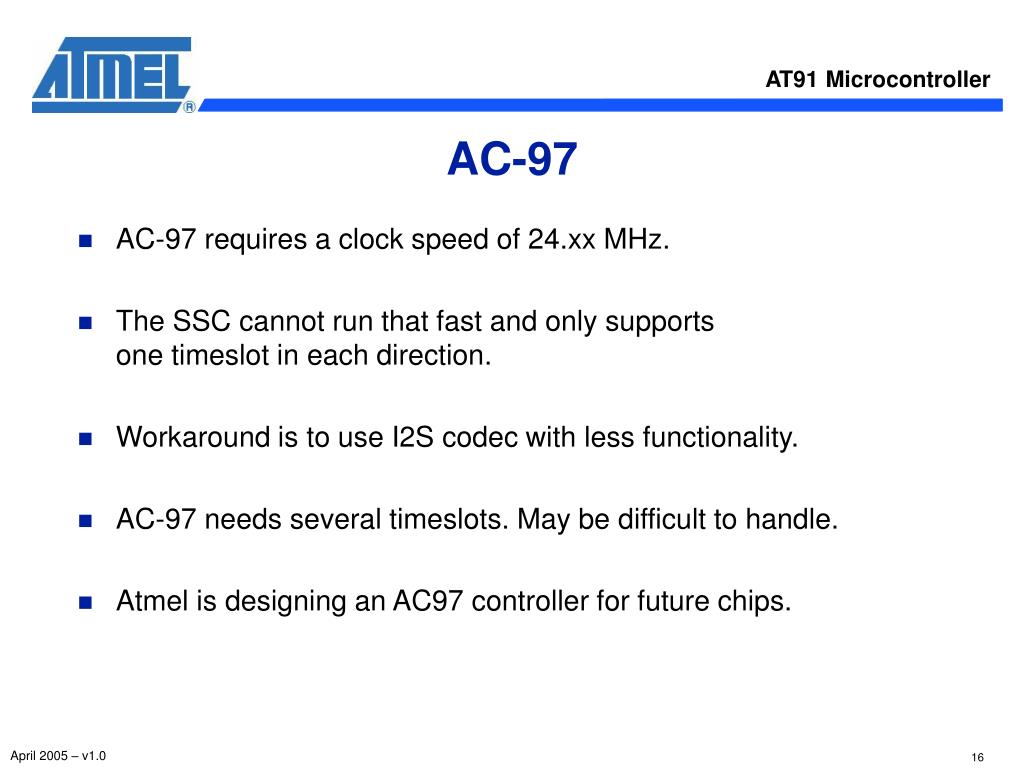

  16. AC-97 • AC-97 requires a clock speed of 24.xx MHz. • The SSC cannot run that fast and only supportsone timeslot in each direction. • Workaround is to use I2S codec with less functionality. • AC-97 needs several timeslots. May be difficult to handle. • Atmel is designing an AC97 controller for future chips.

  17. Pullup on MMC connector • The pullups on the DK are the wrong values for MMC_CMD • Trig on the first low to high transition of the CMD signal, use analog input on scope.While the bus is in open-drain mode (and 400kHz clk), the CMD signal looks like a RC low-pass filter with tau somewhere around 0.25 us, which is too slow. • The most important issue was to pull-up the MMC_CMD line with a rather small resistor. (my temporary fix is to use a 2k2 pull-up resistor - this is probably NOT a good long term solution) • The EK and DK does not use the same signals for this muxEK=PB22, DK=PB7

  18. Limited Speed of SPI in block mode • Errata #13 causes the SPI chip select to go inactive if the PDCdoes not get enough cycles. • Only happens on block transfers • Never happens on 8/16 bit transfers • Dataflashboot 1.02 siffers from the problem, needs update! • Typically happens during heavy networking activity • WLAN on Compactflash • Workaround: • Reduce the speed of SPI (4 Mbps seems OK) • Force CS low using external H/W • Errata #13 is fixed on new parts

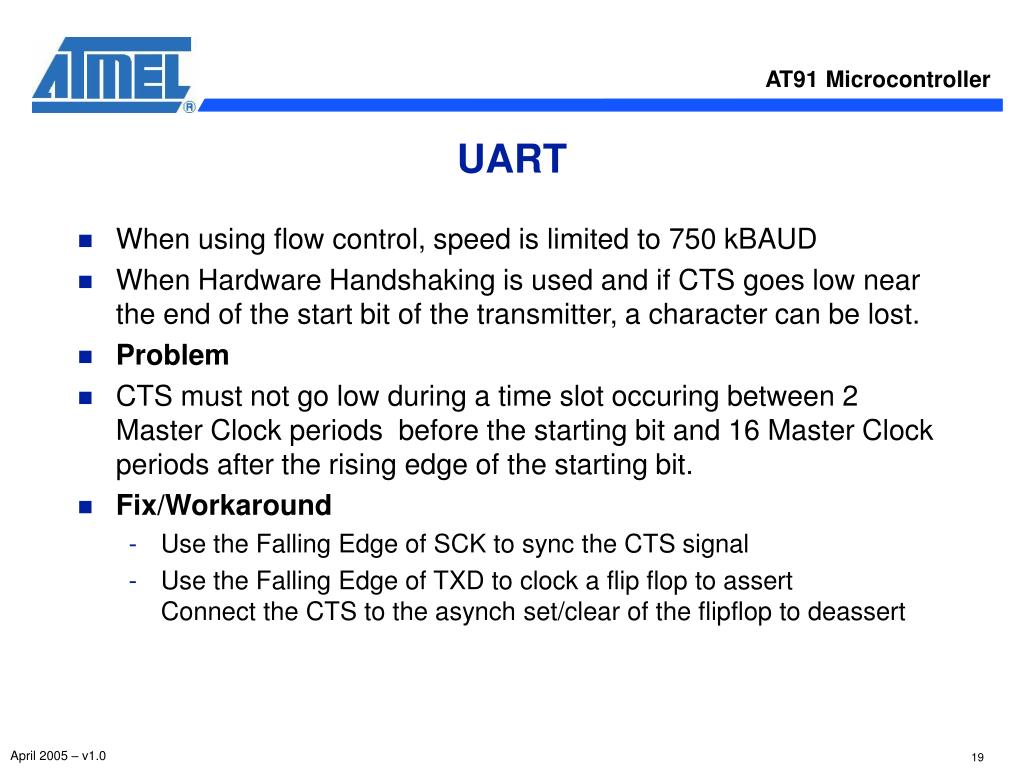

  19. UART • When using flow control, speed is limited to 750 kBAUD • When Hardware Handshaking is used and if CTS goes low near the end of the start bit of the transmitter, a character can be lost. • Problem • CTS must not go low during a time slot occuring between 2 Master Clock periods before the starting bit and 16 Master Clock periods after the rising edge of the starting bit. • Fix/Workaround • Use the Falling Edge of SCK to sync the CTS signal • Use the Falling Edge of TXD to clock a flip flop to assertConnect the CTS to the asynch set/clear of the flipflop to deassert

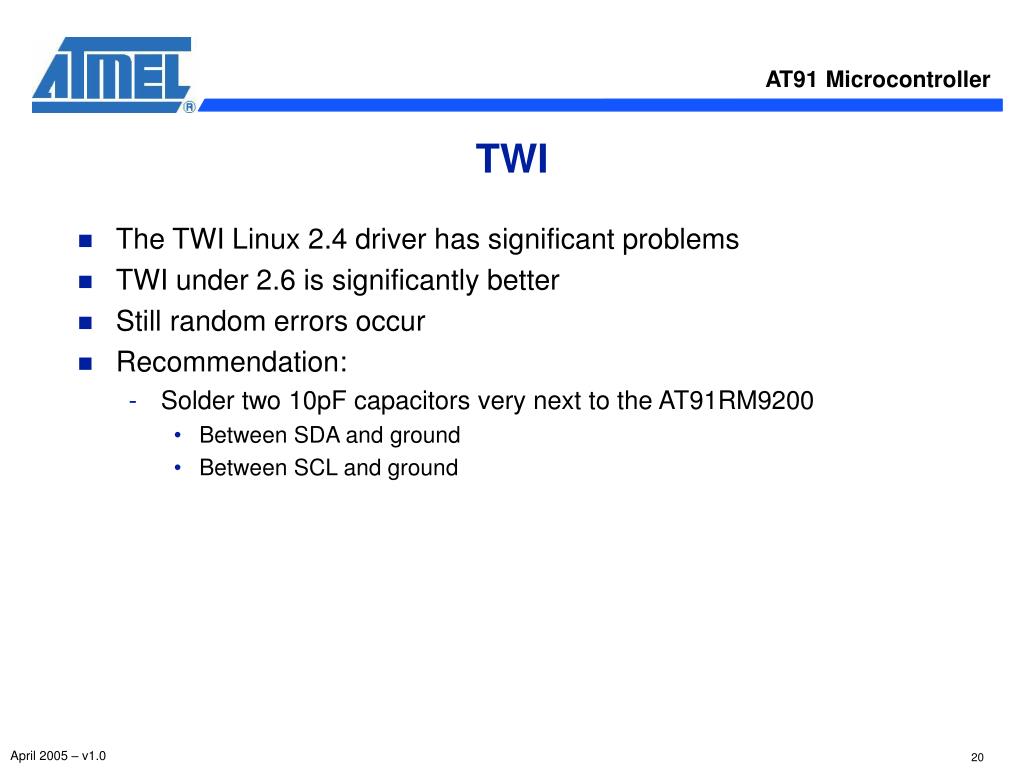

  20. TWI • The TWI Linux 2.4 driver has significant problems • TWI under 2.6 is significantly better • Still random errors occur • Recommendation: • Solder two 10pF capacitors very next to the AT91RM9200 • Between SDA and ground • Between SCL and ground

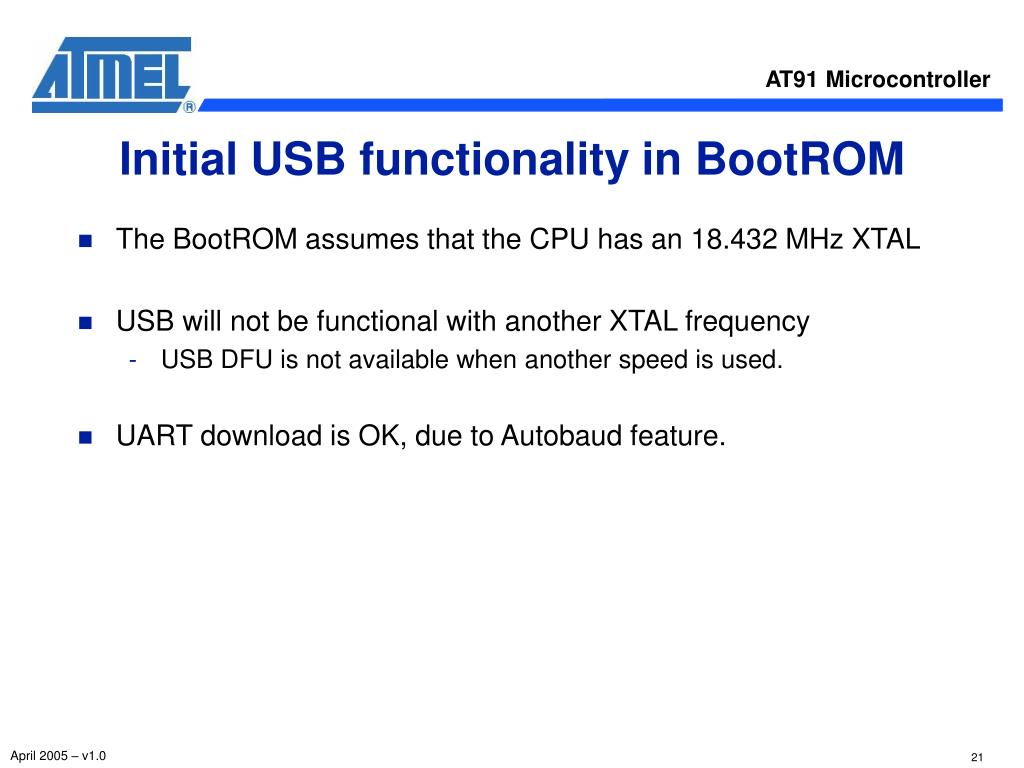

  21. Initial USB functionality in BootROM • The BootROM assumes that the CPU has an 18.432 MHz XTAL • USB will not be functional with another XTAL frequency • USB DFU is not available when another speed is used. • UART download is OK, due to Autobaud feature.

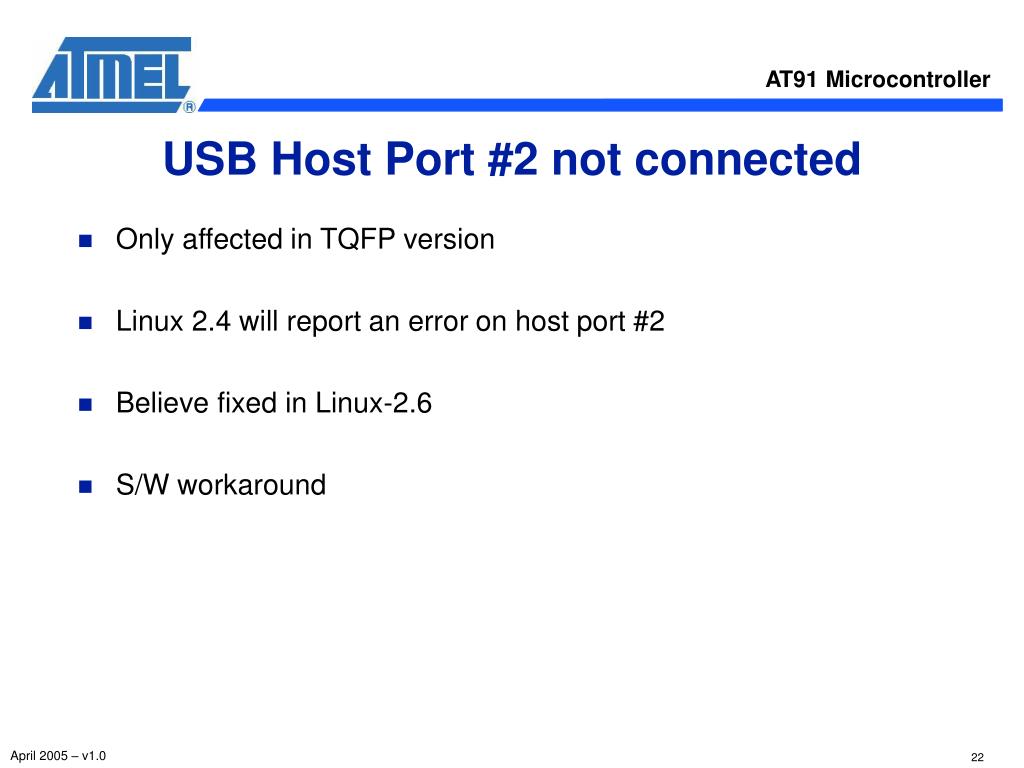

  22. USB Host Port #2 not connected • Only affected in TQFP version • Linux 2.4 will report an error on host port #2 • Believe fixed in Linux-2.6 • S/W workaround

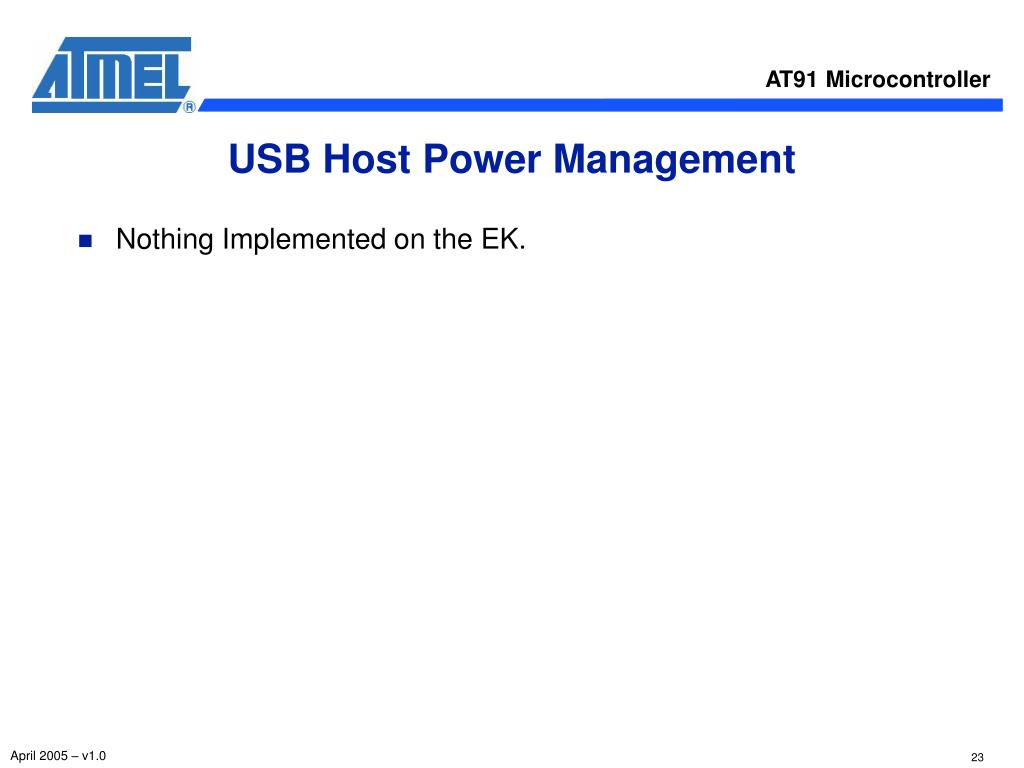

  23. USB Host Power Management • Nothing Implemented on the EK.

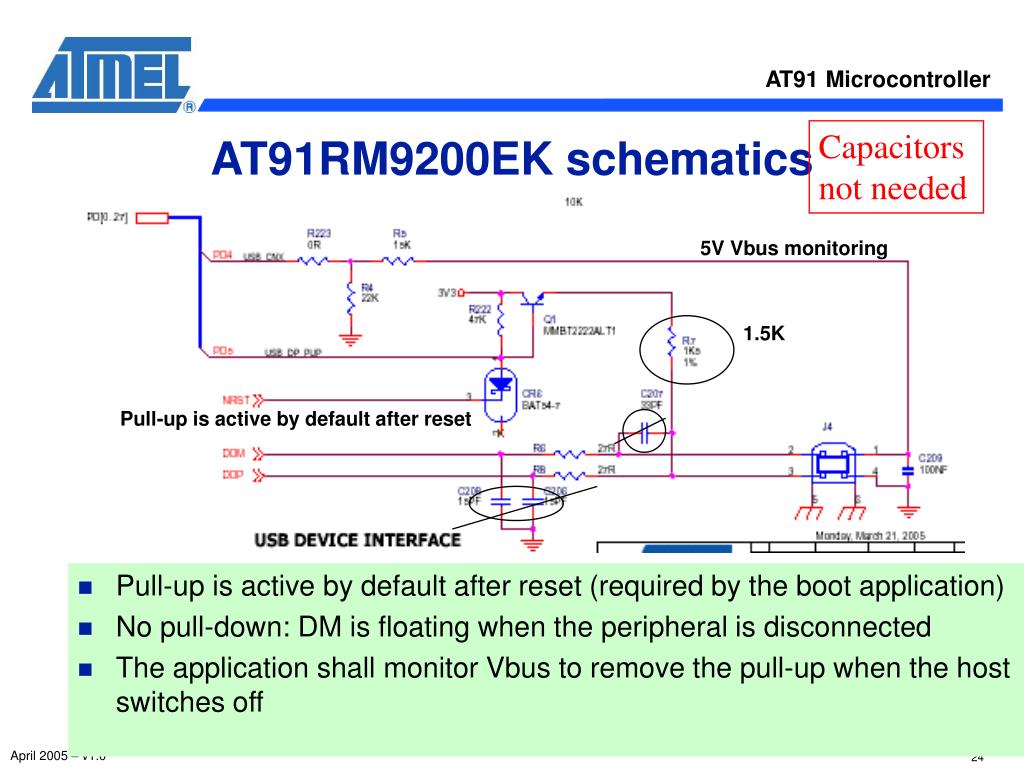

  24. Capacitors not needed AT91RM9200EK schematics • Pull-up is active by default after reset (required by the boot application) • No pull-down: DM is floating when the peripheral is disconnected • The application shall monitor Vbus to remove the pull-up when the host switches off 5V Vbus monitoring 1.5K Pull-up is active by default after reset

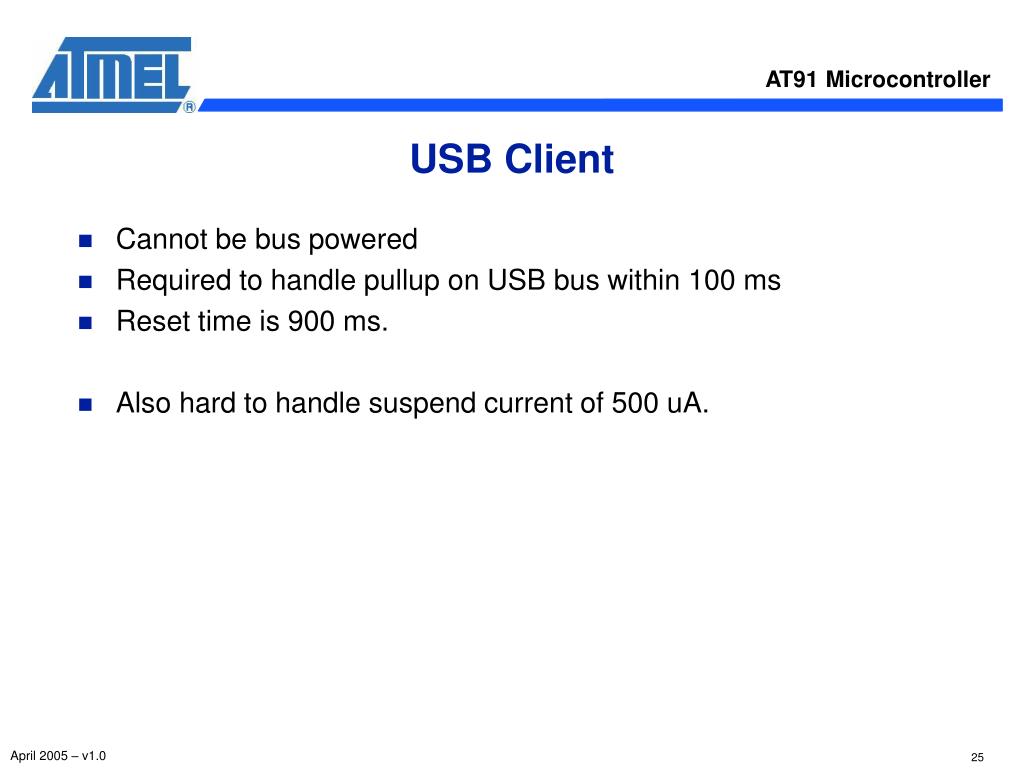

  25. USB Client • Cannot be bus powered • Required to handle pullup on USB bus within 100 ms • Reset time is 900 ms. • Also hard to handle suspend current of 500 uA.

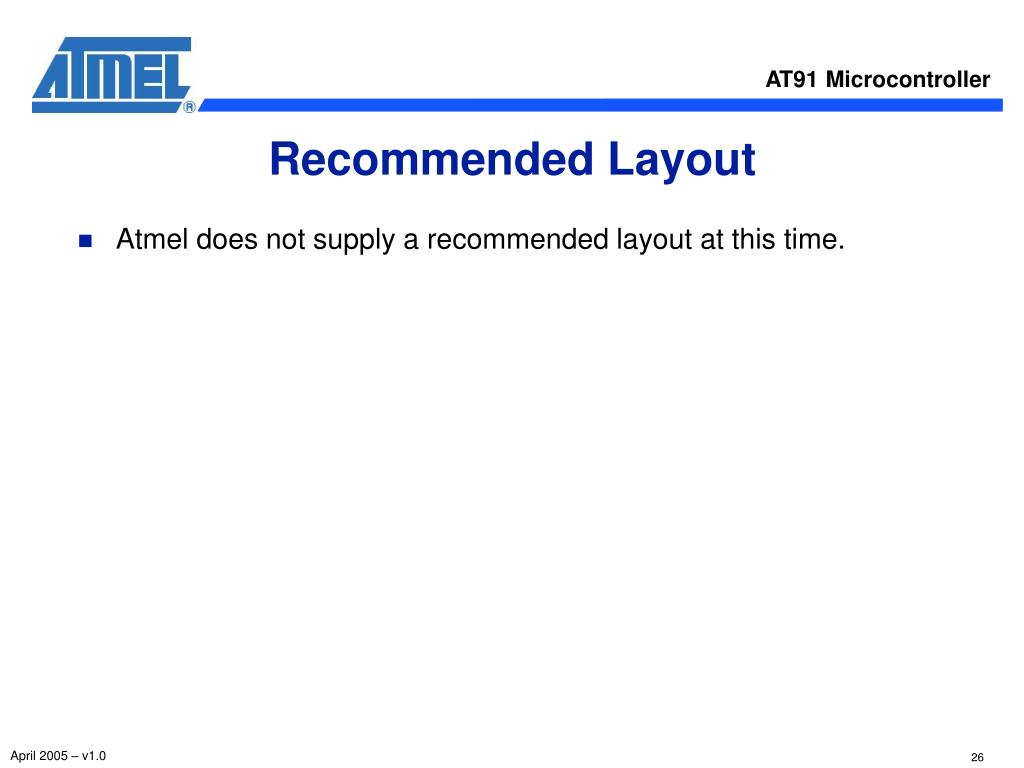

  26. Recommended Layout • Atmel does not supply a recommended layout at this time.

  27. Recommended solder temp profile • All our products are compliant with JEDEC J-STD-20 Reflow profile, and the moisture sensitivity to this product is LEVEL 3with 220C max reflow temperature. • This is for CI parts (not RoHS)

  28. Battery Backup of RTC • RTC is not backed up. • May need external RTC on the AT91RM9200.Is fixed on later generation chips like the AT91SAM9261

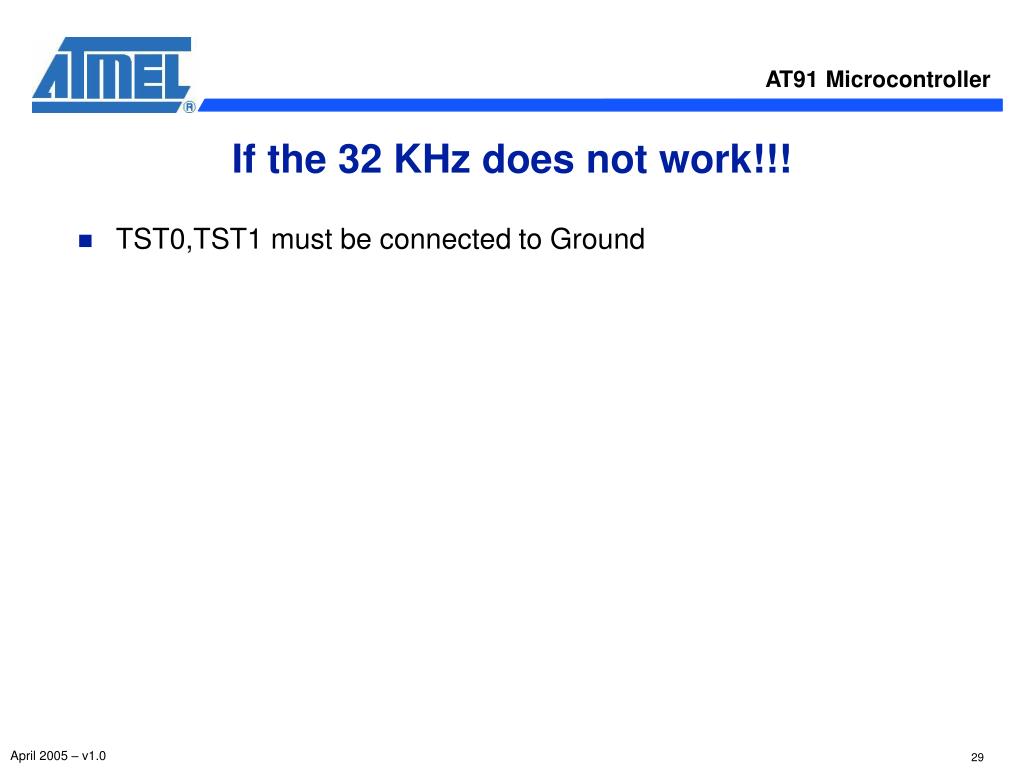

  29. If the 32 KHz does not work!!! • TST0,TST1 must be connected to Ground

  30. Ethernet Clock • Using a clock generated by the onchip PLL is not advisable • Use a separate crystal for the Ethernet PHY. • Check with your PHY vendor

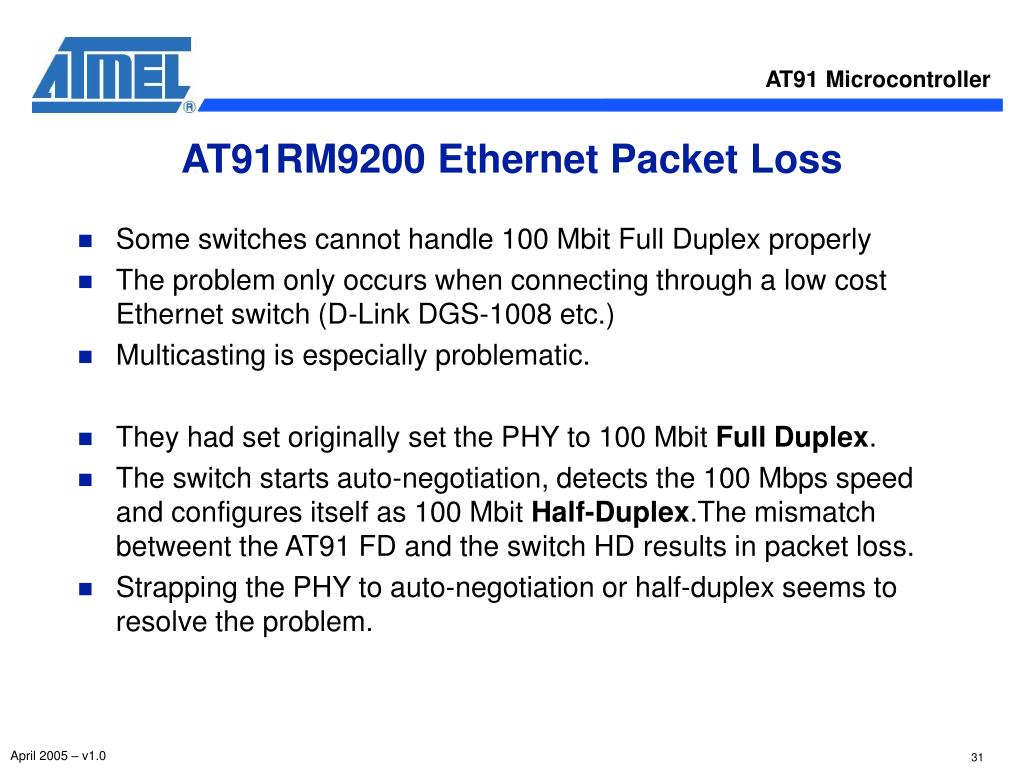

  31. AT91RM9200 Ethernet Packet Loss • Some switches cannot handle 100 Mbit Full Duplex properly • The problem only occurs when connecting through a low cost Ethernet switch (D-Link DGS-1008 etc.) • Multicasting is especially problematic. • They had set originally set the PHY to 100 Mbit Full Duplex. • The switch starts auto-negotiation, detects the 100 Mbps speed and configures itself as 100 Mbit Half-Duplex.The mismatch betweent the AT91 FD and the switch HD results in packet loss. • Strapping the PHY to auto-negotiation or half-duplex seems to resolve the problem.

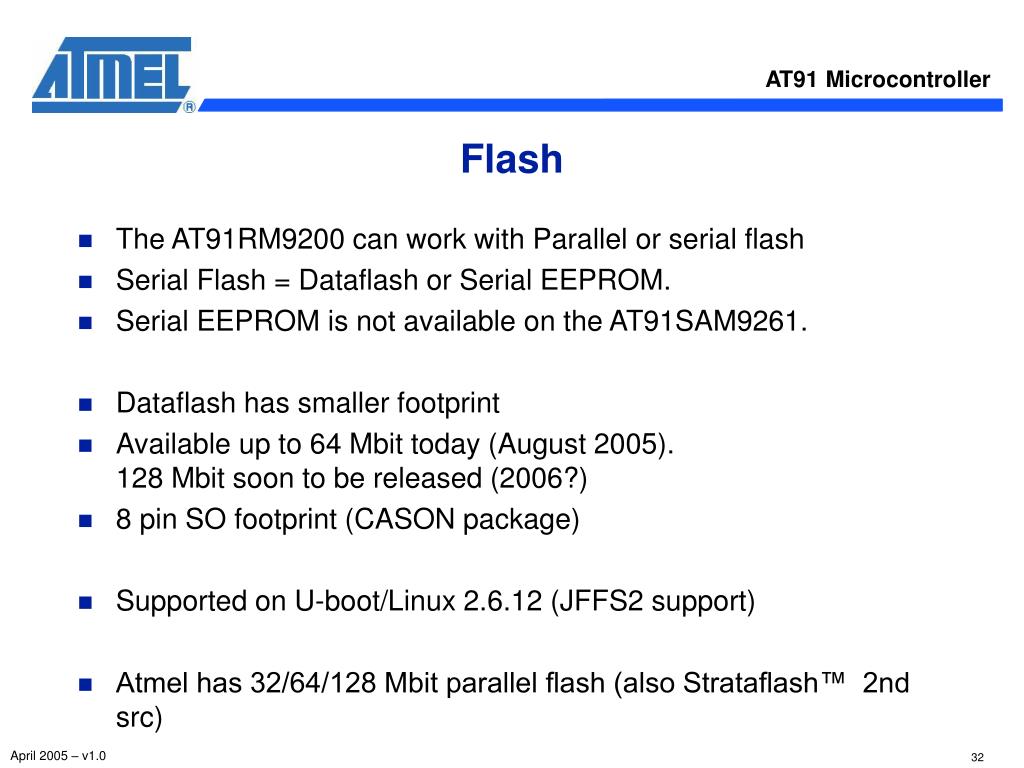

  32. Flash • The AT91RM9200 can work with Parallel or serial flash • Serial Flash = Dataflash or Serial EEPROM. • Serial EEPROM is not available on the AT91SAM9261. • Dataflash has smaller footprint • Available up to 64 Mbit today (August 2005).128 Mbit soon to be released (2006?) • 8 pin SO footprint (CASON package) • Supported on U-boot/Linux 2.6.12 (JFFS2 support) • Atmel has 32/64/128 Mbit parallel flash (also Strataflash™ 2nd src)

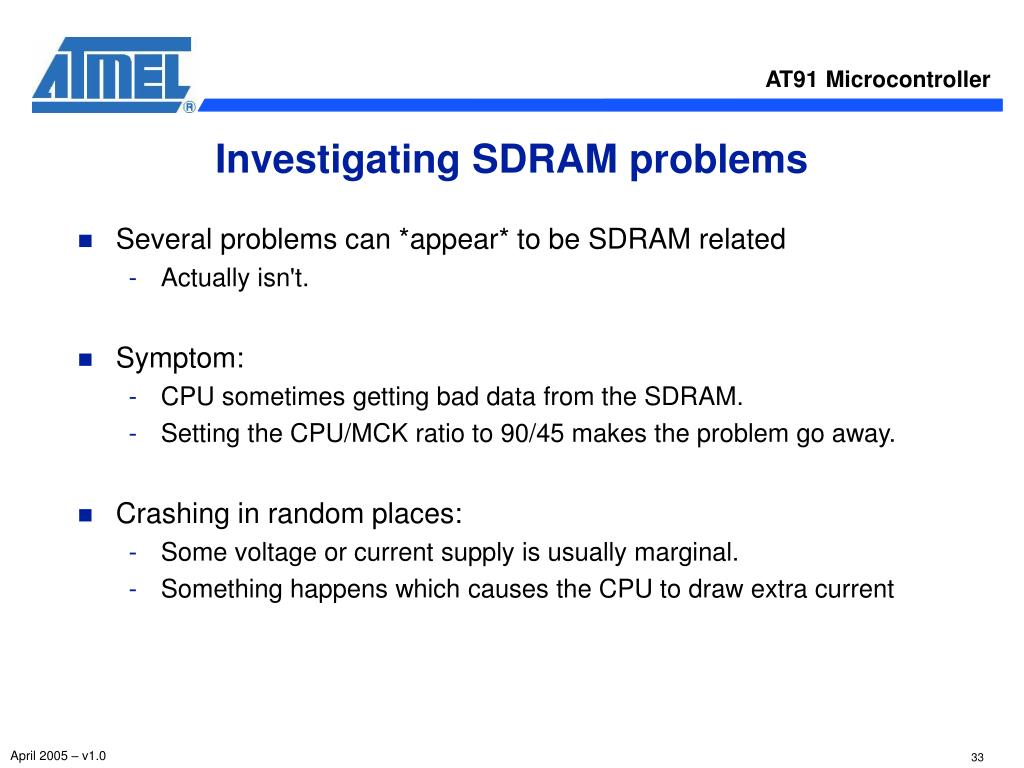

  33. Investigating SDRAM problems • Several problems can *appear* to be SDRAM related • Actually isn't. • Symptom: • CPU sometimes getting bad data from the SDRAM. • Setting the CPU/MCK ratio to 90/45 makes the problem go away. • Crashing in random places: • Some voltage or current supply is usually marginal. • Something happens which causes the CPU to draw extra current

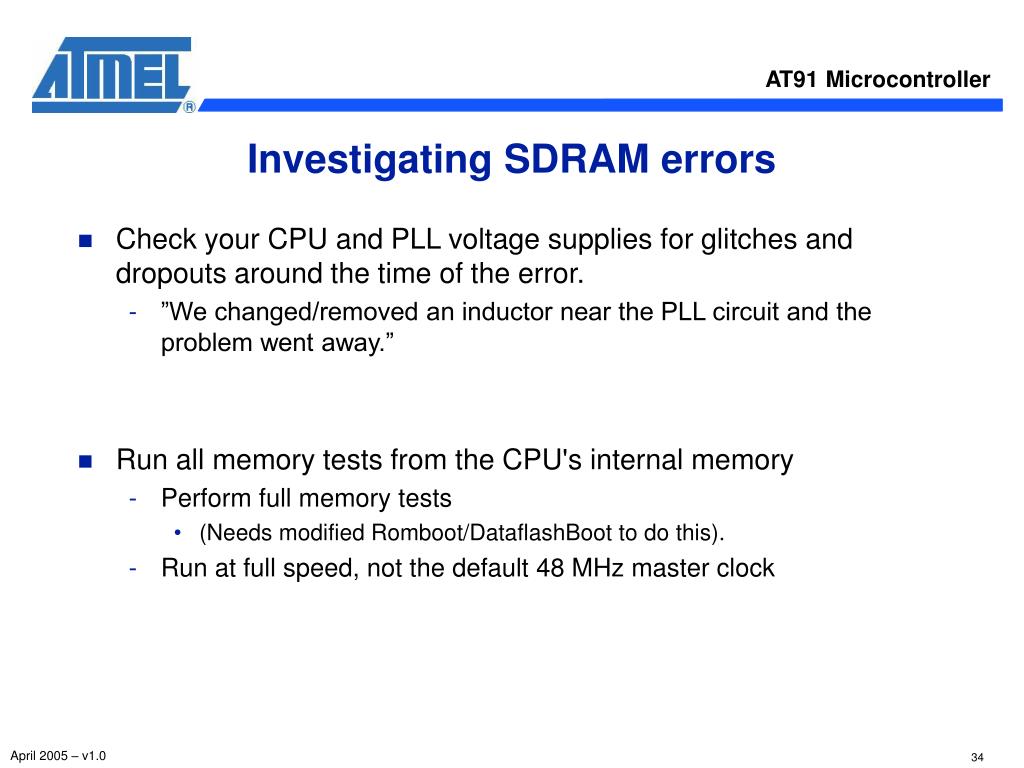

  34. Investigating SDRAM errors • Check your CPU and PLL voltage supplies for glitches and dropouts around the time of the error. • ”We changed/removed an inductor near the PLL circuit and the problem went away.” • Run all memory tests from the CPU's internal memory • Perform full memory tests • (Needs modified Romboot/DataflashBoot to do this). • Run at full speed, not the default 48 MHz master clock

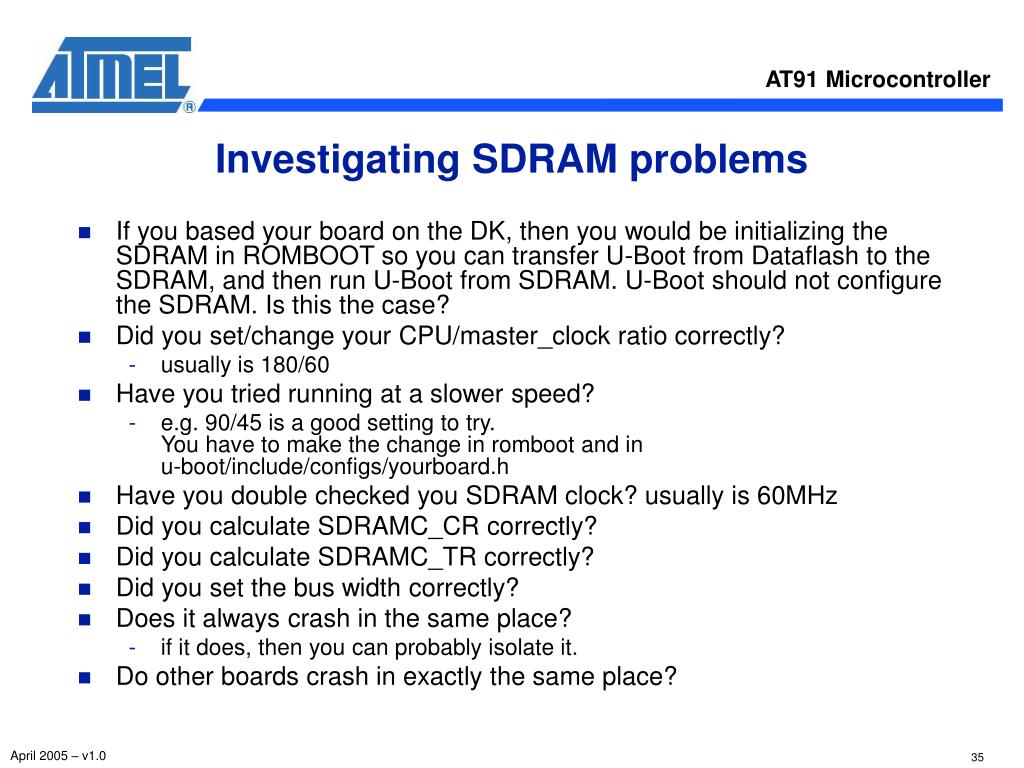

  35. Investigating SDRAM problems • If you based your board on the DK, then you would be initializing the SDRAM in ROMBOOT so you can transfer U-Boot from Dataflash to the SDRAM, and then run U-Boot from SDRAM. U-Boot should not configure the SDRAM. Is this the case? • Did you set/change your CPU/master_clock ratio correctly? • usually is 180/60 • Have you tried running at a slower speed? • e.g. 90/45 is a good setting to try. You have to make the change in romboot and in u-boot/include/configs/yourboard.h • Have you double checked you SDRAM clock? usually is 60MHz • Did you calculate SDRAMC_CR correctly? • Did you calculate SDRAMC_TR correctly? • Did you set the bus width correctly? • Does it always crash in the same place? • if it does, then you can probably isolate it. • Do other boards crash in exactly the same place?

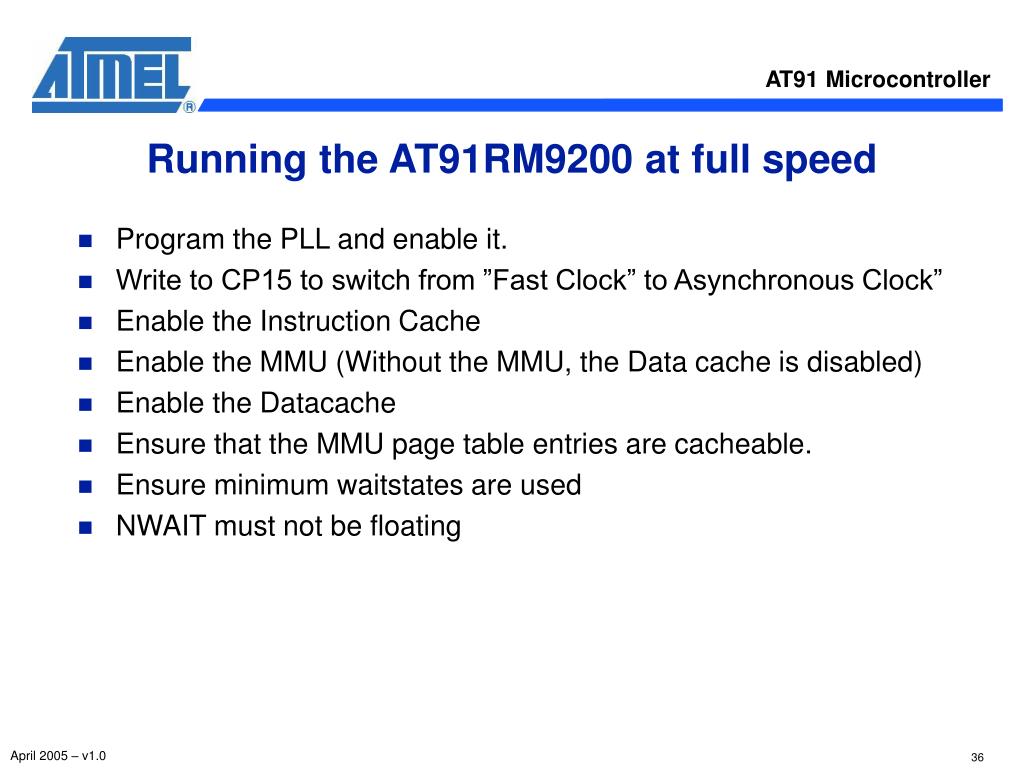

  36. Running the AT91RM9200 at full speed • Program the PLL and enable it. • Write to CP15 to switch from ”Fast Clock” to Asynchronous Clock” • Enable the Instruction Cache • Enable the MMU (Without the MMU, the Data cache is disabled) • Enable the Datacache • Ensure that the MMU page table entries are cacheable. • Ensure minimum waitstates are used • NWAIT must not be floating

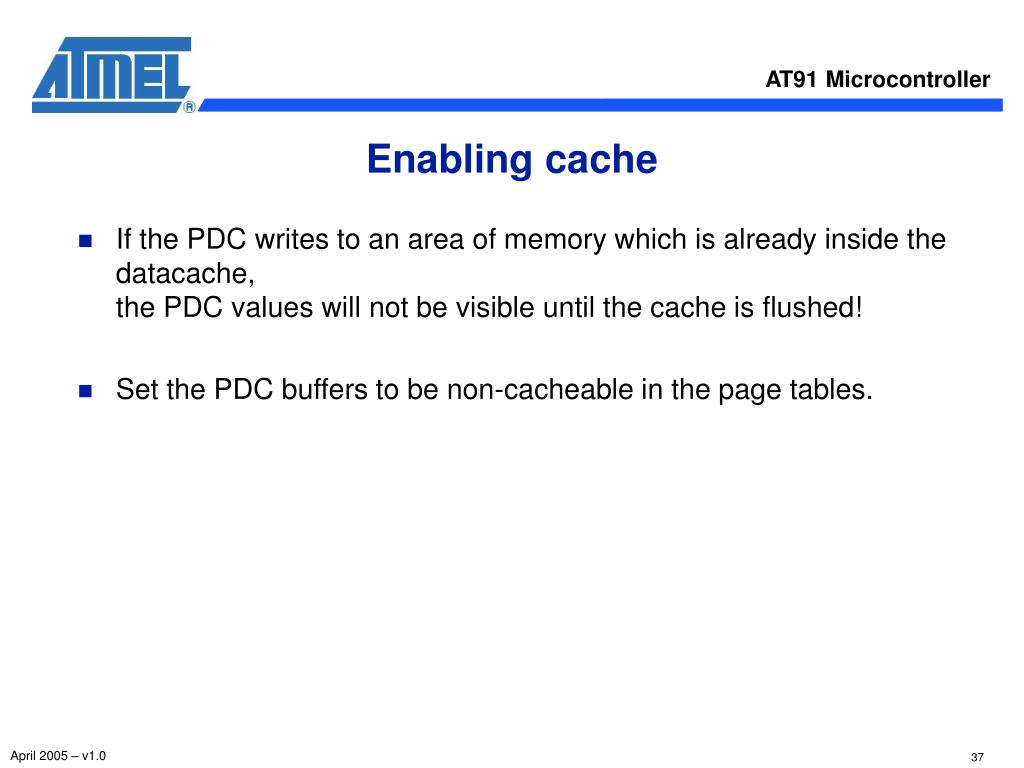

  37. Enabling cache • If the PDC writes to an area of memory which is already inside the datacache,the PDC values will not be visible until the cache is flushed! • Set the PDC buffers to be non-cacheable in the page tables.

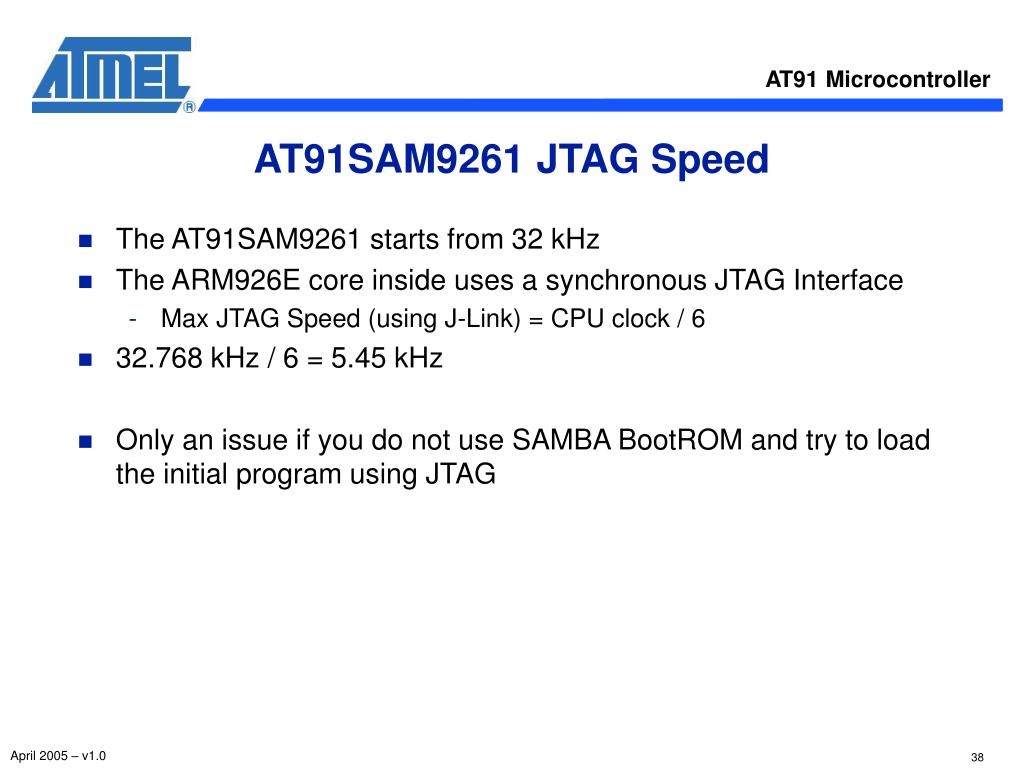

  38. AT91SAM9261 JTAG Speed • The AT91SAM9261 starts from 32 kHz • The ARM926E core inside uses a synchronous JTAG Interface • Max JTAG Speed (using J-Link) = CPU clock / 6 • 32.768 kHz / 6 = 5.45 kHz • Only an issue if you do not use SAMBA BootROM and try to load the initial program using JTAG

  39. ATSAM9261 BMS Pulldown • The Boot Mode Select pin "Rpullup" has a typo in the datasheet • (page 606).  • It claims:Minimum: 70kOhm, Typical: 10kOhm,  Maximum: 175kOhm... • Early tests point to 15 kOhm. • 1 kOhm pulldown was neccessary for one customer to forcebooting from external memory

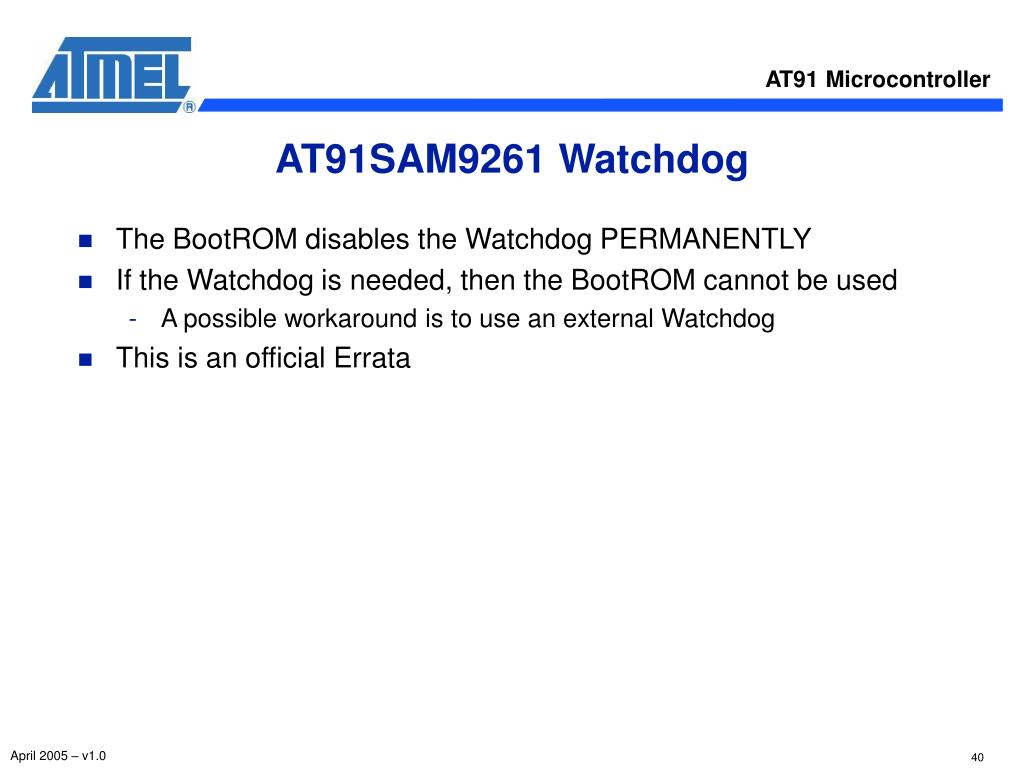

  40. AT91SAM9261 Watchdog • The BootROM disables the Watchdog PERMANENTLY • If the Watchdog is needed, then the BootROM cannot be used • A possible workaround is to use an external Watchdog • This is an official Errata

  41. SAM9261 Battery backup • The CPU needs to have ~1.2V operation. • A clock battery is 1.5V

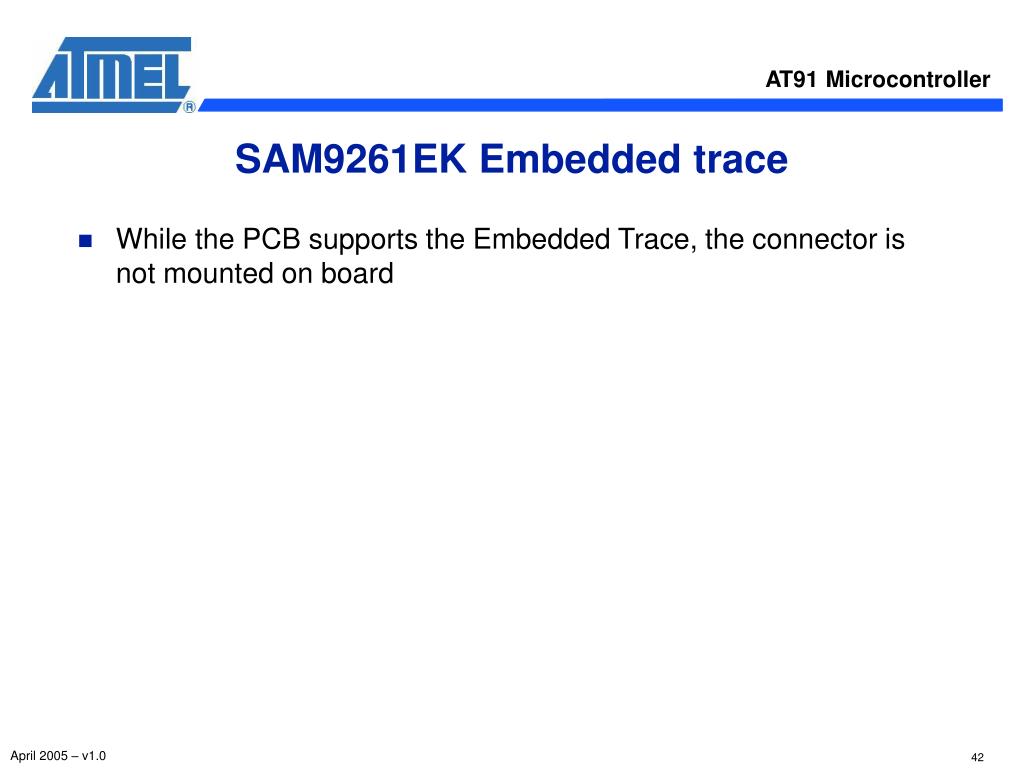

  42. SAM9261EK Embedded trace • While the PCB supports the Embedded Trace, the connector is not mounted on board

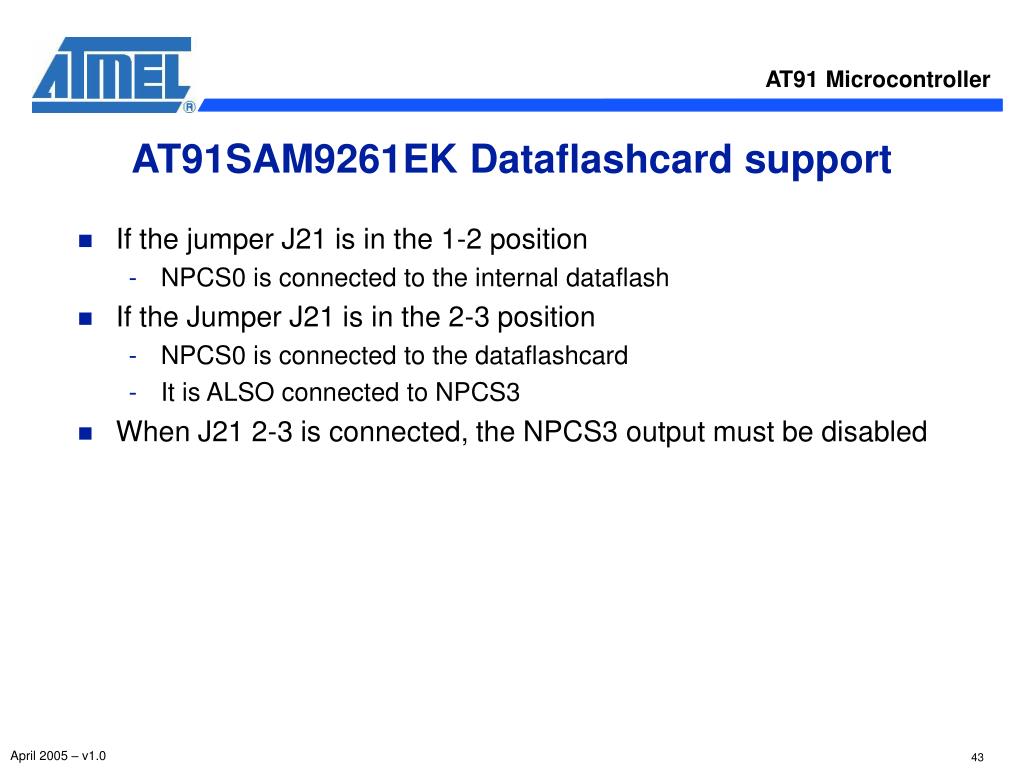

  43. AT91SAM9261EK Dataflashcard support • If the jumper J21 is in the 1-2 position • NPCS0 is connected to the internal dataflash • If the Jumper J21 is in the 2-3 position • NPCS0 is connected to the dataflashcard • It is ALSO connected to NPCS3 • When J21 2-3 is connected, the NPCS3 output must be disabled

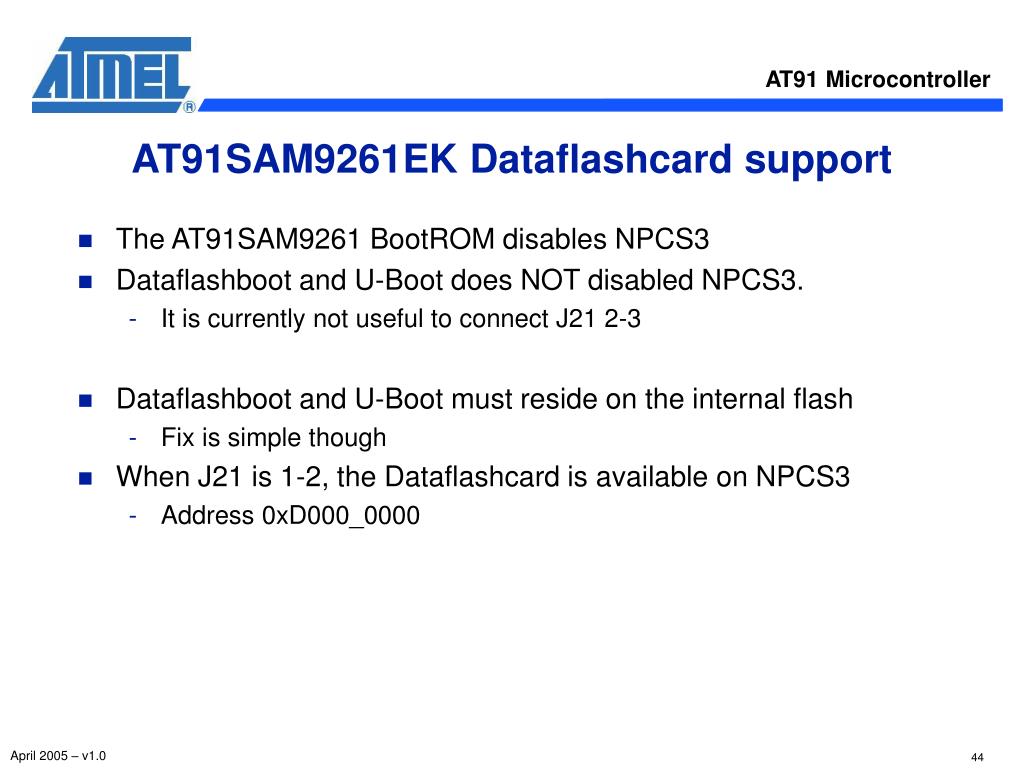

  44. AT91SAM9261EK Dataflashcard support • The AT91SAM9261 BootROM disables NPCS3 • Dataflashboot and U-Boot does NOT disabled NPCS3. • It is currently not useful to connect J21 2-3 • Dataflashboot and U-Boot must reside on the internal flash • Fix is simple though • When J21 is 1-2, the Dataflashcard is available on NPCS3 • Address 0xD000_0000

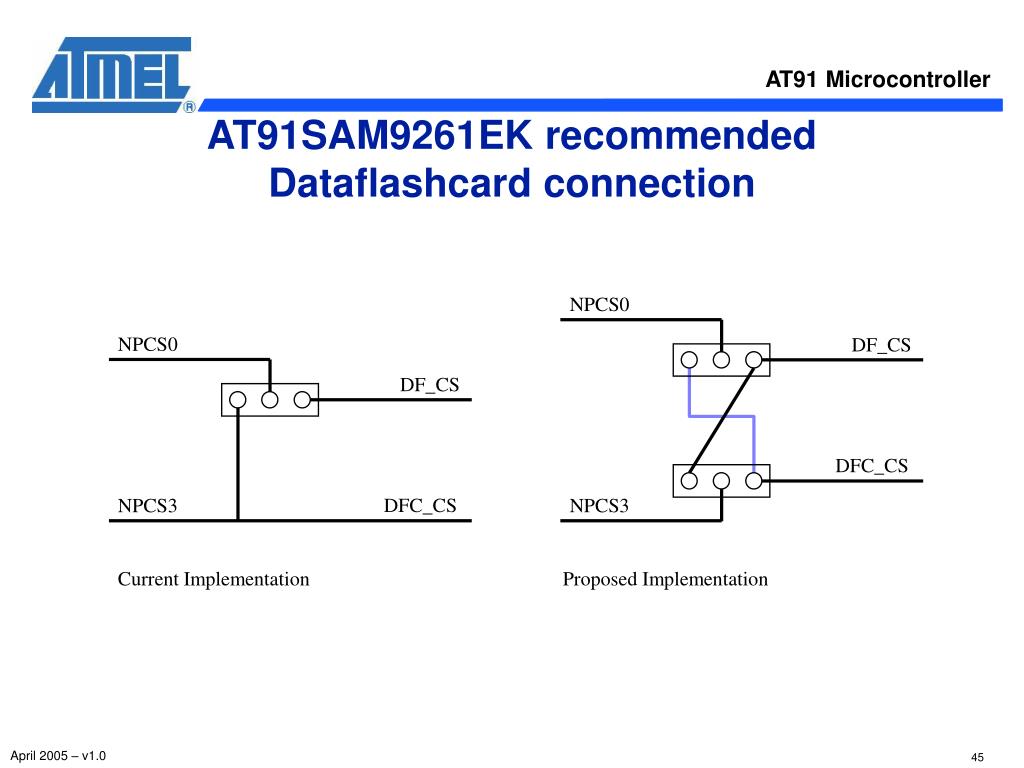

  45. AT91SAM9261EK recommended Dataflashcard connection NPCS0 NPCS0 DF_CS DF_CS DFC_CS DFC_CS NPCS3 NPCS3 Current Implementation Proposed Implementation
