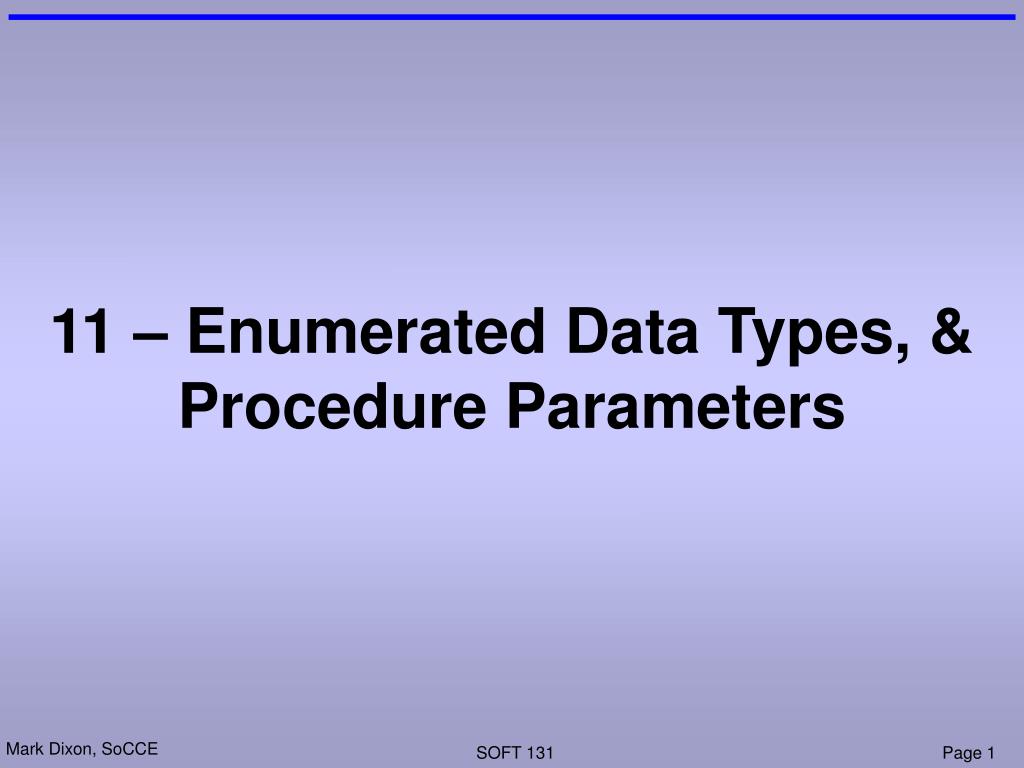

  1. 11 – Enumerated Data Types, & Procedure Parameters

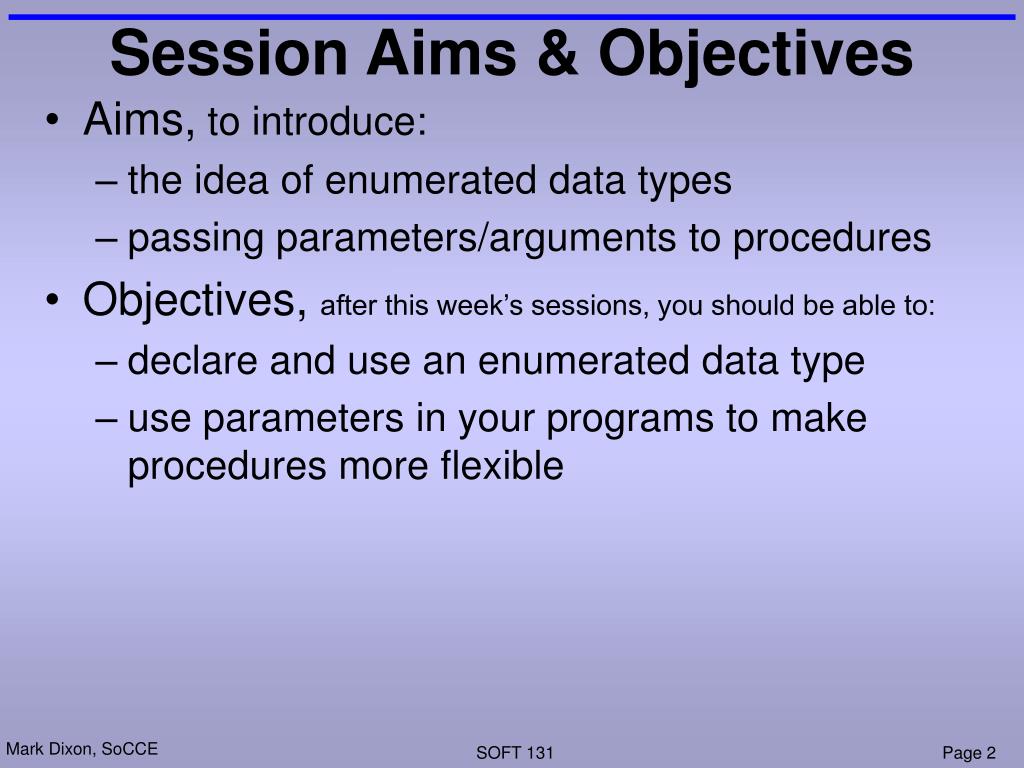

  2. Session Aims & Objectives • Aims, to introduce: • the idea of enumerated data types • passing parameters/arguments to procedures • Objectives, after this week’s sessions, you should be able to: • declare and use an enumerated data type • use parameters in your programs to make procedures more flexible

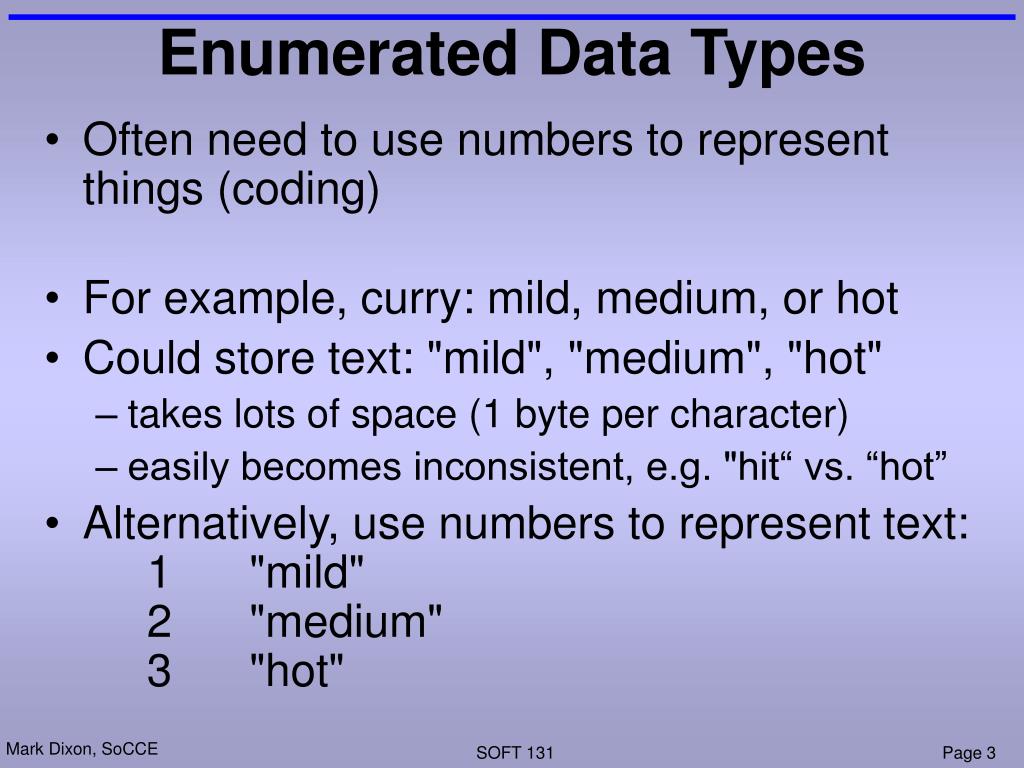

  3. Enumerated Data Types • Often need to use numbers to represent things (coding) • For example, curry: mild, medium, or hot • Could store text: "mild", "medium", "hot" • takes lots of space (1 byte per character) • easily becomes inconsistent, e.g. "hit“ vs. “hot” • Alternatively, use numbers to represent text: 1 "mild" 2 "medium" 3 "hot"

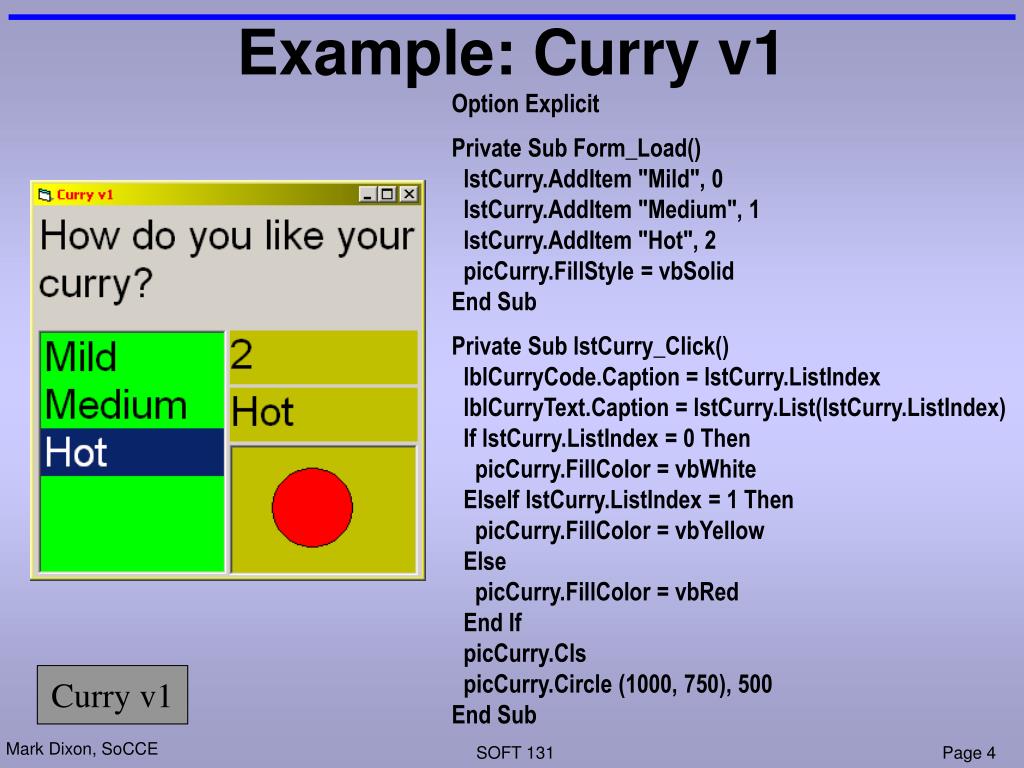

  4. Example: Curry v1 Option Explicit Private Sub Form_Load() lstCurry.AddItem "Mild", 0 lstCurry.AddItem "Medium", 1 lstCurry.AddItem "Hot", 2 picCurry.FillStyle = vbSolid End Sub Private Sub lstCurry_Click() lblCurryCode.Caption = lstCurry.ListIndex lblCurryText.Caption = lstCurry.List(lstCurry.ListIndex) If lstCurry.ListIndex = 0 Then picCurry.FillColor = vbWhite ElseIf lstCurry.ListIndex = 1 Then picCurry.FillColor = vbYellow Else picCurry.FillColor = vbRed End If picCurry.Cls picCurry.Circle (1000, 750), 500 End Sub Curry v1

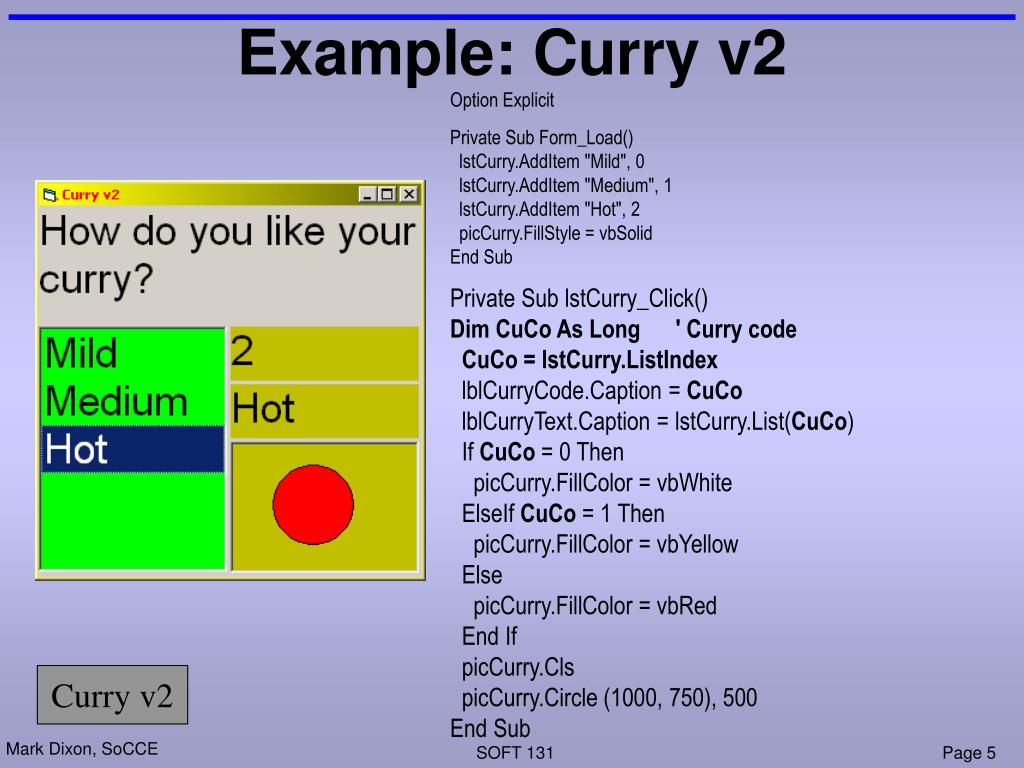

  5. Example: Curry v2 Option Explicit Private Sub Form_Load() lstCurry.AddItem "Mild", 0 lstCurry.AddItem "Medium", 1 lstCurry.AddItem "Hot", 2 picCurry.FillStyle = vbSolid End Sub Private Sub lstCurry_Click() Dim CuCo As Long ' Curry code CuCo = lstCurry.ListIndex lblCurryCode.Caption = CuCo lblCurryText.Caption = lstCurry.List(CuCo) If CuCo = 0 Then picCurry.FillColor = vbWhite ElseIf CuCo = 1 Then picCurry.FillColor = vbYellow Else picCurry.FillColor = vbRed End If picCurry.Cls picCurry.Circle (1000, 750), 500 End Sub Curry v2

  6. Example: Curry v3 Option Explicit Const Mild = 0 Const Medium = 1 Const Hot = 2 Private Sub Form_Load() lstCurry.AddItem "Mild", Mild lstCurry.AddItem "Medium", Medium lstCurry.AddItem "Hot", Hot picCurry.FillStyle = vbSolid End Sub Private Sub lstCurry_Click() Dim CuCo As Long ' Curry code CuCo = lstCurry.ListIndex lblCurryCode.Caption = CuCo lblCurryText.Caption = lstCurry.List(CuCo) If CuCo = Mild Then picCurry.FillColor = vbWhite ElseIf CuCo = Medium Then picCurry.FillColor = vbYellow Else picCurry.FillColor = vbRed End If picCurry.Cls picCurry.Circle (1000, 750), 500 End Sub Curry v3

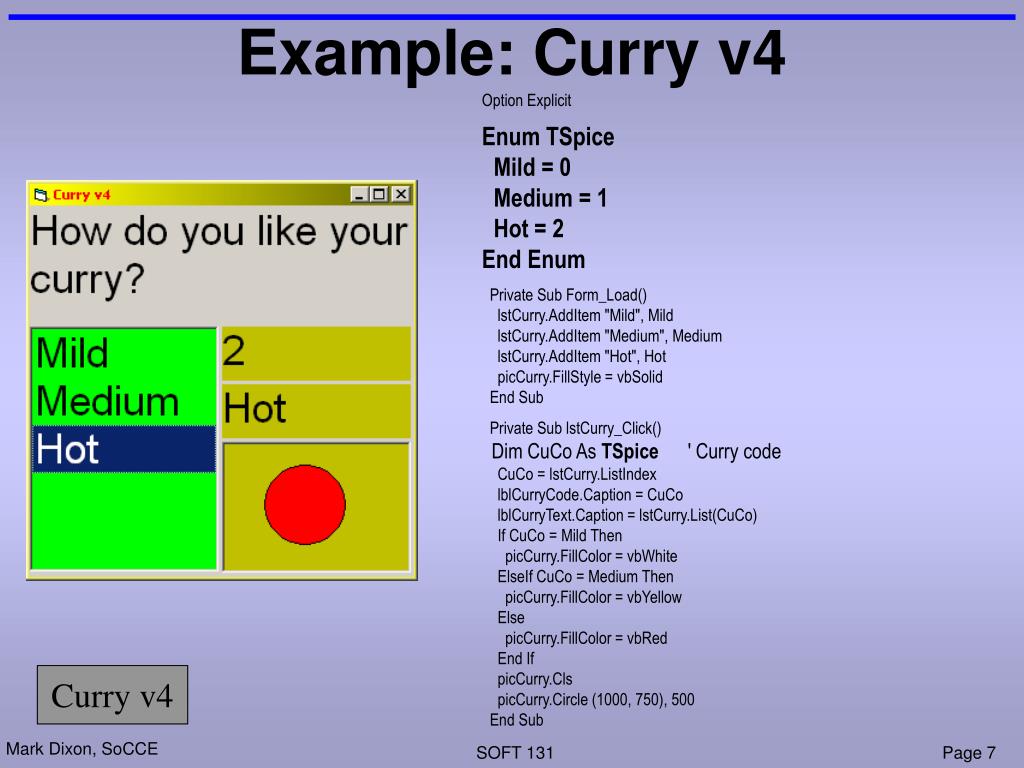

  7. Example: Curry v4 Option Explicit Enum TSpice Mild = 0 Medium = 1 Hot = 2 End Enum Private Sub Form_Load() lstCurry.AddItem "Mild", Mild lstCurry.AddItem "Medium", Medium lstCurry.AddItem "Hot", Hot picCurry.FillStyle = vbSolid End Sub Private Sub lstCurry_Click() Dim CuCo As TSpice ' Curry code CuCo = lstCurry.ListIndex lblCurryCode.Caption = CuCo lblCurryText.Caption = lstCurry.List(CuCo) If CuCo = Mild Then picCurry.FillColor = vbWhite ElseIf CuCo = Medium Then picCurry.FillColor = vbYellow Else picCurry.FillColor = vbRed End If picCurry.Cls picCurry.Circle (1000, 750), 500 End Sub Curry v4

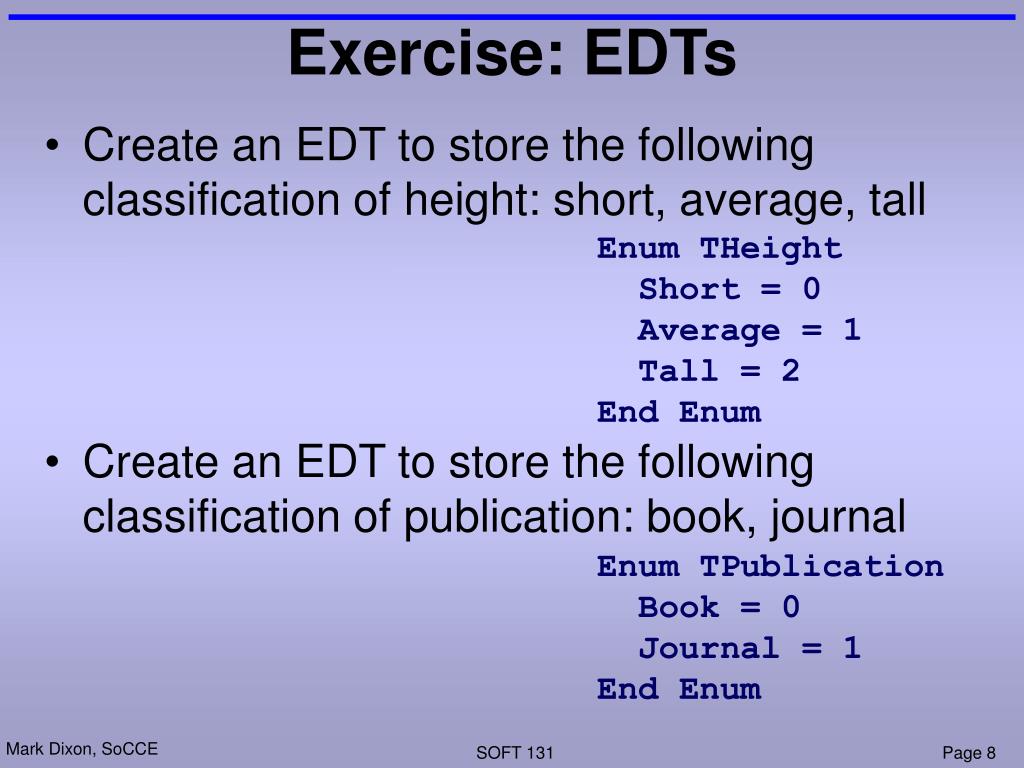

  8. Exercise: EDTs • Create an EDT to store the following classification of height: short, average, tall • Create an EDT to store the following classification of publication: book, journal Enum THeight Short = 0 Average = 1 Tall = 2 End Enum Enum TPublication Book = 0 Journal = 1 End Enum

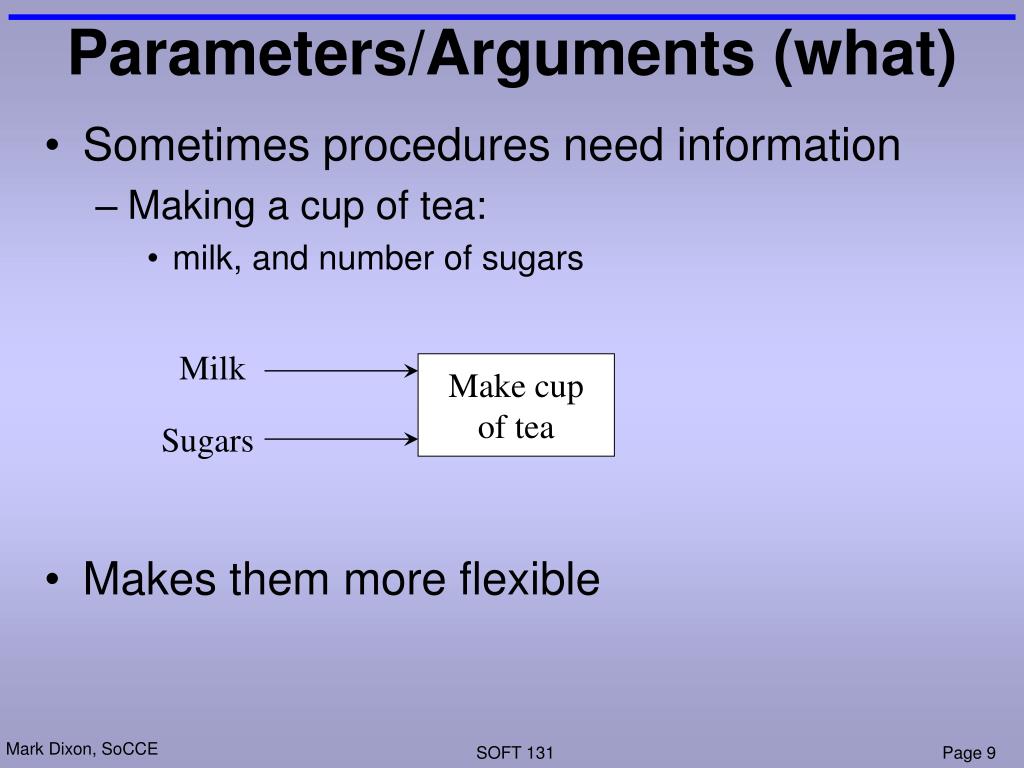

  9. Parameters/Arguments (what) Milk Make cup of tea Sugars • Sometimes procedures need information • Making a cup of tea: • milk, and number of sugars • Makes them more flexible

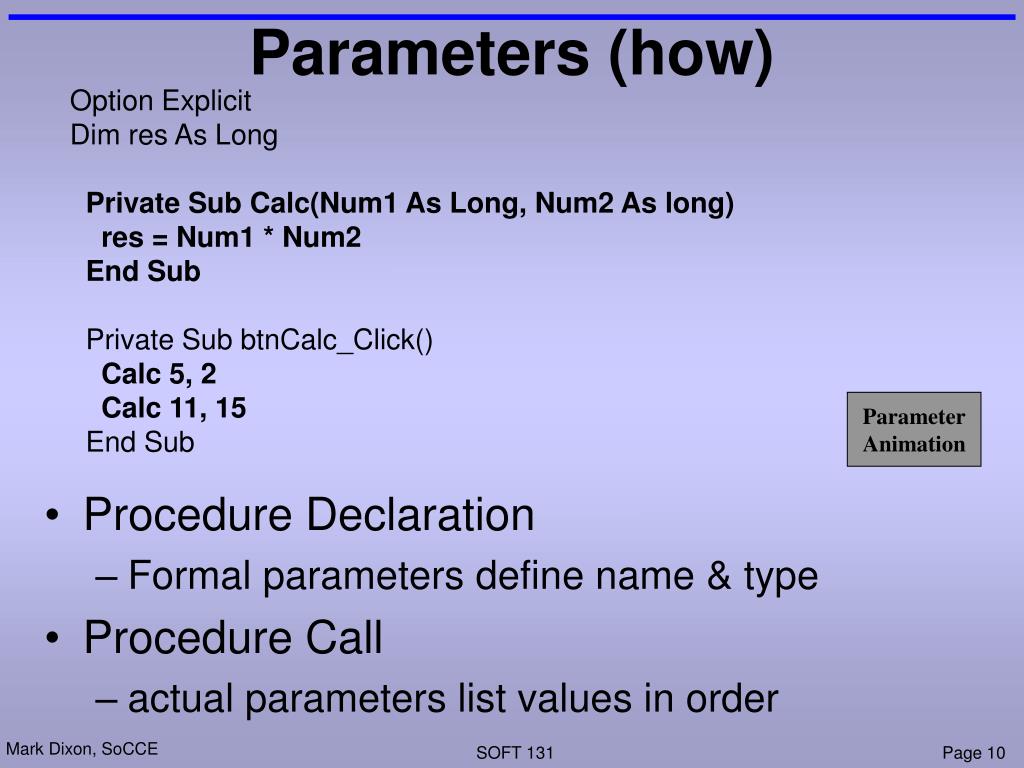

  10. Parameters (how) Option Explicit Dim res As Long Private Sub Calc(Num1 As Long, Num2 As long) res = Num1 * Num2 End Sub Private Sub btnCalc_Click() Calc 5, 2 Calc 11, 15 End Sub • Procedure Declaration • Formal parameters define name & type • Procedure Call • actual parameters list values in order Parameter Animation

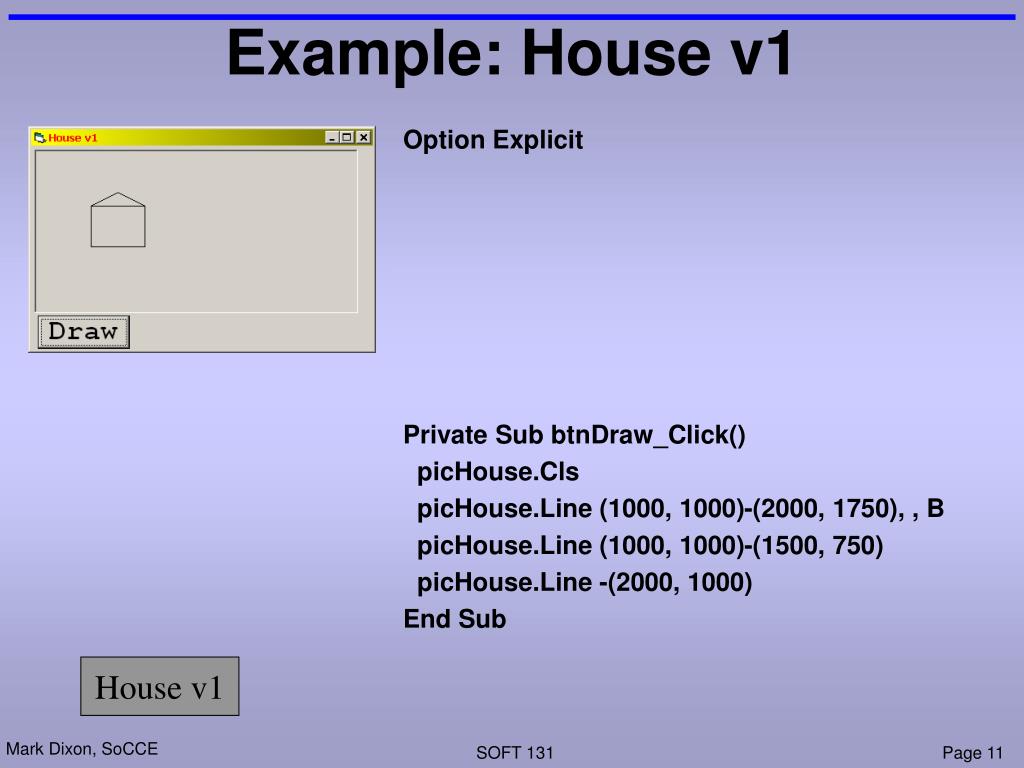

  11. Example: House v1 Option Explicit Private Sub btnDraw_Click() picHouse.Cls picHouse.Line (1000, 1000)-(2000, 1750), , B picHouse.Line (1000, 1000)-(1500, 750) picHouse.Line -(2000, 1000) End Sub House v1

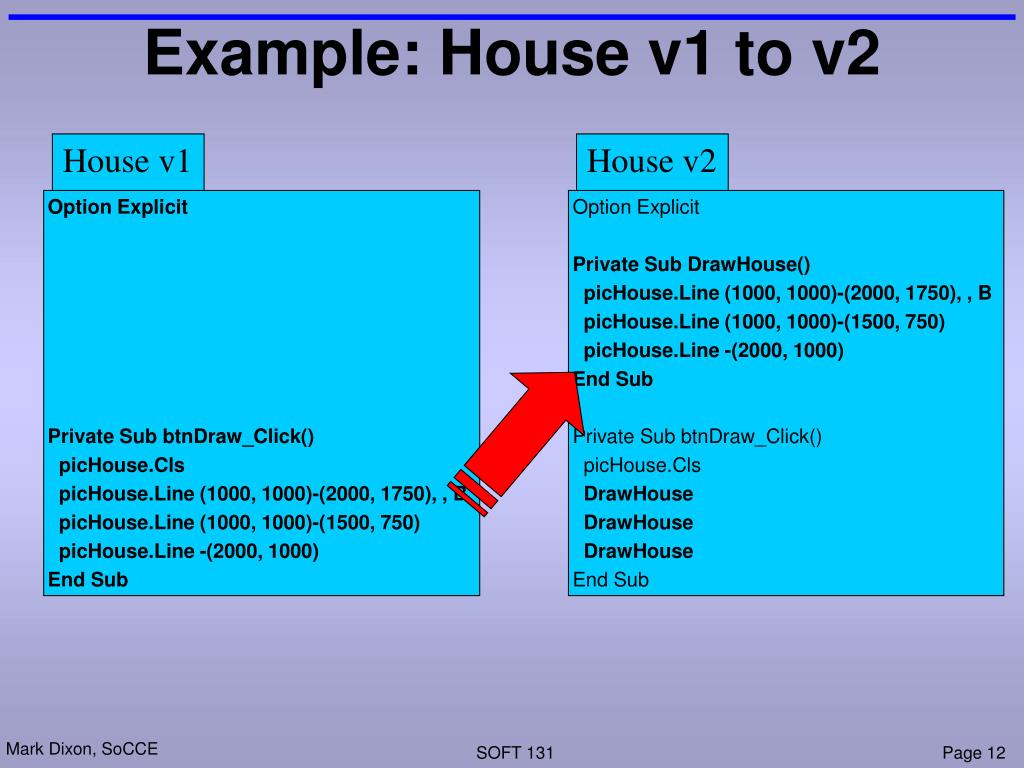

  12. Example: House v1 to v2 Option Explicit Private Sub btnDraw_Click() picHouse.Cls picHouse.Line (1000, 1000)-(2000, 1750), , B picHouse.Line (1000, 1000)-(1500, 750) picHouse.Line -(2000, 1000) End Sub House v1 House v2 Option Explicit Private Sub DrawHouse() picHouse.Line (1000, 1000)-(2000, 1750), , B picHouse.Line (1000, 1000)-(1500, 750) picHouse.Line -(2000, 1000) End Sub Private Sub btnDraw_Click() picHouse.Cls DrawHouse DrawHouse DrawHouse End Sub

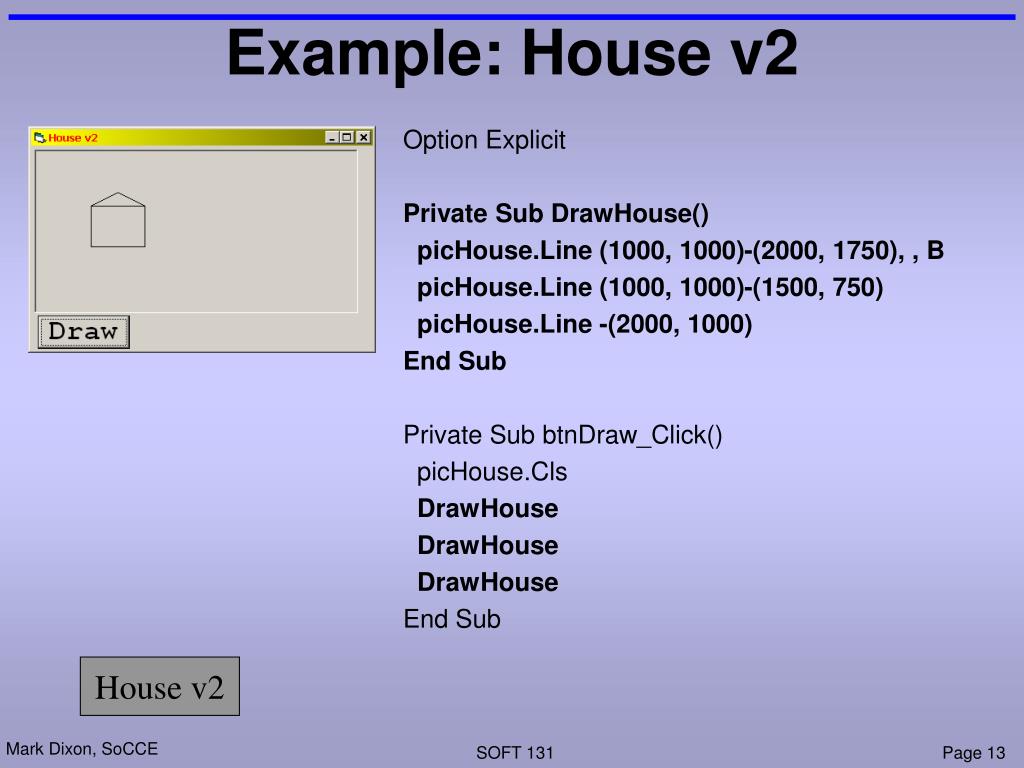

  13. Example: House v2 Option Explicit Private Sub DrawHouse() picHouse.Line (1000, 1000)-(2000, 1750), , B picHouse.Line (1000, 1000)-(1500, 750) picHouse.Line -(2000, 1000) End Sub Private Sub btnDraw_Click() picHouse.Cls DrawHouse DrawHouse DrawHouse End Sub House v2

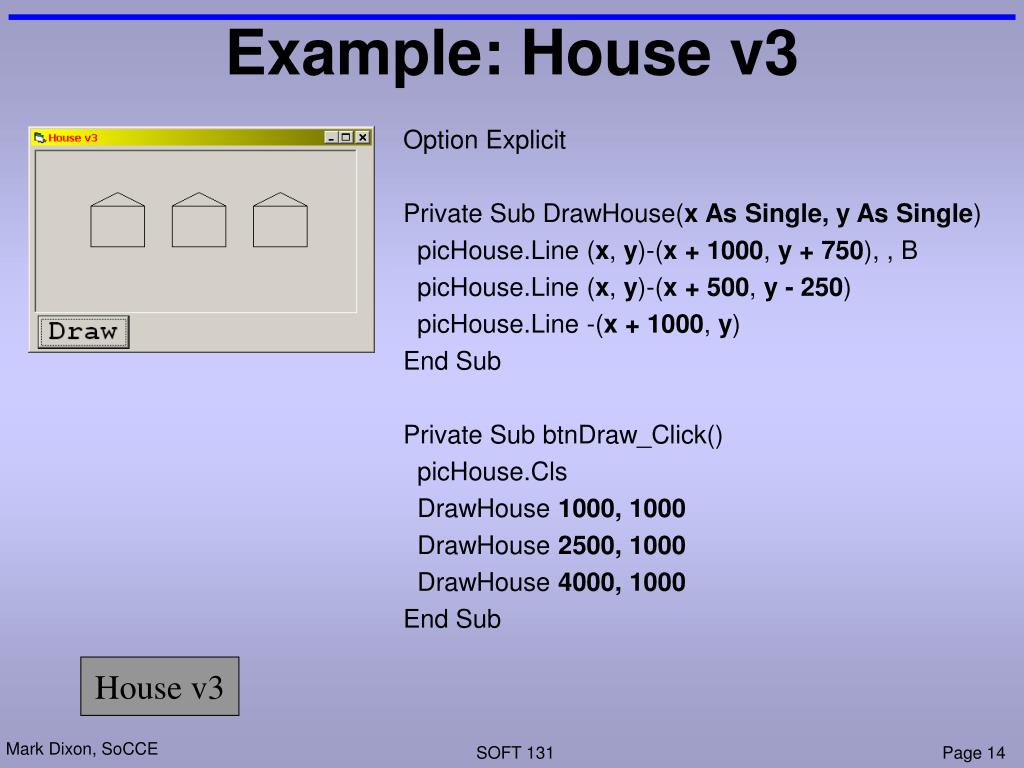

  14. Example: House v3 Option Explicit Private Sub DrawHouse(x As Single, y As Single) picHouse.Line (x, y)-(x + 1000, y + 750), , B picHouse.Line (x, y)-(x + 500, y - 250) picHouse.Line -(x + 1000, y) End Sub Private Sub btnDraw_Click() picHouse.Cls DrawHouse 1000, 1000 DrawHouse 2500, 1000 DrawHouse 4000, 1000 End Sub House v3

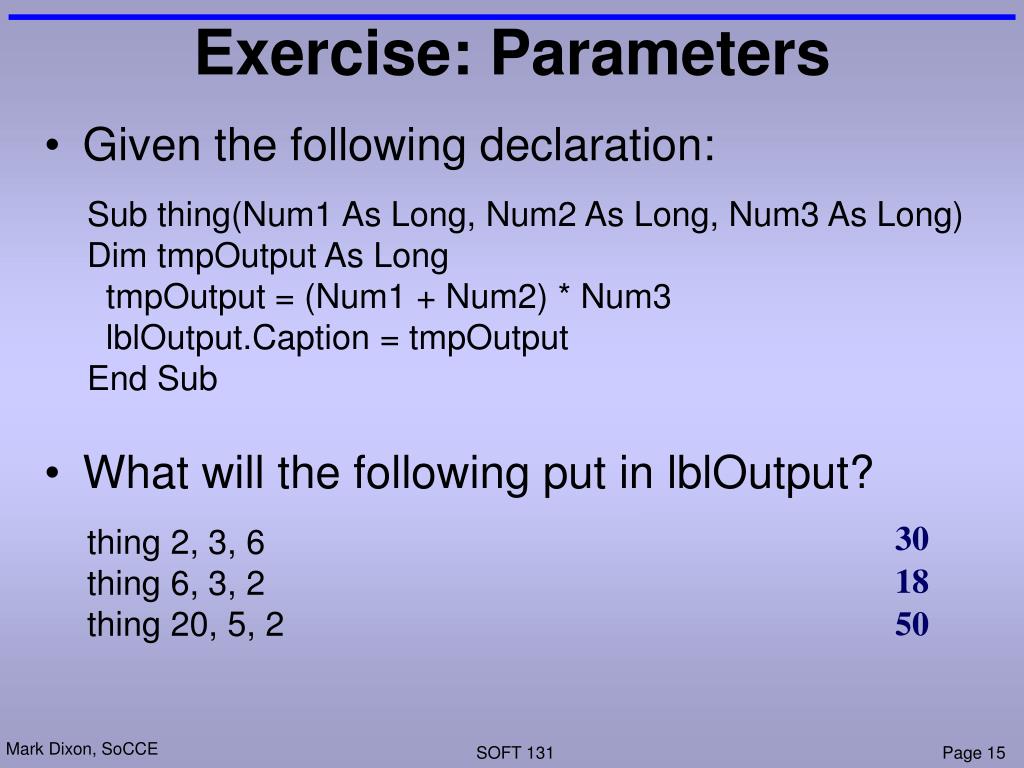

  15. Exercise: Parameters • Given the following declaration: • What will the following put in lblOutput? Sub thing(Num1 As Long, Num2 As Long, Num3 As Long) Dim tmpOutput As Long tmpOutput = (Num1 + Num2) * Num3 lblOutput.Caption = tmpOutput End Sub thing 2, 3, 6 thing 6, 3, 2 thing 20, 5, 2 30 18 50

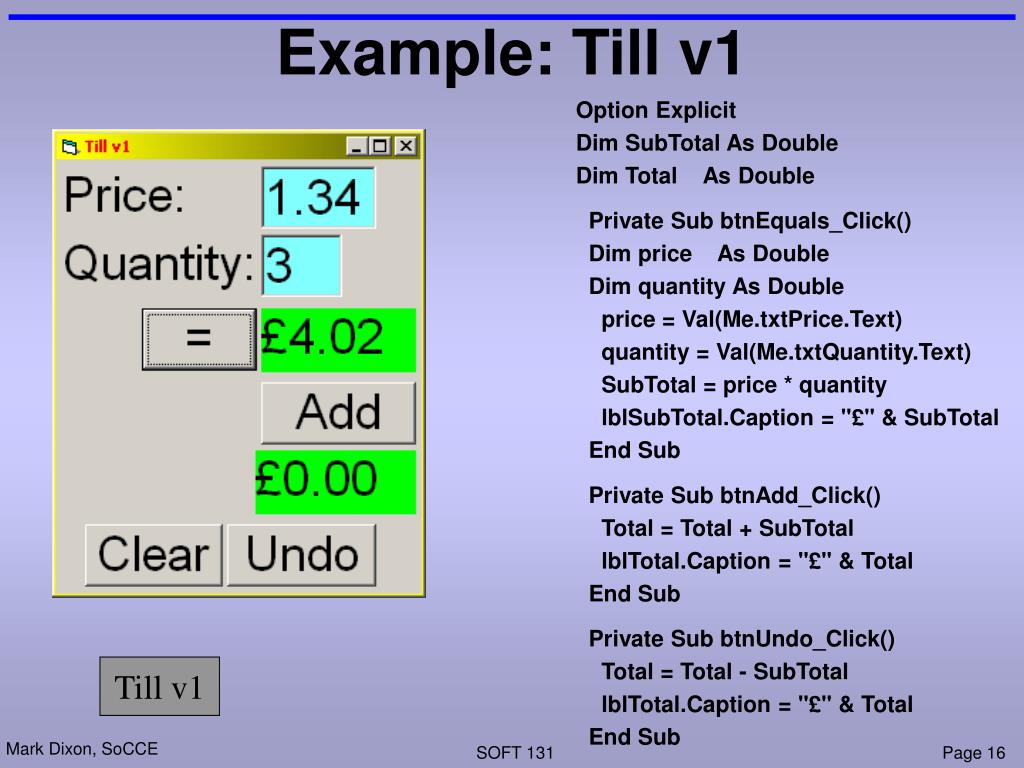

  16. Example: Till v1 Option Explicit Dim SubTotal As Double Dim Total As Double Private Sub btnEquals_Click() Dim price As Double Dim quantity As Double price = Val(Me.txtPrice.Text) quantity = Val(Me.txtQuantity.Text) SubTotal = price * quantity lblSubTotal.Caption = "£" & SubTotal End Sub Private Sub btnAdd_Click() Total = Total + SubTotal lblTotal.Caption = "£" & Total End Sub Private Sub btnUndo_Click() Total = Total - SubTotal lblTotal.Caption = "£" & Total End Sub Till v1

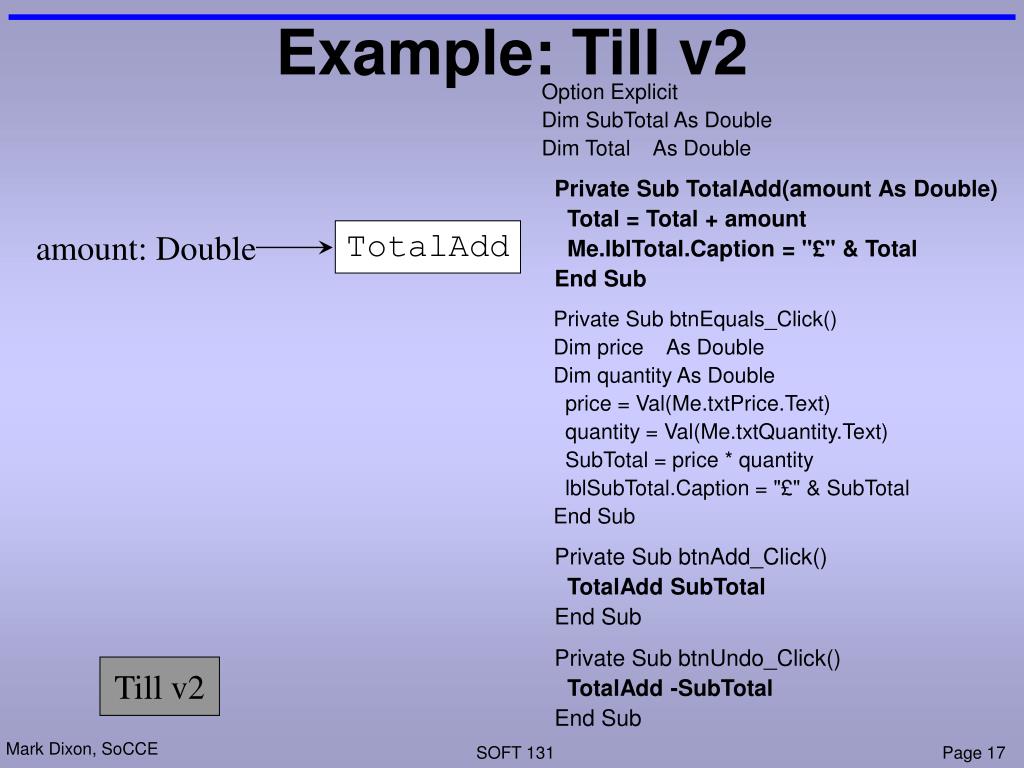

  17. Example: Till v2 Option Explicit Dim SubTotal As Double Dim Total As Double Private Sub TotalAdd(amount As Double) Total = Total + amount Me.lblTotal.Caption = "£" & Total End Sub Private Sub btnEquals_Click() Dim price As Double Dim quantity As Double price = Val(Me.txtPrice.Text) quantity = Val(Me.txtQuantity.Text) SubTotal = price * quantity lblSubTotal.Caption = "£" & SubTotal End Sub Private Sub btnAdd_Click() TotalAdd SubTotal End Sub Private Sub btnUndo_Click() TotalAdd -SubTotal End Sub TotalAdd amount: Double Till v2

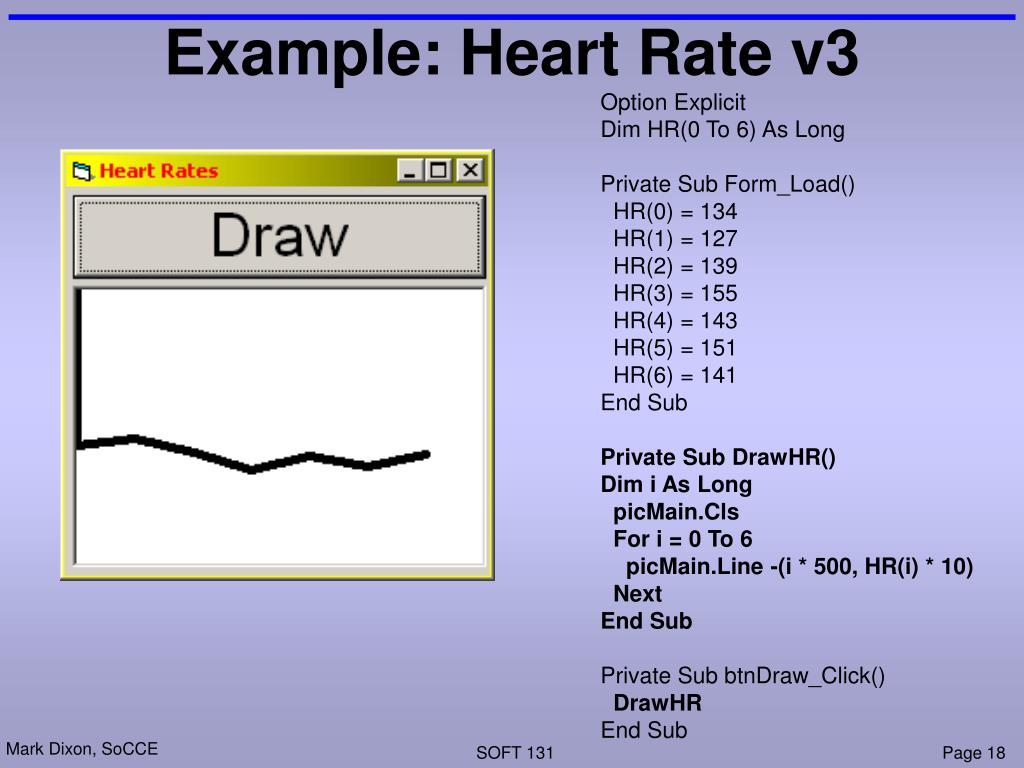

  18. Example: Heart Rate v3 Option Explicit Dim HR(0 To 6) As Long Private Sub Form_Load() HR(0) = 134 HR(1) = 127 HR(2) = 139 HR(3) = 155 HR(4) = 143 HR(5) = 151 HR(6) = 141 End Sub Private Sub DrawHR() Dim i As Long picMain.Cls For i = 0 To 6 picMain.Line -(i * 500, HR(i) * 10) Next End Sub Private Sub btnDraw_Click() DrawHR End Sub

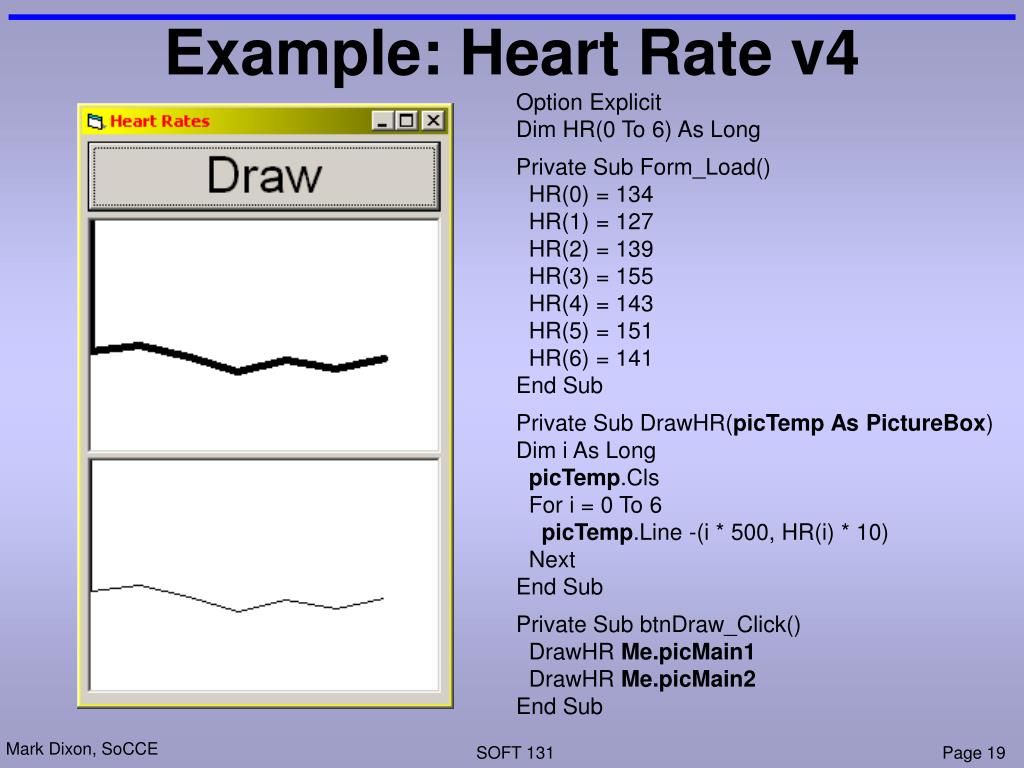

  19. Example: Heart Rate v4 Option Explicit Dim HR(0 To 6) As Long Private Sub Form_Load() HR(0) = 134 HR(1) = 127 HR(2) = 139 HR(3) = 155 HR(4) = 143 HR(5) = 151 HR(6) = 141 End Sub Private Sub DrawHR(picTemp As PictureBox) Dim i As Long picTemp.Cls For i = 0 To 6 picTemp.Line -(i * 500, HR(i) * 10) Next End Sub Private Sub btnDraw_Click() DrawHR Me.picMain1 DrawHR Me.picMain2 End Sub
