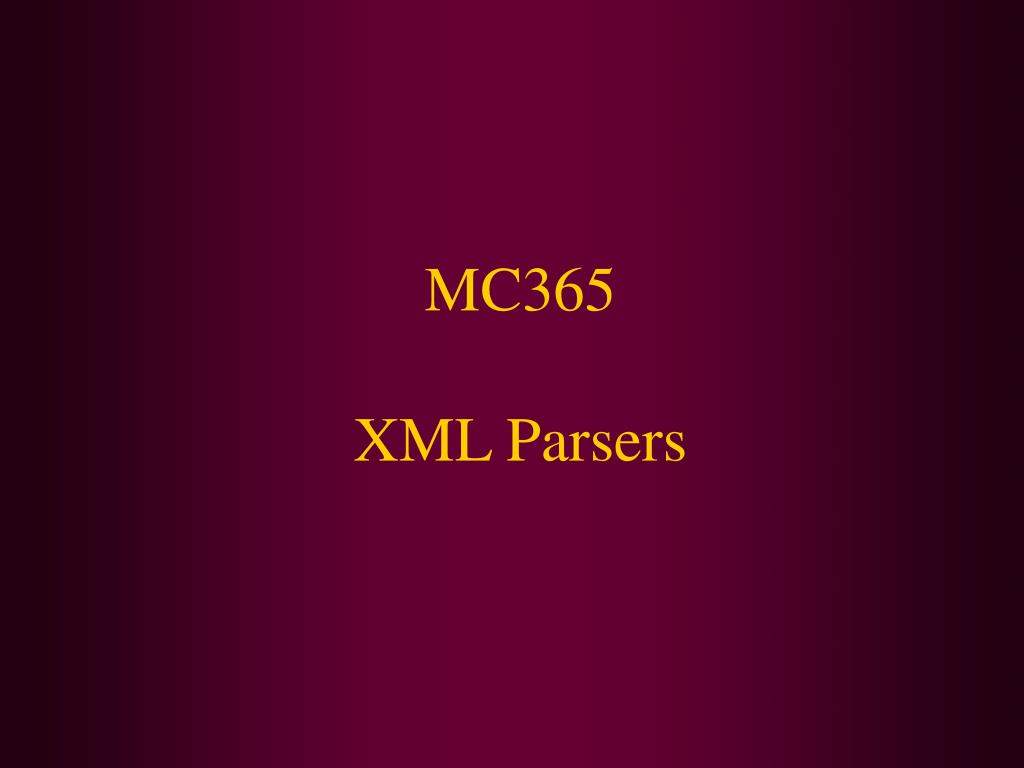

  1. MC365XML Parsers

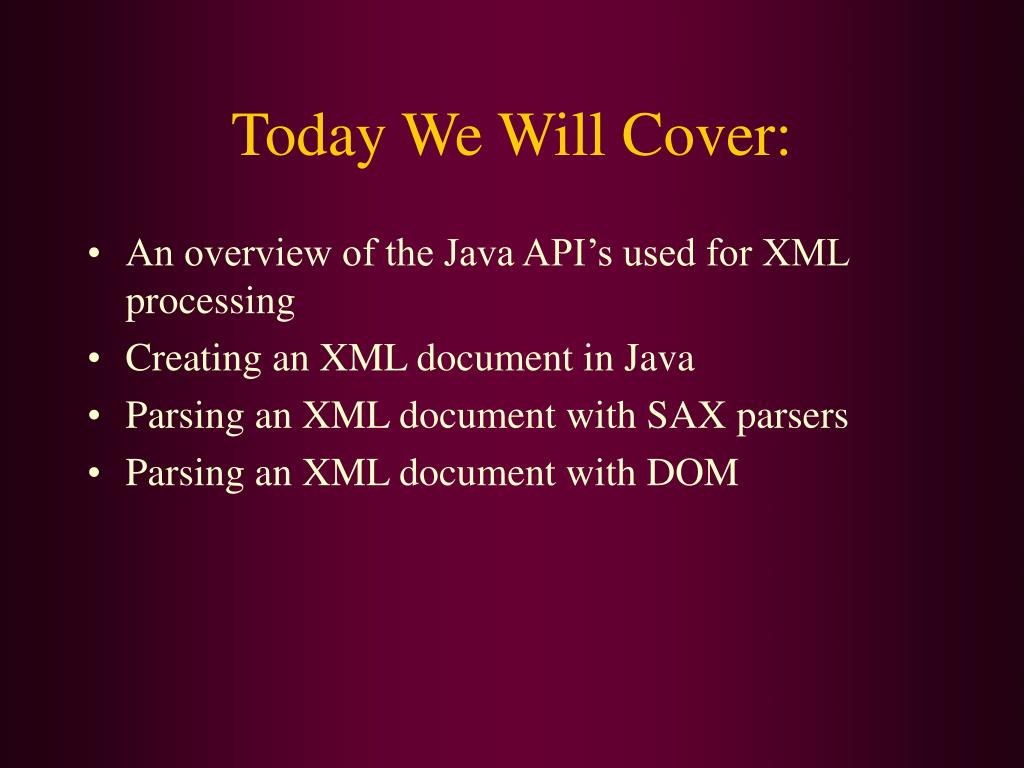

  2. Today We Will Cover: • An overview of the Java API’s used for XML processing • Creating an XML document in Java • Parsing an XML document with SAX parsers • Parsing an XML document with DOM

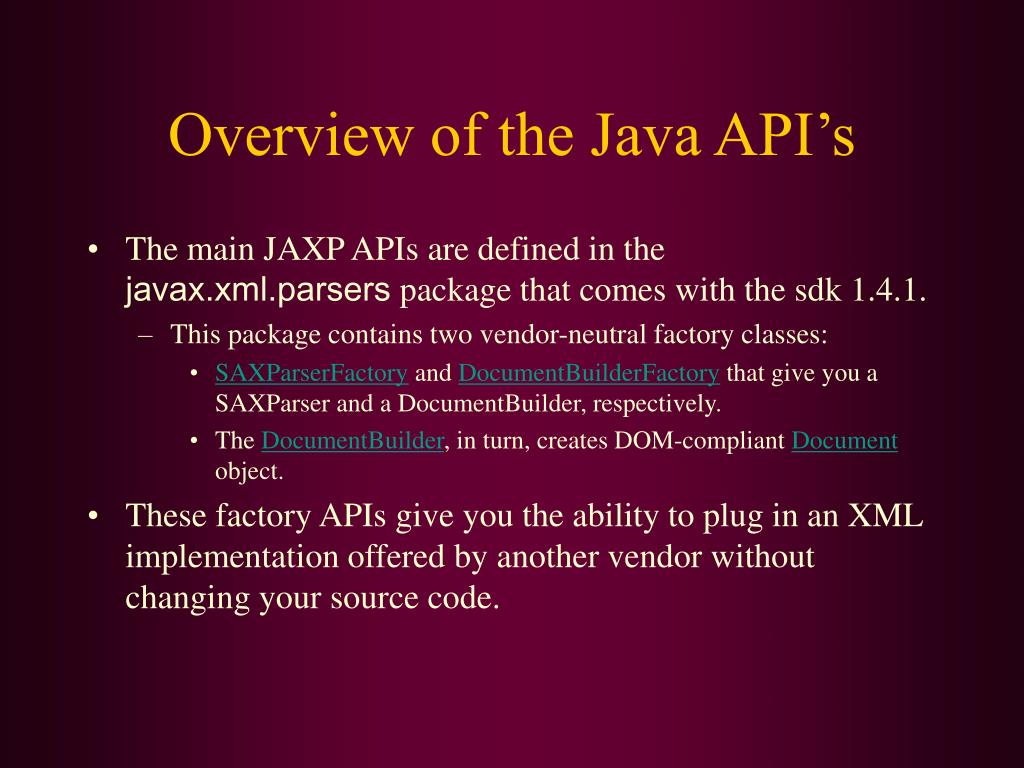

  3. Overview of the Java API’s • The main JAXP APIs are defined in the javax.xml.parsers package that comes with the sdk 1.4.1. • This package contains two vendor-neutral factory classes: • SAXParserFactory and DocumentBuilderFactory that give you a SAXParser and a DocumentBuilder, respectively. • The DocumentBuilder, in turn, creates DOM-compliant Document object. • These factory APIs give you the ability to plug in an XML implementation offered by another vendor without changing your source code.

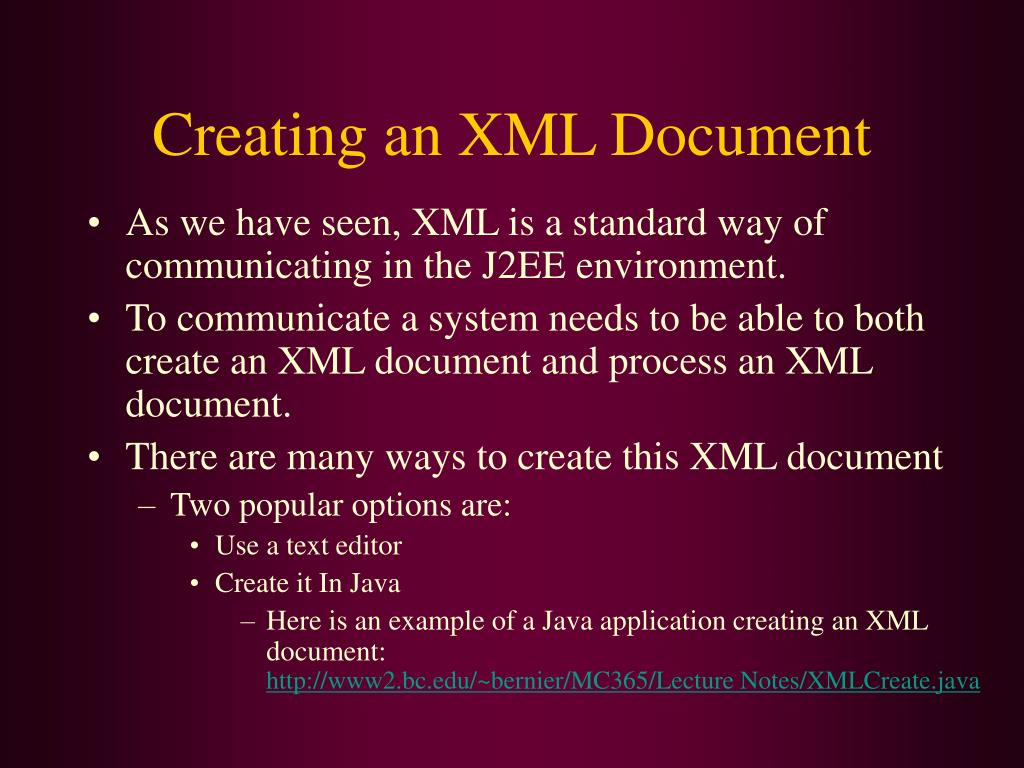

  4. Creating an XML Document • As we have seen, XML is a standard way of communicating in the J2EE environment. • To communicate a system needs to be able to both create an XML document and process an XML document. • There are many ways to create this XML document • Two popular options are: • Use a text editor • Create it In Java • Here is an example of a Java application creating an XML document:http://www2.bc.edu/~bernier/MC365/Lecture Notes/XMLCreate.java

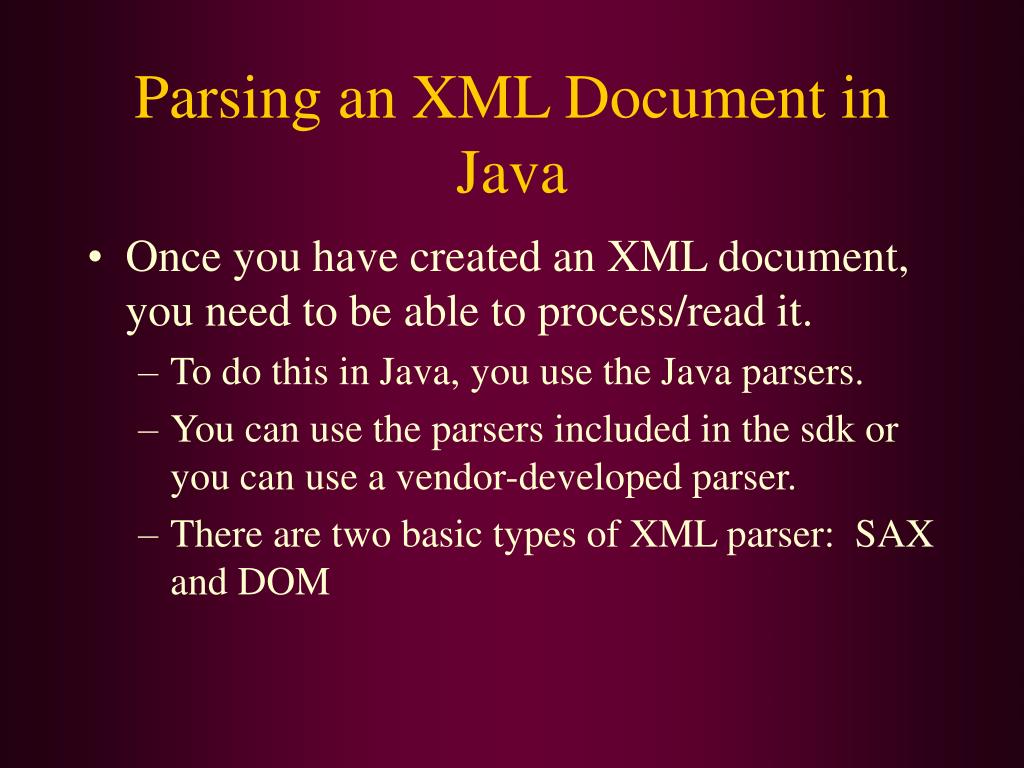

  5. Parsing an XML Document in Java • Once you have created an XML document, you need to be able to process/read it. • To do this in Java, you use the Java parsers. • You can use the parsers included in the sdk or you can use a vendor-developed parser. • There are two basic types of XML parser: SAX and DOM

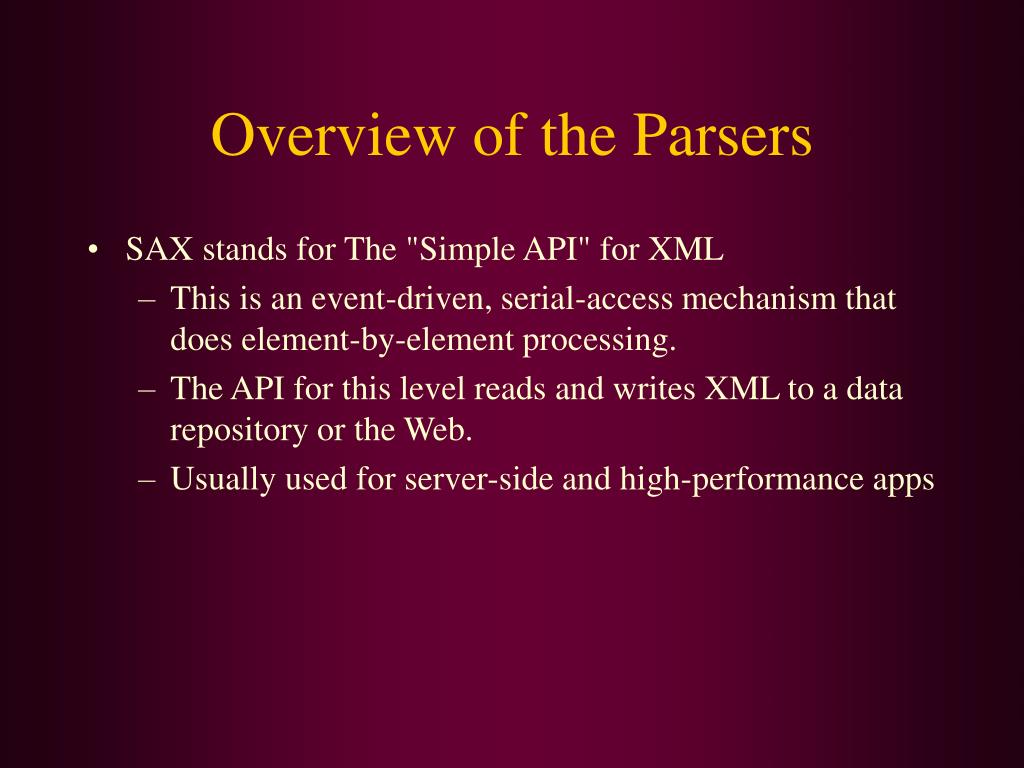

  6. Overview of the Parsers • SAX stands for The "Simple API" for XML • This is an event-driven, serial-access mechanism that does element-by-element processing. • The API for this level reads and writes XML to a data repository or the Web. • Usually used for server-side and high-performance apps

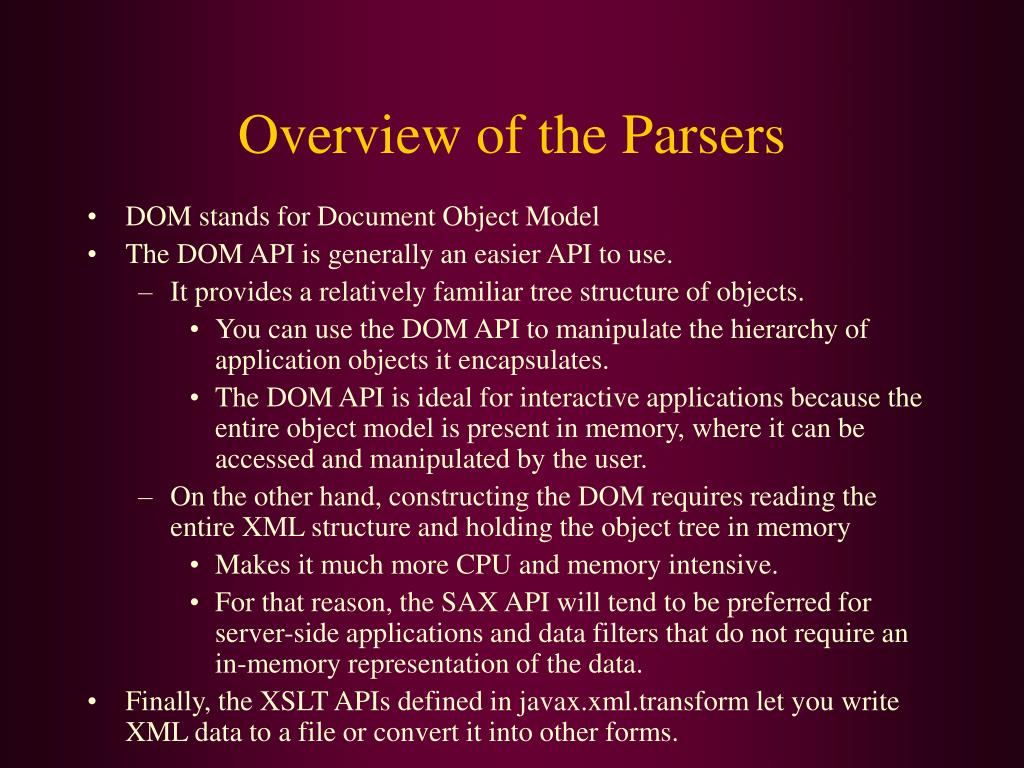

  7. Overview of the Parsers • DOM stands for Document Object Model • The DOM API is generally an easier API to use. • It provides a relatively familiar tree structure of objects. • You can use the DOM API to manipulate the hierarchy of application objects it encapsulates. • The DOM API is ideal for interactive applications because the entire object model is present in memory, where it can be accessed and manipulated by the user. • On the other hand, constructing the DOM requires reading the entire XML structure and holding the object tree in memory • Makes it much more CPU and memory intensive. • For that reason, the SAX API will tend to be preferred for server-side applications and data filters that do not require an in-memory representation of the data. • Finally, the XSLT APIs defined in javax.xml.transform let you write XML data to a file or convert it into other forms.

  8. Overview of the Parser Packages • The SAX and DOM APIs are defined by XML-DEV group and by the W3C, respectively. The libraries that define those APIs are: • javax.xml.parsers • The JAXP APIs, which provide a common interface for different vendors' SAX and DOM parsers. • org.w3c.dom • Defines the Document class (a DOM), as well as classes for all of the components of a DOM. • org.xml.sax • Defines the basic SAX APIs. • javax.xml.transform • Defines the XSLT APIs that let you transform XML into other forms.

  9. Parsing an XML Document with SAX Parsers • Serial Access with the Simple API for XML (SAX) • Use the SAX parser if the data structures have already been determined, and you are writing a server application or an XML filter that needs to do the fastest possible processing. • Here is an example of a Java application using a SAX parser to process an incoming XML document:http://www2.bc.edu/~bernier/MC365/Lecture Notes/SAXexample.java

  10. Parsing an XML Document with DOM • If you need to build an object tree from XML data so you can manipulate it in an application, or convert an in-memory tree of objects to XML. • Here is an example Java application using DOM:http://www2.bc.edu/~bernier/MC365/Lecture Notes/DomEcho02.java

  11. Where to Get More Information • There are many, many sites on XML, XML Parsers, XSLT and other related technology. • Some good ones are:http://java.sun.com/xml/tutorial_intro.htmlhttp://java.sun.com/webservices/docs/1.1/tutorial/doc/index.html
