  1. MOSS 2007 Application Development Certification preparation By: Usman Zafar Malik [MCTS : Microsoft Office SharePoint Server 2007]

  2. Agenda • Policy • Auditing • Creating Business Intelligence(BI) Solutions by using MOSS • Working with KPIs

  3. Policy • What is the Policy? • Policy Architecture. • How to define Policy? • How to implement the Policy by using Code?

  4. What is the Policy? • Policy is a collection of instruction sets for one or more policy features. • Each policy feature provides a specific kind of content management functionality. • You can assign a policy to either a content type or a list.

  5. Policy architecture

  6. Policy Item • Each policy feature that you want to include in a policy, you include an instruction set, called a policy item, in the policy. • Policy item is an XML node within a policy that contains the settings for only one policy feature, includes like ID, NAME of Policy Feature.

  7. Policy Feature • A policy feature is an assembly that provides some content management functionality to Office SharePoint Server 2007. • You can include the same policy feature in multiple policies. • A policy feature can use one or more policy resources • Example: Audit. Expiration ,Labels, Bar Codes

  8. Policy Resource • A policy resource is an assembly that assists the policy feature by providing some functionality the feature needs. • For example, the Bar Code policy feature uses a Bar Code Provider, which generates the bar codes, as a policy resource. • Expiration policy feature applies an Expiration Formula Calculator as a policy resource to determine a document's actual expiration date. Policy feature also uses an Expiration Action policy resource to determine what action to take when an item reaches its expiration date. • Policy Resources are not shared between Policy Features.

  9. How to define policy? • Implement Interface IPolicyFeature . • Reference: • Microsoft.Office.Policy.dll • NameSpace: • Microsoft.Office.RecordsManagement.InformationPolicy • Include these methods • OnCustomDataChange • OnGlobalCustomDataChange • ProcessListItem • ProcessListItemOnRemove • Register • UnRegister

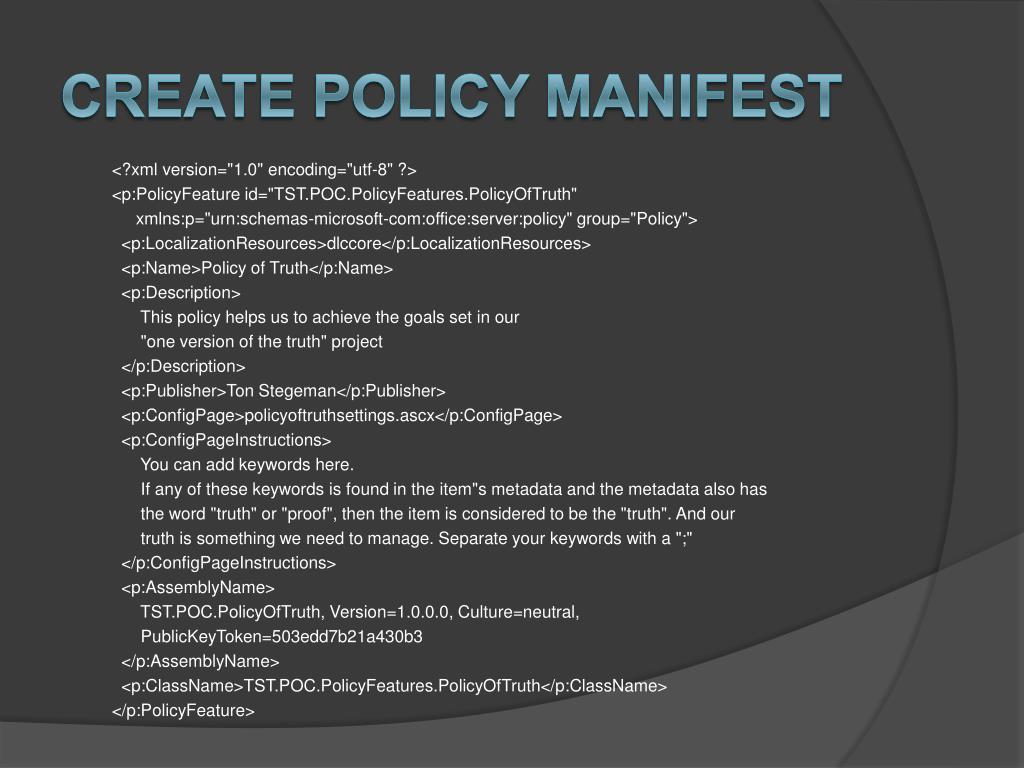

  10. Create policy Manifest <?xml version="1.0" encoding="utf-8" ?> <p:PolicyFeature id="TST.POC.PolicyFeatures.PolicyOfTruth"     xmlns:p="urn:schemas-microsoft-com:office:server:policy" group="Policy">   <p:LocalizationResources>dlccore</p:LocalizationResources>   <p:Name>Policy of Truth</p:Name>   <p:Description>       This policy helps us to achieve the goals set in our       "one version of the truth" project   </p:Description>   <p:Publisher>Ton Stegeman</p:Publisher>   <p:ConfigPage>policyoftruthsettings.ascx</p:ConfigPage>   <p:ConfigPageInstructions>       You can add keywords here.       If any of these keywords is found in the item"s metadata and the metadata also has       the word "truth" or "proof", then the item is considered to be the "truth". And our       truth is something we need to manage. Separate your keywords with a ";"   </p:ConfigPageInstructions>   <p:AssemblyName>       TST.POC.PolicyOfTruth, Version=1.0.0.0, Culture=neutral,       PublicKeyToken=503edd7b21a430b3   </p:AssemblyName>   <p:ClassName>TST.POC.PolicyFeatures.PolicyOfTruth</p:ClassName> </p:PolicyFeature>

  11. Create policy Control     <!-- _lcid="1033" _version="12.0.4518" _dal="1" -->     <!-- _LocalBinding -->     <%@ Assembly Name="TST.POC.PolicyOfTruth, Version=1.0.0.0, Culture=neutral, PublicKeyToken=503edd7b21a430b3"%>     <%@ Register Tagprefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"             Assembly="Microsoft.SharePoint, Version=12.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>     <%@ Register Tagprefix="Utilities" Namespace="Microsoft.SharePoint.Utilities"             Assembly="Microsoft.SharePoint, Version=12.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>     <%@ Import Namespace="Microsoft.SharePoint" %>     <%@ Control Language="C#" Inherits="TST.POC.PolicyOfTruth.PolicyOfTruthSettings" %>     <p>     <table cellpadding="0" class="ms-authoringcontrols">         <tr>             <td>&nbsp;</td>             <td><asp:Label runat="server" Text="Enter your keywords, separated by ";""></asp:Label></td>         </tr>         <tr>             <td>&nbsp;</td>             <td>             <asp:TextBox id="TextBoxKeywords" runat="server" MaxLength="1024"                     class="ms-input" ToolTip="Enter your keywords here." />             <asp:RequiredFieldValidator                         id="RequiredValidatorKeywords"                         ControlToValidate="TextBoxKeywords"                         ErrorMessage="At least one keyword is required."                         Text="Please enter on or more keywords separated by a semicolon."                         EnableClientScript="false"                         runat="server"/>             </td>         </tr>     </table>     </p>

  12. Create policy Control • Creating the Policy Control you have to inherit the control from abstract class CustomSettingsControl. • Important part are “CustomData” property and “onLoad” Method. • In the “CustomData” property the xml is generated with the values of the controls. • The “OnLoad” reads the xml string and sets the values for the usercontrol(s) in your editor.

  13. Deploy Policy • Add the Control in the “LAYOUTS” folder of the MOSS Deployed Path. • Deploy the Assemblies.

  14. Register Policy • Register your policy in the Policy Catalog. PolicyFeatureCollectionpolicyFeatures = PolicyCatalog.FeatureList; foreach (PolicyFeaturepolicyFeature in policyFeatures)         {             if (policyFeature.Id=="TST.POC.PolicyFeatures.PolicyOfTruth")             { MessageBox.Show("Policy was already installed");                 return;             }         }         string manifest = System.IO.File.ReadAllText("manifest.xml"); PolicyFeature.ValidateManifest(manifest); PolicyFeatureCollection.Add(manifest);

  15. UnRegister Policy • Unregister your policy in the Policy Catalog. PolicyFeatureCollectionpolicyFeatures = PolicyCatalog.FeatureList; foreach (PolicyFeaturepolicyFeature in policyFeatures)         {             if (policyFeature.Id == "TST.POC.PolicyFeatures.PolicyOfTruth")             { PolicyFeatureCollection.Delete(policyFeature.Id);                 return;             }         }

  16. Building Policy XML <p:Policy xmlns:p="office.server.policy" local="false" id="62bb137b-e4c5-4dab-9b90-c9b3e54384c5">         <p:Name>The truth about SharePoint</p:Name>         <p:Description>This policy manages "truth" items on SharePoint in our portal</p:Description>         <p:Statement>           SharePoint list items and documents that are considered to be the truth about SharePoint           Technologies, will be managed by our "truth manager".         </p:Statement>         <p:PolicyItems>           <p:PolicyItem featureId="TST.POC.PolicyFeatures.PolicyOfTruth">             <p:Name>Policy of Truth</p:Name>             <p:Description>This policy helps us to achieve the goals set in our "one version of the                 truth" project</p:Description>             <p:CustomData>               <data>                 <keywords>SharePoint; MOSS; WSS</keywords>               </data>             </p:CustomData>           </p:PolicyItem>         </p:PolicyItems>       </p:Policy>

  17. MOSS Demo • Demo (Label Policy)

  18. Useful Policy Links • http://msdn2.microsoft.com/en-us/library/ms499244.aspx • http://jack.whyyoung.com/blog/www-sharepointblogs-com-MainFeed-aspx-GroupID-3/MOSS-Custom-policies-part-1--Creat.htm

  19. auditing • What is the Auditing? • Demos

  20. Auditing ? • Audits are performed to ascertain the validity and reliability of information. • Track data such as which users viewed and updated records and documents, check-in, check-out etc.

  21. Demos Demo - Create a Custom Audit Report Demo - Use auditing feature in MOSS Demo - Create a Custom File Submission Demo - Create a Custom Legal Hold

  22. Custom File Submission • Implement interface “IRouter” • Only one method “OnSubmitFile” • Reference: • Microsoft.Office.Policy.dll • NameSpace: • Microsoft.Office.RecordsManagement.RecordsRepository

  23. Useful Custom File Submission links • http://blog.thekid.me.uk/archive/2007/04/15/creating-a-custom-router-for-records-center-in-sharepoint.aspx

  24. Business intelligence Solution in MOSS 2007 • What is Business Intelligence? • How many ways we can use BI in MOSS?

  25. Business intelligence ? • The promise of Microsoft BI is to help decision makers at all levels throughout your organization have confidence that their decisions support your company’s goals and initiatives.

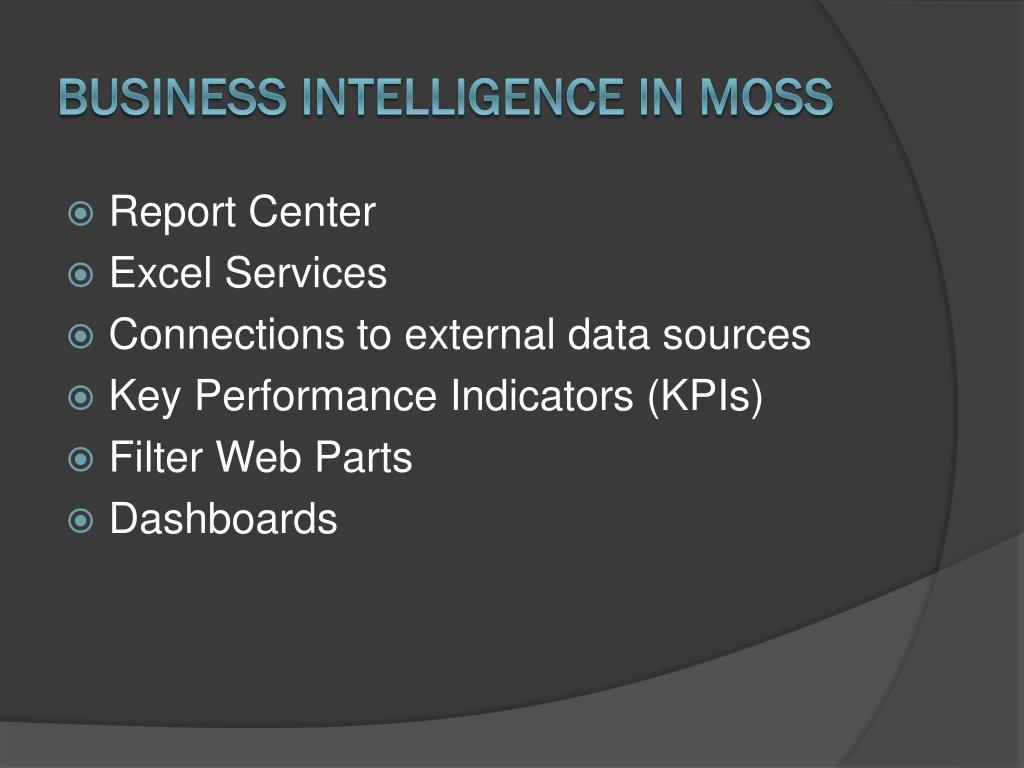

  26. Business intelligence in moss • Report Center • Excel Services • Connections to external data sources • Key Performance Indicators (KPIs) • Filter Web Parts • Dashboards

  27. Report center • The Report Center site provides a central location for business-intelligence-related information.

  28. Excel Services • Excel Services enables you to store an Excel workbook on a server and then publish any part of that workbook on a Web page. • Users need only a browser to view and interact with the live data. • The workbook is published on the Web page by using the Excel Web Access (EWA) Web Part

  29. Connections to external data sources • You can use data from other business applications, such as SAP and Siebel, in SharePoint lists, pages, and Web Parts. • You can build Web Pages and SharePoint lists that allow users to interact with the data in the external source without ever leaving the SharePoint page.

  30. Key Performance Indicators (KPIs) • A Key Performance Indicator (KPI) is a visual cue that communicates the amount of progress made toward a goal. • KPIs are created by using KPI lists and then are displayed by using special KPI Web Parts.

  31. Filter Web Parts • Filters allow you to display only the subset of data that you are interested in view. • Office SharePoint Server 2007 has 10 Filter Web Parts. • Example : Current User Filter Web Part.

  32. Dashboards • Dashboards, also known as multi-report summary pages, contain one or more Web Parts, such as business data Web Parts, Excel Web Access Web Parts, or KPIs etc. • You can create your own dashboard page by using various Web Parts.

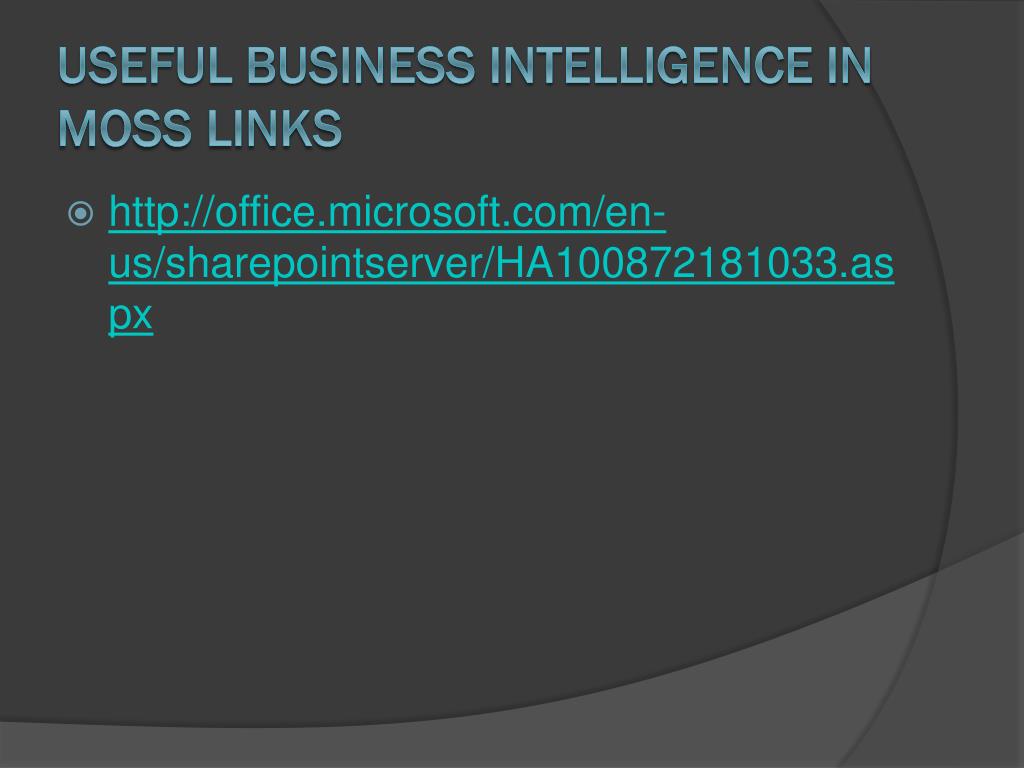

  33. Useful Business intelligence in moss links • http://office.microsoft.com/en-us/sharepointserver/HA100872181033.aspx

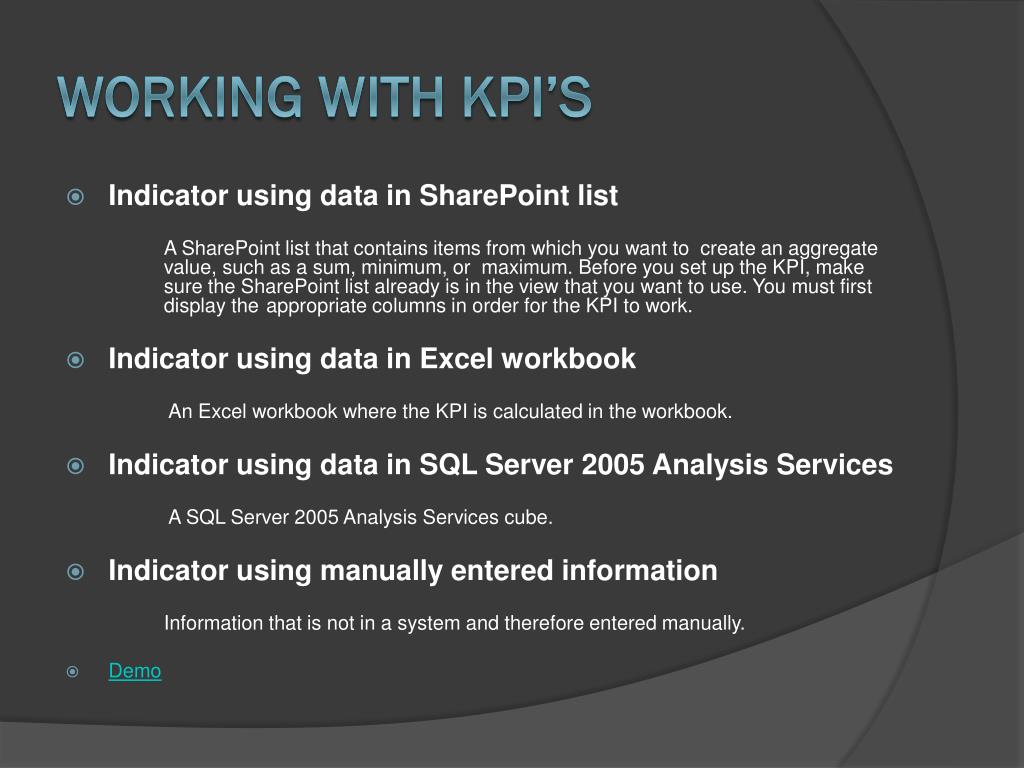

  34. Working with KPI’s • Indicator using data in SharePoint list A SharePoint list that contains items from which you want to create an aggregate value, such as a sum, minimum, or maximum. Before you set up the KPI, make sure the SharePoint list already is in the view that you want to use. You must first display the appropriate columns in order for the KPI to work. • Indicator using data in Excel workbook An Excel workbook where the KPI is calculated in the workbook. • Indicator using data in SQL Server 2005 Analysis Services A SQL Server 2005 Analysis Services cube. • Indicator using manually entered information Information that is not in a system and therefore entered manually. • Demo

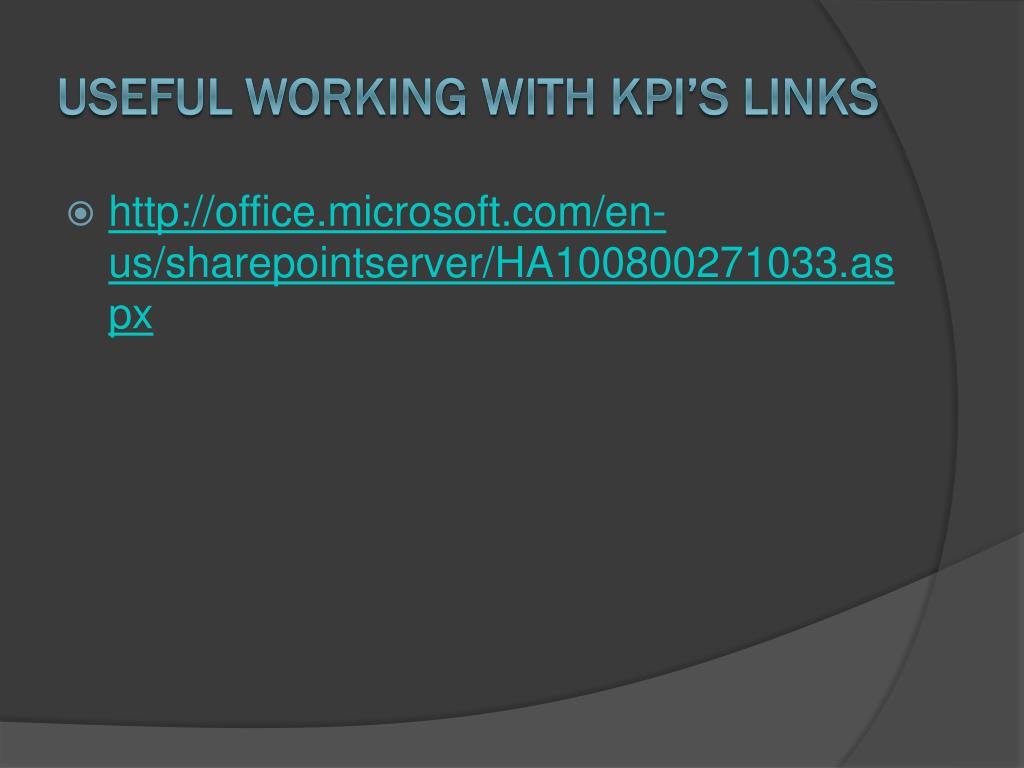

  35. Useful Working with KPI’s links • http://office.microsoft.com/en-us/sharepointserver/HA100800271033.aspx

  36. Agenda • Extend Page Authoring Toolbar • Create Pages Dynamically. • Modify Page Layouts by using Content Placeholders • Create Custom Field Control • Variations • Deploy Content between servers.

  37. Extend Page Authoring Toolbar • Demo • Files

  38. Extend Page Authoring Toolbar • Class: ConsoleAction • A class provided by MOSS for you to create new menu items. • Method: RaisePostBackEvent • It basically does all the heavy lifting required at the time the action is clicked

  39. Extend Page Authoring Toolbar • Class: ConsoleNode • This feature to be presented as a top level menu with children not just a single menu item. • Method: InitNode • Will be run on every page load, when the object is created so we use this method to determine whether the current page is in edit mode. • Method: EnsureChildNodes • Will construct the correct list of links which are to be displayed to the user.

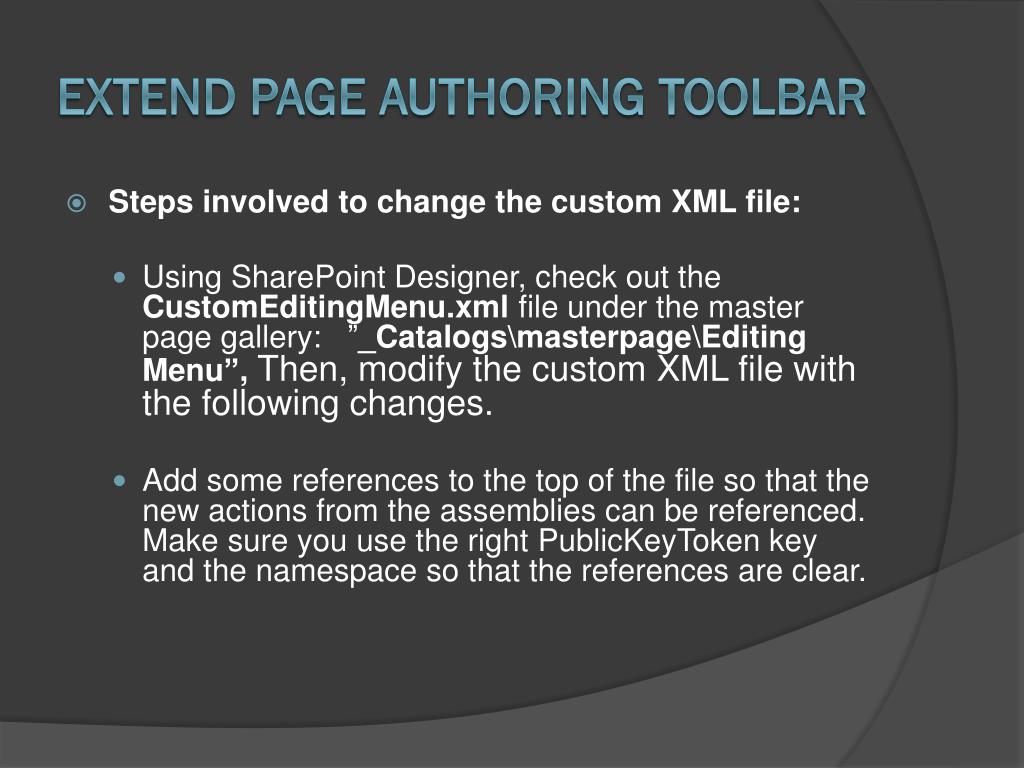

  40. Extend Page Authoring Toolbar • Steps involved to change the custom XML file: • Using SharePoint Designer, check out the CustomEditingMenu.xml file under the master page gallery:   ”_Catalogs\masterpage\Editing Menu”, Then, modify the custom XML file with the following changes. • Add some references to the top of the file so that the new actions from the assemblies can be referenced. Make sure you use the right PublicKeyToken key and the namespace so that the references are clear.

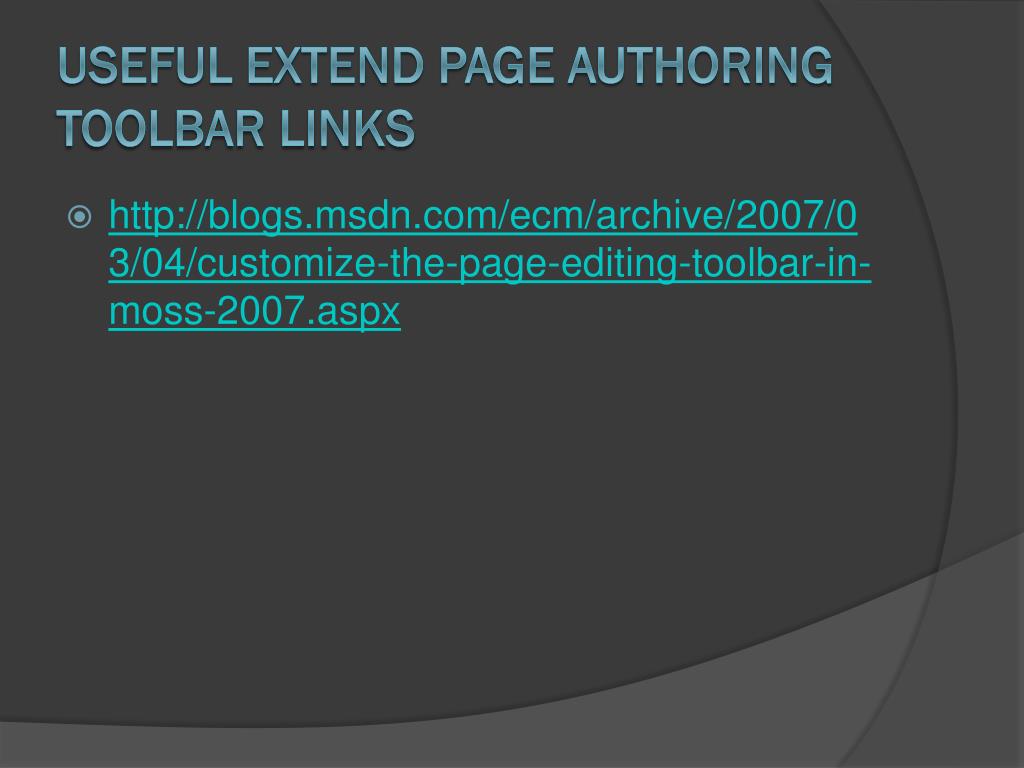

  41. Useful Extend Page Authoring Toolbar links • http://blogs.msdn.com/ecm/archive/2007/03/04/customize-the-page-editing-toolbar-in-moss-2007.aspx

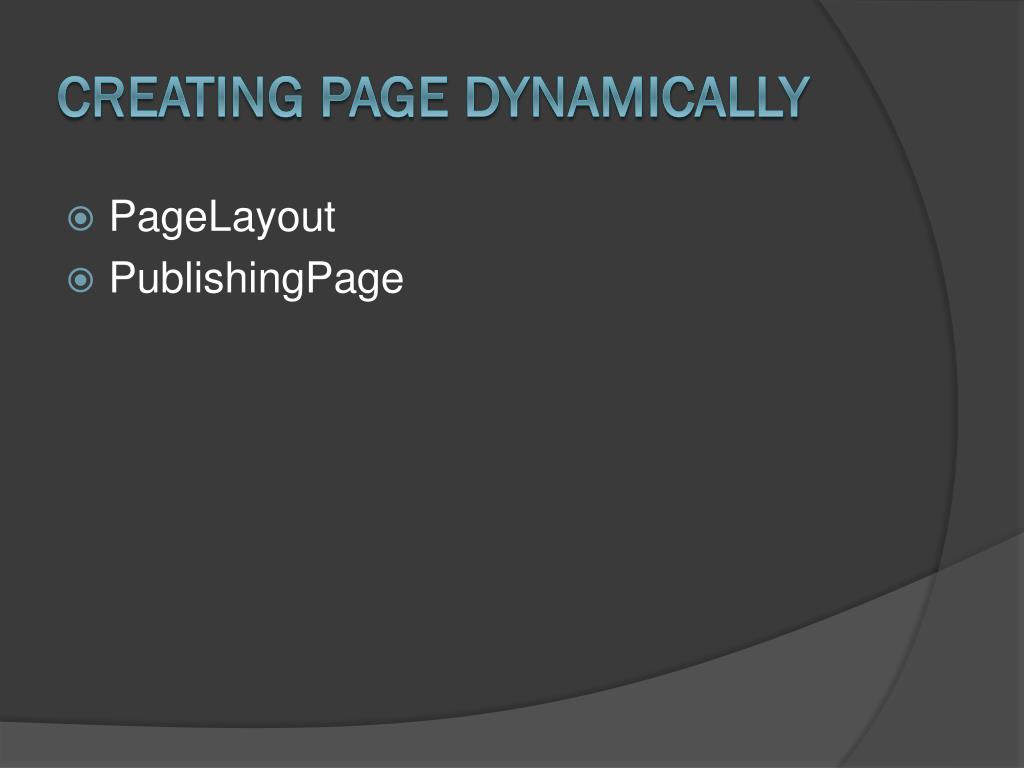

  42. Creating Page Dynamically • PageLayout • PublishingPage

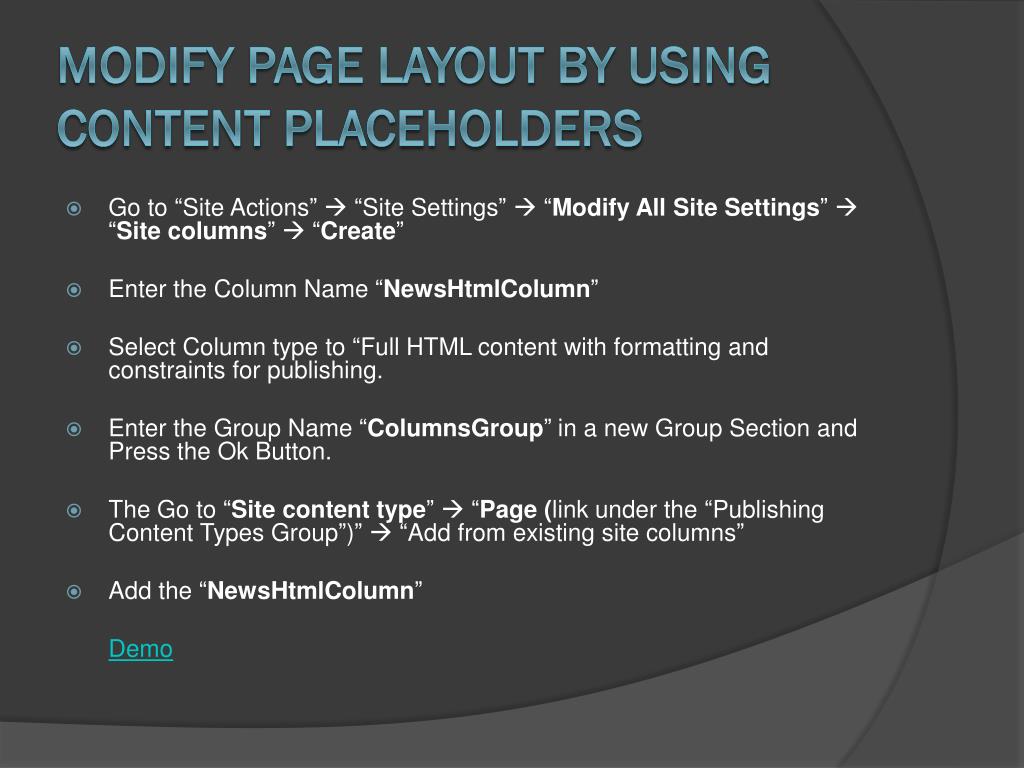

  43. Modify Page layout by using content placeholders • Go to “Site Actions”  “Site Settings”  “Modify All Site Settings”  “Site columns”  “Create” • Enter the Column Name “NewsHtmlColumn” • Select Column type to “Full HTML content with formatting and constraints for publishing. • Enter the Group Name “ColumnsGroup” in a new Group Section and Press the Ok Button. • The Go to “Site content type”  “Page (link under the “Publishing Content Types Group”)”  “Add from existing site columns” • Add the “NewsHtmlColumn” Demo

  44. Create custom field control • Create an “.ascx” file with a “Sharepoint :RenderingTemplate” control. • We need to implement its code behind class must derives “BaseFieldControl” and overrides the Property “Value”.

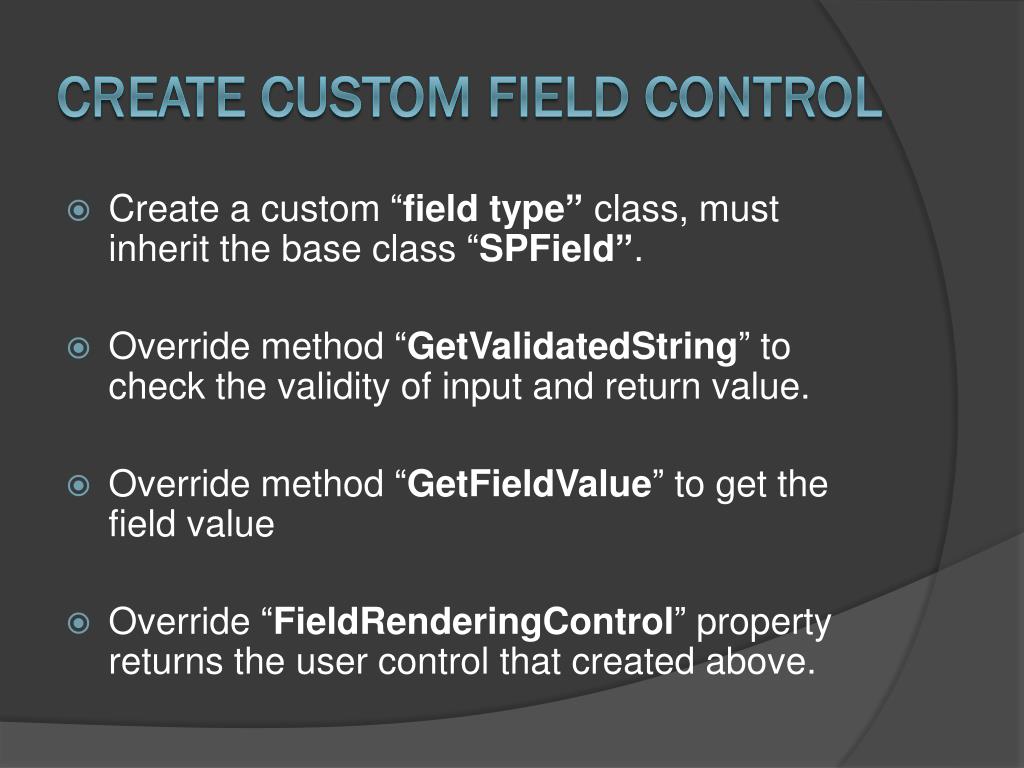

  45. Create custom field control • Create a custom “field type” class, must inherit the base class “SPField”. • Override method “GetValidatedString” to check the validity of input and return value. • Override method “GetFieldValue” to get the field value • Override “FieldRenderingControl” property returns the user control that created above.

  46. Create custom field control • The custom type must include a custom field type definition and name convention should be “fldtypes_*.xml”.

  47. Create custom field controlDeployment Procedure • Build the solution and sign the assembly • Put the assembly into GAC • Copy the user control to \program files\...\web server extensions\12\template\controltemplates • Copy fldtypes_name.xml to \program files\...\web server extensions\12\template\xml\ • Run iisreset command.

  48. Create custom field controlExamples • SPFieldBoolean   Represents a Boolean field type. • SPFieldChoice    Represents a choice field type. • SPFieldCurrency     Represents a currency field type. • SPFieldDateTime    Represents a date-time field type. • SPFieldMultiColumn  Represents a multicolumn field type • Demo

  49. Useful Create custom field control links • http://msdn2.microsoft.com/en-US/library/aa830815.aspx#Office2007SSBrandingWCMPart2_CreatingCustomFieldControls • http://www.sharepointblogs.com/jimyang/default.aspx

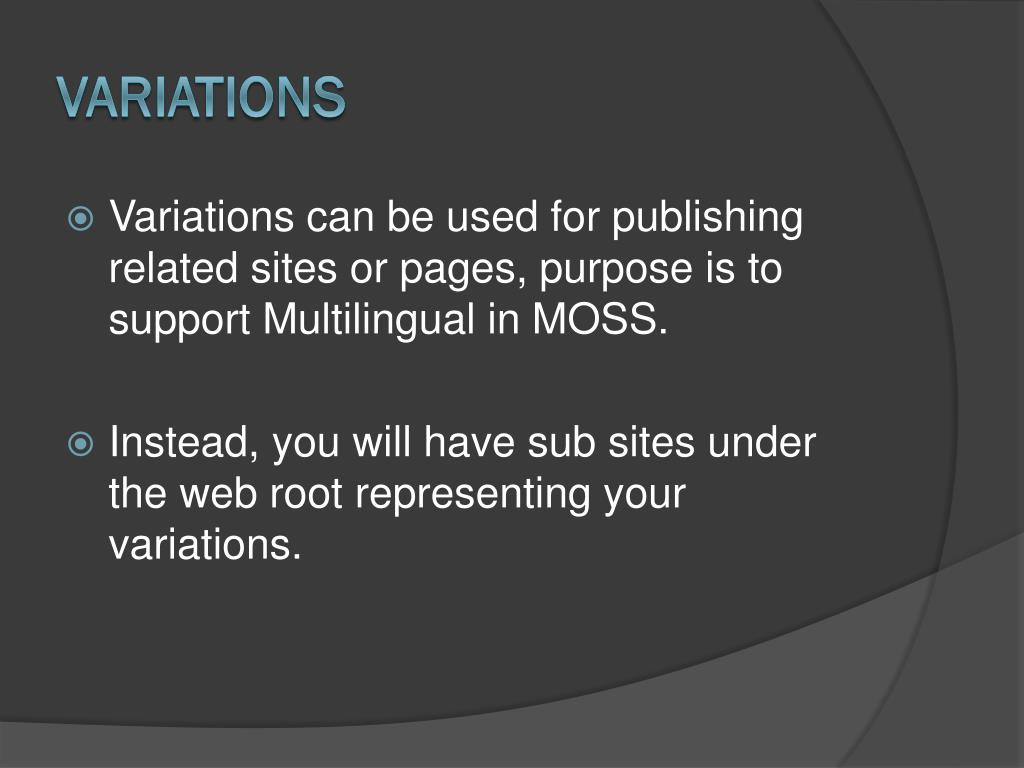

  50. Variations • Variations can be used for publishing related sites or pages, purpose is to support Multilingual in MOSS. • Instead, you will have sub sites under the web root representing your variations.
