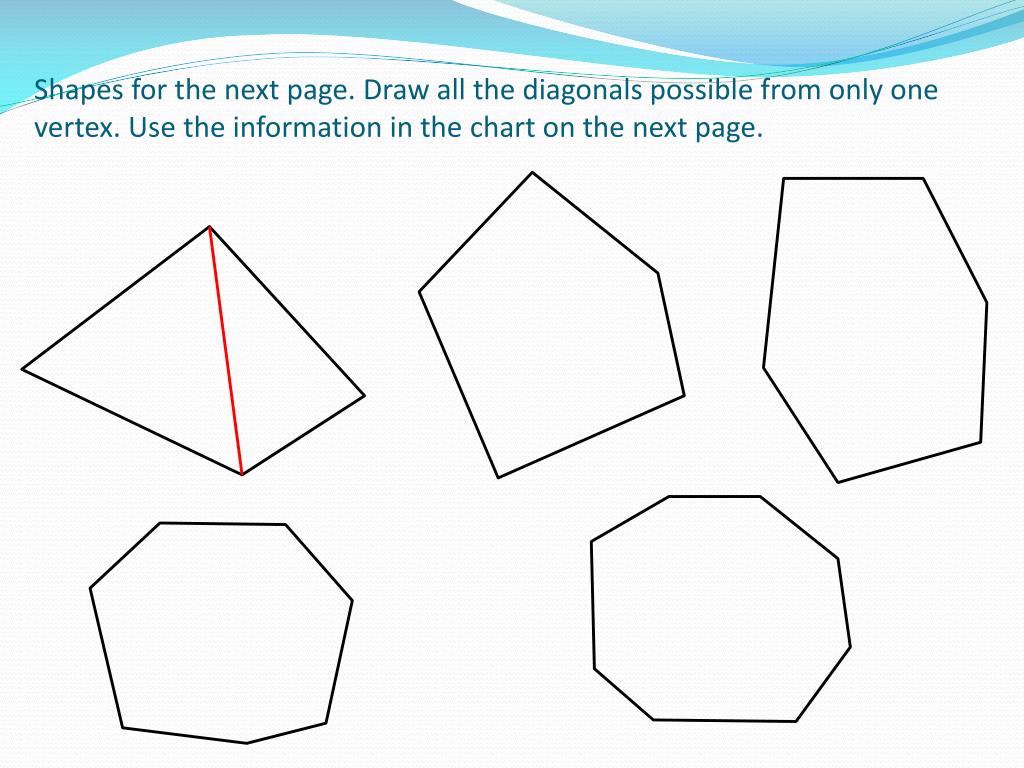

6-1: Polygon Angle-Sum Theorems. CP Geometry Mr. Gallo. Shapes for the next page. Draw all the diagonals possible from only one vertex. Use the information in the chart on the next page. .

Télécharger la présentation
## 6-1: Polygon Angle-Sum Theorems

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

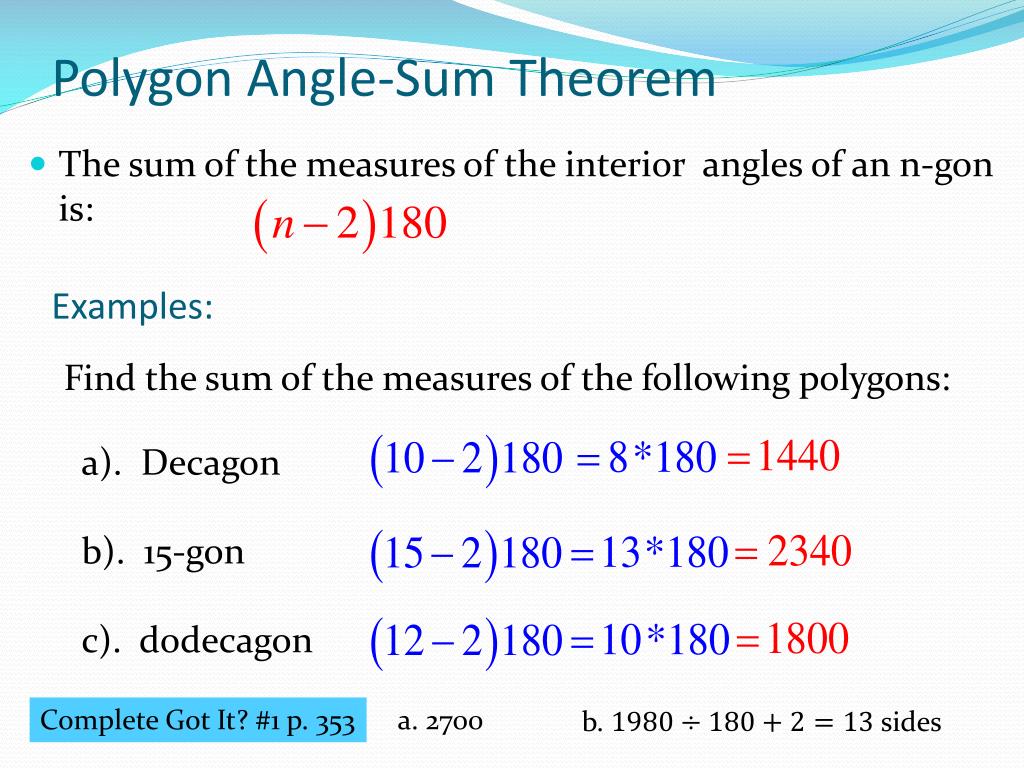

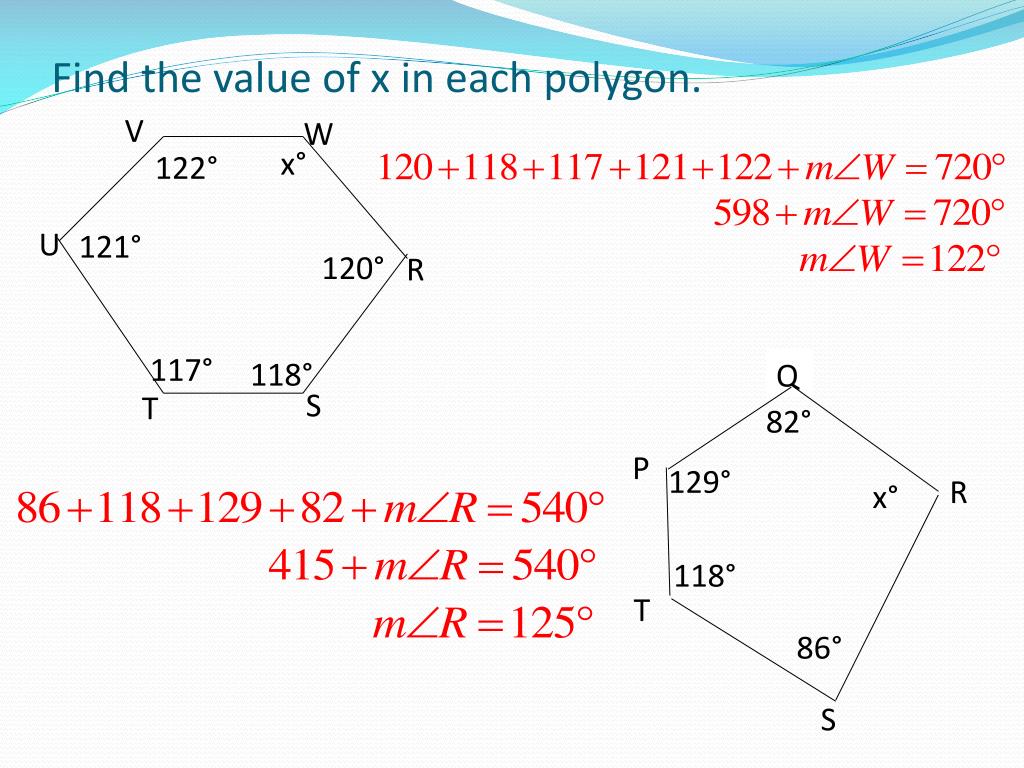

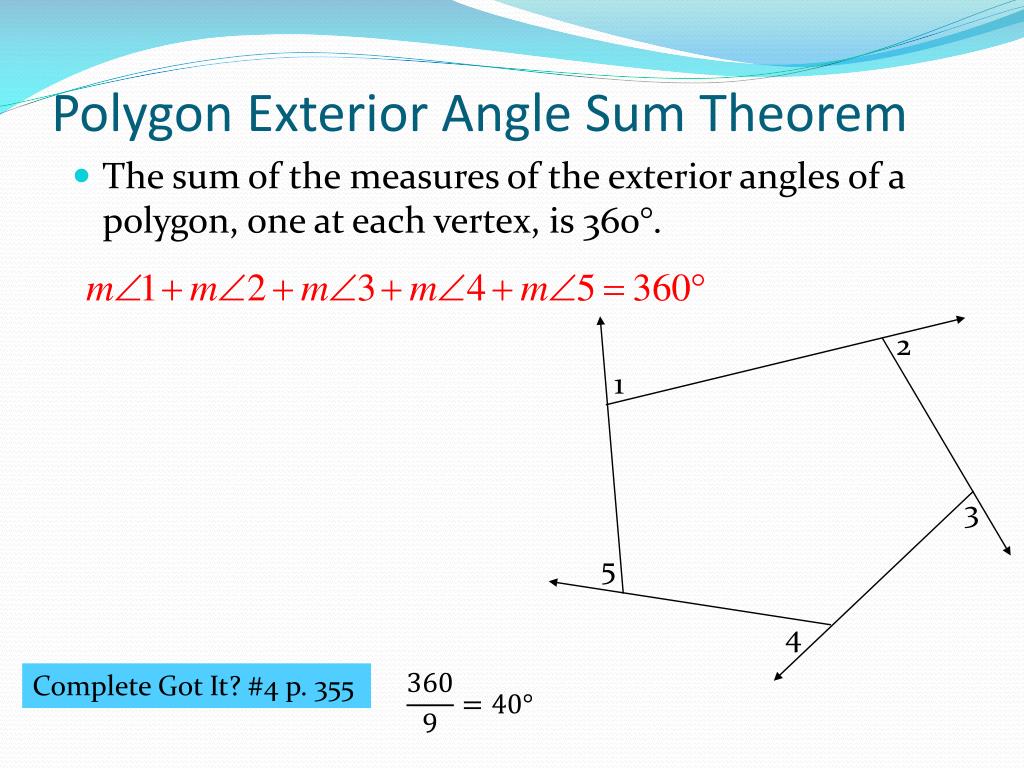

**6-1: Polygon Angle-Sum Theorems**CP Geometry Mr. Gallo**Shapes for the next page. Draw all the diagonals possible**from only one vertex. Use the information in the chart on the next page.**Find the measures of the interior angles of the following**polygons. Complete the table below. Use the shapes on the previous page. 4 2 2*180=360 3*180=540 3 5 4*180=720 4 6 5 7 5*180=900 6 6*180=1080 8**Polygon Angle-Sum Theorem**• The sum of the measures of the interior angles of an n-gon is: Examples: Find the sum of the measures of the following polygons: a). Decagon b). 15-gon c). dodecagon Complete Got It? #1 p. 353 a. 2700 b. sides**V**W x° 122° Q 82° U 121° 120° R P 129° R x° 118° 117° 118° T S T 86° S Find the value of x in each polygon.**Types of Polygons**Equilateral Polygon Equiangular Polygon Regular Polygon Corollary to the Polygon Angle-Sum Theorem The measure of each interior angle of a regular n-gon is: Complete Got It? #2 p. 354**Exteriors Angle of a Polygon**Find the sum of the exterior angles, one from each vertex of the following polygons. 90° 90° 86° 94° 115° 65° 75° 16° 70° 110° 164° 100° 80°**Polygon Exterior Angle Sum Theorem**• The sum of the measures of the exterior angles of a polygon, one at each vertex, is 360°. 2 1 3 5 4 Complete Got It? #4 p. 355
