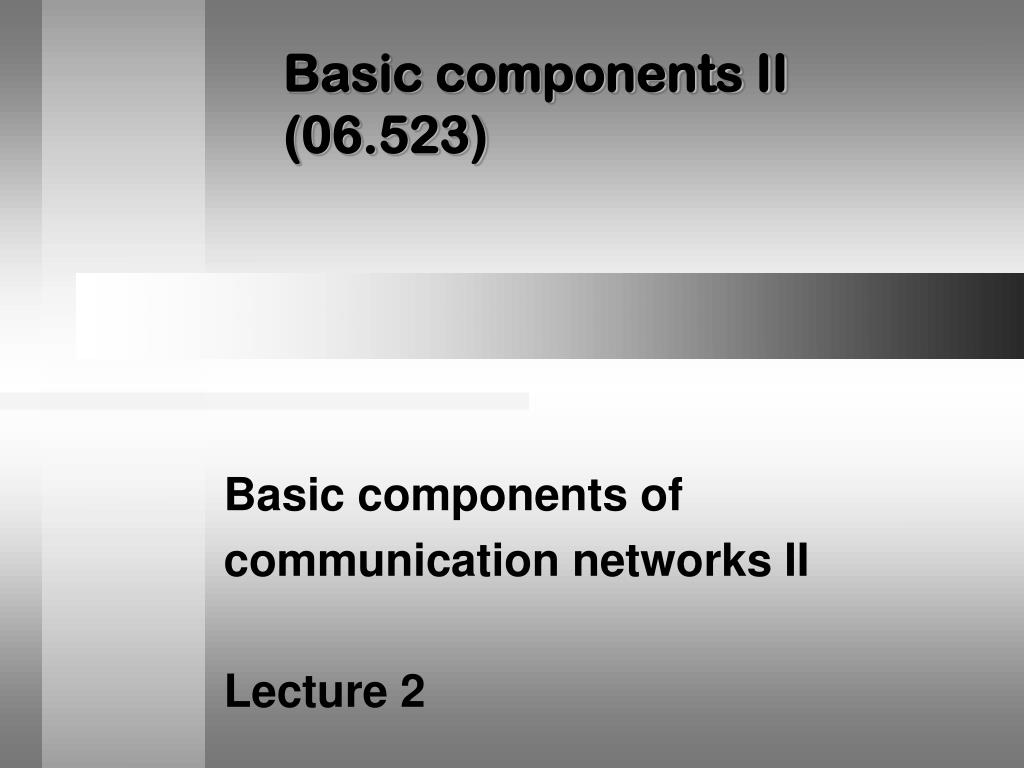

  1. Basic components II (06.523) Basic components of communication networks II Lecture 2

  2. Network layers • Application layer • Network layer • Data link layer • Physical layer

  3. Application layer • HTTP • POP

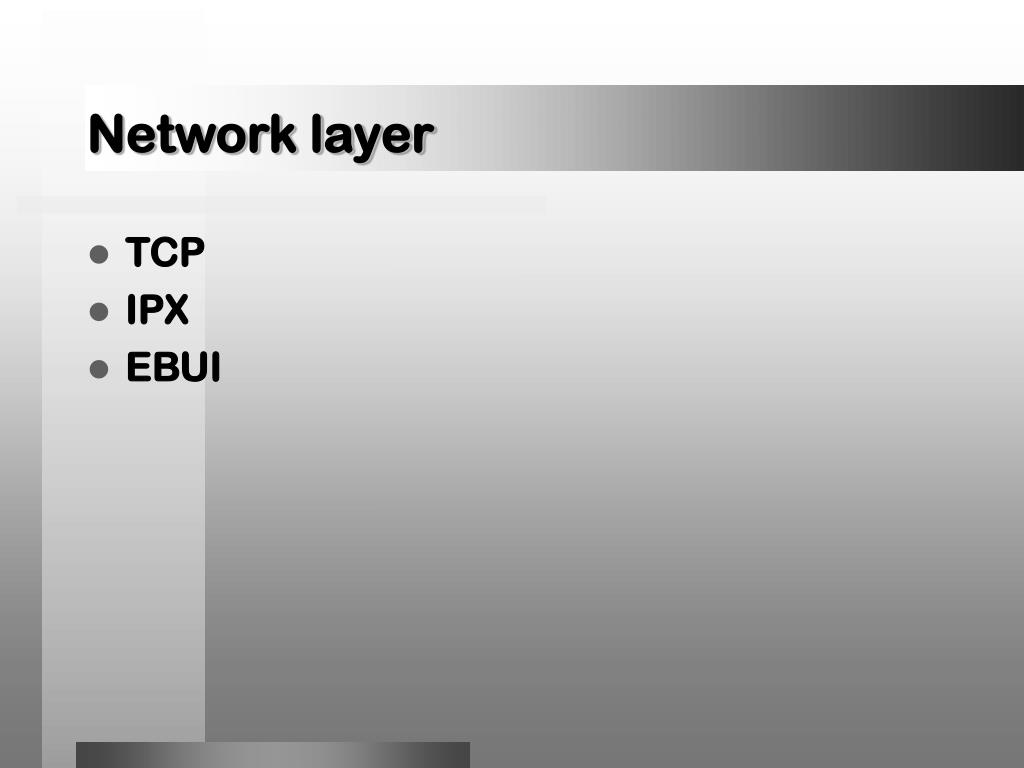

  4. Network layer • TCP • IPX • EBUI

  5. Data link layer • 802.3 • PPP • Z-Modem

  6. Physical layer • RS-232C cables (serial) • IEEE 802.3 category 5 • V.34 Modem

  7. bits/sec =bandwidth log 2 (1 +S/N)bits/sec = 2600 Hz * log 2 (1 + 30dB)bits/sec = 26k In Wellington you can get 28.8k, in Hawke’s Bay, 19.2k 33k assumes digital telephone network 56k assumes ISP physically at telephone network -- no modem Higher rates through compression. I have got 120k Shannon’s law

  8. Three ways to encode information + baud rate Amplitude modulation Frequency modulation Phase modulation Modem theory

  9. Modems use v42 for data compression v42 is the same compression standard as used in GIFsworks by sending 5*1, 2*0, etc. Data compression

  10. 802.3, 802.5, 802.11 10baseT, 10base 2 Appletalk, Ethertalk Incompatible protocols LAN networking
