  1. Solar PV Systems Acemcos.a.l

  2. Solar system types • There are 3 main categories of solar systems adapted for different applications: • Off-grid system • On-grid system • On-grid system with back up • Main focus: On-grid system with back up.

  3. On-Grid System with back-up • This is the most adequate system for Lebanon to cover the daily power failures. • The on-grid system with back-up supplies electricity from the panels directly to the load. • The excess energy is sold back to the gridthrough “Net-metering”. The meter will turn backwards when energy is fed back to the grid and the user will only pay the net value of his consumption. • In case the grid fails and there is no sun, the back-up batteries will continue supplying the load with power.

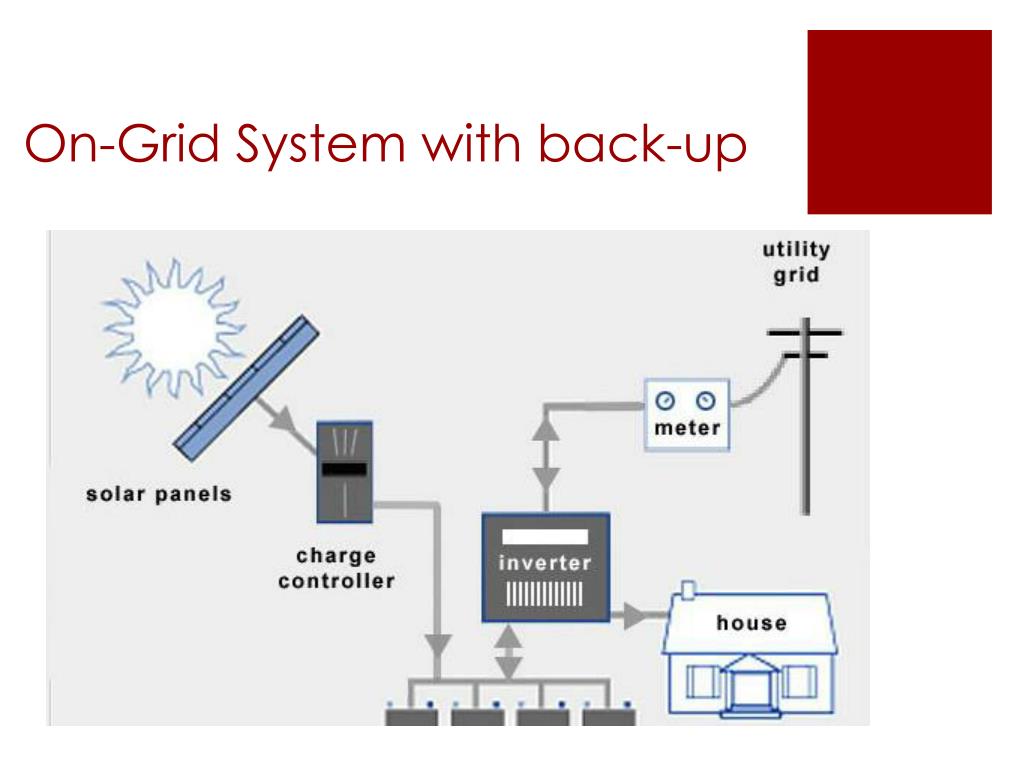

  4. On-Grid System with back-up

  5. On-Grid System with back-up

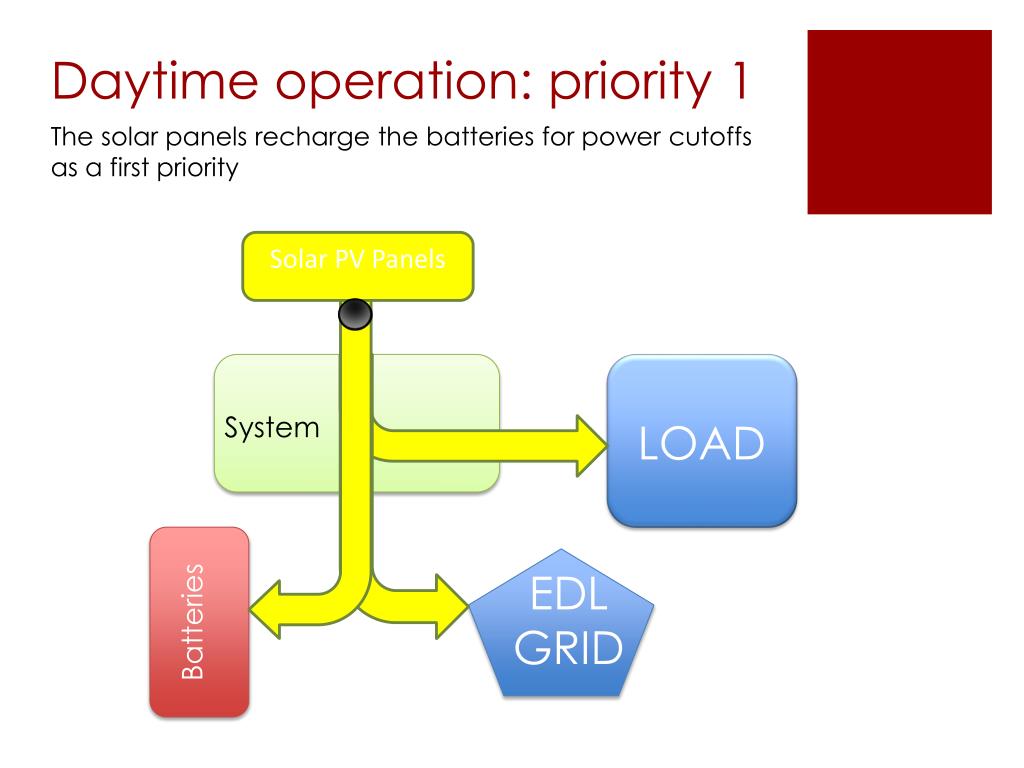

  6. Daytime operation: priority 1 The solar panels recharge the batteries for power cutoffs as a first priority Solar PV Panels System LOAD EDL GRID Batteries

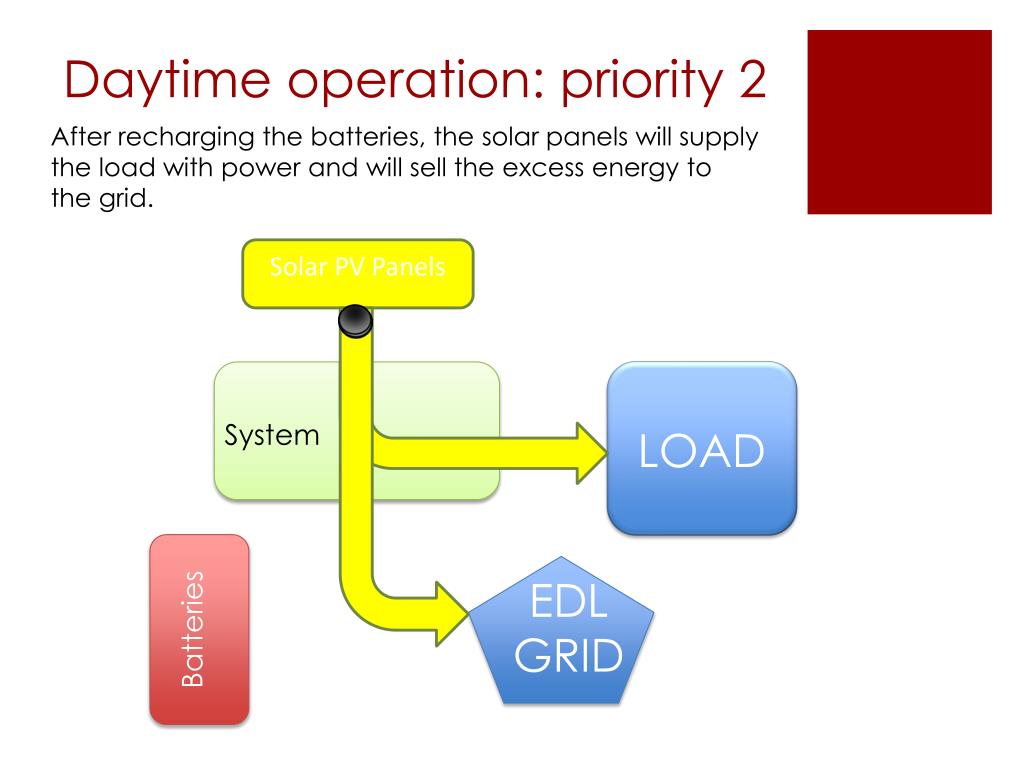

  7. Daytime operation: priority 2 After recharging the batteries, the solar panels will supply the load with power and will sell the excess energy to the grid. Solar PV Panels System LOAD EDL GRID Batteries

  8. Power cutoffs: Daytime If a power cutoff occurs during the day the panels will feed the load with current without resorting to batteries. Solar PV Panels System LOAD EDL GRID Batteries

  9. Power cutoffs: Nighttime If a power cutoff occurs during the night the batteries will feed the load with current. Solar PV Panels LOAD System EDL GRID Batteries

  10. Nighttime operation During the night the system will take energy from the grid. Solar PV Panels LOAD System EDL GRID Batteries

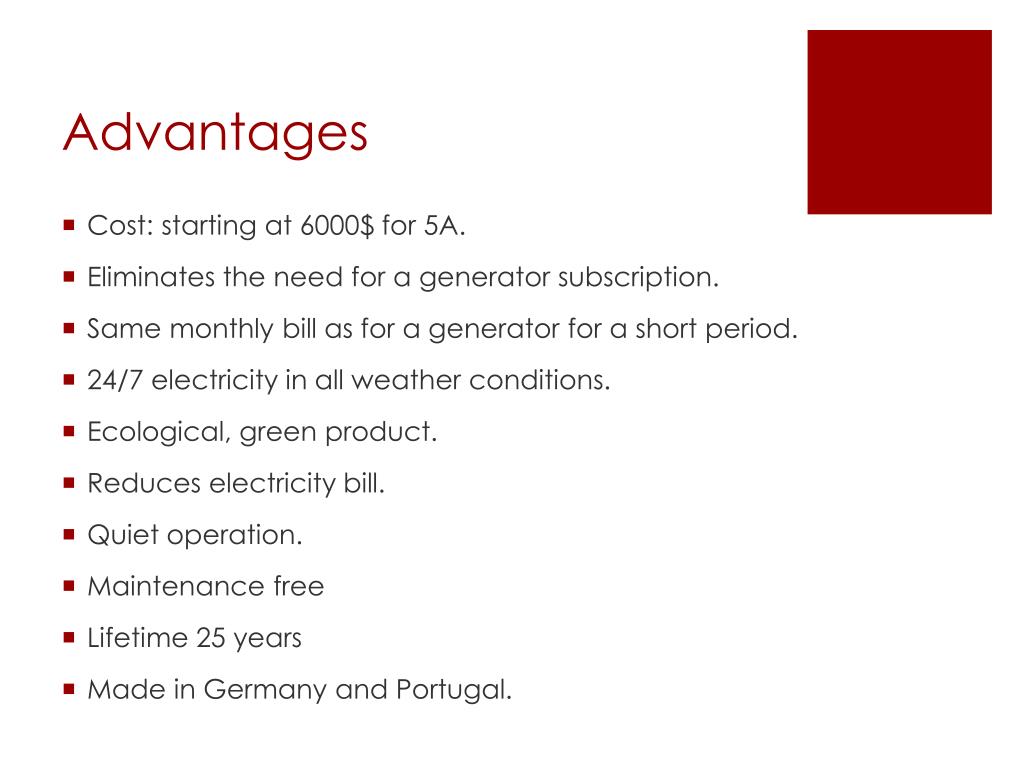

  11. Advantages Cost: starting at 6000$ for 5A. Eliminates the need for a generator subscription. Same monthly bill as for a generator for a short period. 24/7 electricity in all weather conditions. Ecological, green product. Reduces electricity bill. Quiet operation. Maintenance free Lifetime 25 years Made in Germany and Portugal.
