Semaphore Implementation for Process Synchronization in Operating Systems

karl avatar
karl
17 diapositives · 306 Views · Oct 05, 2014

This document explores the implementation of semaphores for managing process synchronization in operating systems. It details the Down and Up operations, which control access to shared resources by managing a semaphore variable and a queue for blocked processes. The behavior of semaphores is examined, highlighting their non-blocking and blocking nature. Various synchronization techniques including mutex, test-and-set locks, and POSIX mutexes are discussed, along with message passing as an alternative method for process interaction. Real-world examples illustrate how these concepts are applied effectively in concurrent programming.

Semaphore Implementation for Process Synchronization in Operating Systems - slide 1
01 / 17Semaphore Implementation for Process Synchronization in Operating Systems
1 / 17

Télécharger la présentation

Semaphore Implementation for Process Synchronization in Operating Systems
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

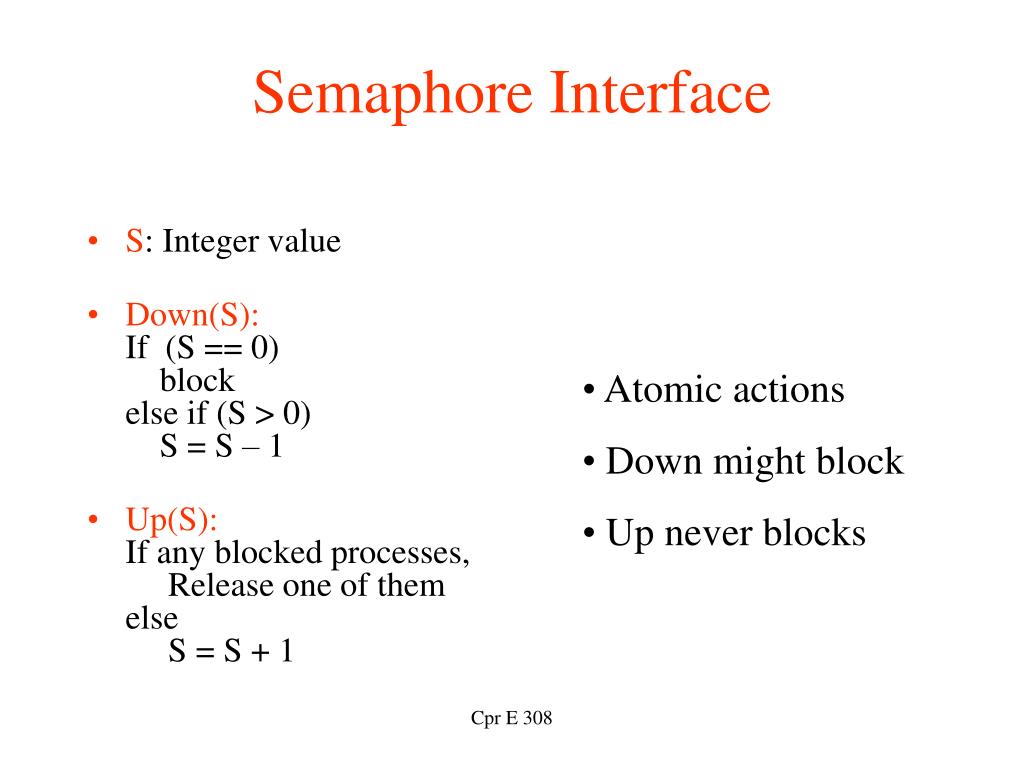

  1. Semaphore Interface • S: Integer value • Down(S):If (S == 0) blockelse if (S > 0) S = S – 1 • Up(S):If any blocked processes, Release one of themelse S = S + 1 • Atomic actions • Down might block • Up never blocks Cpr E 308

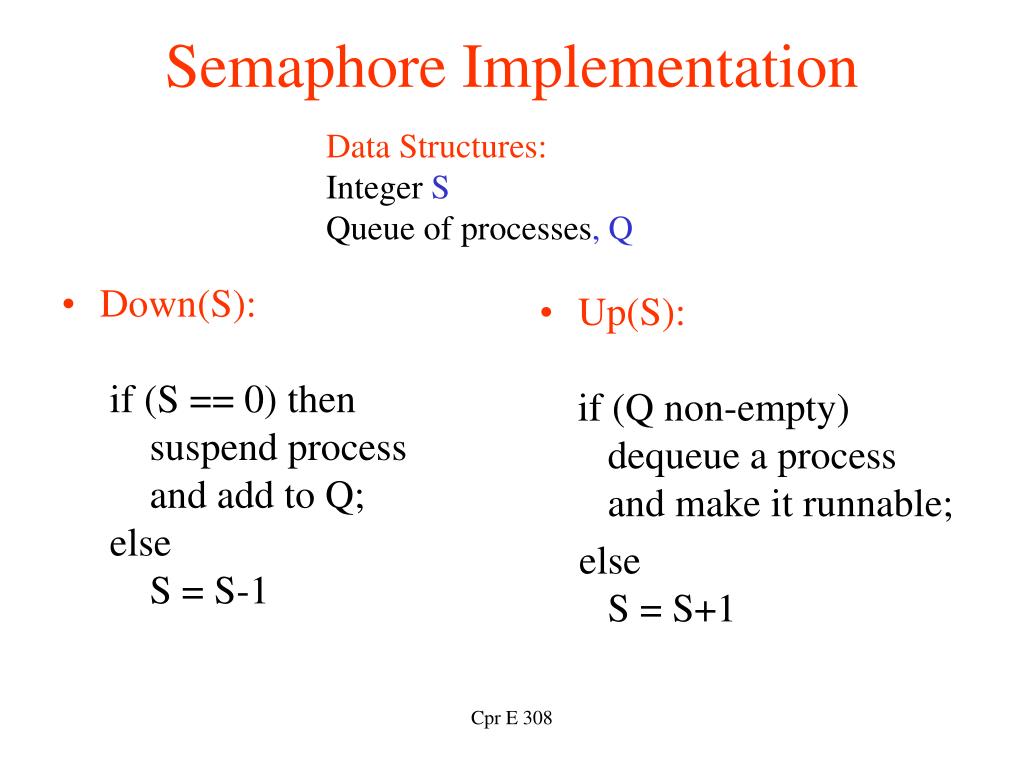

  2. Down(S): if (S == 0) then suspend process and add to Q; else S = S-1 Up(S):if (Q non-empty) dequeue a process and make it runnable; else S = S+1 Semaphore Implementation Data Structures:Integer SQueue of processes, Q Cpr E 308

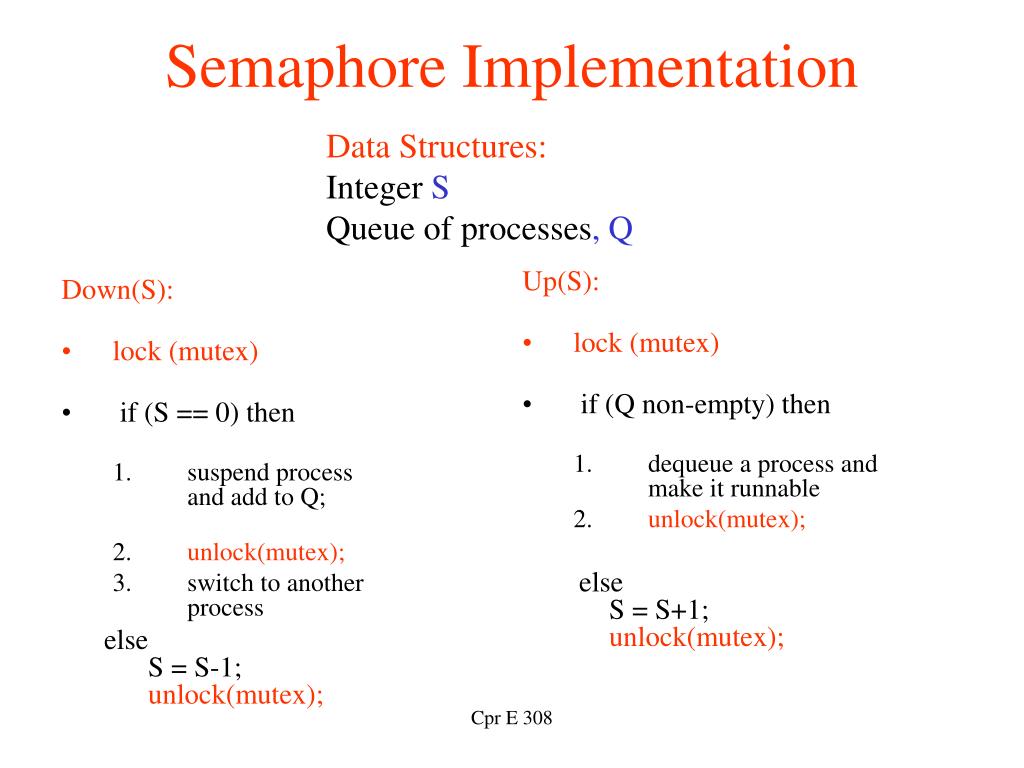

  3. Down(S): lock (mutex) if (S == 0) then suspend process and add to Q; unlock(mutex); switch to another process else S = S-1;unlock(mutex); Semaphore Implementation Data Structures:Integer SQueue of processes, Q Up(S): • lock (mutex) • if (Q non-empty) then • dequeue a process and make it runnable • unlock(mutex); else S = S+1;unlock(mutex); Cpr E 308

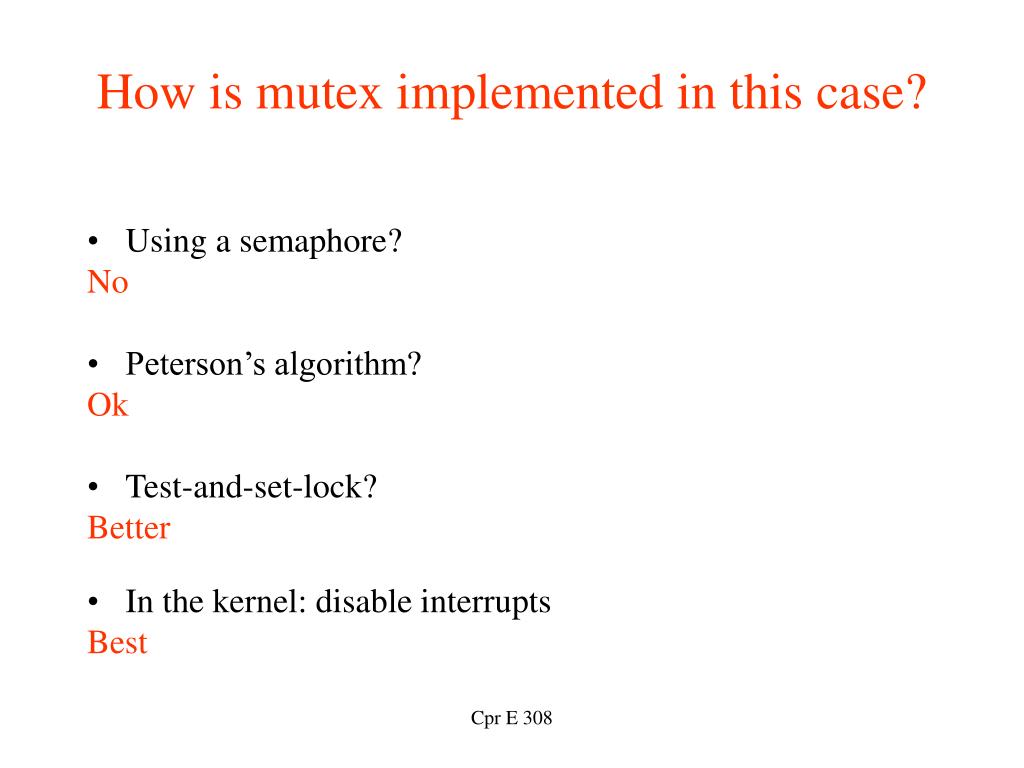

  4. How is mutex implemented in this case? • Using a semaphore? No • Peterson’s algorithm? Ok • Test-and-set-lock? Better • In the kernel: disable interrupts Best Cpr E 308

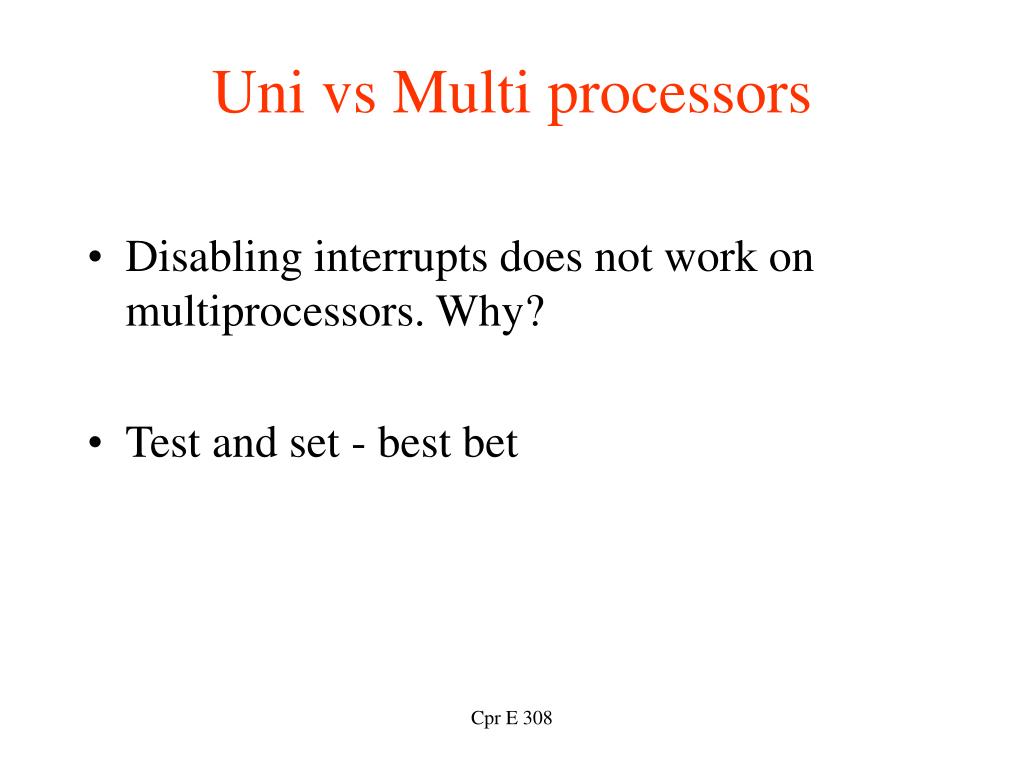

  5. Uni vs Multi processors • Disabling interrupts does not work on multiprocessors. Why? • Test and set - best bet Cpr E 308

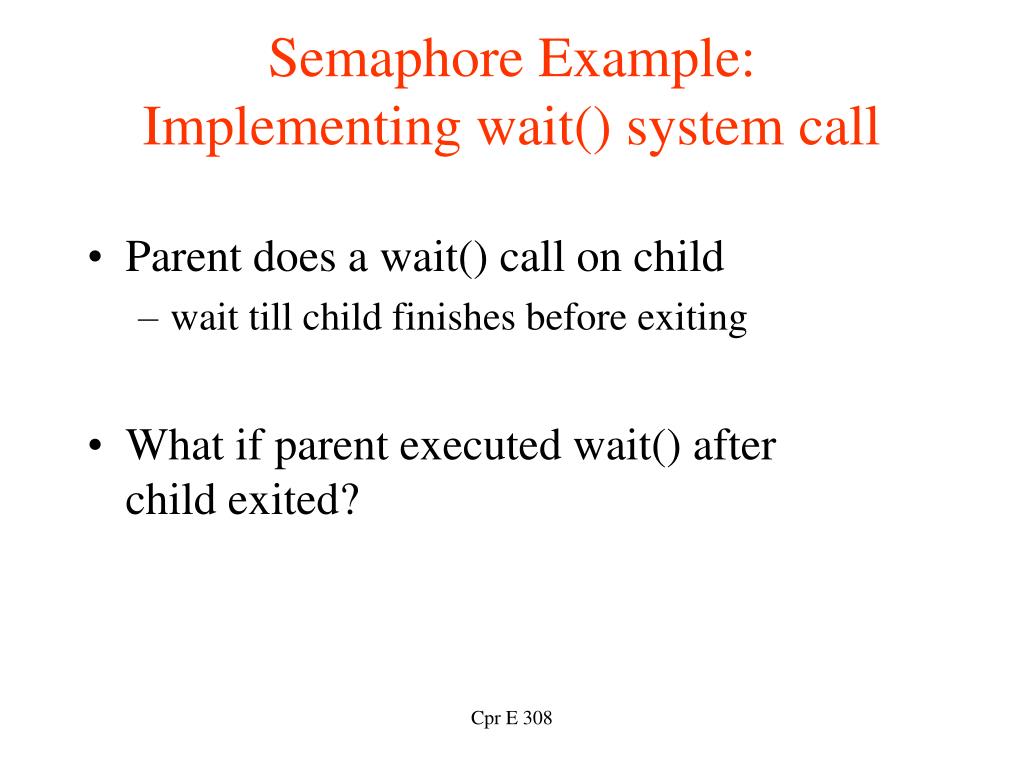

  6. Semaphore Example:Implementing wait() system call • Parent does a wait() call on child • wait till child finishes before exiting • What if parent executed wait() after child exited? Cpr E 308

  7. Parent and Child 0 Cpr E 308

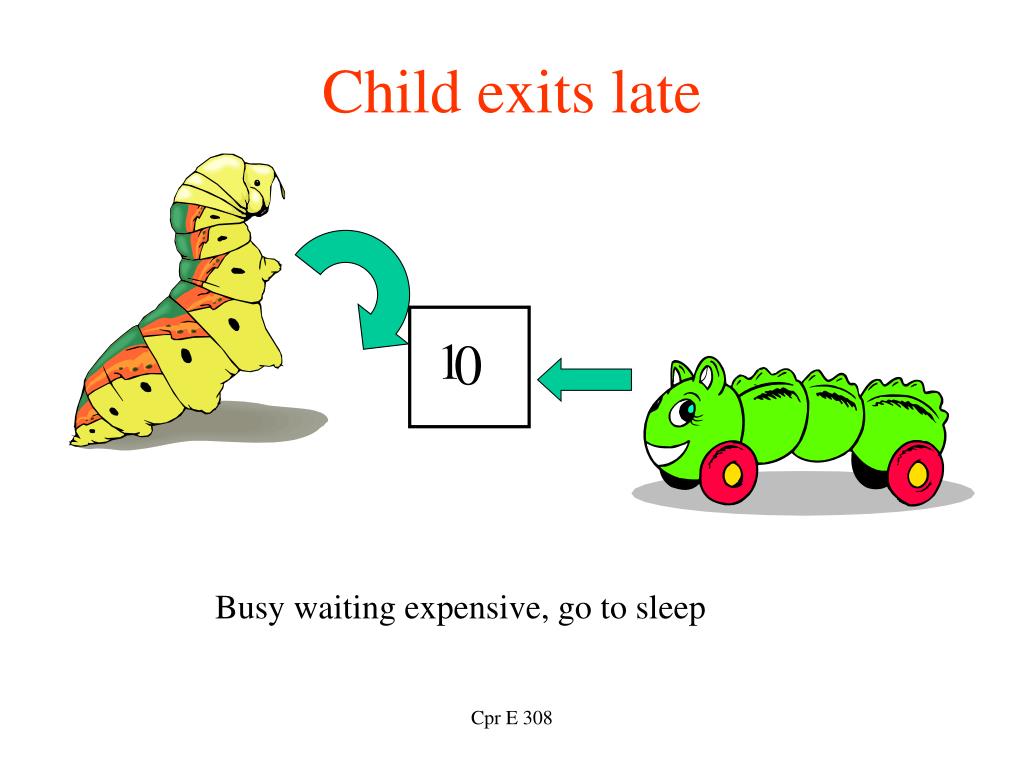

  8. Child exits late 1 0 Busy waiting expensive, go to sleep Cpr E 308

  9. Parent Sleeps 1 0 wakeup Cpr E 308

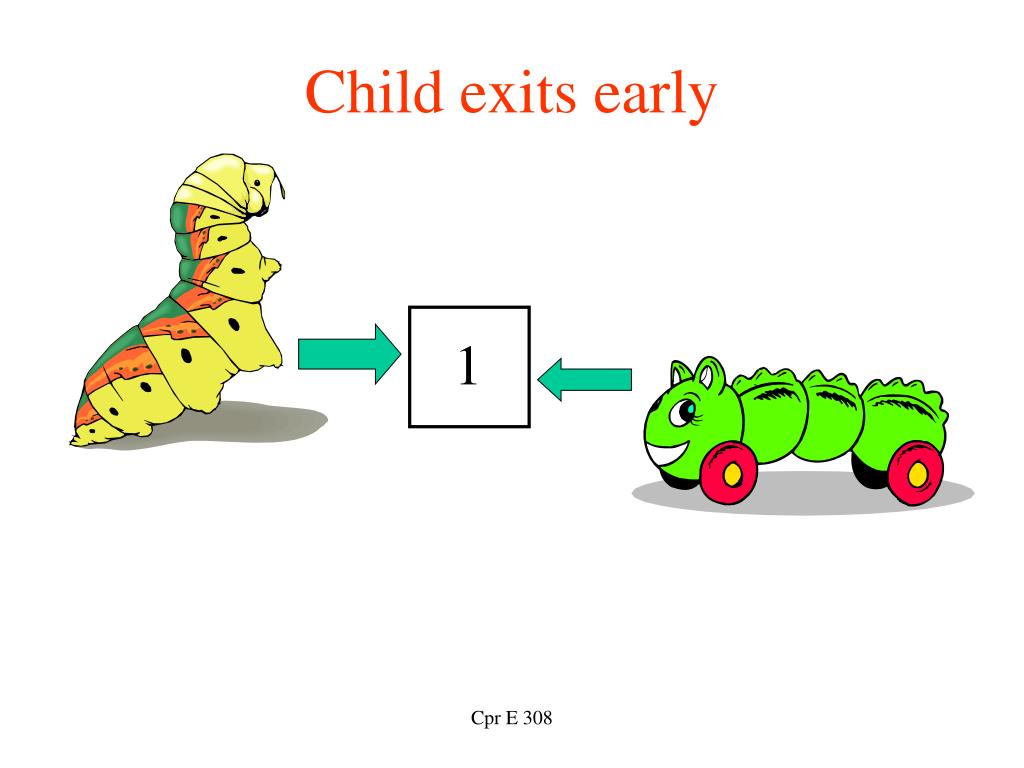

  10. Child exits early 1 Cpr E 308

  11. Simultaneous 1 0 wakeup Cpr E 308

  12. Solution: Semaphore • Semaphore zombie: initialize to 0 • Parent:down(zombie) inside wait() • Child:up(zombie) upon exiting Cpr E 308

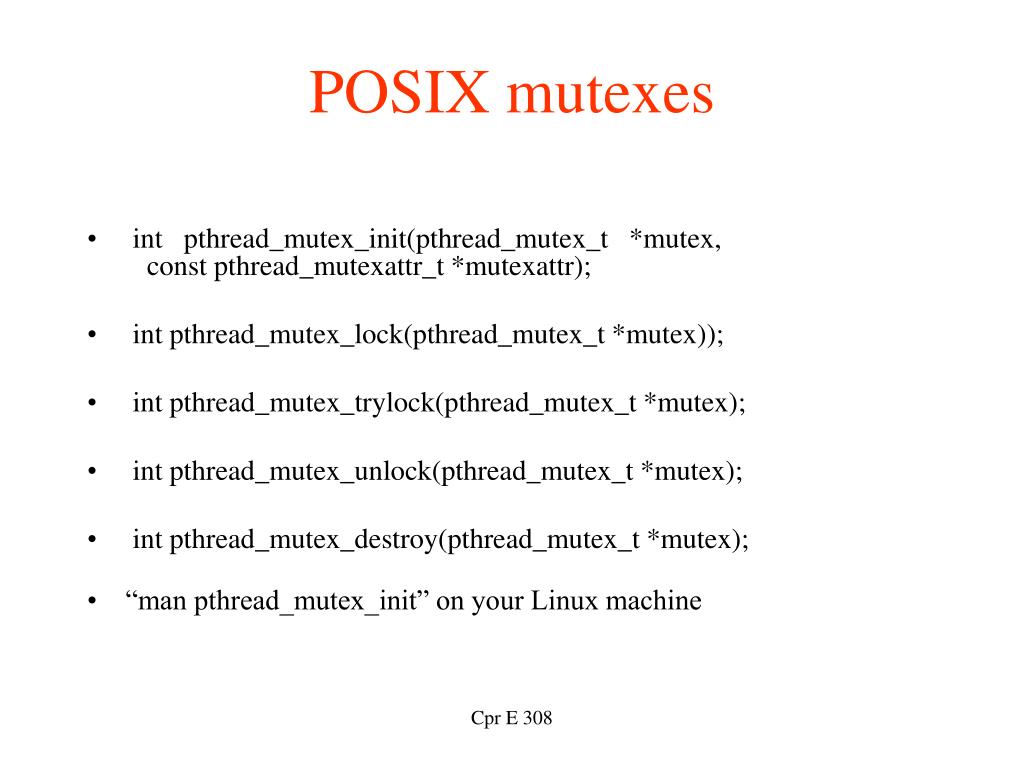

  13. POSIX mutexes • int pthread_mutex_init(pthread_mutex_t *mutex, const pthread_mutexattr_t *mutexattr); • int pthread_mutex_lock(pthread_mutex_t *mutex)); • int pthread_mutex_trylock(pthread_mutex_t *mutex); • int pthread_mutex_unlock(pthread_mutex_t *mutex); • int pthread_mutex_destroy(pthread_mutex_t *mutex); • “man pthread_mutex_init” on your Linux machine Cpr E 308

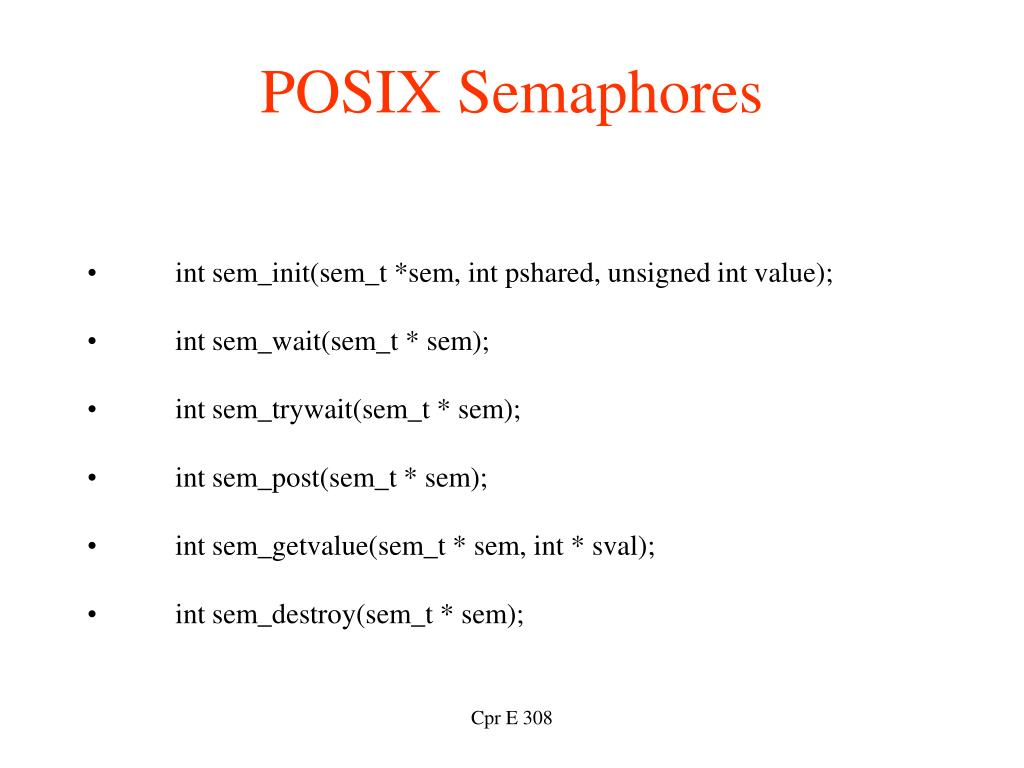

  14. POSIX Semaphores • int sem_init(sem_t *sem, int pshared, unsigned int value); • int sem_wait(sem_t * sem); • int sem_trywait(sem_t * sem); • int sem_post(sem_t * sem); • int sem_getvalue(sem_t * sem, int * sval); • int sem_destroy(sem_t * sem); Cpr E 308

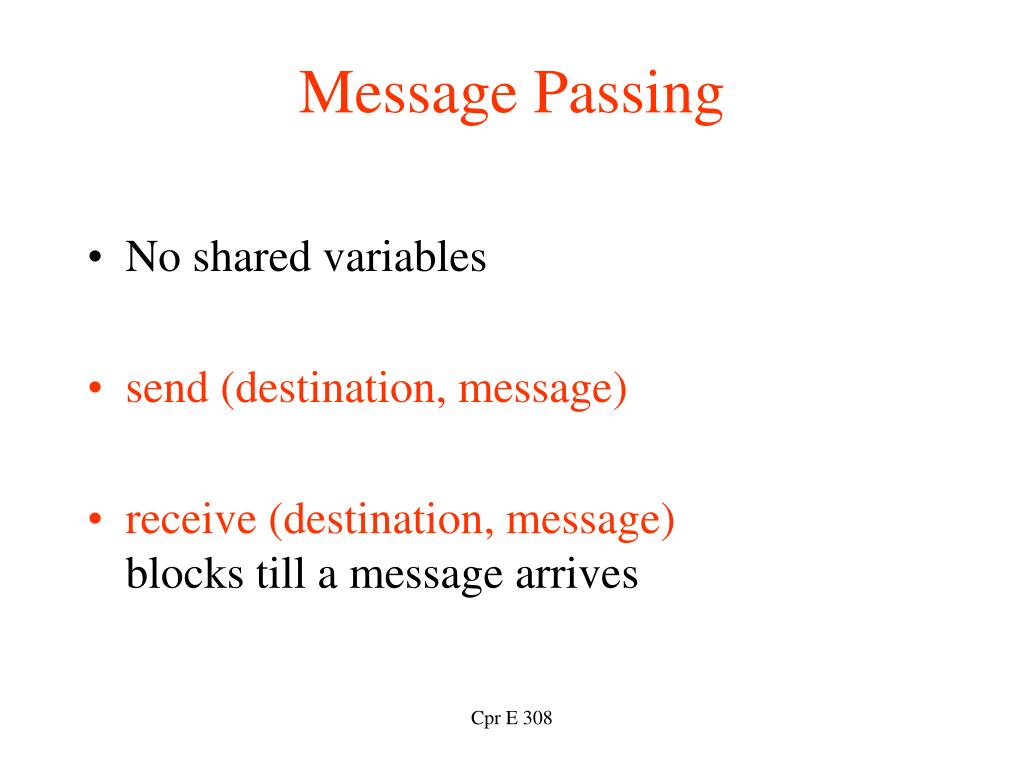

  15. Message Passing • No shared variables • send (destination, message) • receive (destination, message)blocks till a message arrives Cpr E 308

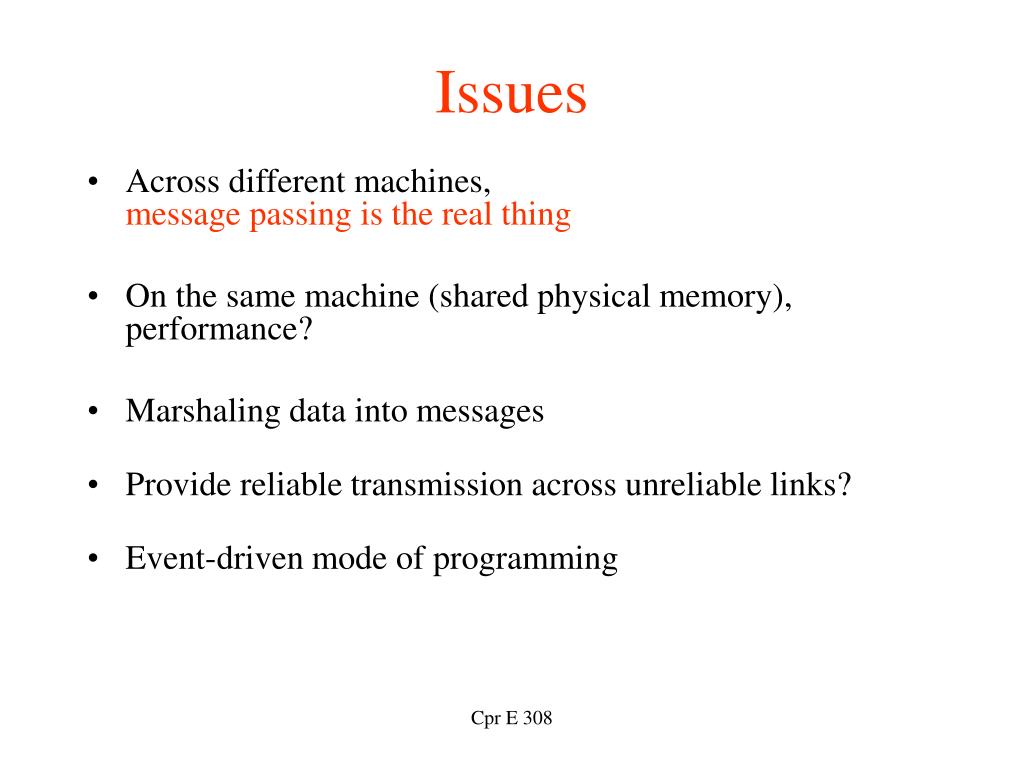

  16. Issues • Across different machines, message passing is the real thing • On the same machine (shared physical memory), performance? • Marshaling data into messages • Provide reliable transmission across unreliable links? • Event-driven mode of programming Cpr E 308

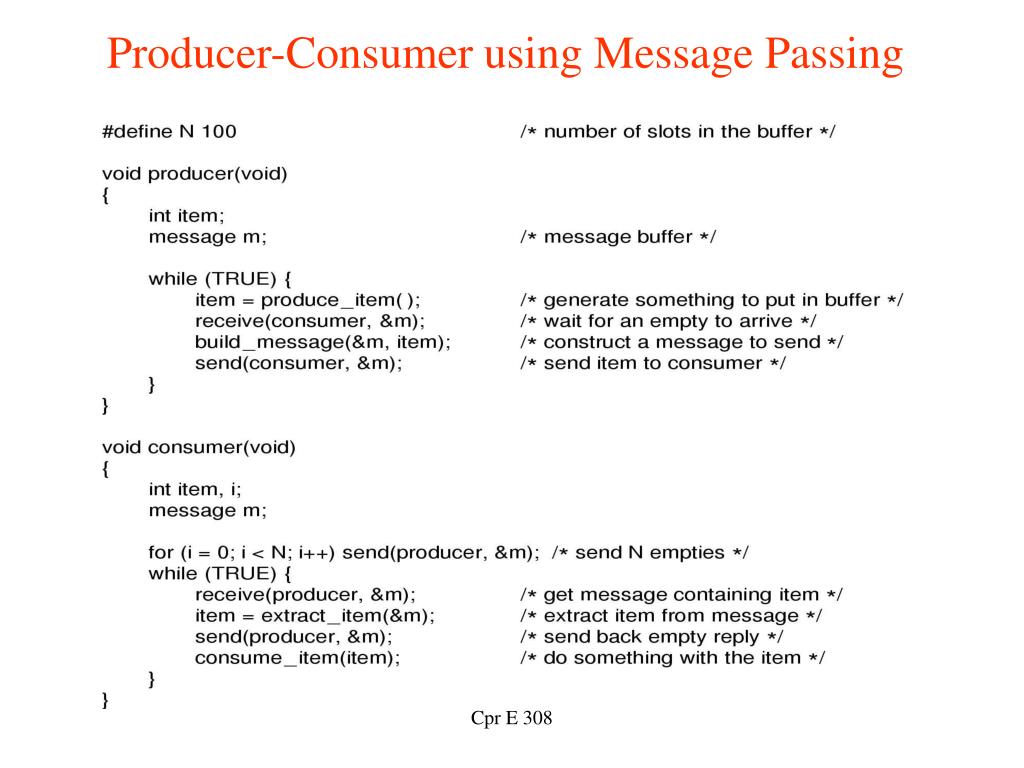

  17. Producer-Consumer using Message Passing Cpr E 308
