Presentation Transcript

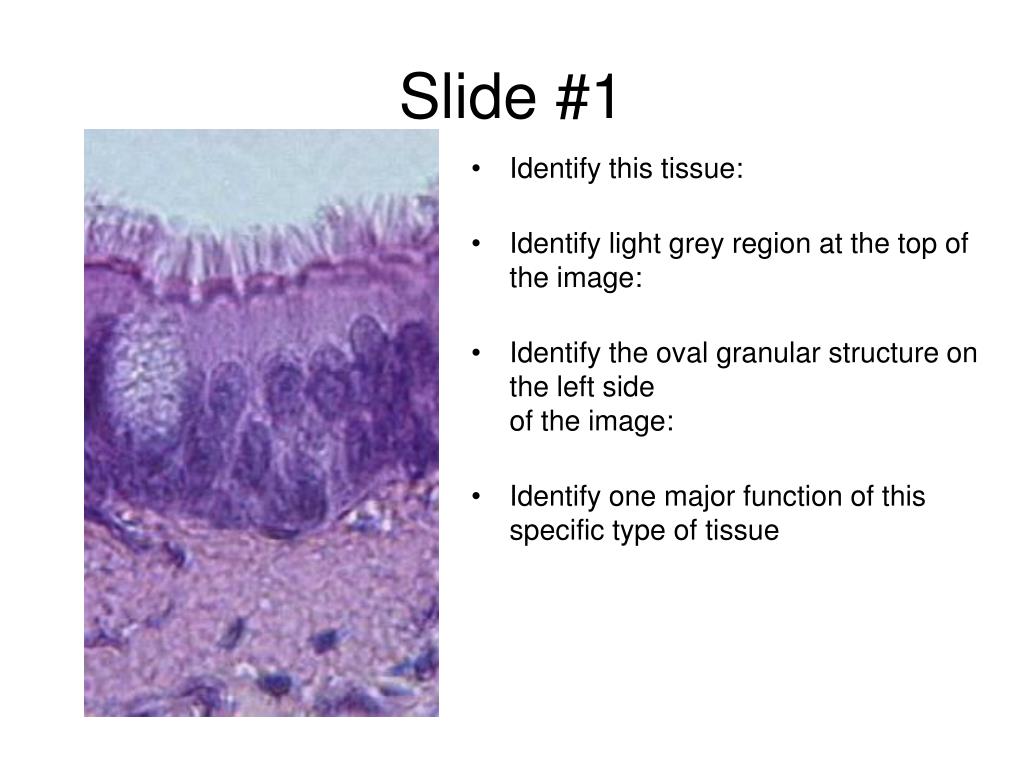

  1. Slide #1 • Identify this tissue: • Identify light grey region at the top of the image: • Identify the oval granular structure on the left sideof the image: • Identify one major function of this specific type of tissue

  2. Answers Slide #1 • Identify this tissue: Ciliated pseudostratified columnar epithelial tissue • Identify light grey region at the top of the image:Free Space: Lumen  • Identify the oval granular structure on the left sideof the image:Goblet cell • Identify one major function of this specific type of tissue:Movement of mucus and particles on lining

  3. Slide #2 • Identify this tissue: • Identify the dark circular structure at the center: • Identify the series of ring-like layers surrounding the center:: • Identify the fine meshwork of structures seen throughout

  4. Answers Slide #2 • Identify this tissue: Compact bone tissue • Identify the dark circular structure at the center:Central (Haversian) canal • Identify the series of ring-like layers surrounding the center:Lamellae • Identify the fine meshwork of structures seen throughout:Canaliculi

  5. Slide #3 • Identify this tissue (Hint: image shows a surface view): • Identify the dark round structures: • Identify a location where this tissue is found:

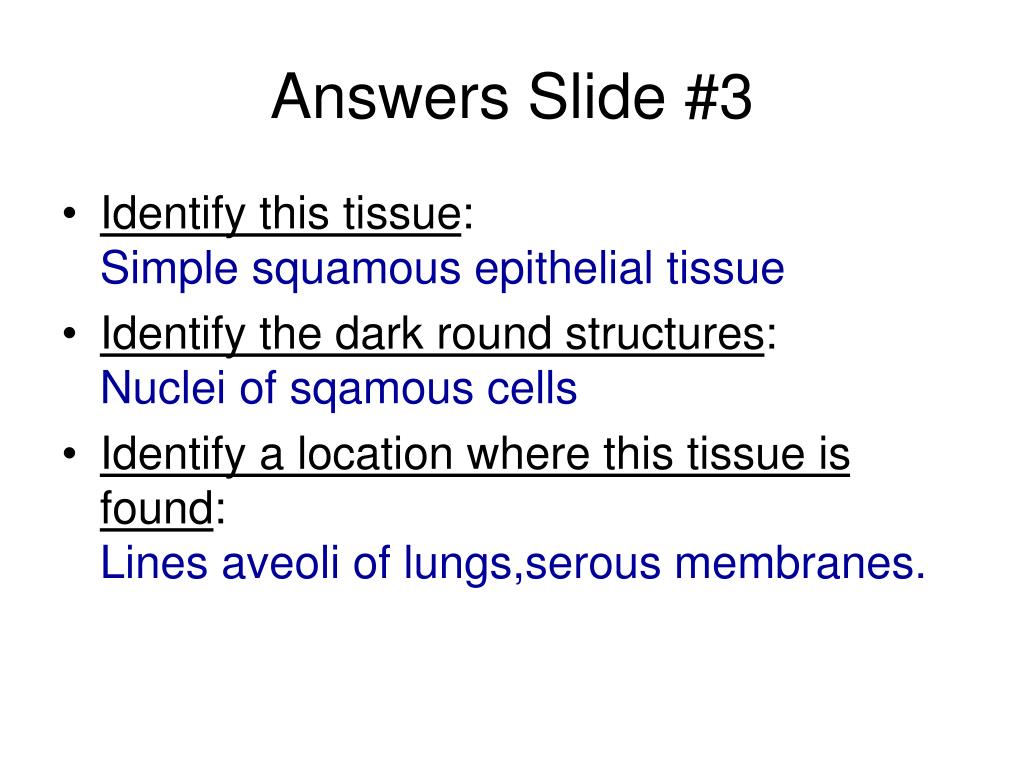

  6. Answers Slide #3 • Identify this tissue: Simple squamous epithelial tissue • Identify the dark round structures:Nuclei of sqamous cells • Identify a location where this tissue is found:Lines aveoli of lungs,serous membranes.

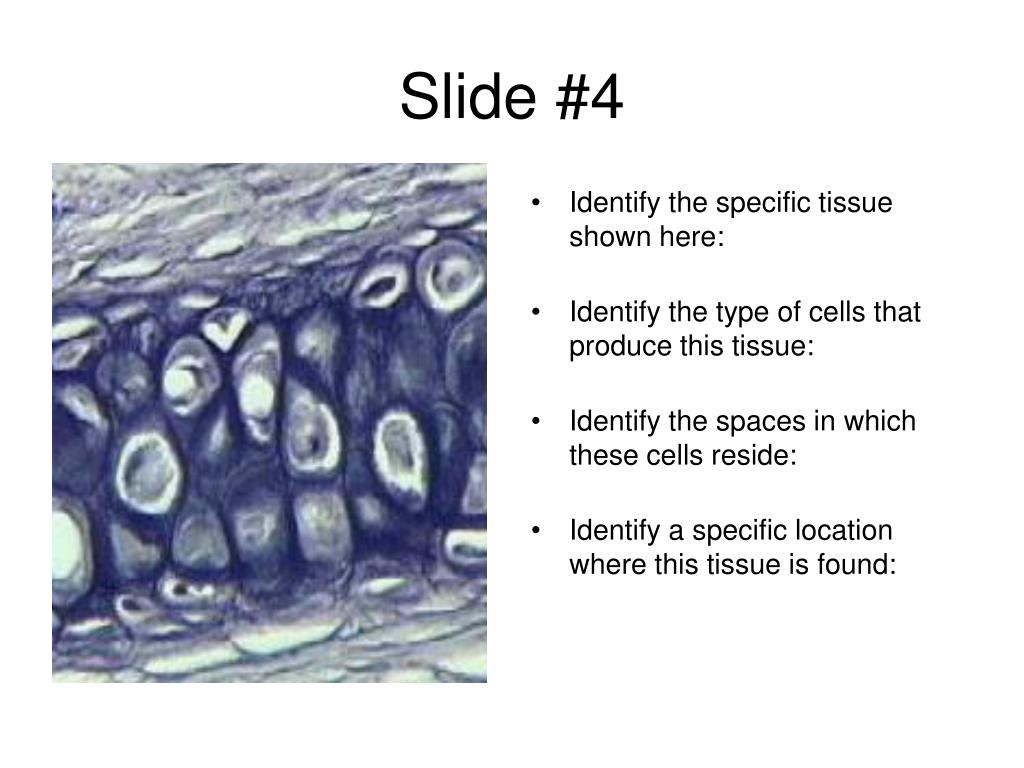

  7. Slide #4 • Identify the specific tissue shown here: • Identify the type of cells that produce this tissue: • Identify the spaces in which these cells reside: • Identify a specific location where this tissue is found:

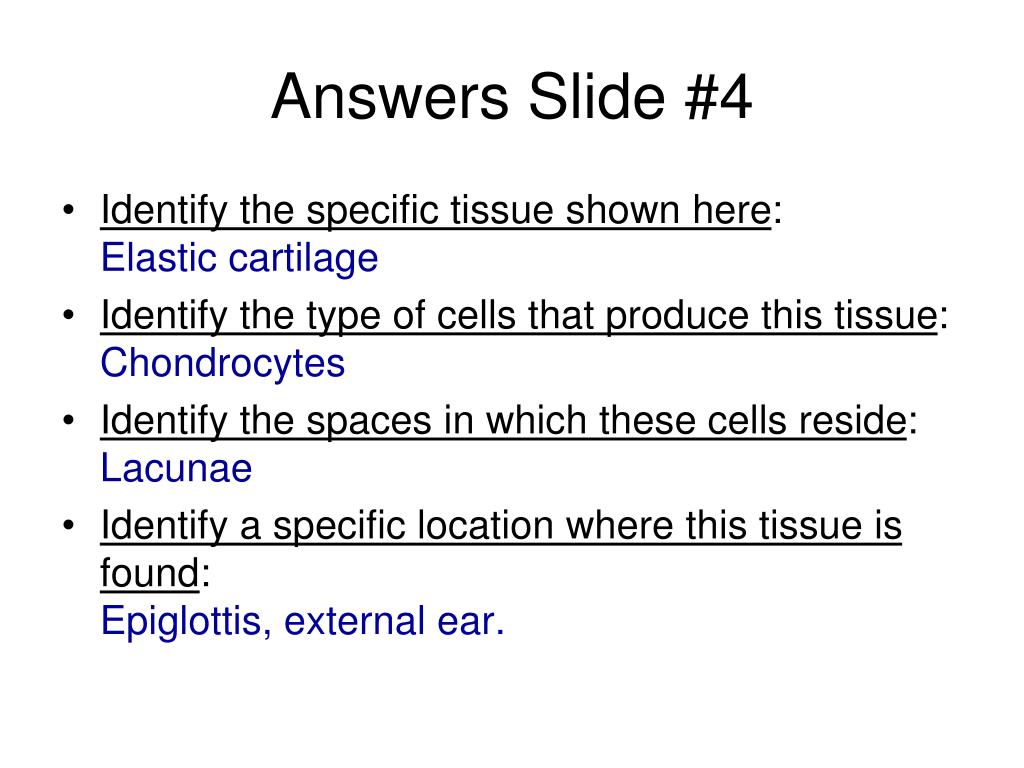

  8. Answers Slide #4 • Identify the specific tissue shown here:Elastic cartilage • Identify the type of cells that produce this tissue:Chondrocytes  • Identify the spaces in which these cells reside:Lacunae • Identify a specific location where this tissue is found:Epiglottis, external ear.

  9. Slide #5 • Identify this tissue: • Identify several locations where this tissue found

  10. Answers Slide #5 • Identify this tissue:Smooth muscle • Identify several locations where this tissue found:Walls of blood vessels, respiratory airways, stomach, intestines, gallbladder, urinary bladder, iris, arrector pili.

  11. Slide #6 • Identify this tissue: • Identify the specific cell type shown here: • Identify the small dark purple structures

  12. Answers Slide #6 • Identify this tissue: Adipose  • Identify the specific cell type shown here:Adipocyte • Identify the small dark purple structures Nuclei of adipocytes

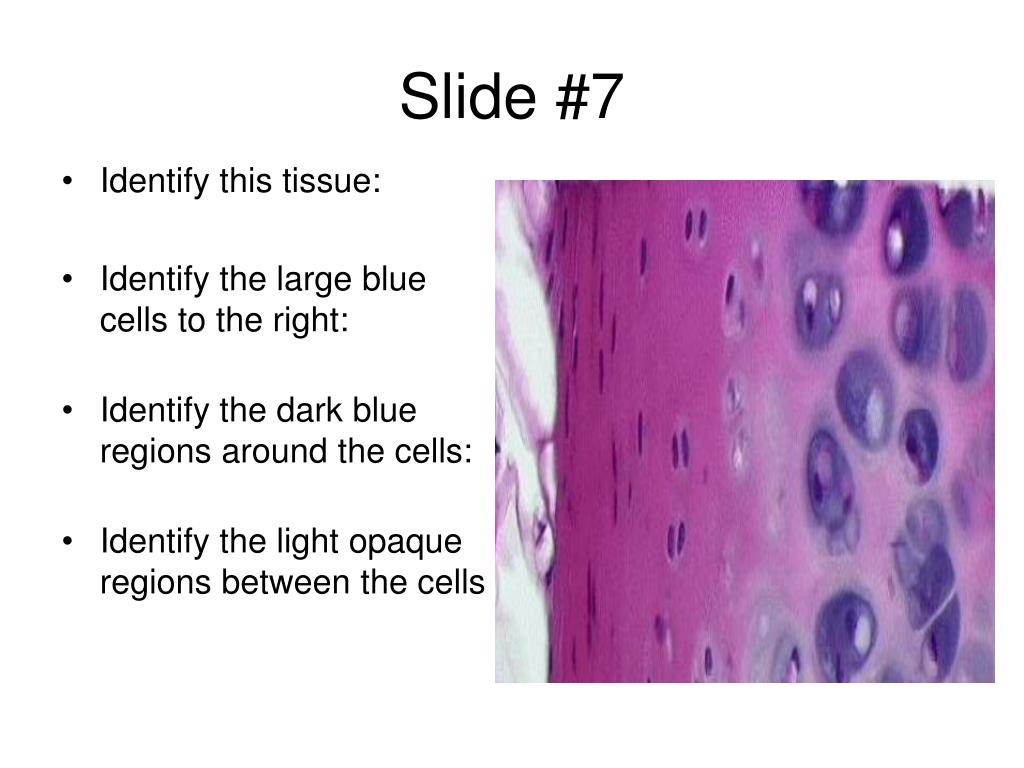

  13. Slide #7 • Identify this tissue: • Identify the large blue cells to the right: • Identify the dark blue regions around the cells:   • Identify the light opaque regions between the cells

  14. Answers Slide #7 • Identify this tissue: Hyaline cartilage • Identify the large blue cells to the right:ChondrocytesIdentify the dark blue regions around the cells:  Lacunae Identify the light opaque regions between the cells:Matrix

  15. Slide #8 • Identify this tissue: • Identify the small dark purple structures: • Identify the patterns of light and dark bands:

  16. Answers Slide #8 • Identify this tissue: Skeletal muscle • Identify the small dark purple structures:Nuclei of muscle fiber • Identify the patterns of light and dark bands:Striations

  17. Slide #9 • Identify this tissue (be specific): • Identify a location where this tissue is found: • Identify the region of closely-packed cells near the bottom

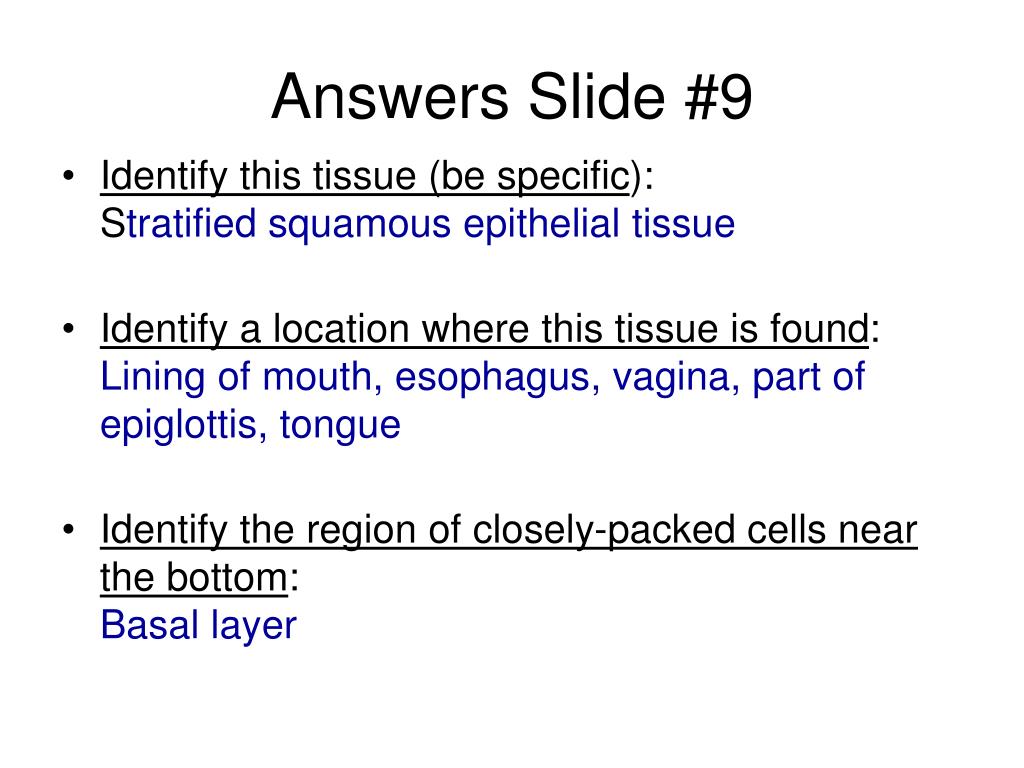

  18. Answers Slide #9 • Identify this tissue (be specific): Stratified squamous epithelial tissue • Identify a location where this tissue is found:Lining of mouth, esophagus, vagina, part of epiglottis, tongue • Identify the region of closely-packed cells near the bottom:Basal layer

  19. Slide #10 • Identify this tissue: • Identify the darkest lines here: • Identify a location for this tissue:

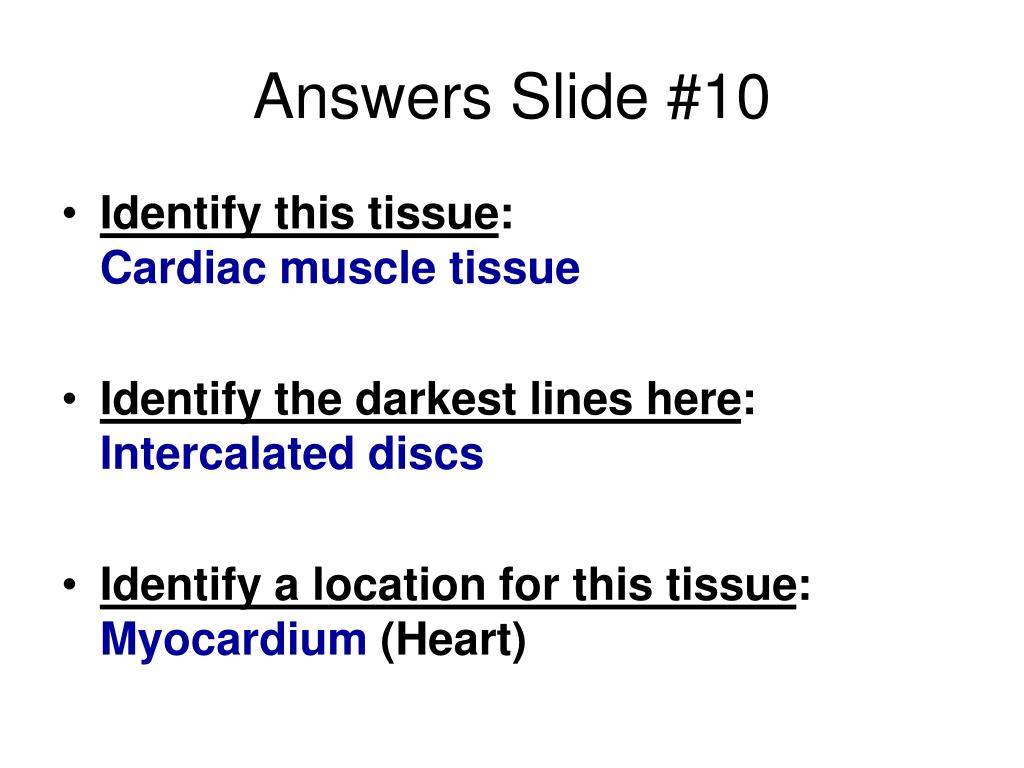

  20. Answers Slide #10 • Identify this tissue: Cardiac muscle tissue • Identify the darkest lines here:Intercalated discs • Identify a location for this tissue:Myocardium (Heart)

  21. Slide #11 • Identify this large cell: • Identify the large process extending from the cell: • Identify the portion of this cell that accepts message. • Identify large portion in the middle of the picture.

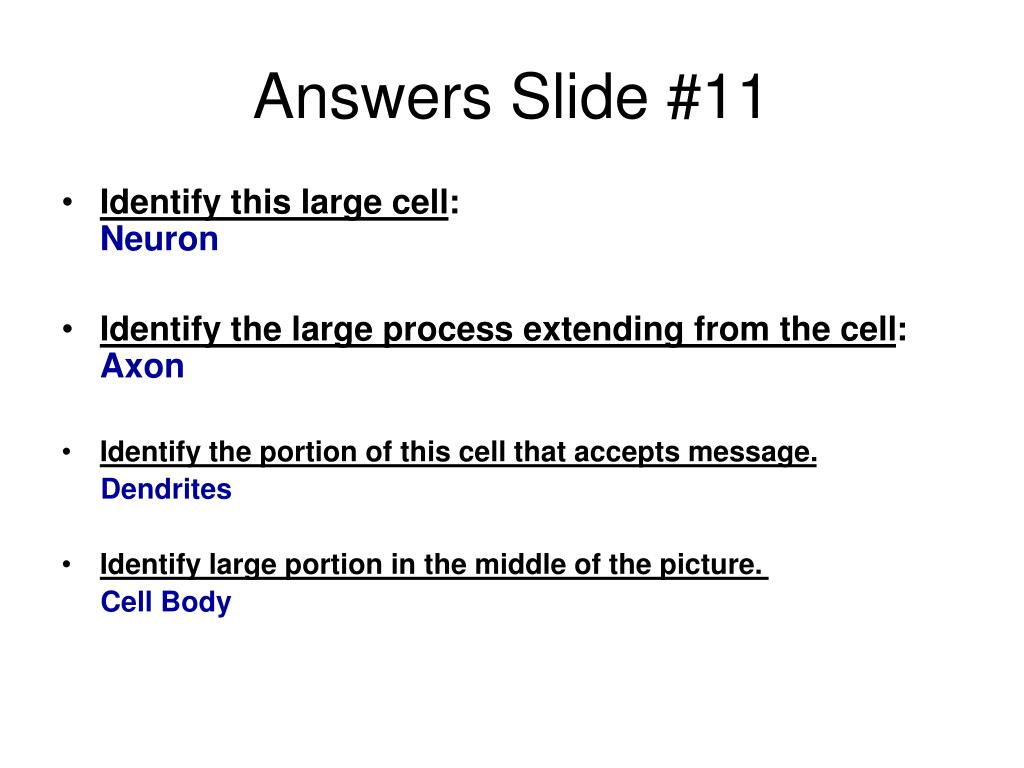

  22. Answers Slide #11 • Identify this large cell: Neuron  • Identify the large process extending from the cell:Axon • Identify the portion of this cell that accepts message. Dendrites • Identify large portion in the middle of the picture.  Cell Body
