  1. Using SSL/TLS Client Certificates for User Authentication 22nd March 2006 Robert Loomans robertl@apnic.net

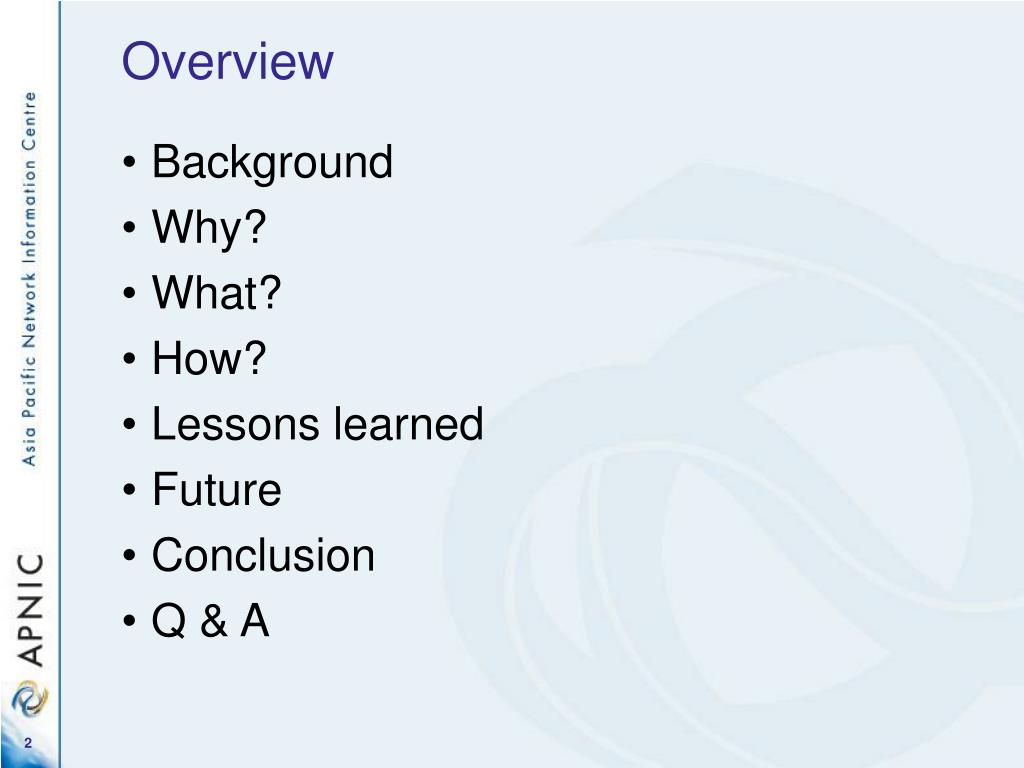

  2. Overview • Background • Why? • What? • How? • Lessons learned • Future • Conclusion • Q & A

  3. Background • In 2001, APNIC decided to develop a secured web portal (MyAPNIC) to allow its members self manage their account information • username/password is not sufficient to protect the access • Leverage SSL and PKI/X.509 technology to authenticate users • An application framework was developed to handle user authentication and authorisation • This application framework is then used to develop various web applications such as: • MyAPNIC • Meeting/events registration system • Resource management system (internal use)

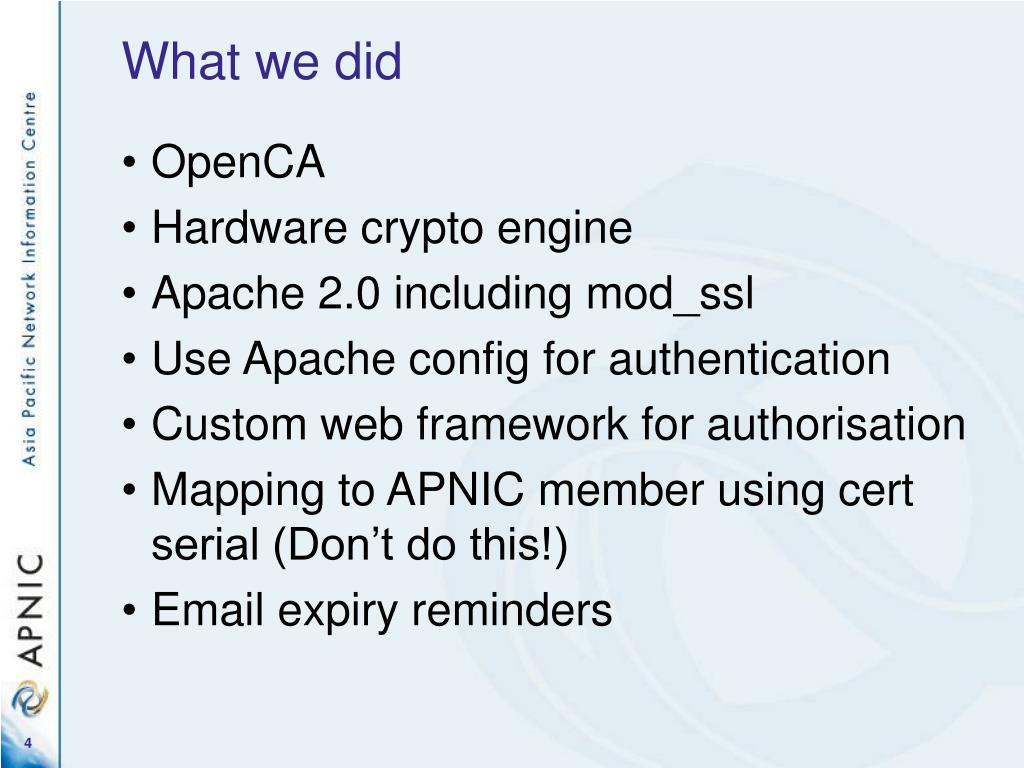

  4. What we did • OpenCA • Hardware crypto engine • Apache 2.0 including mod_ssl • Use Apache config for authentication • Custom web framework for authorisation • Mapping to APNIC member using cert serial (Don’t do this!) • Email expiry reminders

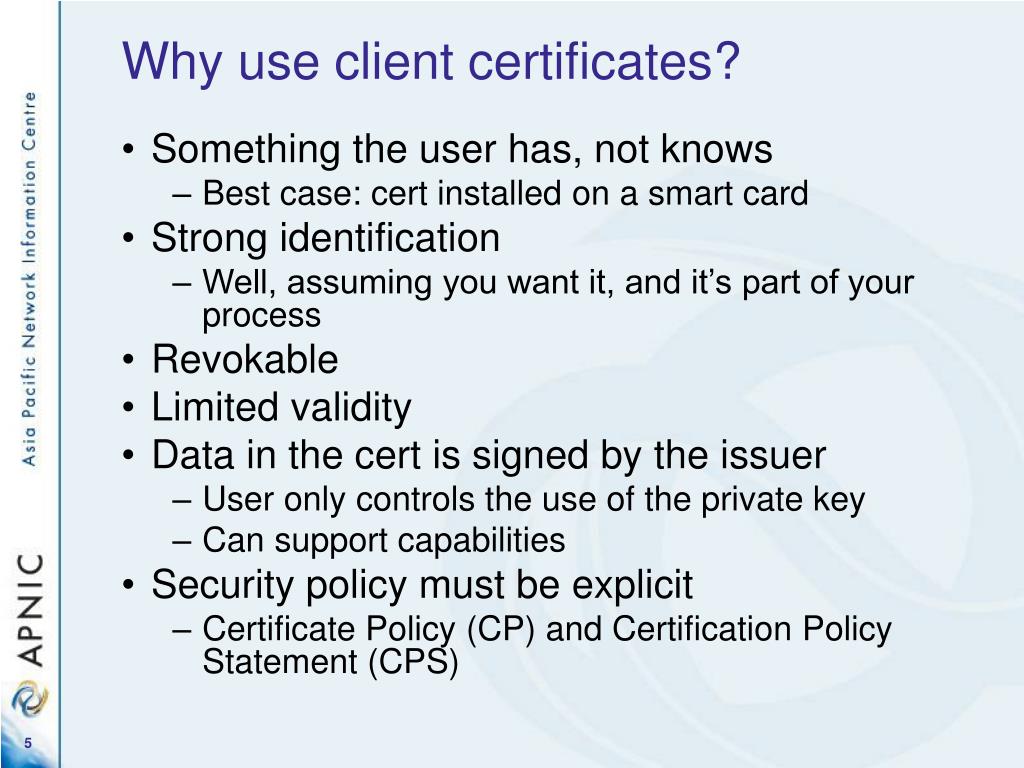

  5. Why use client certificates? • Something the user has, not knows • Best case: cert installed on a smart card • Strong identification • Well, assuming you want it, and it’s part of your process • Revokable • Limited validity • Data in the cert is signed by the issuer • User only controls the use of the private key • Can support capabilities • Security policy must be explicit • Certificate Policy (CP) and Certification Policy Statement (CPS)

  6. Cons • More effort for operator • Running the PKI • Processes and procedures • User and operator education • Browser problems and differences • More effort for users • More process for requesting and renewing certificates • Reduced portability • Browser problems and differences

  7. What don’t client certificates help with? • Clueless users • Clueless staff • Poor network security • Poor application security • Poor security policy • Rapid turnaround

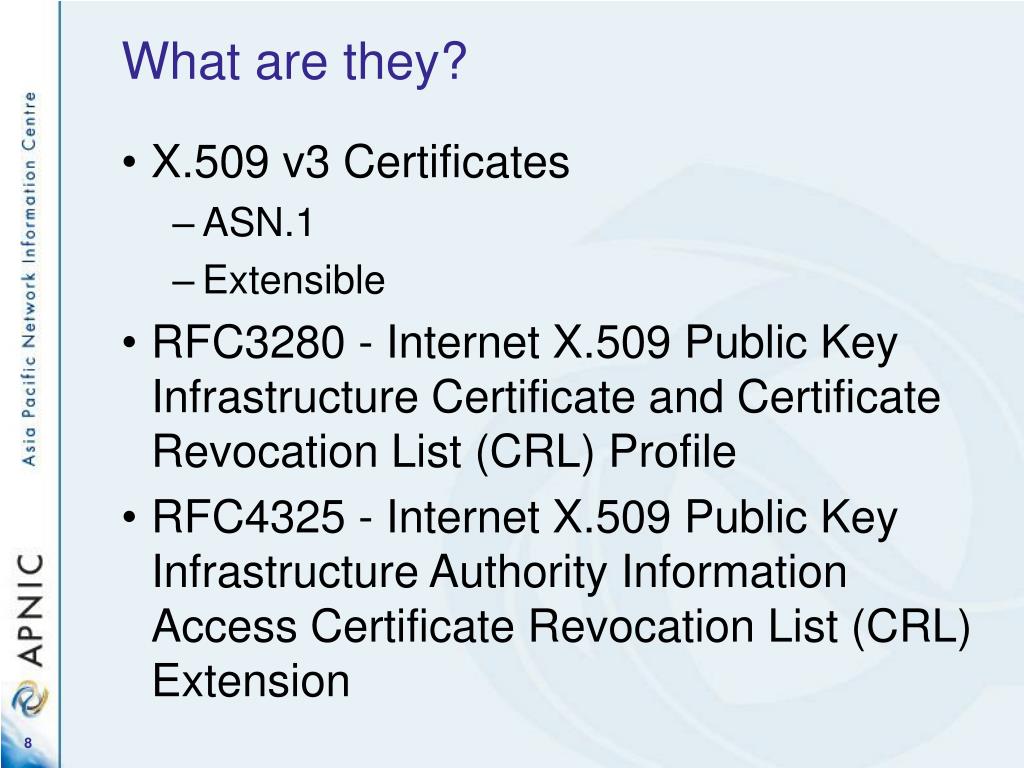

  8. What are they? • X.509 v3 Certificates • ASN.1 • Extensible • RFC3280 - Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile • RFC4325 - Internet X.509 Public Key Infrastructure Authority Information Access Certificate Revocation List (CRL) Extension

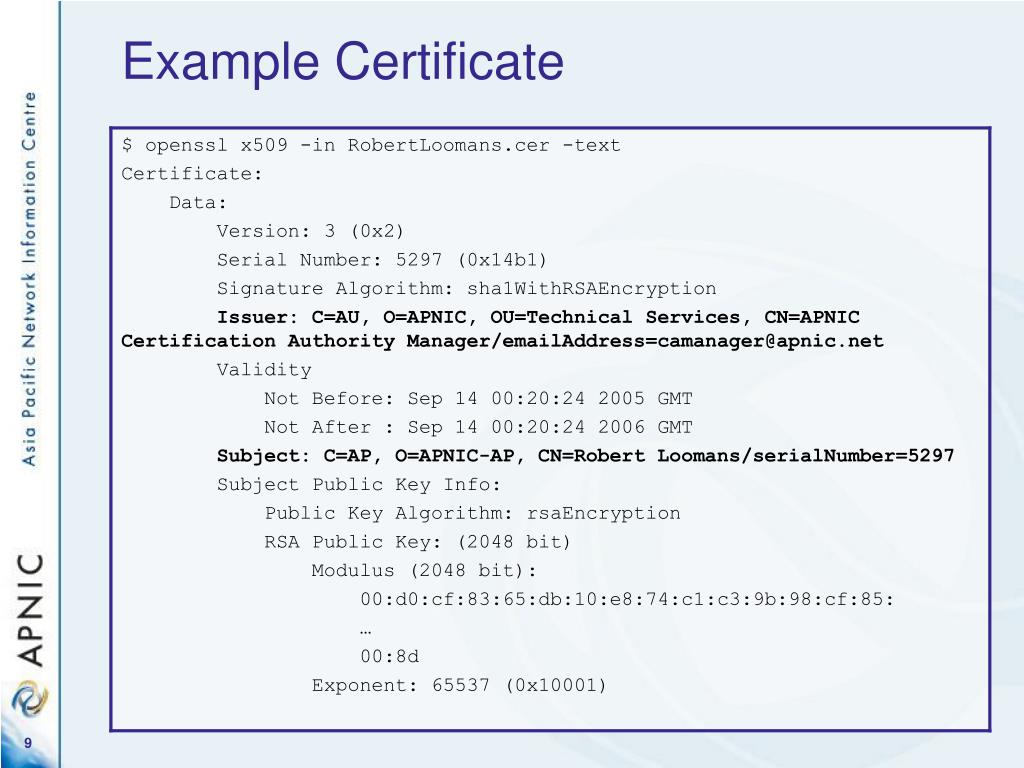

  9. Example Certificate

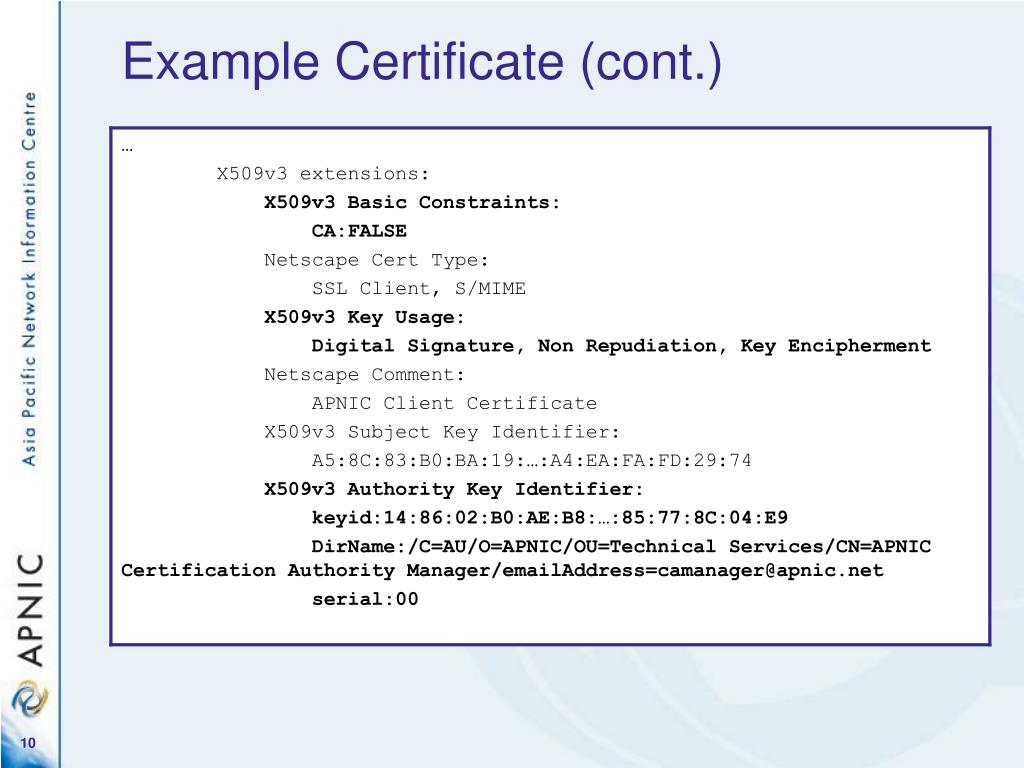

  10. Example Certificate (cont.)

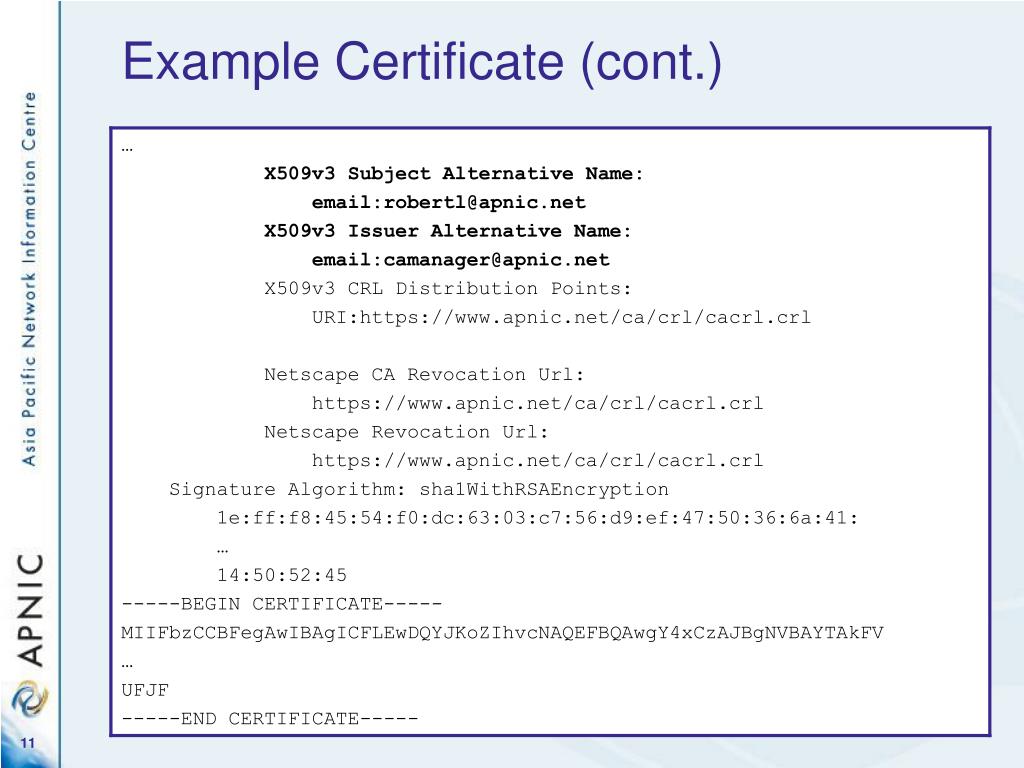

  11. Example Certificate (cont.)

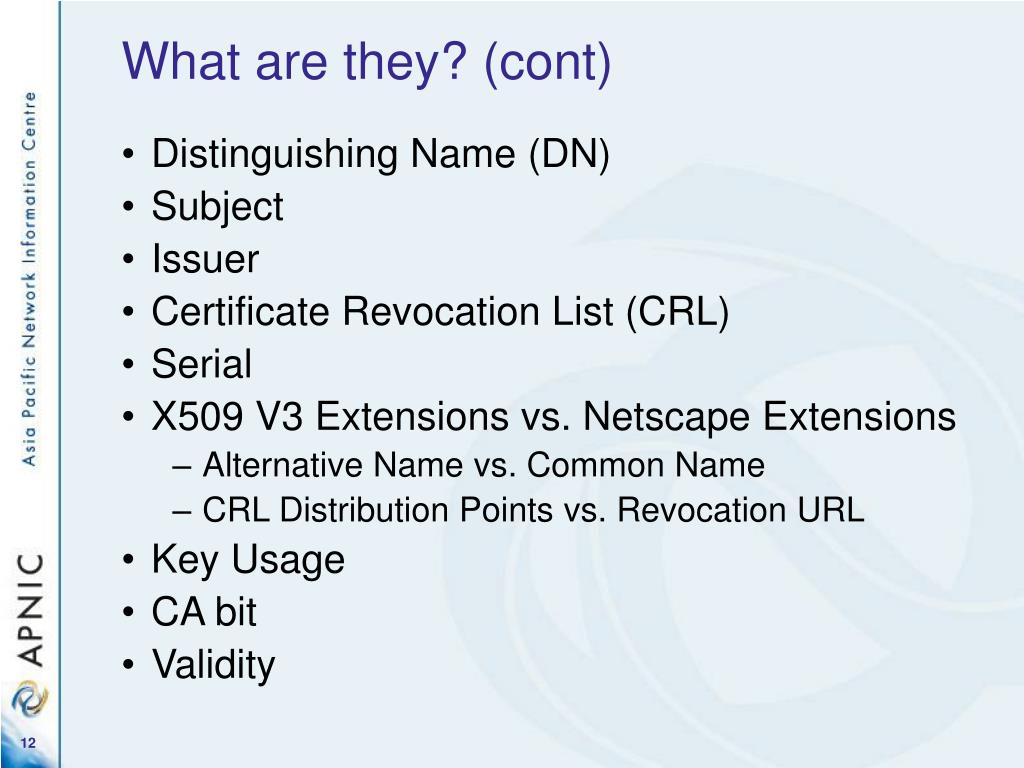

  12. What are they? (cont) • Distinguishing Name (DN) • Subject • Issuer • Certificate Revocation List (CRL) • Serial • X509 V3 Extensions vs. Netscape Extensions • Alternative Name vs. Common Name • CRL Distribution Points vs. Revocation URL • Key Usage • CA bit • Validity

  13. What do you need? • SSL enabled web server • User database • PKI • Public interface • Request Authority • Certificate Authority • Repository • Policies • Processes and procedures

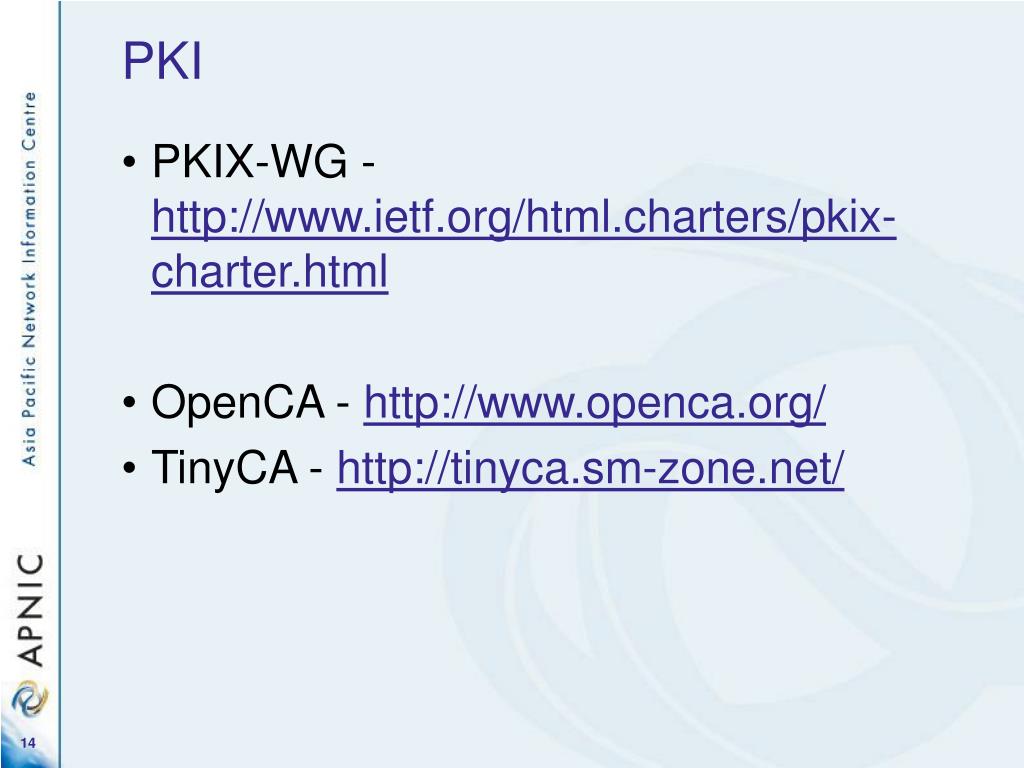

  14. PKI • PKIX-WG -http://www.ietf.org/html.charters/pkix-charter.html • OpenCA - http://www.openca.org/ • TinyCA - http://tinyca.sm-zone.net/

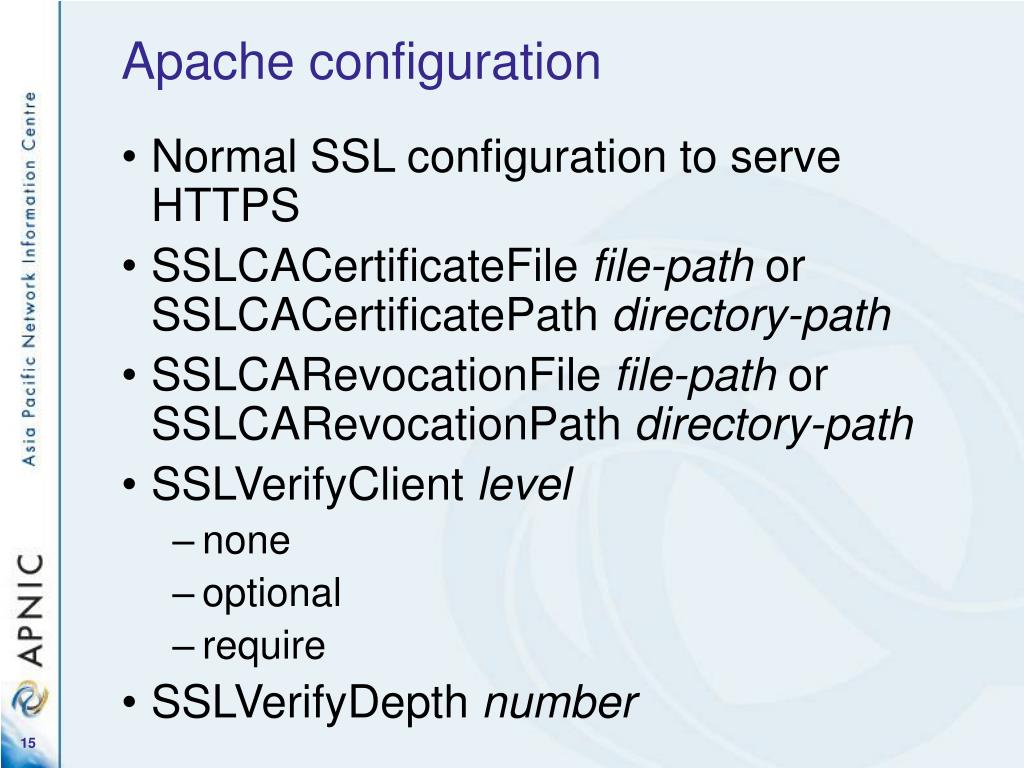

  15. Apache configuration • Normal SSL configuration to serve HTTPS • SSLCACertificateFile file-path or SSLCACertificatePath directory-path • SSLCARevocationFile file-path or SSLCARevocationPath directory-path • SSLVerifyClient level • none • optional • require • SSLVerifyDepth number

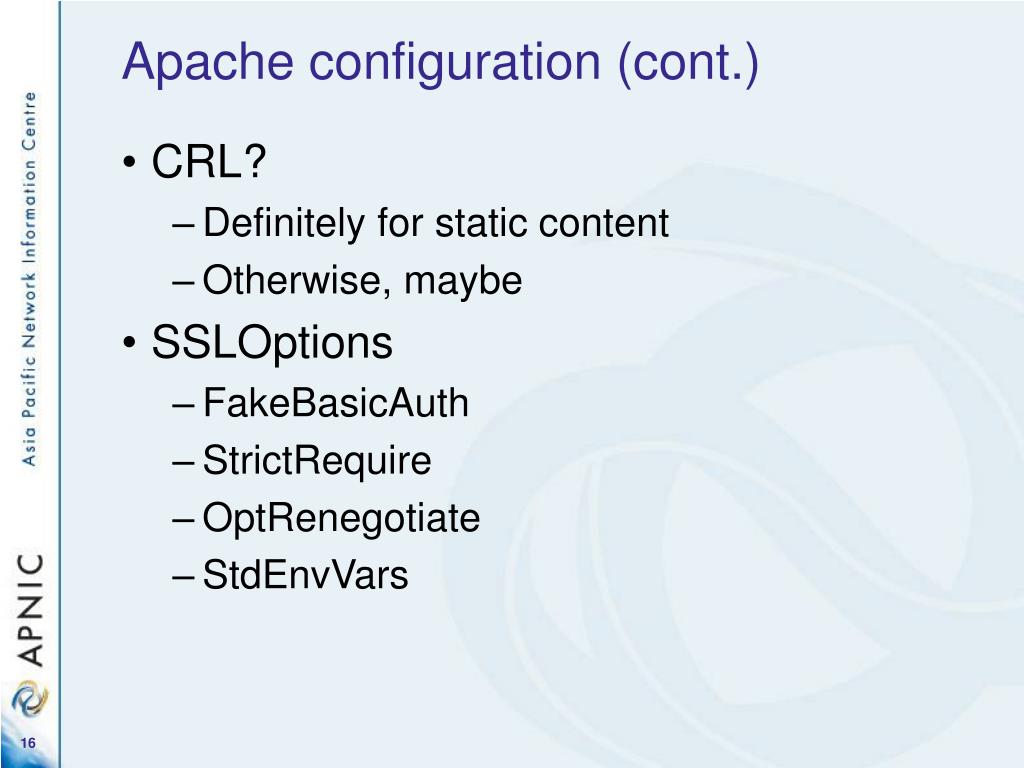

  16. Apache configuration (cont.) • CRL? • Definitely for static content • Otherwise, maybe • SSLOptions • FakeBasicAuth • StrictRequire • OptRenegotiate • StdEnvVars

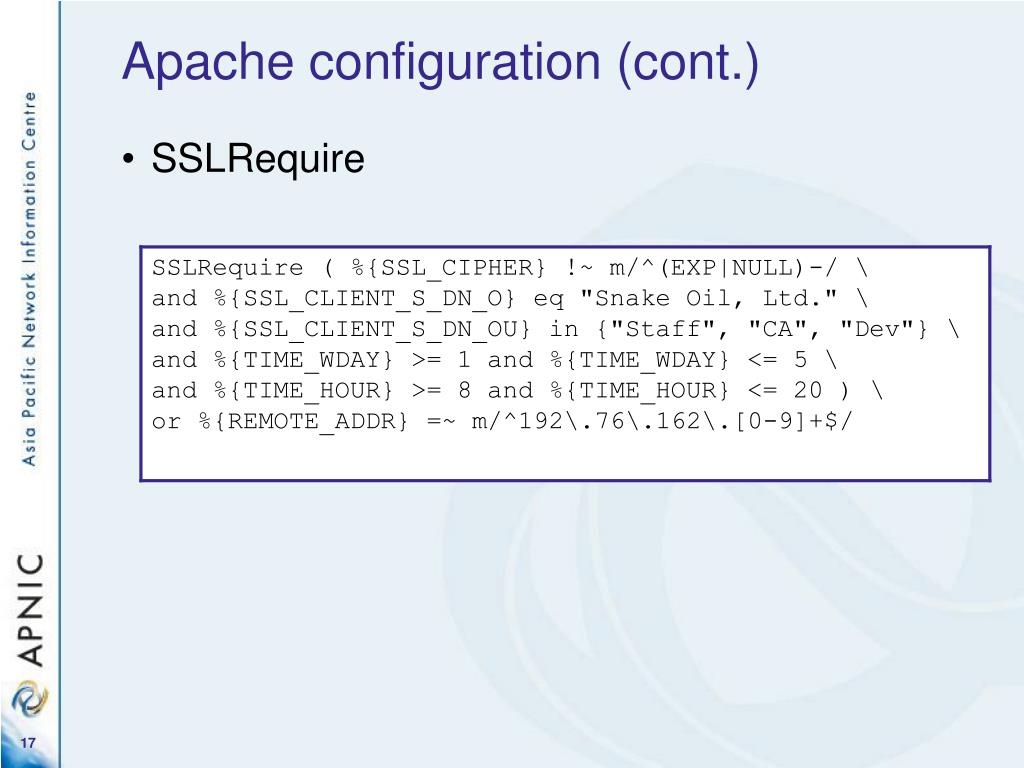

  17. Apache configuration (cont.) • SSLRequire

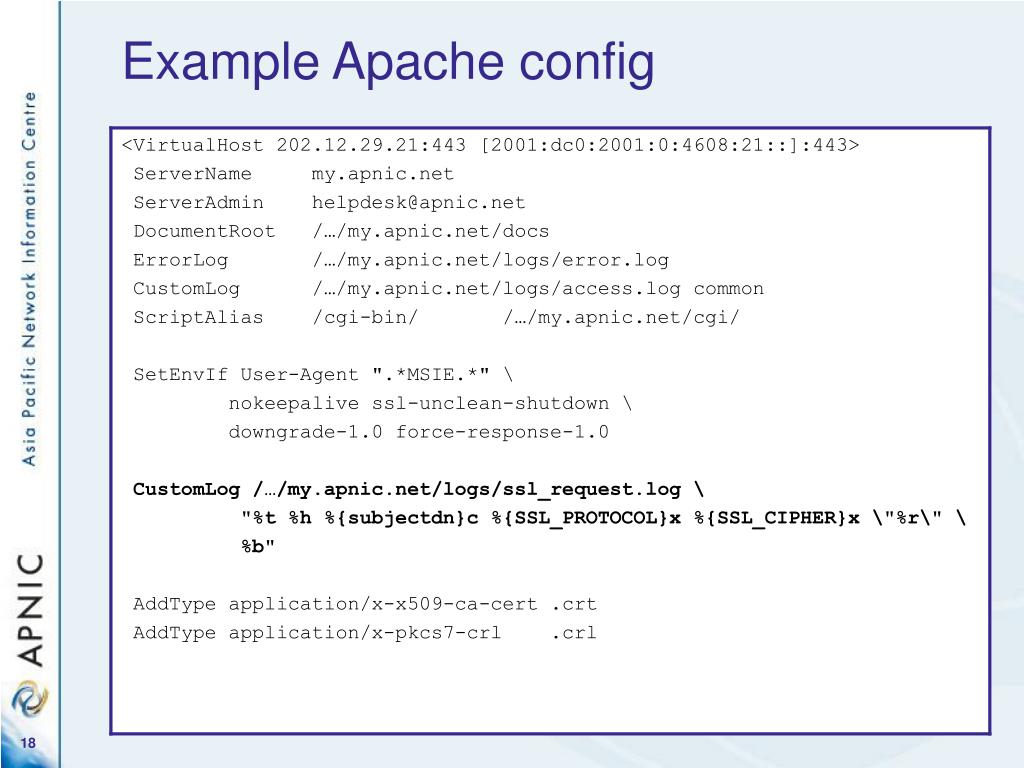

  18. Example Apache config

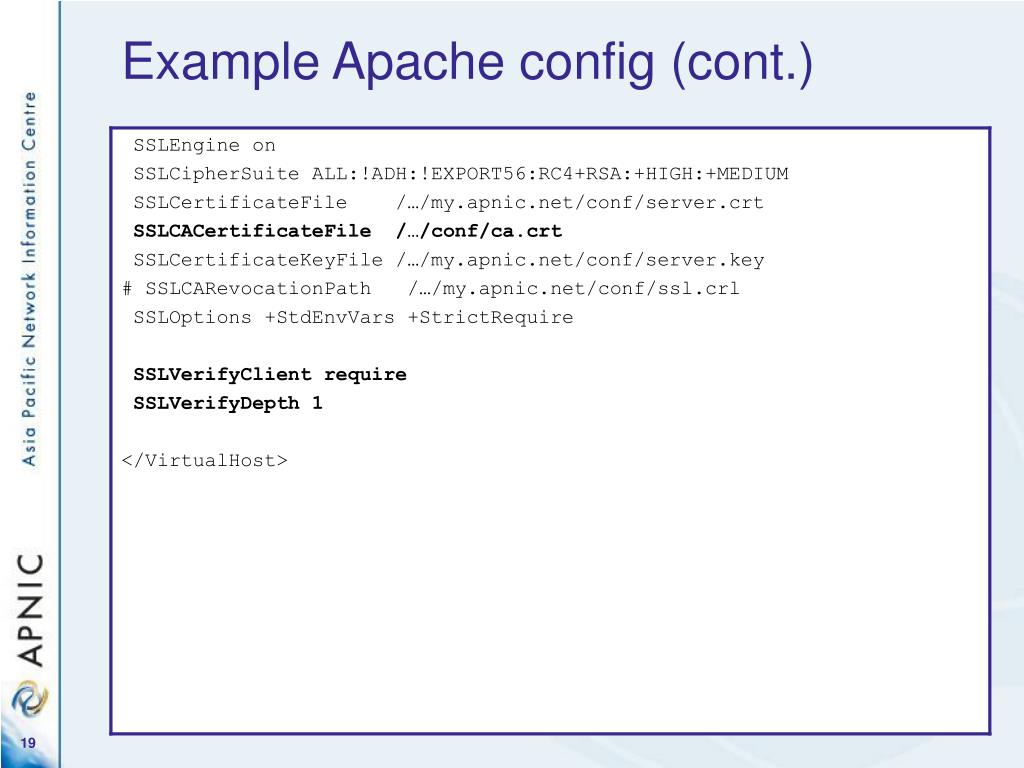

  19. Example Apache config (cont.)

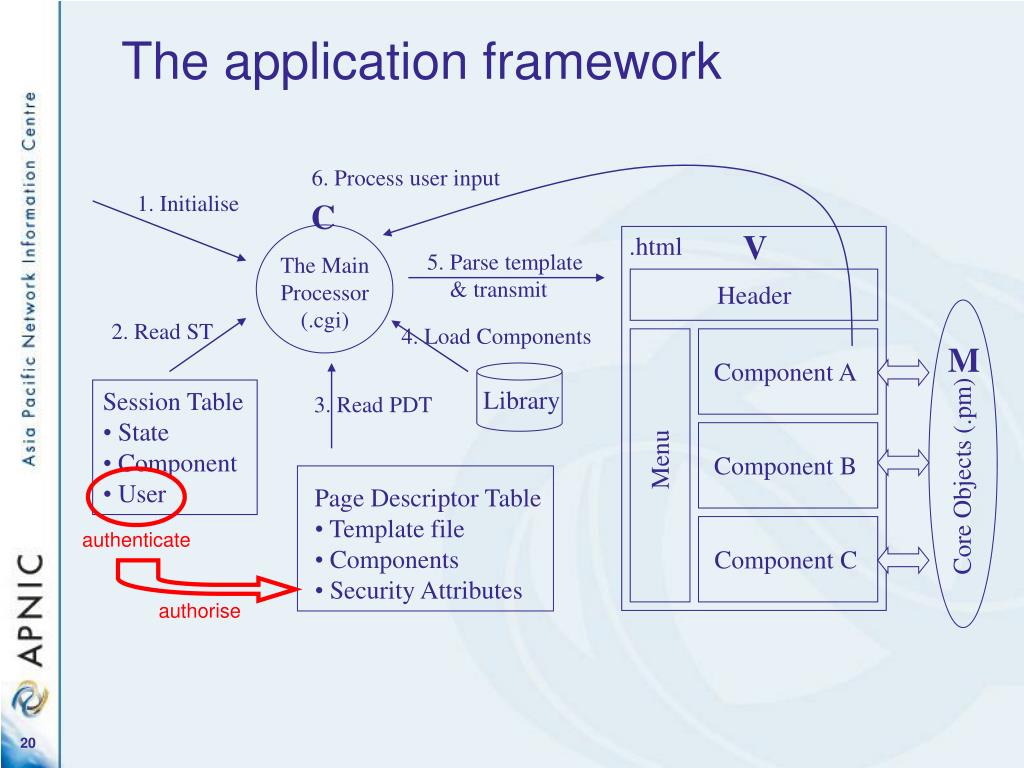

  20. 6. Process user input 1. Initialise C V .html 5. Parse template & transmit The MainProcessor (.cgi) Header 2. Read ST 4. Load Components M Component A • Session Table • State • Component • User 3. Read PDT Menu Component B Core Objects (.pm) Library Component C • Page Descriptor Table • Template file • Components • Security Attributes The application framework authenticate authorise

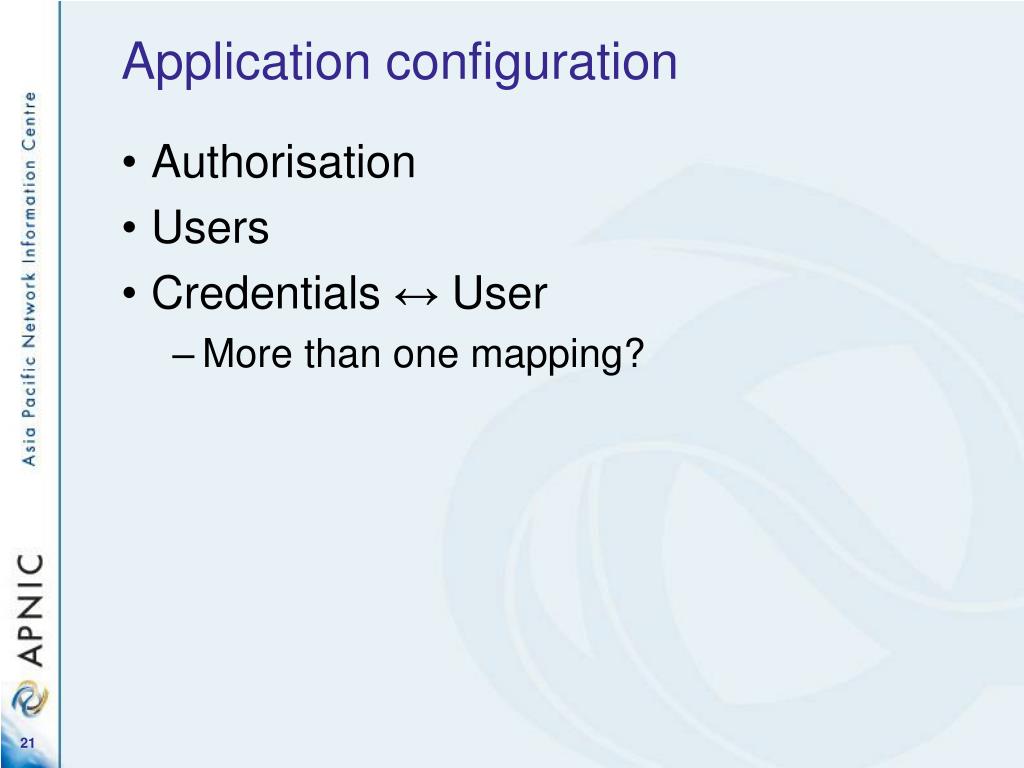

  21. Application configuration • Authorisation • Users • Credentials ↔ User • More than one mapping?

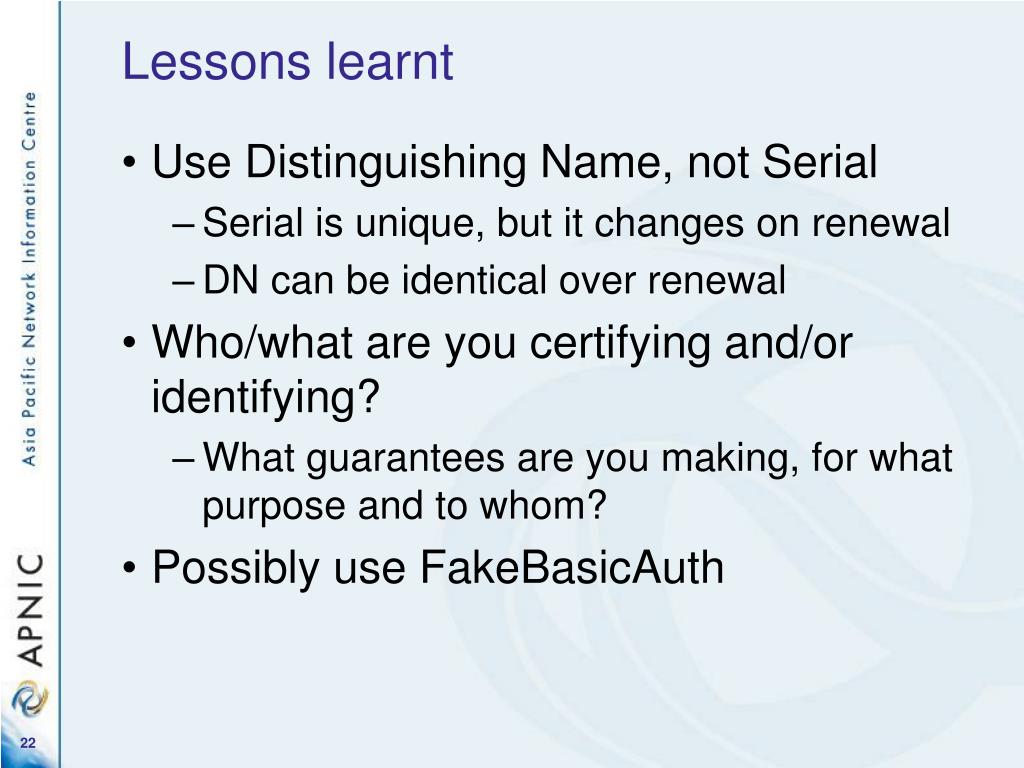

  22. Lessons learnt • Use Distinguishing Name, not Serial • Serial is unique, but it changes on renewal • DN can be identical over renewal • Who/what are you certifying and/or identifying? • What guarantees are you making, for what purpose and to whom? • Possibly use FakeBasicAuth

  23. Future • Segment certificates for different types of users • Different issuers • Different names • Looser coupling between user identity and authorisation • Browsers don’t deal nicely with choosing between certificates

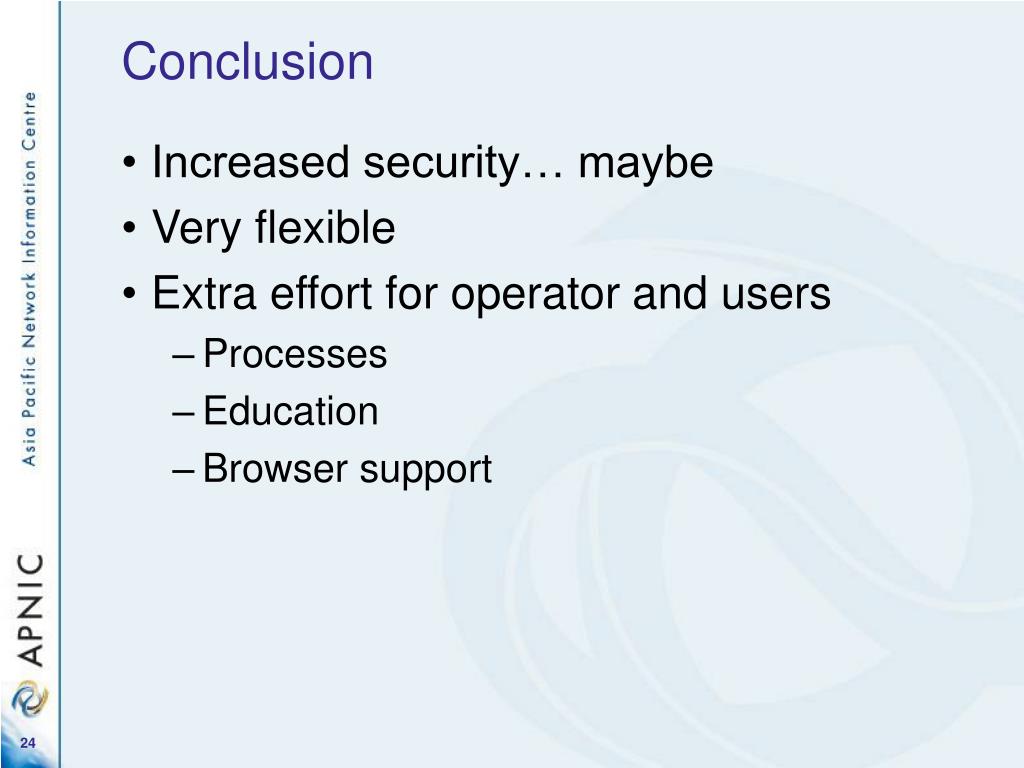

  24. Conclusion • Increased security… maybe • Very flexible • Extra effort for operator and users • Processes • Education • Browser support

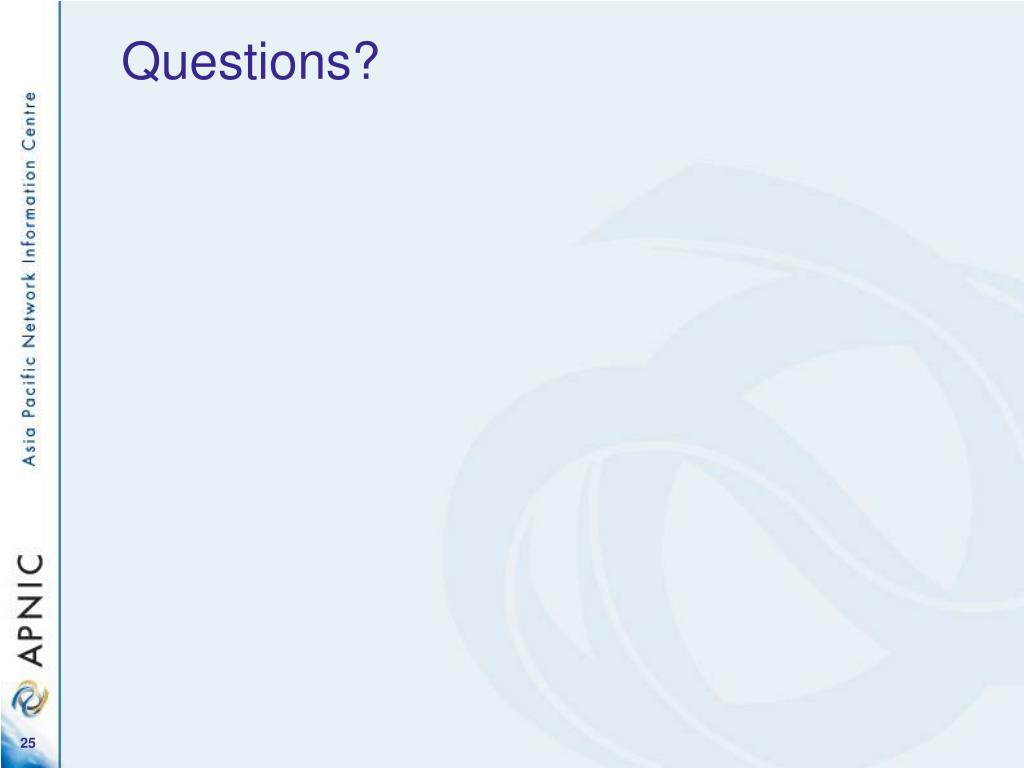

  25. Questions?
