  1. Comparison of two soils in North Central Florida Derek Sain

  2. San Felasco State Park

  3. 0.2 miles

  4. Soil 1: Upland Sandhill • Nearly level, uphill, scattered pines, open canopy

  5. A1 A2 E1 E2 E3 E4 E5

  6. 126cm 108cm 36cm 8cm 16cm A1 10YR 4/1 E1 10YR 5/3 E2 10YR 5/4 E3 10YR 6/4 A2 10YR 3/2 195cm 108cm 126cm E3 10YR 6/4 E4 10YR 6/6 E5 10YR 7/4

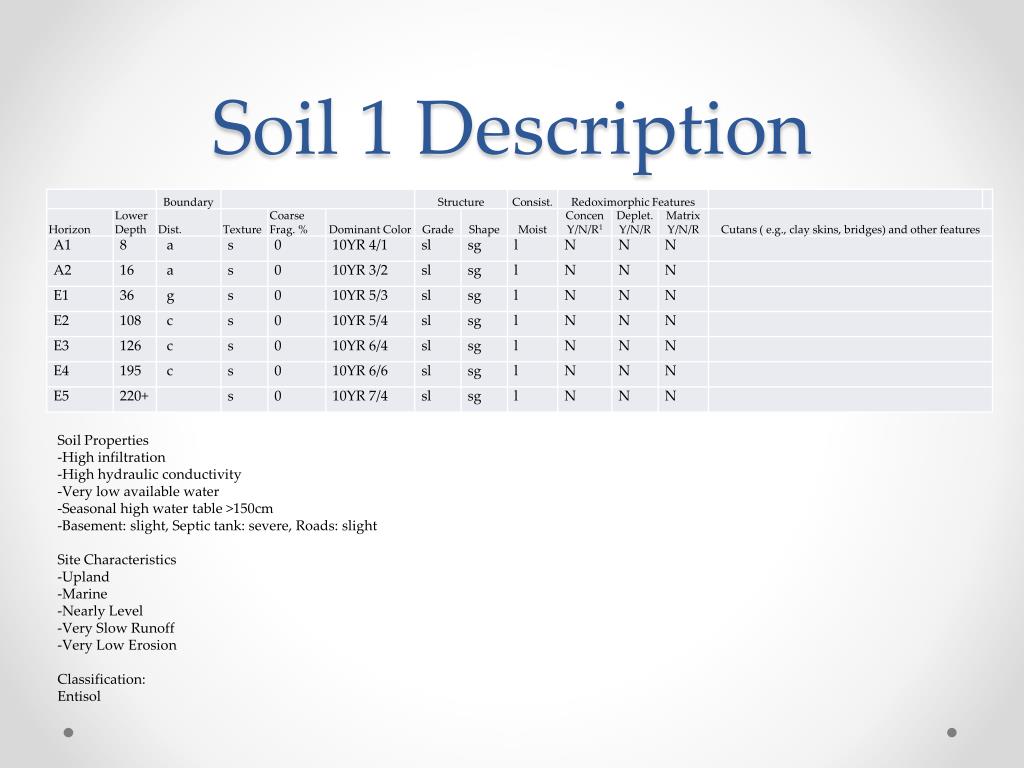

  7. Soil 1 Description Soil Properties -High infiltration -High hydraulic conductivity -Very low available water -Seasonal high water table >150cm -Basement: slight, Septic tank: severe, Roads: slight Site Characteristics -Upland -Marine -Nearly Level -Very Slow Runoff -Very Low Erosion Classification: Entisol

  8. Soil 2: Rolling Hardwood • Steep slope, dense hardwoods, thick canopy,

  9. A 10YR 3/1 10cm AE 10YR 4/2 19cm Bt1 10YR 4/3 42cm Bt2 10YR 5/3 60cm Bt3 10YR 4/4 87cm Btg1 10YR 6/2 96cm Btg2 10YR 7/2

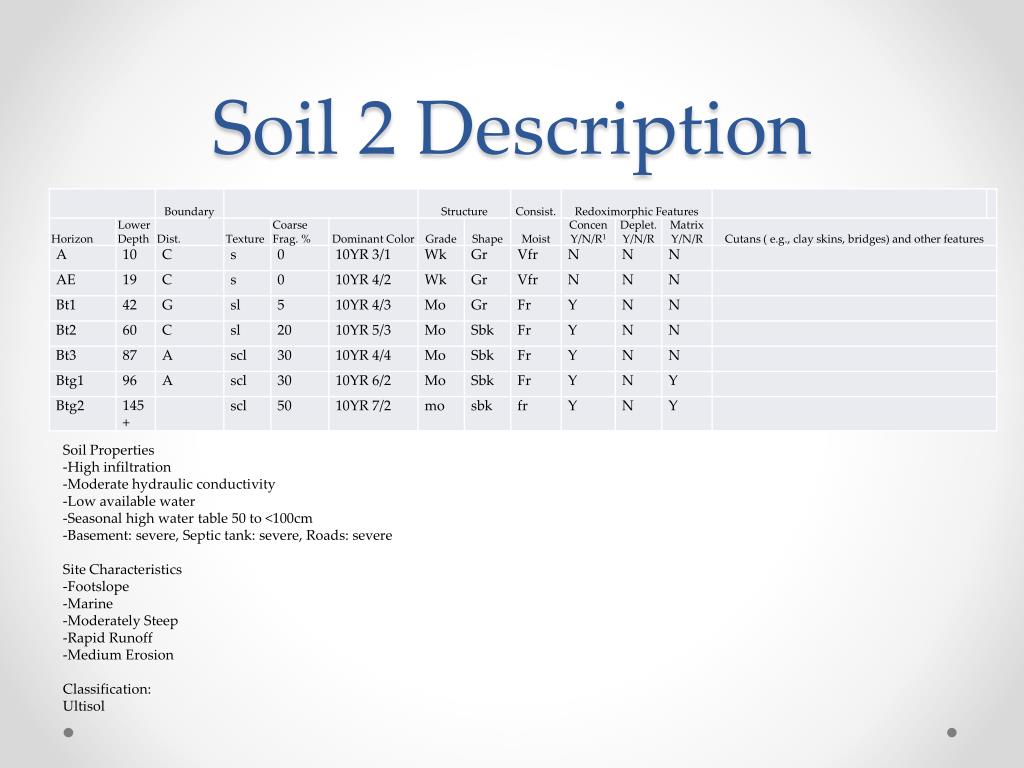

  10. Soil 2 Description Soil Properties -High infiltration -Moderate hydraulic conductivity -Low available water -Seasonal high water table 50 to <100cm -Basement: severe, Septic tank: severe, Roads: severe Site Characteristics -Footslope -Marine -Moderately Steep -Rapid Runoff -Medium Erosion Classification: Ultisol

  11. Comparison

  12. Cross Section Soil 1 Soil 2

  13. Questions
