  1. ILP(Recap)

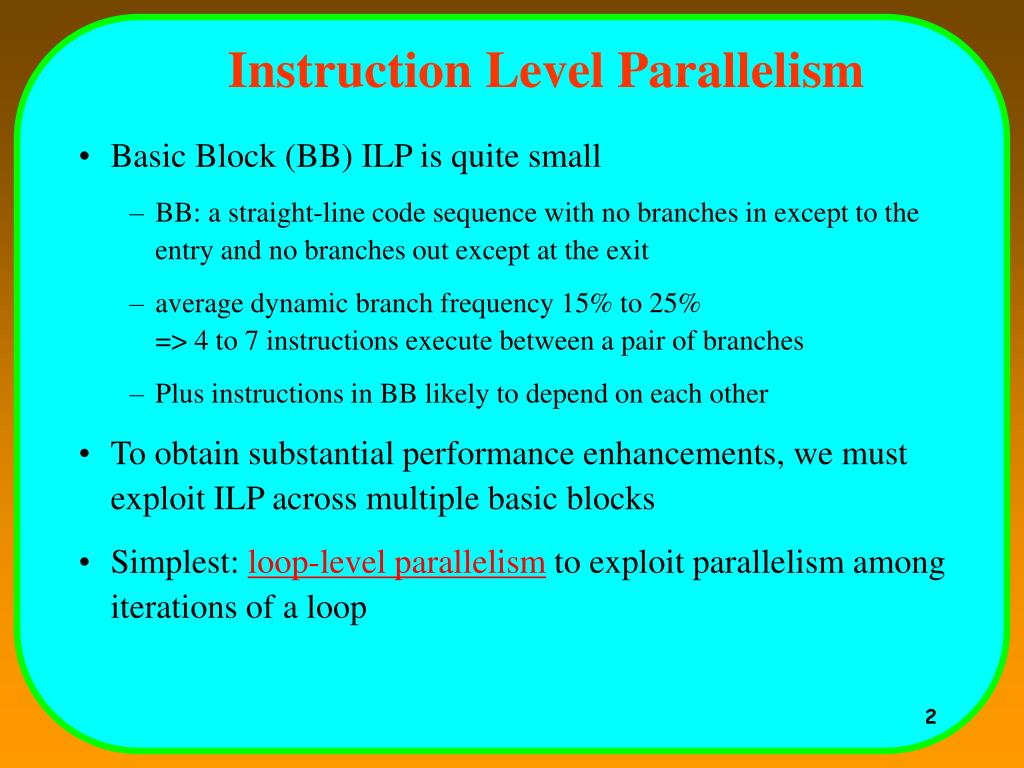

  2. Instruction Level Parallelism • Basic Block (BB) ILP is quite small • BB: a straight-line code sequence with no branches in except to the entry and no branches out except at the exit • average dynamic branch frequency 15% to 25% => 4 to 7 instructions execute between a pair of branches • Plus instructions in BB likely to depend on each other • To obtain substantial performance enhancements, we must exploit ILP across multiple basic blocks • Simplest: loop-level parallelism to exploit parallelism among iterations of a loop

  3. Loop Unrolling Example: Key to increasing ILP • For the loop: for (i=1; i<=1000; i++) x(i) = x(i) + s;; The straightforward MIPS assembly code is given by: Instruction Instruction Latency inproducing result using result clock cycles FP ALU op Another FP ALU op 3 FP ALU op Store double 2 Load double FP ALU op 1 Load double Store double 0 Integer op Integer op 0 Loop: L.D F0, 0 (R1) ADD.D F4, F0, F2 S.D F4, 0(R1) SUBI R1, R1, # 8 BNE R1,Loop

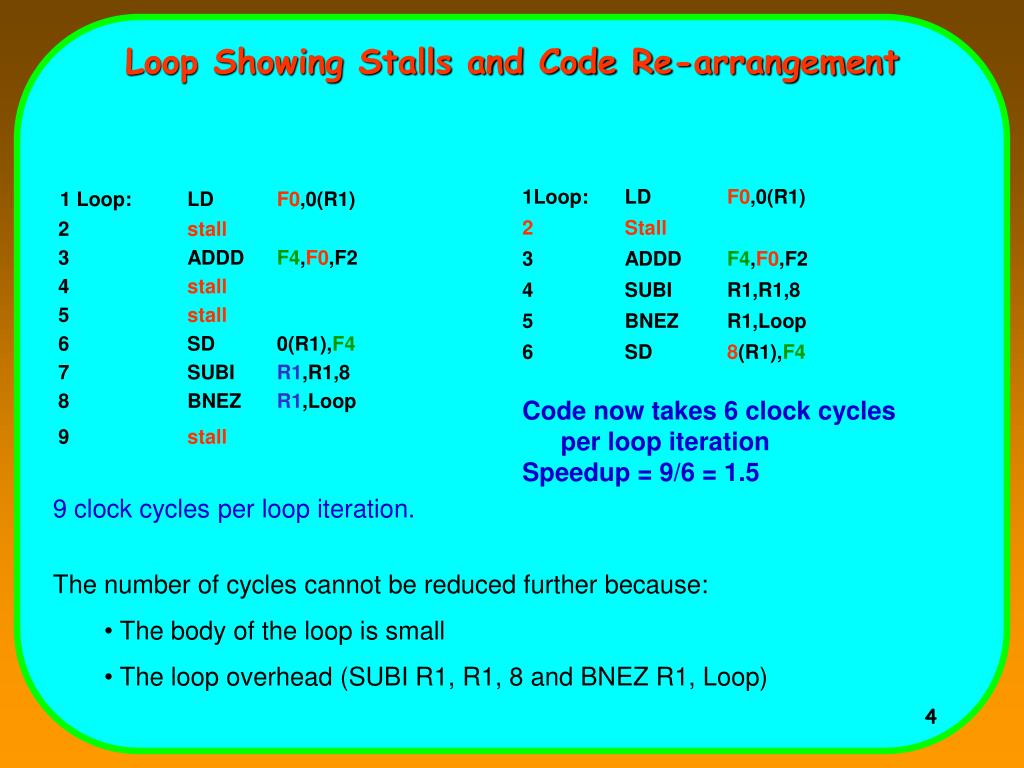

  4. Loop Showing Stalls and Code Re-arrangement 1 Loop: LD F0,0(R1) 2 stall 3 ADDD F4,F0,F2 4 stall 5 stall 6 SD 0(R1),F4 7 SUBI R1,R1,8 8 BNEZ R1,Loop 9 stall 9 clock cycles per loop iteration. 1Loop: LD F0,0(R1) 2 Stall 3 ADDD F4,F0,F2 4 SUBI R1,R1,8 5 BNEZ R1,Loop 6 SD 8(R1),F4 Code now takes 6 clock cycles per loop iteration Speedup = 9/6 = 1.5 • The number of cycles cannot be reduced further because: • The body of the loop is small • The loop overhead (SUBI R1, R1, 8 and BNEZ R1, Loop)

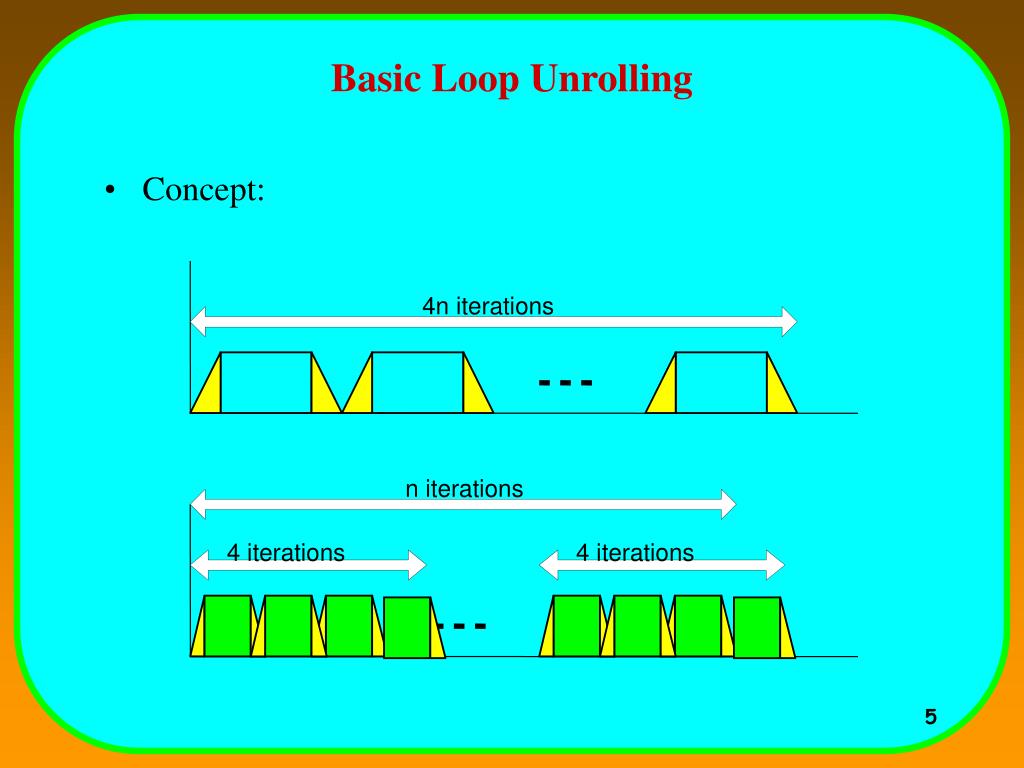

  5. 4n iterations n iterations 4 iterations 4 iterations Basic Loop Unrolling • Concept:

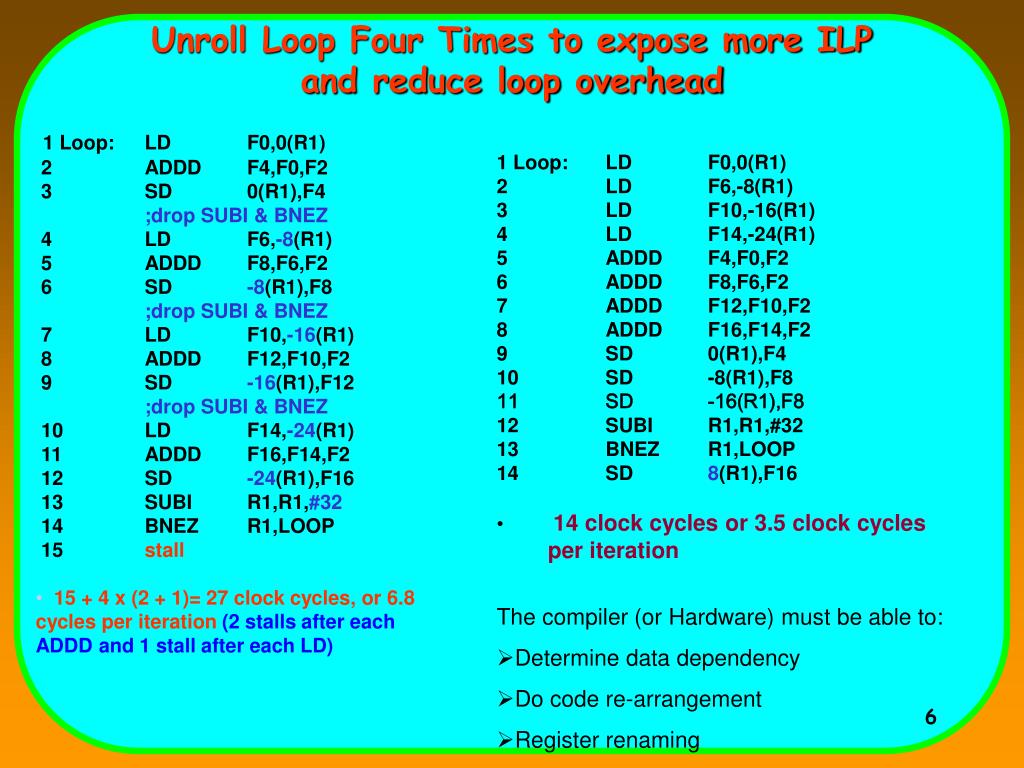

  6. Unroll Loop Four Times to expose more ILP and reduce loop overhead • 1 Loop: LD F0,0(R1) • 2 ADDD F4,F0,F2 • 3 SD 0(R1),F4 ;drop SUBI & BNEZ • 4 LD F6,-8(R1) • 5 ADDD F8,F6,F2 • 6 SD -8(R1),F8 ;drop SUBI & BNEZ • 7 LD F10,-16(R1) • 8 ADDD F12,F10,F2 • 9 SD -16(R1),F12 ;drop SUBI & BNEZ • 10 LD F14,-24(R1) • 11 ADDD F16,F14,F2 • 12 SD -24(R1),F16 • 13 SUBI R1,R1,#32 • 14 BNEZ R1,LOOP • 15 stall • 15 + 4 x (2 + 1)= 27 clock cycles, or 6.8 cycles per iteration (2 stalls after each ADDD and 1 stall after each LD) • 1 Loop: LD F0,0(R1) • 2 LD F6,-8(R1) • 3 LD F10,-16(R1) • 4 LD F14,-24(R1) • 5 ADDD F4,F0,F2 • 6 ADDD F8,F6,F2 • 7 ADDD F12,F10,F2 • 8 ADDD F16,F14,F2 • 9 SD 0(R1),F4 • 10 SD -8(R1),F8 • 11 SD -16(R1),F8 • 12 SUBI R1,R1,#32 • 13 BNEZ R1,LOOP • 14 SD 8(R1),F16 • 14 clock cycles or 3.5 clock cycles per iteration • The compiler (or Hardware) must be able to: • Determine data dependency • Do code re-arrangement • Register renaming

  7. Loop-Level Parallelism (LLP) Analysis • Loop-Level Parallelism (LLP) analysis focuses on whether data accesses in later iterations of a loop are data dependent on data values produced in earlier iterations. e.g. in for (i=1; i<=1000; i++) x[i] = x[i] + s; the computation in each iteration is independent of the previous iterations and the loop is thus parallel. The use of X[i] twice is within a single iteration. • Thus loop iterations are parallel (or independent from each other). • Loop-carried Dependence: A data dependence between different loop iterations (data produced in earlier iteration used in a later one) – limits parallelism. • Instruction level parallelism (ILP) analysis, on the other hand, is usually done when instructions are generated by the compiler.

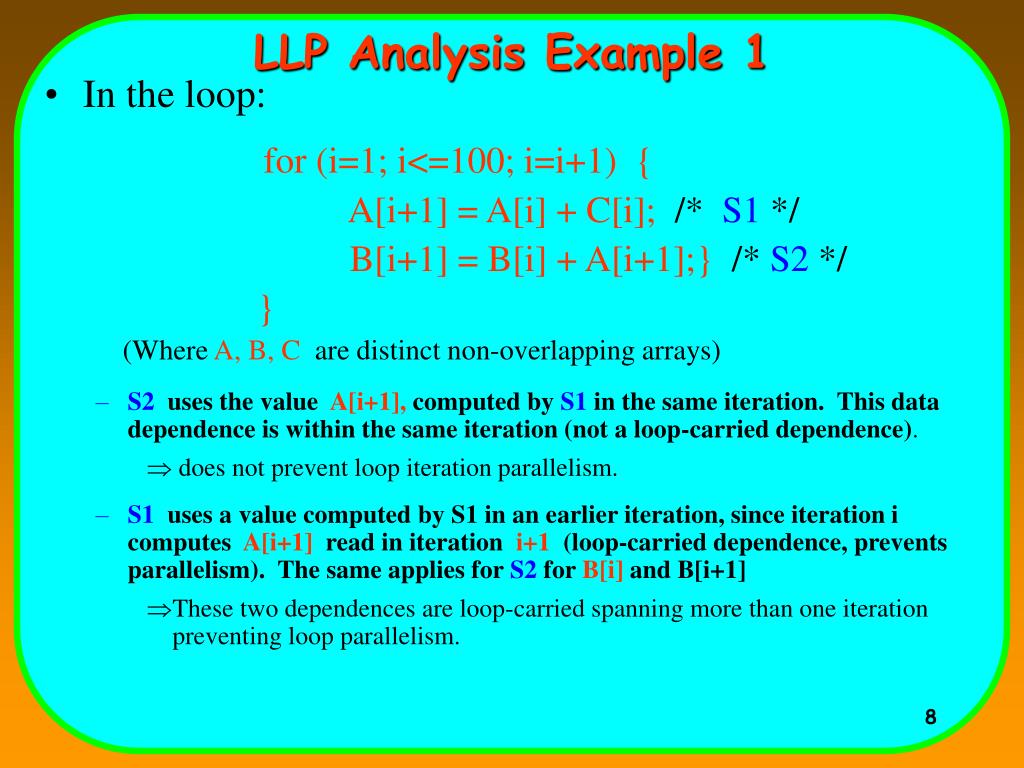

  8. LLP Analysis Example 1 • In the loop: for (i=1; i<=100; i=i+1) { A[i+1] = A[i] + C[i]; /* S1 */ B[i+1] = B[i] + A[i+1];} /* S2 */ } (Where A, B, C are distinct non-overlapping arrays) • S2 uses the value A[i+1], computed by S1 in the same iteration. This data dependence is within the same iteration (not a loop-carried dependence). • does not prevent loop iteration parallelism. • S1 uses a value computed by S1 in an earlier iteration, since iteration i computes A[i+1] read in iteration i+1 (loop-carried dependence, prevents parallelism). The same applies for S2 for B[i] and B[i+1] • These two dependences are loop-carried spanning more than one iteration preventing loop parallelism.

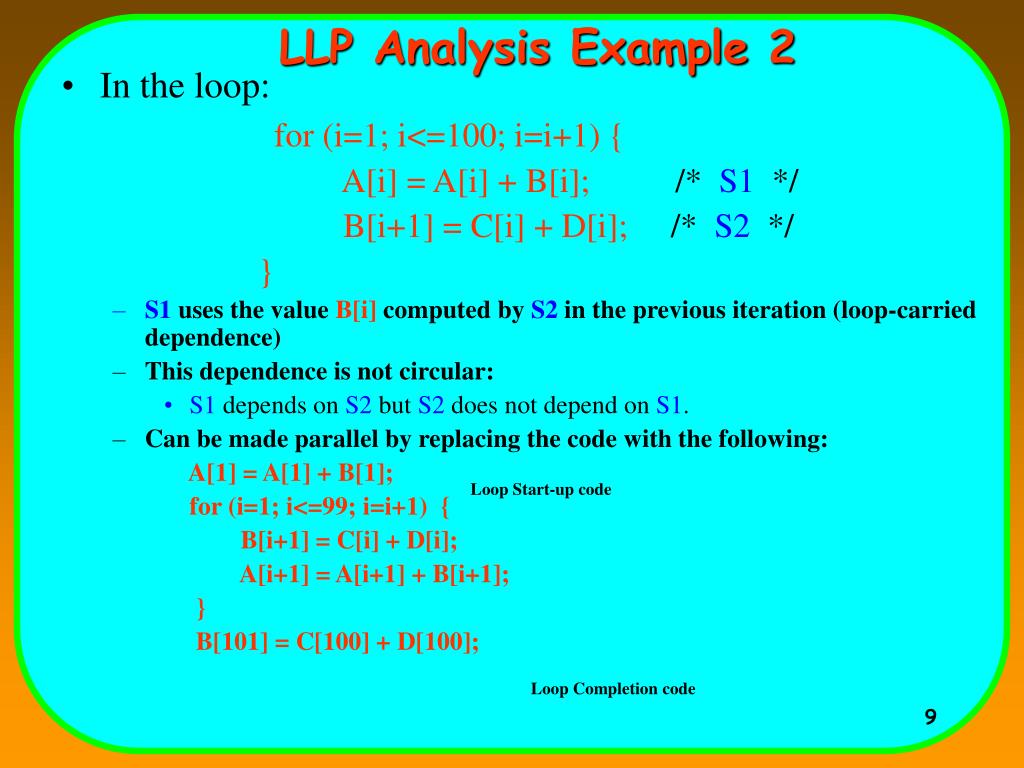

  9. LLP Analysis Example 2 • In the loop: for (i=1; i<=100; i=i+1) { A[i] = A[i] + B[i]; /* S1 */ B[i+1] = C[i] + D[i]; /* S2 */ } • S1 uses the value B[i] computed by S2 in the previous iteration (loop-carried dependence) • This dependence is not circular: • S1 depends on S2 but S2 does not depend on S1. • Can be made parallel by replacing the code with the following: A[1] = A[1] + B[1]; for (i=1; i<=99; i=i+1) { B[i+1] = C[i] + D[i]; A[i+1] = A[i+1] + B[i+1]; } B[101] = C[100] + D[100]; Loop Start-up code Loop Completion code

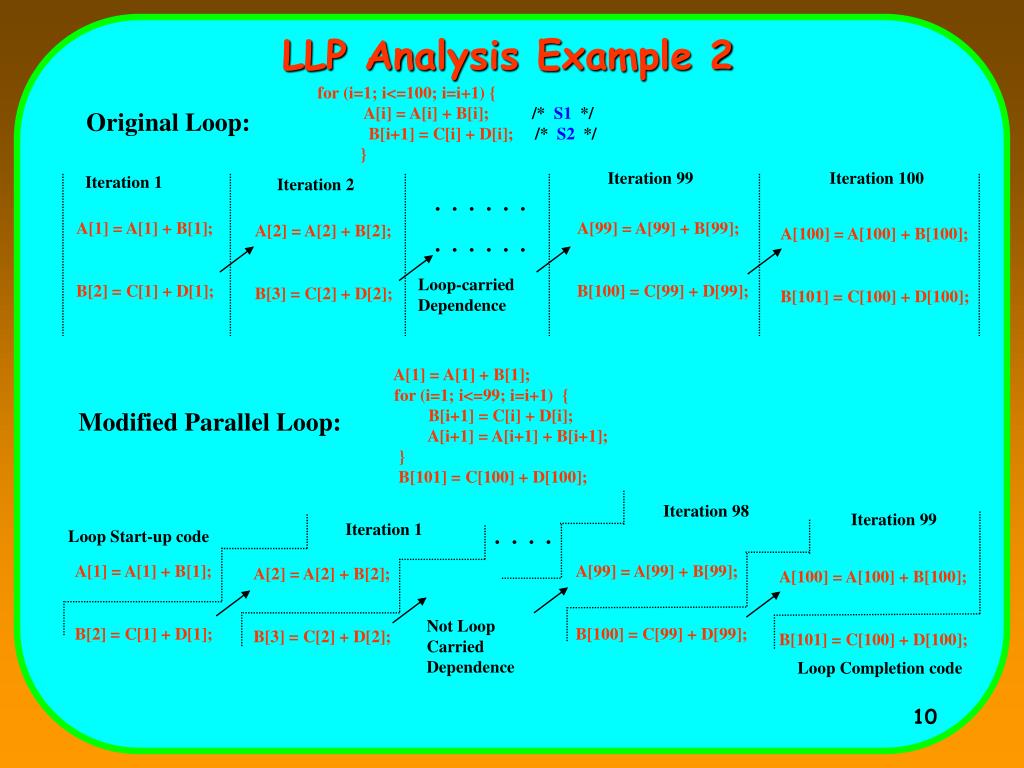

  10. A[1] = A[1] + B[1]; B[2] = C[1] + D[1]; A[99] = A[99] + B[99]; B[100] = C[99] + D[99]; A[2] = A[2] + B[2]; B[3] = C[2] + D[2]; A[100] = A[100] + B[100]; B[101] = C[100] + D[100]; LLP Analysis Example 2 for (i=1; i<=100; i=i+1) { A[i] = A[i] + B[i]; /* S1 */ B[i+1] = C[i] + D[i]; /* S2 */ } Original Loop: Iteration 99 Iteration 100 Iteration 1 Iteration 2 . . . . . . . . . . . . Loop-carried Dependence • A[1] = A[1] + B[1]; • for (i=1; i<=99; i=i+1) { • B[i+1] = C[i] + D[i]; • A[i+1] = A[i+1] + B[i+1]; • } • B[101] = C[100] + D[100]; Modified Parallel Loop: Iteration 98 Iteration 99 . . . . Iteration 1 Loop Start-up code A[1] = A[1] + B[1]; B[2] = C[1] + D[1]; A[99] = A[99] + B[99]; B[100] = C[99] + D[99]; A[2] = A[2] + B[2]; B[3] = C[2] + D[2]; A[100] = A[100] + B[100]; B[101] = C[100] + D[100]; Not Loop Carried Dependence Loop Completion code
