  1. Field Solution byTrimble

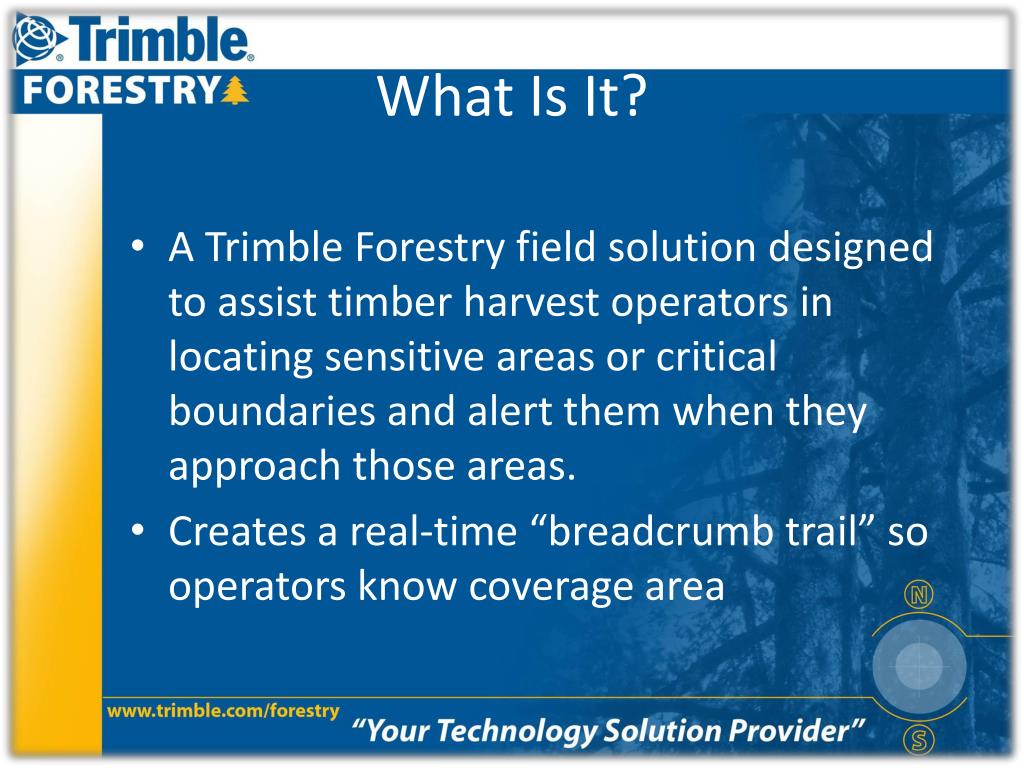

  2. What Is It? • A Trimble Forestry field solution designed to assist timber harvest operators in locating sensitive areas or critical boundaries and alert them when they approach those areas. • Creates a real-time “breadcrumb trail” so operators know coverage area

  3. Benefits • Alert operator of proximity to sensitive areas • Harvest boundaries • Streamside Management Zones • Gullies • Wells • Nesting sites • Historical reference of where the harvesting machine traveled • Easily identify when operator exceeds harvest boundary • Could be used to defend areas harvested • Indication of coverage area • Easy for forester to see what areas have been harvested/missed

  4. Benefits • Reduce pre-harvest preparations - may allow forester or harvest manager to replace flagging and/or paint with digital boundary, saving time and money • Reduce loss of unharvested timber • Costly for harvesting crew to return for small patches once they have moved • Costly for forester and timber company to check for areas unharvested; safety risk • Improve harvest efficiency and accuracy • User can toggle between aerial and topo images to determine best method to harvest

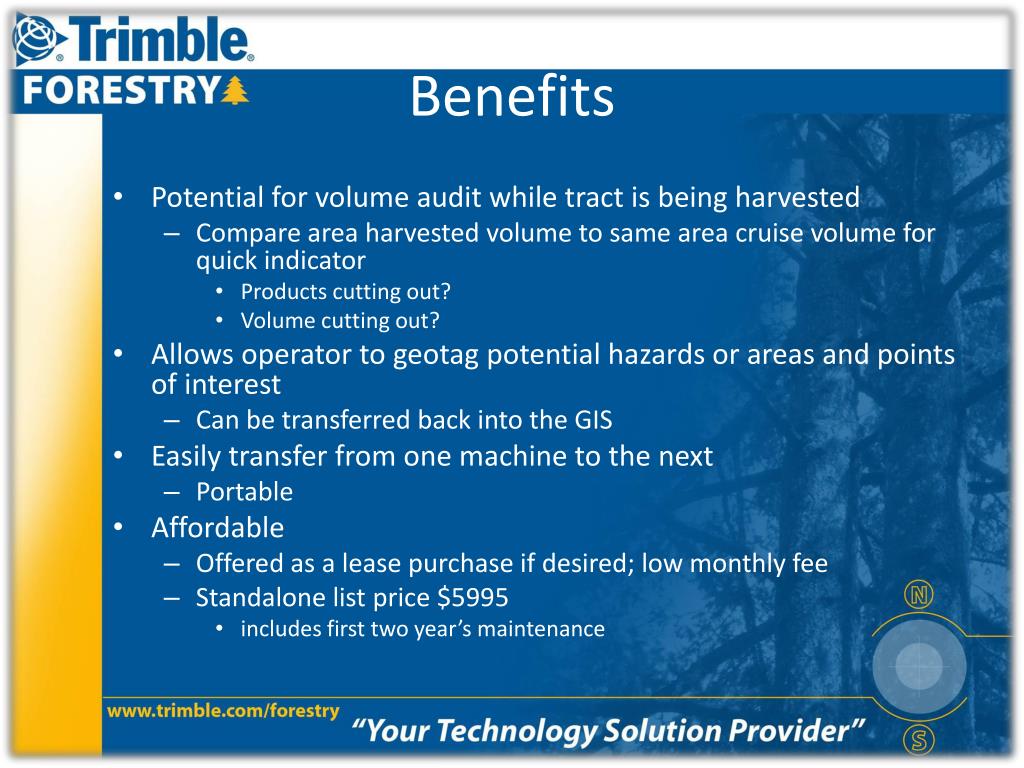

  5. Benefits • Potential for volume audit while tract is being harvested • Compare area harvested volume to same area cruise volume for quick indicator • Products cutting out? • Volume cutting out? • Allows operator to geotag potential hazards or areas and points of interest • Can be transferred back into the GIS • Easily transfer from one machine to the next • Portable • Affordable • Offered as a lease purchase if desired; low monthly fee • Standalone list price $5995 • includes first two year’s maintenance

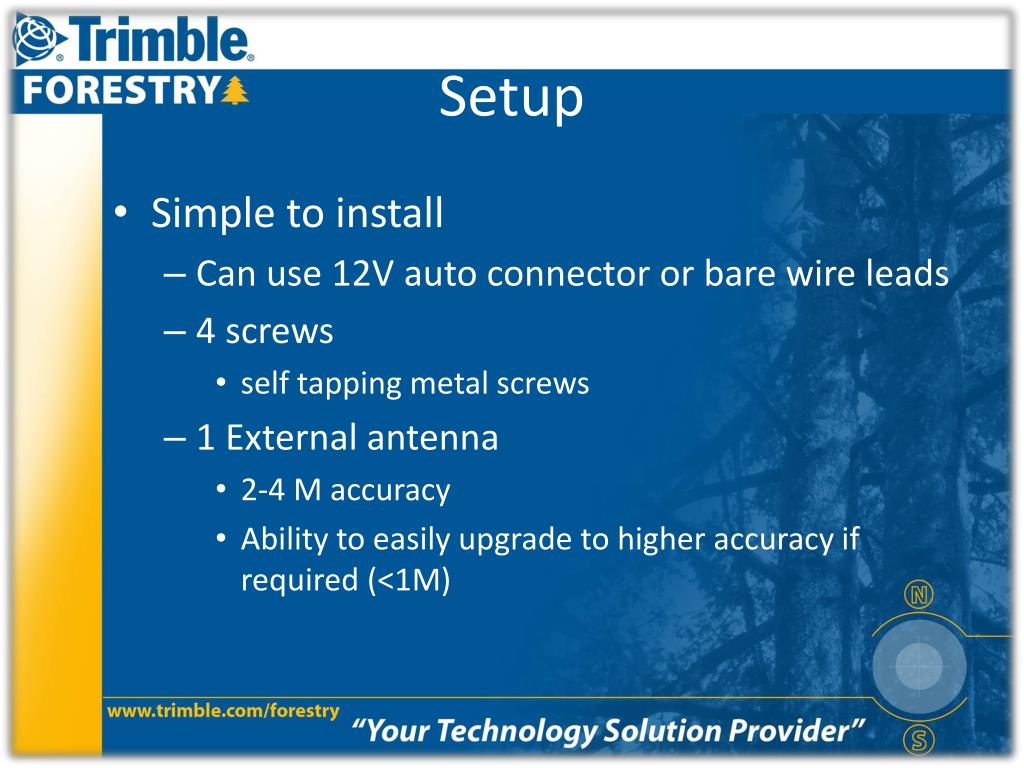

  6. Setup • Simple to install • Can use 12V auto connector or bare wire leads • 4 screws • self tapping metal screws • 1 External antenna • 2-4 M accuracy • Ability to easily upgrade to higher accuracy if required (<1M)

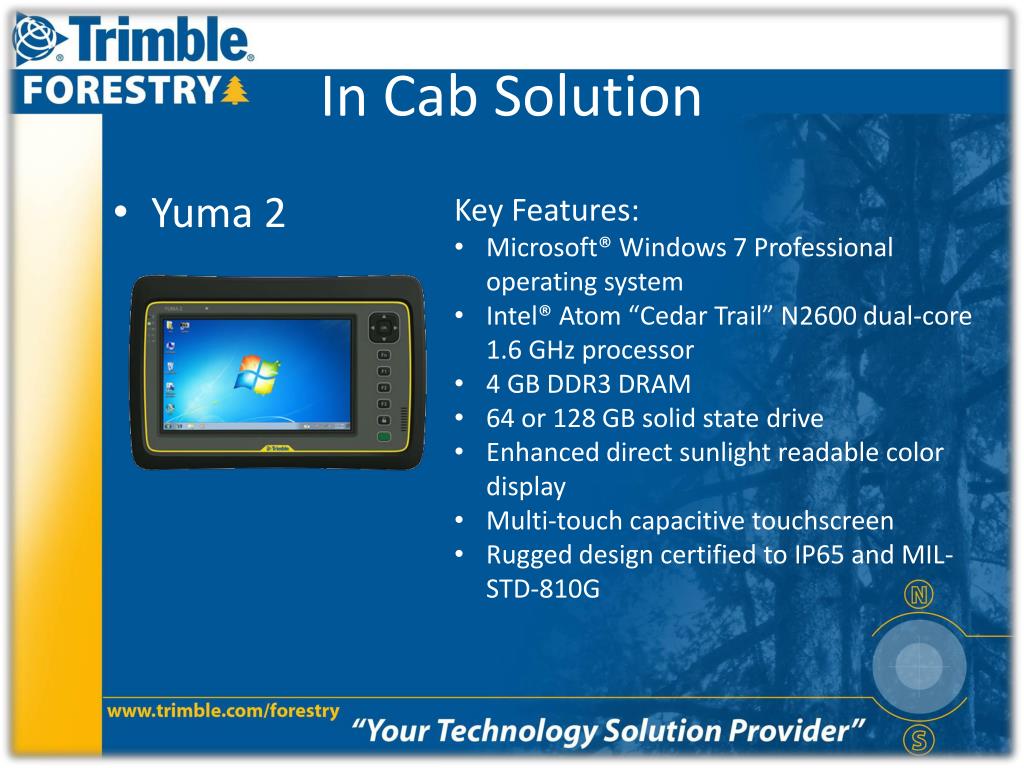

  7. In Cab Solution • Yuma 2 • Key Features: • Microsoft® Windows 7 Professional operating system • Intel® Atom “Cedar Trail” N2600 dual-core 1.6 GHz processor • 4 GB DDR3 DRAM • 64 or 128 GB solid state drive • Enhanced direct sunlight readable color display • Multi-touch capacitive touchscreen • Rugged design certified to IP65 and MIL-STD-810G

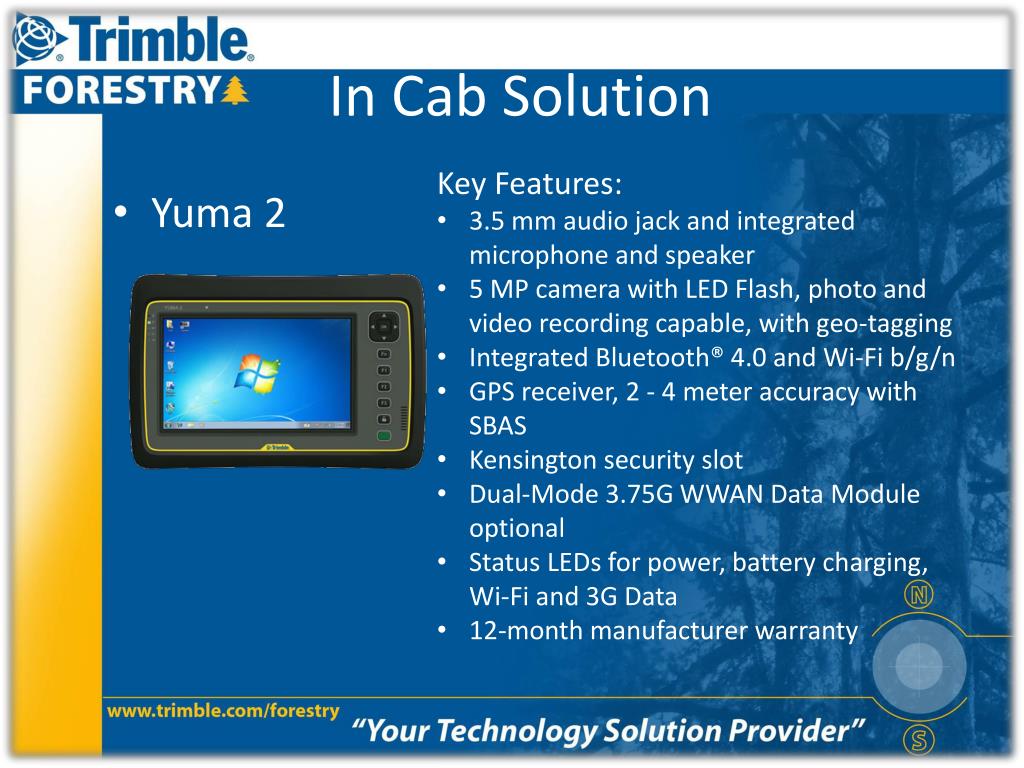

  8. In Cab Solution • Key Features: • 3.5 mm audio jack and integrated microphone and speaker • 5 MP camera with LED Flash, photo and video recording capable, with geo-tagging • Integrated Bluetooth® 4.0 and Wi-Fi b/g/n • GPS receiver, 2 - 4 meter accuracy with SBAS • Kensington security slot • Dual-Mode 3.75G WWAN Data Module optional • Status LEDs for power, battery charging, Wi-Fi and 3G Data • 12-month manufacturer warranty • Yuma 2

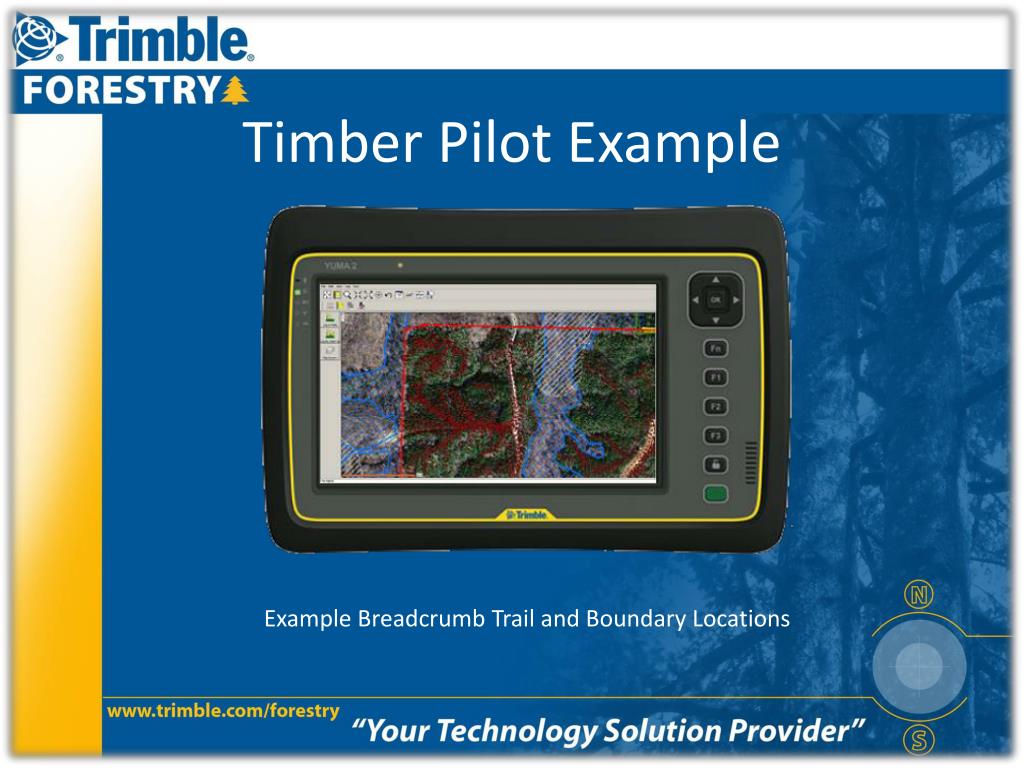

  9. Timber Pilot Example Example Breadcrumb Trail and Boundary Locations

  10. Contact Information Trimble Forestry ForestrySales@trimble.com 541-752-9000
