  1. IPv6 Miguel Baptista FCCN

  2. Agenda • DNS • DHCPv6 • Some Services with IPv6 support in FCCN • IPv6 Network Management

  3. 1. DNS

  4. DNS • Domain Name System • Tranlation services from names(FQDN) to addresses • And addresses to names • DNS for IPv6 uses the same principles as for IPv4

  5. DNS • New resource record type – AAAA • Don’t use A6 or DNAME addresses • New reverse domain – ip6.arpa • Don’t use ip6.int reverse domain

  6. DNS Name server to use? • My advice, use Bind And which version? You should use > 9.X versions (9.2). Avoid older versions

  7. DNS • Example: • test.ip6.fccn.pt A 193.136.199.200 • test.ip6.fccn.pt AAAA 2001:690:866:2000::1 Reverse domain • 200.199.136.193.int.arpa • 1.0.0.0.0.0.0.0.0.0.0.0.0.0.0.0:0.0.0.2.6.6.8.0.0.9.6.0.1.0.0.2.ip6.arpa

  8. DNS • We may have some “unreachable interface” problems after insert AAAA records • Solution: Create an IPv6 domain • Example: test.ip6.fccn.pt

  9. DNS • One of IANA’s functions is the DNS top-level delegations • Changes in TLDs (e.g ccTLDs) has to be approved and activated by IANA • Introduction of IPv6-capable nameservers at ccTLDs level has to be made through IANA

  10. DNS • AAAA glue records • How many servers supporting a domain should carry AAAA records • Usually conservative approaches • One or two servers • Don’t use long server names. 1024 bytes limit in DNS responses • Some ccTLDs had to renamed their servers (same philosophy used by root servers)

  11. DNS • 17/04/2005 • 4 TLDs (.AEROS, .NET, .COM, .INT) • 42 ccTLDs • European: About half already glued

  12. DNS • FCCN: • We had to upgrade the DNS servers to dual-stack • Then upgrade Bind software • Instalation of the F-ROOT server mirror in Lisbon, originally in dual-stack

  13. 2. DHCPv6

  14. DHCPv6 • Neighbor discovery • Based on ICMPv6 • Router Advertisement • Router discovery messages

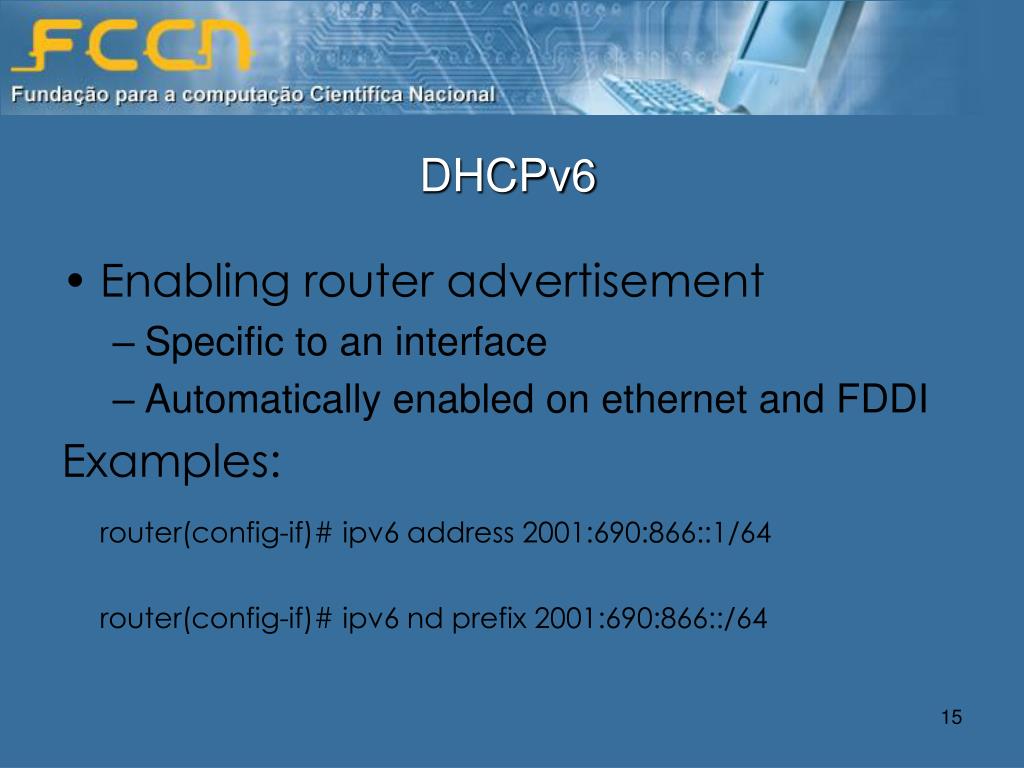

  15. DHCPv6 • Enabling router advertisement • Specific to an interface • Automatically enabled on ethernet and FDDI Examples: router(config-if)# ipv6 address 2001:690:866::1/64 router(config-if)# ipv6 nd prefix 2001:690:866::/64

  16. DHCPv6 – One thing to remember • Provider Independent - PI • Provider Aggregated - PA • In IPv6 we only have PA -> Renumbering • Some IPv6 mechanisms make renumbering easier (e.g. router advertisement)

  17. DHCPv6 • Autoconfiguration types: • Staleless (RFC 2462) • Router advertisement (RA) messages identify the subnet • Host generate its own global addresses using the prefix + EUI-64 identifier (based on MAC address) • Default gateway is the router that sends RAs • If RA doesn’t carry any prefix, the host doesn’t configure any global IPv6 address

  18. DHCPv6 • Stateless main aspects • Requires no manual configuration of hosts • Minimal configuration of routers • No need of addicional DHCP servers • Stateless problems • Impossible to automatically send DNS server addresses • IPv6 addresses depends on networks adapters

  19. DHCPv6 • Autoconfiguration types: • Stateful (RFC 3315) • Based on DHCPv6 servers • Hosts get their addresses and other configuration info (DNS, NTP servers) through a DHCPv6 server • Server maintain a database of assigned addresses • Client uses link local address to connect the server

  20. DHCPv6 • The two types of configuration can complement each other • Example: • we can obtain DNS server address from DHCPv6 In dual-stack we can obtain DNS server addresses from DHCPv4

  21. DHCPv6 • DHCPv6 Server/client Implementations • Dibbler • Linux and Windows support • Project DHCPv6 • Linux support

  22. DHCPv6 - Example • Scenario • DHCPv6 Server will assign the IPv6 address - 2001:690:866:2::1b/128 • routeradvertisement without network prefix

  23. DHCPv6 - Example # ifconfig eth1 eth1 Link encap:Ethernet HWaddr 00:E0:29:06:AA:54 inet6 addr: 2001:690:866:2::1b/128 Scope:Global # route -A inet6 Kernel IPv6 routing table destination Next Hop Flags Metric Ref Use Iface */0 fe80::205:8500:15a1:801f UGDA 1024 30 0 eth1 # traceroute6 www.kame.net traceroute www.kame.net (2001:200:0:8002:203:47ff:fea5:3085) 2001:690:866:2:2e0:29ff:fe06:aa54, 30 hops max, 16 byte packets 1 2001:690:866:2::1 (2001:690:866:2::1) 0.584 ms 0.509 ms 0.474 ms 2 fccn.nl6.nl.6net.org (2001:798:22:203::1) 35.196 ms 35.085 ms 35.087 ms

  24. 3. Services with IPv6 support in FCCN

  25. Some Services with IPv6 support in FCCN • Full operational • DNS (Bind) • WWW (Apache) • FTP (vsftpd) • In progress … • Instant Messanger (Jabber) • Directory Server (OpenLDAP) • Nagios • VOIP • SIP router, Asterisk • NTP

  26. 4. IPv6 Network Management

  27. IPv6 Network Management • Network Management • Configuration of equipments • links • Services Management • Mail • DNS

  28. IPv6 Network Management • Basic Management • SSH, Telnet via IPv6 • TFTP/IPV6 • FTP/IPV6 not supported on Cisco routers

  29. IPv6 Network Management • SNMP/MIBs over IPv6 • Routers from major vendors support SNMP • If necessary, in dual-stack we can use IPv4 to retrieve information • MIBs are essencial for the network management

  30. IPv6 Network Management • IPv6 MIBs • At the beginning IPv4 and IPv6 MIBs dissociated • Unified MIBs are on standardization track

  31. IPv6 Network Management • Cisco • Unified MIBS • No distinction between IPv4 e IPv6 traffic at the interface level from the MIBS • Information available from CLI • Show interface accounting • Juniper • Different counters for IPv4 e IPv6 • In beginning apply some filters … (permit IPv6 traffic, but count it)

  32. IPv6 Network Management • NRENs mainly use GPL or home-made tools • Comercial platforms • HP-OpenView, Ciscoworks (have or will have IPv6 support ) • Tivoli Netview,Infovista (no IPv6 support)

  33. IPv6 Network Management • 6NET WP6 : Managing large scale IPv6 networks • Monitoring tools for IPv6 • Tested • Documented • http://tools.6net.org

  34. IPv6 Network Management LAN • Traffic & Service management (Web, DNS...) • Argus, Nagios, Ntop • End-to-End • Iperf or Pchar • Configuration Management • Rancid • Analysys of packets on shared links • Ethereal, tcpdump or Ntop • IPv6 multicast management • Multicast Beacon

  35. IPv6 Network Management WAN • Traffic Management • MRTG, Cricket • Equipment and link status • Intermapper, Nagios • Routing management • ASpath-tree (routing policy study) • Accounting management • Ipflow, Cisco NFC v5.0 • Configuration management • Rancid • Looking Glasses • Cisco Looking glass V6, LG – Looking Glass

  36. Questions?
