Pathway Modeling of the MAPK cascade Rishi Khan, Wenzhong Wang, Nate Woody

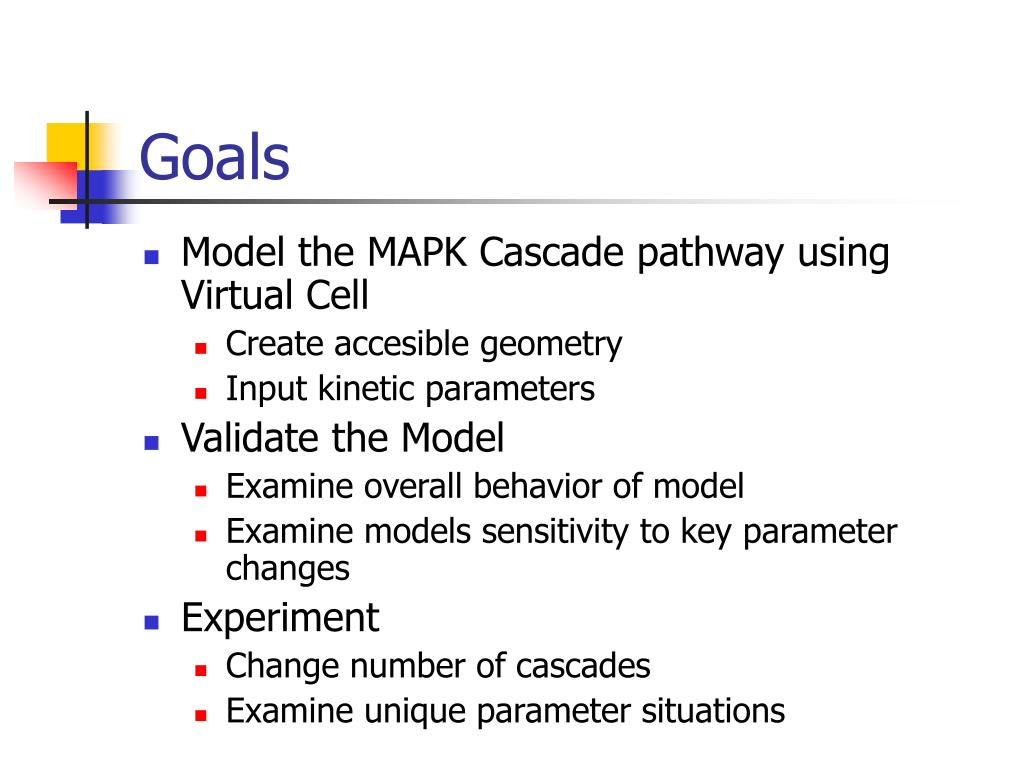

Goals • Model the MAPK Cascade pathway using Virtual Cell • Create accesible geometry • Input kinetic parameters • Validate the Model • Examine overall behavior of model • Examine models sensitivity to key parameter changes • Experiment • Change number of cascades • Examine unique parameter situations
v1 v2 v3 v4 v5 MAPKK MAPKKK MAPK MAPKKK-P MAPKK-P MAPK-P v6 Modeling the Pathway • MAPK cascade using 6 species • 3 primary reactions Membrane Cytosol
Initial results Kholodenko BN Eur J Biochem 2000 Mar;267(6):1583-8
Parameter importance • Adjusting various parameters by 100x • Notice the strong effect of K3 on M2KP

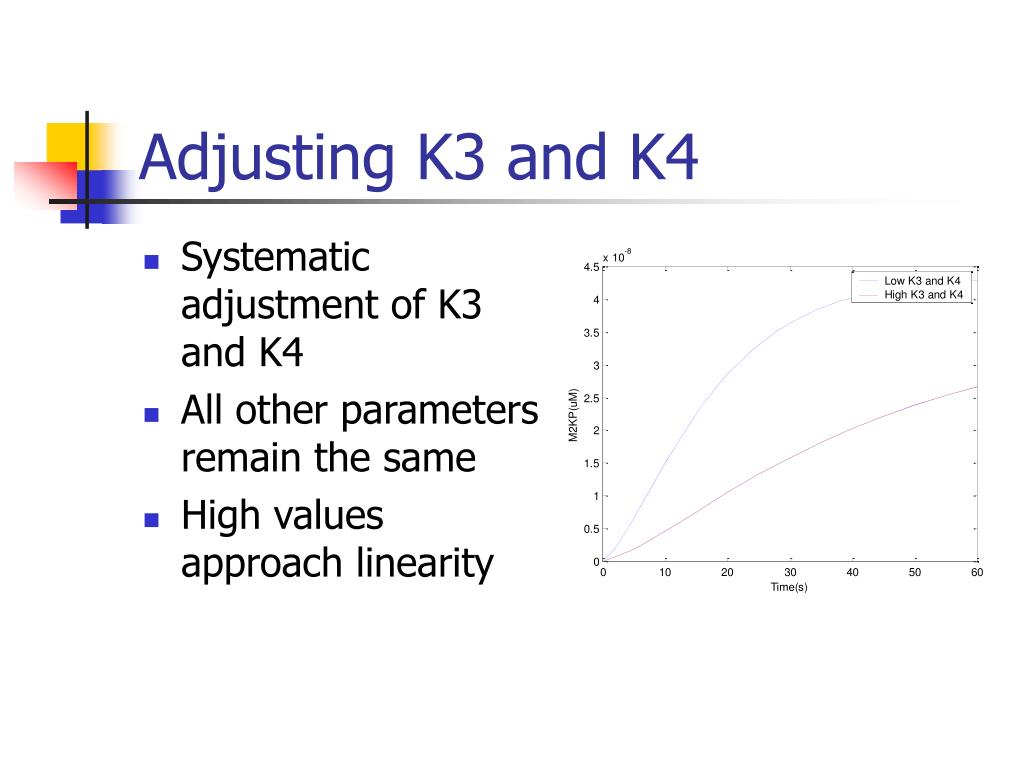

Adjusting K3 and K4 • Systematic adjustment of K3 and K4 • All other parameters remain the same • High values approach linearity
Effects of Cascading • First order response of first cascade • Second order response of second cascade • MAPKP increases and decreases faster than MAPKKP

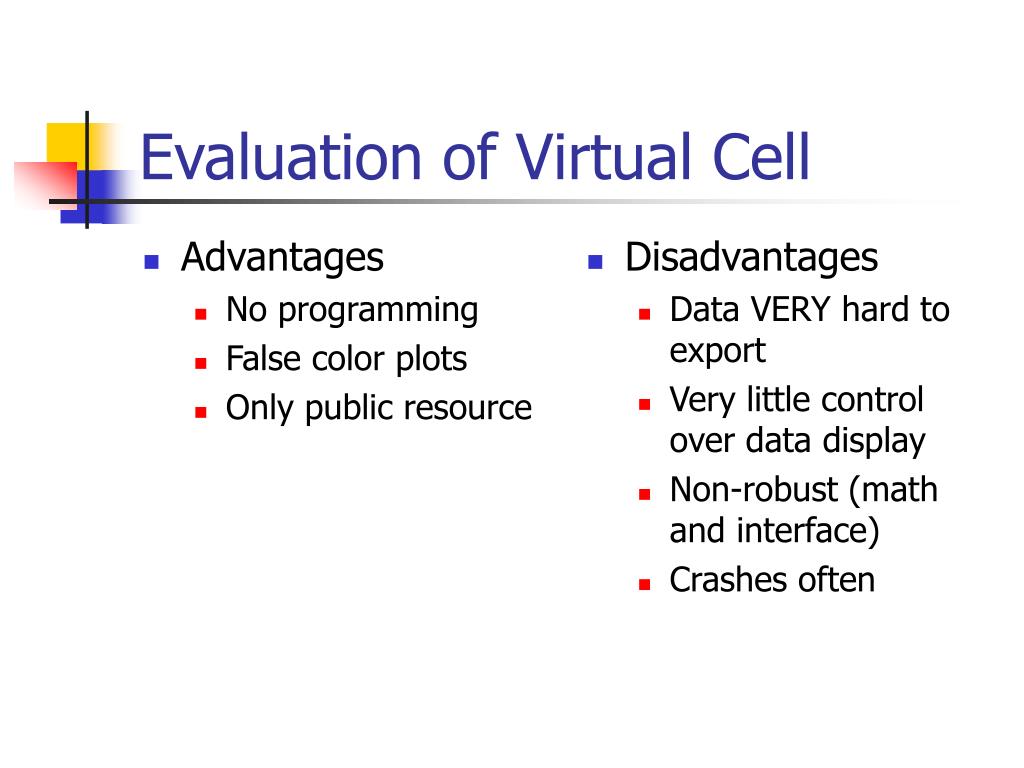

Advantages No programming False color plots Only public resource Disadvantages Data VERY hard to export Very little control over data display Non-robust (math and interface) Crashes often Evaluation of Virtual Cell
