  1. EMC Information Infrastructure for VMware Environments – Overview Integrate, Extend, Accelerate

  2. Management and Automation 3 Business Contunuity Desktop Management Software Lifecycle Infrastructure Optimization Virtual Infrastructure 2 Mobility Security Resource Management Availability Virtualization Platforms 1 Virtualization Platforms VMware Infrastructure 3.5u1 – Latest Update Update Mgr Stage Mgr Lifecycle Mgr Site Recovery Manager VDI ACE Lab Manager Workstation Converter DPM HA + VCB Storage VMotion DRS VMotion VirtualCenter + VMFS Virtual SMP ESX Server 3.5 ESX Server 3i 3.5

  3. NUMBER OF VMs TIME The Joint VMware/EMC Effect The Path to Success • Process and Tech Standard Phase • Extended Mobility • “VM 1st” Policy • Heavy-Use Phase • Disaster Recovery • Tier 1 apps • Backup Built for VM • Performance/QoS • VM Mobility • VDI • Light-Use Phase • Utility Servers • High Availability • Pilot Phase • POC Servers • Test/Dev Time

  4. Simple, easy-to-use solutions that integrate with and extend all VMware advanced functions (e.g., DRS, Storage VMotion, SRM) Flexibility for iSCSI, FC, and NFS – every protocol VMware needs = no risk, no sacrifices, no protocol wars Proven scaling, proven replication, proven availability, proven tier 1 app solutions Unique capabilities in VMware environments: Backup built for VMware VDI solutions – from 1 image to 10,000 in minutes Change control and end-to-end virtual-to-physical management Virtual appliances Joint VMware/Exchange/SQL/Oracle/SAP solutions Net – more customers choose EMC for VMware 5 Reasons – Why EMC for VMware “For virtual servers, networked storage solutions are more heavily weighted toward EMC storage. In previous years, storage attached to virtual servers was highly captive relative to the server hardware purchase.” • Source: IDC’s Server Virtualization 2007 Multiclient Study, Dec 2007 * EMC and VMware were sponsors of this study 2007 Server Virtualization Survey Results - IDC Chart Source: IDC’s Server Virtualization 2007 Multiclient Study, Dec 2007. Chart shows percentage of survey responses to a question about primary brand of network storage attached to virtual servers. N=311

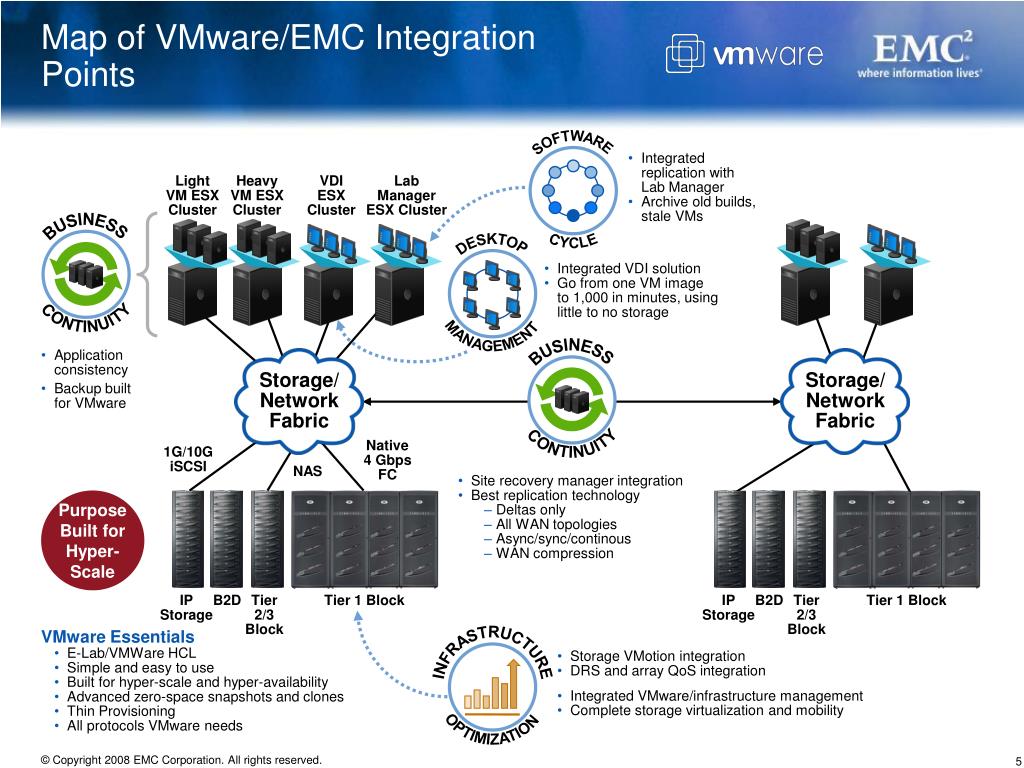

  5. Map of VMware/EMC Integration Points • Integrated replication with Lab Manager • Archive old builds, stale VMs OPTIMIZATION INFRASTRUCTURE • Integrated VDI solution • Go from one VM image to 1,000 in minutes, using little to no storage CYCLE SOFTWARE • Application consistency MANAGEMENT DESKTOP IP Storage IP Storage B2D B2D Tier 2/3 Block Tier 2/3 Block Tier 1 Block Tier 1 Block Storage/ Network Fabric Storage/ Network Fabric • Storage VMotion integration • DRS and array QoS integration CONTINUITY CONTINUITY BUSINESS BUSINESS • Site recovery manager integration • Best replication technology • Deltas only • All WAN topologies • Async/sync/continous • WAN compression Light VM ESX Cluster Heavy VM ESX Cluster VDI ESX Cluster Lab Manager ESX Cluster • Backup built for VMware Native 4 Gbps FC 1G/10G iSCSI NAS Purpose Built for Hyper-Scale • VMware Essentials • E-Lab/VMWare HCL • Simple and easy to use • Built for hyper-scale and hyper-availability • Advanced zero-space snapshots and clones • Thin Provisioning • All protocols VMware needs • Integrated VMware/infrastructure management • Complete storage virtualization and mobility

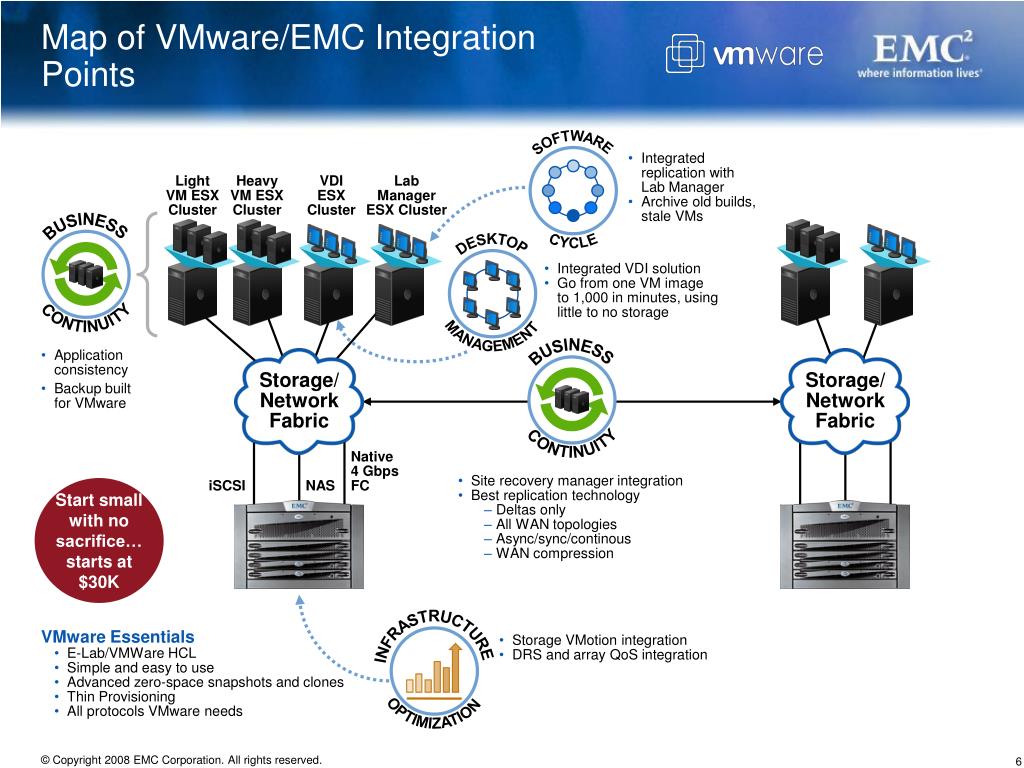

  6. Map of VMware/EMC Integration Points • Integrated replication with Lab Manager • Archive old builds, stale VMs OPTIMIZATION INFRASTRUCTURE • Integrated VDI solution • Go from one VM image to 1,000 in minutes, using little to no storage CYCLE SOFTWARE • Application consistency MANAGEMENT DESKTOP Storage/ Network Fabric Storage/ Network Fabric • Storage VMotion integration • DRS and array QoS integration CONTINUITY CONTINUITY BUSINESS BUSINESS • Site recovery manager integration • Best replication technology • Deltas only • All WAN topologies • Async/sync/continous • WAN compression Light VM ESX Cluster Heavy VM ESX Cluster VDI ESX Cluster Lab Manager ESX Cluster • Backup built for VMware Native 4 Gbps FC Start small with no sacrifice… starts at $30K iSCSI NAS • VMware Essentials • E-Lab/VMWare HCL • Simple and easy to use • Advanced zero-space snapshots and clones • Thin Provisioning • All protocols VMware needs

  7. FC, iSCSI, FCoE, NFS, CIFS Tier 0 Tier 1 APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP OS OS OS OS OS OS OS OS OS OS OS OS OS OS OS OS OS OS OS OS OS Tier 2 DR Tier 3 Archive Storing VMware Information More Efficiently • VMware requires shared – consolidated storage • VMotion, HA, DRS, etc. • Consolidated workloads • Aggregate workloads, QoS • Consolidated risk • More efficient management • Virtual LUNs • Virtual (Thin) Provisioning • Virtual Storage • Efficient storage architecture • Active archiving • Single instance storage • De-duplication • Tier resources to optimize capital investments • Connectivity – FC, iSCSI, NFS, CIFS, FCoE • Storage device– SSD, FC, SAS, SATA • Storage protection – RAID 1, 10, 5, 50, and 6

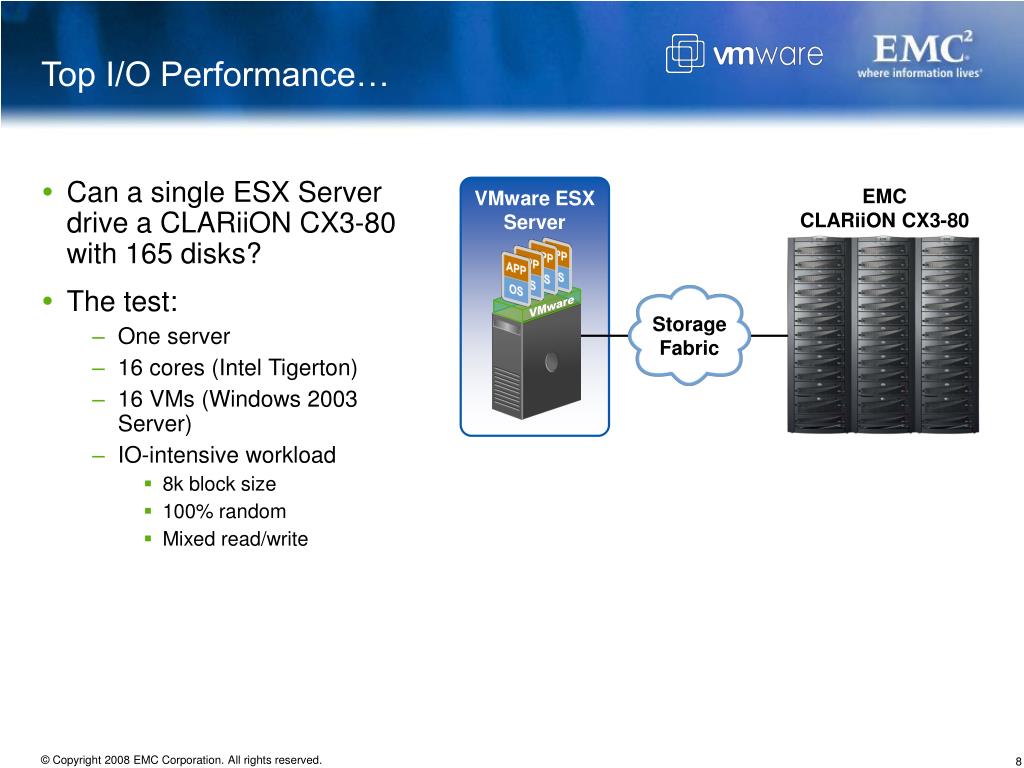

  8. VMware ESX Server EMC CLARiiON CX3-80 Storage Fabric VMware Top I/O Performance… • Can a single ESX Server drive a CLARiiON CX3-80 with 165 disks? • The test: • One server • 16 cores (Intel Tigerton) • 16 VMs (Windows 2003 Server) • IO-intensive workload • 8k block size • 100% random • Mixed read/write

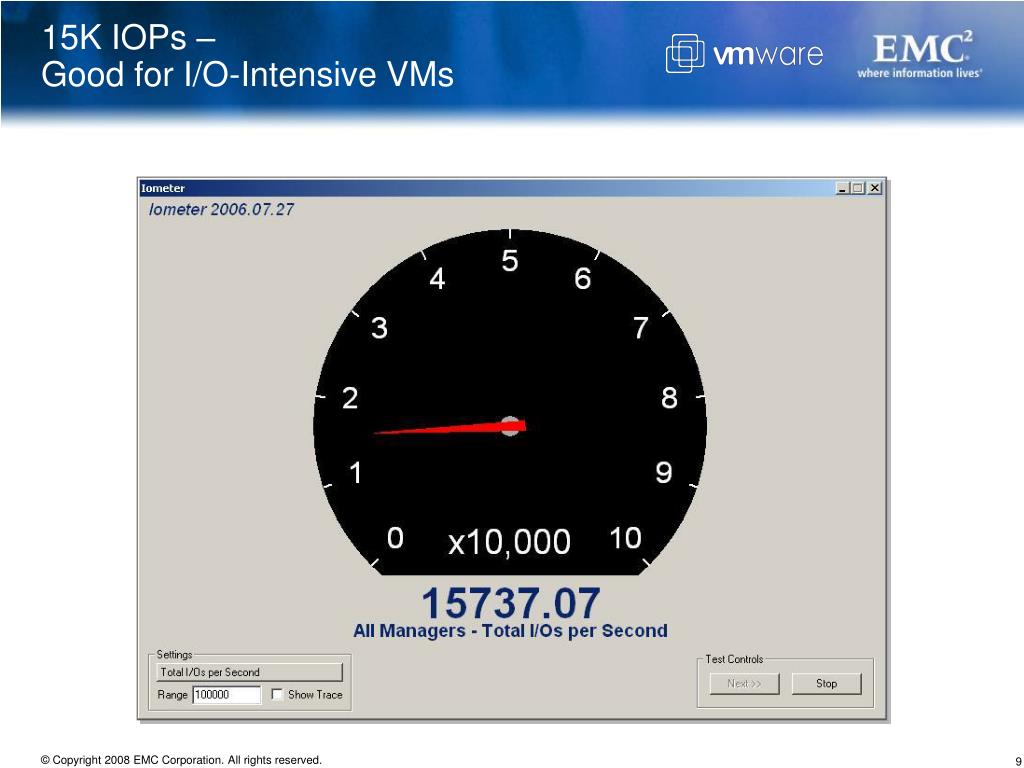

  9. 15K IOPs – Good for I/O-Intensive VMs

  10. 30K IOPs – Exceeds the Load of Many Databases

  11. 60K IOPs – Around 120,000 Microsoft Exchange Mailboxes

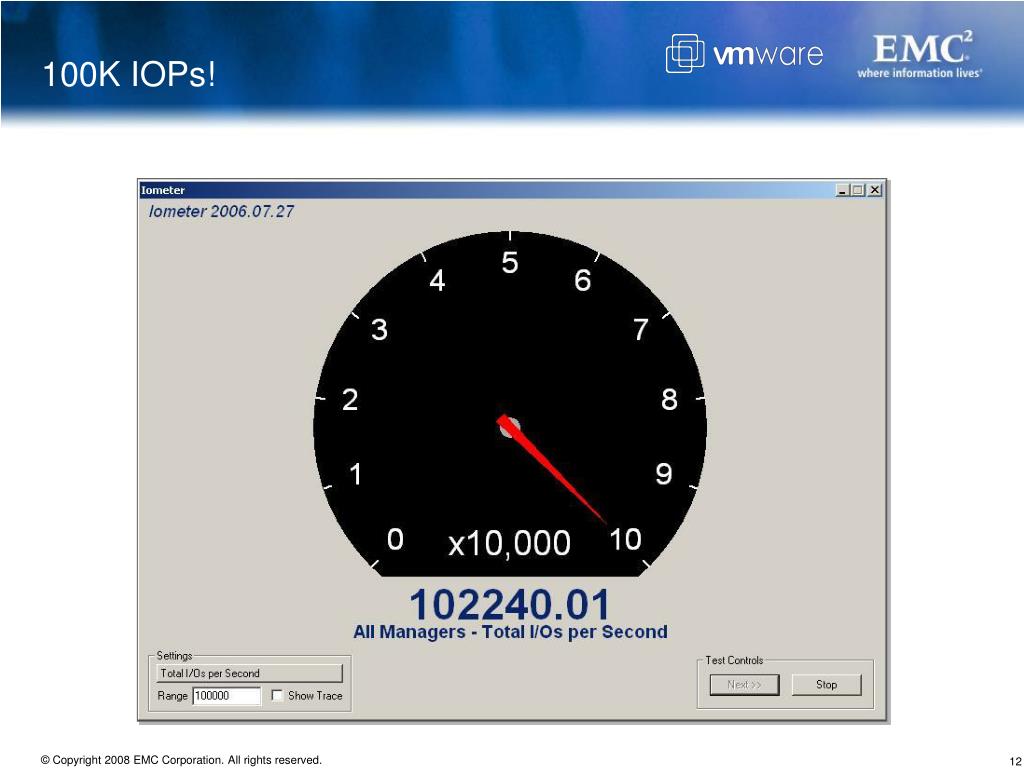

  12. 100K IOPs!

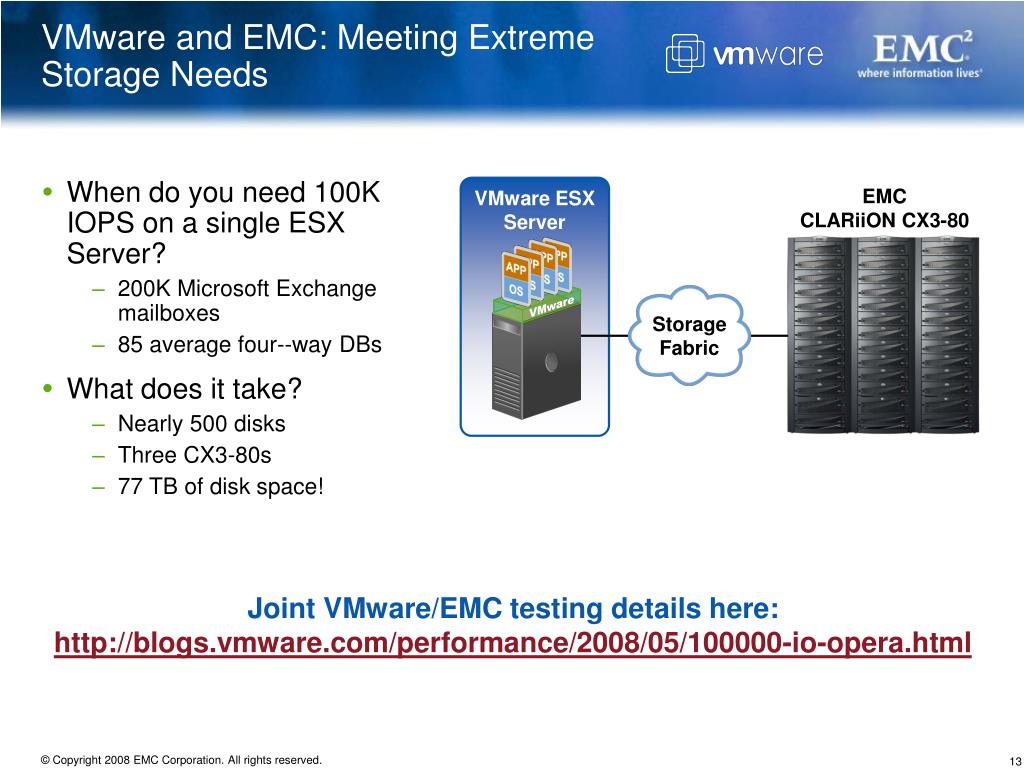

  13. VMware ESX Server EMC CLARiiON CX3-80 Storage Fabric VMware VMware and EMC: Meeting Extreme Storage Needs • When do you need 100K IOPS on a single ESX Server? • 200K Microsoft Exchange mailboxes • 85 average four--way DBs • What does it take? • Nearly 500 disks • Three CX3-80s • 77 TB of disk space! Joint VMware/EMC testing details here: http://blogs.vmware.com/performance/2008/05/100000-io-opera.html

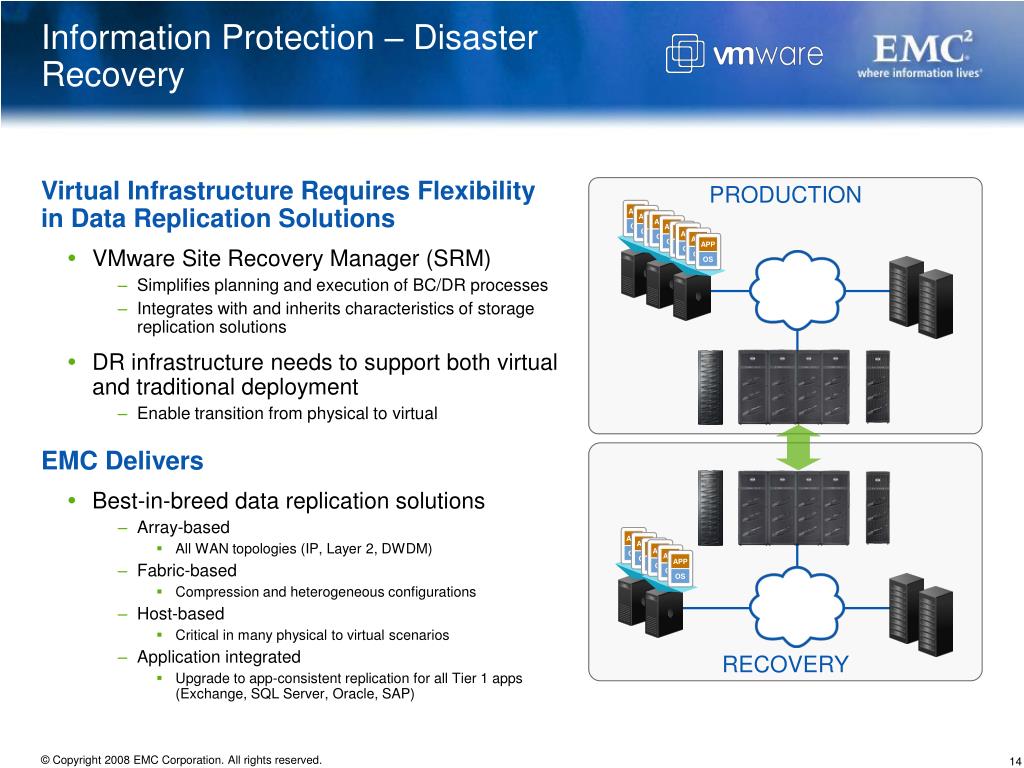

  14. APP APP APP APP APP APP APP APP APP APP APP APP APP APP APP OS OS OS OS OS OS OS OS OS OS OS OS OS OS OS PRODUCTION RECOVERY Information Protection – Disaster Recovery Virtual Infrastructure Requires Flexibility in Data Replication Solutions • VMware Site Recovery Manager (SRM) • Simplifies planning and execution of BC/DR processes • Integrates with and inherits characteristics of storage replication solutions • DR infrastructure needs to support both virtual and traditional deployment • Enable transition from physical to virtual EMC Delivers • Best-in-breed data replication solutions • Array-based • All WAN topologies (IP, Layer 2, DWDM) • Fabric-based • Compression and heterogeneous configurations • Host-based • Critical in many physical to virtual scenarios • Application integrated • Upgrade to app-consistent replication for all Tier 1 apps (Exchange, SQL Server, Oracle, SAP)

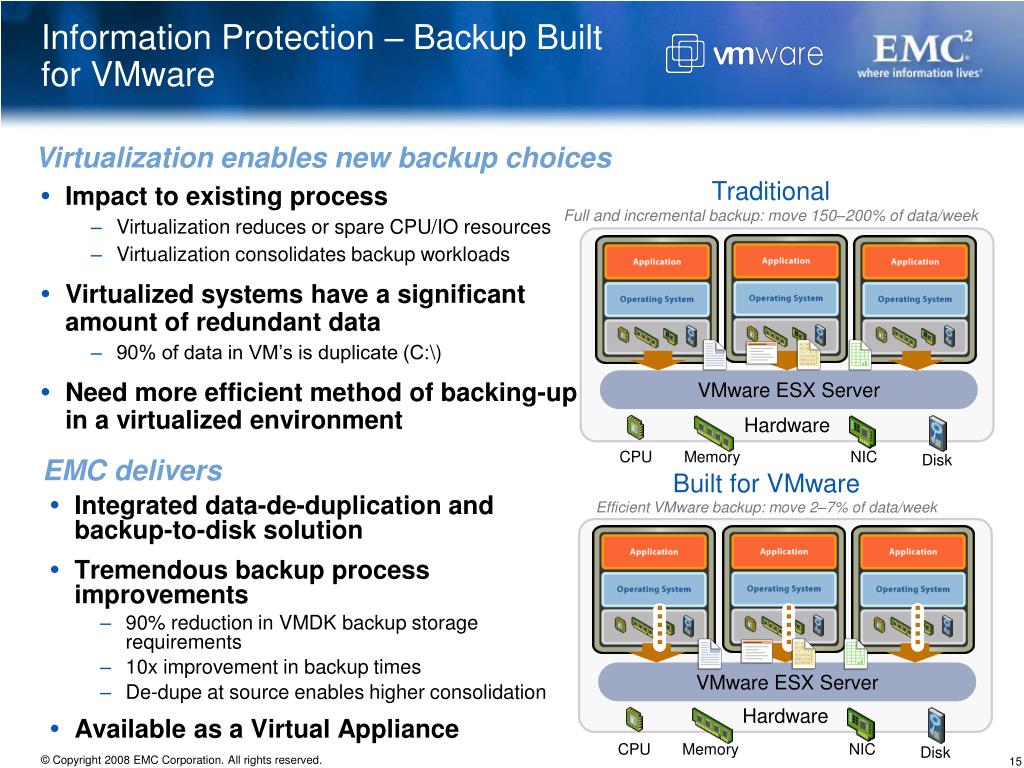

  15. Information Protection – Backup Built for VMware Impact to existing process Virtualization reduces or spare CPU/IO resources Virtualization consolidates backup workloads Virtualized systems have a significant amount of redundant data 90% of data in VM’s is duplicate (C:\) Need more efficient method of backing-up in a virtualized environment Virtualization enables new backup choices Traditional Full and incremental backup: move 150–200% of data/week Hardware VMware ESX Server CPU Memory NIC Disk EMC delivers Built for VMware Efficient VMware backup: move 2–7% of data/week • Integrated data-de-duplication and backup-to-disk solution • Tremendous backup process improvements • 90% reduction in VMDK backup storage requirements • 10x improvement in backup times • De-dupe at source enables higher consolidation • Available as a Virtual Appliance Hardware VMware ESX Server CPU Memory NIC Disk

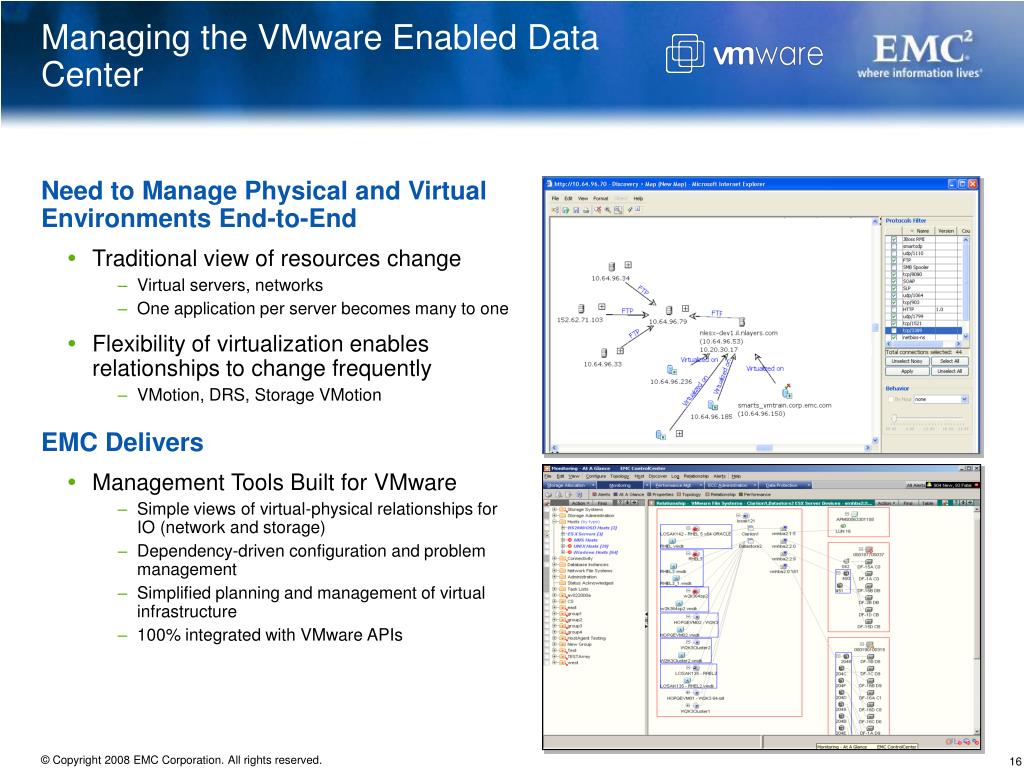

  16. Managing the VMware Enabled Data Center Need to Manage Physical and Virtual Environments End-to-End • Traditional view of resources change • Virtual servers, networks • One application per server becomes many to one • Flexibility of virtualization enables relationships to change frequently • VMotion, DRS, Storage VMotion EMC Delivers • Management Tools Built for VMware • Simple views of virtual-physical relationships for IO (network and storage) • Dependency-driven configuration and problem management • Simplified planning and management of virtual infrastructure • 100% integrated with VMware APIs

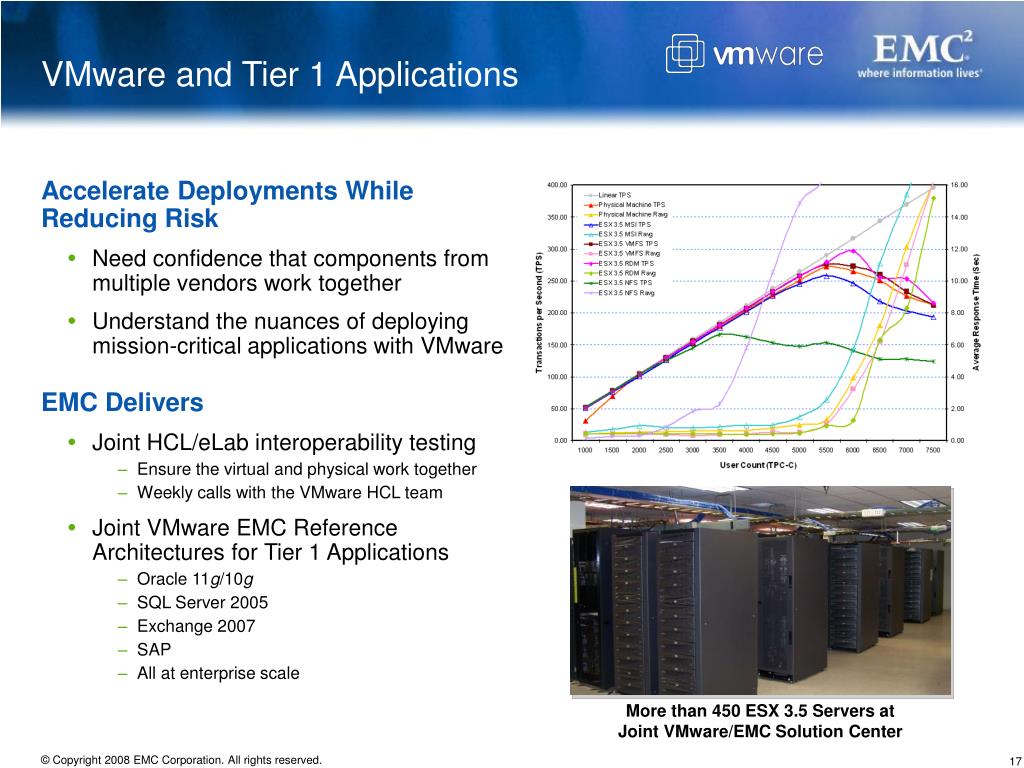

  17. More than 450 ESX 3.5 Servers at Joint VMware/EMC Solution Center VMware and Tier 1 Applications Accelerate Deployments While Reducing Risk • Need confidence that components from multiple vendors work together • Understand the nuances of deploying mission-critical applications with VMware EMC Delivers • Joint HCL/eLab interoperability testing • Ensure the virtual and physical work together • Weekly calls with the VMware HCL team • Joint VMware EMC Reference Architectures for Tier 1 Applications • Oracle 11g/10g • SQL Server 2005 • Exchange 2007 • SAP • All at enterprise scale

  18. Virtual Desktop Environments Simplifying, Accelerating, and Securing the Desktop • VDI and VDM • Centralized management and provisioning of desktop environments • Does 1000 10GB VMs mean 10 TB? And how to copy them fast? EMC Delivers • From 1-1,000s of VMs in minutes • Instantly snap images in seconds, using no additional capacity • Makes patching obsolete – build a new image and replicate • User data redirection • Store user data in highly available storage outside their desktop • Transparent to the user – looks like “My Documents” • Simpler backup, simpler image management Golden Desktop Image VM.vmdk VM.vmx … …1,000 Virtually Provisioned Disk Snap LUNs (Virtually Provisioned

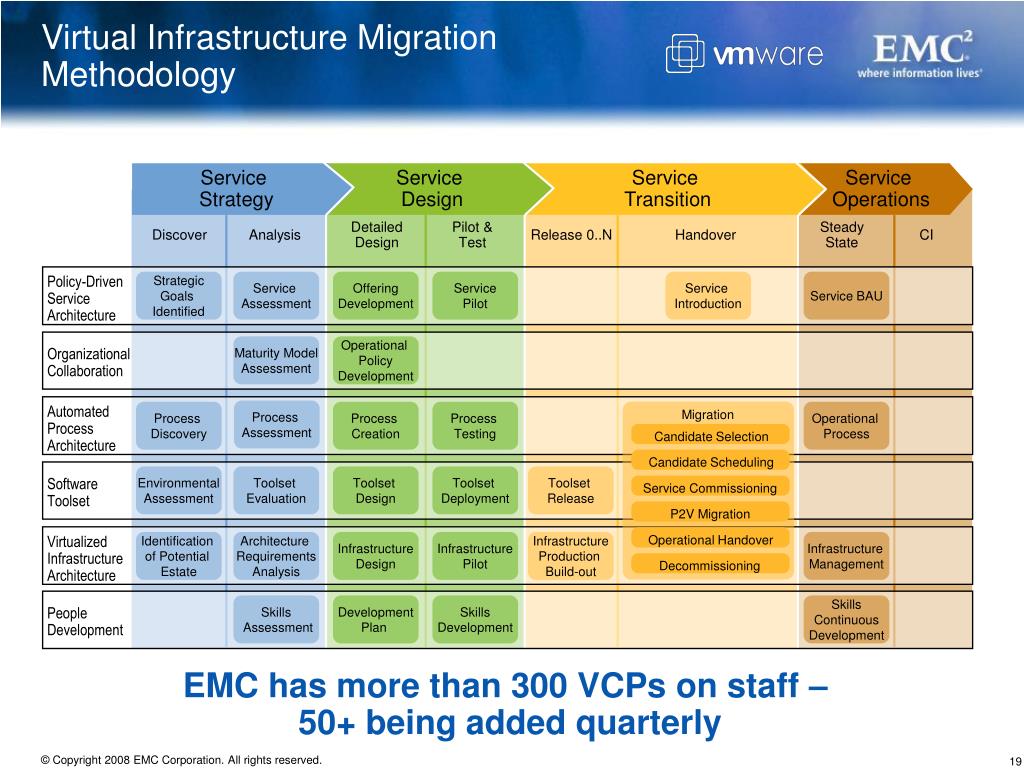

  19. Virtual Infrastructure Migration Methodology Service Strategy Service Design Service Transition Service Operations Detailed Design Pilot & Test Steady State Discover Analysis Release 0..N Handover CI Policy-Driven Service Architecture Strategic Goals Identified Service Assessment Offering Development ServicePilot Service Introduction Service BAU Maturity Model Assessment Operational Policy Development Organizational Collaboration Migration Process Assessment Process Discovery Process Creation Process Testing Operational Process Automated Process Architecture Candidate Selection Candidate Scheduling Environmental Assessment Toolset Evaluation Toolset Design Toolset Deployment Toolset Release Service Commissioning Software Toolset P2V Migration Operational Handover Virtualized Infrastructure Architecture Identification of Potential Estate Architecture Requirements Analysis Infrastructure Design Infrastructure Pilot Infrastructure Production Build-out Infrastructure Management Decommissioning People Development Skills Assessment Development Plan Skills Development Skills Continuous Development EMC has more than 300 VCPs on staff – 50+ being added quarterly
