POLYPHASE CIRCUITS

POLYPHASE CIRCUITS. LEARNING GOALS. Three Phase Circuits Advantages of polyphase circuits. Three Phase Connections Basic configurations for three phase circuits. Source/Load Connections Delta-Y connections. Power Relationships Study power delivered by three phase circuits.

kaveri
Télécharger la présentation

POLYPHASE CIRCUITS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. POLYPHASE CIRCUITS LEARNING GOALS Three Phase Circuits Advantages of polyphase circuits Three Phase Connections Basic configurations for three phase circuits Source/Load Connections Delta-Y connections Power Relationships Study power delivered by three phase circuits Power Factor Correction Improving power factor for three phase circuits

  2. THREE PHASE CIRCUITS

  3. Delta Source Vab = | Vab |  0 Vbc = Vab -120 Vca = Vab -240

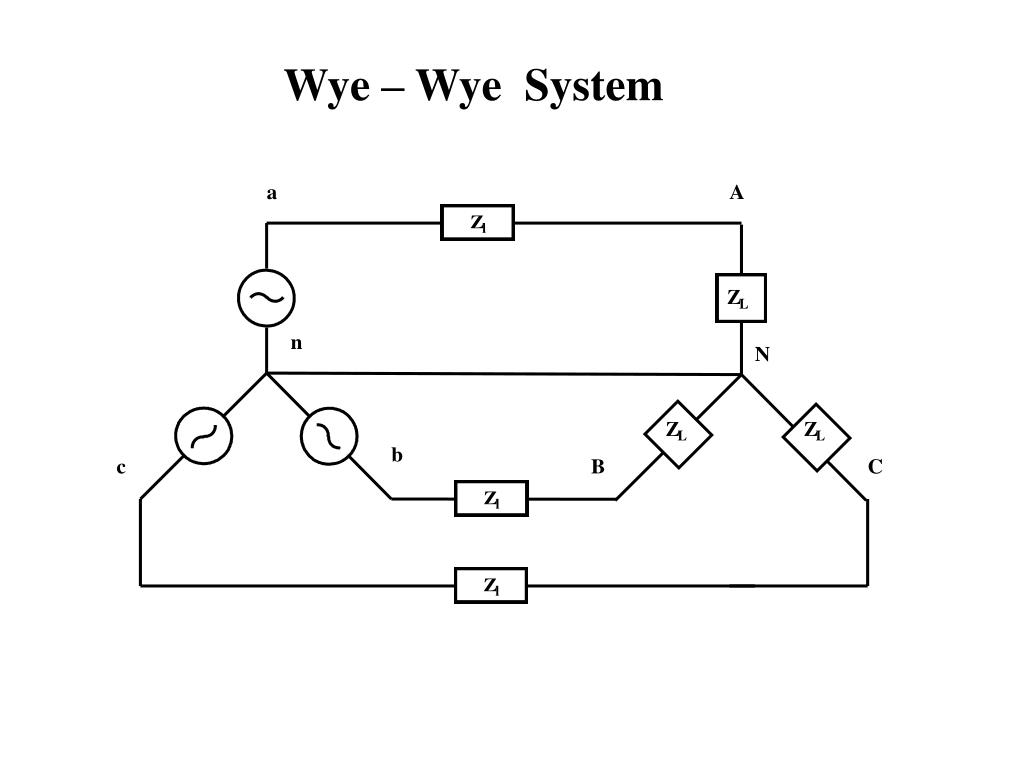

  4. Wye – Wye System

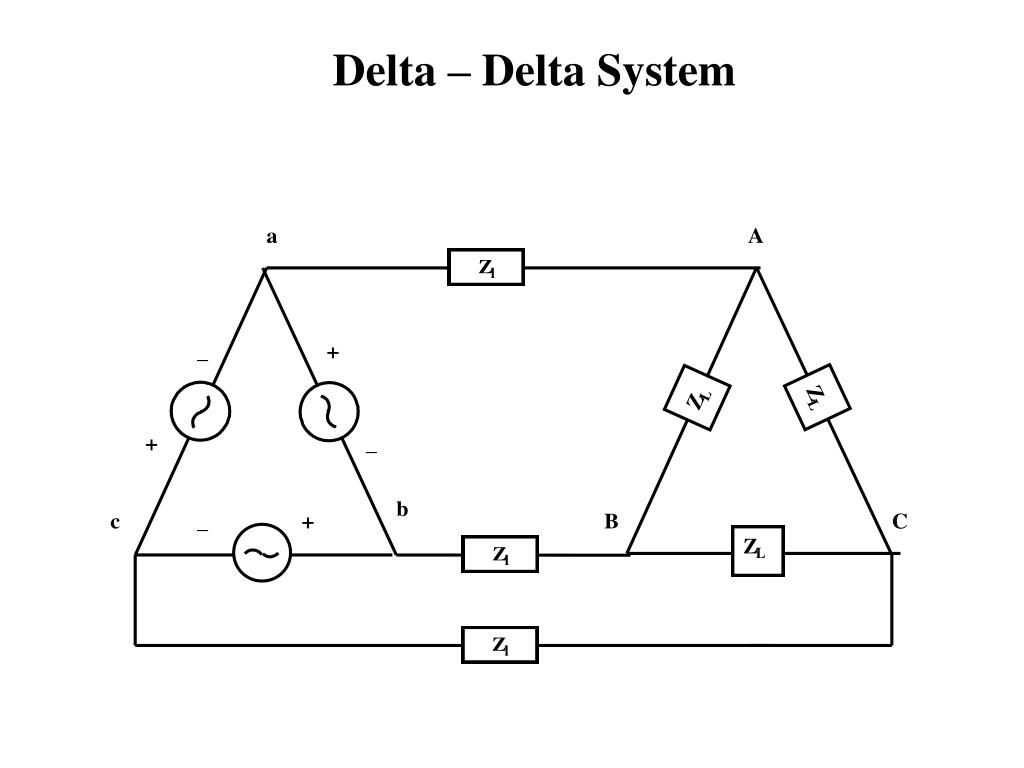

  5. Delta – Delta System

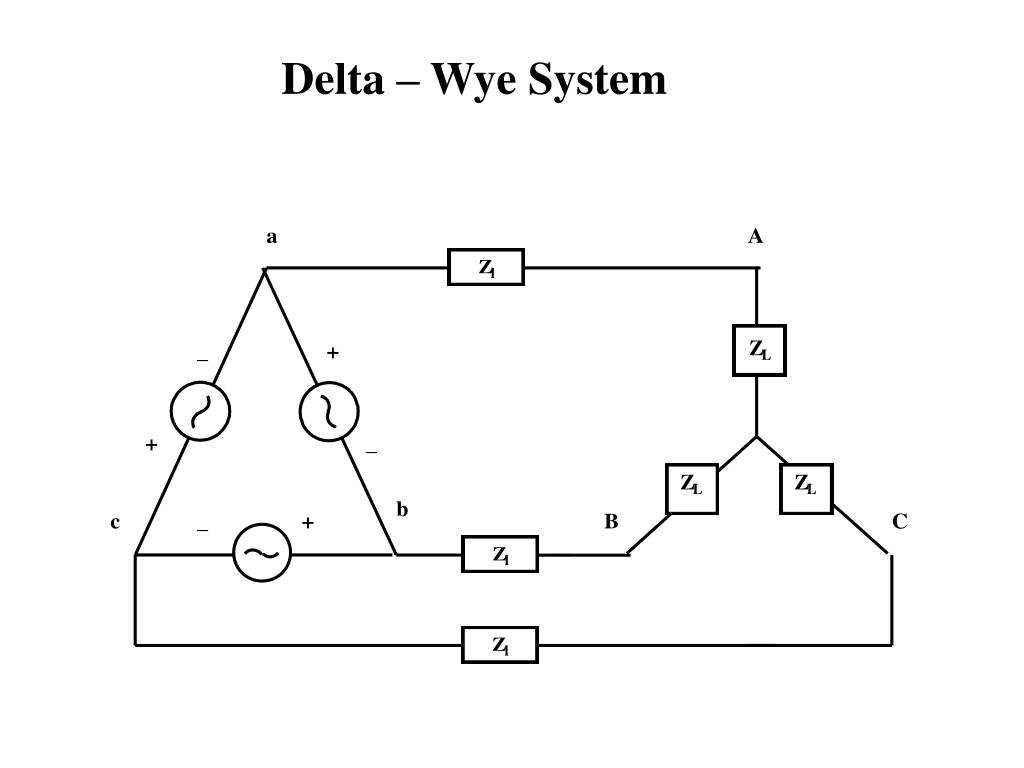

  6. Delta – Wye System

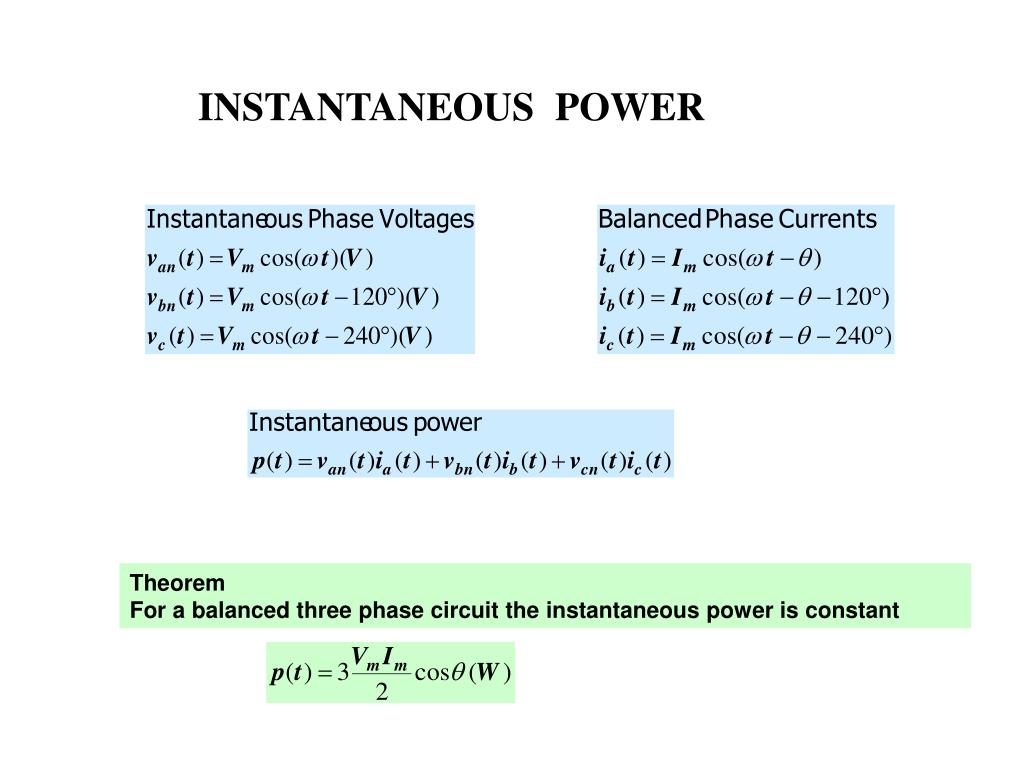

  7. Theorem For a balanced three phase circuit the instantaneous power is constant INSTANTANEOUS POWER

  8. REPLACE IN THE THIRD AND SOLVE FOR R1 SUBTRACT THE FIRST TWO THEN ADD TO THE THIRD TO GET Ra

  9. POWER FACTOR CORRECTION Similar to single phase case. Use capacitors to increase the power factor Balanced load Low pf lagging Keep clear about total/phase power, line/phase voltages To use capacitors this value should be negative

  10. LEARNING EXAMPLE

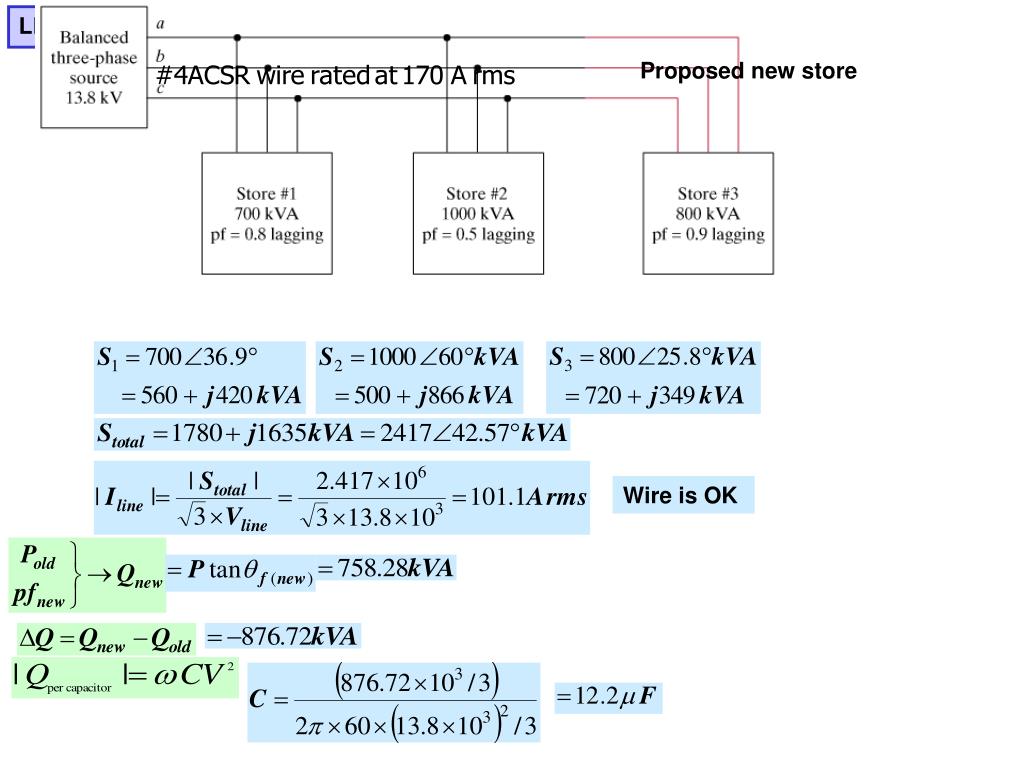

  11. LEARNING BY DESIGN Proposed new store Wire is OK
