  1. The Waveform Generator EECS150 Fall2008 - Lab Lecture #10 Chris Fletcher Adopted from slides designed by Chris Fletcher and IliaLebedev EECS150 Lab Lecture #10

  2. Today • PAR Timing Reports • Administrative Info • The Waveform Generator • Requirements • Interfaces • Extra Credit • From our Sandbox to Yours • Oscilloscope Features • Firmware • Miscellaneous Goodies EECS150 Lab Lecture #10

  3. PAR Timing Reports (1) • Purpose • Determine clock “Slack” • Find where the critical path occurs • PAR and Your Project • No real clock problems yet • Extra credit might lead to “riding the clock” • Text Generation EECS150 Lab Lecture #10

  4. PAR Timing Reports (2) • Dealing with timing issues • Detecting a timing problem • See your exact clock “slack” • Finding your critical path • “Nuking” your critical path EECS150 Lab Lecture #10

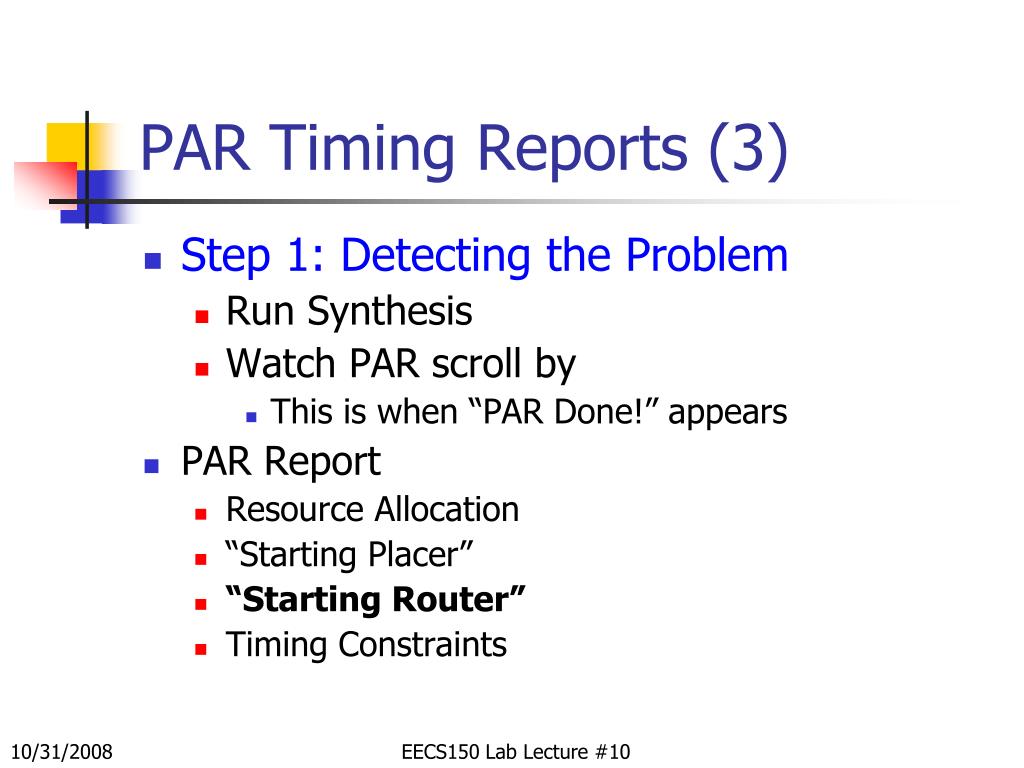

  5. PAR Timing Reports (3) • Step 1: Detecting the Problem • Run Synthesis • Watch PAR scroll by • This is when “PAR Done!” appears • PAR Report • Resource Allocation • “Starting Placer” • “Starting Router” • Timing Constraints EECS150 Lab Lecture #10

  6. PAR Timing Reports (4) • A Normal “Router” Report • A BAD“Router” Report EECS150 Lab Lecture #10

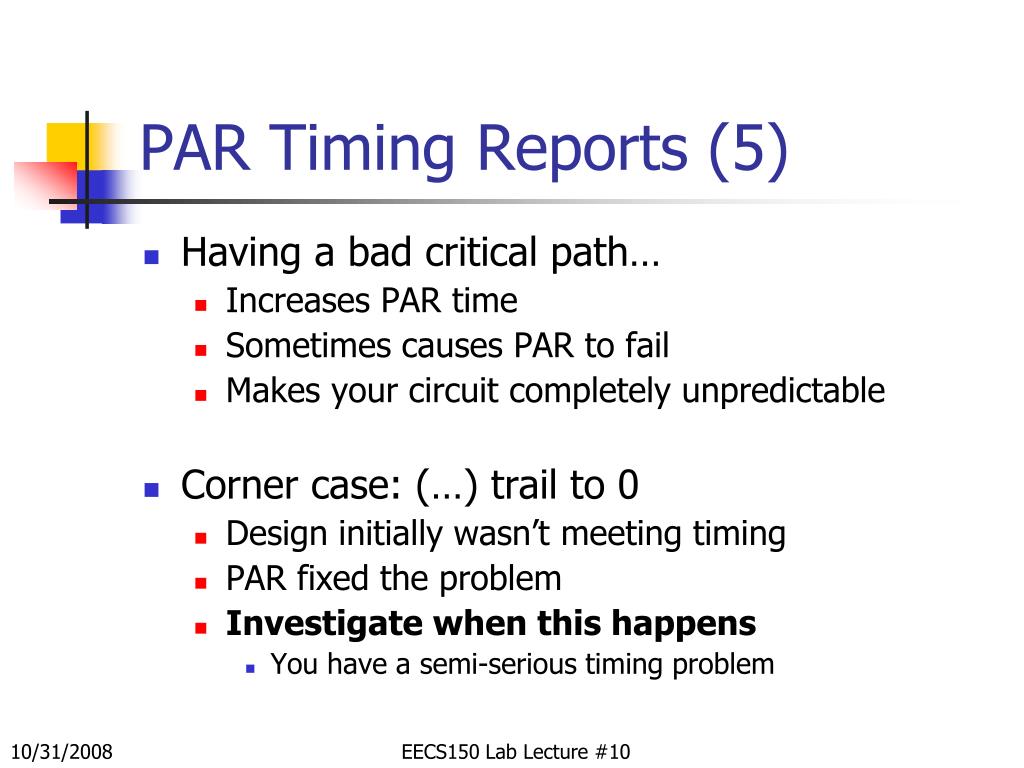

  7. PAR Timing Reports (5) • Having a bad critical path… • Increases PAR time • Sometimes causes PAR to fail • Makes your circuit completely unpredictable • Corner case: (…) trail to 0 • Design initially wasn’t meeting timing • PAR fixed the problem • Investigate when this happens • You have a semi-serious timing problem EECS150 Lab Lecture #10

  8. PAR Timing Reports (6) • Step 2: Find exact clock “slack” • Bottom of PAR report • Reading slack reports • Positive slack is good • Negative slack  Unpredictable circuits • Be watchful! • PAR might pass with negative slack EECS150 Lab Lecture #10

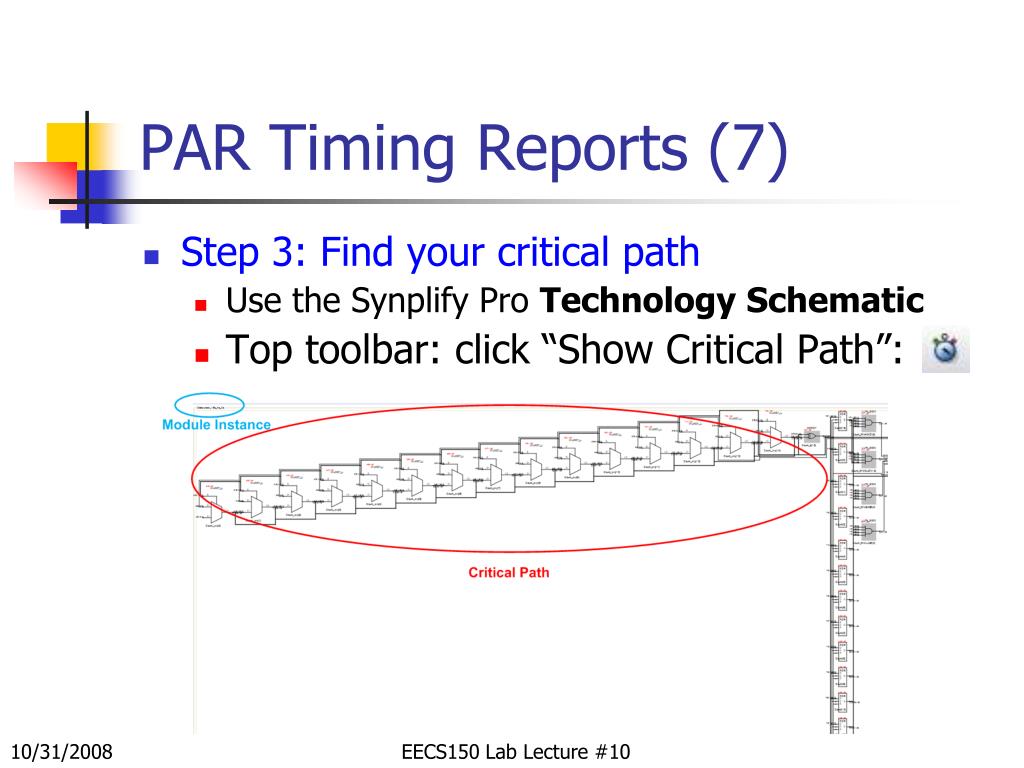

  9. PAR Timing Reports (7) • Step 3: Find your critical path • Use the Synplify Pro Technology Schematic • Top toolbar: click “Show Critical Path”: EECS150 Lab Lecture #10

  10. PAR Timing Reports (8) • Step 4: NUKE your critical path • Find module corresponding to critical path • Refactor Verilog • Pipeline design • Remove Software operators • ‘*’ • ‘/’ • If you don’t know what it will synthesize to, don’t write it in Verilog EECS150 Lab Lecture #10

  11. Administrative Info (1) • Midterm 2 • When: Tuesday, November 4th • During lecture: 2pm • Where: 125 Cory • Policy: Open notes, open book • Midterm 2 Review • Monday, November 3rd • Same place as always • BYOQ EECS150 Lab Lecture #10

  12. Administrative Info (2) • Project • Due today: SDRAM Simulation • Due Next Friday: Arbiter + Video • Introduced today: Waveform Viewer • Extra Credit is up! EECS150 Lab Lecture #10

  13. Checkpoint 4 (1) • Waveform Video Generator • Up until now, we did all the design work for you. • Now it’s your turn. • Much of this checkpoint is your design effort. EECS150 Lab Lecture #10

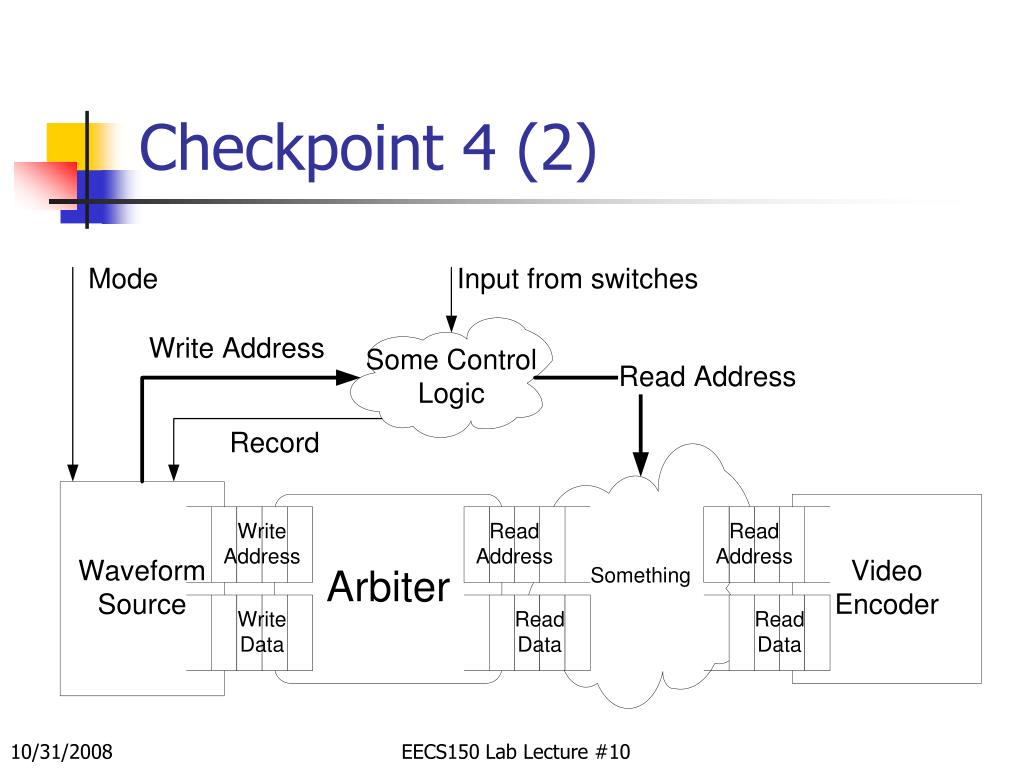

  14. Checkpoint 4 (2) EECS150 Lab Lecture #10

  15. Checkpoint 4 (3) • Waveform Source generates data • CP 5 will replace with a source of audio • Data is recorded (Arbiter + SDRAM) • Just like a GIGANTIC (256M) FIFO! • Data is read out as needed • Data is converted to a video stream • How? • Video Encoder displays the video. EECS150 Lab Lecture #10

  16. Checkpoint 4 (4) • What your system will be able to do: • Record the output of the source • Display the output on the screen in real-time • Pause recording • Examine recorded waveform • Scroll forwards and backwards through saved waveform EECS150 Lab Lecture #10

  17. The “Something” Block (1) • Takes a stream of values • Outputs a video stream of a “wave” • You will need to generate video on demand • It would help to have a faster, smaller memory • System Architects call this a “Cache” • Look at RAM.v  Hint • Really. Look at RAM.v EECS150 Lab Lecture #10

  18. The “Something” Block (2) • Displays a part of the waveform • Draws one sample per pixel pair • Displays data starting at “Read Address” • Caching helps EECS150 Lab Lecture #10

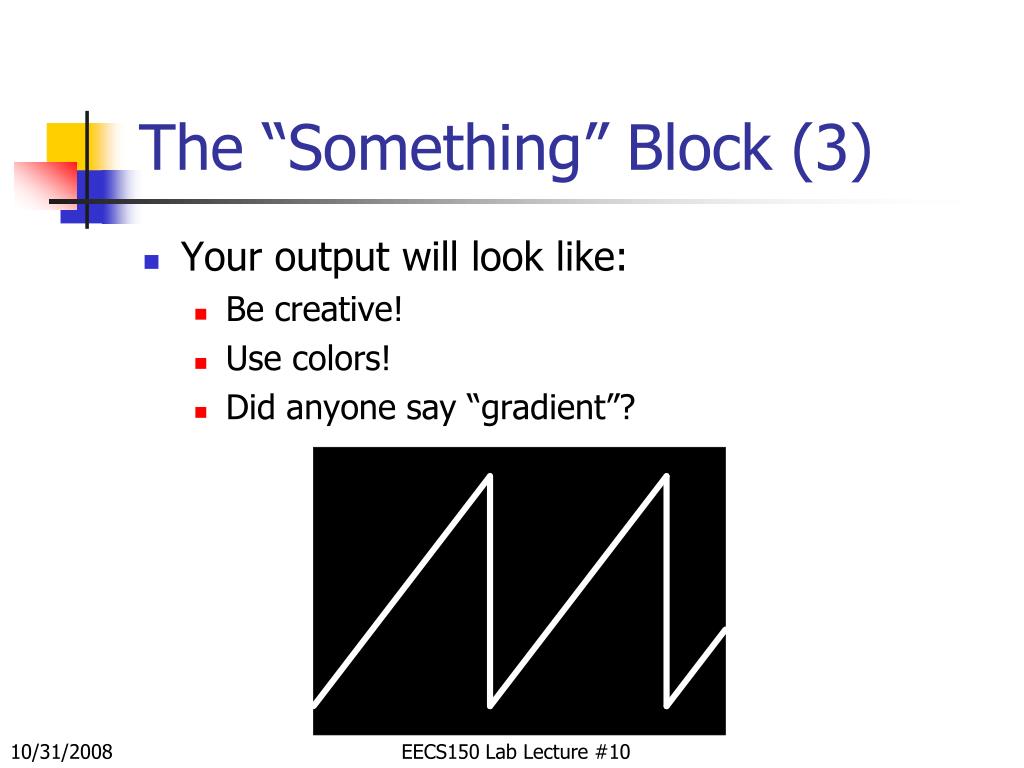

  19. The “Something” Block (3) • Your output will look like: • Be creative! • Use colors! • Did anyone say “gradient”? EECS150 Lab Lecture #10

  20. The “Something” Block (4) • How you get there is entirely up to you • Use good design • Don’t code if you don’t have a circuit diagram! • You won’t need a state machine • Make it look nice • this is where it will show. EECS150 Lab Lecture #10

  21. Waveform source • Done for you. • Connects to the Arbiter • Creates “waveform” data • Multiple “modes” or patterns generated EECS150 Lab Lecture #10

  22. Arbiter And SDRAM • Should have this by now (was CP2, CP3) • If not, we will provide a blackboxed solution. • If you could not finish CP3, move on and finish after your project is done. EECS150 Lab Lecture #10

  23. Control logic • User interactions are handled here • This can be a state machine • This module will read user input • Buttons • Switches • And control your data path • Read Counter & Record are control signals EECS150 Lab Lecture #10

  24. Video Encoder • This was your CP1 assignment. • Should provide an interface to connect to 2 FIFOs • Yes, DATA has a FIFO interface too • If your VE does not work: • Move on and finish after CP5 • Use our blackboxed solution for now EECS150 Lab Lecture #10

  25. Useful Hints (1) • Don’t bother using things like Debouncer.v on the button inputs • We don’t care about precise scrolling • Look at the SVN Library folder closely • Many useful modules • Look at RAM.v EECS150 Lab Lecture #10

  26. Useful Hints (2) • How many ports does RAM.v have? • How can you use multi-port memory to your advantage? • Waveform data is a set of values over time • Video is a set of X,Y color values • In a waveform, time is X and the value is Y. EECS150 Lab Lecture #10

  27. Checkpoint 4 Checkoff • This checkpoint will be checked off visually • We will look at what it does and how • Talk to your GSIs! • We are happy to help you with the design process • Part of your grade will be the quality of your design EECS150 Lab Lecture #10

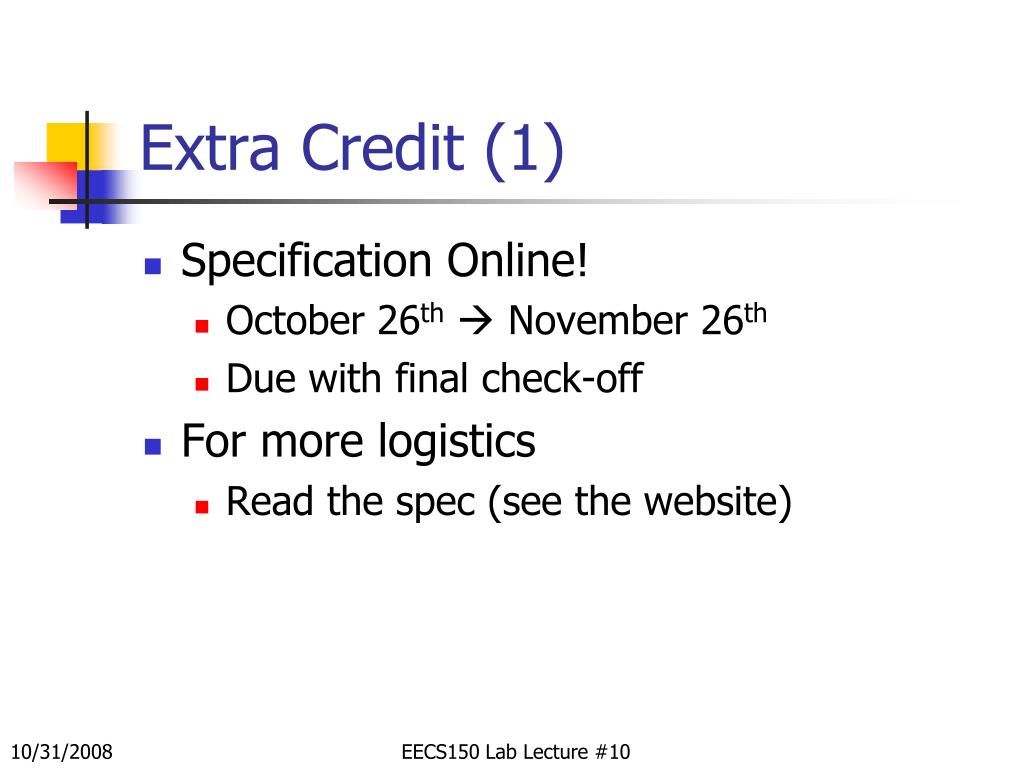

  28. Extra Credit (1) • Specification Online! • October 26th November 26th • Due with final check-off • For more logistics • Read the spec (see the website) EECS150 Lab Lecture #10

  29. Extra Credit (2) • Think Design, not Display • Extra Credit graded on design • Ask yourself… • Was it well designed? • Did it work reliably? • Did it do something interesting? • Flashing Colors != good design (not necessarily anyway) EECS150 Lab Lecture #10

  30. Extra Credit (3) • Extra Credit Options • Oscilloscope Features • Firmware • Special Challenges • Pick what you like • No restrictions on selection • Options will be added to the list as we think of them EECS150 Lab Lecture #10
