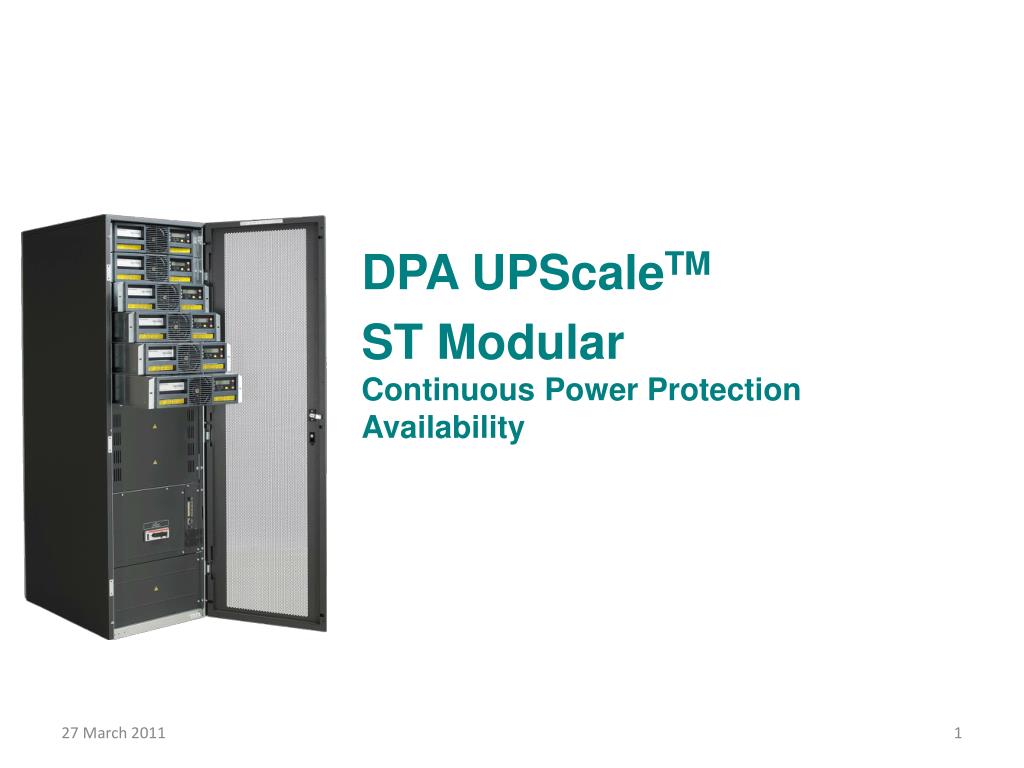

  1. DPA UPScaleTM ST ModularContinuous Power Protection Availability The multimaster technology – DPA UPScale

  2. Decentralized Parallel Architecture DPA Decentralized Parallel Architecture (DPA)TM from NEWAVE Decentralized Parallel Architecture (DPA)TM was designed to distribute virtually the entire UPS Hardware and Software into modules in order to reduce the Single Points of Failures (SPOF). DPA includes distributed MAINS 2 MAINS 1 • Control Panel on Module DPA CONTROL PANNEL DPA CENTRAL PROCESSING UNIT DPA POWER UNIT DPA STATIC BP SWITCH • CPU • Power Unit DPA BATTERY PACKS • Static bypass switch DPA CONTROL PANNEL DPA CENTRAL PROCESSING UNIT DPA POWER UNIT DPA STATIC BP SWITCH and • Separate Batteries DPA BATTERY PACKS DPA CONTROL PANNEL DPA CENTRAL PROCESSING UNIT DPA POWER UNIT DPA STATIC BP SWITCH DPA BATTERY PACKS CRITICAL LOAD DPA UPScale

  3. Decentralized Parallel Architecture DPA DPA UPScaleTM HIGHLIGHTS and Benefits • High level of decentralization • Multi Master and Slave Technology through a simplified BUS Communication • Full redundancy on inverter • Full redundency on Static Bypass Switch (SBS) DPA UPScale

  4. Highlights • Safe-Swap Modules • High Availability • Enhanced Serviceability • Flexibility / Scalability • Low Cost of Ownership thanks to right sizing • Lowest Module weight in its class • Blade Server Friendly Power/Leading loads • High Power Density • Reduced Footprint DPA UPScale

  5. Safe-Swap modules The DPA UPScaleTM Modules are fully independent and are composed of all major hardware and firmware building blocks: • CPU (Central Processing Unit) • All power circuits (rectifier, inverter, battery charger) • Static switch and static switch control • Power Management Control Panel In-built Display Static Switch Control unitDisplay Inverter Rectifier Booster Battery DPA UPScale

  6. 10kW / 10kVA 20kW / 20kVA DPA UPScaleTM Power Range 10-120 kW 2 module 3 modules 4 modules 6 modules UPScale ST 40 UPScale ST 60 UPScale ST 120 UPScale ST 80 19” UPScale Modules : UPScale M10 UPScale M20 HU = 3 WxHxD 488x132x488 18.3 kg and 21.5 kg WxHxD 550x1135x767 WxHxD 550x1975x757 WxHxD 550x1135x767 WxHxD 550x1975x767 External Batt. ONLY 2 x 40 x 7.2/9AhTotal 80 blocks External Batt. ONLY 3 x (2x40) x 7.2/9AhTotal 240 blocks DPA UPScale

  7. Features: DPA UPScale ST 10-120 kW • DPA with Safe-Swap Modules (SSM) • Exceptionally low Module weight • Safe Swap extendable from 10-120kW (max. 6 Modules) • Flexible battery management blocks • Ripple free through battery charger • Distributed control and power • LCD display integrated on Module • Low Total Cost of Ownership (TCO) • Huge Flexibility / Scalability • Easy to install and service • Excellent Input PFC: >0.99 @ 100% load • Low input THDI: < 3% @ 100% load • High conversion efficiency: up to 95.5% DPA UPScale

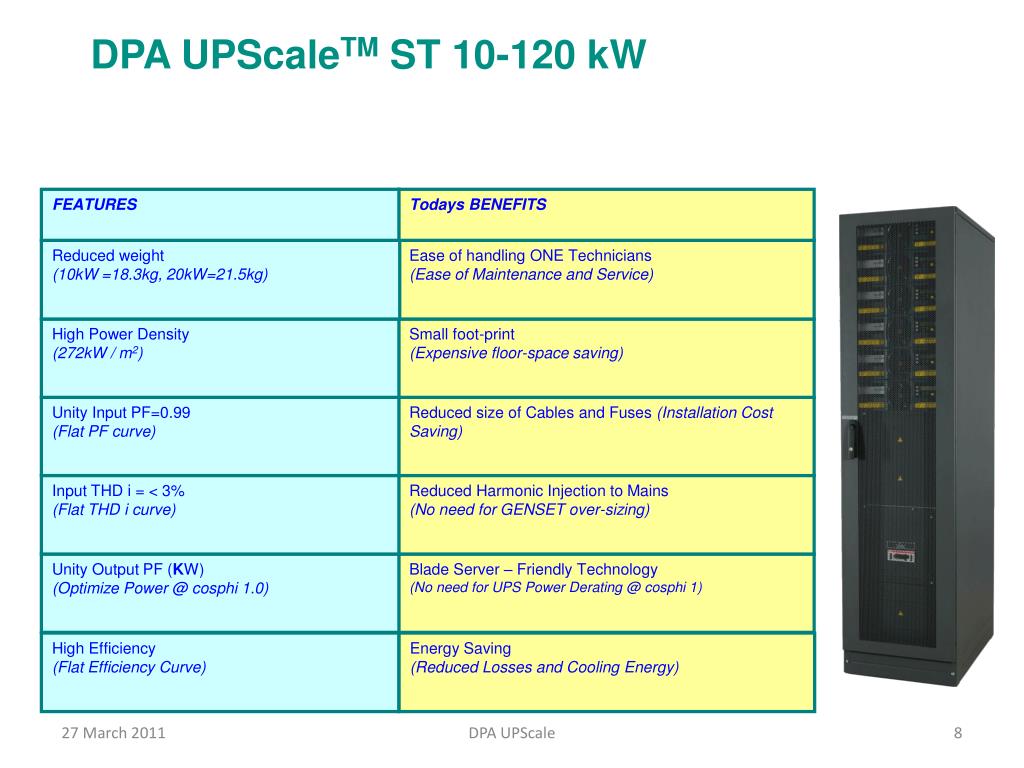

  8. DPA UPScaleTM ST 10-120 kW FEATURES Todays BENEFITS Reduced weight (10kW =18.3kg, 20kW=21.5kg) Ease of handling ONE Technicians (Ease of Maintenance and Service) High Power Density(272kW / m2) Small foot-print (Expensive floor-space saving) Unity Input PF=0.99(Flat PF curve) Reduced size of Cables and Fuses (Installation Cost Saving) Input THD i = < 3%(Flat THD i curve) Reduced Harmonic Injection to Mains(No need for GENSET over-sizing) Unity Output PF (KW)(Optimize Power @ cosphi 1.0) Blade Server – Friendly Technology(No need for UPS Power Derating @ cosphi 1) High Efficiency(Flat Efficiency Curve) Energy Saving (Reduced Losses and Cooling Energy) DPA UPScale

  9. Thank you for your attention DPA UPScale
