  1. First test of MCM prototype board 1G. De Lentdecker 2L. Jönsson 2U. Mjornmark 1Y. Yang3F. Zhang 1 Université Libre de Bruxelles 2 Lund University 3Central China Normal University AIDA 3rd Annual Meeting

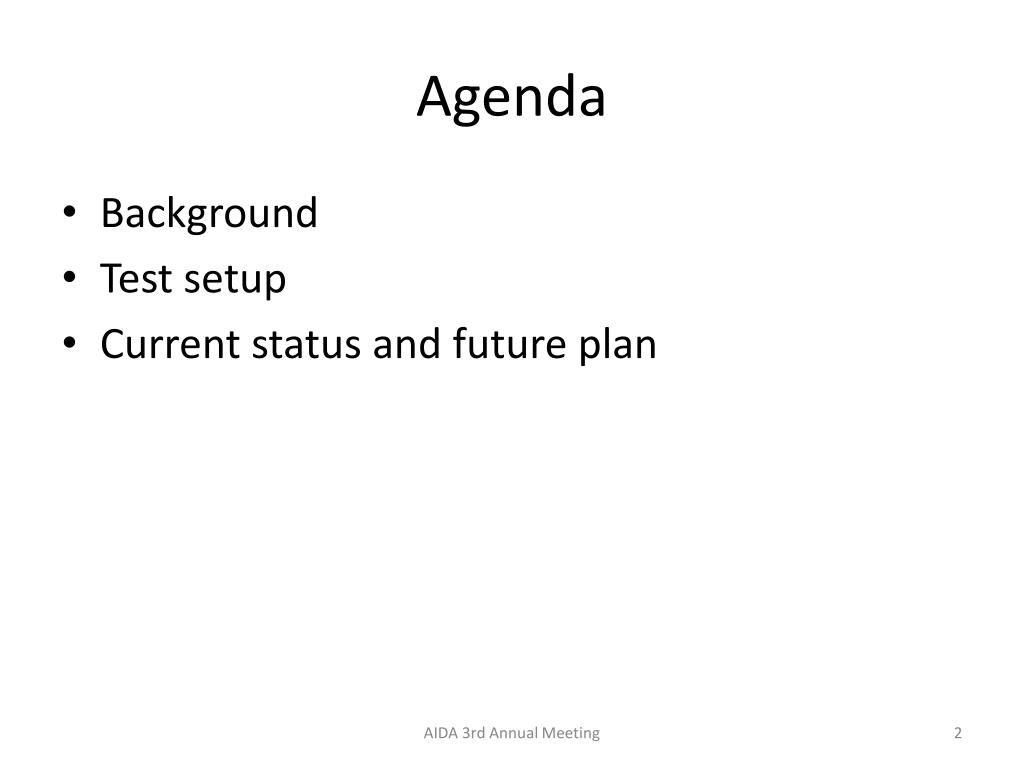

  2. Agenda • Background • Test setup • Current status and future plan AIDA 3rd Annual Meeting

  3. Background The Large Prototype TPC MCM on a pad module Scalable Readout Unit (SRU) TLU AIDA 3rd Annual Meeting

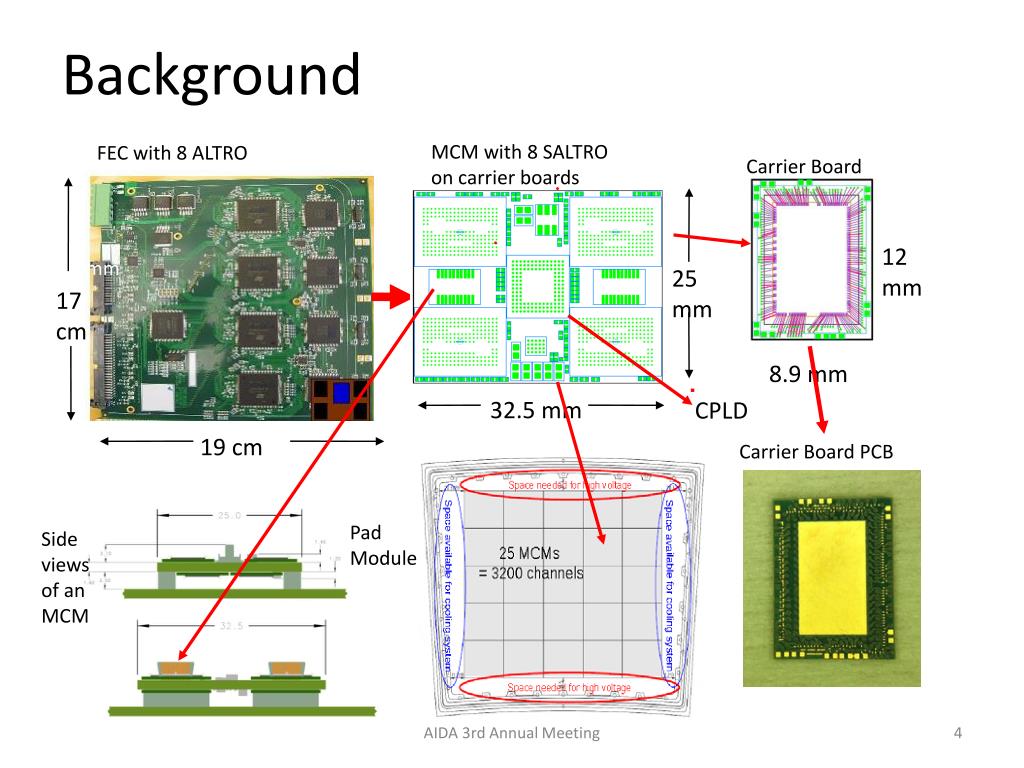

  4. Background MCM with 8 SALTRO on carrier boards FEC with 8 ALTRO 190 mm Carrier Board 32.5 mm 8.9 mm 12 mm 170 mm 25 mm 25 mm 17 cm 8.9 mm MCM 32.5 mm CPLD FEC 19 cm Carrier Board PCB PadPad Module Side views of an MCM AIDA 3rd Annual Meeting

  5. Background Proto-MCM board DTC link to SRU JTAG XO2-4000 SALTRO AIDA 3rd Annual Meeting

  6. Test setup MCM programmer DAQ PC (Ethernet based) Logic Analyzer DAQ PC(DDL based) Oscilloscope SRU programmer AIDA 3rd Annual Meeting

  7. Test setup AIDA 3rd Annual Meeting

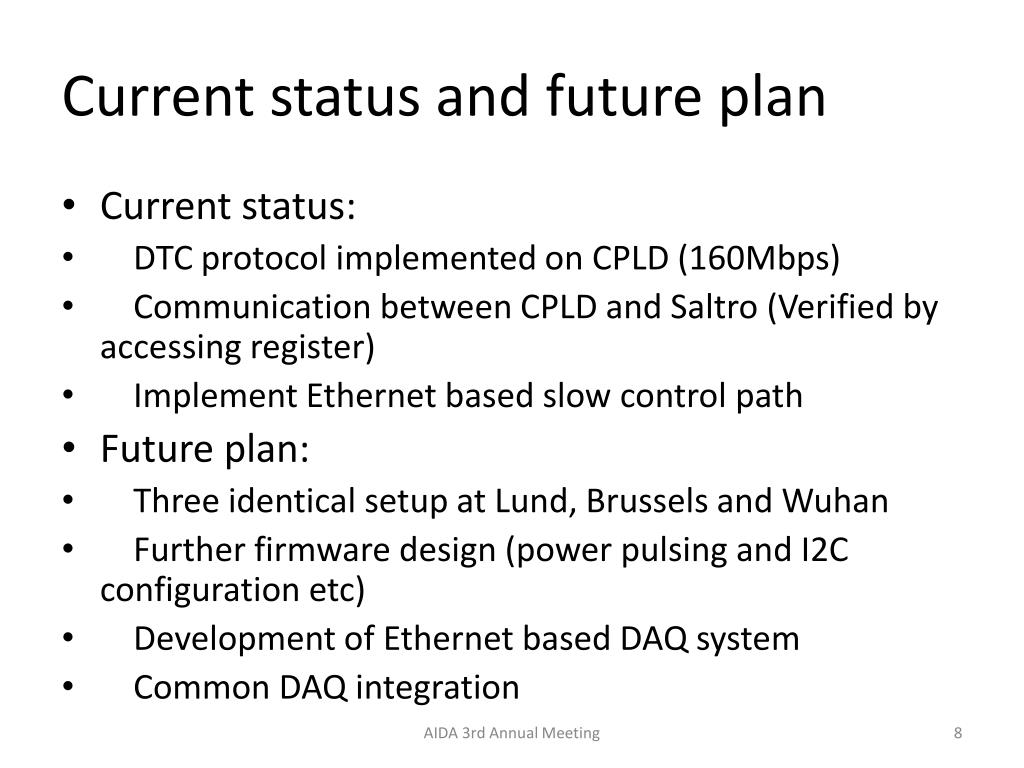

  8. Current status and future plan • Current status: • DTC protocol implemented on CPLD (160Mbps) • Communication between CPLD and Saltro (Verified by accessing register) • Implement Ethernet based slow control path • Future plan: • Three identical setup at Lund, Brussels and Wuhan • Further firmware design (power pulsing and I2C configuration etc) • Development of Ethernet based DAQ system • Common DAQ integration AIDA 3rd Annual Meeting

  9. Thank you ! AIDA 3rd Annual Meeting

  10. backup

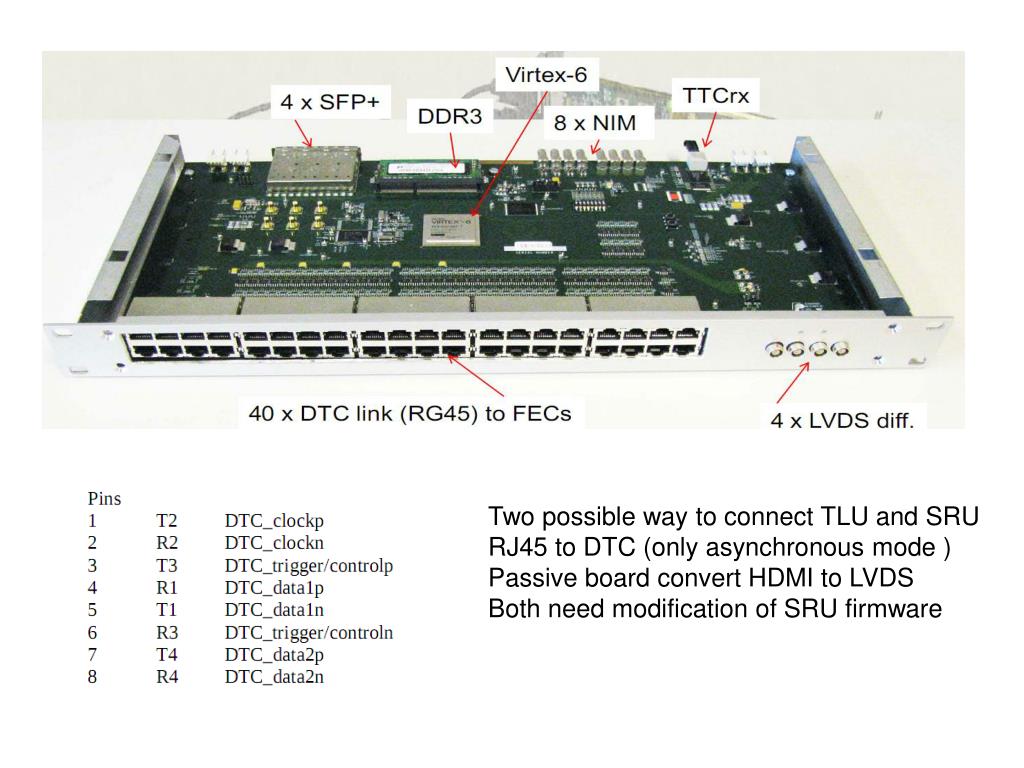

  11. Two possible way to connect TLU and SRU RJ45 to DTC (only asynchronous mode ) Passive board convert HDMI to LVDS Both need modification of SRU firmware
