  1. eKLMFirst Prototype Boards Summary Board Reference Designators And aliases for ID of subcomponents 16-NOV-2010 == GSV/IDL

  2. How to track all of these? ID Lab Unique Identifier numbers Shown page is Manifest

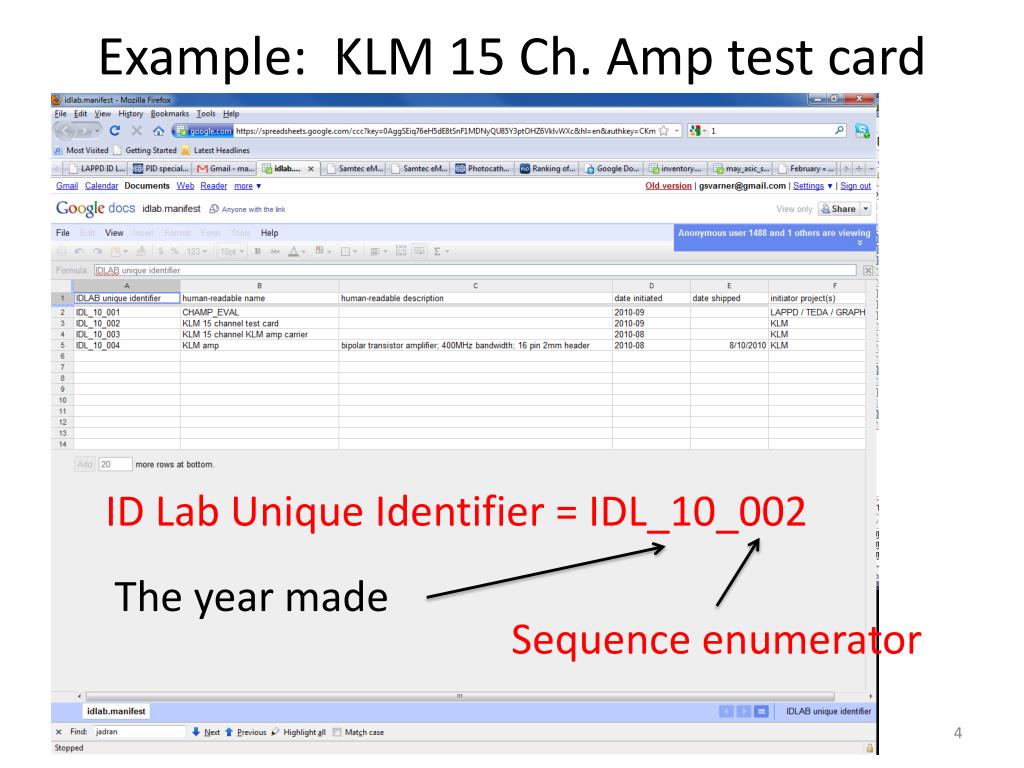

  3. Example: KLM 15 Ch. Amp test card ID Lab Unique Identifier = IDL_10_002 The year made Sequence enumerator

  4. KLM 15 Ch. Amp test card = IDL_10_002 The year made Sequence enumerator And more as needed

  5. 1x IDL_10_008 SPAM_RevA 1x IDL_10_009 MB_eKLM_RevB 150x IDL_10_004 BS_eKLM_amp_RevA 2x fiber links KLM Readout (150 channels) 10 x 2x 34-cond Ribbon cables COPPER 1x IDL_10_006 CT_RevA 1x IDL_10_011 BK_eKLM_FIN_RevA 10x IDL_10_003 BS_eKLM_carrier_RevB 15x IDL_10_032 (RevC) 10x IDL_10_005 DC_TARGET_RevA 1x IDL_10_007 SCROD_RevA Purely test cards: 2x IDL_10_010 BS_eKLM_MPPC_RevA 2x IDL_10_002 BS_eKLM_test_RevA

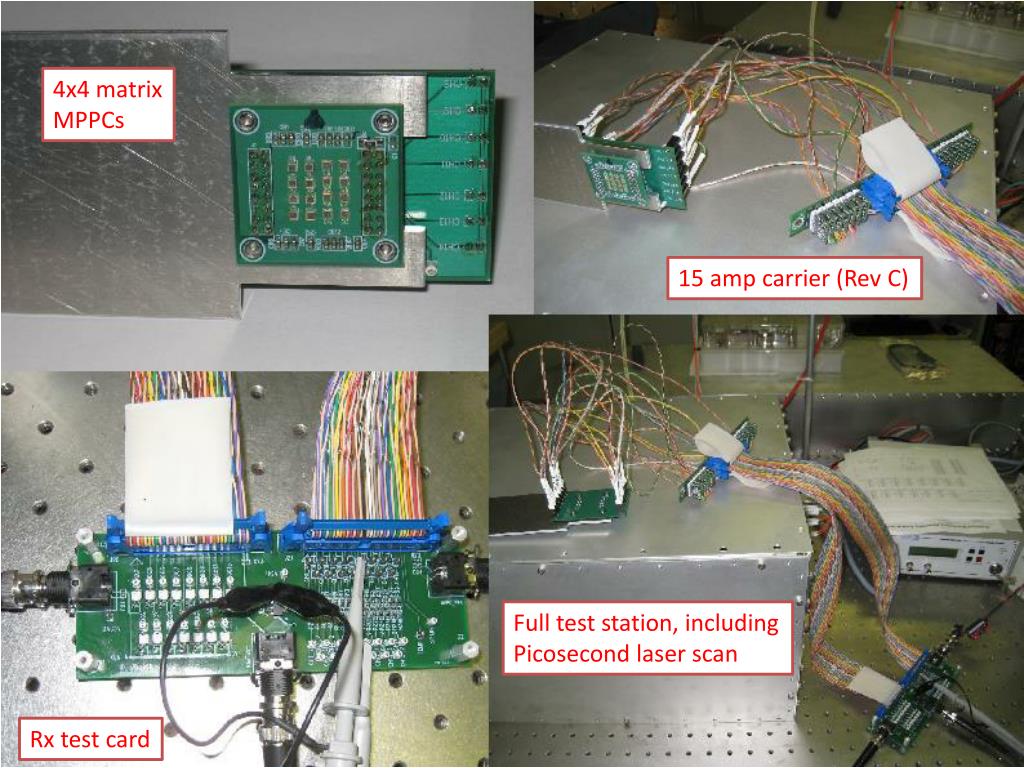

  6. 4x4 matrix MPPCs 15 amp carrier (Rev C) Full test station, including Picosecond laser scan Rx test card

  7. Sample (zoomed out) waveform PiLas Laser (1MHz rep rate) All 15 channels OK

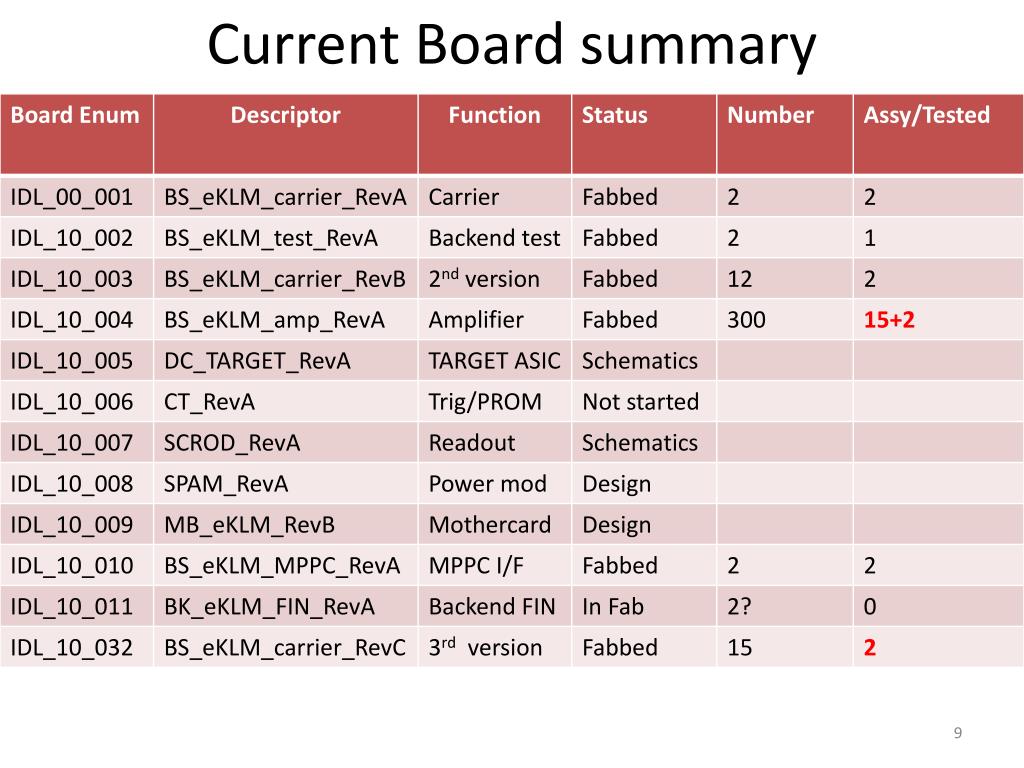

  8. Current Board summary

  9. Design/fabrication manpower limited Amplifier production started, test procedure in place Complete design work ASAP: post schematics for review Much work needed on firmware/software Summary
