  1. Introduction to Hytera DMR The leading provider of professional wireless communication equipments and solutions

  2. Hytera DMR product portfolio Available Now MD785 covert radio x1 & x1e Application Accessories PD785&PD705 RD985 Coming soon…. HD795Ex explosion-proof IIC T4 ( 400-470mhz/136-174mhz) DMRtrunking system

  3. PD705G U2 450-520mhz PD785G U2 MD785G U2 RD985U2 DMR tunking in 350-400mhz RDS Beta Safesytdispatcher R3.5 SW PD705(G)U3 (350-400mhz) PD785(G) U3 MD785(G) U3 RD985U3 RD980M U1 R3.0 SW PD705(G) VHF (136 -174mhz) PD785(G) VHF MD785(G)VHF RD98X VHF R2.5SW PD705G U1 PD785G U1 MD785G U1 RD980M U3(MPT tranceiver) 软件 R2.0SW PD785 U1(400-470mhz) MD78X U1 RD98X U1 R1.0SW R1.0 2010-3 R2.0 2010-8 R2.5 2010-11 R3.0 2011-3 R3.5 2011-5

  4. R3.0 – Repeater • Repeater Multi Site • Enhanced GPIO Functionality (Repeater Disable, reset, High/Low power toggle, Major alarm, Minor alarm,) • Analog/Digital crossover • Digital PTT (front and rear port) and Audio Priority. • Digital Audio monitoring via local speaker • R2.5 - Repeater • Multi-Tone CT/CDCSS decode • Analog/Digital Auto Detect • channel steering • 16-Channel • R1.0 - Repeater • Repeat of all DMR Tier II voice and data • Repeat of all analog signaling 1Q10 2Q10 3Q10 4Q10 1Q11 2Q11 3Q11 4Q11 • R2.5 - Susbcriber • 5 Tone • Emergency Alarm • DMR Supplementary services (Call alert, • Radio Disable/enable, Remote monitor, Radio Check) • SELP Vocoder • Multilanguage (Spain, Italy, Russian • R1.0 - Susbcriber • Analog Voice (CTCSS, CDCSS, CSQ) • DMR Tier II voice and data (Calls- Group, all, private, Data - Text Message) • Scan (mix mode) • Analog and Digital Emergency • R2.0 - Subscriber • Scrambling (Analog scrambling, Digital Basic Encryption) • GPS (driver, GPS menu, GPS over text message) • Local Telemetry • Repeater Pseudo trunk operation , Direct Pseudo trunk operation • Multilanguage menu • Man Down • Microphone AGC • Vibration for TMS/confirmed private call Emergency Alarm • 1024 channels • Emergency footswitch • HDC (voice only) • R3.0 • Digital Enhance Encryption • Lone Worker • GPS revert (Include Radio Registration Service) • Third party API for GPS, Text Message and Call Control • SELP Vocoder support

  5. R3.5 new released features • Subscriber: • User logo programming • One touch TMS/supplemental/Voice • Channel change voice notification • Contact list up to 512 • Multi site roaming • Supplemental API • Telemetry • Private call home screen dial • Repeater: • User logo programming • Repeater analogue scan • Repeater access management • RDAC • Back to back in multisite • Audio monitoring via local speaker (analogue) • Repeater analogue hangtime • Multisite connection up to 22 pcs • Multisite link encryption • Dispatcher: RDS • GIS/text message/dispatcher consoler single site ( beta version) • Safesyt dispatching sytem

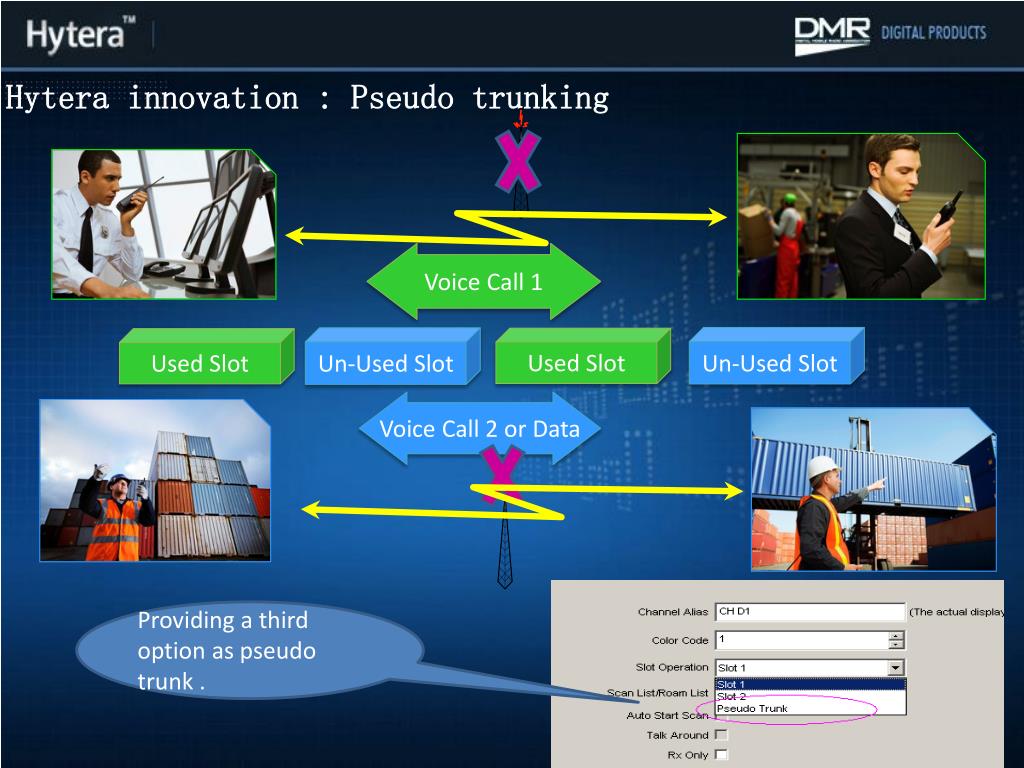

  6. Hytera innovation : Pseudo trunking Voice Call 1 Un-Used Slot Un-Used Slot Used Slot Used Slot Voice Call 2 or Data Providing a third option as pseudo trunk .

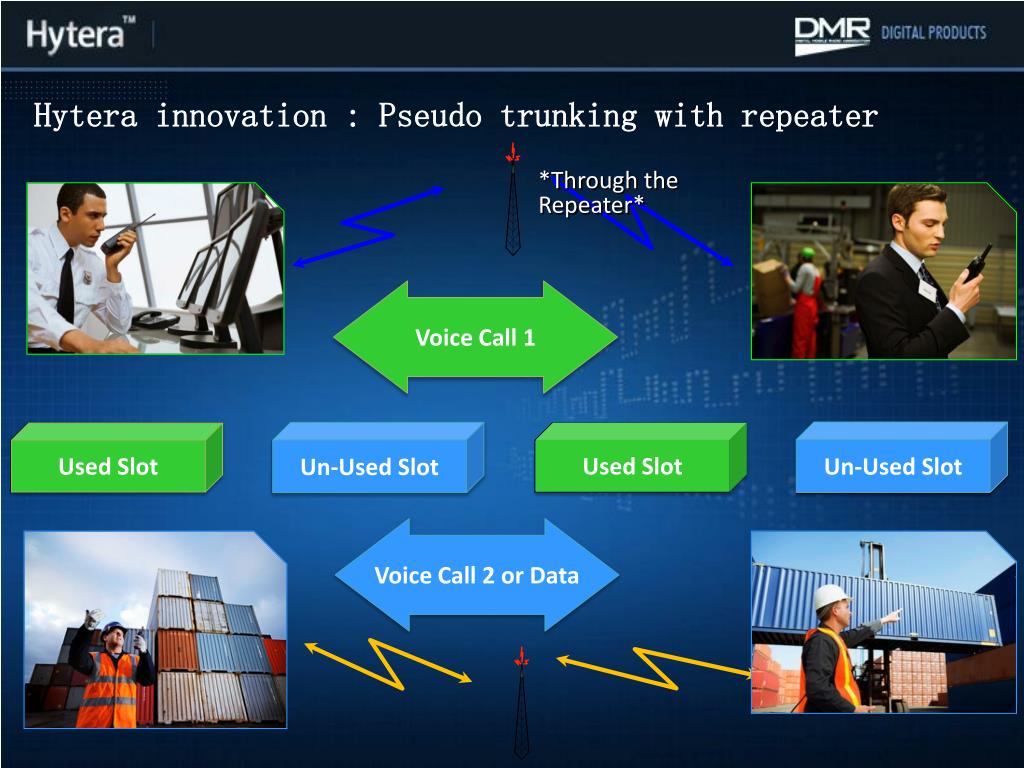

  7. Hytera innovation : Pseudo trunking with repeater *Through the Repeater* Voice Call 1 Un-Used Slot Un-Used Slot Time Slot 2 Used Slot Time Slot 2 Time Slot 1 Used Slot Time Slot 1 Voice Call 2 or Data

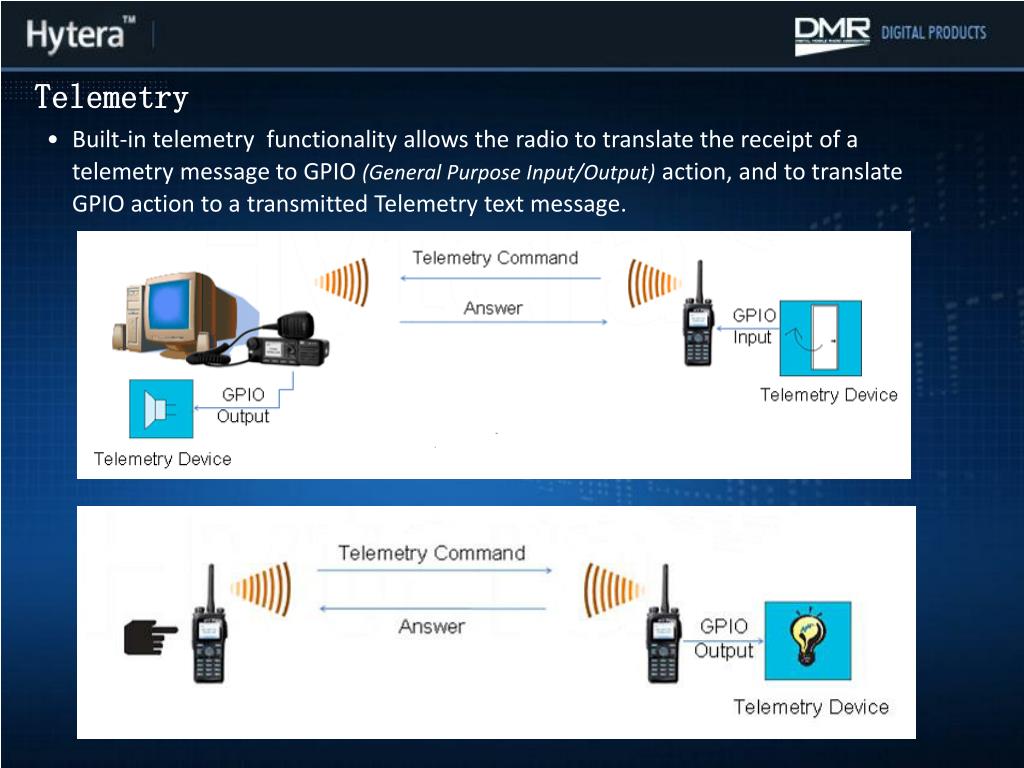

  8. Telemetry • Built-in telemetry functionality allows the radio to translate the receipt of a telemetry message to GPIO (General Purpose Input/Output) action, and to translate GPIO action to a transmitted Telemetry text message.

  9. Repeater Diagnostics and Control (RDAC) • A software application that allows the system administrator the ability to monitor and control repeaters within the system.

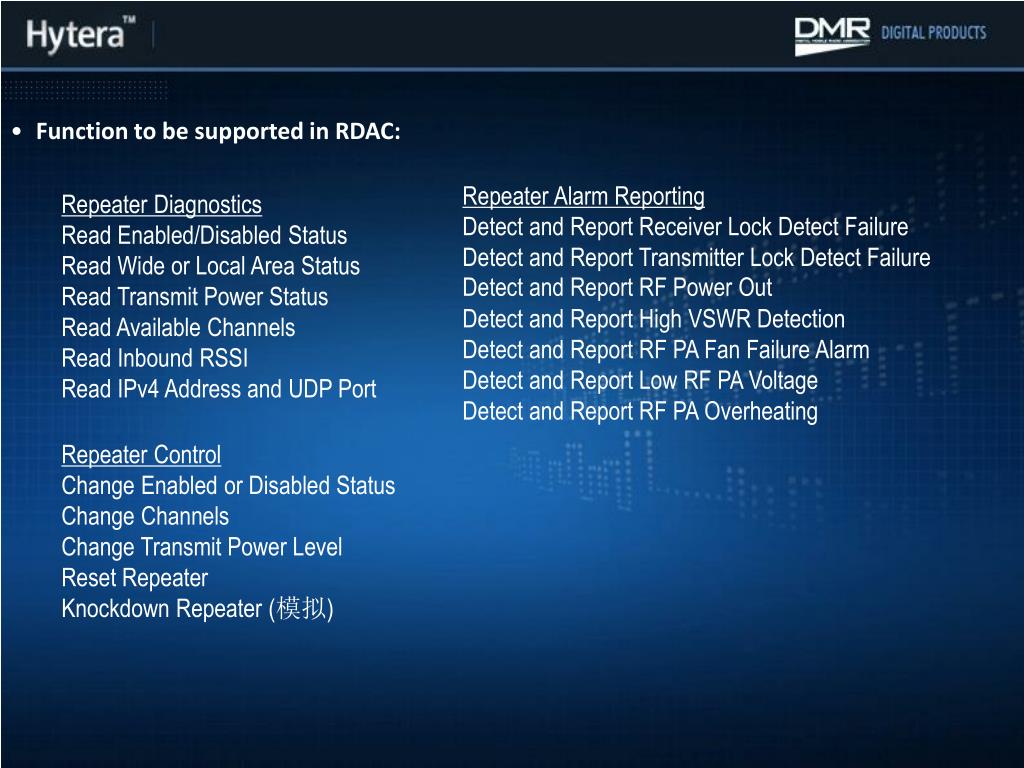

  10. Function to be supported in RDAC: Repeater Alarm Reporting Detect and Report Receiver Lock Detect Failure Detect and Report Transmitter Lock Detect Failure Detect and Report RF Power Out Detect and Report High VSWR Detection Detect and Report RF PA Fan Failure Alarm Detect and Report Low RF PA Voltage Detect and Report RF PA Overheating Repeater Diagnostics Read Enabled/Disabled Status Read Wide or Local Area Status Read Transmit Power Status Read Available Channels Read Inbound RSSI Read IPv4 Address and UDP Port Repeater Control Change Enabled or Disabled Status Change Channels Change Transmit Power Level Reset Repeater Knockdown Repeater (模拟)

  11. RDAC application can connect to the repeater in 2 ways: • Remotely via the network • Provides access to all repeaters • Requires static IP address and UDP port of Master repeater • Provides all services of RDAC application • Locally via USB port • Provides access only to the local repeater • Provides only the Repeater Diagnostics and Repeater Alarm Reporting services

  12. IP multi site connect + site roaming Back to back over IP multisite connect

  13. IP multisite connect enhancement – multisite connectivity call In current release, using the multisite, When A make a private call to B, all the repeater downlink will broadcast the call B, and thus all channels in Slot 2 in all repeaters are occupied. B B Slot 1 = local, Slot 2 = multisite Slot 1 = local, Slot 2 = multisite B R1 R2 R3 B A In new enhancement, a routing table will be placed for each repeaters, to configure which repeaters will broadcast the call in downlink. An example: Private call routing table (A reference table in repeater for whether the data from IP link shall be broadcast in downlink) Slot 1 = local, Slot 2 = multisite Slot 1 = local, Slot 2 = multisite R1 R3 R2 B B A B A call make from the initiating repeater will repeater this in downlink automatically

  14. Hytera DMR ATEX Radio • Provides our customers safety assurance two-way solutions in hazardous locations. - Protection - Productivity - Safety - Quality & Reliability • Penetrate into special market.

  15. Frequency Range: • 400-470 Mhz, 136-174Mhz • 1024 channels (HD795Ex) • RF output power 1W(UHF/VHF) • 1800 mAh Li-ion Battery (as standard battery) • 1.8inch TFD Colorful display and full keypad • Louder Audio Output: 1.5W • IP67 • Compatible with analog mode • Man down • GPS • 5 Tone ( purely software solution) • Open API for third party partner Developed on the basis on DMR model PD785(G) ATEX gas protection: Ⅱ 2G Ex ibⅡC T4 • AREX dust protection : Ⅱ 2D Ex ibD A21 T90°C IP6X

  16. Dispatcher

  17. R5.0 Mar-2012 • ATEX radio (136-174mhz ) • DMR conventional 800mhz &900mhz • Portable repeater (VHF) R4.5 Nov-2011 • ATEX radio (400-470mhz) • DMR trunking (136-174mhz) • R4.0 Aug-2011 • DMR trunking (400-470mhz) • Covert radio • Dispatcher solution • Enhancement on RDAC & IP multi-site

  18. THE ENDTHANKS
