Understanding Adhesives: Applications, Advantages, and Challenges in Joining Techniques

Adhesives play a crucial role in various applications, ranging from low-strength uses like paper glue to high-strength options like epoxy resins. They can bond anything from party hats to airplane wings, but their effectiveness relies on correct selection and joint design. Avoiding peel forces and ensuring adequate overlap are essential for strong connections. While adhesives streamline assembly and create tight seals across diverse materials, they also present challenges, including disassembly difficulties and the need for precise preparation. Familiar examples include wood glue, solvent cement, and cyanoacrylates.

kedma
Télécharger la présentation

Understanding Adhesives: Applications, Advantages, and Challenges in Joining Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

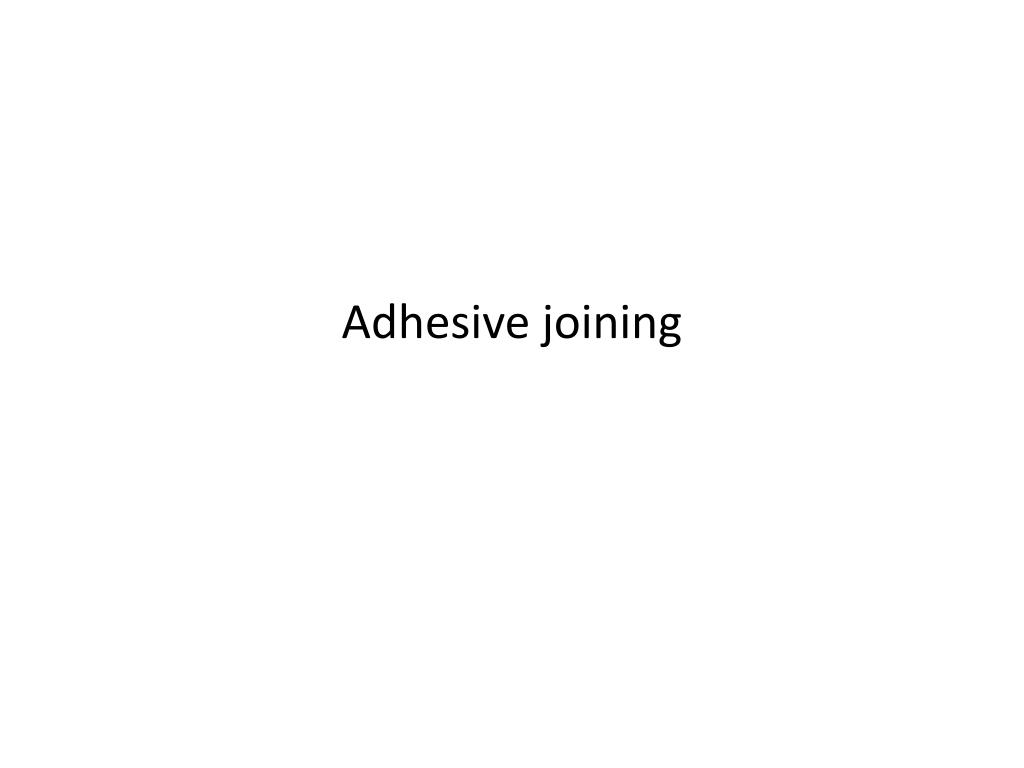

  1. Adhesive joining

  2. Adhesives are now used for a huge range of applications, from very low strength uses ( paper glue ) to high strength uses ( epoxy resins ). They can be used to hold party hats together and they can be used to hold the wings on the aeroplane. This is a huge range. For success they have to be selected correctly and the joint has to be designed correctly. They rarely work well when used as a direct replacement for mechanical fasteners.

  3. Joint design • Where ever possible ‘peel’ should be avoided in the joint design. • The overlap or adhesive area should be as large as possible. • The materials/assembly must be able to withstand any processes ( eg heat ) that is required to cure/harden the adhesive. Sketch 3 or 4 xamples.

  4. Advantages of adhesive • Reduce the number or parts required. • Suited to factory/production type assemble. • Can provide air/liquid tight joints ( no extra seals required ) • Can join huge range of materials, including elastomers, glass and ceramics. • Spread the load, preventing point failure or corrosion. • Prevent unwanted dis-assembly. • Prevent customer repair- have to buy a new one!

  5. Disadvantages of Adhesive • Parts can’t be dis-assembled easily. • Chemicals used can be hazardous. • Preparation, mixing and temperature can be critical.( field repairs are difficult ) • Join design and adhesive selection are critical. • Difficult to identify and source the correct adhesive for a repair. • Most have expiry dates, after which they don’t work well. • Time or a curing process ( eg UV , or heat) is required before use.

  6. Examples of adhesive • Wood glue • General purpose adhesive • Solvent cement • Tensol • Cyano-acrylates ( super glue ) • Epoxy resins
