Transport in flowering plants

1. Transport in flowering plants a summary for AS Biology

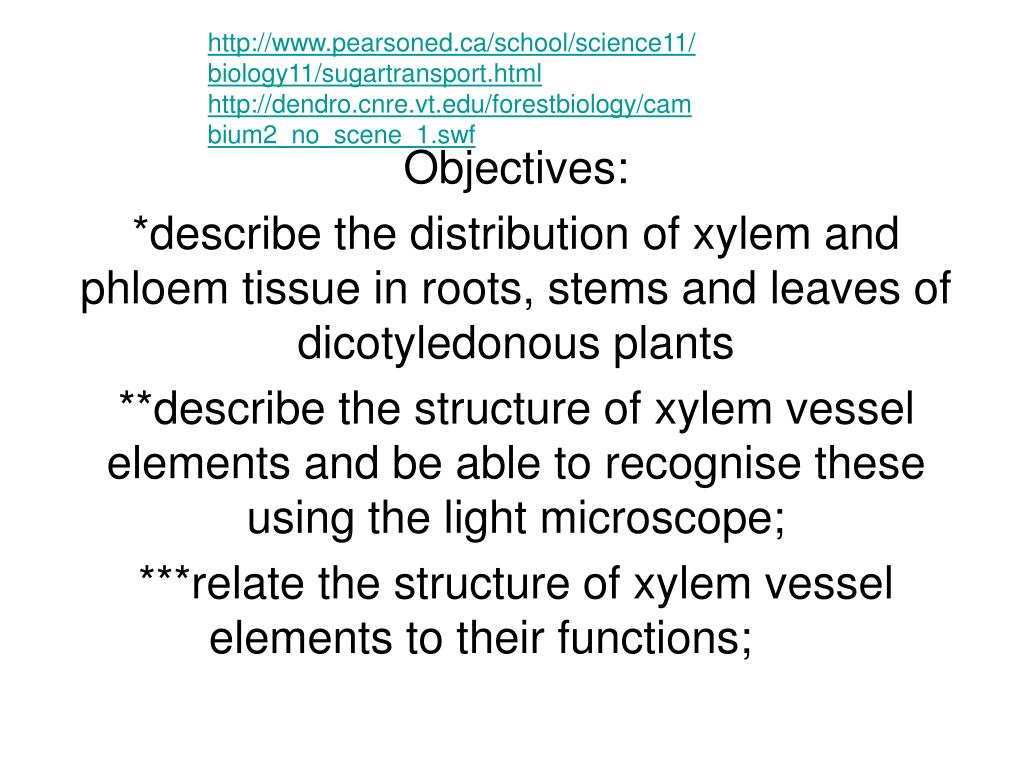

2. http://www.pearsoned.ca/school/science11/biology11/sugartransport.htmlhttp://www.pearsoned.ca/school/science11/biology11/sugartransport.html http://dendro.cnre.vt.edu/forestbiology/cambium2_no_scene_1.swf Objectives: *describe the distribution of xylem and phloem tissue in roots, stems and leaves of dicotyledonous plants **describe the structure of xylem vessel elements and be able to recognise these using the light microscope; ***relate the structure of xylem vessel elements to their functions;

3. Uptake of water: the transpiration stream • The transpiration stream is the one-way movement of water: • from the soil into root hairs; • across the root into xylem vessels; • through root stem and leaf xylem into mesophyll cells; • by evaporation from mesophyll cell surfaces into leaf air spaces; • by diffusion from leaf air spaces through stomata into the atmosphere

4. Uptake of water : the transpiration stream • The movement of water in the transpiration stream is down a water potential gradient from soil solution to atmosphere • The transpiration stream is ‘driven’ by the evaporation of water from mesophyll cell surfaces, each evaporating molecule ‘pulling’ another one behind it because of the cohesion of water molecules (due to hydrogen bonding) • The ‘pull’ is transmitted from molecule to molecule in an unbroken chain all the way down to the root: this is the cohesion-tension hypothesis • As well as cohesion, the adhesion of water molecules to the vessel walls and the cellulose molecules in mesophyll cell walls supports the column of water and keeps it from breaking • Mineral ions taken by active transport into root hairs are carried passively in the transpiration stream

5. Root structure stele • Know these tissues! • structure • location • function

6. Root structure Endodermis Epidermis Cortex parenchyma cell Air space Cortex { Stele Pericycle Phloem TS buttercup root (low power) TS buttercup root stele (high power) Xylem • Know these tissues! • structure • location • function

7. Passage of water across a root Root hair Epidermis Cortex Endodermis Pericycle Xylem

8. Passage of water across a root Some water (blue line) crosses the cell surface membrane into the cytoplasm and passes from cell to cell via plasmodesmata: this is the symplastic pathway. Some water enters the root hair vacuole by osmosis, and travels by osmosis from vacuole to vacuole across the cortex. This is the vacuolar pathway. Most water (red line) does not enter the living cells at all but passes along cells walls and intercellular spaces: this is the apoplastic pathway. The vacuolar pathway presents the most resistance to water flow (because of the number of membranes to be crossed), the apoplastic pathway the least … … but at the endodermis the apoplastic pathway is completely blocked by a strip of corky material (the Casparian strip) around the walls of the endodermal cells.

9. Passage of water across a root The Casparian strip completely blocks the apoplast pathway … … so that only the symplast and vacuolar pathways are available. Why is this important? It allows the flow of water and dissolved minerals into the plant to be controlled.

10. Movement through the xylem • Water enters the xylem because its water potential is reduced by the upward ‘pull’ (tension) on the water column it contains • Adhsion of water molecules to the xylem vessel walls also helps maintain the column.

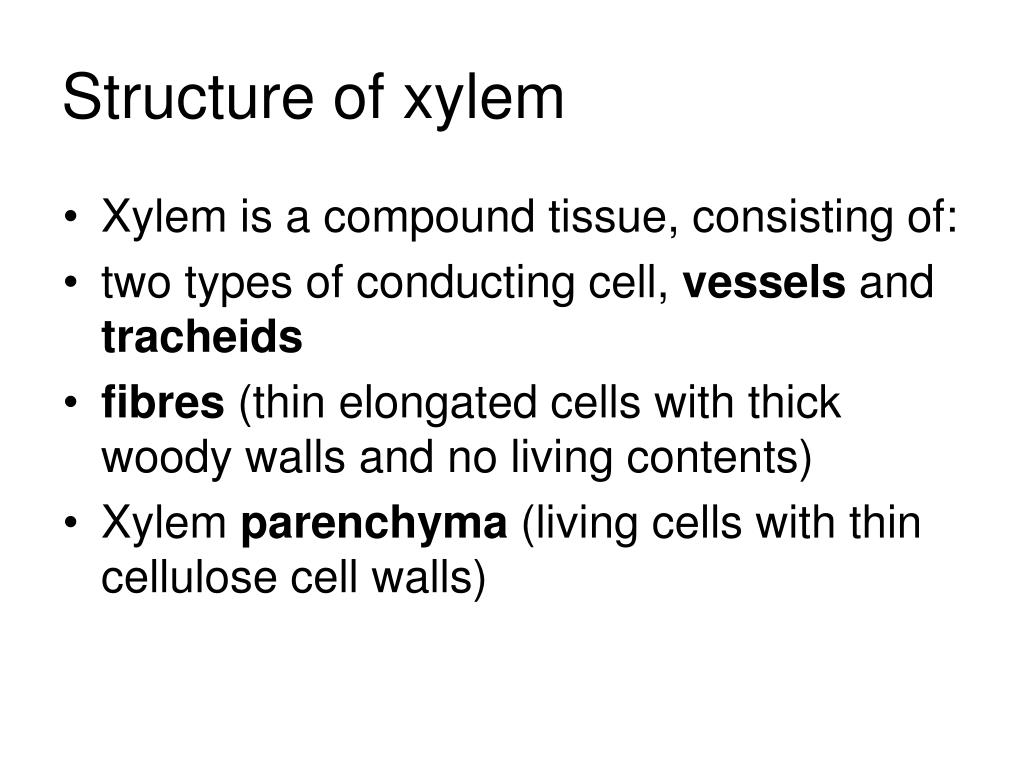

11. Structure of xylem • Xylem is a compound tissue, consisting of: • two types of conducting cell, vessels and tracheids • fibres (thin elongated cells with thick woody walls and no living contents) • Xylem parenchyma (living cells with thin cellulose cell walls)

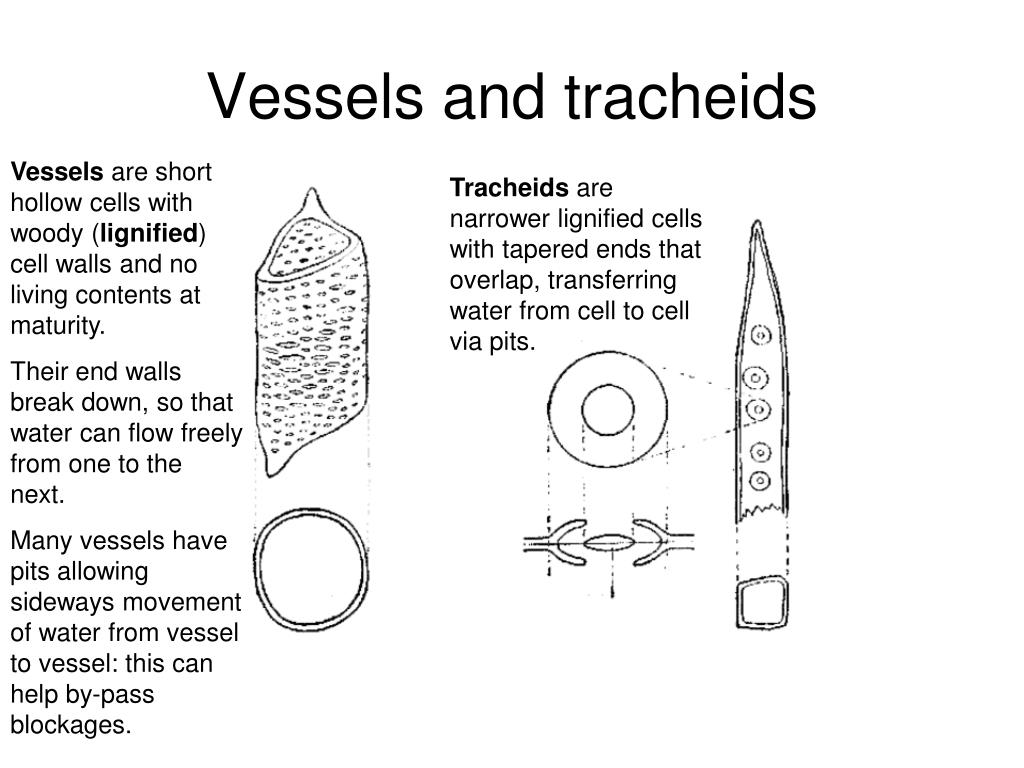

12. Vessels and tracheids Vessels are short hollow cells with woody (lignified) cell walls and no living contents at maturity. Their end walls break down, so that water can flow freely from one to the next. Many vessels have pits allowing sideways movement of water from vessel to vessel: this can help by-pass blockages. Tracheids are narrower lignified cells with tapered ends that overlap, transferring water from cell to cell via pits.

13. Xylem vessels Xylem vessels show different patterns of woody thickening (lignification), giving them a function in support as well as water conduction. LS Xylem parenchyma Fibre Pitted vessel Vessel with annular thickening TS

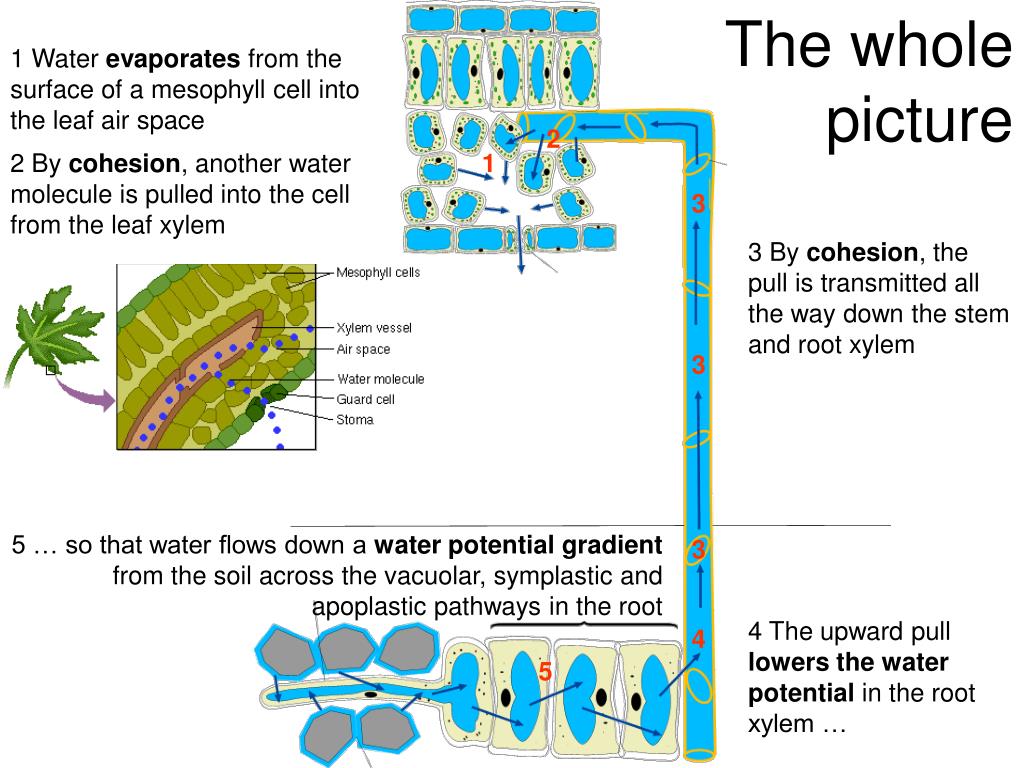

14. The whole picture 1 Water evaporates from the surface of a mesophyll cell into the leaf air space 2 2 By cohesion, another water molecule is pulled into the cell from the leaf xylem 1 3 3 By cohesion, the pull is transmitted all the way down the stem and root xylem 3 5 … so that water flows down a water potential gradient from the soil across the vacuolar, symplastic and apoplastic pathways in the root 3 4 The upward pull lowers the water potential in the root xylem … 4 5

15. Use of a potometer to investigate water uptake • Why is a potometer like the one above usually assembled under water? • What is the function of the central reservoir? • Describe how you would use the above apparatus to investigate the effect of moving air on the rate of water uptake by a leafy shoot.

16. Use of a potometer to investigate water uptake • The graph shows the results of an experiment in which a potometer was used to measure the uptake of water by a leafy shoot in three different conditions: still dry air, still humid air and dry air blown by a fan. Suggest which curve was obtained in which condition. Give reasons for your answers. • Calculate (a) the mean rate of water uptake by the shoot in moving dry air, (b) the percentage increase in mean rate of uptake when changing from still dry air to moving dry air.

17. TRANSLOCATION Objectives: * ** *** ****

18. Translocation in phloem • Phloem transports organic products of photosynthesis from leaves or storage organs to sites of use • It also transports plant growth substances and mineral ions • Unlike xylem, the conducting elements of phloem are living cells, and the transport (called translocation) is an active process http://glencoe.mcgraw-hill.com/sites/9834092339/student_view0/chapter38/animation_-_phloem_loading.html

19. Structure of phloem In addition phloem contains parenchyma cells and phloem fibres Phloem fibres Phloem In roots phloem is found between the ‘arms’ of the star-shaped xylem In stems phloem is found on the peripheral side of xylem in vascular bundles The conducting elements of phloem are sieve cells, assisted by companion cells

20. Phloem structure LS Phloem parenchyma Sieve plate Plasmodesmata Sieve cell. These join end to end to form sieve tubes, connected by perforated end walls (sieve plates) Companion cell Sieve plate Sieve cells have little cytoplasm, no nucleus and very few organelles. Every sieve cell is closely associated with a companion cell, the two cells communicating through many plasmodesmata TS Phloem parenchyma

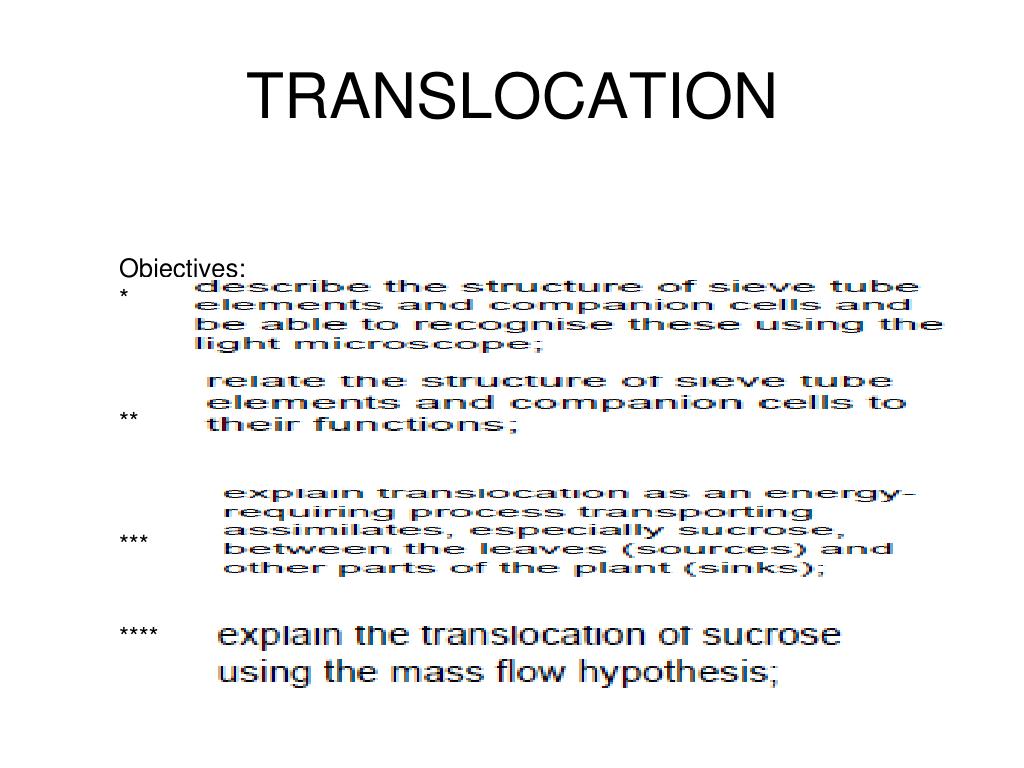

21. TRANSLOCATION Objectives: * ** *** ****

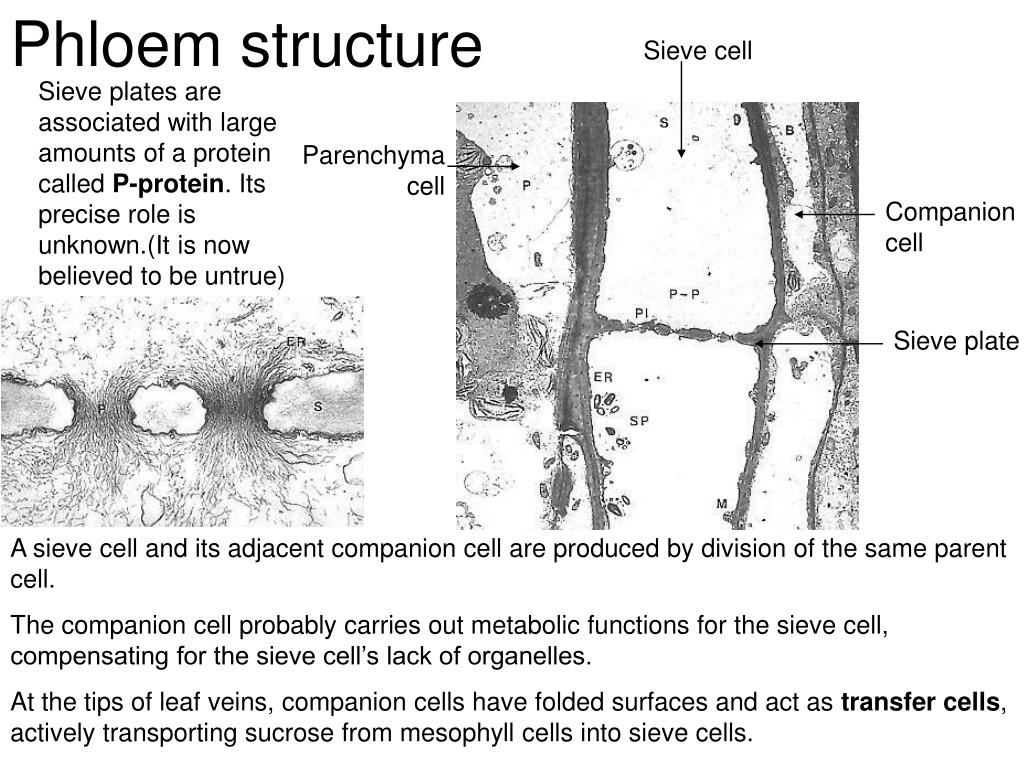

22. Sieve cell Phloem structure Sieve plates are associated with large amounts of a protein called P-protein. Its precise role is unknown.(It is now believed to be untrue) Parenchyma cell Companion cell Sieve plate A sieve cell and its adjacent companion cell are produced by division of the same parent cell. The companion cell probably carries out metabolic functions for the sieve cell, compensating for the sieve cell’s lack of organelles. At the tips of leaf veins, companion cells have folded surfaces and act as transfer cells, actively transporting sucrose from mesophyll cells into sieve cells.

23. Companion cells In between sieve tubes Large nucleus, dense cytoplasm Many mitochondria to load sucrose into sieve tubes Many plasmodesmata (gaps in cell walls between companion cells and sieve tubes) for flow of minerals

24. Phloem Structure and Function: • Sieve Elements • Specialises in efficient transport of food. • Living cells but do not have a nucleus. • Long, narrow, thin walled living cells. • End walls are heavily perforated – called a sieve plate. • A series of sieve elements is called a sieve tube. • Companion Cells • Assist the sieve element in food transport. • Live narrow cells with a prominent nucleus. • Its nucleus also controls the sieve element. • Dense cytoplasm particularly rich in mitochondria.

25. Movement of Sugars • Translocation: movement of assimilates (sugars and other chemicals) through the plant • Source: a part of the plant that releases sucrose to the phloem e.g. leaf • Sink: a part of the plant that removes sucrose from the phloem e.g. root

26. The mass flow hypothesis for the movement of organic solutes in phloem suggests that as sucrose is actively transferred into sieve cells at its source, water follows it by osmosis, raising the pressure in the sieve cells at that point. The mass flow hypothesis Where sucrose is actively transferred out of sieve cells (a sucrose ‘sink’), water again follows by osmosis, reducing the pressure in the sieve cells at that point. There is therefore a pressure gradient pushing sucrose and other solutes from source to sink.

27. The contents of sieve cells are under positive pressure, as is shown by the feeding of aphids. The mass flow hypothesis Aphids plug their piercing mouthparts (stylets) into sieve cells, and the pressure in the phloem pushes its contents into the insect’s gut – sometimes so quickly that it exudes from the aphid’s anus.

28. Sucrose Entering the Phloem • Active process (requires energy) • Companion cells use ATP to transport hydrogen ions out of their cytoplasm • As hydrogen ions are now at a high concentration outside the companion cells, they are brought back in by diffusion through special co-transporter proteins, which also bring the sucrose in at the same time • As the concentration of sucrose builds up inside the companion cells, they diffuse into the sieve tubes through the plasmodesmata (gaps between sieve tubes and companion cell walls)

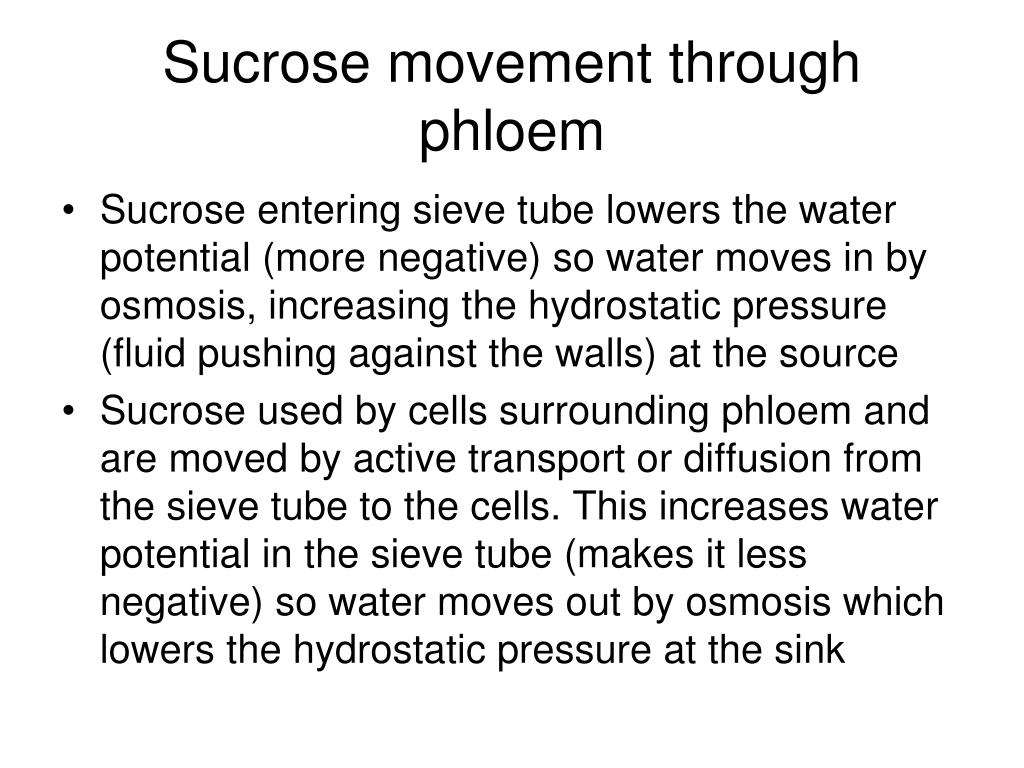

29. Sucrose movement through phloem • Sucrose entering sieve tube lowers the water potential (more negative) so water moves in by osmosis, increasing the hydrostatic pressure (fluid pushing against the walls) at the source • Sucrose used by cells surrounding phloem and are moved by active transport or diffusion from the sieve tube to the cells. This increases water potential in the sieve tube (makes it less negative) so water moves out by osmosis which lowers the hydrostatic pressure at the sink

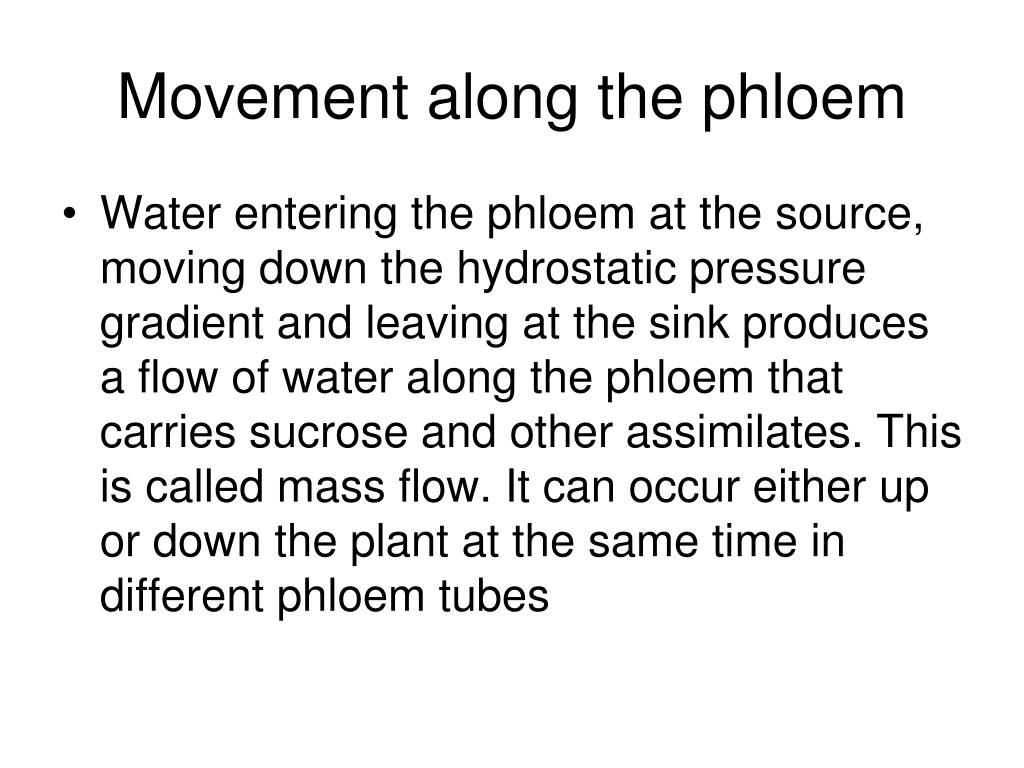

31. Movement along the phloem • Water entering the phloem at the source, moving down the hydrostatic pressure gradient and leaving at the sink produces a flow of water along the phloem that carries sucrose and other assimilates. This is called mass flow. It can occur either up or down the plant at the same time in different phloem tubes

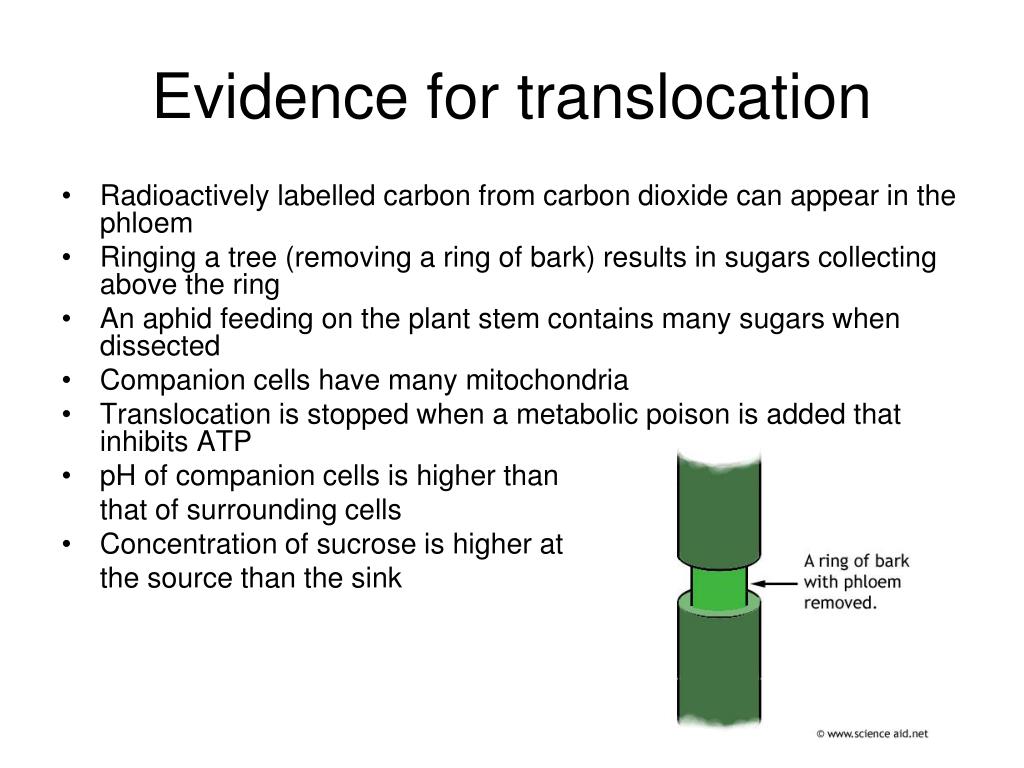

32. Evidence for translocation • Radioactively labelled carbon from carbon dioxide can appear in the phloem • Ringing a tree (removing a ring of bark) results in sugars collecting above the ring • An aphid feeding on the plant stem contains many sugars when dissected • Companion cells have many mitochondria • Translocation is stopped when a metabolic poison is added that inhibits ATP • pH of companion cells is higher than that of surrounding cells • Concentration of sucrose is higher at the source than the sink

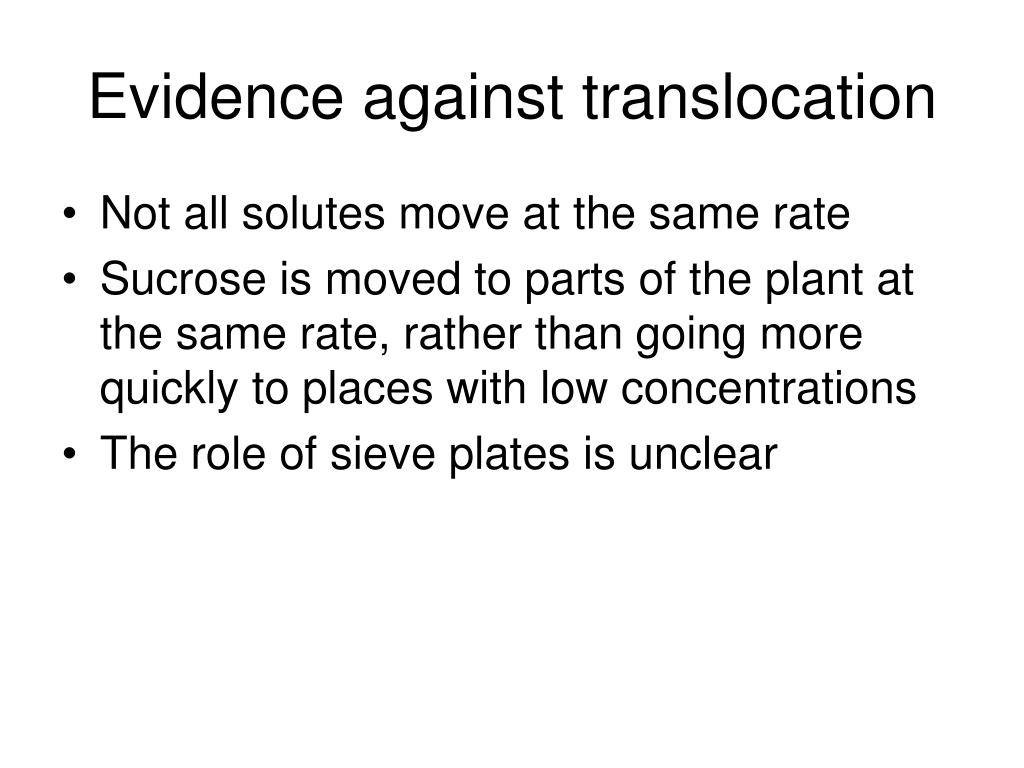

33. Evidence against translocation • Not all solutes move at the same rate • Sucrose is moved to parts of the plant at the same rate, rather than going more quickly to places with low concentrations • The role of sieve plates is unclear
