  1. SCons:Big Signature Refactoring 18 April 2007

  2. Build tools do TWO things • Build things in the correct order • NOT build what’s up to date

  3. Building things in the correct order • Simplest way to get correct order is to just write down the commands in a script • If our dependencies never changed, we’d just script it and be done with it • Dependency management is necessary because our software changes

  4. Not rebuilding what’s up-to-date • Simplest way to get up-to-date software is to build from scratch every time • If our tools were infinitely fast, we’d do build from scratch • Deciding what’s up-to-date is necessary because our tools take time

  5. How does Make decide what’s up to date? • Target file • Source file(s) • Is timestamp(target) > timestamp(source) for all source files, it’s up to date

  6. What’s wrong with the way Make does it? • Contents can change without modifying timestamp (incorrectly not rebuilding) • Timestamps can change without modifying the contents (unnecessary rebuilds) • This can be positive: touch the source file and rebuild ensures a target is up-to-date • Can’t handle timestamps rolling back in time

  7. What’s right with the way Make does it? • It uses file metadata (the timestamp) to approximate if the file contents have changed • It’s a cheap test

  8. What file metadata can we use? • Timestamp (only metadata Make uses) • Size • Content checksum

  9. Way SCons currently does it • Metadata stored in a .sconsign file • Used to be one per directory • Still can be configured that way • sconsign script to dump metadata info • Contrast ClearCase, which stores metadata from a custom file system • Use the metadata for more sophisticated decisions

  10. Example Program(‘foo.c’) $ scons -Q gcc –o foo.o –c foo.c gcc –o foo foo.o $ sconsign .sconsign === .: foo: 8f72e133e001cb380a13bcb6a16fb16f None 1176861920 6762 foo.o: e61afae6ccfe99a63b0b4c15f18422f6 foo.o: e61afae6ccfe99a63b0b4c15f18422f6 None 1176861920 1488 foo.c: b489a8c34c318fc60c8dac54fd58b791 foo.h: c864c870c5c6f984fca5b0ebd7361a7d

  11. More readable output $ sconsign –-verbose .sconsign === .: foo: bsig: 8f72e133e001cb380a13bcb6a16fb16f csig: None timestamp: 1176861920 size: 6762 implicit: foo.o: e61afae6ccfe99a63b0b4c15f18422f6 foo.o: bsig: e61afae6ccfe99a63b0b4c15f18422f6 csig: None timestamp: 1176861920 size: 1488 implicit: foo.c: b489a8c34c318fc60c8dac54fd58b791 foo.h: c864c870c5c6f984fca5b0ebd7361a7d

  12. Readable timestamps, too $ sconsign –-verbose –-readable .sconsign === .: foo: bsig: 8f72e133e001cb380a13bcb6a16fb16f csig: None timestamp: 'Tue Apr 17 19:15:50 2007' size: 6762 implicit: foo.o: e61afae6ccfe99a63b0b4c15f18422f6 foo.o: bsig: e61afae6ccfe99a63b0b4c15f18422f6 csig: None timestamp: 'Tue Apr 17 19:15:50 2007' size: 1488 implicit: foo.c: b489a8c34c318fc60c8dac54fd58b791 foo.h: c864c870c5c6f984fca5b0ebd7361a7d

  13. SourceSignatures(‘MD5’)Program(‘foo.c’) $ sconsign –-verbose .sconsign === .: foo: bsig: 8f72e133e001cb380a13bcb6a16fb16f csig: None timestamp: 1176861920 size: 6762 implicit: foo.o: e61afae6ccfe99a63b0b4c15… foo.o: bsig: e61afae6ccfe99a63b0b4c15f18422f6 csig: None timestamp: 1176861920 size: 1488 implicit: foo.c: b489a8c34c318fc60c8dac54… foo.h: c864c870c5c6f984fca5b0eb… foo foo.o foo.c foo.h

  14. “Build signatures” bsig(foo.o) = md5( sig(foo.c) + sig(foo.h) + sig(cmd_line) ) bsig(foo) = md5( sig(foo.o) + sig(cmd_line) ) $ sconsign –-verbose .sconsign === .: foo: bsig: 8f72e133e001cb380a13bcb6a16fb16f csig: None timestamp: 1176861920 size: 6762 implicit: foo.o: e61afae6ccfe99a63b0b4c15… foo.o: bsig: e61afae6ccfe99a63b0b4c15f18422f6 csig: None timestamp: 1176861920 size: 1488 implicit: foo.c: b489a8c34c318fc60c8dac54… foo.h: c864c870c5c6f984fca5b0eb…

  15. SourceSignatures(‘MD5’)TargetSignatures(‘content’)Program(‘foo.c’)SourceSignatures(‘MD5’)TargetSignatures(‘content’)Program(‘foo.c’) $ sconsign –-verbose .sconsign === .: foo: bsig: 27d34d21414965ce2f9cc5d8f3e3fbbb csig: None timestamp: 1176861920 size: 6762 implicit: foo.o: c7710864231f22aad3e8c1bc… foo.o: bsig: e61afae6ccfe99a63b0b4c15f18422f6 csig: None timestamp: 1176861920 size: 1488 implicit: foo.c: b489a8c34c318fc60c8dac54… foo.h: c864c870c5c6f984fca5b0eb… foo foo.o foo.c foo.h

  16. SourceSignatures(‘timestamp’)Program(‘foo.c’) $ sconsign –-verbose .sconsign === .: foo: bsig: 1176915205 csig: None timestamp: 1176915335 size: 6762 implicit: foo.o: 1176915205 foo.o: bsig: 1176915205 csig: None timestamp: 1176915335 size: 1488 implicit: foo.c: 1176915205 foo.h: 1176915196 foo foo.o foo.c foo.h

  17. SourceSignatures(‘timestamp’)TargetSignatures(‘content’)Program(‘foo.c’)SourceSignatures(‘timestamp’)TargetSignatures(‘content’)Program(‘foo.c’) $ sconsign –-verbose .sconsign === .: foo: bsig: 1176915335 csig: None timestamp: 1176915335 size: 6762 implicit: foo.o: 1176915335 foo.o: bsig: 1176915205 csig: None timestamp: 1176915335 size: 1488 implicit: foo.c: 1176915205 foo.h: 1176915196 foo foo.o foo.c foo.h

  18. Problems with how SCons does it now • Can’t switch between content and timestamps • Can’t mix content + timestamps in same config • Example: want to use content for all input files except one really big file where you want to use timestamps • Stores information about last build decision, not just metadata about the current state of file • Must have complete dependency graph to make the same signature as last time • Can’t build only part of the DAG • Can’t use dependency output from tools • Example: gcc –Md output

  19. New .sconsign format $ sconsign .sconsign === .: SConstruct: 059bf2bda6723d166c5dab7d54a0ca13 1176861882 17 foo: 5701724287c3d3847516781876f56d87 1176862330 6762 foo.o: cc74a5b5cd4b174a59b58495cd2ef1f9 1176862330 1488 c4245ece9e7108d276b3c8eb7662d921 [$LINK -o $TARGET ...] foo.c: b489a8c34c318fc60c8dac54fd58b791 1176861903 55 foo.h: c864c870c5c6f984fca5b0ebd7361a7d 1176861911 19 foo.o: cc74a5b5cd4b174a59b58495cd2ef1f9 1176862330 1488 foo.c: b489a8c34c318fc60c8dac54fd58b791 117686190355 foo.h: c864c870c5c6f984fca5b0ebd7361a7d 117686191119 d055c09cba5c626f5e38f2f17c29c6fa [$CC -o $TARGET -c...]

  20. === .: SConstruct: csig: 059bf2bda6723d166c5dab7d54a0ca13 timestamp: 1176861882 size: 17 foo: csig: 5701724287c3d3847516781876f56d87 timestamp: 1176862330 size: 6762 implicit: foo.o: csig: cc74a5b5cd4b174a59b58495cd2ef1f9 timestamp: 1176862330 size: 1488 action: c4245ece9e7108d276b3c8eb7662d921 [$LINK –o $TARGET $LINKFLAGS $SOURCES ...] foo.c: csig: b489a8c34c318fc60c8dac54fd58b791 timestamp: 1176861903 size: 55 foo.h: csig: c864c870c5c6f984fca5b0ebd7361a7d timestamp: 1176861911 size: 19 foo.o: csig: cc74a5b5cd4b174a59b58495cd2ef1f9 timestamp: 1176862330 size: 1488 implicit: foo.c: csig: b489a8c34c318fc60c8dac54fd58b791 timestamp: 1176861903 size: 55 foo.h: csig: c864c870c5c6f984fca5b0ebd7361a7d timestamp: 1176861911 size: 19 action: d055c09cba5c626f5e38f2f17c29c6fa [$CC –o $TARGET –c $CFLAGS $CCFLAGS ...]

  21. New .sconsign format $ sconsign .sconsign === .: SConstruct: 059bf2bda6723d166c5dab7d54a0ca13 1176861882 17 foo: 5701724287c3d3847516781876f56d87 1176862330 6762 foo.o: cc74a5b5cd4b174a59b58495cd2ef1f9 1176862330 1488 c4245ece9e7108d276b3c8eb7662d921 [$LINK -o $TARGET ...] foo.c: b489a8c34c318fc60c8dac54fd58b791 1176861903 55 foo.h: c864c870c5c6f984fca5b0ebd7361a7d 1176861911 19 foo.o: cc74a5b5cd4b174a59b58495cd2ef1f9 1176862330 1488 foo.c: b489a8c34c318fc60c8dac54fd58b791 1176861903 55 foo.h: c864c870c5c6f984fca5b0ebd7361a7d 1176861911 19 d055c09cba5c626f5e38f2f17c29c6fa [$CC -o $TARGET -c...]

  22. New .sconsign format • Every file entry is consistent: foo.c: b489a8c34c318fc60c8dac54fd58b791 1176861903 55 • Content signature (if read, None if not) • Timestamp • Length • Just stores file state at last time used • Source files are explicitly stored • Can be used for caching checksums • Actions and their signatures are explicitly stored

  23. No build signatures! • Up-to-date decision is done by comparing current metadata of each input file with information last time target was built • Each decision can be independent: • Example: “Rebuild this target file if:” • Any input text file has different content than last time • Any input graphic file has a different timestamp than last time

  24. Supporting Slides

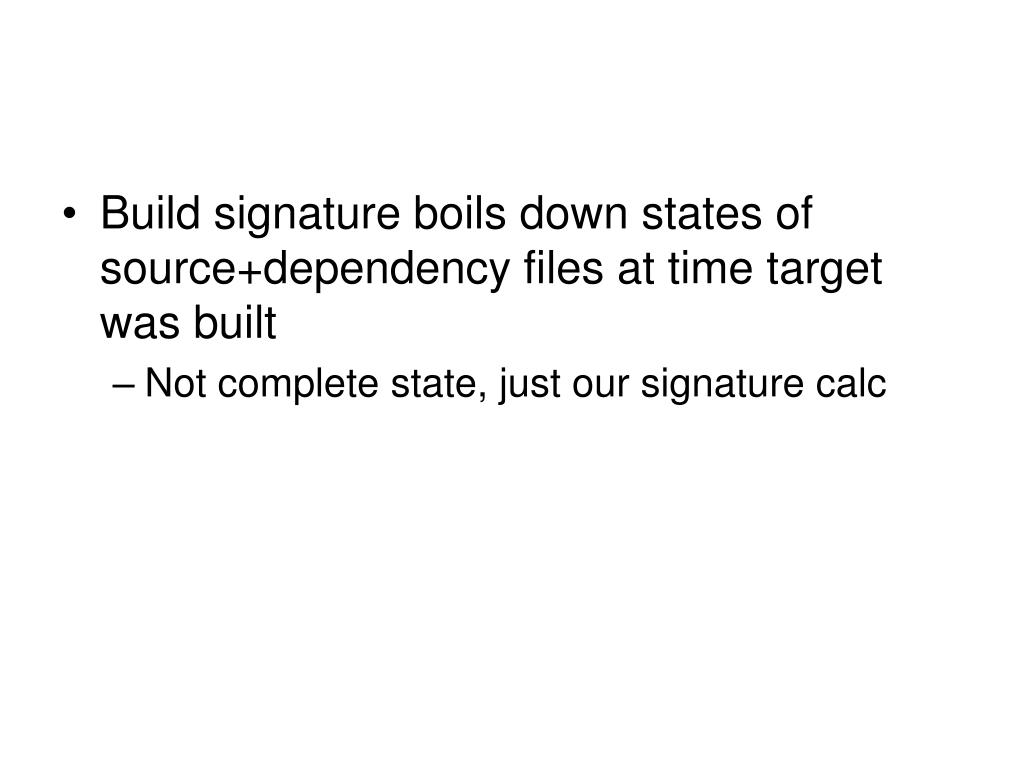

  25. Build signature boils down states of source+dependency files at time target was built • Not complete state, just our signature calc

  26. foo foo.o foo.c foo.h
