  1. PEC Controller Tests Excerpts

  2. OSU Tests on 15 HP GE Rated Load

  3. OSU Tests on 10 HP Imperial Rated Load

  4. OSU Tests on 15 HP GE Rated Load

  5. OSU Tests on 10 HP Imperial Rated Load

  6. OSU Tests on 15 HP GE -- --

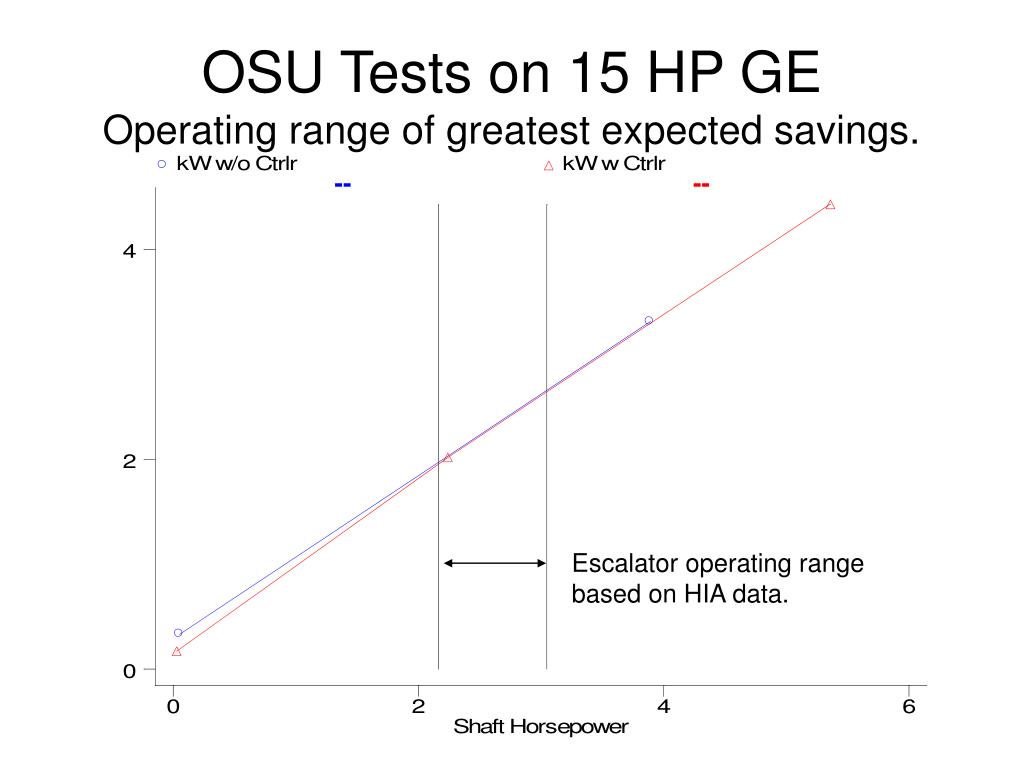

  7. OSU Tests on 15 HP GEOperating range of greatest expected savings. -- -- Escalator operating range based on HIA data.

  8. OSU Tests on 10 HP Imperial -- --

  9. OSU Tests on 10 HP ImperialOperating range of greatest expected savings.

  10. ORNL Tests on 10 HP Lincoln

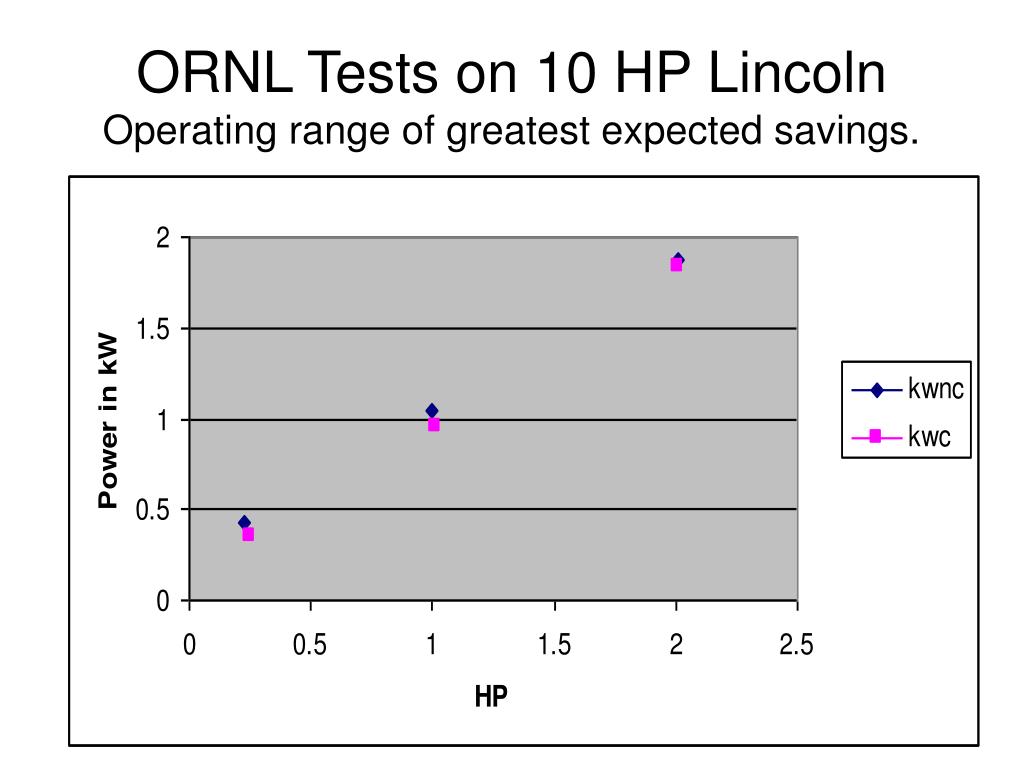

  11. ORNL Tests on 10 HP LincolnOperating range of greatest expected savings.

  12. ORNL Tests on 50 HP Lincoln

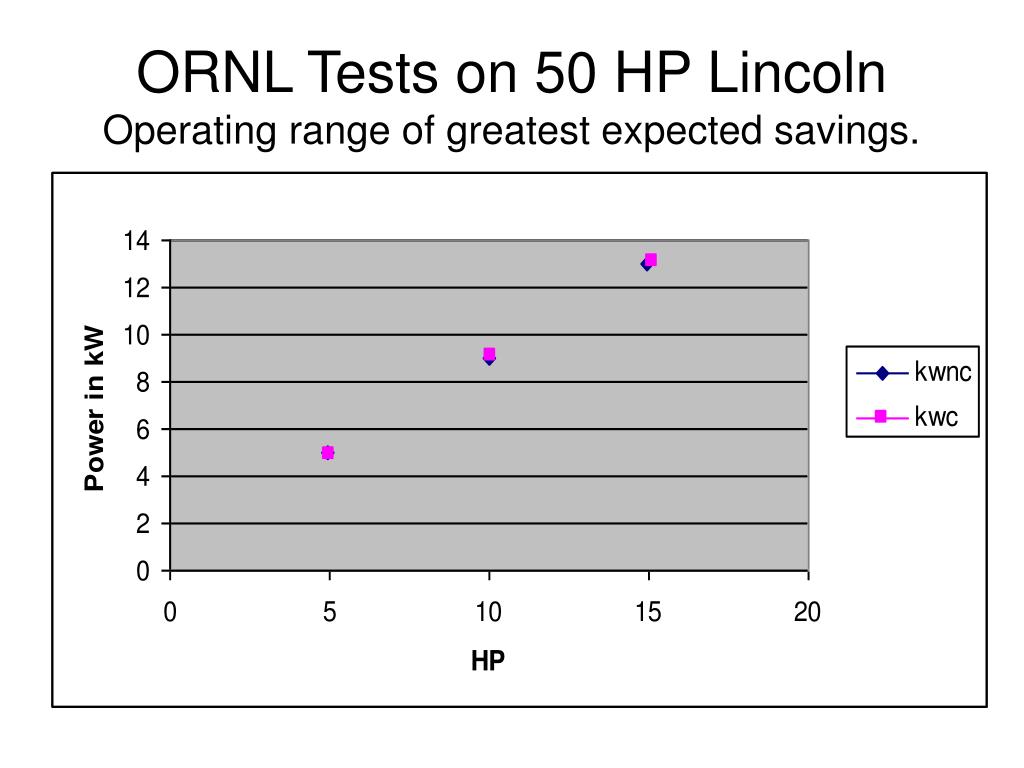

  13. ORNL Tests on 50 HP LincolnOperating range of greatest expected savings.

  14. Goodwin Hotel Elevator 1=idle, 2=empty car, 3=500#, 4=1000#, 5=1500#

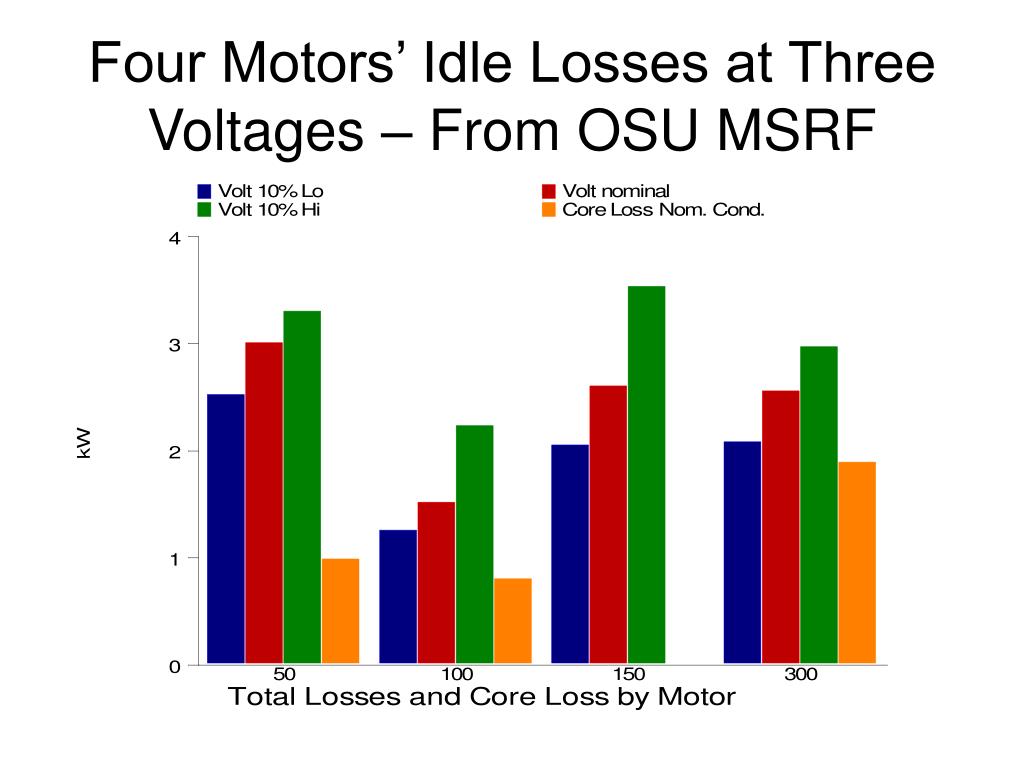

  15. Four Motors’ Idle Losses at Three Voltages – From OSU MSRF

  16. Four Motors’ Efficiency at 25% Load at Three Voltages – From OSU MSRF

  17. New 900 RPM Motor Stats . sum eff_fl eff_25 if speed==900 & hp==15 & eff_25~=. Variable | Obs Mean Std. Dev. Min Max ---------+----------------------------------------------------- eff_fl | 14 88.59286 1.993629 86.3 91 eff_25 | 14 83.93571 3.522588 79.2 88.5 . sum eff_fl eff_25 if speed==900 & hp==20 & eff_25~=. Variable | Obs Mean Std. Dev. Min Max ---------+----------------------------------------------------- eff_fl | 17 89.58235 1.576085 86.5 91 eff_25 | 17 85.35294 3.229961 81.5 89 . sum eff_fl eff_25 if speed==900 & hp==25 & eff_25~=. Variable | Obs Mean Std. Dev. Min Max ---------+----------------------------------------------------- eff_fl | 16 89.88125 1.16974 87.5 91 eff_25 | 16 85.8125 3.597198 80 89.8

  18. New 900 RPM Motor Stats . sum eff_fl eff_25 if speed==900 & hp==30 & eff_25~=. Variable | Obs Mean Std. Dev. Min Max ---------+----------------------------------------------------- eff_fl | 15 91.66 1.383475 89 93 eff_25 | 15 87.69333 2.363552 82.3 89.9 . sum eff_fl eff_25 if speed==900 & hp==40 & eff_25~=. Variable | Obs Mean Std. Dev. Min Max ---------+----------------------------------------------------- eff_fl | 16 91.91875 1.35313 89.4 93 eff_25 | 16 88.2375 2.009269 83.3 90.2 . sum eff_fl eff_25 if speed==900 & hp==50 & eff_25~=. Variable | Obs Mean Std. Dev. Min Max ---------+----------------------------------------------------- eff_fl | 16 92.56875 .7656969 91 93.6 eff_25 | 16 89.36875 2.532909 85.4 91.9

  19. New 900 RPM Motor Stats . sum eff_fl eff_25 if speed==900 & hp==75 & eff_25~=. Variable | Obs Mean Std. Dev. Min Max ---------+----------------------------------------------------- eff_fl | 14 93.75 .6903173 92.4 94.5 eff_25 | 14 90.62143 1.820472 87.5 92.1 . sum eff_fl eff_25 if speed==900 & hp==100 & eff_25~=. Variable | Obs Mean Std. Dev. Min Max ---------+----------------------------------------------------- eff_fl | 14 94.07143 .3539423 93.6 94.5 eff_25 | 14 90.80714 1.611719 88.5 92.6
