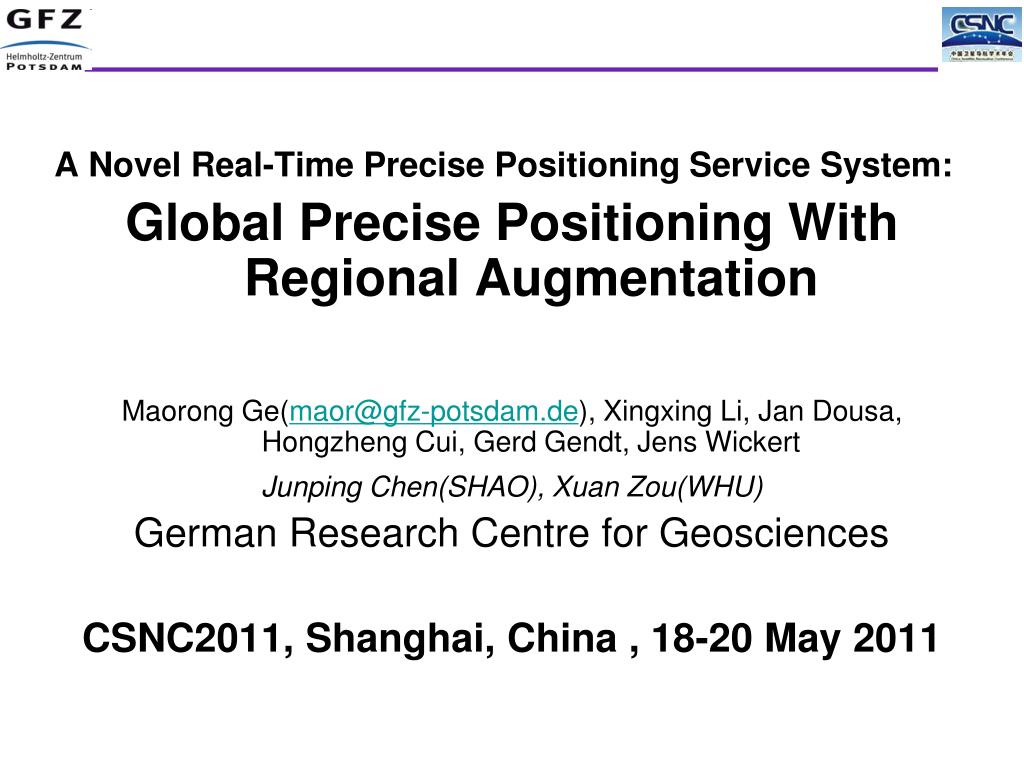

  1. A Novel Real-Time Precise Positioning Service System: Global Precise Positioning With Regional Augmentation Maorong Ge(maor@gfz-potsdam.de), Xingxing Li, Jan Dousa, Hongzheng Cui, Gerd Gendt, Jens Wickert Junping Chen(SHAO), Xuan Zou(WHU) German Research Centre for Geosciences CSNC2011, Shanghai, China , 18-20 May 2011

  2. Network Real-Time Kinematic (NRTK) Using a local/regional reference network OBS. DOMAIN Representation NRTK Service Covers The Whole Chinese Territory? Global Precise Point Positioning Service Using a global reference network STATE DOMAIN Representation Initialization/Re-initialization takes 10-30 Min.. Global PPP + Regional Augmentation For All Real-Time Applications Real-Time Positioning Services

  3. EPOS-RT Software Global RT-PPP Service Regional Augmentation The Novel System Contents

  4. EPOS-RT Software Motivation Structure Progress

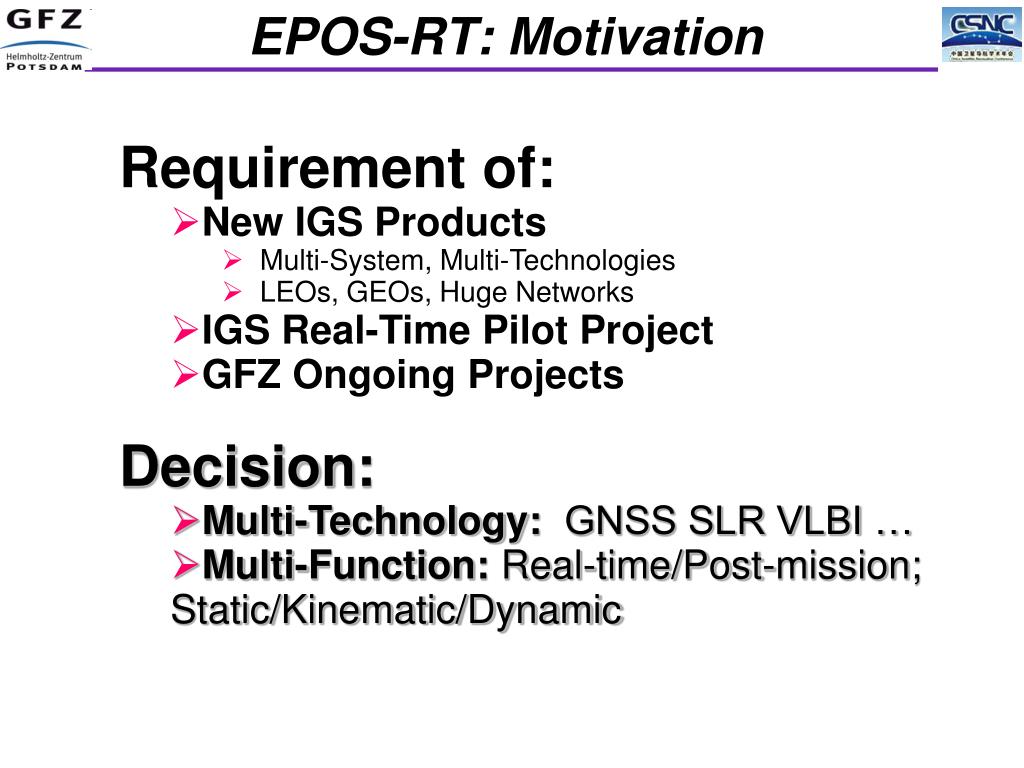

  5. EPOS-RT: Motivation • Requirement of: • New IGS Products • Multi-System, Multi-Technologies • LEOs, GEOs, Huge Networks • IGS Real-Time Pilot Project • GFZ Ongoing Projects • Decision: • Multi-Technology: GNSS SLR VLBI … • Multi-Function: Real-time/Post-mission; Static/Kinematic/Dynamic

  6. EPOS-RT: Structure Left Side: Post-Processing. Right Side: Real-Time

  7. EPOS-RT: Progress Since Sept. 2007 Already Available GPS/GLONASS Real-Time Clock Estimation GPS/GLONASS/LEO POD (Cui et al, EGU2011, Presentation) Regional Augmentation/NRTK (Li et al, EGU2011, Poster) Real-Time ZTD (Bender et al, EGU2011, Presentation) Embeddable User Software Further Coming GALILEO/COMPASS SLR IONO. Model

  8. GFZ Global RT-PPP Service Hardware Software IGS Real-Time Analysis Centre At GFZ New Development in PPP PPP Ambiguity Resolution Data Gap Connection

  9. Real-Time PPP Service (Hardware) Geostationary Satellite GNSS-satellites Correction Data Stream Correction data stream GNSS reference stations User terminal with GNSS receiver and communication unit and PPP software INTERNET Caster EPOS-RT Generation of correction information Orbit, clock, iono. UPD GNSS observations Internet connection

  10. EPOS-RT For Real-Time PPP Service Internet connection Control Unit RT Orbit Hourly Data RT ORB SRIF(Orb) IGS Hourly Data BNC BNC2SRIF SRIF(Clk)‏ OBS Streaming RT Clock SRIF2BNS ORB/CLK/UPD NTRIP Products Control Unit GPS receivers GPS receivers RT PPP RT PPP Pos&Time ZTD/STD NTRIP Products BNC2SRIF BNC2SRIF SRIF(PPP)‏ SRIF(PPP)‏ IGS Real-Time Analysis Center at GFZ

  11. Standard PPP Server

  12. Standard PPP Client

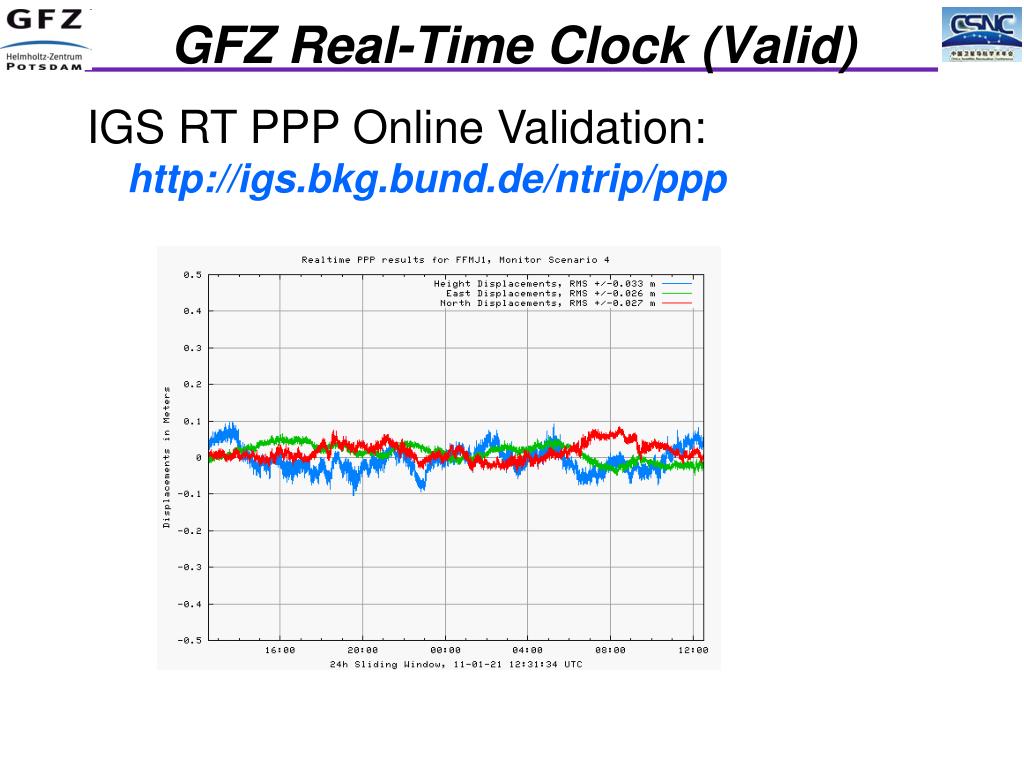

  13. GFZReal-Time Clock (Valid) IGS RT PPP Online Validation: http://igs.bkg.bund.de/ntrip/ppp

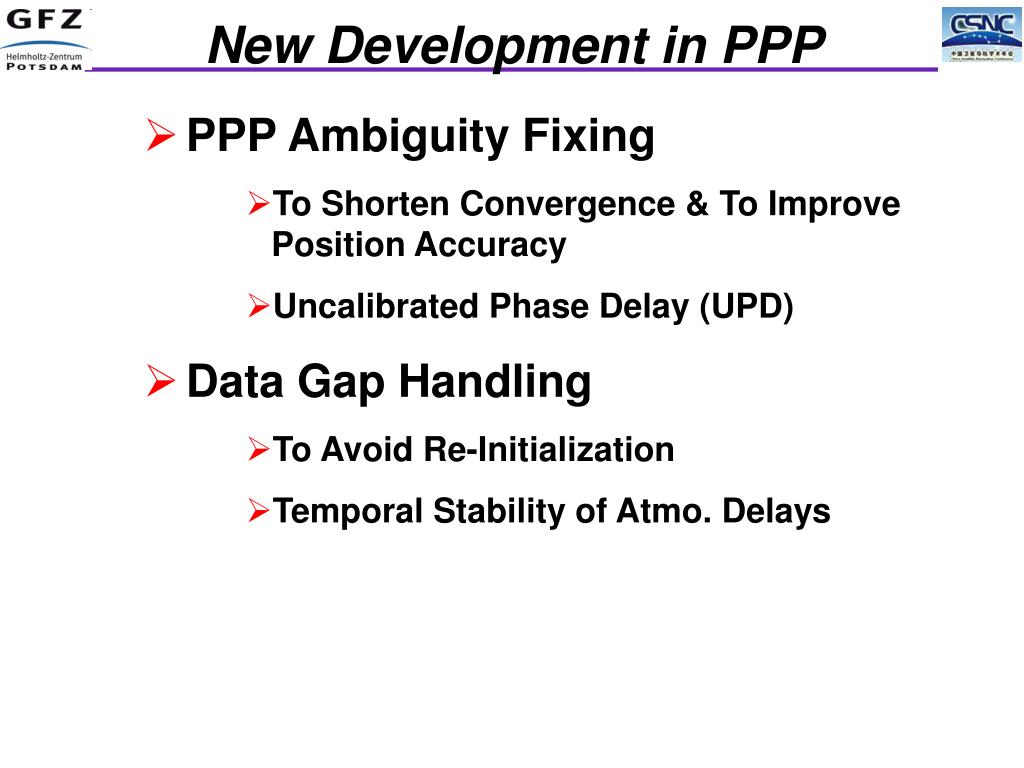

  14. New Development in PPP • PPP Ambiguity Fixing • To Shorten Convergence & To Improve Position Accuracy • Uncalibrated Phase Delay (UPD) • Data Gap Handling • To Avoid Re-Initialization • Temporal Stability of Atmo. Delays

  15. UPD Generation For PPPAMB

  16. UPD Generation For PPPAMB

  17. PPP+AMBFIX: 1-2 cm in Horizontal, 3-4 cm in Vertical. Initialization Time 15-20 Min.

  18. Impact Summary Integer Ambiguity Fixing Long (Re)Convergence Integer Ambiguity Fixing Data Gap Handling Expected NRTK Performance

  19. Regional Augmentation System Configuration Bias Representation Using UnDifferenced Obs. Corrections Realization of UD-Corrections Experimental Validation

  20. Principal: Unambiguous OMC • OMC of Station k to Satellite i • Unambiguous OMC (Ambiguity Known)

  21. Corrected Obs. Equ == PPP With Integer SD-Ambiguities How To Get The Integer UD-Ambiguities For L1&L2 ? Principal: Unambiguous OMC • Interpolated User Correction Interpolated Correction User Obs. Equ. Cor. Obs. Equ.

  22. Integer UD Ambiguities • “Consistent” Int. UD Amb. Instead of The True • Consistent == "Int. DD Amb. Constrained” Two Ways (Ambiguity Mapping): • Without Precise Sat. Clocks --- New NRTK • (Based On Fixed DD-ambiguities) • With Precise Sat. Clocks--- PPP Augmentation, • (Based On Fixed UD/SD-ambiguities) • Network Solution Not A MUST • There is no limitation on the Number of Reference Stations

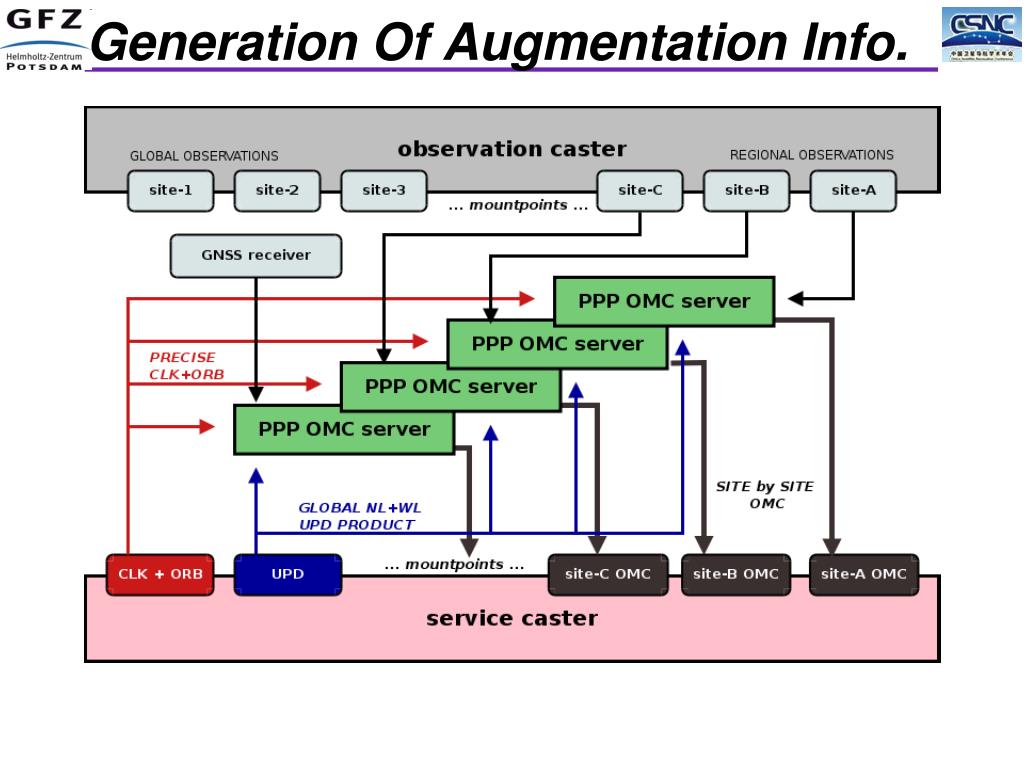

  23. Generation Of Augmentation Info.

  24. PPP+Regional Augmentation Client

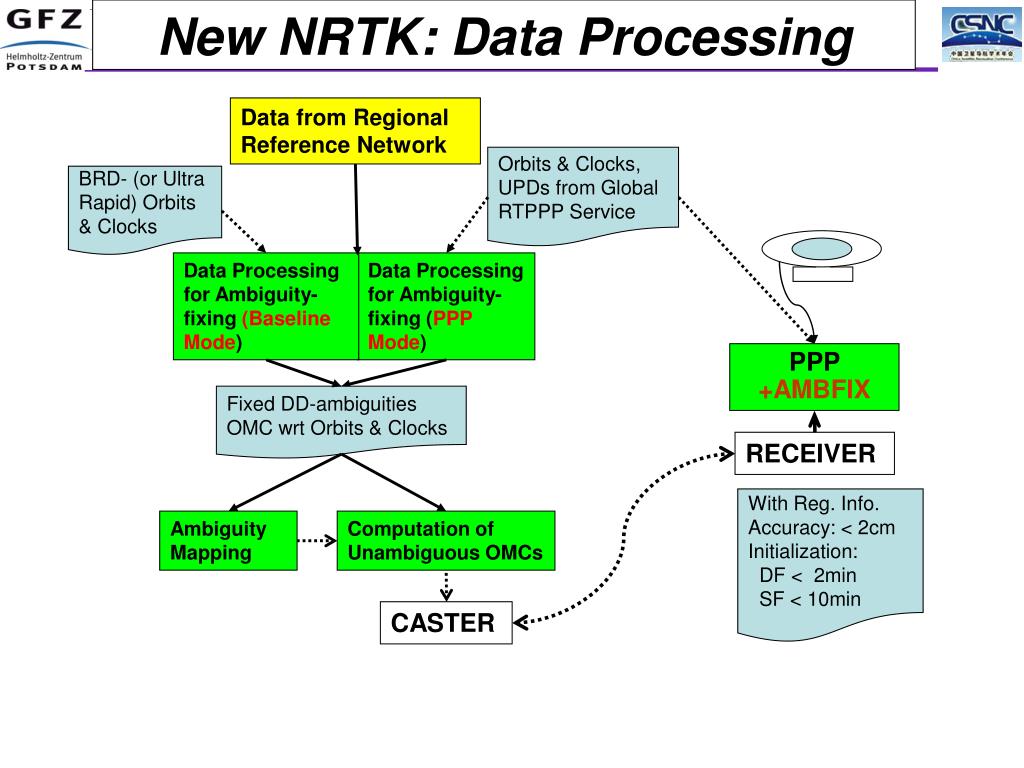

  25. New NRTK: Data Processing Data from Regional Reference Network Orbits & Clocks, UPDs from Global RTPPP Service BRD- (or Ultra Rapid) Orbits & Clocks Data Processing for Ambiguity-fixing (Baseline Mode) Data Processing for Ambiguity-fixing (PPP Mode) PPP +AMBFIX Fixed DD-ambiguities OMC wrt Orbits & Clocks RECEIVER With Reg. Info. Accuracy: < 2cm Initialization: DF < 2min SF < 10min Ambiguity Mapping Computation of Unambiguous OMCs CASTER

  26. Validation SAPOS: Simulated RT • DATA (Map: www.sapos.de) • SAPOS Data of 290 stations • Various receiver types • 30 seconds sampling rate • Reference Network • Selected 22 reference stations • Inter-station distance 184 km • Others are user stations • Software • EPOS-RT

  27. Results: Fixing Time (Lw+L1) • Lw+L1 can be fixed with 1 epoch data, On average 1.6 epochs, half of Lw (3 epochs) • LW+L1+ION.PAR can furthermore reduce the fixing time but slightly. Improvement found for cases where long fixing time needed.

  28. Results: Position Accuracy Accuracy of the Positions at the first fixed epoch Using Lw+L1 • Lw+L1 8, 6 and 21 mm in ENU, the same as L1 7, 6, and 20 mm • Lw+L1+ION, slightly worse than Lw+L1, but fixing is improved

  29. Validation (CORS): Real Time A Regional CORS Net Network • DATA • A Regional CORS Network. with 70 stations • Stream Data of 1Hz • Reference Network • Selected 13 reference stations Inter-station distance 150 km • User stations • Software • Newly Developed at GFZ in C++

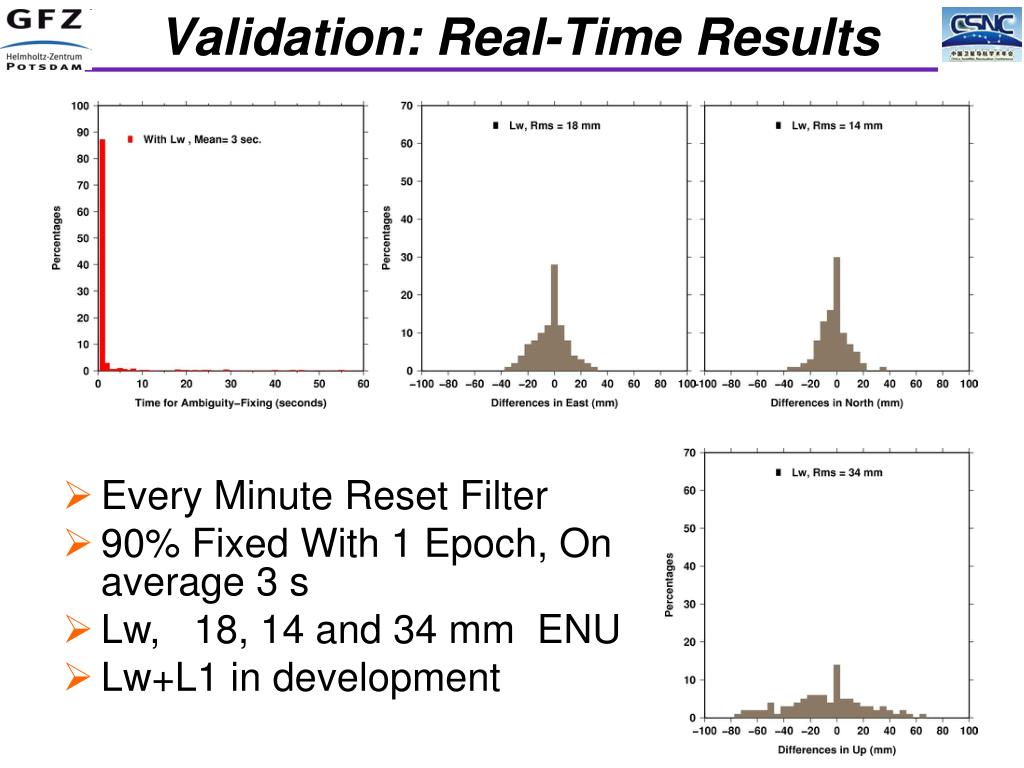

  30. Validation: Real-Time Results • Every Minute Reset Filter • 90% Fixed With 1 Epoch, On average 3 s • Lw, 18, 14 and 34 mm ENU • Lw+L1 in development

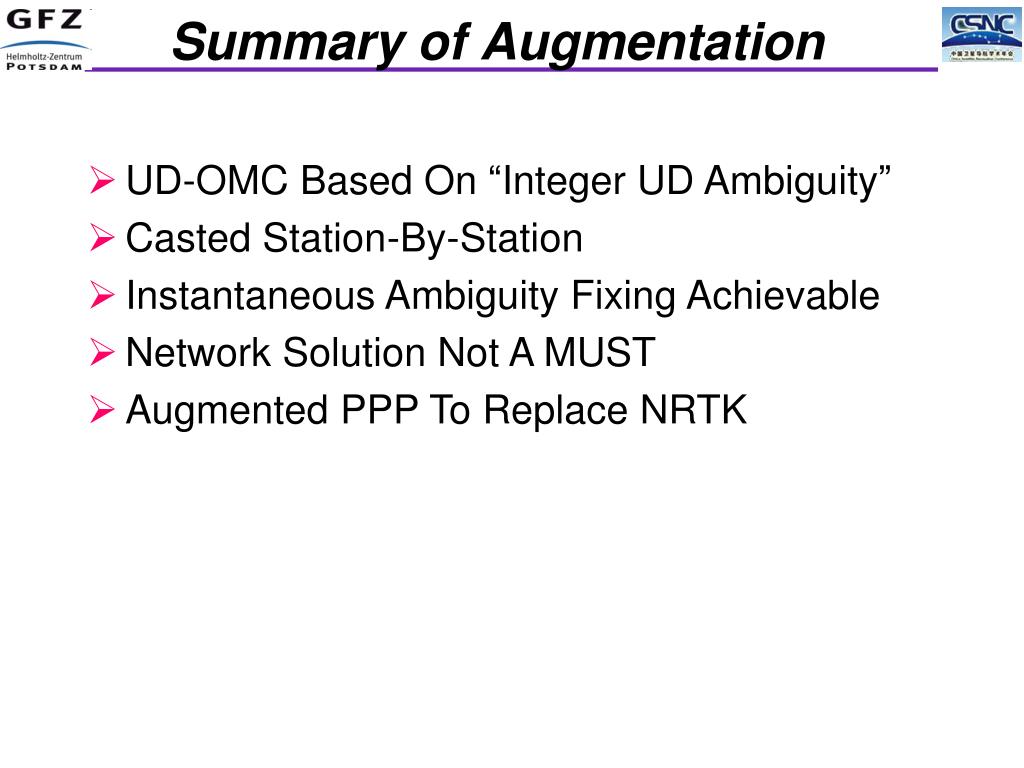

  31. Summary of Augmentation • UD-OMC Based On “Integer UD Ambiguity” • Casted Station-By-Station • Instantaneous Ambiguity Fixing Achievable • Network Solution Not A MUST • Augmented PPP To Replace NRTK

  32. Global PPP With Regional Augmentation System Configuration Regional Augmentation PPP Clients

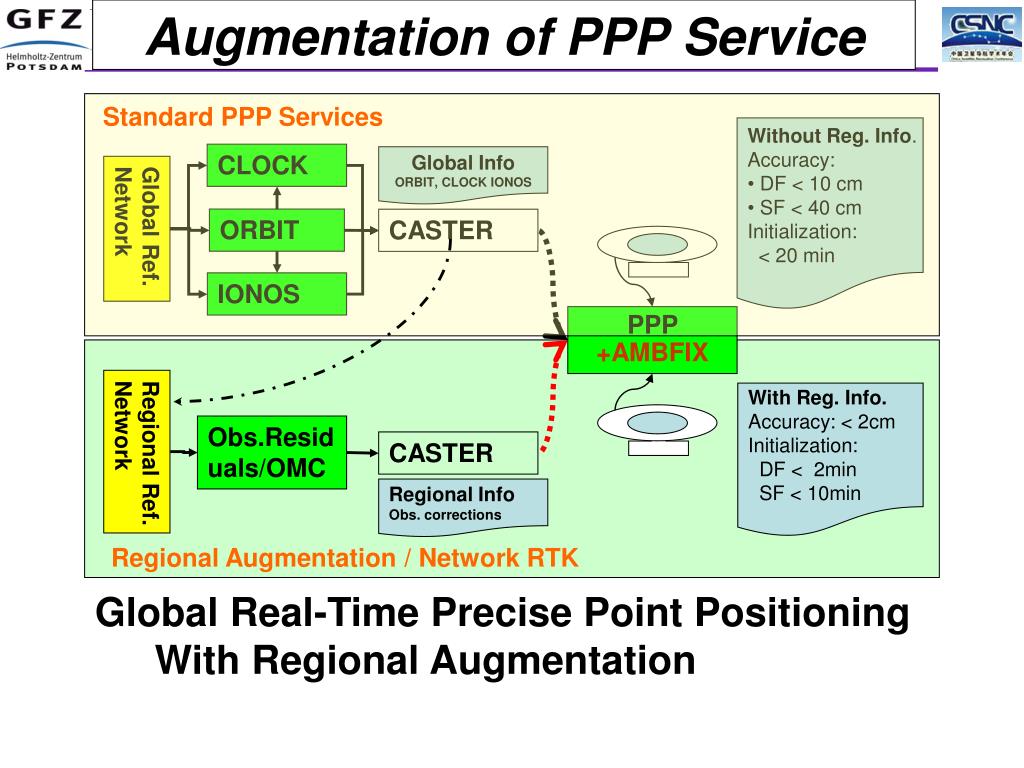

  33. Augmentation of PPP Service Standard PPP Services • Without Reg. Info. • Accuracy: • DF < 10 cm • SF < 40 cm • Initialization: • < 20 min CLOCK Global Info ORBIT, CLOCK IONOS Global Ref. Network ORBIT CASTER IONOS PPP +AMBFIX With Reg. Info. Accuracy: < 2cm Initialization: DF < 2min SF < 10min Obs.Residuals/OMC Regional Ref. Network CASTER Regional Info Obs. corrections Regional Augmentation / Network RTK Global Real-Time Precise Point Positioning With Regional Augmentation

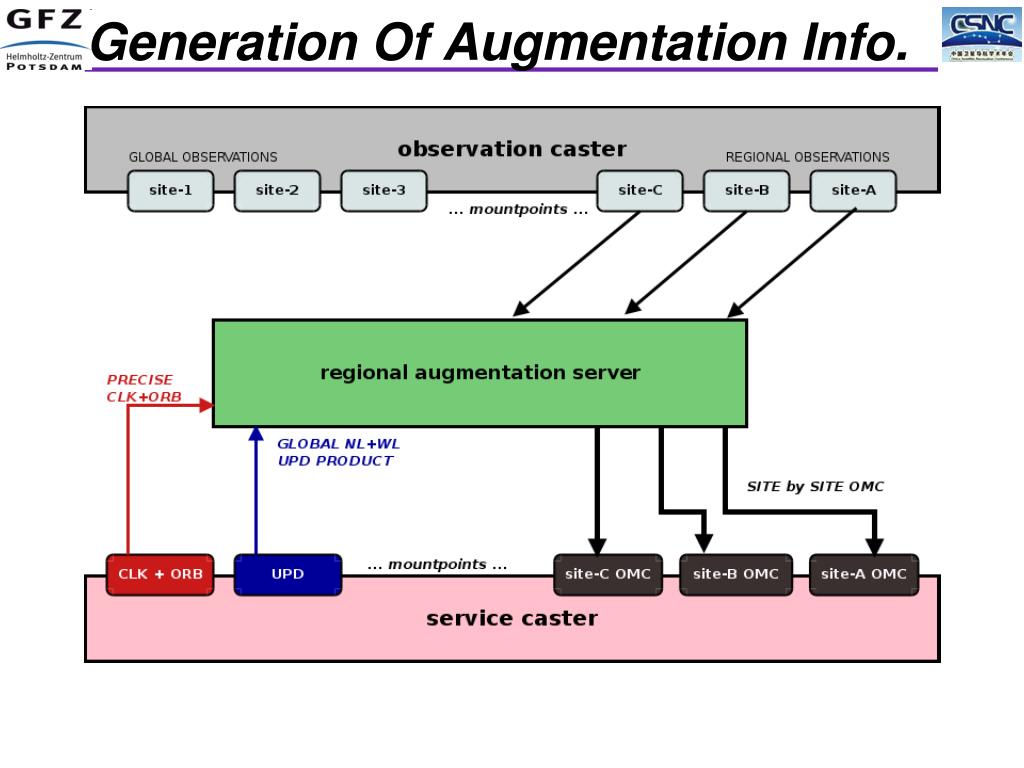

  34. Generation Of Augmentation Info.

  35. PPP Clients

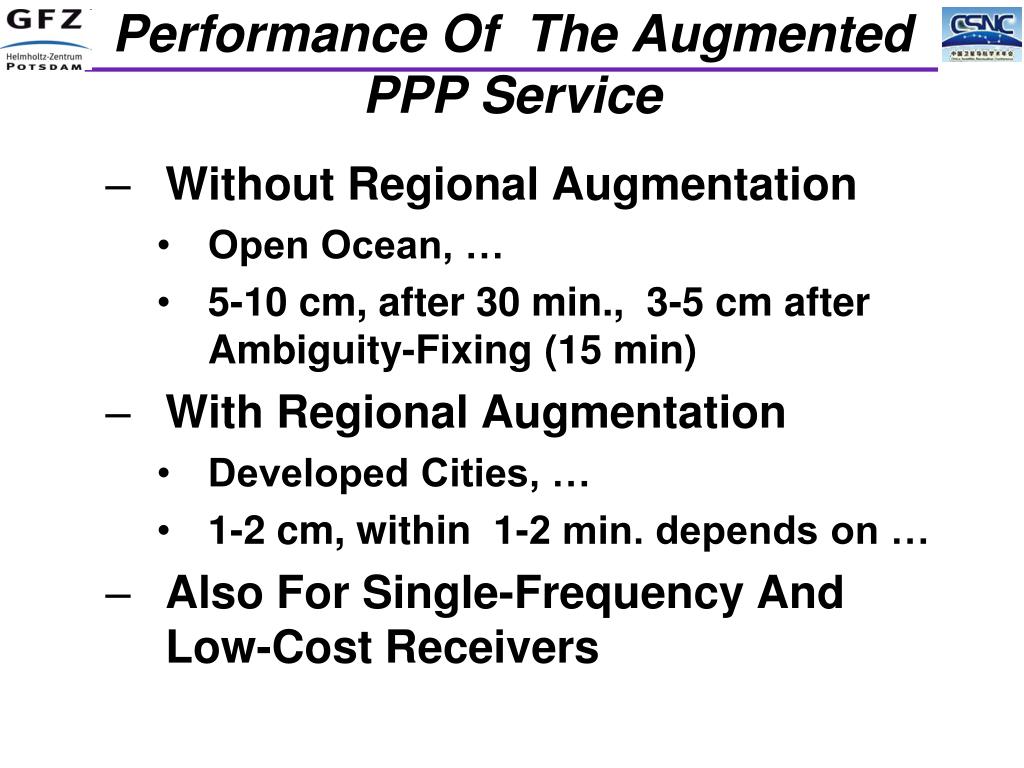

  36. Performance Of The Augmented PPP Service Without Regional Augmentation Open Ocean, … 5-10 cm, after 30 min., 3-5 cm after Ambiguity-Fixing (15 min) With Regional Augmentation Developed Cities, … 1-2 cm, within 1-2 min. depends on … Also For Single-Frequency And Low-Cost Receivers

  37. Further Work • As New Activity Under IGS-RTPP, EUREF • Operational Test For China With About 800 Reference Stations. • Operational Test As For Europe.
