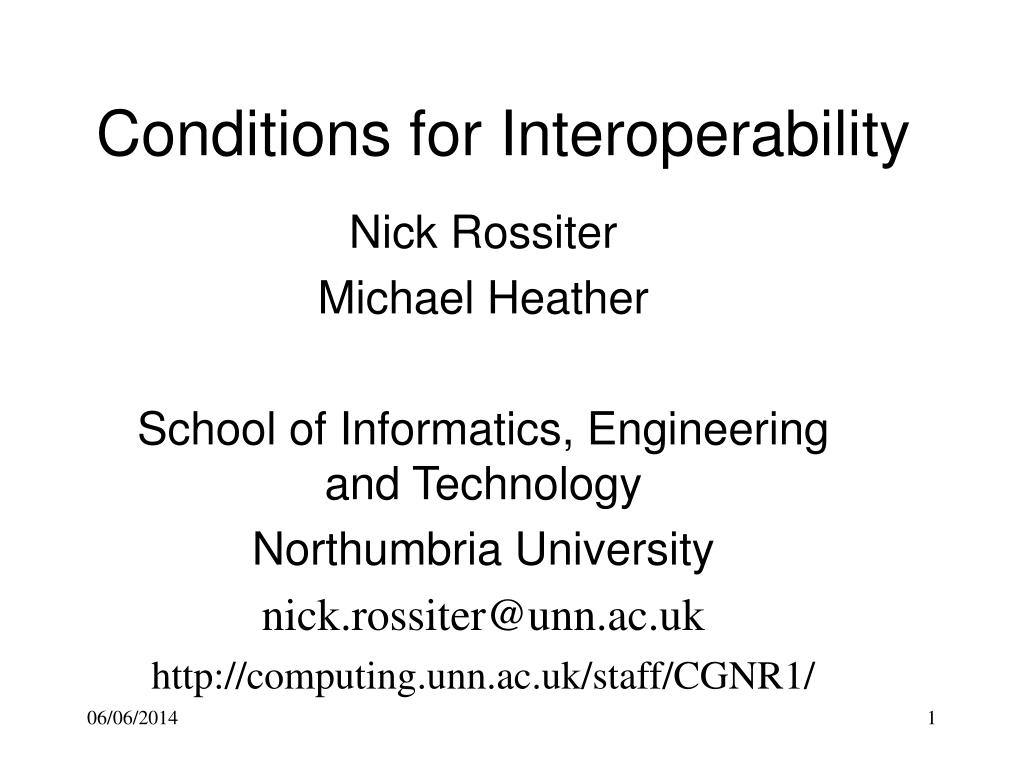

  1. Conditions for Interoperability Nick Rossiter Michael Heather School of Informatics, Engineering and Technology Northumbria University nick.rossiter@unn.ac.uk http://computing.unn.ac.uk/staff/CGNR1/

  2. Interoperability • Interoperability • the ability to request and receive services between various systems and use their functionality. • More than data exchange. • Implies a close integration

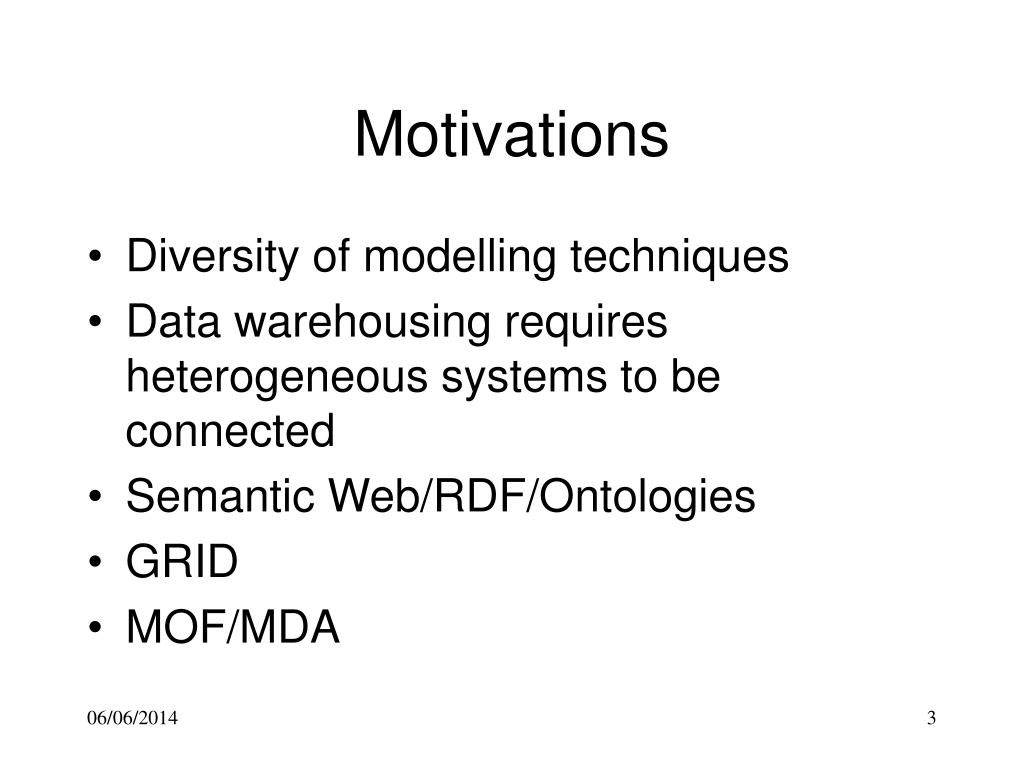

  3. Motivations • Diversity of modelling techniques • Data warehousing requires heterogeneous systems to be connected • Semantic Web/RDF/Ontologies • GRID • MOF/MDA

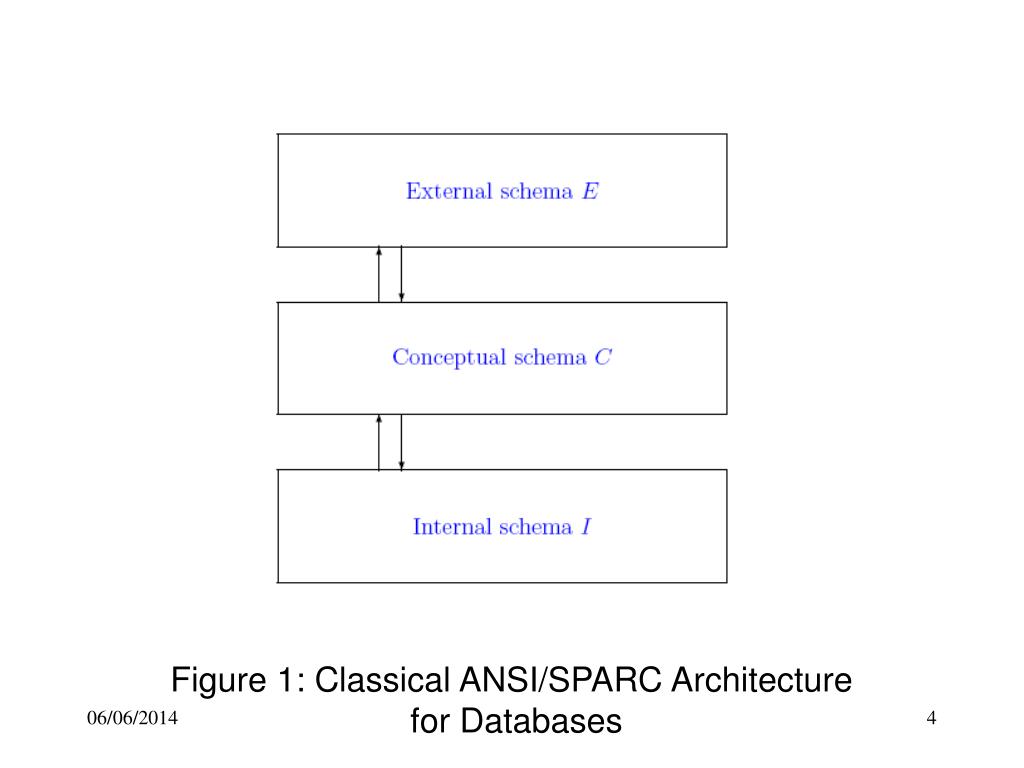

  4. Figure 1: Classical ANSI/SPARC Architecture for Databases

  5. Suitability of Classical Architecture • Levels are not independent of each other • No universal closure of types • Need for interoperability: • Orthogonal type architecture • Formal mappings between the levels of the architecture • Natural closure of architecture

  6. 1st step – Identify Architecture Components and 2-way Mappings MetaMetaPolicy Meta Organize Classify Instantiate Concepts Constructs Schema Types Named Data Values Downward arrows are intension-extension pairs

  7. Formalising the Architecture • Requirements: • mappings within levels and across levels • bidirectional mappings • closure at top level • open-ended logic • relationships (product and coproduct) • Candidate: category theory as used in mathematics as a workspace for relating different constructions

  8. Choice: category theory • Requirements: • mappings within levels and across levels • arrows: function, functor, natural transformation • bidirectional mappings • adjunctions • closure at top level • four levels of arrow, closed by natural transformation • open-ended logic • Heyting intuitionism • relationships (product and coproduct) • Cartesian-closed categories (like 2NF): pullback and pushout

  9. Figure 2: More Detailed Interpretation of Levels in Category Theory: Natural Schema

  10. Forms of Interoperability • Semantic: • agreed concepts • a common framework of constructs • schema and data vary • e.g. working within a relational framework • Organisational: • agreed concepts (but open ended) • constructs, schema and data vary • e.g. working within an object framework

  11. (Organisational interoperability) Figure 3: Example for Comparison of Mappings in two Systems Categories: CPT concepts, CST constructs, SCH schema, DAT data, Functors: P policy, O org, I instance, Natural transformations: , , 

  12. Four Levels are Sufficient • In category theory: • objects are identity arrows • categories are arrows from object to object • functors are arrows from category to category • natural transformations are arrows from functor to functor • An arrow between natural transformations is a composition of natural transformations, not a new level

  13. Figure 4: Alternative Interpretation of Levels in the Architecture

  14. Godement Calculus • Manipulates categorical diagrams • Is a natural calculus • Provides rules showing: • composition of functors and natural transformations is associative • natural transformations can be composed with each other • Developed by Godement in 1950s • Has Interchange laws

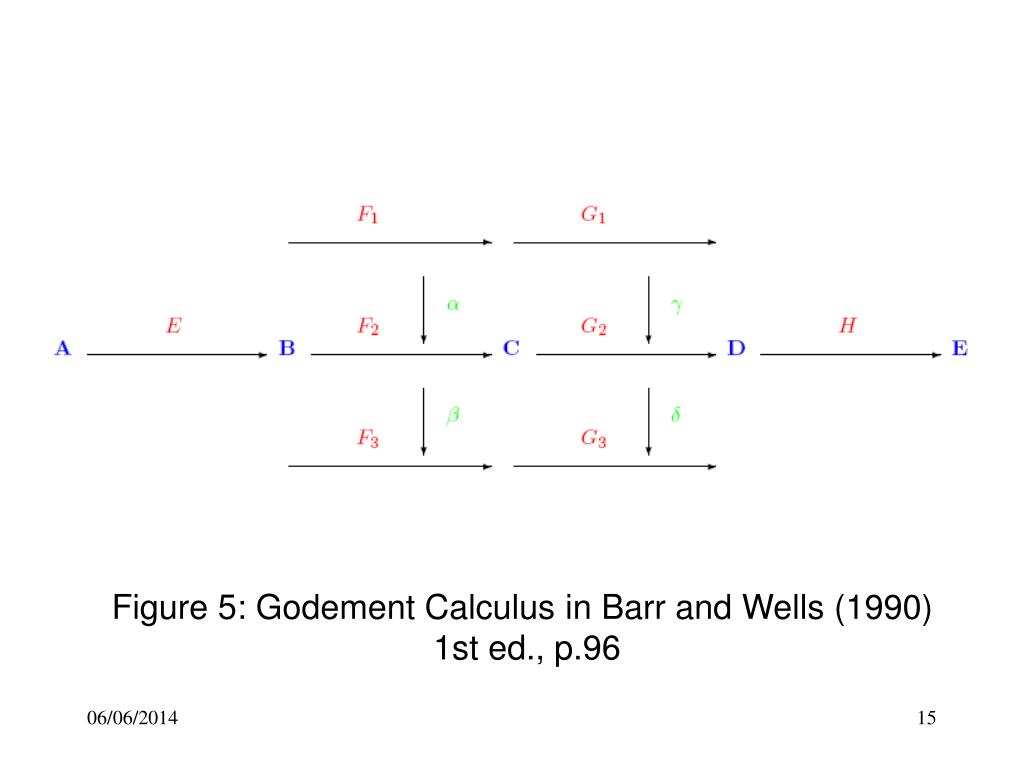

  15. Figure 5: Godement Calculus in Barr and Wells (1990) 1st ed., p.96

  16. Equations (Figure 5) for Godement Calculus from Barr and Wells (1990) Equations (1)-(4): interchange, associativity and permutativity Equation (5): different paths o vertical composition

  17. Figure 6: Godement in Simmons, Lecture Notes on Category Theory, section 3.8

  18. Figure 7: Commuting Diagram in Simmons, Lecture Notes on Category Theory, section 3.8

  19. Application • Semantic Interoperability • Agreed concepts and constructs • Constant policy for mapping from concepts to constructs • Figure 5 – Barr & Wells approach • Organisational Interoperability • Agreed (but open ended) concepts • Variable policy for mapping from concepts to constructs • Figure 6 – Simmons approach

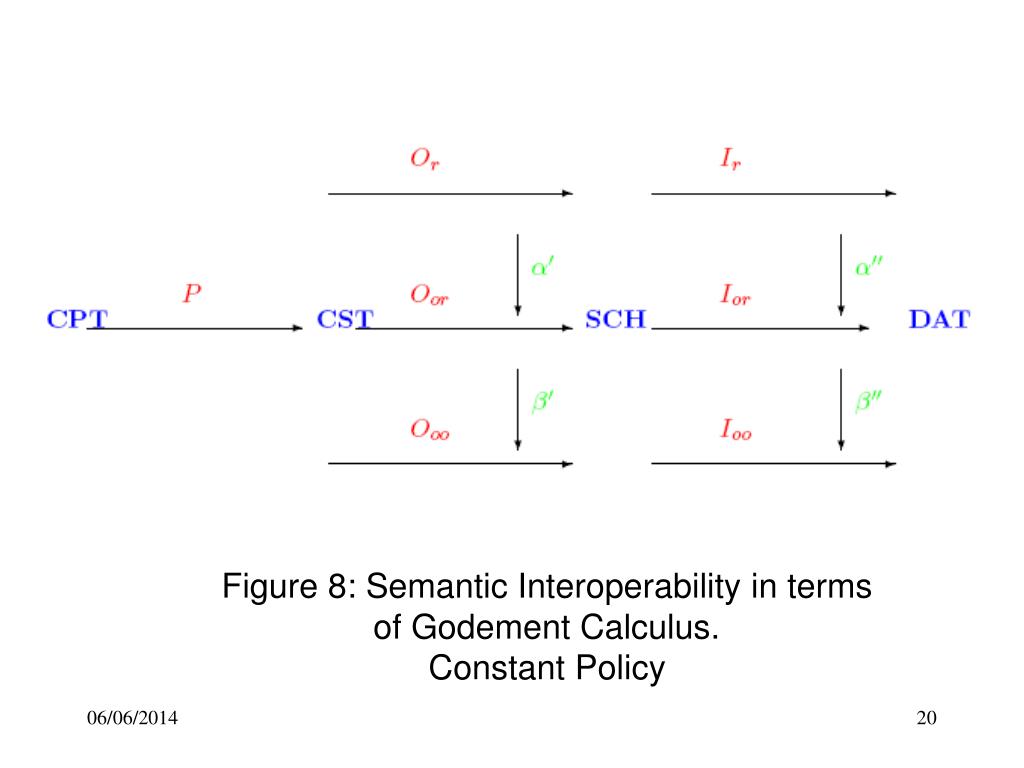

  20. Figure 8: Semantic Interoperability in terms of Godement Calculus. Constant Policy

  21. Figure 9: Organisational Interoperability in terms of Godement Calculus. Variable Policy

  22. Equations (Figure 6) for Godement Calculus from Simmons Equations (6) interchange, (7)-(8) associativity, (9) permutation, (10) different paths

  23. Technical Conditions for Interoperability • That our categories obey the rules of category theory • every triangle in the diagram commutes (composition) • order of evaluating arrows is immaterial (associativity) • identity arrows are composable with other arrows

  24. Anticipated Problems 1Type Information • Semantic annotation needed • To obtain metameta types from implicit sources • Needs open architecture • Agents have potential

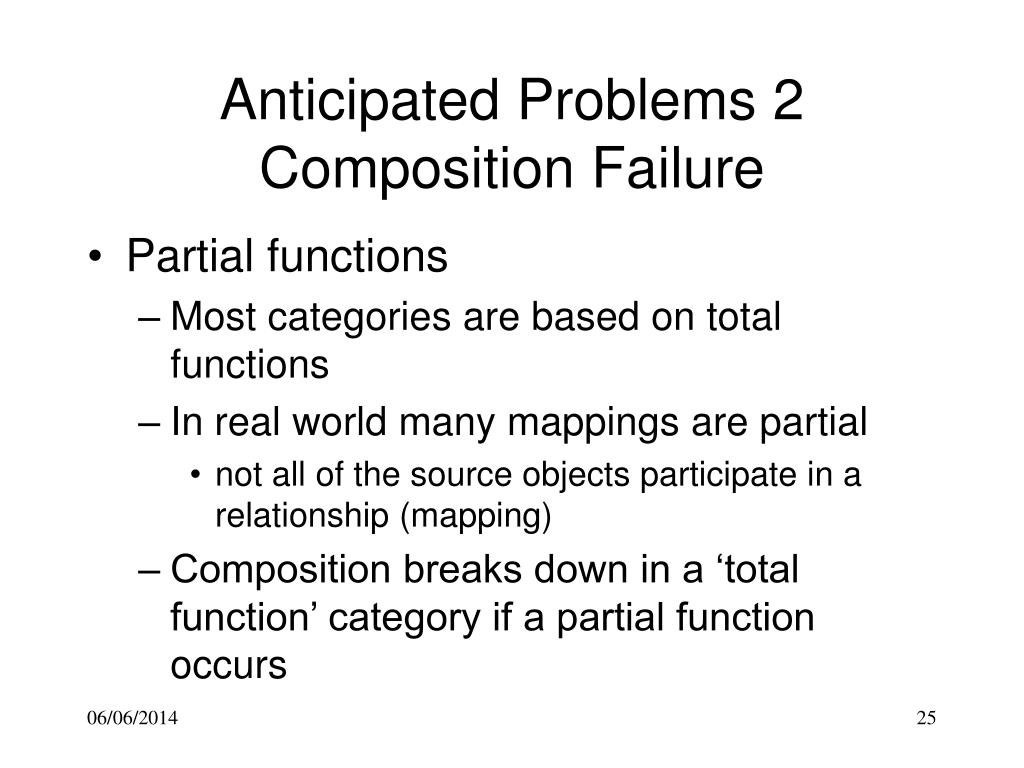

  25. Anticipated Problems 2Composition Failure • Partial functions • Most categories are based on total functions • In real world many mappings are partial • not all of the source objects participate in a relationship (mapping) • Composition breaks down in a ‘total function’ category if a partial function occurs

  26. Figure 10: Punctured Commuting Diagram After Freyd (1990)

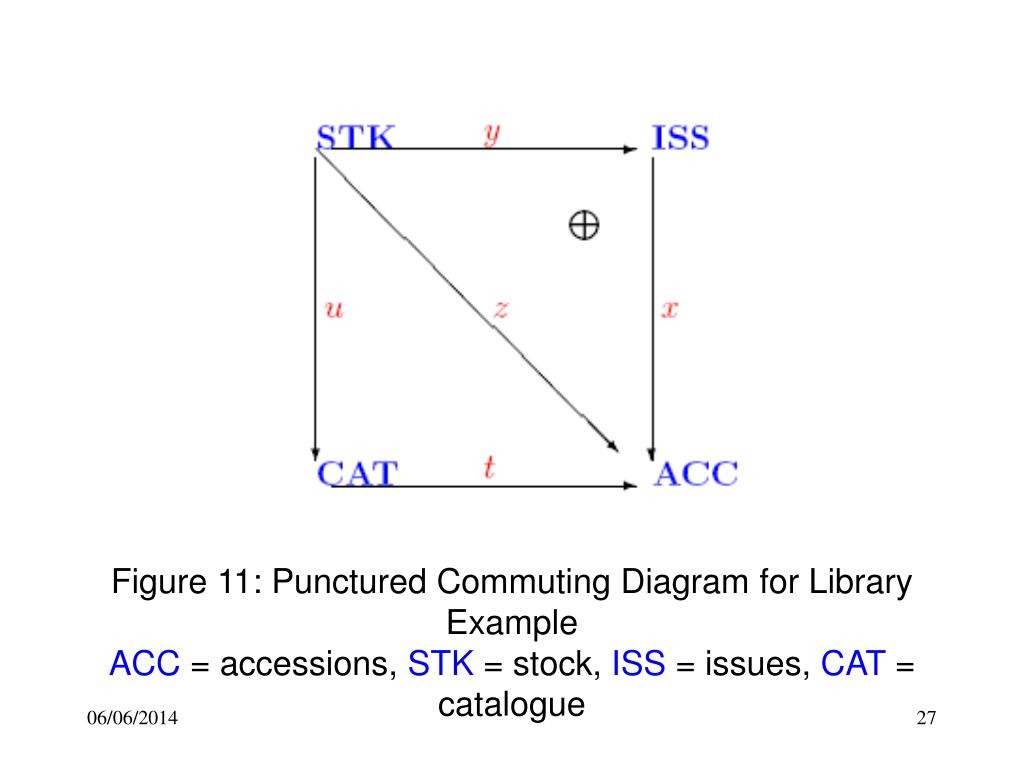

  27. Figure 11: Punctured Commuting Diagram for Library Example ACC = accessions, STK = stock, ISS = issues, CAT = catalogue

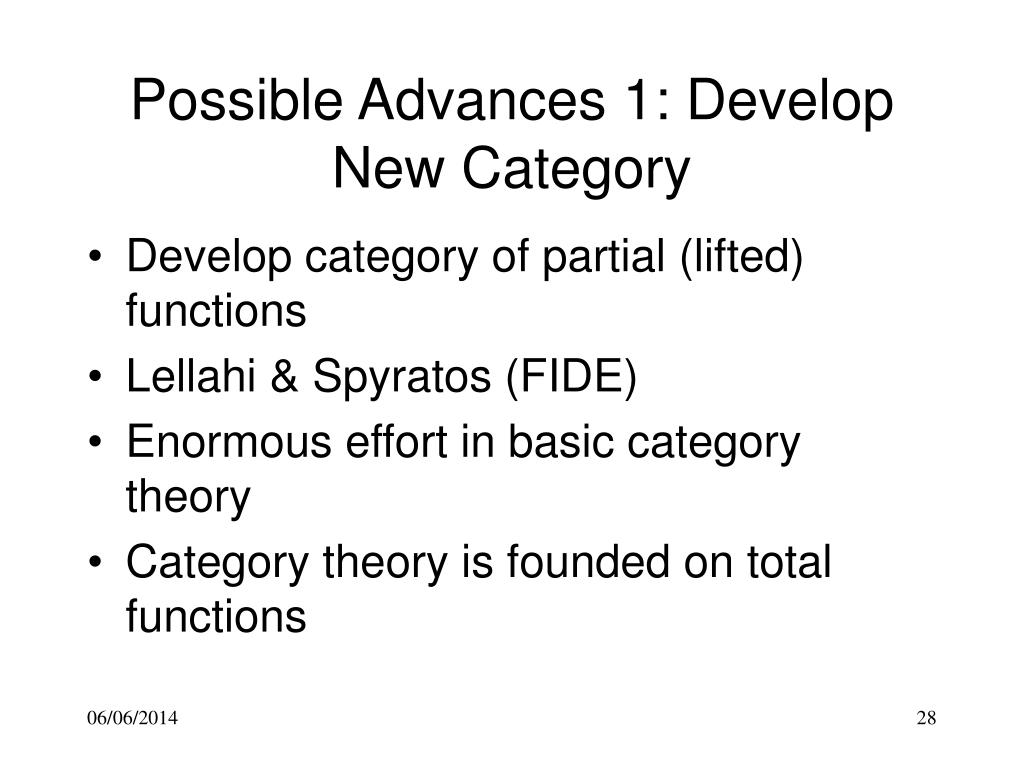

  28. Possible Advances 1: Develop New Category • Develop category of partial (lifted) functions • Lellahi & Spyratos (FIDE) • Enormous effort in basic category theory • Category theory is founded on total functions

  29. Possible Advances 2: Sketches • Use sketches • Relax composition rules for selected diagrams • Map graph-based sketch onto a category • Work by Rosebrugh, Diskin • Appealing for initial productivity • intuitively similar to ER modelling • But on fringes of category theory and lack flexibility and natural closure

  30. Preferred Advance • Avoid partial functions • Avoid such functions in design by greater use of roles • Convert all such functions into total ones: • map null relationships onto initial object (bottom)

  31. Figure 12: Non-punctured Commuting Diagram for Library Example ACC = accessions, STK = stock, ISS = issues, CAT = catalogue

  32. Summary • Formal four-level architecture promising for tackling interoperability: • Use of category theory in natural role • Structure through arrows (identity, category, functor, natural transformation) • Manipulate through Godement calculus • Problems: • Composition failure (particularly with partial functions) • Need semantic annotation
