Conditions for Parallelograms

Conditions for Parallelograms. Students will be able to show that a given quadrilateral is a parallelogram. Characteristics or Conditions. In the last section we learned five characteristics of a parallelogram. We use these when we already know the figure is a parallelogram.

lester
Télécharger la présentation

Conditions for Parallelograms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Conditions for Parallelograms Students will be able to show that a given quadrilateral is a parallelogram

  2. Characteristics or Conditions • In the last section we learned five characteristics of a parallelogram. We use these when we already know the figure is a parallelogram. • In this section, we will learn what conditions will prove that a quadrilateral is a parallelogram. If we have one of these, then we know we have a parallelogram. Unit G

  3. Condition 1: The Definition of a Parallelogram • If both pairs of opposite sides are parallel, then the quadrilateral is a parallelogram. A B D C Unit G

  4. Condition 2: One Pair of Opposite Sides • If one pair of opposite sides is both parallel and congruent, then the quadrilateral is a parallelogram. A B D C Unit G

  5. Condition 3: Both Pairs of Opposite Sides • If both pairs of opposite sides are congruent, then the quadrilateral is a parallelogram. A B D C Unit G

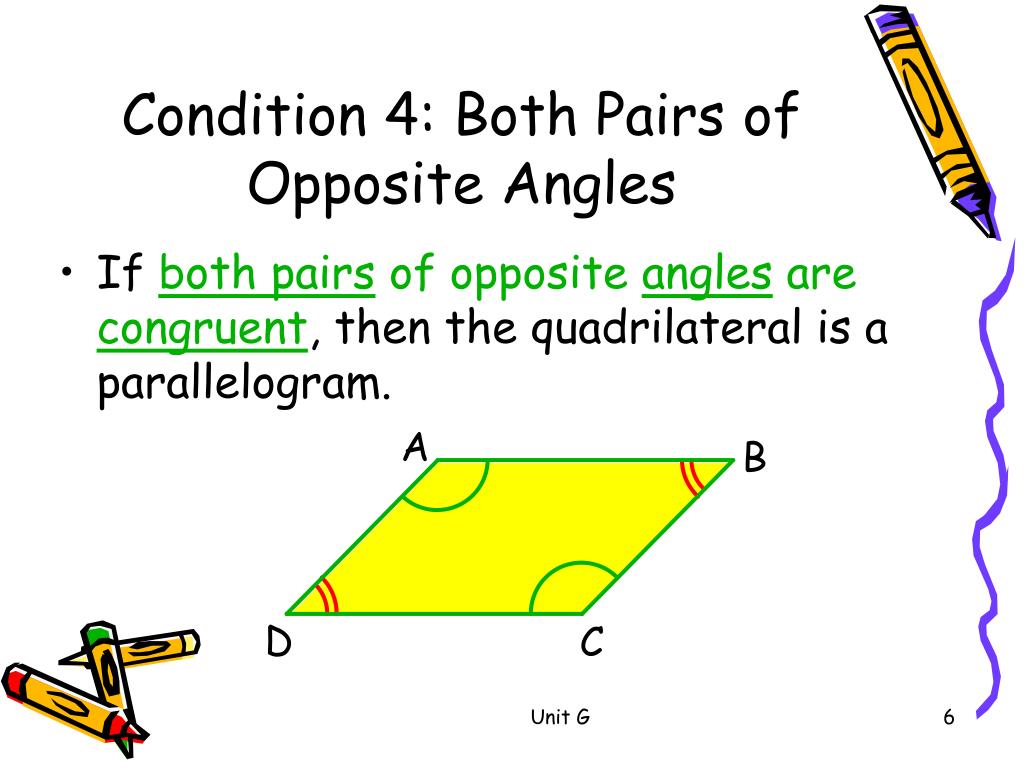

  6. Condition 4: Both Pairs of Opposite Angles • If both pairs of opposite angles are congruent, then the quadrilateral is a parallelogram. A B D C Unit G

  7. Condition 5: Consecutive Angles • If an angle is supplementary to both of its consecutive angles, then the quadrilateral is a parallelogram. A B (180 – x)º (180 – x)º xº D C Unit G

  8. Condition 6: Bisecting Diagonals • If the diagonals bisect each other, then the quadrilateral is a parallelogram. A B D C Unit G

  9. Example 1: Determine if each quadrilateral is a parallelogram Yes.The 73° angle is supplementary to both its consecutive angles. No.Only one pair of opposite angles are congruent. The conditions for a parallelogram are not met. Unit G

  10. Example 2: Determine if each quadrilateral is a parallelogram Yes.Since angles 1 and 2 are congruent by the 3rd Angle Theorem, both pairs of opposite angles of the quadrilateral are congruent. 1 2 No.Two pairs of consecutive sides are congruent. None of the sets of conditions for a parallel-ogram are met. Unit G

  11. Example 3: • Find the values of a and b that would make the quadrilateral a parallelogram. 15a – 11 = 10a + 4 5a = 15 a = 3 5b + 6 = 8b – 21 27 = 3b 9 = b Unit G
