Conditions for Special Parallelograms

osias avatar
osias
14 diapositives · 683 Views · Jul 30, 2014

Conditions for Special Parallelograms . Geometry CP1 (Holt 6-5) K. Santos. Special Parallelograms. Special Parallelograms: Rectangle Rhombus Square. Theorem 6-5-1. If one angle of a parallelogram is a right angle, then the parallelogram is a rectangle. A B

Conditions for Special Parallelograms - slide 1
01 / 14Conditions for Special Parallelograms
1 / 17

Télécharger la présentation

Conditions for Special Parallelograms
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Conditions for Special Parallelograms Geometry CP1 (Holt 6-5) K. Santos

  2. Special Parallelograms Special Parallelograms: Rectangle Rhombus Square

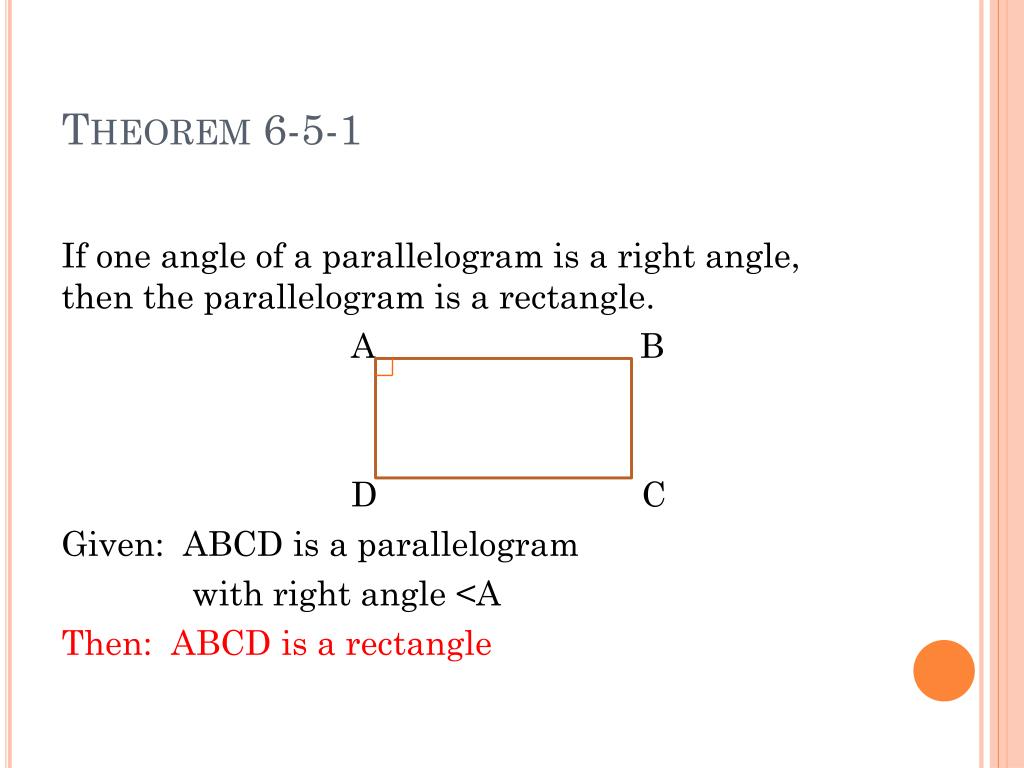

  3. Theorem 6-5-1 If one angle of a parallelogram is a right angle, then the parallelogram is a rectangle. A B D C Given: ABCD is a parallelogram with right angle <A Then: ABCD is a rectangle

  4. Theorem 6-5-2 If the diagonals of a parallelogram are congruent, then the parallelogram is a rectangle. A B D C Given: parallelogram with Then: ABCD is a rectangle

  5. Theorem 6-5-3 If one pair of consecutive sides of a parallelogram are congruent, then the parallelogram is a rhombus. A B D C Given: ABCD is a parallelogram with Then: ABCD is a rhombus

  6. Theorem 6-5-4 If the diagonals of a parallelogram are perpendicular, then the parallelogram is a rhombus. A B D C Given: parallelogram with Then: ABCD is a rhombus

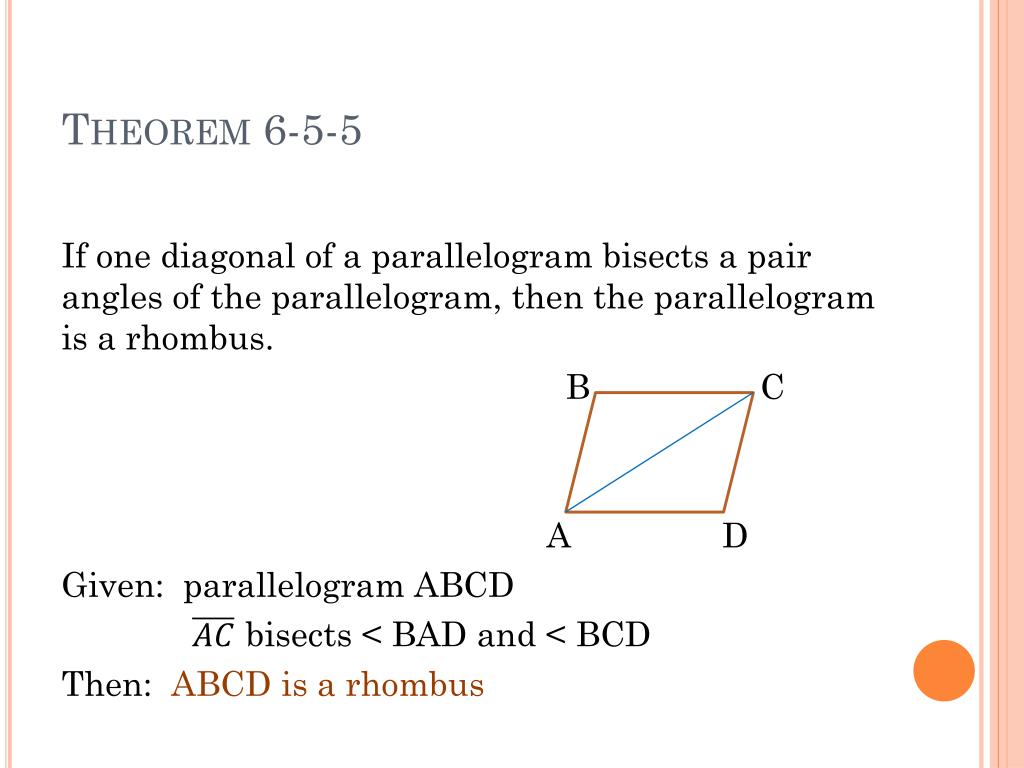

  7. Theorem 6-5-5 If one diagonal of a parallelogram bisects a pair angles of the parallelogram, then the parallelogram is a rhombus. B C A D Given: parallelogram ABCD bisects < BAD and < BCD Then: ABCD is a rhombus

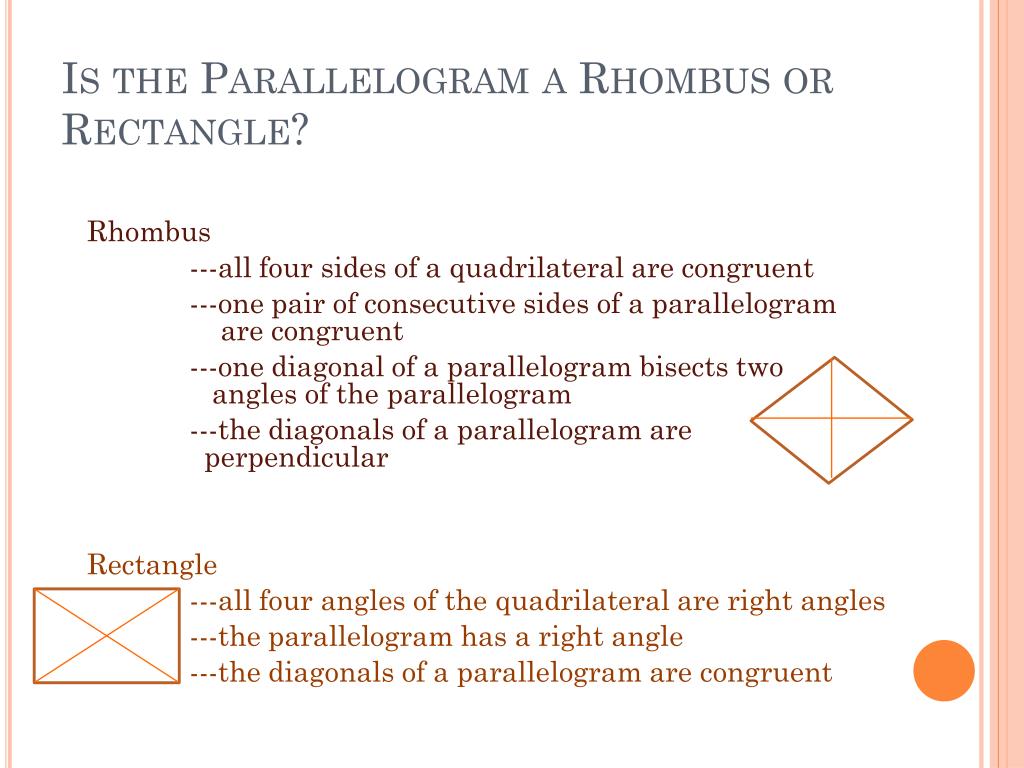

  8. Is the Parallelogram a Rhombus or Rectangle? Rhombus ---all four sides of a quadrilateral are congruent ---one pair of consecutive sides of a parallelogram are congruent ---one diagonal of a parallelogram bisects two angles of the parallelogram ---the diagonals of a parallelogram are perpendicular Rectangle ---all four angles of the quadrilateral are right angles ---the parallelogram has a right angle ---the diagonals of a parallelogram are congruent

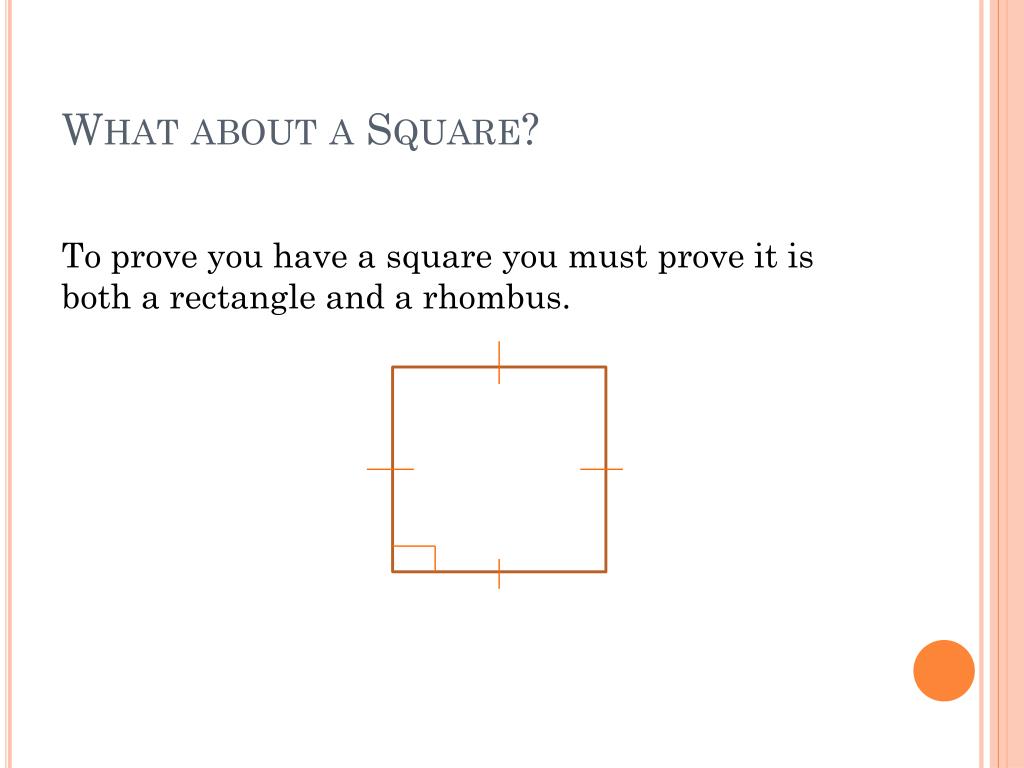

  9. What about a Square? To prove you have a square you must prove it is both a rectangle and a rhombus.

  10. Example—Identify special parallelogram Tell whether the quadrilateral is a parallelogram, rectangle, rhombus, or square. Given al the names that apply. Diagonals—bisected, congruent and perpendicular Parallelogram, rectangle, rhombus and square

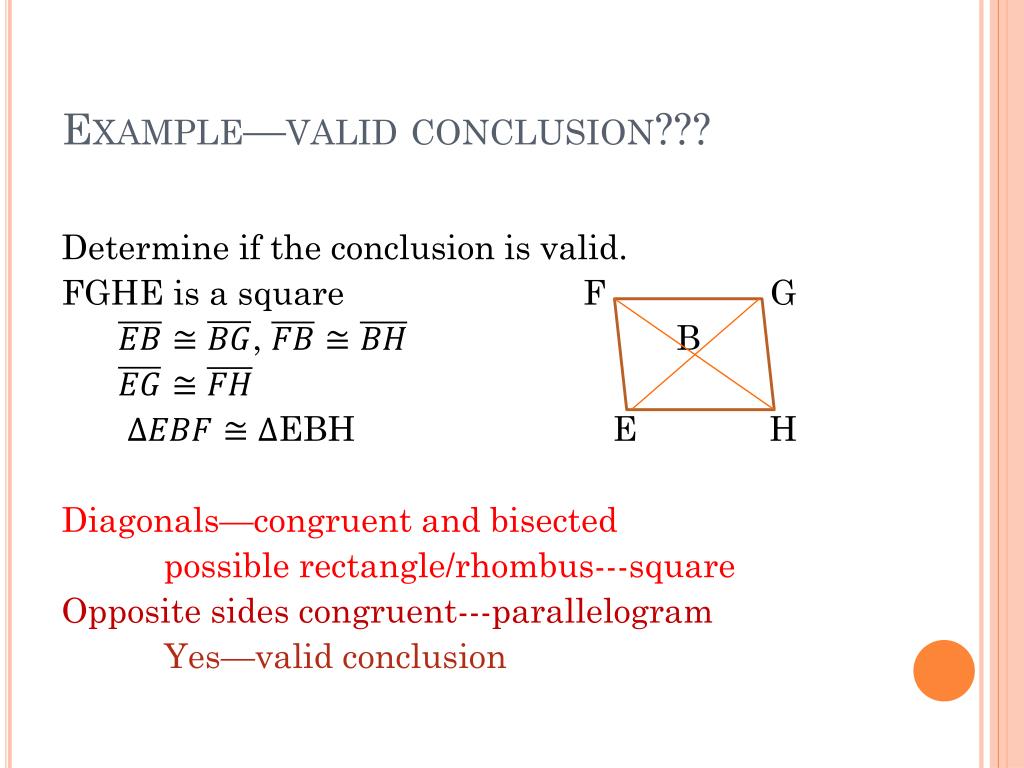

  11. Example—valid conclusion??? Determine if the conclusion is valid. FGHE is a square F G , B EBH E H Diagonals—congruent and bisected possible rectangle/rhombus---square Opposite sides congruent---parallelogram Yes—valid conclusion

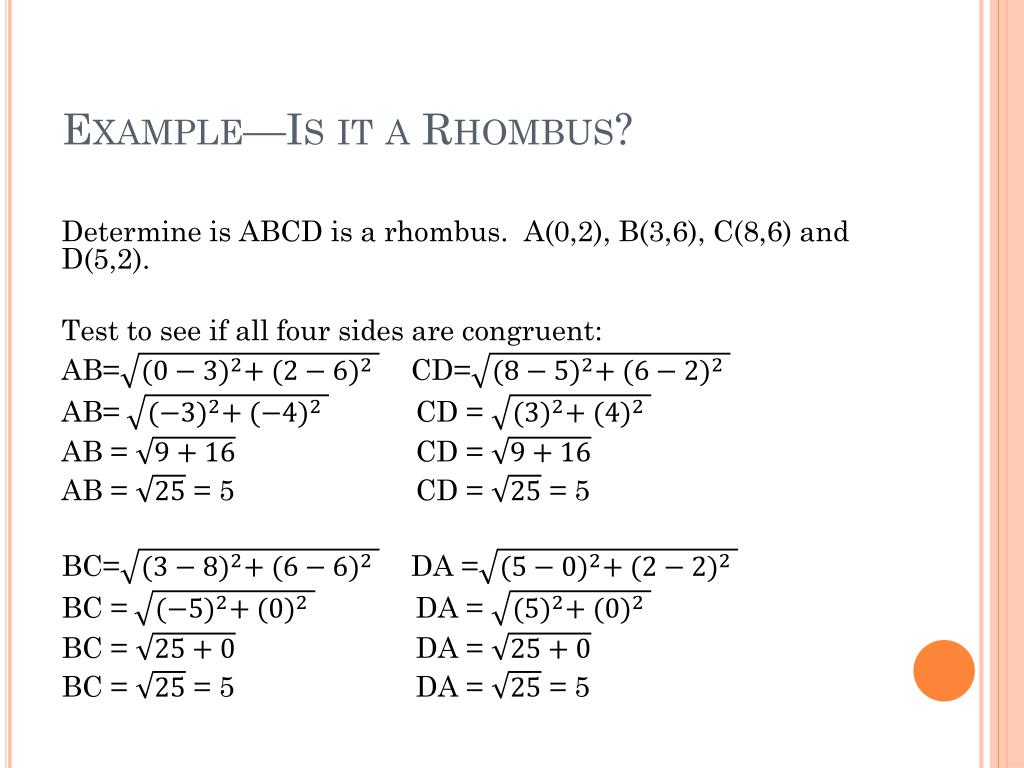

  12. Example—Is it a Rhombus? Determine is ABCD is a rhombus. A(0,2), B(3,6), C(8,6) and D(5,2). Test to see if all four sides are congruent: AB=CD= AB= CD = AB = CD = AB = = 5 CD = = 5 BC=DA = BC = DA = BC = DA = BC = = 5 DA = = 5

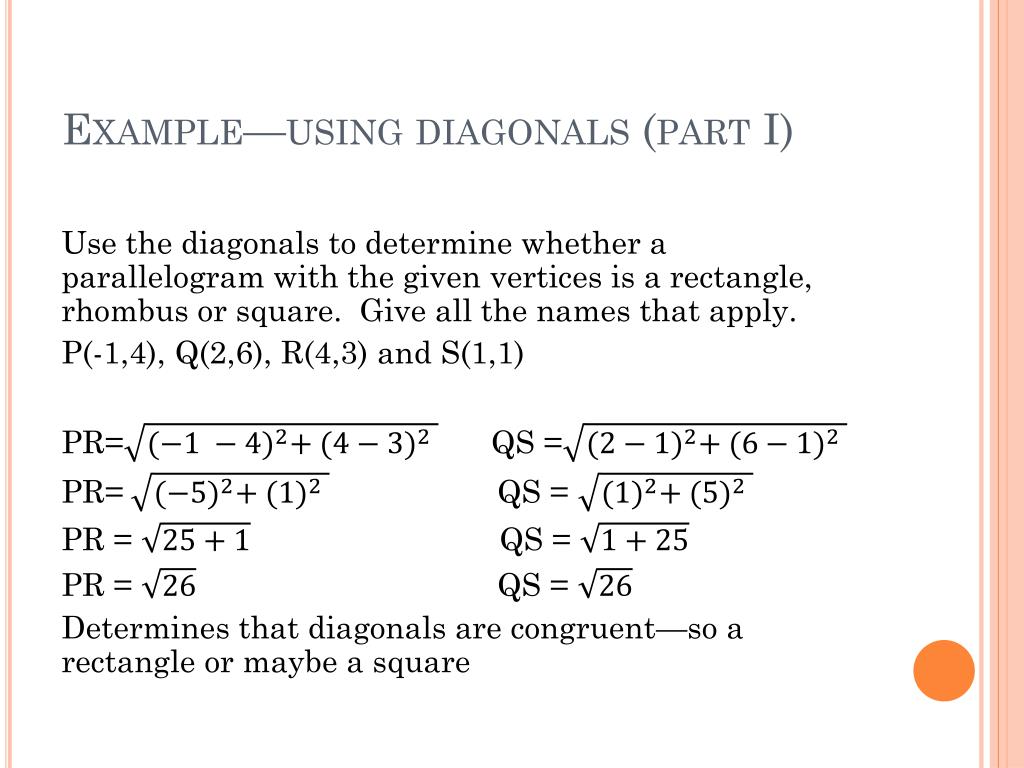

  13. Example—using diagonals (part I) Use the diagonals to determine whether a parallelogram with the given vertices is a rectangle, rhombus or square. Give all the names that apply. P(-1,4), Q(2,6), R(4,3) and S(1,1) PR= QS = PR= QS = PR = QS = PR = QS = Determines that diagonals are congruent—so a rectangle or maybe a square

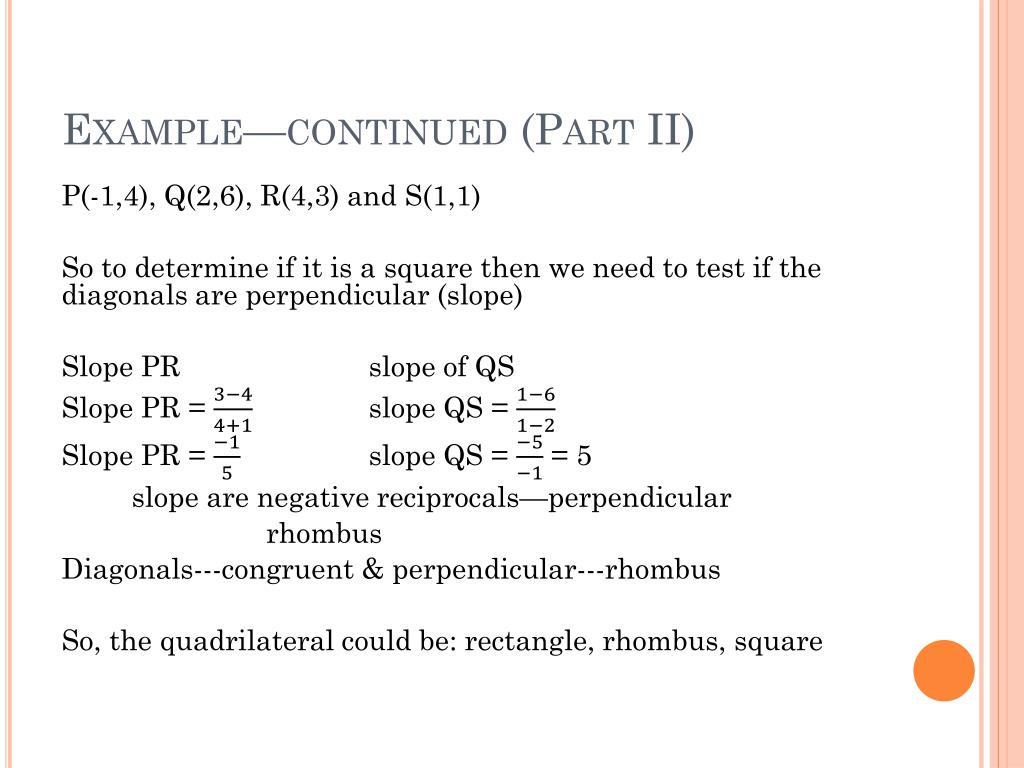

  14. Example—continued (Part II) P(-1,4), Q(2,6), R(4,3) and S(1,1) So to determine if it is a square then we need to test if the diagonals are perpendicular (slope) Slope PR slope of QS Slope PR = slope QS = Slope PR = slope QS = = 5 slope are negative reciprocals—perpendicular rhombus Diagonals---congruent & perpendicular---rhombus So, the quadrilateral could be: rectangle, rhombus, square
